navigation TOYOTA SIENNA 2007 XL20 / 2.G Navigation Manual

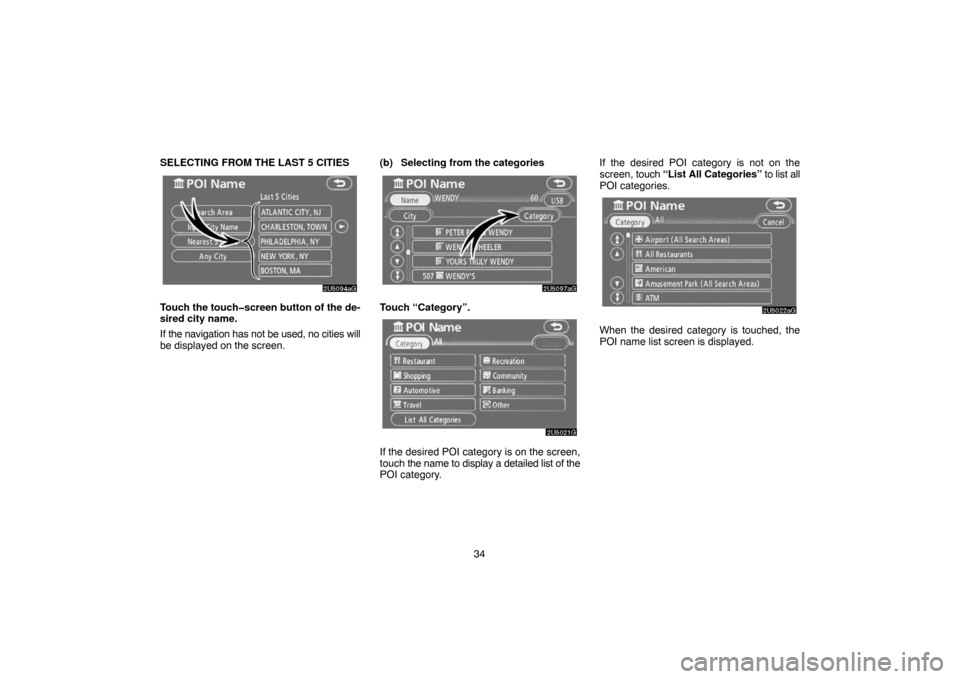

34 SELECTING FROM THE LAST 5 CITIES
Touch the touchscreen button of the de-
sired city name.
If the navigation has not be used, no cities will
be displayed on the screen.(b) Selecting from the categoriesTouch “Category”.
If the desired POI category is on the screen,
touch the name to display a detailed list of the
POI category.If the desired POI category is not on the
screen, touch “List All Categories” to list all
POI categories.
When the desired category is touched, the
POI name list screen is displayed.

38

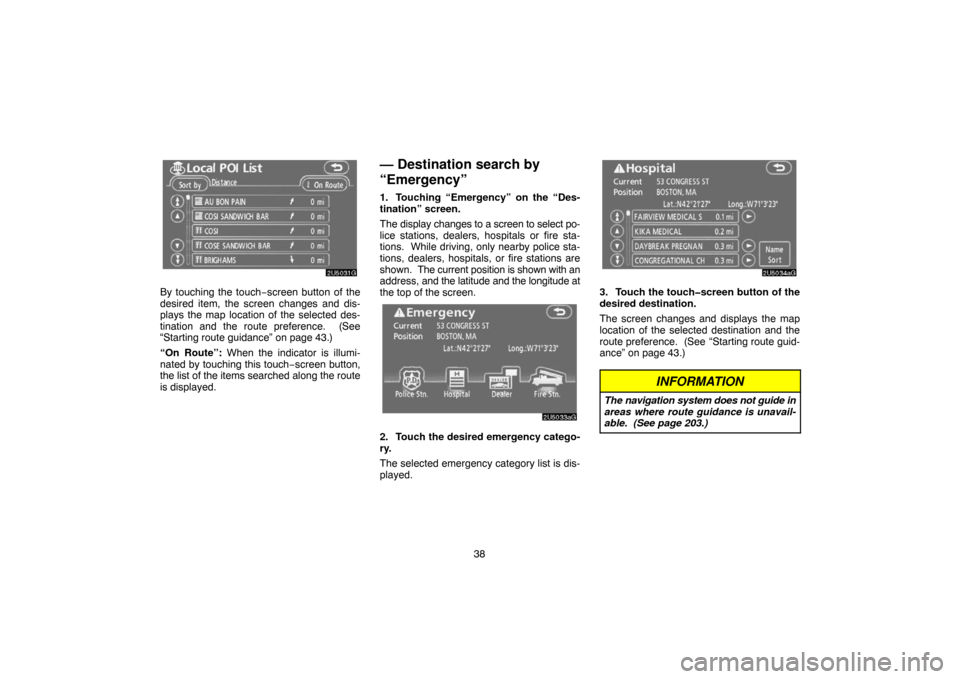

By touching the touch−screen button of the
desired item, the screen changes and dis-
plays the map location of the selected des-
tination and the route preference. (See
“Starting route guidance” on page 43.)
“On Route”: When the indicator is illumi-
nated by touching this touch−screen button,
the list of the items searched along the route
is displayed.
— Destination search by
“Emergency”
1. Touching “Emergency” on the “Des-
tination” screen.
The display changes to a screen to select po-
lice stations, dealers, hospitals or fire sta-
tions. While driving, only nearby police sta-
tions, dealers, hospitals, or fire stations are
shown. The current position is shown with an
address, and the latitude and the longitude at
the top of the screen.
2. Touch the desired emergency catego-
ry.
The selected emergency category list is dis-
played.
3. Touch the touchscreen button of the
desired destination.
The screen changes and displays the map
location of the selected destination and the
route preference. (See
“Starting route guid-
ance” on page 43.)
INFORMATION
The navigation system does not guide in
areas where route guidance is unavail-
able. (See page 203.)

67
Volume
Voice guidance can be used when approach-
ing a destination.
The volume of the voice or turn off voice guid-
ance can be adjusted.
1. Push the “MENU” button.
2. Touch “Volume”.
To adjust the volume, select the desired level
by touching the appropriate number.
If voice guidance is unneeded, touch “OFF”.
The selected item is highlighted.
INFORMATION
During route guidance, the voice guid-
ance continues even if the navigation
screen is changed to other screens.
“Adaptive Volume Control”: By turning
“Adaptive Volume Control” on, the volume is
turned up automatically when the vehicle
speed exceeds 50 mph (80 km/h).
To turn the “Adaptive Volume Control” system
on, touch the button. The indicator will be
highlighted.
User selection
The system can memorize the following set-
tings for up to three users.
Map direction
Map scale
Map configuration
Guidance mode
Setup
Volume
Language
Route trace
Travel time/arrival time
Right screen of dual map
Road preference
Maintenance notification

88
3. Touch the desired touchscreen but-
ton.
INFORMATION
For additional information on the accu-
racy of a current vehicle position, see
“Limitations of the navigation system”
on page 202.
POSITION/DIRECTION CALIBRATION
When driving, the current vehicle position
mark will be automatically corrected by GPS
signals. If GPS reception is poor due to loca-
tion, you can manually adjust the current ve-
hicle position mark.
1. Touch “Position/Direction”.
2. Touch the scroll arrows to move the
cursor
to your desired location.
3. Touch “Enter”.
4. Touch either or to adjust the di-
rection of the current vehicle position
mark.
5. Touch “Enter”.
The map screen will be displayed.

92
Maintenance information —
— Maintenance information
setting
When the Navigation System is turned on, the
“Information” screen displays when it is time
to replace a part or certain components. (See
page 3.)
1. Push the “INFO” button.
2. Touch “Maintenance”.
3. Touch the desired touchscreen but-
ton.
For details of each touch−screen button, see
“INFORMATION ITEMS” on page 92.
“Delete All”: To cancel all conditions which
have been inputted.
“Reset All”: To reset the item which has sat-
isfied a condition.
“Set Dealer”: To register or edit dealer infor-
mation. (See “ — Dealer setting” on page
93.)
If “ON” is selected, the system gives mainte-
nance information with the “Information”
screen when the system is turned on. (See
page 3.)
If “OFF” is selected, the “Information” screen
is disabled.
When the vehicle needs to be serviced, the
touch−screen button color will change to
orange.INFORMATION ITEMS
“ENGINE OIL”: Replace engine oil
“OIL FILTER”: Replace engine oil filter
“ROTATION”: Rotate tires
“TIRES”: Replace tires
“BATTERY”: Replace battery
“BRAKE PAD”: Replace brake linings
“WIPERS”: Replace wiper blades
“LLC”: Replace engine coolant
“BRAKE OIL”: Replace brake fluid
“ATF”: Replace ATF
“SERVICE”: Scheduled maintenance
“AIR FILTER”: Replace air filter
“PERSONAL”: New information items can
be created separately from provided ones

100
INFORMATION
In the following conditions, the system
may not function.
The cellular phone is turned OFF.
The current position is outside the
communication area.
The cellular phone is not connected.
The cellular phone has a low battery.
By pushing the telephone switch above,
you can receive a call or hang up without
taking your hands off the steering wheel.
MicrophoneYou can use the microphone above when
talking on the phone.
The other party’s voice outputs from the driv-
er’s speaker. When the received calls or re-
ceived voice outputs, the audio from the Au-
dio system or voice guidance from the
Navigation system will be muted.
INFORMATION
Talk alternately with the other party on
the phone. If you talk at the same time,
the voice may not reach each other. (It
is not a malfunction.)
Keep the volume of receiving voice
down. Otherwise, echo is coming up.
When you talk on the phone, speak
clearly towards the microphone.
In the following situations, your voice
may not reach the other party.
Driving on unpaved road. (Too
much road noise.)
Driving at high speed.
Windows are open.
If airconditioning vents are turned
towards the microphone.
The sound of the airconditioning
fan is loud.

111
Dialing by phone number
You can call by giving a desired number.
You: Push the talk switch.
System: “After the beep, please say the
number.”
You: “812387”
System: “When ready, please briefly push
the talk switch or push the
off−hook switch to dial.”
You: Push the talk switch.
System: “After the beep, please continue to
add numbers or say “Dial”.”
You: “Dial.”
System: “Dialing the number.”
Now you are calling 812387.
Sending a tone
You can send a tone by giving a desired
number.
You: Push the talk switch.
System: “Say numbers, pound, or star.”
You: “1234.”
System: “1234.” “Push the talk switch.”
You: Push the talk switch.
System: “Send? Say Yes or No.”
You: “Yes.”
System: “Sending.”
Now you are sending the tone.(vii) By POI call
You can call by touching when it is
displayed on the screen from Navigation
system. (See page 11 for details.)

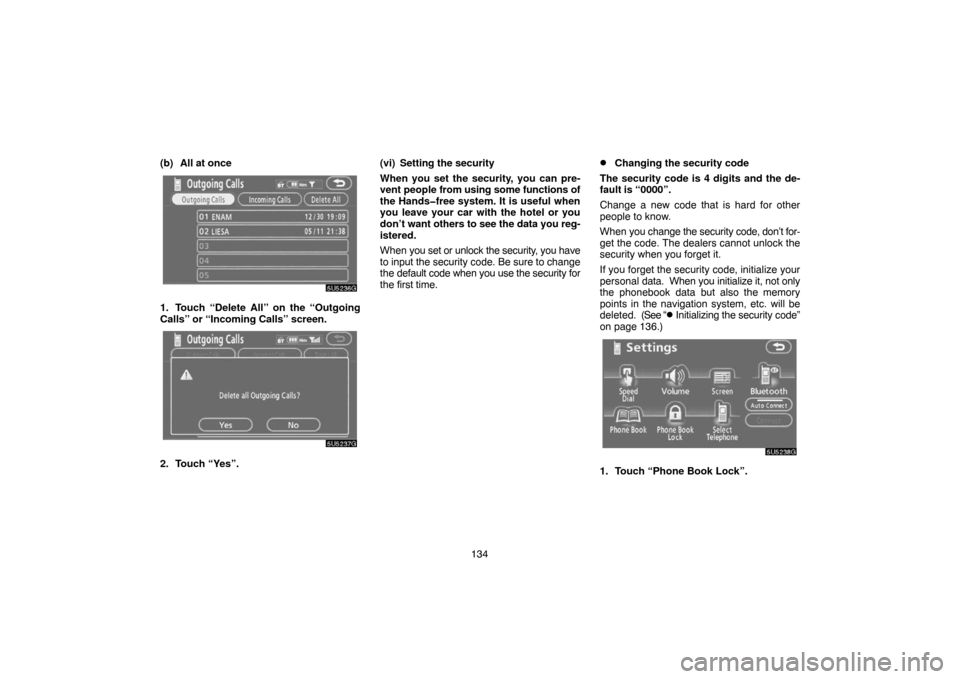

134 (b) All at once
1. Touch “Delete All” on the “Outgoing
Calls” or “Incoming Calls” screen.
2. Touch “Yes”.(vi) Setting the security
When you set the security, you can pre-
vent people from using some functions of
the Handsfree system. It is useful when
you leave your car with the hotel or you
don’t want others to see the data you reg-
istered.
When you set or unlock the security, you have
to input the security code. Be sure to change
the default code when you use the security for
the first time.
Changing the security code
The security code is 4 digits and the de-
fault is “0000”.
Change a new code that is hard for other
people to know.
When you change the security code, don’t for-
get the code. The dealers cannot unlock the
security when you forget it.
If you forget the security code, initialize your
personal data. When you initialize it, not only
the phonebook data but also the memory
points in the navigation system, etc. will be
deleted. (See “
 Initializing the security code”
on page 136.)
1. Touch “Phone Book Lock”.

142
2. When you complete confirming it,
touch
.
Speech command system
The speech command system enables
you to operate the navigation system by
giving a command.
1. Push the talk switch.
A beep sounds and on screen message is
displayed with an indicator at the top left.
2. Say a command while the indicator is
shown on the display.
If you want to check the command list,
touch “Help” to display the help screen.
(See “Help screen” on page 144.) When
you touch “Cancel”, the previous screen
returns.
If the navigation system does not respond or
the confirmation screen does not disappear,
please push the talk switch and try again.
If no command is given, a beep sounds and
the indicator disappears 6 seconds later.
If the system does not recognize your
speech, the system will respond with this
message (“System does not recognize this
command, please rephrase your com-
mand.”). Start the operation from the begin-
ning.

147
(a) Automatic transition
You can select a function that enables au-
tomatic return to the navigation screen
from the audio screen.
Select “ON” or “OFF” and then touch
“OK”.
“ON”:The navigation screen automatically
returns from the audio screen 20
seconds after the end of audio op-
eration.
“OFF”:The audio screen remains on.
(b) Switch color
You can select a color of touchscreen
buttons.
Select “Green” or “Orange” and then
touch “OK”.
(c) Rear system lock
(with rear seat entertainment
system)
If the vehicle is equipped with the rear seat
entertainment system, the rear seat enter-
tainment system can be locked to prevent
rear passengers from operating the enter-
tainment system.
Select “ON” or “OFF” and then touch
“OK”.
“ON”: The rear passengers cannot operate
the rear seat entertainment system. Only
front passengers can operate the system.
“OFF”: Both the front and rear passengers
can operate the rear seat entertainment sys-
tem.
