TOYOTA SIENNA 2007 XL20 / 2.G Owners Manual

07 SIENNA_U (L/O 0612)
153
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

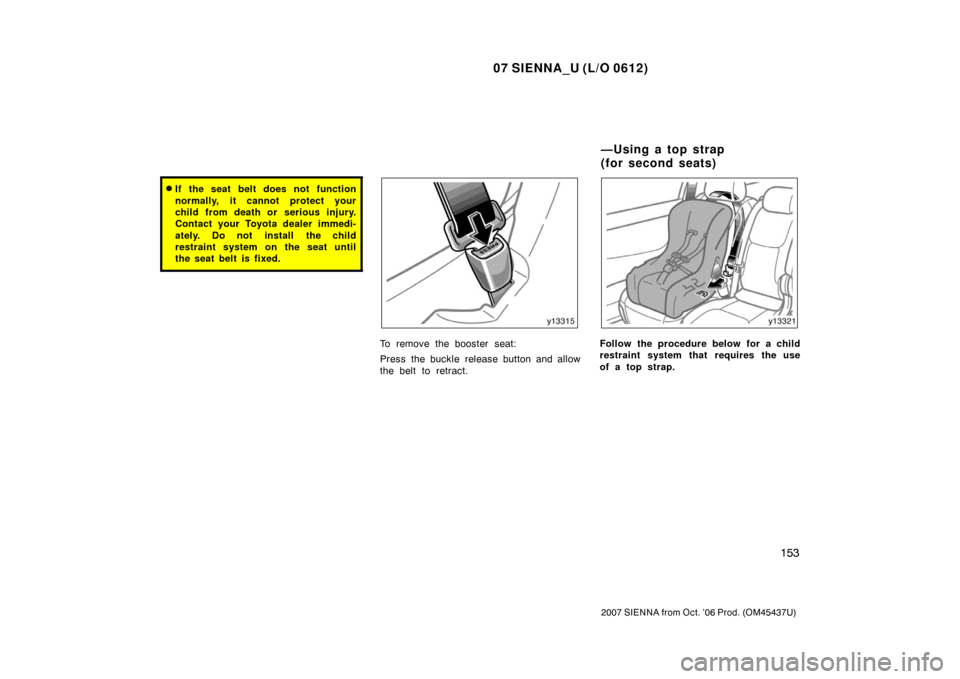

If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
To remove the booster seat:
Press the buckle release button and allow
the belt to retract.Follow the procedure below for a child
restraint system that requires the use
of a top strap.
— U sin g a to p st rap
(for second seats)

07 SIENNA_U (L/O 0612)
154
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

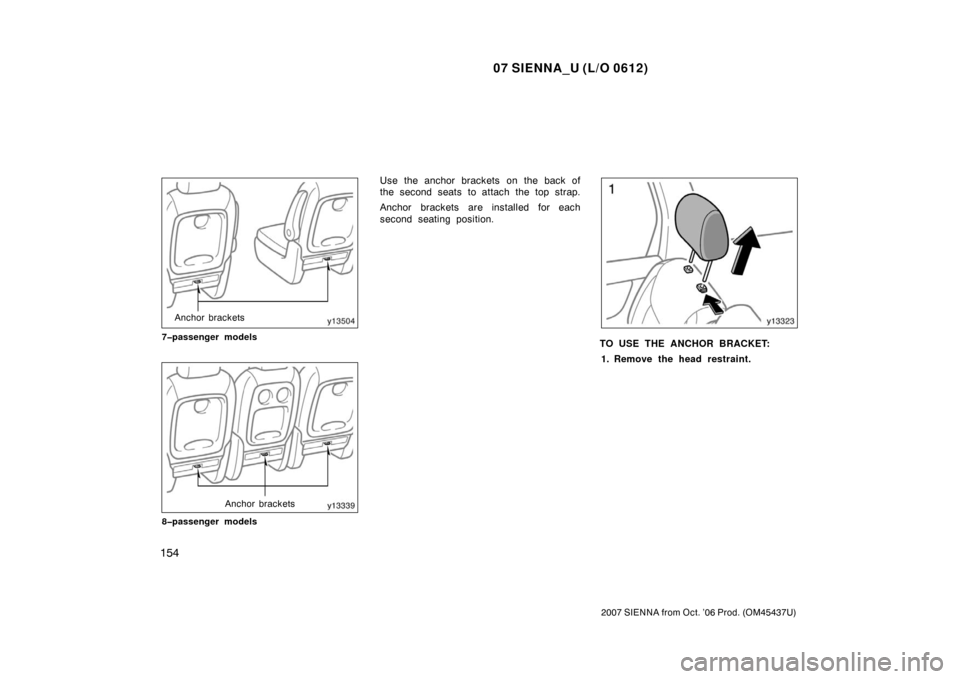

Anchor brackets
7passenger models
Anchor brackets
8passenger models
Use the anchor brackets on the back of
the second seats to attach the top strap.
Anchor brackets are installed for each
second seating position.
TO USE THE ANCHOR BRACKET: 1. Remove the head restraint.

07 SIENNA_U (L/O 0612)
155
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

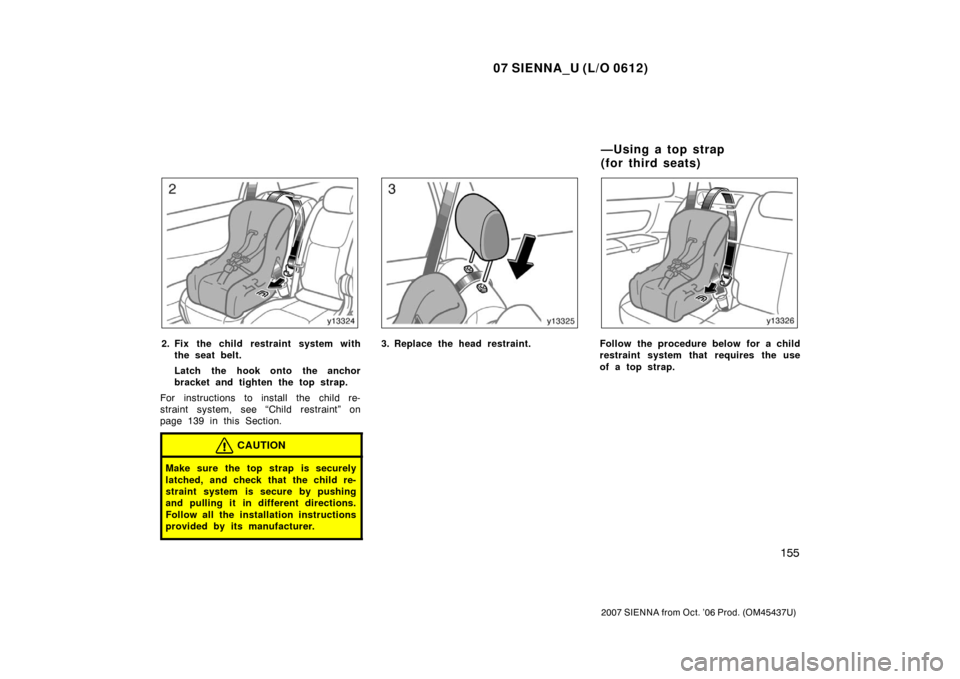

2. Fix the child restraint system withthe seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 139 in this Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
3. Replace the head restraint.Follow the procedure below for a child
restraint system that requires the use
of a top strap.
— U sin g a to p st rap
(for third seats)

07 SIENNA_U (L/O 0612)
156
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

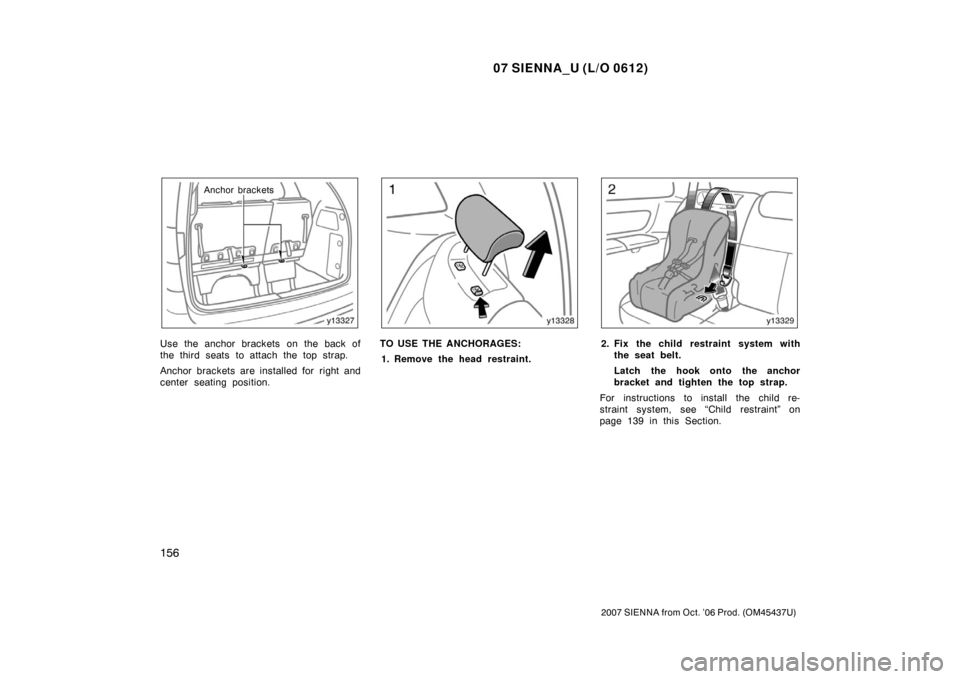

Anchor brackets
Use the anchor brackets on the back of
the third seats to attach the top strap.
Anchor brackets are installed for right and
center seating position.TO USE THE ANCHORAGES:1. Remove the head restraint.2. Fix the child restraint system with the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 139 in this Section.

07 SIENNA_U (L/O 0612)
157
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

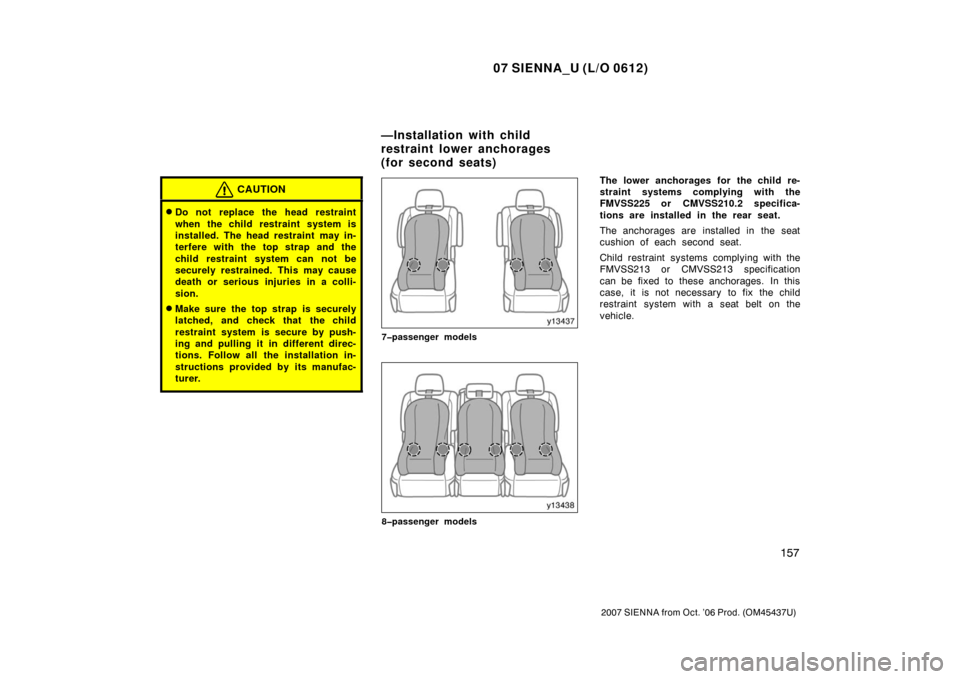

CAUTION
Do not replace the head restraint
when the child restraint system is
installed. The head restraint may in-
terfere with the top strap and the
child restraint system can not be
securely restrained. This may cause
death or serious injuries in a colli-
sion.
Make sure the top strap is securely
latched, and check that the child
restraint system is secure by push-
ing and pulling it in different direc-
tions. Follow all the installation in-
structions provided by its manufac-
turer.
7passenger models
8passenger models
The lower anchorages for the child re-
straint systems complying with the
FMVSS225 or CMVSS210.2 specifica-
tions are installed in the rear seat.
The anchorages are installed in the seat
cushion of each second seat.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
—Installation with child
restraint lower anchorages
(for second seats)

07 SIENNA_U (L/O 0612)
158
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

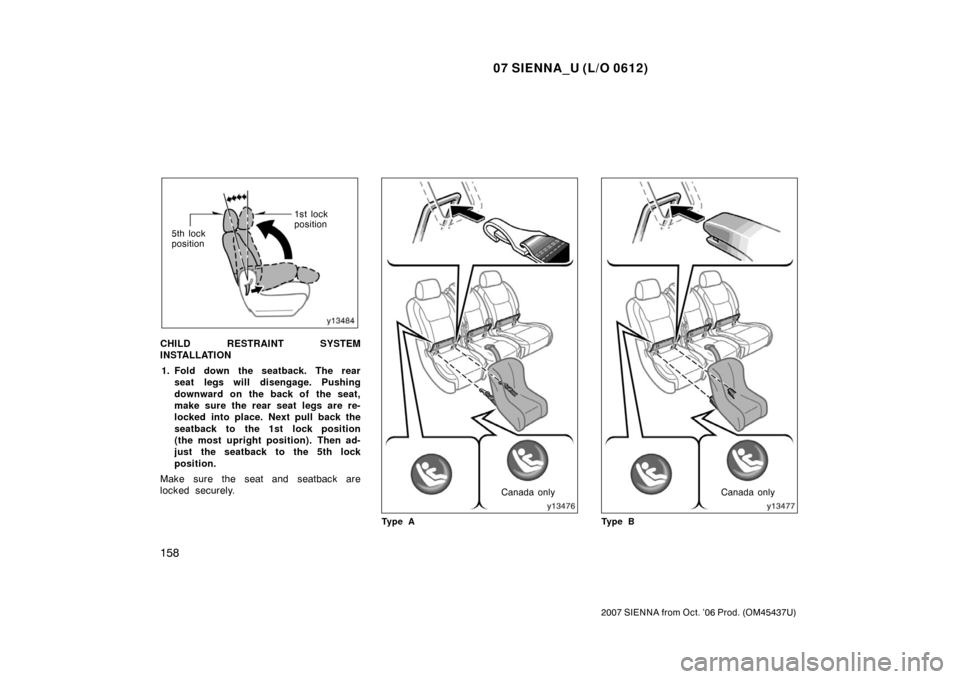

1st lock
position
5th lock
position
CHILD RESTRAINT SYSTEM
INSTALLATION
1. Fold down the seatback. The rear seat legs will disengage. Pushing
downward on the back of the seat,
make sure the rear seat legs are re-
locked into place. Next pull back the
seatback to the 1st lock position
(the most upright position). Then ad-
just the seatback to the 5th lock
position.
Make sure the seat and seatback are
locked securely.
Canada only
Ty p e ACanada only
Ty p e B

07 SIENNA_U (L/O 0612)
159
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
2. Turn up the covers for the lower an-chorages. Confirm the position of
the lower anchorages near the but-
ton in the seat cushion.
3. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap (for second seats)” on page
153 in this Section.)
For installation details, refer to the instruc-

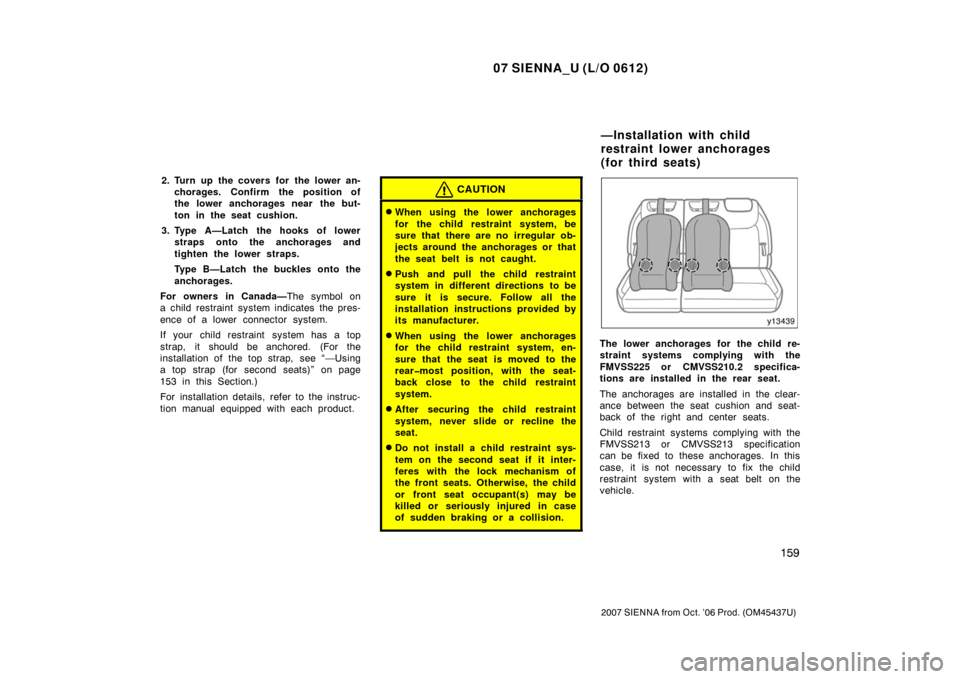

tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
When using the lower anchorages
for the child restraint system, en-
sure that the seat is moved to the
rearmost position, with the seat-
back close to the child restraint
system.
After securing the child restraint
system, never slide or recline the
seat.
Do not install a child restraint sys-
tem on the second seat if it inter-
feres with the lock mechanism of
the front seats. Otherwise, the child
or front seat occupant(s) may be
killed or seriously injured in case
of sudden braking or a collision.
The lower anchorages for the child re-
straint systems complying with the
FMVSS225 or CMVSS210.2 specifica-
tions are installed in the rear seat.
The anchorages are installed in the clear-
ance between the seat cushion and seat-
back of the right and center seats.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
—Installation with child
restraint lower anchorages
(for third seats)

07 SIENNA_U (L/O 0612)
160
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

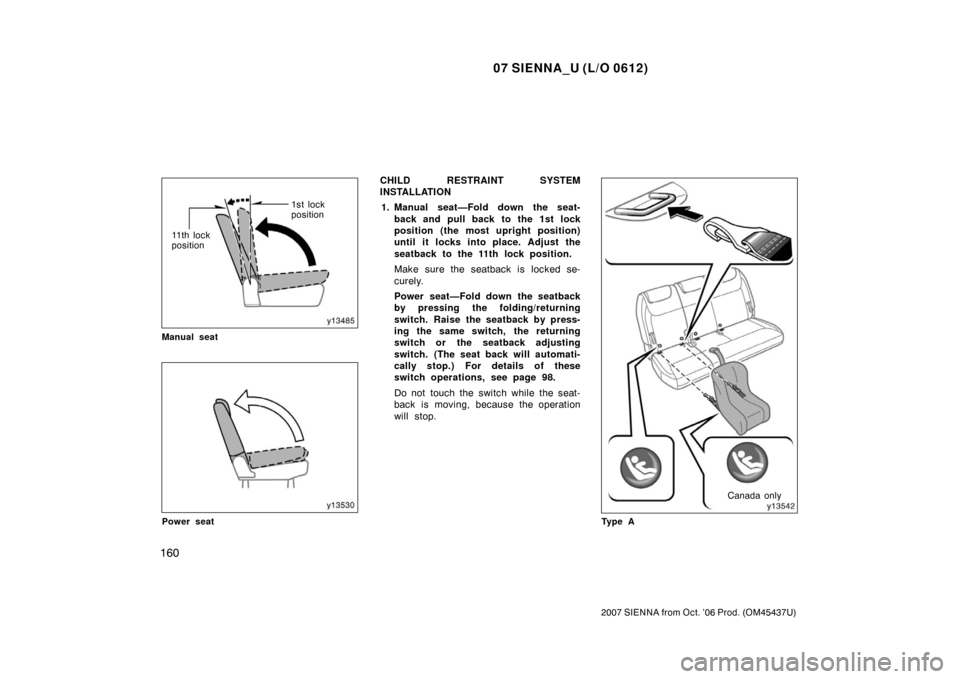

1st lock
position
11 t h l o c k
position
Manual seat
Power seat
CHILD RESTRAINT SYSTEM
INSTALLATION 1. Manual seat—Fold down the seat- back and pull back to the 1st lock
position (the most upright position)
until it locks into place. Adjust the
seatback to the 11th lock position.
Make sure the seatback is locked se-
curely.
Power seat—Fold down the seatback
by pressing the folding/returning
switch. Raise the seatback by press-
ing the same switch, the returning
switch or the seatback adjusting
switch. (The seat back will automati-
cally stop.) For details of these
switch operations, see page 98.
Do not touch the switch while the seat-
back is moving, because the operation
will stop.
Canada only
Ty p e A

07 SIENNA_U (L/O 0612)
161
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
Canada only
Ty p e B
2. Widen the gap between the seat cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
3. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap (for third seats)” on page 155
in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
After securing the child restraint
system, never recline the seat.
Do not put a child restraint system
on the third seat if it interferes with
the lock mechanism of the second
seats. Otherwise, the child or front
(or second) seat occupant(s) may
be killed or seriously injured in
case of sudden braking or a colli-
sion.
