TOYOTA SIENNA 2007 XL20 / 2.G Owner's Guide

07 SIENNA_U (L/O 0612)
23
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

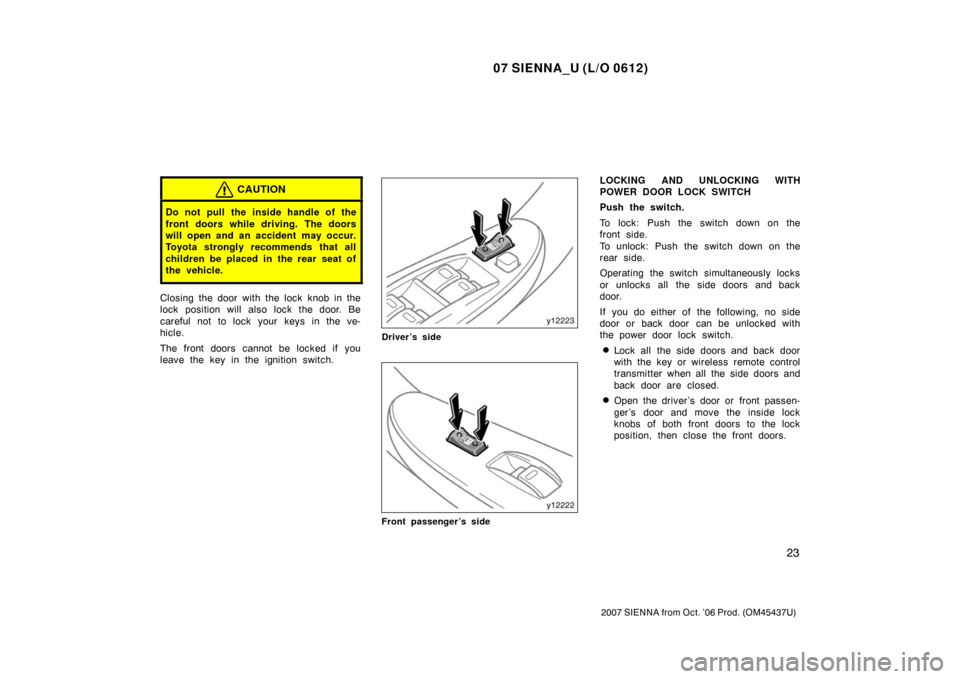

CAUTION
Do not pull the inside handle of the
front doors while driving. The doors
will open and an accident may occur.
Toyota strongly recommends that all
children be placed in the rear seat of
the vehicle.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
The front doors cannot be locked if you
leave the key in the ignition switch.
Driver’s side
Front passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
Operating the switch simultaneously locks
or unlocks all the side doors and back
door.
If you do either of the following, no side
door or back door can be unlocked with
the power door lock switch.
Lock all the side doors and back door
with the key or wireless remote control
transmitter when all the side doors and
back door are closed.
Open the driver ’s door or front passen-
ger’s door and move the inside lock
knobs of both front doors to the lock
position, then close the front doors.

07 SIENNA_U (L/O 0612)
24
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
The power door lock switch can be reset
in the following ways.
Turn the ignition key to “ON”.
Unlock all the side doors and back
door with the key or wireless remote
control transmitter.
Unlock the driver’s door or front pas-
senger ’s door with the inside lock
knob, and then unlock all the doors
and back door with the power door
lock switch.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle in an accident. It also helps pre-
vent the doors from being opened
unintentionally.
AUTOMATIC DOOR LOCKING
You can select the following functions:
Locking linked with the shift position
All doors are automatically locked when
the selector lever is moved out of “P”
position.
Locking linked with vehicle speed
All doors are automatically locked when
the vehicle speed goes above about 20
km/h (12 mph).
You can set or cancel the automatic
door locking functions:
Be sure to apply the parking brake when
performing the following operations.
To select the locking linked with the
shift position: 1. Close all doors and turn the ignition key to the “ON” position.
2. Shift the selector lever to the “P” posi- tion. 3. Within 10 seconds of turning the igni-
tion key to the “ON” position, press
and hold the driver’s side power door
lock switch in the lock position for 5
seconds and then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again.
To select the locking linked with the
vehicle speed:
1. Close all doors and turn the ignition key to the “ON” position.
2. Shift the selector lever from “P” to the “N” position.
3. Within 10 seconds of turning the igni- tion key to the “ON” position, press
and hold the driver’s side power door
lock switch in the lock position for 5
seconds and then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again.
—Automatic door locking and
unlocking functions

07 SIENNA_U (L/O 0612)
25
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
AUTOMATIC DOOR UNLOCKING
You can select the following functions:
Unlocking linked with the shift posi-
tion
All doors are automatically unlocked
when the selector lever is moved to
“P” position.
Unlocking linked with the ignition
switch
All doors are automatically unlocked
when the driver ’s door is opened within
10 seconds after the ignition key is
turned to the “ACC” or “LOCK” posi-
tion, or the key is removed.
You can set or cancel the automatic
door unlocking functions:
Be sure to apply the parking brake when
performing the following operations.
To select the unlocking linked with the
shift position:
1. Close all doors and turn the ignition key to the “ON” position.
2. Shift the selector lever to the “P” posi- tion. 3. Within 10 seconds of turning the igni-
tion key to the “ON” position, press
and hold the driver’s side power door
lock switch in the unlock position for
5 seconds and then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again.
To select the unlocking linked with the
ignition switch:
1. Close all doors and turn the ignition key to the “ON” position.
2. Shift the selector lever from “P” to the “N” position.
3. Within 10 seconds of turning the igni- tion key to the “ON” position, press
and hold the driver’s side power door
lock switch in the unlock position for
5 seconds and then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again.
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Move the knob forward.
To unlock: Move the knob backward.
Closing the sliding door with the lock knob
in the lock position will also lock the slid-
ing door. Be careful not to lock your keys
in the vehicle.
Sliding doors (nonpowered)

07 SIENNA_U (L/O 0612)
26
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
CLOSING THE FULLYOPENED SLIDING
DOOR
To close the fully−opened sliding door, pull
the inside or outside handle and then
close the door.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the passengers from being
thrown out from the vehicle in an
accident. It also helps prevent the
doors from being opened unintention-
ally.

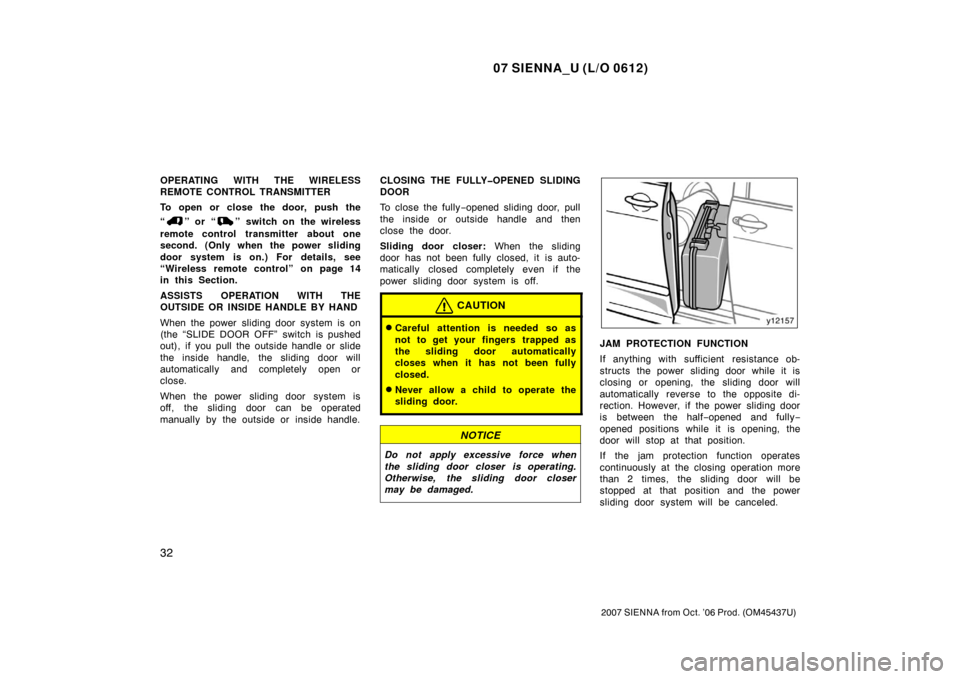

Sliding door closer (on some models):
When the sliding door has not been fully
closed, it is automatically closed com-
pletely even if the power sliding door sys-
tem is off.
CAUTION
Careful attention is needed so as
not to get your fingers trapped as
the sliding door automatically
closes when it has not been fully
closed.
Never allow a child to operate the
sliding door.
NOTICE
Do not apply excessive force when
the sliding door closer is operating.
Otherwise, the sliding door closer
may be damaged.
CAUTION
When closing the sliding door, con-
firm safety of the area around.
Keep the heads, hands and other
parts of the bodies of all occupants
away from the sliding door. Other-
wise, the closing door may cause
death or serious injury.
When the vehicle is stopped on a
slope, the door will slide faster
when opening or closing, so be es-
pecially careful that the passengers
do not get hit or pinched by the
door.

07 SIENNA_U (L/O 0612)
27
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

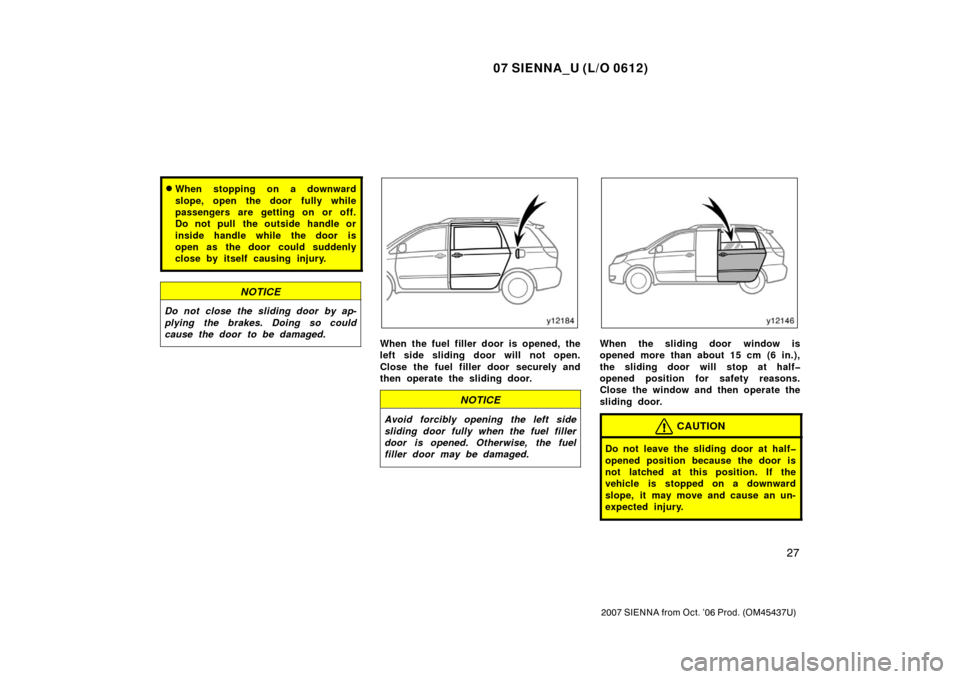

When stopping on a downward
slope, open the door fully while
passengers are getting on or off.
Do not pull the outside handle or
inside handle while the door is
open as the door could suddenly
close by itself causing injury.
NOTICE
Do not close the sliding door by ap-
plying the brakes. Doing so could
cause the door to be damaged.
When the fuel filler door is opened, the
left side sliding door will not open.
Close the fuel filler door securely and
then operate the sliding door.
NOTICE
Avoid forcibly opening the left side
sliding door fully when the fuel filler
door is opened. Otherwise, the fuel
filler door may be damaged.
When the sliding door window is
opened more than about 15 cm (6 in.),
the sliding door will stop at half
opened position for safety reasons.
Close the window and then operate the
sliding door.
CAUTION
Do not leave the sliding door at half
opened position because the door is
not latched at this position. If the
vehicle is stopped on a downward
slope, it may move and cause an un-
expected injury.

07 SIENNA_U (L/O 0612)
28
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

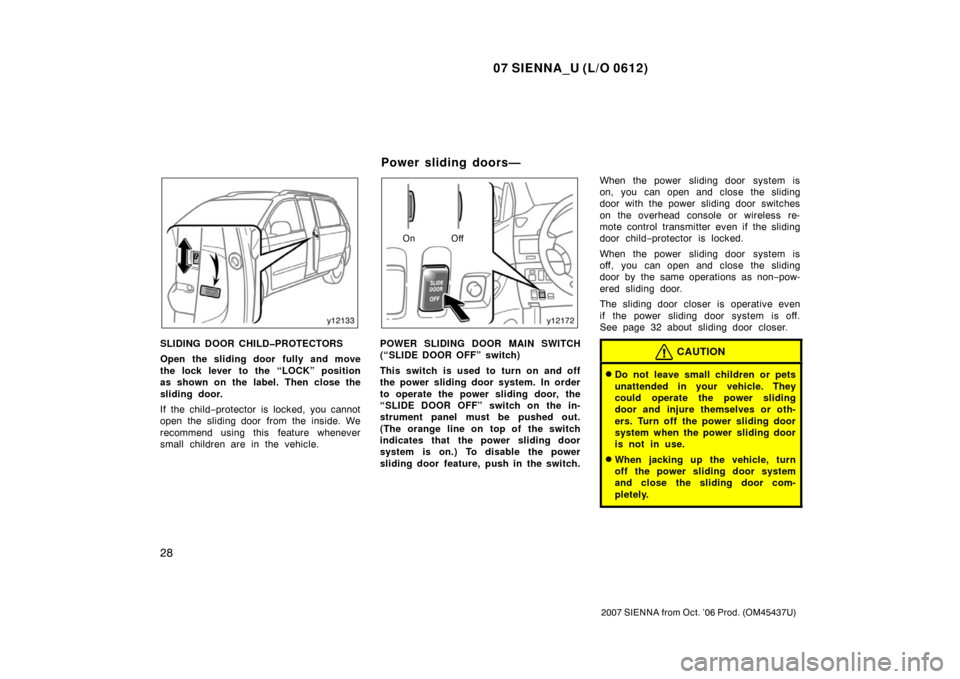

SLIDING DOOR CHILDPROTECTORS
Open the sliding door fully and move
the lock lever to the “LOCK” position
as shown on the label. Then close the
sliding door.
If the child−protector is locked, you cannot
open the sliding door from the inside. We
recommend using this feature whenever
small children are in the vehicle.
On Off
POWER SLIDING DOOR MAIN SWITCH
(“SLIDE DOOR OFF” switch)
This switch is used to turn on and off
the power sliding door system. In order
to operate the power sliding door, the
“SLIDE DOOR OFF” switch on the in-
strument panel must be pushed out.
(The orange line on top of the switch
indicates that the power sliding door
system is on.) To disable the power
sliding door feature, push in the switch. When the power sliding door system is
on, you can open and close the sliding
door with the power sliding door switches
on the overhead console or wireless re-
mote control transmitter even if the sliding
door child
−protector is locked.
When the power sliding door system is
off, you can open and close the sliding
door by the same operations as non− pow-
ered sliding door.
The sliding door closer is operative even
if the power sliding door system is off.
See page 32 about sliding door closer.CAUTION
Do not leave small children or pets
unattended in your vehicle. They
could operate the power sliding
door and injure themselves or oth-
ers. Turn off the power sliding door
system when the power sliding door
is not in use.
When jacking up the vehicle, turn
off the power sliding door system
and close the sliding door com-
pletely.
Power sliding doors—

07 SIENNA_U (L/O 0612)
29
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
NOTICE
When your vehicle goes through an
automatic car wash, make sure the
power sliding door system is off.
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Move the knob forward.
To unlock: Move the knob backward.
Closing the sliding door with the lock knob
in the lock position will also lock the slid-
ing door. Be careful not to lock your keys
in the vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the passengers from being
thrown out from the vehicle in an
accident. It also helps prevent the
doors from being opened unintention-
ally.

07 SIENNA_U (L/O 0612)
30
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

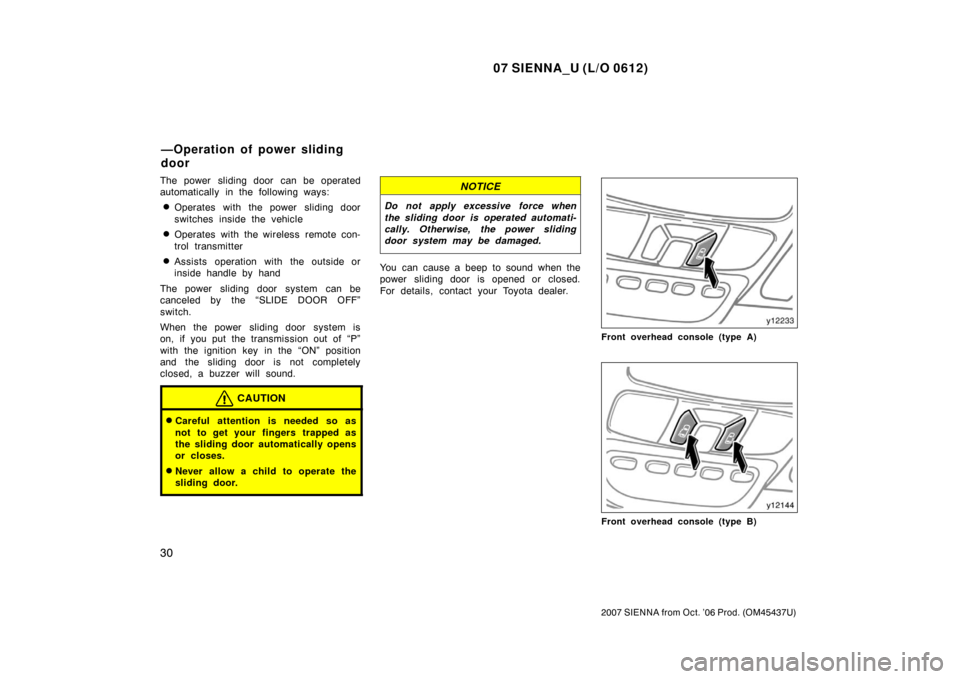

The power sliding door can be operated
automatically in the following ways:
Operates with the power sliding door
switches inside the vehicle
Operates with the wireless remote con-
trol transmitter
Assists operation with the outside or
inside handle by hand
The power sliding door system can be
canceled by the “SLIDE DOOR OFF”
switch.

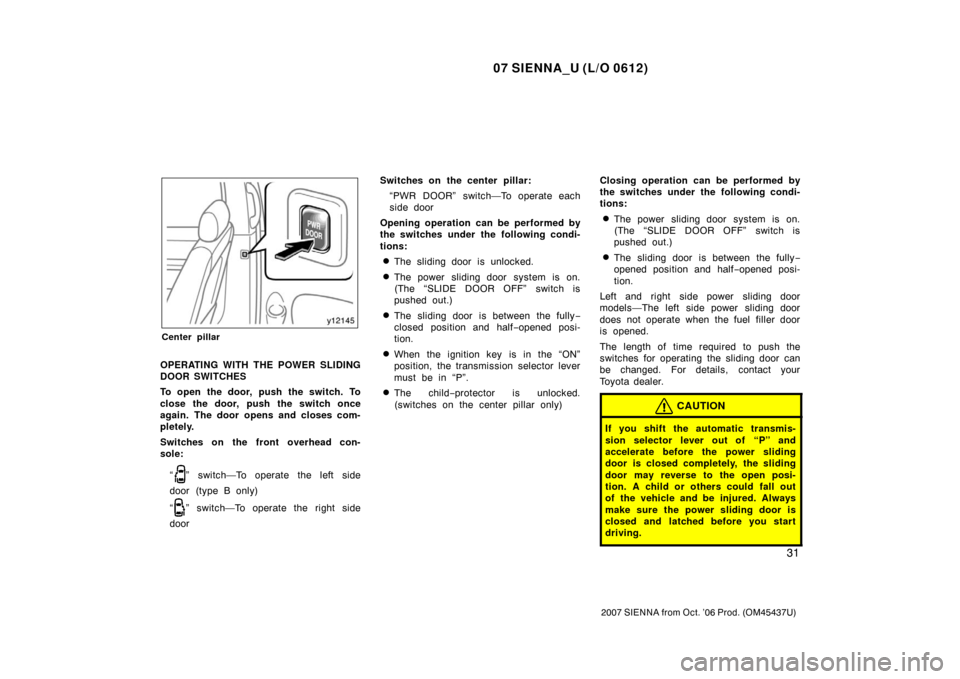

When the power sliding door system is
on, if you put the transmission out of “P”
with the ignition key in the “ON” position
and the sliding door is not completely
closed, a buzzer will sound.
CAUTION
Careful attention is needed so as
not to get your fingers trapped as
the sliding door automatically opens
or closes.
Never allow a child to operate the
sliding door.
NOTICE
Do not apply excessive force when
the sliding door is operated automati-
cally. Otherwise, the power sliding
door system may be damaged.
You can cause a beep to sound when the
power sliding door is opened or closed.
For details, contact your Toyota dealer.
Front overhead console (type A)
Front overhead console (type B)
—Operation of power sliding
door

07 SIENNA_U (L/O 0612)
31
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
Center pillar
OPERATING WITH THE POWER SLIDING
DOOR SWITCHES
To open the door, push the switch. To
close the door, push the switch once
again. The door opens and closes com-
pletely.
Switches on the front overhead con-
sole:“
” switch—To operate the left side
door (type B only)
“
” switch—To operate the right side
door Switches on the center pillar:
“PWR DOOR” switch—To operate each
side door
Opening operation can be performed by
the switches under the following condi-
tions:
The sliding door is unlocked.
The power sliding door system is on.
(The “SLIDE DOOR OFF” switch is
pushed out.)
The sliding door is between the fully −
closed position and half −opened posi-
tion.
When the ignition key is in the “ON”
position, the transmission selector lever
must be in “P”.
The child −protector is unlocked.
(switches on the center pillar only) Closing operation can be performed by
the switches under the following condi-
tions:
The power sliding door system is on.
(The “SLIDE DOOR OFF” switch is
pushed out.)
The sliding door is between the fully
−
opened position and half −opened posi-
tion.
Left and right side power sliding door
models—The left side power sliding door
does not operate when the fuel filler door
is opened.
The length of time required to push the
switches for operating the sliding door can
be changed. For details, contact your
Toyota dealer.
CAUTION
If you shift the automatic transmis-
sion selector lever out of “P” and
accelerate before the power sliding
door is closed completely, the sliding
door may reverse to the open posi-
tion. A child or others could fall out
of the vehicle and be injured. Always
make sure the power sliding door is
closed and latched before you start
driving.

07 SIENNA_U (L/O 0612)
32
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
OPERATING WITH THE WIRELESS
REMOTE CONTROL TRANSMITTER
To open or close the door, push the
“
” or “” switch on the wireless
remote control transmitter about one
second. (Only when the power sliding
door system is on.) For details, see
“Wireless remote control” on page 14
in this Section.
ASSISTS OPERATION WITH THE
OUTSIDE OR INSIDE HANDLE BY HAND
When the power sliding door system is on
(the “SLIDE DOOR OFF” switch is pushed
out), if you pull the outside handle or slide
the inside handle, the sliding door will
automatically and completely open or
close.
When the power sliding door system is
off, the sliding door can be operated
manually by the outside or inside handle. CLOSING THE FULLYOPENED SLIDING
DOOR
To close the fully
−opened sliding door, pull
the inside or outside handle and then
close the door.
Sliding door closer: When the sliding
door has not been fully closed, it is auto-
matically closed completely even if the
power sliding door system is off.
CAUTION
Careful attention is needed so as
not to get your fingers trapped as
the sliding door automatically
closes when it has not been fully
closed.
Never allow a child to operate the
sliding door.
NOTICE
Do not apply excessive force when
the sliding door closer is operating.
Otherwise, the sliding door closer
may be damaged.
JAM PROTECTION FUNCTION
If anything with sufficient resistance ob-
structs the power sliding door while it is
closing or opening, the sliding door will
automatically reverse to the opposite di-
rection. However, if the power sliding door
is between the half −opened and fully −
opened positions while it is opening, the
door will stop at that position.
If the jam protection function operates
continuously at the closing operation more
than 2 times, the sliding door will be
stopped at that position and the power
sliding door system will be canceled.
