TOYOTA SIENNA 2007 XL20 / 2.G Owners Manual

07 SIENNA_U (L/O 0612)
493
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
When the tire goes flat or when the
tire pressure is below 100 kPa (1.0
kgf/cm
2 or bar, 15 psi), the tire
must be replaced. If you are not
sure, consult your Toyota dealer.
Do not use the repaired tire.
There is an “RFT” or “DSST” mark on
the sidewall of the run −flat tire.
If you cannot distinguish between the
standard tire and run −flat tire, consult
your Toyota dealer.
The tire warranty book provides de-
tailed information on the run −flat tires.
For details, see the tire warranty
book.
CAUTION
 Do not use nongenuine
wheels, as this may cause dan-
gerous handling characteris-
tics resulting in loss of control.
 Do not use the runflat tires
equipped on your vehicle on
another model. These tires are
especially for this model.
Do not mix runflat tires with
standard tires.
If the tire pressure warning light
co mes on :
Decelerate at a speed below 90
km/h (55 mph), then adjust the tire
pressure to the specified level as
soon as possible. Do not drive
more than 160 km (100 miles).
 When the tire pressure is below
140 kPa (1.4 kgf/cm
2 or bar, 20
psi), consult your Toyota deal-
er. If the tire is flat or the tire
pressure is below 100 kPa (1.0
kgf/cm
2 or bar, 15 psi), the tire
must be replaced. Do not use
the repaired tire.
 When the tire pressure is 140
kPa (1.4 kgf/cm
2 or bar, 20 psi)
or more, adjust it to specified
level. (See “Tires” on page 517
in Section 8.) S ee “ Ti r e p r es s ur e
warning system”
on page 214 in Section 1 −7 and
“Checking tire infl at ion pr es s ur e” on
page 487 in this Section.
CAUTION
As the runflat tire allows you to
continue driving if any tire goes
flat, the tire performance is not
the same as normal condition. If
the runflat tire goes flat, take
your vehicle to the nearest Toyo-
ta dealer or authorized tire dealer
as soon as possible, observing
the following instructions:
 Decelerate as soon as possible
to the lowest appropriate
speed that conditions permit.
Do not drive for longer than
160 km (100 miles) or over 90
km/h (55 mph).

07 SIENNA_U (L/O 0612)
494
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
Avoid abrupt steering wheel
maneuvering and braking. If
t h e veh i cl e ti res det eri o rat e,
you could lose control of the
steering wheel or the brakes,
causing death or serious inju-
ry.
 Do not replace or repair the tire
by yourself. When the tires
must be replaced or repaired,
consult your Toyota dealer or
authorized tire dealer.NOTICE
 Take due care not to go over
a curb stone and be careful
of the holes in the road be-
cause deflated tire pressure
affects tire cushion perfor-
mance. The wheels, tires,
body, suspension and other
components could be dam-
aged.
 Your ground clearance is re-
duced if the runflat tire
goes flat so avoid driving
over obstacles and drive
slowly on rough, unp aved
roads and speed bumps.
Also, do not attempt to go
through an automatic car
wash as the vehicle may get
caught, resulting in damage.
WHEN TO USE SNOW TIRES OR
CHAINS
Snow tires or chains are recommended
when driving on snow or ice.
On wet or dry roads, conventional tires
provide better traction than snow tires.
SNOW TIRE SELECTION
If you need snow tires, select tires of
the same size, construction and load
capacity as the originally installed tires.
Also, on allwheel drive models, all the
tires must be the same brand and have
the same tread patterns.
Do not use tires other than those men-
tioned above. Do not install studded tires
without first checking local regulations for
possible restrictions.
Installing snow tires and
chains

07 SIENNA_U (L/O 0612)
495
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
CAUTION
Observe the following instructions.
Otherwise, an accident may occur re-
sulting in death or serious injuries.
Do not use snow tires other than
the manufacturer ’s recommended si-
ze, as this may cause dangerous
handling characteristics resulting in
loss of control.
Allwheel drive models:
Do not use snow tires of different
brands, sizes, construction or tread
patterns, as this may cause danger-
ous handling characteristics result-
ing in loss of control.
SNOW TIRE INSTALLATION
Snow tires should be installed on all
wheels.
Installing snow tires on the front wheels
only can lead to an excessive difference
in road grip capability between the front
and rear tires which could cause loss of
vehicle control.
When storing removed tires, you should
store them in a cool dry place. Mark the
direction of rotation and be sure to install
them in the same direction when replac-
ing.
CAUTION
Do not drive with the snow tires
incorrectly inflated.
Never drive over 120 km/h (75 mph)
with any type of snow tires.
Vehicles with runflat tires—Do not
replace or repair the tire by your-
self. When the tires must be re-
placed or repaired, consult your
Toyota dealer or authorized tire
dealer.
TIRE CHAIN SELECTION
Use the tire chains of correct size and
type.
Use SAE Class “S” type radial tire chains
except radial cable chains or V−bar type
chains.
Regulations regarding the use of tire
chains vary according to location or
type of road, so always check local reg-
ulations before installing chains.
CHAIN INSTALLATION
Install the chains on the front tires as
tightly as possible. Do not use tire
chains on the rear tires. Retighten
chains after driving 0.5—1.0 km
(1/4—1/2 mile).
When installing chains on your tires, care-
fully follow the instructions of the chain
manufacturer.
If wheel covers are used, they will be
scratched by the chain band, so remove
the covers before putting on the chains.

07 SIENNA_U (L/O 0612)
496
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
CAUTION
Do not exceed 50 km/h (30 mph) or
the chain manufacturer ’s recom-
mended speed limit, whichever is
lower.
Drive carefully avoiding bumps,
holes, and sharp turns, which may
cause the vehicle to bounce.
Avoid sharp turns or lockedwheel
braking, as use of chains may ad-
versely affect vehicle handling.
When driving with chains installed,
be sure to drive carefully. Slow
down before entering curves to
avoid losing control of the vehicle.
Otherwise an accident may occur.
NOTICE
Do not attempt to use a tire chain on
the compact spare tire, as it may re-
sult in damage to the vehicle as well
as the tire.
WHEN TO REPLACE YOUR WHEELS
If you have wheel damage such as
bending, cracks or heavy corrosion, the
wheel should be replaced.
If you fail to replace a damaged wheel,
the tire may slip off the wheel or cause
loss of handling control.
WHEEL SELECTION
When replacing wheels, care should be
taken to ensure that the wheels are re-
placed by ones with the same load ca-
pacity, diameter, rim width, and offset.
This must be observed on compact spare
tires, too.
Correct replacement wheels are available
at your Toyota dealer.
A wheel of a different size or type may
adversely affect handling, wheel and bear-
ing life, brake cooling, speedometer/odom-
eter calibration, stopping ability, headlight
aim, bumper height, vehicle ground clear-
ance, and tire or snow chain clearance to
the body and chassis.Replacement with used wheels is not rec-
ommended as they may have been sub-
jected to rough treatment or high mileage
and could fail without warning. Also, bent
wheels which have been straightened may
have structural damage and therefore
should not be used. Never use an inner
tube in a leaking wheel which is designed
for a tubeless tire.
CAUTION
Observe the following instructions.
Otherwise, an accident may occur re-
sulting in death or serious injuries.
Do not use wheels other than the
manufacturer ’s recommended size,
as this may cause dangerous han-
dling characteristics resulting in
loss of control.
Allwheel drive models:
Do not use wheels of different
brands, sizes and types, as this
may cause dangerous handling
characteristics resulting in loss of
control.
Replacing wheels

07 SIENNA_U (L/O 0612)
497
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
Initial adjustment of the tire pressure
warning system is necessary after you
have replaced your wheels. See “Tire
pressure warning system” on page 214
in Section 17.When installing aluminum wheels,
check that the wheel nuts are tight
after driving your vehicle the first 1600
km (1000 miles).
If you have rotated, repaired, or
changed your tires, check that the
wheel nuts are still tight after driving
1600 km (1000 miles).
When using tire chains, be careful not
to damage the aluminum wheels.
Use only Toyota wheel nuts and
wrench designed for your aluminum
wheels.
When balancing your wheels, use only
Toyota balance weights or equivalent
and a plastic or rubber hammer.
As with any wheel, periodically check
your aluminum wheels for damage. If
damaged, replace immediately.
Aluminum wheel precautions

07 SIENNA_U (L/O 0612)
498
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

07 SIENNA_U (L/O 0612)
499
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
DOITYOURSELF MAINTENANCE
Electrical components
Checking battery condition500
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 501
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

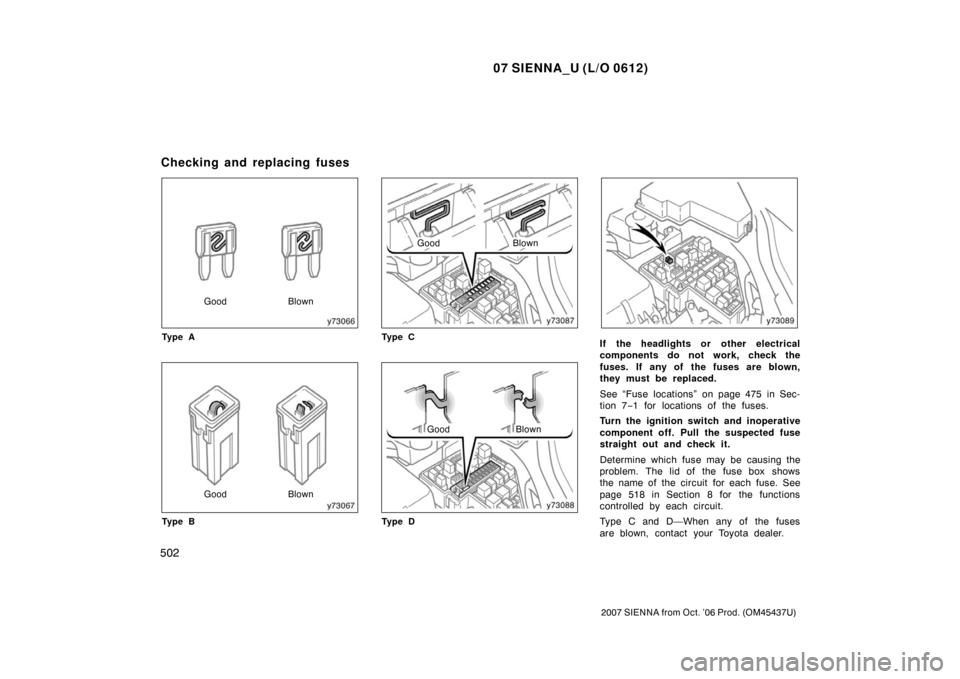

Checking and replacing fuses 502
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 503
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Replacing light bulbs 504
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 7 3

07 SIENNA_U (L/O 0612)
500
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

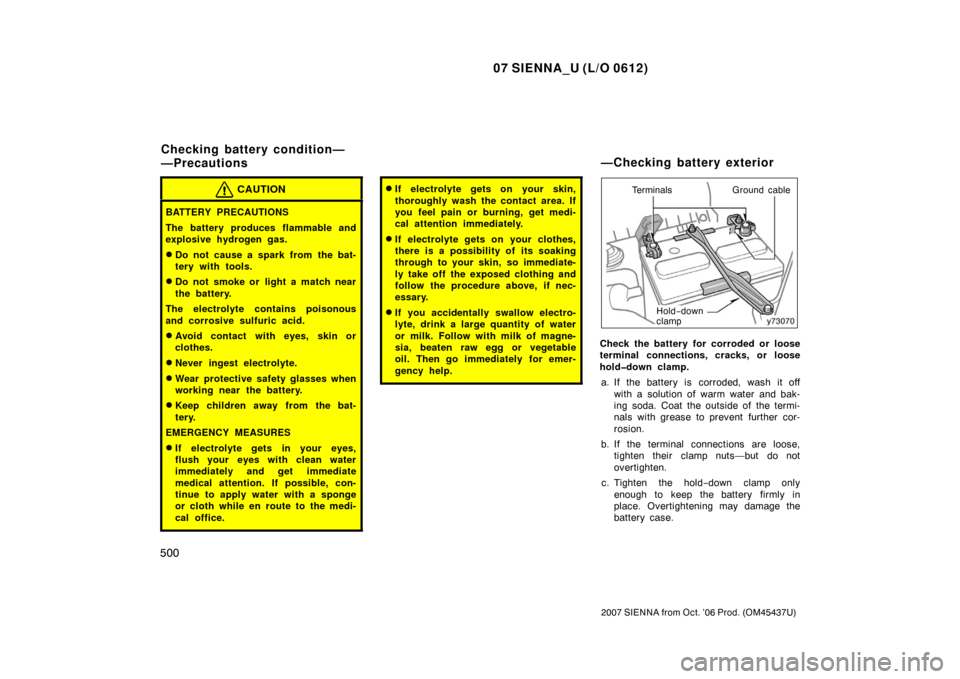

CAUTION
BATTERY PRECAUTIONS
The battery produces flammable and
explosive hydrogen gas.
Do not cause a spark from the bat-
tery with tools.
Do not smoke or light a match near
the battery.
The electrolyte contains poisonous
and corrosive sulfuric acid.
Avoid contact with eyes, skin or
clothes.
Never ingest electrolyte.
Wear protective safety glasses when
working near the battery.
Keep children away from the bat-
tery.
EMERGENCY MEASURES
If electrolyte gets in your eyes,
flush your eyes with clean water
immediately and get immediate
medical attention. If possible, con-
tinue to apply water with a sponge
or cloth while en route to the medi-
cal office.
If electrolyte gets on your skin,
thoroughly wash the contact area. If
you feel pain or burning, get medi-
cal attention immediately.
If electrolyte gets on your clothes,
there is a possibility of its soaking
through to your skin, so immediate-
ly take off the exposed clothing and
follow the procedure above, if nec-
essary.
If you accidentally swallow electro-
lyte, drink a large quantity of water
or milk. Follow with milk of magne-
sia, beaten raw egg or vegetable
oil. Then go immediately for emer-
gency help.
Terminals Ground cable
Hold −down
clamp
Check the battery for corroded or loose
terminal connections, cracks, or loose
holddown clamp.
a. If the battery is corroded, wash it off with a solution of warm water and bak-
ing soda. Coat the outside of the termi-
nals with grease to prevent further cor-
rosion.
b. If the terminal connections are loose, tighten their clamp nuts—but do not
overtighten.
c. Tighten the hold −down clamp only
enough to keep the battery firmly in
place. Overtightening may damage the
battery case.
Checking battery c ondition—
—Precautions —Checking battery exterior

07 SIENNA_U (L/O 0612)
501
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
NOTICE
Be sure the engine and all accesso-
ries are off before performing main-
tenance.
 When checking the battery, remove
the ground cable from the negative
terminal (“” mark) first and rein-
stall it last.
 Be careful not to cause a short cir-
cuit with tools.
 Take care no solution gets into the
battery when washing it.
If the battery is disconnected or run
down, the power window, power sliding
door, power back door and moon roof may
not operate correctly and the jam protec-
tion function will not function correctly,
and does not open the back door after
you reconnect, replace or recharge the
battery. In any of these cases, you should
normalize each system. To normalize
them, see “Power sliding doors” on page
28, “Power back door” on page 38, “Power
windows” on page 43 and “Electric moon
roof” on page 53 in Section 1 −2.
Ty p e A
Green Dark Clear or
light yellow
Ty p e B Blue White Red
CHECKING BY INDICATOR
Check the battery condition by the indi-
cator color.
Indicator color
ConditionTy p e ATy p e B
GreenBlueGood
DarkWhite
Charging necessary.
Have battery
checked by your
Toyota dealer.
Clear orlight
yellow
Red
Have battery
checked by your
Toyota dealer.
During recharging, the battery is pro-
ducing hydrogen gas.
Therefore, before recharging:
1. If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
2. Be sure the power switch on the re- charger is off when connecting the
charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an un-
confined area. Do not charge the
battery in a garage or closed room
where there is not sufficient ventila-
tion.
Only do a slow charge (5 A or
less). Charging at a quicker rate is
dangerous. The battery may ex-
plode, causing personal injuries.
NOTICE
Never recharge the battery while the
engine is running. Also, be sure all
accessories are turned off.
—Checking battery c ondition Battery recharging pr ecautions

07 SIENNA_U (L/O 0612)
502
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
GoodBlown
Ty p e A
Good Blown
Ty p e B
Good Blown
Ty p e C
Good Blown
Ty p e D
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 475 in Sec-
tion 7 −1 for locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull the suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 518 in Section 8 for the functions
controlled by each circuit.
Type C and D—When any of the fuses
are blown, contact your Toyota dealer.
Checking and replacing fuses
