ESP TOYOTA SIENNA 2007 XL20 / 2.G Owners Manual

07 SIENNA_U (L/O 0612)
vi
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
New vehicle warranty
Your new vehicle is covered by the following Toyota limited
warranties: New vehicle warranty
 Emission control systems warranty
 Others
For further information, please refer to the “Owner’s
Warranty Information Booklet” or “Owner ’s Manual
Supplement”.
Your responsibility for maintenance
It is the owner ’s responsibility to make sure that the speci-
fied maintenance is performed. Section 6 gives details of
these maintenance requirements. Also included in Section
6 is general maintenance. For scheduled maintenance in-
formation, please refer to the “Scheduled Maintenance
Guide” or “Owner ’s Manual Supplement”.
Important health and safety
information about your Toyota
CAUTION
WARNING: Engine exhaust, some of its constitu- ents, and a wide variety of automobile compo-
nents contain or emit chemicals known to the
State of California to cause cancer and birth de-
fects and other reproductive harm. In addition,
oils, fuels and fluids contained in vehicles as
well as waste produced by component wear con-
tain or emit chemicals known to the State of
California to cause cancer and birth defects or
other reproductive harm.
Battery posts, terminals and related accessories contain lead and lead compounds. Wash your
hands after handling. Used engine oil contains
chemicals that have caused cancer in laboratory
animals. Always protect your skin by washing
thoroughly with soap and water.

07 SIENNA_U (L/O 0612)
vii
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
Accessories, spare parts andmodification of your Toyota
A wide variety of non −genuine spare parts and accessories
for Toyota vehicles are currently available in the market.
You should know that Toyota does not warrant these prod-
ucts and is not responsible for their performance, repair, or
replacement, or for any damage they may cause to, or
adverse effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non −genuine
Toyota products. Modification with non −genuine Toyota
products could affect its performance, safety or durability,
and may even violate governmental regulations. In addi-
tion, damage or performance problems resulting from the
modification may not be covered under warranty.
Spark ignition system of your To y o t a
The spark ignition system in your Toyota meets all require-
ments of the Canadian Interference −Causing Equipment
Standard.
Installation of a mobile twoway radio system
As the installation of a mobile two −way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, electronic throttle control system, cruise
control system, dynamic laser cruise control system, anti −
lock brake system, traction control system, vehicle stability
control system, SRS airbag system and seat belt preten-
sioner system, be sure to check with your Toyota dealer
for precautionary measures or special instructions regard-
ing installation.

07 SIENNA_U (L/O 0612)
14
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

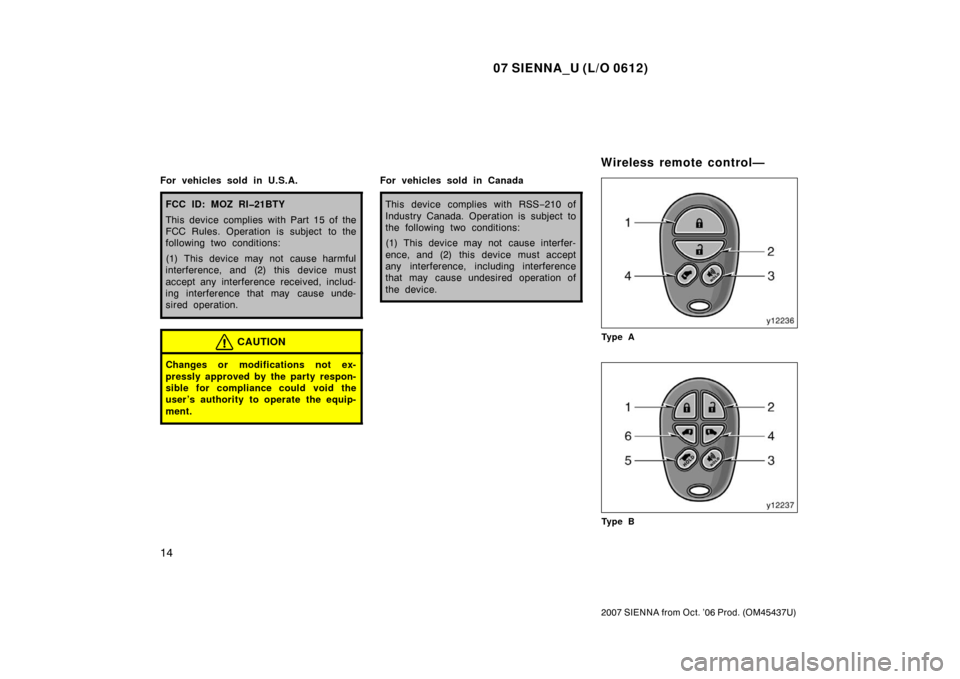

For vehicles sold in U.S.A.
FCC ID: MOZ RI21BTY
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS−210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
Ty p e A
Ty p e B
Wireless remote control—

07 SIENNA_U (L/O 0612)
24
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
The power door lock switch can be reset
in the following ways.
Turn the ignition key to “ON”.
Unlock all the side doors and back
door with the key or wireless remote
control transmitter.
Unlock the driver’s door or front pas-
senger ’s door with the inside lock
knob, and then unlock all the doors
and back door with the power door
lock switch.

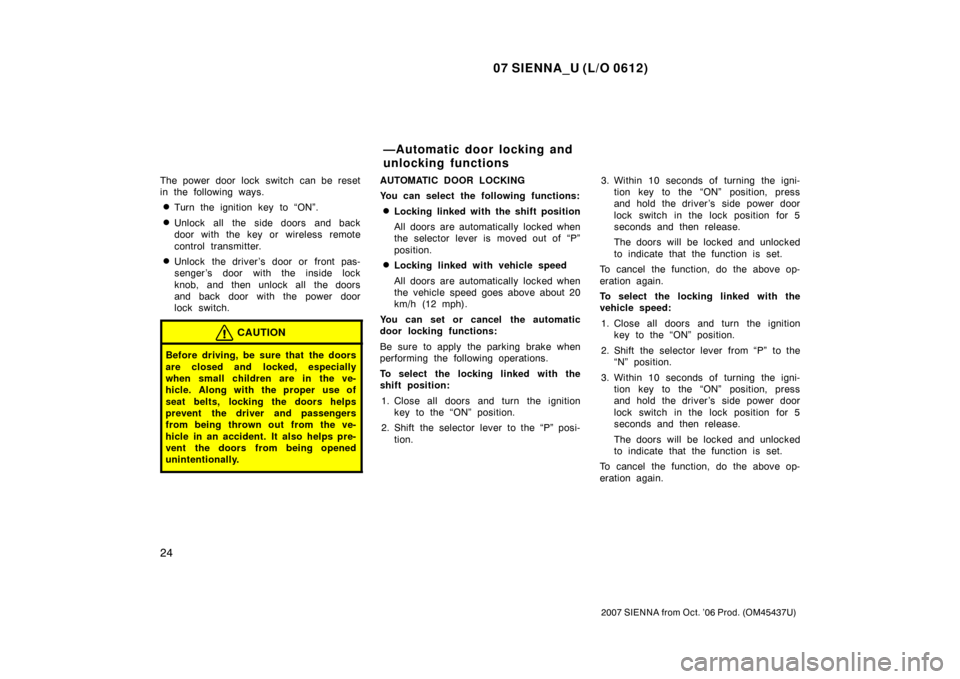

CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle in an accident. It also helps pre-
vent the doors from being opened
unintentionally.
AUTOMATIC DOOR LOCKING
You can select the following functions:
Locking linked with the shift position
All doors are automatically locked when
the selector lever is moved out of “P”
position.
Locking linked with vehicle speed
All doors are automatically locked when
the vehicle speed goes above about 20
km/h (12 mph).
You can set or cancel the automatic
door locking functions:
Be sure to apply the parking brake when
performing the following operations.
To select the locking linked with the
shift position: 1. Close all doors and turn the ignition key to the “ON” position.
2. Shift the selector lever to the “P” posi- tion. 3. Within 10 seconds of turning the igni-
tion key to the “ON” position, press
and hold the driver’s side power door
lock switch in the lock position for 5
seconds and then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again.
To select the locking linked with the
vehicle speed:
1. Close all doors and turn the ignition key to the “ON” position.
2. Shift the selector lever from “P” to the “N” position.
3. Within 10 seconds of turning the igni- tion key to the “ON” position, press
and hold the driver’s side power door
lock switch in the lock position for 5
seconds and then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again.
—Automatic door locking and
unlocking functions

07 SIENNA_U (L/O 0612)
26
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
CLOSING THE FULLYOPENED SLIDING
DOOR
To close the fully−opened sliding door, pull
the inside or outside handle and then
close the door.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the passengers from being
thrown out from the vehicle in an
accident. It also helps prevent the
doors from being opened unintention-
ally.
Sliding door closer (on some models):
When the sliding door has not been fully
closed, it is automatically closed com-
pletely even if the power sliding door sys-
tem is off.
CAUTION
Careful attention is needed so as
not to get your fingers trapped as
the sliding door automatically
closes when it has not been fully
closed.
Never allow a child to operate the
sliding door.
NOTICE
Do not apply excessive force when
the sliding door closer is operating.
Otherwise, the sliding door closer
may be damaged.
CAUTION
When closing the sliding door, con-
firm safety of the area around.
Keep the heads, hands and other
parts of the bodies of all occupants
away from the sliding door. Other-
wise, the closing door may cause
death or serious injury.
When the vehicle is stopped on a
slope, the door will slide faster
when opening or closing, so be es-
pecially careful that the passengers
do not get hit or pinched by the
door.

07 SIENNA_U (L/O 0612)
29
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
NOTICE
When your vehicle goes through an
automatic car wash, make sure the
power sliding door system is off.
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Move the knob forward.
To unlock: Move the knob backward.
Closing the sliding door with the lock knob
in the lock position will also lock the slid-
ing door. Be careful not to lock your keys
in the vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the passengers from being
thrown out from the vehicle in an
accident. It also helps prevent the
doors from being opened unintention-
ally.

07 SIENNA_U (L/O 0612)
46
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

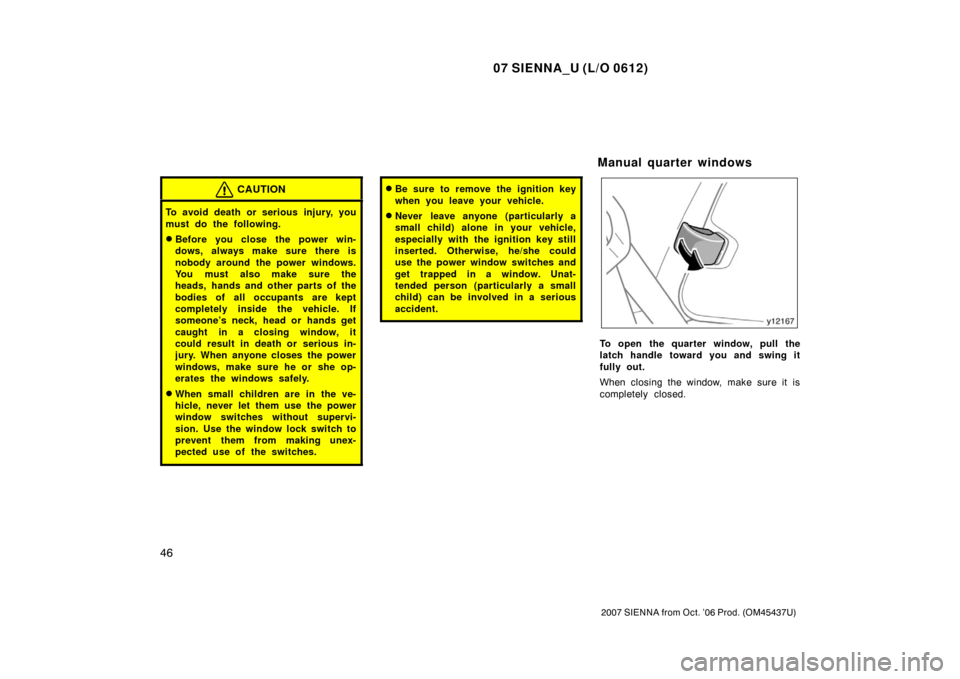

CAUTION
To avoid death or serious injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
To open the quarter window, pull the
latch handle toward you and swing it
fully out.
When closing the window, make sure it is
completely closed.
Manual quarter windows

07 SIENNA_U (L/O 0612)
47
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
The quarter windows can be operated
with the “REAR VENT” switch on the
instrument panel.
The power quarter windows work when the
ignition key is in the “ON” position.
To open: Push the switch on the upper
side.
To close: Push the switch on the lower
side.
Both the left and right rear quarter win-
dows move as long as you hold the
switch.Key off operation:
If both front doors are
closed, they work for 43 seconds even
after the ignition switch is turned off. They
stop working when either front door is
opened.
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power quarter
windows, always make sure there is
nobody around the power quarter
windows. You must also make sure
the heads, hands and other parts of
the bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
quarter window switches without
supervision.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power quarter window
switch and get trapped in a window.
Unattended person (particularly a
small child) can be involved in a
serious accident.
Power quarter windows

07 SIENNA_U (L/O 0612)
55
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

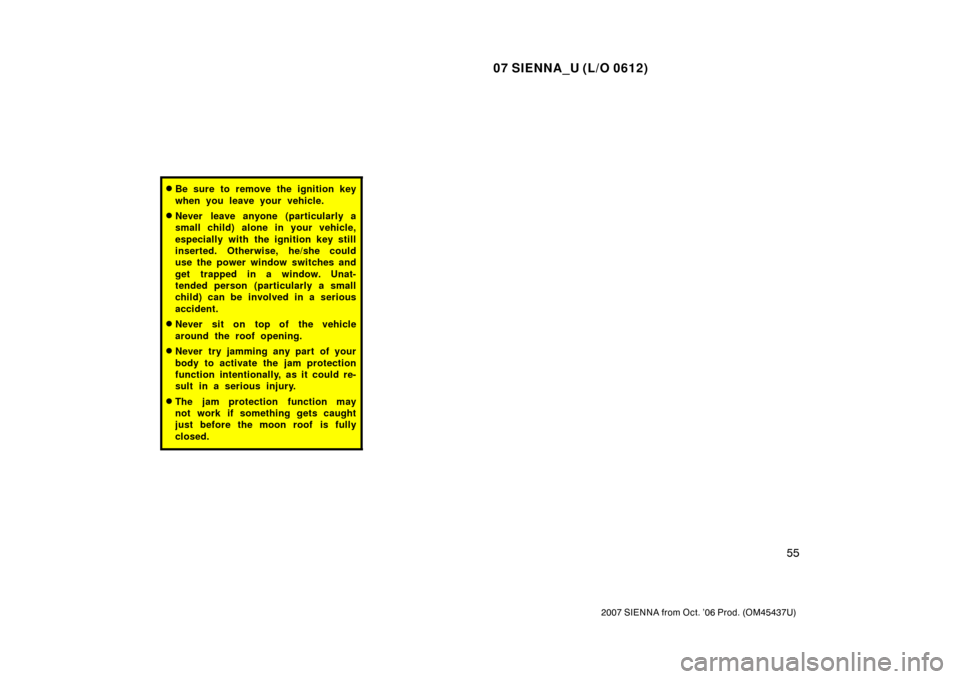

Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Never sit on top of the vehicle
around the roof opening.
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in a serious injury.
The jam protection function may
not work if something gets caught
just before the moon roof is fully
closed.

07 SIENNA_U (L/O 0612)
58
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.

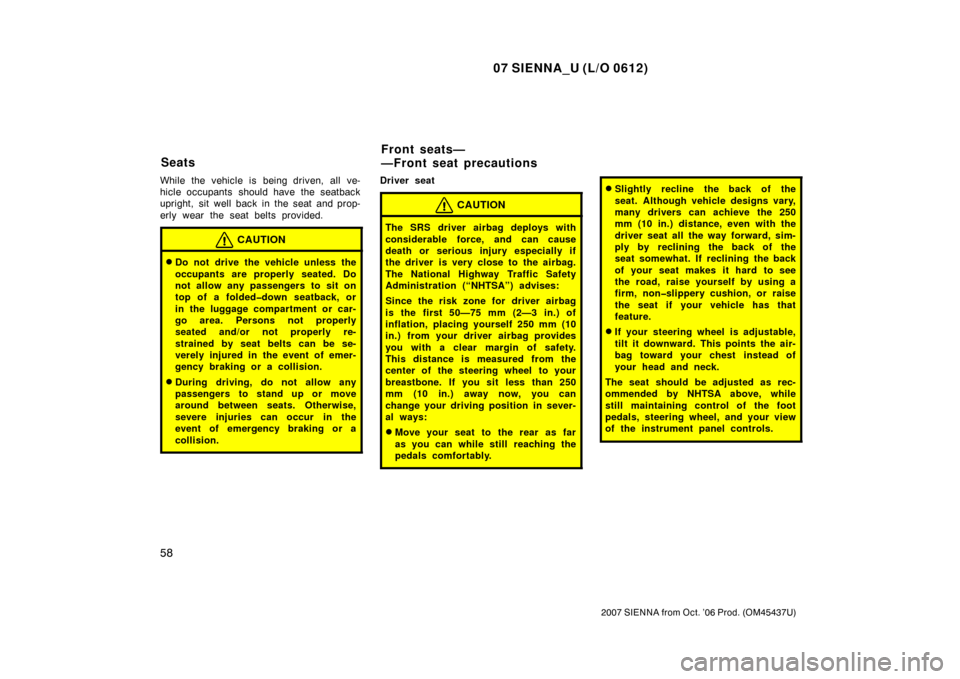

CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers to sit on
top of a foldeddown seatback, or
in the luggage compartment or car-
go area. Persons not properly
seated and/or not properly re-
strained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.
During driving, do not allow any
passengers to stand up or move
around between seats. Otherwise,
severe injuries can occur in the
event of emergency braking or a
collision.
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (“NHTSA”) advises:
Since the risk zone for driver airbag
is the first 50—75 mm (2—3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:
Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, nonslippery cushion, or raise
the seat if your vehicle has that
feature.
If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
Seats Front seats—
—Front seat precautions
