bluetooth TOYOTA SIENNA 2008 XL20 / 2.G Navigation Manual

OTHER FUNCTIONS
142
Transferring a telephone number
You can transfer the telephone numbers in
your Bluetooth phone to the system. Up
to 1000 person’s data (up to 2 numbers a
person) can be registered in the phone
book.
Transfer it while the engine is running.

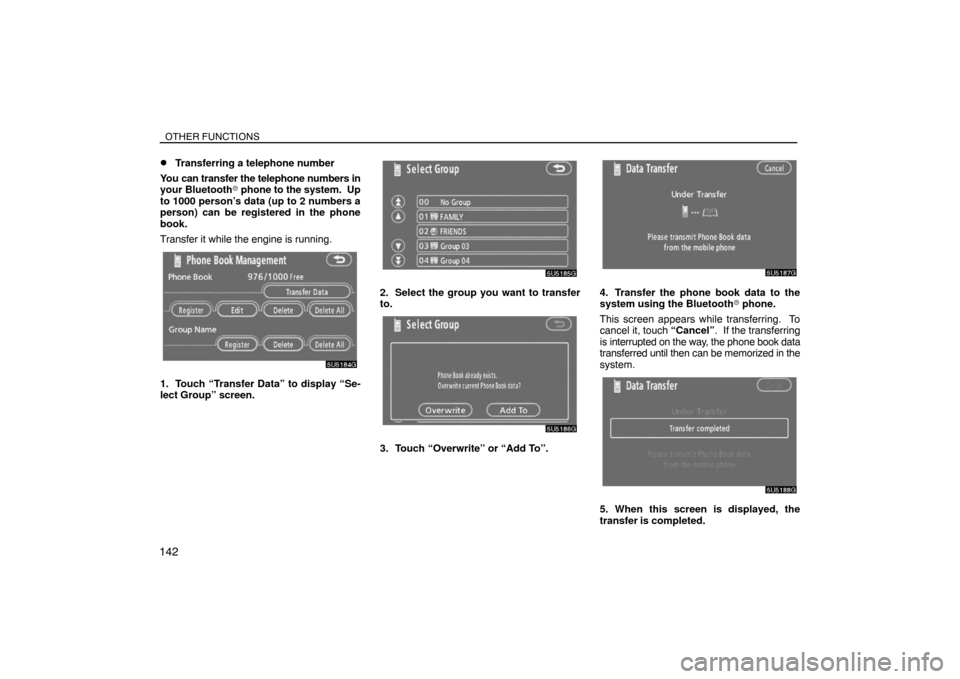

1. Touch “Transfer Data” to display “Se-
lect Group” screen.
2. Select the group you want to transfer
to.
3. Touch “Overwrite” or “Add To”.
4. Transfer the phone book data to the
system using the Bluetooth phone.
This screen appears while transferring. To
cancel it, touch “Cancel”. If the transferring
is interrupted on the way, the phone book data
transferred until then can be memorized in the
system.
5. When this screen is displayed, the
transfer is completed.

OTHER FUNCTIONS
156
(f) Set a Bluetooth phone
Selecting a Bluetooth phone
In case you register more than one
Bluetooth phone, you need to choose a
favorite one.
1. Touch “Settings” to display “Settings”
screen.
2. Touch “Select Telephone” to display
“Select Telephone” screen. You can se-
lect the Bluetooth phone from a maxi-
mum of 6 numbers.
“Empty” is displayed when you have not reg-
istered a Bluetooth phone yet.
Bluetooth mark is displayed when you
choose the phone.
Although you can register up to 6 Bluetooth
phones in the system, only one Bluetooth
phone can function at a time.
3. Touch “OK”.
When the result message is displayed, you
can use the Bluetooth phone.

OTHER FUNCTIONS
157
When another Bluetooth phone is trying to
connect, this screen is displayed.
Touch “Yes” or “No”.
Displaying Bluetooth information
You can see or set the information of the
Bluetooth phone on the system.
Device Name The name of Bluetooth . . . .
phone which is dis-
played on the screen.
You can change it into a
desired name.
Bluetooth
∗ Device Address
The address peculiar to . . . . . . . . . . . . .
the system. You cannot
change it.
1. Select the desired phone and touch
“Information”.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
2. Touch “Change”.
3. When you complete the setting, touch
.

OTHER FUNCTIONS
158

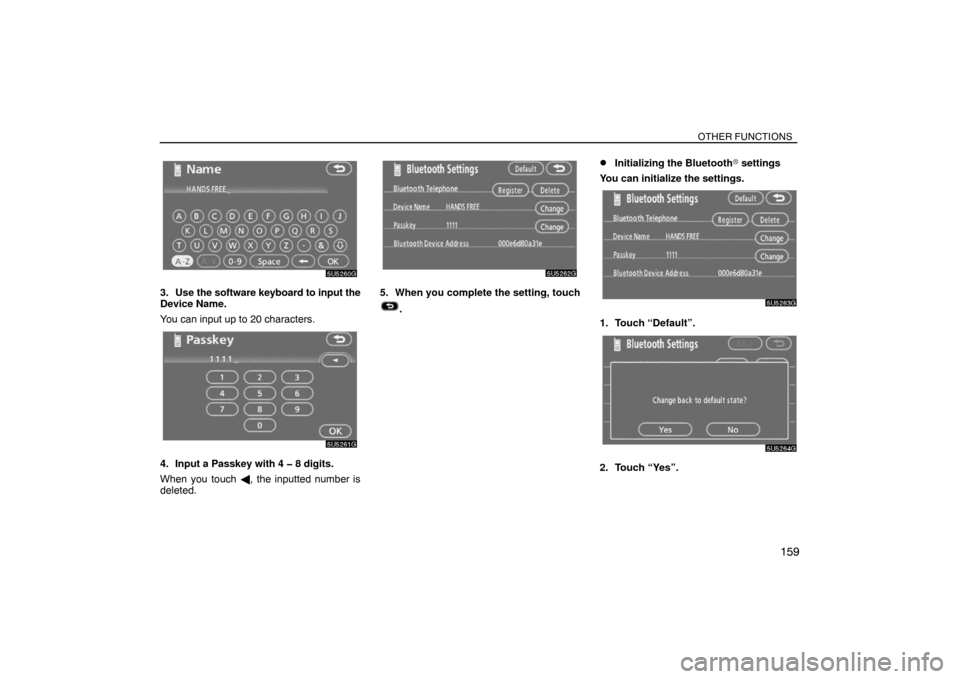

Changing a Device Name
You can change a Device Name. If you
change a Device Name, the name regis-
tered in your cellular phone is not
changed.
1. Touch “Change”.
2. Use the software keyboard to input the
Device name.
Changing the Bluetooth settings
You can change the display and settings of
Bluetooth information on the system.
The information displays the following items.
Device Name The name in the. . . .
Bluetooth network. You
can change it.
Passkey The password when you . . . . . . . . .
register your cellular
phone in the system. You
can change it into the fig-
ure of 4−8 digits.
Bluetooth
∗ Device Address
The address peculiar to . . . . . . . . . . . . .
the system. You can not
change it. If you have
registered two
Bluetooth phones with
the same Device Name
or Passkey and you
cannot distinguish one
from the other, refer to it.When you change the Device Name or
Passkey, do the followings.1. Touch “Bluetooth∗”.
2. Touch “Change” of “Device Name” or
“Passkey”.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

OTHER FUNCTIONS
159
3. Use the software keyboard to input the
Device Name.
You can input up to 20 characters.
4. Input a Passkey with 4 8 digits.
When you touch , the inputted number is
deleted.
5. When you complete the setting, touch
.
Initializing the Bluetooth settings
You can initialize the settings.
1. Touch “Default”.
2. Touch “Yes”.

OTHER FUNCTIONS
160

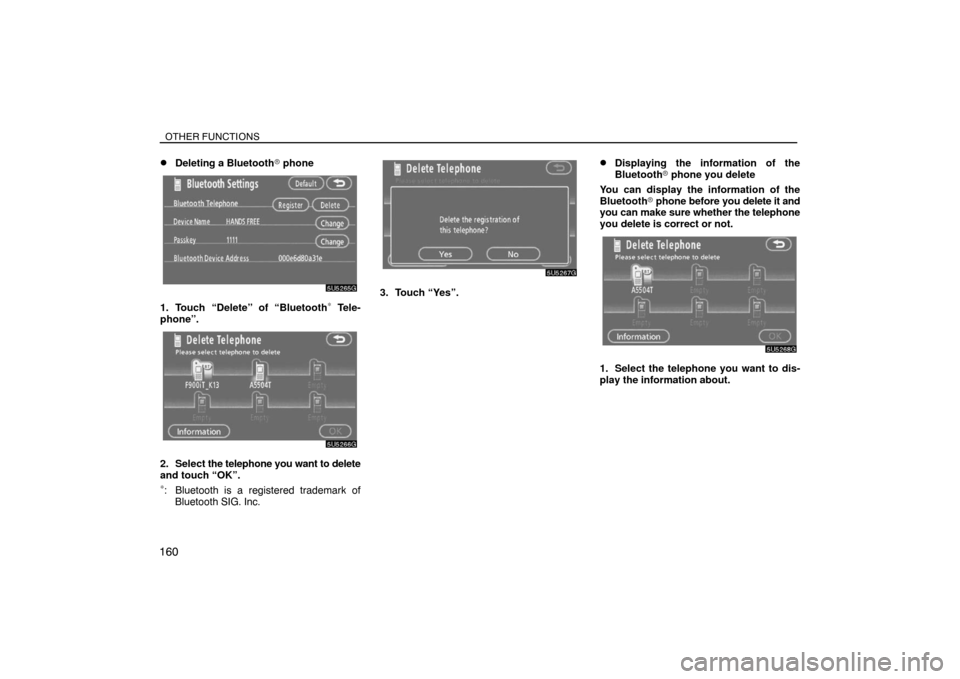

Deleting a Bluetooth phone
1. Touch “Delete” of “Bluetooth∗ Tele-
phone”.
2. Select the telephone you want to delete
and touch “OK”.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
3. Touch “Yes”.
Displaying the information of the
Bluetooth phone you delete
You can display the information of the
Bluetooth phone before you delete it and
you can make sure whether the telephone
you delete is correct or not.
1. Select the telephone you want to dis-
play the information about.

OTHER FUNCTIONS
167

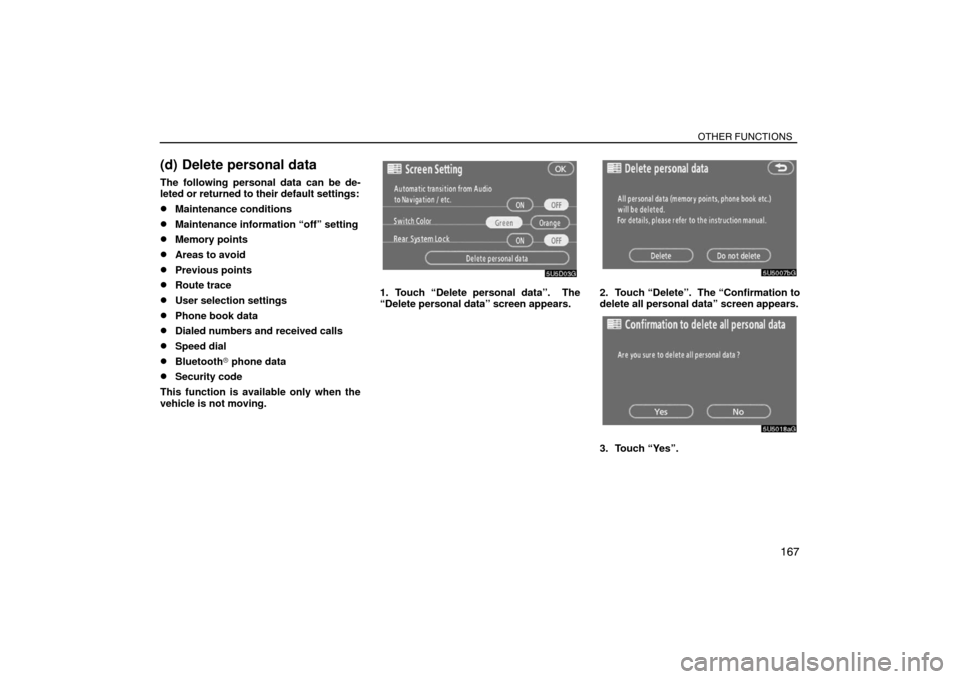

(d) Delete personal data
The following personal data can be de-
leted or returned to their default settings:
Maintenance conditions
Maintenance information “off” setting
Memory points
Areas to avoid
Previous points
Route trace
User selection settings
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code
This function is available only when the
vehicle is not moving.
1. Touch “Delete personal data”. The
“Delete personal data” screen appears.2. Touch “Delete”. The “Confirmation to
delete all personal data” screen appears.
3. Touch “Yes”.
