engine TOYOTA SIENNA 2008 XL20 / 2.G Navigation Manual

BASIC FUNCTIONS
20
Display operation
Adjustment of the angle of the display can be
done by pushing the “TILT” button. Each
push of the “TILT” button will tilt the display to
positions
1, 2, 3 and then back to 0 in the
reverse order.
If the engine switch is set at OFF, the display
will automatically move back to position
0.
The display will automatically resume the pre-
vious position when the engine switch is set
at ACC or ON.
CAUTION
Injury may result from placing a hand or
any fingers on the display while it is
moving.
NOTICE
Do not place any foreign objects on the
display while it is moving. It could dam-
age your navigation system.
INFORMATION
Under extremely cold conditions, the
display may react slowly or operation
sound may become louder.
Initial screen
When the engine switch is set at ACC or ON,
the initial screen will be displayed and the
system will begin operating.
CAUTION
When the vehicle is stopped with the en-
gine running, always apply the parking
brake for safety.
After a few seconds, the “CAUTION” screen
will be displayed.

OTHER FUNCTIONS
111
INFORMATION ITEMS
“ENGINE OIL”: Replace engine oil
“OIL FILTER”: Replace engine oil filter
“ROTATION”: Rotate tires
“TIRES”: Replace tires
“BATTERY”: Replace battery
“BRAKE PAD”: Replace brake linings
“WIPERS”: Replace wiper blades
“LLC”: Replace engine coolant
“BRAKE OIL”: Replace brake fluid
“ATF”: Replace ATF
“SERVICE”: Scheduled maintenance
“AIR FILTER”: Replace air filter
“PERSONAL”: New information items can
be created separately from provided ones
4. Input the conditions.
Notice of “Date”: The next maintenance
date can be input.
Notice of “Distance”: The driving distance
until the next maintenance check can be in-
put.
“Delete”: To cancel the date and distance
conditions.
“Reset”: To reset the date and distance con-
ditions.
5. Touch “OK”.
The screen then returns to the “Maintenance”
screen.
INFORMATION
For scheduled maintenance informa-
tion, please refer to the “Scheduled
Maintenance Guide” or “Owner’s
Manual Supplement”.
Depending on driving or road condi-
tions, the actual date and distance
may differ from the stored date and
distance in the system.

OTHER FUNCTIONS
124
When the engine switch is set at ACC or
ON, the selected Bluetooth phone will be
automatically connected and the connec-
tion result is displayed.
This screen appears when the Bluetooth
phone is first connected after the engine
switch is set at ACC or ON.(ii) Manually
When the auto connection fails or is
turned off, you have to connect
Bluetooth manually.
Touch “Connect” after enabling the
Bluetooth connection on the phone.
When the connection is completed, this
screen is displayed.
Now you can use the Bluetooth phone.
Reconnecting the Bluetooth phone
If the Bluetooth phone is disconnected
with a poor reception from the Bluetooth
network when the engine switch is set at
ACC or ON, the system automatically re-
connects the Bluetooth phone. In this
case, the connection result is not dis-
played.
If the Bluetooth is disconnected on purpose
such as you turned your cellular phone OFF,
this does not happen. Reconnect it by the fol-
lowing methods.
Select the Bluetooth phone again.
Enter the Bluetooth phone.

OTHER FUNCTIONS
141
The Bluetooth connection status at
startup
When the engine switch is set at ACC or
ON and the Bluetooth is automatically
connected, the connection check is dis-
played.
Touch “ON” or “OFF” of “Show Bluetooth∗
connection status at start up”.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
Initializing the settings
You can initialize the settings.
Touch “Default”.
Touch “Yes”.(v) Setting the phone book
You can register phone numbers in the
phone book.
Touch “Phone Book” to display the
“Phone Book Management” screen.
You can do the detail settings of phone
book.

OTHER FUNCTIONS
142
Transferring a telephone number
You can transfer the telephone numbers in
your Bluetooth phone to the system. Up
to 1000 person’s data (up to 2 numbers a
person) can be registered in the phone
book.
Transfer it while the engine is running.
1. Touch “Transfer Data” to display “Se-
lect Group” screen.
2. Select the group you want to transfer
to.
3. Touch “Overwrite” or “Add To”.
4. Transfer the phone book data to the
system using the Bluetooth phone.
This screen appears while transferring. To
cancel it, touch “Cancel”. If the transferring
is interrupted on the way, the phone book data
transferred until then can be memorized in the
system.
5. When this screen is displayed, the
transfer is completed.

Finish
AUDIO/VIDEO SYSTEM
171
8“AUDIO” button
Push this button to display the audio
control screen. For details, see page
172.
9“SEEK/TRACK” button
Push either side of this button to seek up
or down for a station, or to access a de-
sired track, file or chapter. For details,
see pages 177, 188, 192,196 and 199.
10“PWR·VOL” knob
Push this knob to turn the audio system
on and off, and turn it to adjust the volu-
me. For details, see page 172.
Using your audio/video
system —
— Some basics
This section describes some of the basic fea-
tures of your audio system. Some information
may not pertain to your system.
Your audio system works when the engine
switch is set at ACC or ON.
NOTICE
To prevent the battery from being dis-
charged, do not leave the audio system
on longer than necessary when the en-
gine is not running.
CAUTION
For vehicles sold in U.S.A. and Canada:
Part 15 of the FCC Rules
FCC Warning:
Changes or modifications in con-
struction not expressly approved by
the party responsible for compliance
could void the user’s authority to op-
erate the equipment. Radio frequen-
cy exposure. This device is approved
for Mobile Application only and, to
comply with applicable FCC radio fre-
quency exposure regulations, must
be used with a distance of at least 7.9
in. (20 cm) between the antenna and
the body of any person at all time dur-
ing use.

Finish
AUDIO/VIDEO SYSTEM
184
NOTICE
This equipment has been tested and
found to comply with the limits for a
class B digital device, pursuant to Part
15 of the FCC Rules. These limits are de-
signed to provide reasonable protection
against harmful interference in a resi-
dential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the in-
structions, may cause harmful interfer-
ence to radio communications. Howev-
er, there is no guarantee that interfer-
ence will not occur in a particular instal-
lation.
If this equipment does cause harmful in-
terference to radio or television recep-
tion, which can be determined by turn-
ing the equipment off and on, the user is
encouraged to try to correct the interfer-
ence by one or more of the following
measures:
— Reorient or relocate the receiving an-
tenna.
— Increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
— Consult the dealer or an experienced
radio/TV technician for help.
Information to user
Alternation or modifications carried out
without appropriate authorization may
invalidate the user’s right to operate the
equipment.
INFORMATION
This XM tuner supports “Audio Ser-
vices” (Music and Talk) of only XM sat-
ellite radio and “Text Information”*
linked to the respective “Audio Ser-
vices”.
*Text Information includes, Station
Name, (Artist) Name, (Song) Title and
Category Name.
— CD changer operation
(a) Inserting discs
The engine switch must be set at ACC or ON.
Your CD changer can store up to 4 discs.
You can set a disc at the lowest empty disc
number.
1. Push the “LOAD·
” button. The
“LOAD·EJECT” screen appears.

APPENDIX
228

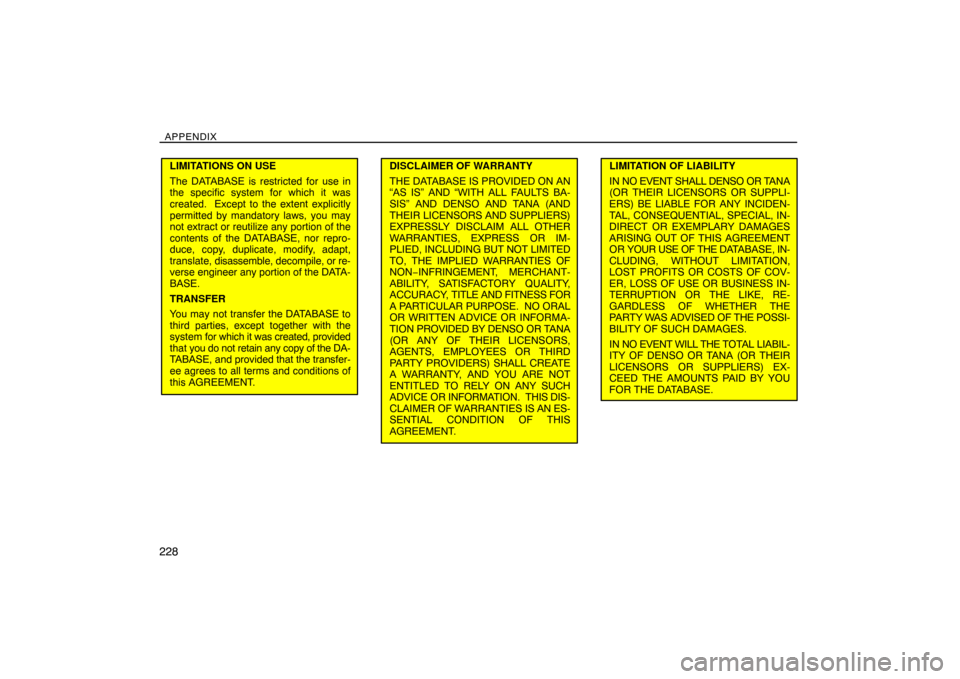

LIMITATIONS ON USE
The DATABASE is restricted for use in
the specific system for which it was
created. Except to the extent explicitly
permitted by mandatory laws, you may
not extract or reutilize any portion of the
contents of the DATABASE, nor repro-
duce, copy, duplicate, modify, adapt,
translate, disassemble, decompile, or re-
verse engineer any portion of the DATA-
BASE.
TRANSFER
You may not transfer the DATABASE to
third parties, except together with the
system for which it was created, provided
that you do not retain any copy of the DA-
TABASE, and provided that the transfer-
ee agrees to all terms and conditions of
this AGREEMENT.DISCLAIMER OF WARRANTY
THE DATABASE IS PROVIDED ON AN
“AS IS” AND “WITH ALL FAULTS BA-
SIS” AND DENSO AND TANA (AND
THEIR LICENSORS AND SUPPLIERS)
EXPRESSLY DISCLAIM ALL OTHER
WARRANTIES, EXPRESS OR IM-
PLIED, INCLUDING BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF
NON−INFRINGEMENT, MERCHANT-
ABILITY, SATISFACTORY QUALITY,
ACCURACY, TITLE AND FITNESS FOR
A PARTICULAR PURPOSE. NO ORAL
OR WRITTEN ADVICE OR INFORMA-
TION PROVIDED BY DENSO OR TANA
(OR ANY OF THEIR LICENSORS,
AGENTS, EMPLOYEES OR THIRD
PARTY PROVIDERS) SHALL CREATE
A WARRANTY, AND YOU ARE NOT
ENTITLED TO RELY ON ANY SUCH
ADVICE OR INFORMATION. THIS DIS-
CLAIMER OF WARRANTIES IS AN ES-
SENTIAL CONDITION OF THIS
AGREEMENT.LIMITATION OF LIABILITY
IN NO EVENT SHALL DENSO OR TANA
(OR THEIR LICENSORS OR SUPPLI-
ERS) BE LIABLE FOR ANY INCIDEN-
TAL, CONSEQUENTIAL, SPECIAL, IN-
DIRECT OR EXEMPLARY DAMAGES
ARISING OUT OF THIS AGREEMENT
OR YOUR USE OF THE DATABASE, IN-
CLUDING, WITHOUT LIMITATION,
LOST PROFITS OR COSTS OF COV-
ER, LOSS OF USE OR BUSINESS IN-
TERRUPTION OR THE LIKE, RE-
GARDLESS OF WHETHER THE
PARTY WAS ADVISED OF THE POSSI-
BILITY OF SUCH DAMAGES.
IN NO EVENT WILL THE TOTAL LIABIL-
ITY OF DENSO OR TANA (OR THEIR
LICENSORS OR SUPPLIERS) EX-
CEED THE AMOUNTS PAID BY YOU
FOR THE DATABASE.

APPENDIX
230
If you are an agency, department, or oth-
er entity of any State government, the
United States Government or any other
public entity or funded in whole or in part
by the United States Government, then
you hereby agree to protect the DATA-
BASE from public disclosure and to con-
sider the DATABASE exempt from any
statute, law, regulation, or code, includ-
ing any Sunshine Act, Public Records
Act, Freedom of Information Act, or
equivalent, which permits public access
and/or reproduction or use of the Li-
censed Products. In the event that such
exemption is challenged under any such
laws, this Agreement shall be considered
breached and any and all right to retain
any copies or to use of the DATABASE
shall be terminated and considered im-
mediately null and void. Any copies of
the DATABASE held by you shall imme-
diately be destroyed. If any court of com-
petent jurisdiction considers this clause
void and unenforceable, in whole or in
part, for any reason, this Agreement shall
be considered terminated and null and
void, in its entirety, and any and all copies
of the DATABASE shall immediately be
destroyed.END USER NOTICE
PLEASE READ THIS NOTICE CARE-
FULLY BEFORE USING THIS NAVIGA-
TION SYSTEM
The Point Of Interest Data (“POI”
Data) in the navigation system is in
part provided by infoUSA Inc. (“infoU-
SA”). By using the POI Data, you ac-
cept and agree to all terms and condi-
tions set forth below.
1. OWNERSHIP
All rights, title and interest to the infoUSA
POI Data shall be retained by infoUSA.
2. LIMITATIONS ON USE
Except to the extent explicitly permitted
by mandatory laws, you may not extract
or reutilize any portion of the contents of
the POI Data, nor reproduce, copy,
modify, adapt, translate, disassemble,
decompile, or reverse engineer any por-
tion of the POI Data.
3. TRANSFER
You may not transfer the POI Data to third
parties, except together with the system
for which it was created, provided that
you do not retain any copy of the POI
Data.4. DISCLAIMER OF WARRANTY
EXCEPT AS STATED HEREIN, INFOU-
SA MAKES NO EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, WITH-
OUT LIMITATION, ANY EXPRESS OR
IMPLIED WARRANTY OF FITNESS
FOR A PARTICULAR PURPOSE OR
WARRANTY OF MERCHANTABILITY.
5. LIMITATION OF LIABILITY
EITHER INFOUSA OR SUPPLIER OF
POI DATA SHALL NOT BE LIABLE FOR
ANY INDIRECT, CONSEQUENTIAL OR
INCIDENTAL DAMAGES MADE OR AL-
LEGED IN CONNECTION WITH YOUR
USE OF THE POI DATA.

APPENDIX
231
END USER LICENSE AGREEMENT
Personal Use Only. You agree to use this
information for solely personal, non−
commercial purposes, and not for ser-
vice bureau, time−sharing or other simi-
lar purposes. You may not modify the in-
formation or remove any copyright no-
tices that appear on the information in
any way. You may not decompile, disas-
semble or reverse engineer any portion
of this information, and may not transfer
or distribute it in any form, for any pur-
pose. Without limiting the foregoing, you
may not use this information with any
products, systems, or applications
installed or otherwise connected to or in
communication with vehicles, capable of
vehicle navigation, positioning, dispatch,
real time route guidance, fleet manage-
ment or similar applications.No Warranty. This information is pro-
vided to you “as is,” and you agree to use
it at your own risk. DENSO and its licen-
sors (and their licensors and suppliers,
collectively “DENSO”) make no guaran-
tees, representations or warranties of
any kind, express or implied, arising by
law or otherwise, including but not limited
to, and DENSO expressly disclaims any
warranties regarding content, quality, ac-
curacy, completeness, effectiveness,
reliability, fitness for a particular purpose,
non−infringement, usefulness, use or re-
sults to be obtained from this information,
or that the information or server will be
uninterrupted or error−free. Some
states, territories and countries do not al-
low certain warranty exclusions, so to
that extent, the above exclusion may not
apply to you.Disclaimer of Liability: DENSO SHALL
NOT BE LIABLE TO YOU FOR ANY
CLAIM, DEMAND OR ACTION, IR-
RESPECTIVE OF ITS NATURE, AL-
LEGING ANY LOSS, INJURY OR DAM-
AGES, WHETHER DIRECT, INDIRECT,
INCIDENTAL, SPECIAL OR CONSE-
QUENTIAL DAMAGES, INCLUDING
ANY LOSS OF PROFIT, REVENUE OR
CONTRACTS ARISING OUT OF YOUR
POSSESSION, USE OF OR INABILITY
TO USE THIS INFORMATION, ANY DE-
FECT IN THE INFORMATION, OR THE
BREACH OF THESE TERMS OR CON-
DITIONS, WHETHER IN AN ACTION IN
CONTRACT OR TORT OR BASED ON
A WARRANTY, EVEN IF DENSO OR
ITS LICENSORS HAVE BEEN AD-
VISED OF THE POSSIBILITY OF SUCH
DAMAGES. Some states, territories and
countries do not allow certain liability ex-
clusions or damages limitations, so to
that extent the above may not apply to
you.
