TOYOTA SIENNA 2008 XL20 / 2.G Owners Manual

08 SIENNA_U (L/O 0801)
403
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

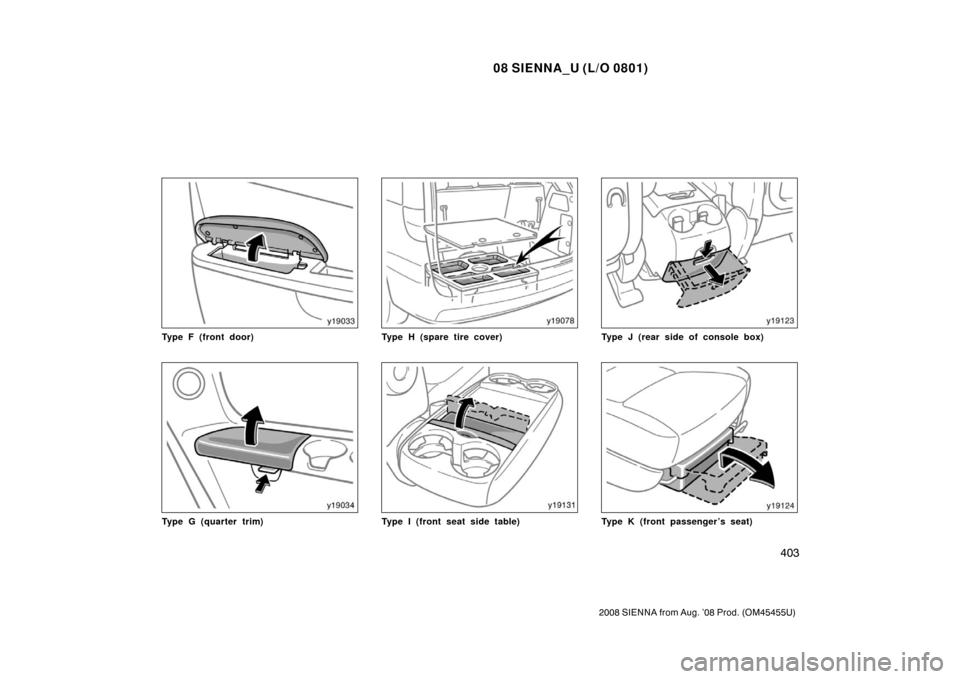

Type F (front door)
Type G (quarter trim)
Type H (spare tire cover)
Type I (front seat side table)
Type J (rear side of console box)
Type K (front passenger’s seat)

08 SIENNA_U (L/O 0801)
404
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

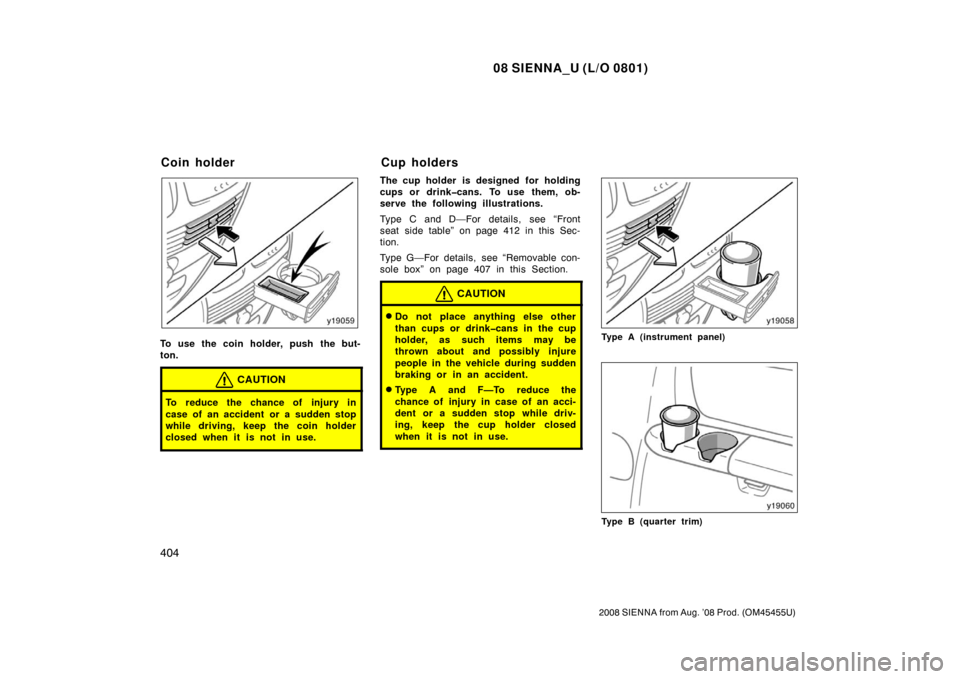

To use the coin holder, push the but-
ton.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop
while driving, keep the coin holder
closed when it is not in use.
The cup holder is designed for holding
cups or drinkcans. To use them, ob-
serve the following illustrations.
Type C and D—For details, see “Front
seat side table” on page 412 in this Sec-
tion.
Type G—For details, see “Removable con-
sole box” on page 407 in this Section.
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about and possibly injure
people in the vehicle during sudden
braking or in an accident.
Type A and F—To reduce the
chance of injury in case of an acci-
dent or a sudden stop while driv-
ing, keep the cup holder closed
when it is not in use.
Type A (instrument panel)
Type B (quarter trim)
Coin holderCup holders

08 SIENNA_U (L/O 0801)
405
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

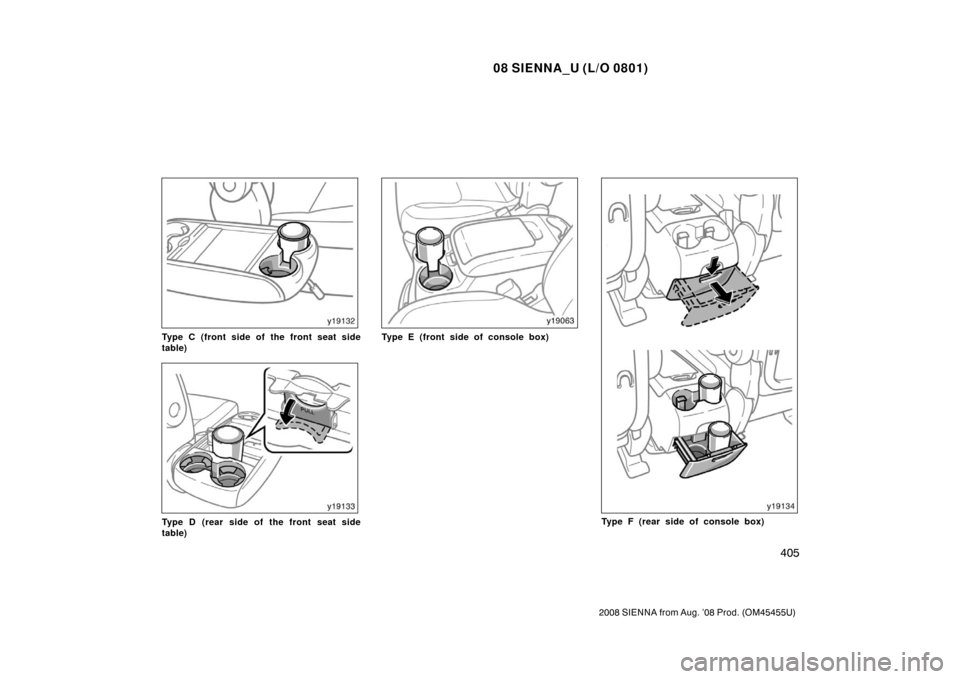

Type C (front side of the front seat side
table)
Type D (rear side of the front seat side
table)
Type E (front side of console box)
Type F (rear side of console box)

08 SIENNA_U (L/O 0801)
406
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

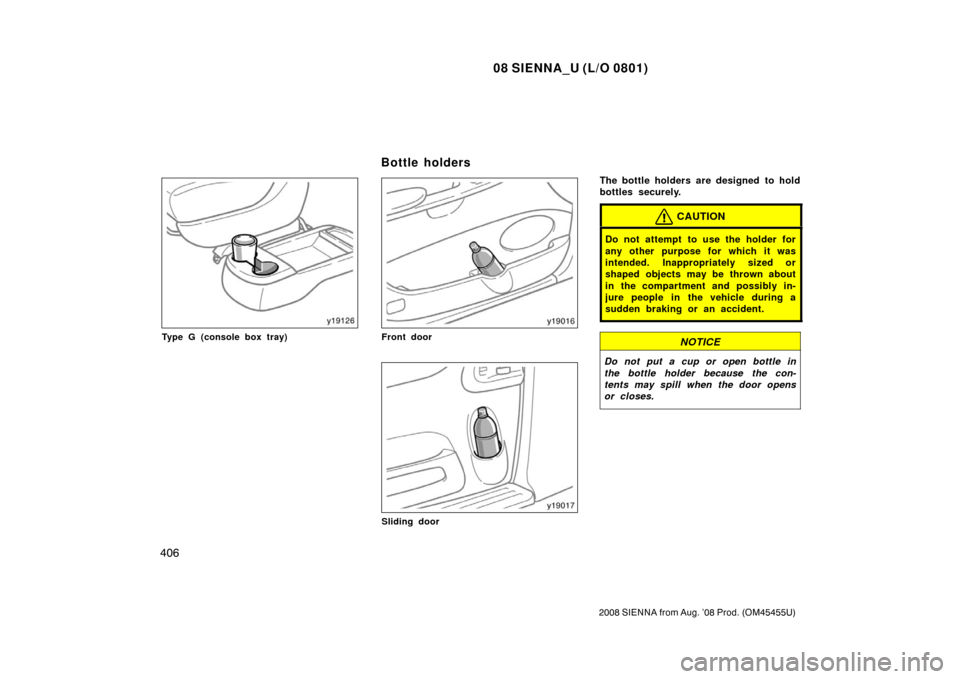

Type G (console box tray)Front door
Sliding door
The bottle holders are designed to hold
bottles securely.
CAUTION
Do not attempt to use the holder for
any other purpose for which it was
intended. Inappropriately sized or
shaped objects may be thrown about
in the compartment and possibly in-
jure people in the vehicle during a
sudden braking or an accident.
NOTICE
Do not put a cup or open bottle in
the bottle holder because the con-
tents may spill when the door opens
or closes.
Bottle holders

08 SIENNA_U (L/O 0801)
407
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

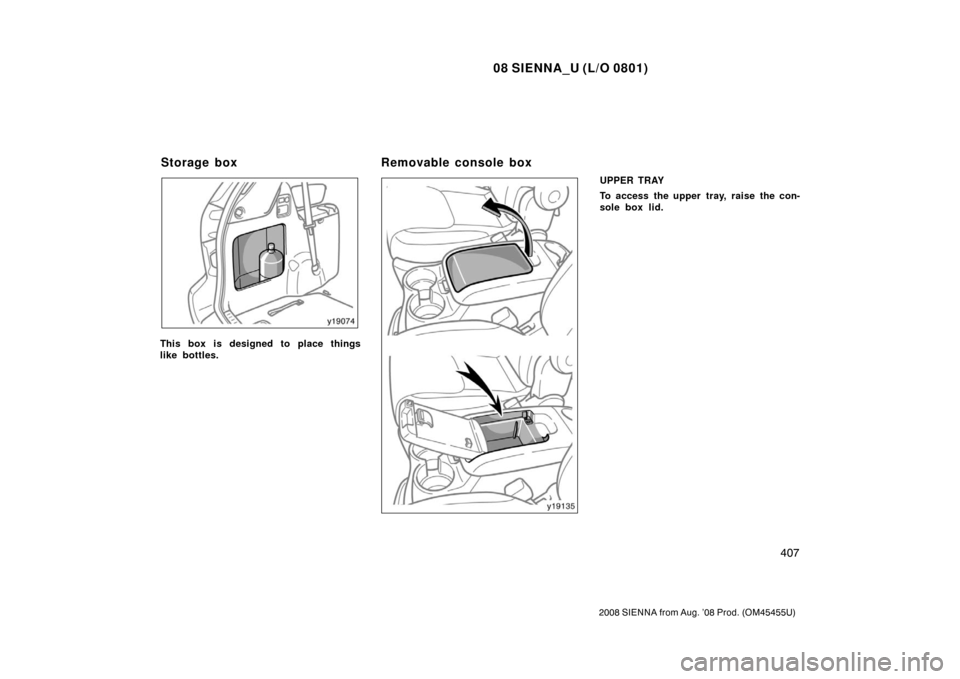

This box is designed to place things
like bottles.
UPPER TRAY
To access the upper tray, raise the con-
sole box lid.
Storage boxRemovable console box

08 SIENNA_U (L/O 0801)
408
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

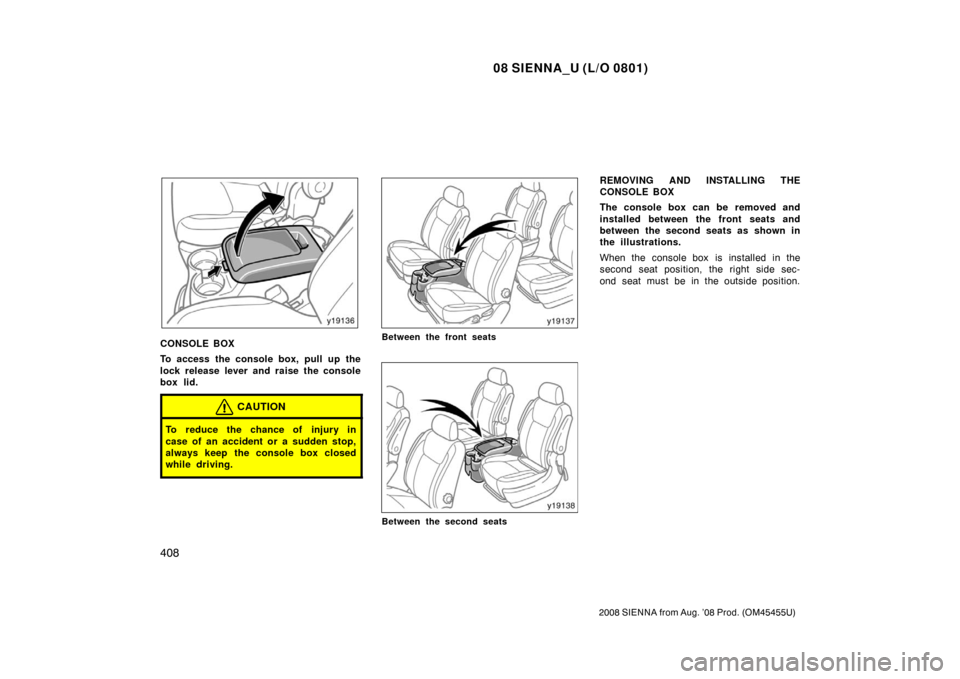

CONSOLE BOX
To access the console box, pull up the
lock release lever and raise the console
box lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
Between the front seats
Between the second seats
REMOVING AND INSTALLING THE
CONSOLE BOX
The console box can be removed and
installed between the front seats and
between the second seats as shown in
the illustrations.
When the console box is installed in the
second seat position, the right side sec-
ond seat must be in the outside position.

08 SIENNA_U (L/O 0801)
409
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

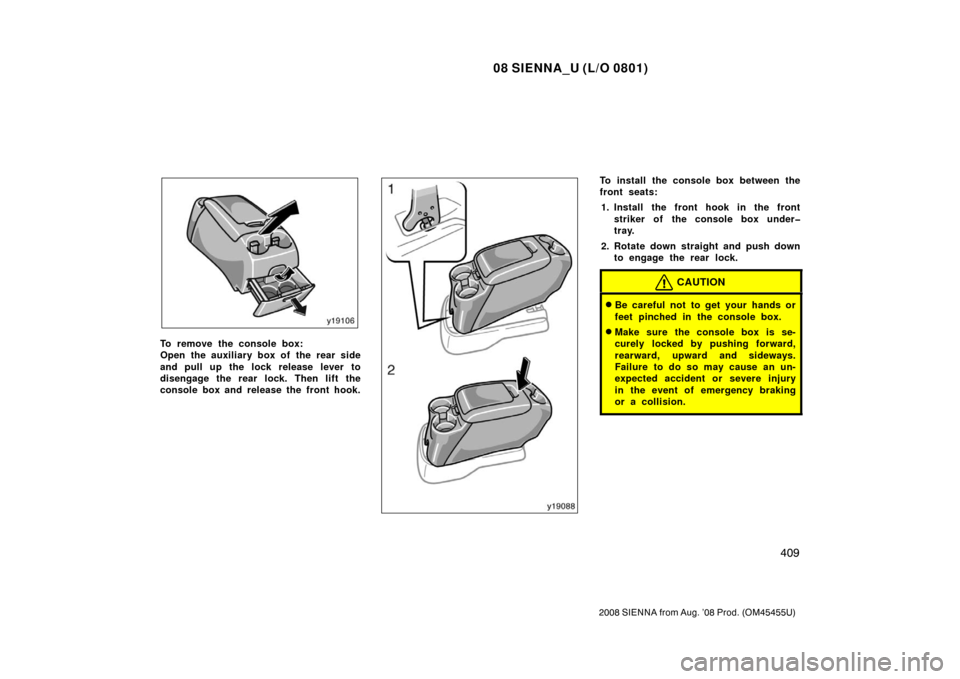

To remove the console box:
Open the auxiliary box of the rear side
and pull up the lock release lever to
disengage the rear lock. Then lift the
console box and release the front hook.
To install the console box between the
front seats:1. Install the front hook in the front striker of the console box under
tray.
2. Rotate down straight and push down to engage the rear lock.
CAUTION
Be careful not to get your hands or
feet pinched in the console box.
Make sure the console box is se-
curely locked by pushing forward,
rearward, upward and sideways.
Failure to do so may cause an un-
expected accident or severe injury
in the event of emergency braking
or a collision.

08 SIENNA_U (L/O 0801)
410
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

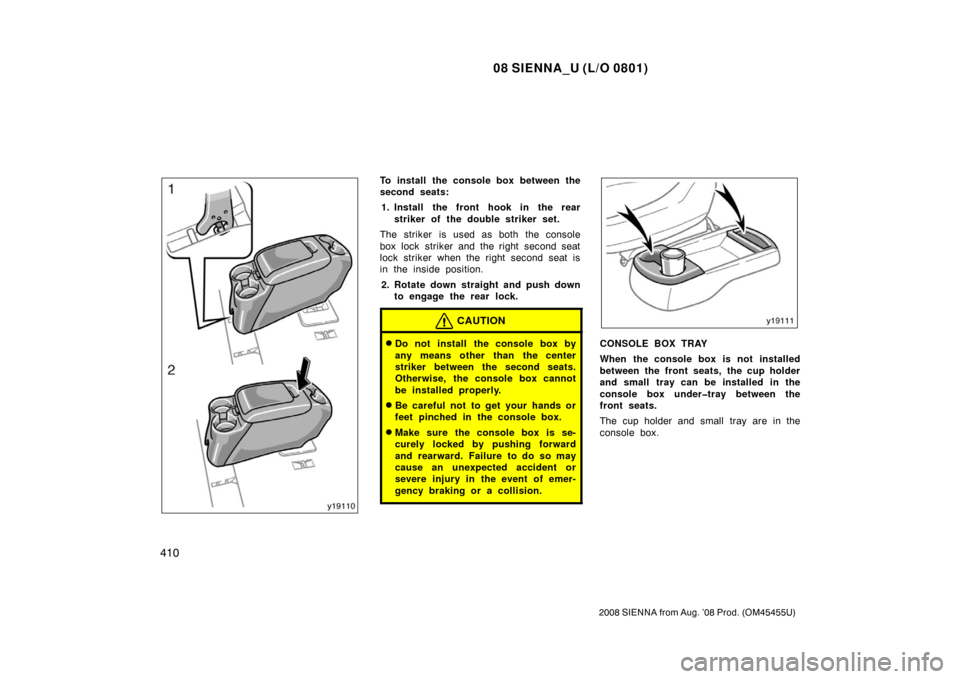

To install the console box between the
second seats:1. Install the front hook in the rear striker of the double striker set.
The striker is used as both the console
box lock striker and the right second seat
lock striker when the right second seat is
in the inside position.
2. Rotate down straight and push down to engage the rear lock.
CAUTION
Do not install the console box by
any means other than the center
striker between the second seats.
Otherwise, the console box cannot
be installed properly.
Be careful not to get your hands or
feet pinched in the console box.
Make sure the console box is se-
curely locked by pushing forward
and rearward. Failure to do so may
cause an unexpected accident or
severe injury in the event of emer-
gency braking or a collision.
CONSOLE BOX TRAY
When the console box is not installed
between the front seats, the cup holder
and small tray can be installed in the
console box undertray between the
front seats.
The cup holder and small tray are in the
console box.

08 SIENNA_U (L/O 0801)
411
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

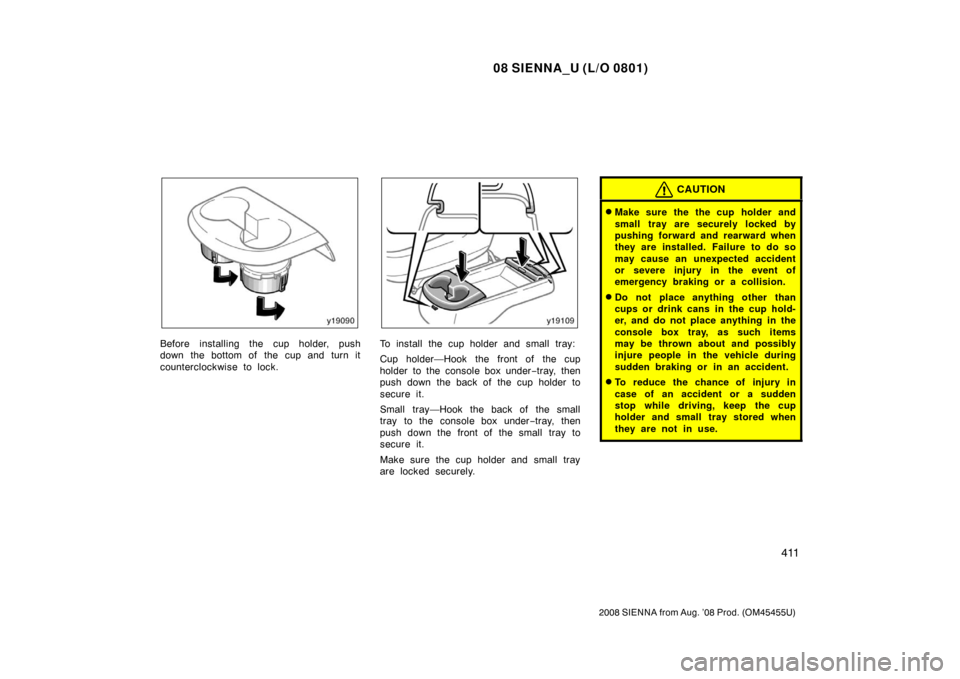

Before installing the cup holder, push
down the bottom of the cup and turn it
counterclockwise to lock.To install the cup holder and small tray:
Cup holder—Hook the front of the cup
holder to the console box under−tray, then
push down the back of the cup holder to
secure it.
Small tray—Hook the back of the small
tray to the console box under −tray, then
push down the front of the small tray to
secure it.
Make sure the cup holder and small tray
are locked securely.
CAUTION
Make sure the the cup holder and
small tray are securely locked by
pushing forward and rearward when
they are installed. Failure to do so
may cause an unexpected accident
or severe injury in the event of
emergency braking or a collision.
Do not place anything other than
cups or drink cans in the cup hold-
er, and do not place anything in the
console box tray, as such items
may be thrown about and possibly
injure people in the vehicle during
sudden braking or in an accident.
To reduce the chance of injury in
case of an accident or a sudden
stop while driving, keep the cup
holder and small tray stored when
they are not in use.

08 SIENNA_U (L/O 0801)
412
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

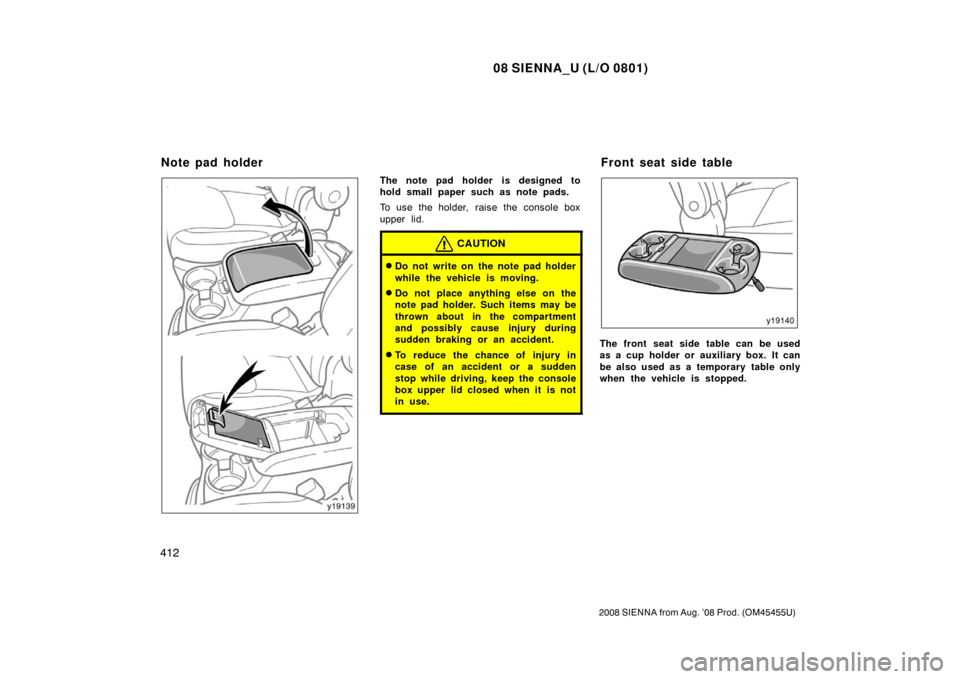

The note pad holder is designed to
hold small paper such as note pads.
To use the holder, raise the console box
upper lid.
CAUTION
Do not write on the note pad holder
while the vehicle is moving.
Do not place anything else on the
note pad holder. Such items may be
thrown about in the compartment
and possibly cause injury during
sudden braking or an accident.
To reduce the chance of injury in
case of an accident or a sudden
stop while driving, keep the console
box upper lid closed when it is not
in use.
The front seat side table can be used
as a cup holder or auxiliary box. It can
be also used as a temporary table only
when the vehicle is stopped.
Note pad holderFront seat side table
