TOYOTA SIENNA 2008 XL20 / 2.G Owners Manual

08 SIENNA_U (L/O 0801)
453
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Before starting the engine, be sure to fol-
low the instructions in “(a) Before crank-
ing”.
Normal starting procedure
The multiport fuel injection system/sequen-
tial multiport fuel injection system in your
engine automatically controls the proper
air−fuel mixture for starting. You can start
a cold or hot engine as follows:
With your foot off the accelerator pedal,
crank the engine by turning the engine
switch to “START”. Release it when the
engine starts.
Engine should be warmed up by driving,
not in idle. For warming up, drive with
smoothly turning engine until engine cool-
ant temperature is within normal range.
If the engine stalls...
Simply restart it, using the correct proce-
dure given in normal starting.
If the engine will not start...
See “If your vehicle will not start” on page
466 in Section 4.NOTICE
 Do not race a cold engine.
 If the engine becomes difficult to
start or stalls frequently, have the
engine checked immediately.
Always slow down in gusty crosswinds.
This will allow you much better control.
Drive slowly onto curbs and, if pos-
sible, at a right angle. Avoid driving
onto high, sharp− edged objects and
other road hazards. Failure to do so
can lead to severe tire damage such
as a tire burst.
Drive slowly when passing over bumps
or travelling on a bumpy road. Other-
wise, the impact could cause severe
damage to the tires and/or wheels.
When parking on a hill, turn the front
wheels until they touch the curb so
that the vehicle will not roll. Apply the
parking brake, and place the transmis-
sion in “P”. If necessary, block the
wheels.
Washing your vehicle or driving through
deep water may get the brakes wet. To
see whether they are wet, check that
there is no traffic near you, and then
press the pedal lightly. If you do not
feel a normal braking force, the brakes
are probably wet. To dry them, drive
the vehicle cautiously while lightly
pressing the brake pedal with the park-
ing brake applied. If they still do not
work safely, pull to the side of the road
and call a Toyota dealer for assistance.
(b) Starting the engine Tips for driving in various
conditions

08 SIENNA_U (L/O 0801)
454
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
CAUTION
Before driving off, make sure that
the parking brake is fully released
and the parking brake reminder
light is off.
Do not leave your vehicle unat-
tended while the engine is running.
Do not rest your foot on the brake
pedal while driving. It can cause
dangerous overheating, needless
wear, and poor fuel economy.
To drive down a long or steep hill,
reduce your speed and downshift.
Remember, if you ride the brakes
excessively, they may overheat and
not work properly.
Be careful when accelerating, up-
shifting, downshifting or braking on
a slippery surface. Sudden accelera-
tion or engine braking could cause
the vehicle to skid or spin.
Do not drive in excess of the speed
limit. Even if the legal speed limit
permits it, do not drive over 140
km/h (85 mph) unless your vehicle
has highspeed capability tires.
Driving over 140 km/h (85 mph) may
result in tire failure, loss of control
and possible injury. Be sure to con-
sult a tire dealer to determine
whether the tires on your vehicle
are highspeed capability tires or
not before driving at such speeds.
Do not continue normal driving
when the brakes are wet. If they are
wet, your vehicle will require a
longer stopping distance, and it
may pull to one side when the
brakes are applied. Also, the park-
ing brake will not hold the vehicle
securely.
Driving on a slippery road surface
Drive carefully when it is raining, because
visibility will be reduced, the windows may
become fogged−up, and the road will be
slippery.
Drive carefully when it starts to rain,
because the road surface will be espe-
cially slippery.
Refrain from high speeds when driving
on an expressway in the rain, because
there may be a layer of water between
the tires and the road surface,
preventing the steering and brakes
from operating properly.
Driving in the rain

08 SIENNA_U (L/O 0801)
455
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
CAUTION
Sudden braking, acceleration and
steering when driving on a slippery
road surface may cause tire slip-
page and reduce your ability to
control the vehicle, resulting in an
accident.
Sudden changes in engine speed,
such as sudden engine braking,
may cause the vehicle to skid, re-
sulting in an accident.
After driving through a puddle,
lightly depress the brake pedal to
make sure that the brakes are func-
tioning properly. Wet brake pads
may prevent the brakes from func-
tioning properly. If the brakes on
only one side are wet and not func-
tioning properly, steering control
may be affected, resulting in an ac-
cident.
When encountering flooded roads
Do not drive on a road that has flooded
after heavy rain etc. Doing so may cause
serious damage to the vehicle.
NOTICE
Driving on a flooded road may cause
the engine to stall as well as cause
serious vehicle malfunctions such as
shorts in electrical components and
engine damage from water immersion.
In the event that you drive on a
flooded road and the vehicle is
flooded, be sure to have your Toyota
dealer check brake function, changes
in quantity and quality of oil and fluid
used for the engine, transaxle, trans-
fer (AWD vehicles), differential, etc.
and lubricant condition for the propel-
ler shaft (AWD vehicles), bearings and
suspension joints (where possible)
and the function of all joints and bea-
rings.
If you need greater traction while driv-
ing on sand, mud or snow covered
roadways, use tire chains on the front
wheels.
Always check your brakes for effective-
ness immediately after driving across
sand, mud, or water.
If operating in adverse conditions
frequently, vehicle maintenance should
be increased. (See the separate
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”.)
CAUTION
Observe the following tire instruc-
tions. Otherwise, an accident may oc-
cur resulting in death or serious inju-
ries.
Keep your tire inflation pressure at
the proper level. (See “Checking
tire inflation pressure” on page 523
in Section 72.)
Do not use tires (including snow
tires) of different brands, sizes,
construction or tread patterns. (See
“Checking and replacing tires” on
page 526 and “Installing snow tires
and chains” on page 530 in Section
72.)
Allwheel driving tips
(AWD models)

08 SIENNA_U (L/O 0801)
456
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Do not use tires with different tread
wear. To equalize the tire wear, ro-
tate tires at the appropriate interval.
(See “Rotating tires” on page 528
in Section 72.)
Use the manufacturer ’s recom-
mended wheels. Do not use wheels
of different sizes and types. (See
“Replacing wheels” on page 532 in
Section 72.)
NOTICE
Do not attempt to go offroad in your
Toyota. It is not designed for offroad
use.
Make sure your coolant is properly pro-
tected against freezing.
Only use “Toyota Super Long Life Coolant”
or similar high quality ethylene glycol
based non−silicate, non −amine, non −nitrite,
and non− borate coolant with long −life
hybrid organic acid technology. (Coolant
with long −life hybrid organic acid
technology is a combination of low
phosphates and organic acids.)
See “Checking the engine coolant level”
on page 520 in Section 7 −2 for details of
coolant type selection.
For the U.S.A.—“Toyota Super Long Life
Coolant” is a mixture of 50% coolant and
50% deionized water. This coolant pro-
vides protection down to about −35 C
( − 31 F).
For Canada—“Toyota Super Long Life
Coolant” is a mixture of 55% coolant and
45% deionized water. This coolant pro-
vides protection down to about −42 C
( − 44 F).
NOTICE
Do not use plain water alone.
Check the condition of the battery and
cables.
Cold temperatures reduce the capacity of
any battery, so it must be in top shape
to provide enough power for winter start-
ing. Section 7− 3 tells you how to visually
inspect the battery. Your Toyota dealer
and most service stations will be pleased
to check the level of charge.
Make sure the engine oil viscosity is
suitable for the cold weather.
See page 518 in Section 7 −2 for recom-
mended viscosity. Leaving a heavy sum-
mer oil in your vehicle during winter
months may cause harder starting. If you
are not sure about which oil to use, call
your Toyota dealer—they will be pleased
to help.
Keep the door locks from freezing.
Squirt lock de −icer or glycerine into the
locks to keep them from freezing.
Use a washer fluid containing an anti-
freeze solution.
This product is available at your Toyota
dealer and most auto parts stores. Follow
the manufacturer ’s directions for how
much to mix with water.
Winter driving tips

08 SIENNA_U (L/O 0801)
457
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Do not use your parking brake when
there is a possibility it could freeze.
When parking, put the transmission into
“P” and block the rear wheels. Do not use
the parking brake, or snow or water accu-
mulated in and around the parking brake
mechanism may freeze, making it hard to
release.
Keep ice and snow from accumulating
under the fenders.
Ice and snow built up under your fenders
can make steering difficult. During bad
winter driving, stop and check under the
fenders occasionally.
Depending on where you are driving,
we recommend you carry some emer-
gency equipment.
Some of the things you might put in the
vehicle are tire chains, window scraper,
bag of sand or salt, flares, small shovel,
jumper cables, etc.
Your vehicle is not designed to be
dinghy towed (with four wheels on the
ground) behind a motorhome.
NOTICE
Do not tow your vehicle with four
wheels on the ground. This may
cause serious damage to your vehicle.
Your vehicle is designed primarily as a
passenger−and− load− carrying vehicle. Tow-
ing a trailer will have an adverse effect on
handling, performance, braking, durability
and driving economy (fuel consumption,
etc.). Your safety and satisfaction depend
on the proper use of correct equipment
and cautious driving habits. For your safe-
ty and the safety of others, you must not
overload your vehicle or trailer. Ask your
local Toyota dealer for further details be-
fore towing.
WEIGHT LIMITS
Before towing, make sure the total trail-
er weight, gross combination weight,
gross vehicle weight, gross axle weight
and trailer tongue load are all within
the limits.
The total trailer weight and tongue load
can be measured with platform scales
found at a highway weighing station, build-
ing supply company, trucking company,
junk yard, etc.
Dinghy towing Trailer towing

08 SIENNA_U (L/O 0801)
458
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
CAUTION
The maximum gross trailer weight
(trailer weight plus cargo weight)
must never exceed the following. Without towing package
544 kg (1200 lb.)
With towing package 1587 kg (3500 lb.)
If towing a trailer and cargo weigh-
ing over 907 kg (2000 lb.), it is
necessary to use a sway control de-
vice with sufficient capacity. The
combination of the gross trailer
weight added to the total weight of
the vehicle, occupants and vehicle
cargo must never exceed a total of
the following.
Twowheel drive models Without towing package
2903 kg (6400 lb.)
With towing package 3946 kg (8700 lb.)
Allwheel drive models Without towing package
2948 kg (6500 lb.)
With towing package 3992 kg (8800 lb.)
Exceeding the maximum weight of
the trailer, the vehicle, or the ve-
hicle and trailer combination, can
cause an accident resulting in seri-
ous personal injuries.
Trailer hitch assemblies have differ-
ent weight capacities established by
the hitch manufacturer. Even though
the vehicle may be physically capa-
ble of towing a higher weight, the
operator must determine the maxi-
mum weight rating of the particular
hitch assembly and never exceed
the maximum weight rating speci-
fied for the trailerhitch. Exceeding
the maximum weight rating set by
the trailer hitch manufacturer can
cause an accident resulting in seri-
ous personal injuries.
The gross vehicle weight must not
exceed the Gross Vehicle Weight
Rating (GVWR) indicated on the
Certification Label. The gross ve-
hicle weight is the sum of weights
of the unloaded vehicle, driver, pas-
sengers, luggage, hitch and trailer
tongue load. It also includes the
weight of any special equipment
installed on your vehicle.
The load on either the front or rear
axle resulting from distribution of
the gross vehicle weight on both
axles must not exceed the Gross
Axle Weight Rating (GAWR) listed
on the Certification Label.

08 SIENNA_U (L/O 0801)
459
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

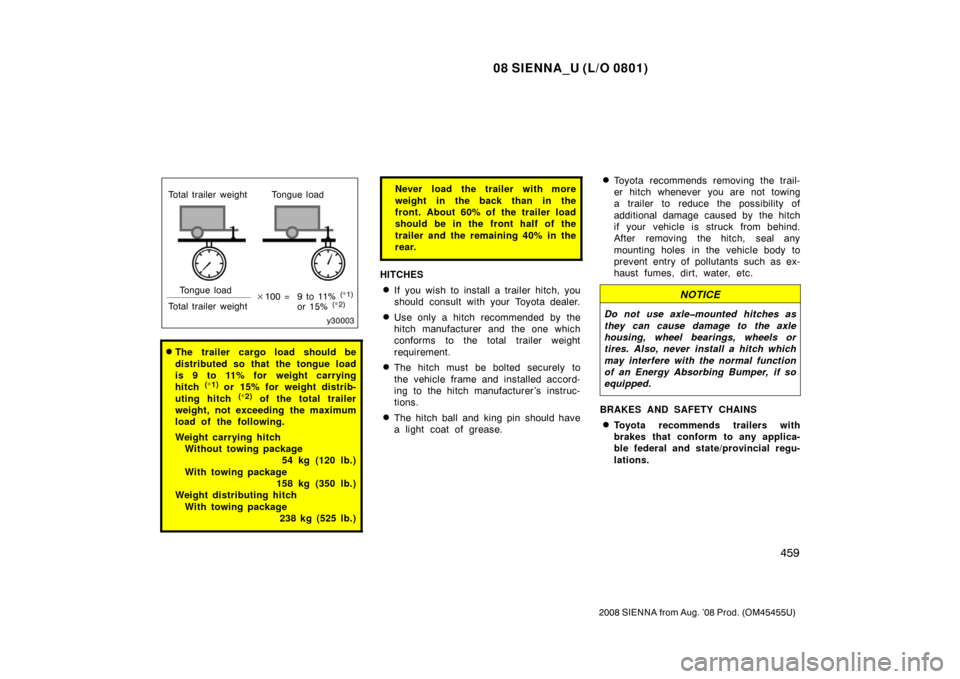

Total trailer weight Tongue loadTongue load
Total trailer weight
100 = 9 to 11%
(∗
1)
or 15% (∗
2)
The trailer cargo load should be
distributed so that the tongue load
is 9 to 11% for weight carrying
hitch
(∗
1) or 15% for weight distrib-
ut i ng hi t ch ( ∗
2) of the total trailer
weight, not exceeding the maximum
load of the following.
Weight carrying hitch Without towing package 54 kg (120 lb.)
With towing package 158 kg (350 lb.)
Weight distributing hitch
With towing package 238 kg (525 lb.)
Never load the trailer with more
weight in the back than in the
front. About 60% of the trailer load
should be in the front half of the
trailer and the remaining 40% in the
rear.
HITCHES
If you wish to install a trailer hitch, you
should consult with your Toyota dealer.
Use only a hitch recommended by the
hitch manufacturer and the one which
conforms to the total trailer weight
requirement.
The hitch must be bolted securely to
the vehicle frame and installed accord-
ing to the hitch manufacturer ’s instruc-
tions.
The hitch ball and king pin should have
a light coat of grease.
Toyota recommends removing the trail-
er hitch whenever you are not towing
a trailer to reduce the possibility of
additional damage caused by the hitch
if your vehicle is struck from behind.
After removing the hitch, seal any
mounting holes in the vehicle body to
prevent entry of pollutants such as ex-
haust fumes, dirt, water, etc.
NOTICE
Do not use axlemounted hitches as
they can cause damage to the axle
housing, wheel bearings, wheels or
tires. Also, never install a hitch which
may interfere with the normal function
of an Energy Absorbing Bumper, if so
equipped.
BRAKES AND SAFETY CHAINS
Toyota recommends trailers with
brakes that conform to any applica-
ble federal and state/provincial regu-
lations.

08 SIENNA_U (L/O 0801)
460
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
A safety chain must always be used
between the towing vehicle and the
trailer. Leave sufficient slack in the
chain for turns. The chain should
cross under the trailer tongue to
prevent the tongue from dropping to
the ground in case it becomes dam-
aged or separated. For correct safety
chain procedures, follow the hitch or
trailer manufacturer ’s recommenda-
tions.

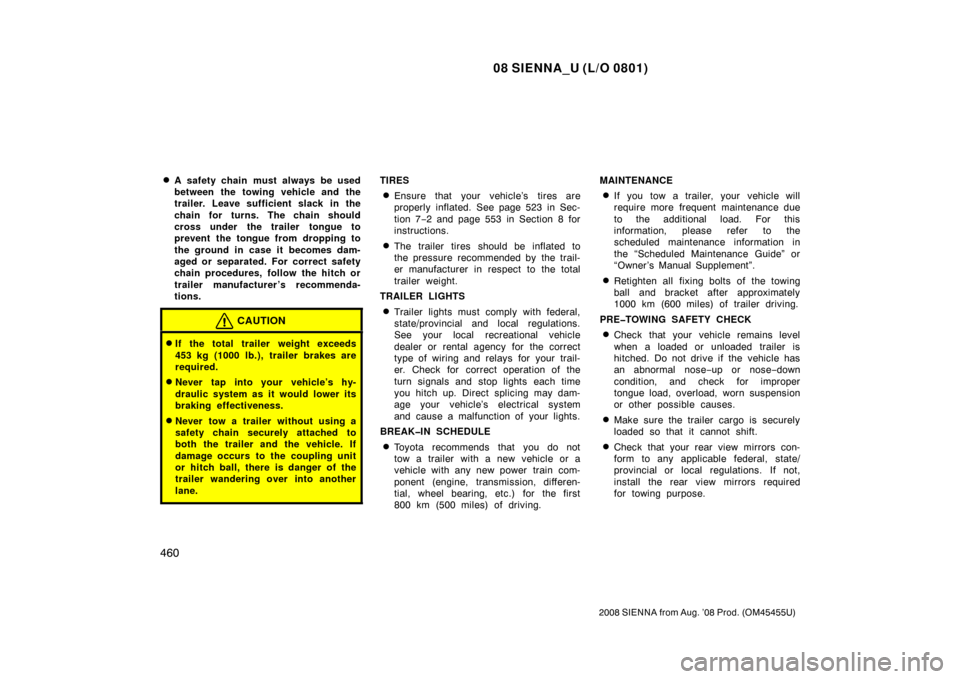

CAUTION
If the total trailer weight exceeds
453 kg (1000 lb.), trailer brakes are
required.
Never tap into your vehicle’s hy-
draulic system as it would lower its
braking effectiveness.
Never tow a trailer without using a
safety chain securely attached to
both the trailer and the vehicle. If
damage occurs to the coupling unit
or hitch ball, there is danger of the
trailer wandering over into another
lane.
TIRES
Ensure that your vehicle’s tires are
properly inflated. See page 523 in Sec-
tion 7−2 and page 553 in Section 8 for
instructions.
The trailer tires should be inflated to
the pressure recommended by the trail-
er manufacturer in respect to the total
trailer weight.
TRAILER LIGHTS
Trailer lights must comply with federal,
state/provincial and local regulations.
See your local recreational vehicle
dealer or rental agency for the correct
type of wiring and relays for your trail-
er. Check for correct operation of the
turn signals and stop lights each time
you hitch up. Direct splicing may dam-
age your vehicle’s electrical system
and cause a malfunction of your lights.
BREAKIN SCHEDULE
Toyota recommends that you do not
tow a trailer with a new vehicle or a
vehicle with any new power train com-
ponent (engine, transmission, differen-
tial, wheel bearing, etc.) for the first
800 km (500 miles) of driving. MAINTENANCE
If you tow a trailer, your vehicle will
require more frequent maintenance due
to the additional load. For this
information, please refer to the
scheduled maintenance information in
the “Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”.
Retighten all fixing bolts of the towing
ball and bracket after approximately
1000 km (600 miles) of trailer driving.
PRETOWING SAFETY CHECK
Check that your vehicle remains level
when a loaded or unloaded trailer is
hitched. Do not drive if the vehicle has
an abnormal nose −up or nose −down
condition, and check for improper
tongue load, overload, worn suspension
or other possible causes.
Make sure the trailer cargo is securely
loaded so that it cannot shift.
Check that your rear view mirrors con-
form to any applicable federal, state/
provincial or local regulations. If not,
install the rear view mirrors required
for towing purpose.

08 SIENNA_U (L/O 0801)
461
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
TRAILER TOWING TIPS
When towing a trailer, your vehicle will
handle differently than when not tow-
ing. The three main causes of vehicle
trailer accidents are driver error, exces-
sive speed and improper trailer loading.
Keep these in mind when towing:
Before starting out, check operation of
the lights and all vehicle−trailer connec-
tions. After driving a short distance,
stop and recheck the lights and con-
nections. Before actually towing a trail-
er, practice turning, stopping and back-
ing with a trailer in an area away from
traffic until you learn the feel.
Backing with a trailer is difficult and
requires practice. Grip the bottom of
the steering wheel and move your hand
to the left to move the trailer to the
left. Move your hand to the right to
move the trailer to the right. (This pro-
cedure is generally opposite to that
when backing without a trailer.) Also,
just turn the steering wheel a little at
a time, avoiding sharp or prolonged
turning. Have someone guide you when
backing to reduce the risk of an acci-
dent.
Because stopping distance may be in-
creased, following distance should be
increased when towing a trailer. For
each 16 km/h (10 mph) of speed, allow
at least one vehicle and trailer length
between you and the vehicle ahead.
Avoid sudden braking as you may skid,
resulting in jackknifing and loss of con-
trol. This is especially true on wet or
slippery surfaces.
Avoid jerky starts or sudden accelera-
tion.
Avoid jerky steering and sharp turns.
The trailer could hit your vehicle in a
tight turn. Slow down before making a
turn to avoid the necessity of sudden
braking.
Remember that when making a turn,
the trailer wheels will be closer than
the vehicle wheels to the inside of the
turn. Therefore, compensate for this by
making a larger than normal turning
radius with your vehicle.
Crosswinds and rough roads will ad-
versely affect handling of your vehicle
and trailer, causing sway. Pay attention
to the rear from time to time to pre-
pare yourself for being passed by large
trucks or buses, which may cause your
vehicle and trailer to sway. If swaying
happens, firmly grip the steering wheel
and reduce speed immediately but
gradually. Never increase speed. Steer
straight ahead. If you make no extreme
correction with the steering or brakes,
the vehicle and trailer will stabilize.
Be careful when passing other ve-
hicles. Passing requires considerable
distance. After passing a vehicle, do
not forget the length of your trailer and
be sure you have plenty of room be-
fore changing lanes.
In order to maintain engine braking effi-
ciency, do not place the transmission
in “D”.

08 SIENNA_U (L/O 0801)
462
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Because of the added load of the trail-
er, your vehicle’s engine may overheat
on hot days (at temperatures over
30C [85 F]) when going up a long or
steep grade with a trailer. If the engine
coolant temperature gauge indicates
overheating, immediately turn off the air
conditioning (if in use), pull off the road
and stop in a safe spot. Refer to “If
your vehicle overheats” on page 470 in
Section 4.
Always place wheel blocks under both
the vehicle and trailer wheels when
parking. Apply the parking brake firmly.
Put the transmission in “P”. Avoid park-
ing on a slope with a trailer, but if it
cannot be avoided, do so only after
performing the following:
1. Apply the brakes and hold.
2. Have someone place wheel blocks un- der both the vehicle and trailer wheels.
3. When the wheel blocks are in place, release your brakes slowly until the
blocks absorb the load.
4. Apply the parking brake firmly.
5. Shift into “P” and turn off the engine. When restarting out after parking on a
slope:
1. With the transmission in “P”, start the engine. Be sure to keep the brake ped-
al depressed.
2. Shift into gear.
3. Release the parking brake and brake pedal and slowly pull or back away
from the wheel blo cks. Stop and apply
your brakes.
4. Have someone retrieve the blo cks.

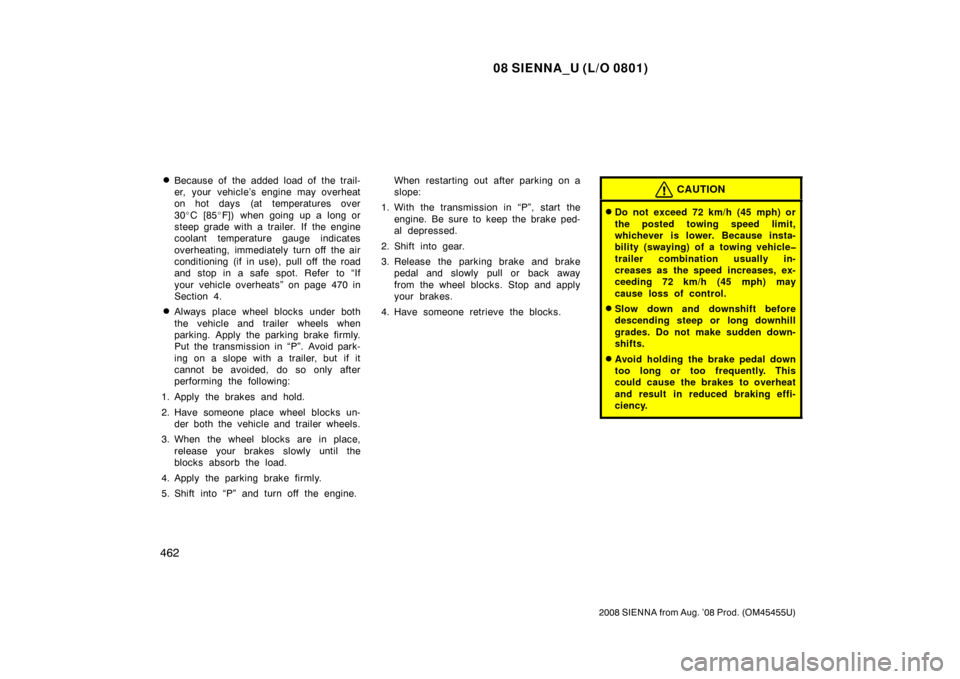

CAUTION
Do not exceed 72 km/h (45 mph) or
the posted towing speed limit,
whichever is lower. Because insta-
bility (swaying) of a towing vehicle
trailer combination usually in-
creases as the speed increases, ex-
ceeding 72 km/h (45 mph) may
cause loss of control.
Slow down and downshift before
descending steep or long downhill
grades. Do not make sudden down-
shifts.
Avoid holding the brake pedal down
too long or too frequently. This
could cause the brakes to overheat
and result in reduced braking effi-
ciency.
