Replacement with used wheels is not rec-
ommended as they may have been sub-
jected to rough treatment or high mileage
and could fail without warning. Also, bent
wheels which have been straightened may
have structural damage and therefore
should not be used. Never use an inner
tube in a leaking wheel which is designed
for a tubeless tire.

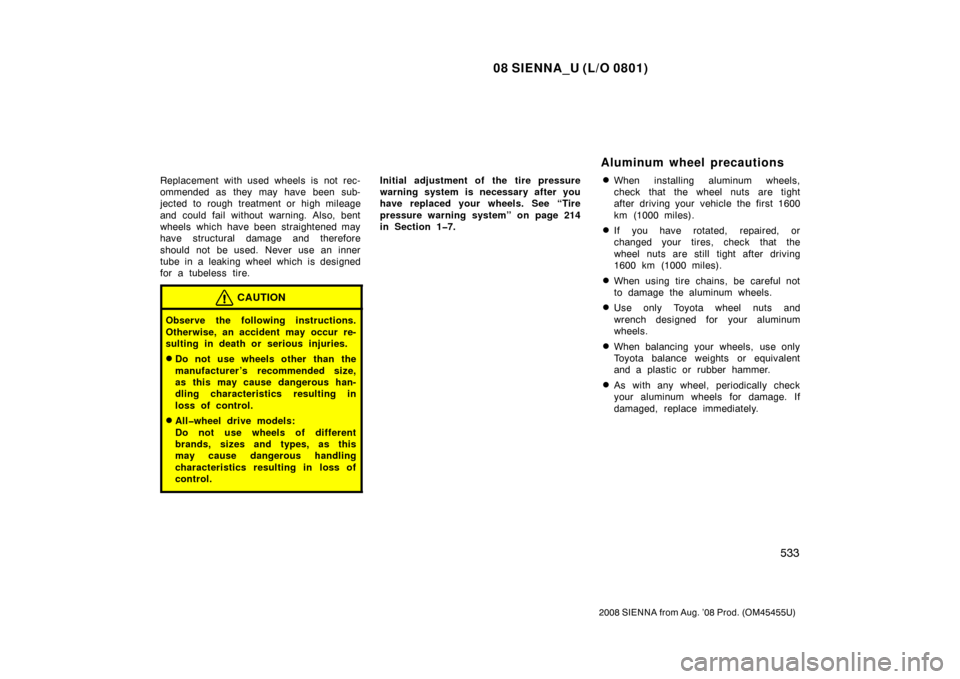

CAUTION
Observe the following instructions.
Otherwise, an accident may occur re-
sulting in death or serious injuries.
Do not use wheels other than the
manufacturer ’s recommended size,
as this may cause dangerous han-
dling characteristics resulting in
loss of control.
Allwheel drive models:
Do not use wheels of different
brands, sizes and types, as this
may cause dangerous handling
characteristics resulting in loss of
control.
Initial adjustment of the tire pressure
warning system is necessary after you
have replaced your wheels. See “Tire
pressure warning system” on page 214
in Section 17.When installing aluminum wheels,
check that the wheel nuts are tight
after driving your vehicle the first 1600
km (1000 miles).
If you have rotated, repaired, or
changed your tires, check that the
wheel nuts are still tight after driving
1600 km (1000 miles).
When using tire chains, be careful not
to damage the aluminum wheels.
Use only Toyota wheel nuts and
wrench designed for your aluminum
wheels.
When balancing your wheels, use only
Toyota balance weights or equivalent
and a plastic or rubber hammer.
As with any wheel, periodically check
your aluminum wheels for damage. If
damaged, replace immediately.
Aluminum wheel precautions

08 SIENNA_U (L/O 0801)
534
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

08 SIENNA_U (L/O 0801)
535
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
DOITYOURSELF MAINTENANCE
Electrical components
Checking battery condition536
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 537
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing fuses 538
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 539
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Replacing light bulbs 540
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 7 3

08 SIENNA_U (L/O 0801)
536
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

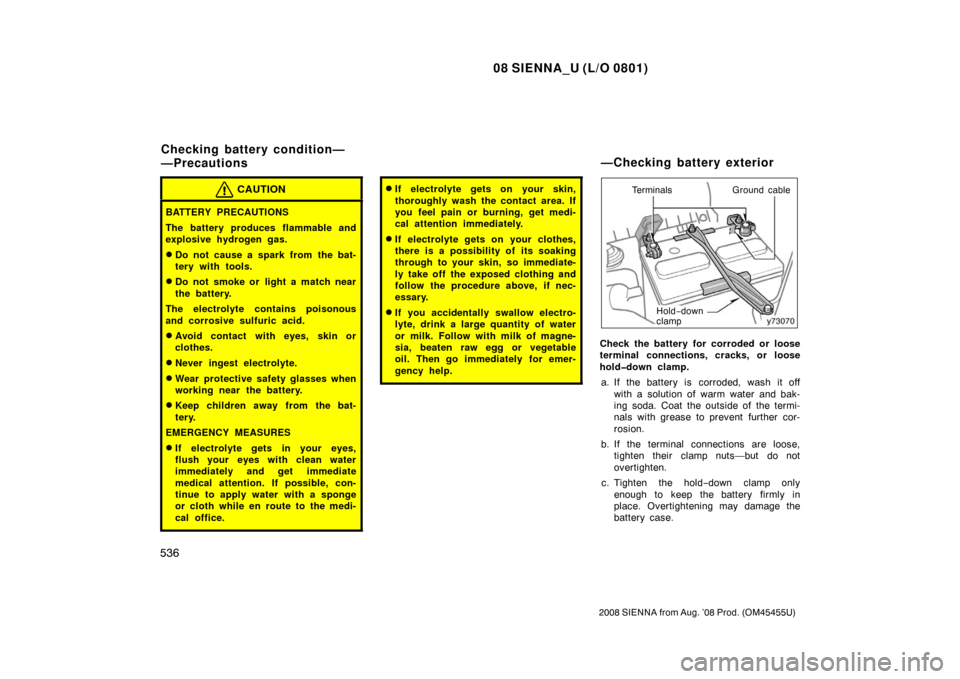

CAUTION
BATTERY PRECAUTIONS
The battery produces flammable and
explosive hydrogen gas.
Do not cause a spark from the bat-
tery with tools.
Do not smoke or light a match near
the battery.
The electrolyte contains poisonous
and corrosive sulfuric acid.
Avoid contact with eyes, skin or
clothes.
Never ingest electrolyte.
Wear protective safety glasses when
working near the battery.
Keep children away from the bat-
tery.
EMERGENCY MEASURES
If electrolyte gets in your eyes,
flush your eyes with clean water
immediately and get immediate
medical attention. If possible, con-
tinue to apply water with a sponge
or cloth while en route to the medi-
cal office.
If electrolyte gets on your skin,
thoroughly wash the contact area. If
you feel pain or burning, get medi-
cal attention immediately.
If electrolyte gets on your clothes,
there is a possibility of its soaking
through to your skin, so immediate-
ly take off the exposed clothing and
follow the procedure above, if nec-
essary.
If you accidentally swallow electro-
lyte, drink a large quantity of water
or milk. Follow with milk of magne-
sia, beaten raw egg or vegetable
oil. Then go immediately for emer-
gency help.
Terminals Ground cable
Hold −down
clamp
Check the battery for corroded or loose
terminal connections, cracks, or loose
holddown clamp.
a. If the battery is corroded, wash it off with a solution of warm water and bak-
ing soda. Coat the outside of the termi-
nals with grease to prevent further cor-
rosion.
b. If the terminal connections are loose, tighten their clamp nuts—but do not
overtighten.
c. Tighten the hold −down clamp only
enough to keep the battery firmly in
place. Overtightening may damage the
battery case.
Checking battery c ondition—
—Precautions —Checking battery exterior

08 SIENNA_U (L/O 0801)
537
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
NOTICE
Be sure the engine and all accesso-
ries are off before performing main-
tenance.
 When checking the battery, remove
the ground cable from the negative
terminal (“” mark) first and rein-
stall it last.
 Be careful not to cause a short cir-
cuit with tools.
 Take care no solution gets into the
battery when washing it.
If the battery is disconnected or run
down, the power window, power sliding
door, power back door and moon roof may
not operate correctly and the jam protec-
tion function will not function correctly,
and does not open the back door after
you reconnect, replace or recharge the
battery. In any of these cases, you should
normalize each system. To normalize
them, see “Power sliding doors” on page
28, “Power back door” on page 38, “Power
windows” on page 43 and “Electric moon
roof” on page 53 in Section 1 −2.
Ty p e A
Green Dark Clear or
light yellow
Ty p e B Blue White Red
CHECKING BY INDICATOR
Check the battery condition by the indi-
cator color.
Indicator color
ConditionTy p e ATy p e B
GreenBlueGood
DarkWhite
Charging necessary.
Have battery
checked by your
Toyota dealer.
Clear orlight
yellow
Red
Have battery
checked by your
Toyota dealer.
During recharging, the battery is pro-
ducing hydrogen gas.
Therefore, before recharging:
1. If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
2. Be sure the power switch on the re- charger is off when connecting the
charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an un-
confined area. Do not charge the
battery in a garage or closed room
where there is not sufficient ventila-
tion.
Only do a slow charge (5 A or
less). Charging at a quicker rate is
dangerous. The battery may ex-
plode, causing personal injuries.
NOTICE
Never recharge the battery while the
engine is running. Also, be sure all
accessories are turned off.
—Checking battery c ondition Battery recharging pr ecautions

08 SIENNA_U (L/O 0801)
538
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

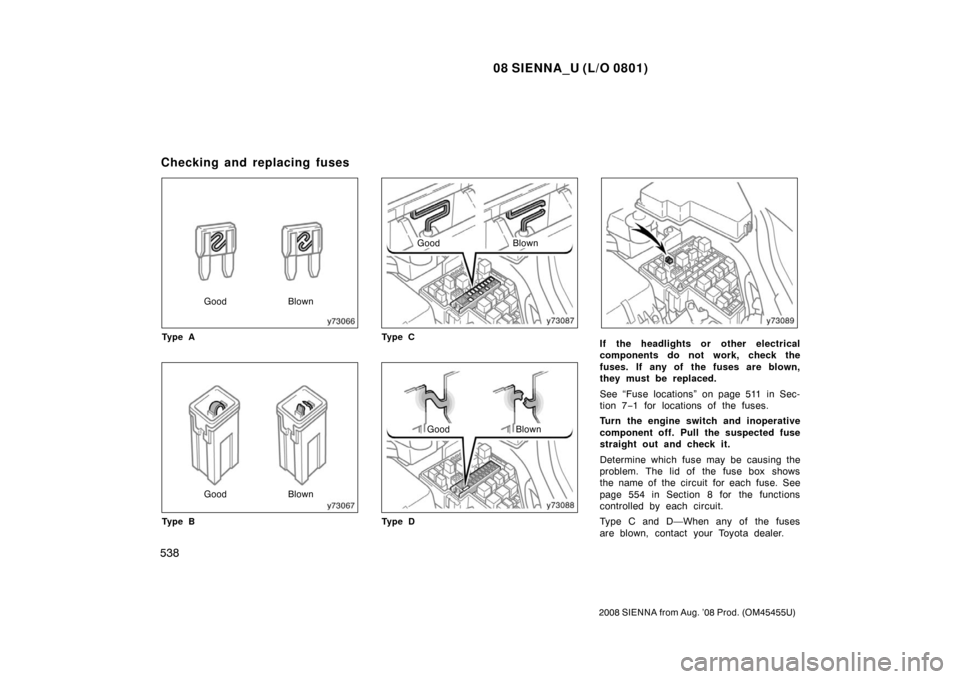

GoodBlown
Ty p e A
Good Blown
Ty p e B
Good Blown
Ty p e C
Good Blown
Ty p e D
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 511 in Sec-
tion 7 −1 for locations of the fuses.
Turn the engine switch and inoperative
component off. Pull the suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 554 in Section 8 for the functions
controlled by each circuit.
Type C and D—When any of the fuses
are blown, contact your Toyota dealer.
Checking and replacing fuses

08 SIENNA_U (L/O 0801)
539
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Type A fuses can be pulled out by the
pull−out tool. The location of the pull −out
tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “HTR” (10
A), “AC INV” or “RAD NO.1” fuse, which
may be dispensable for normal driving,
and use it if its amperage rating is the
same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies. If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
You should normalize the power window,
power sliding door, power back door and
moon roof if they do not operate automati-
cally or the jam protection function does
not operate correctly after replacing blown
fuses. To normalize them, see “Power slid-
ing doors” on page 28, “Power back door”
on page 38, “Power windows” on page 43
and “Electric moon roof” on page 53 in
Section 1
−2.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
If any washer does not work or the low
windshield washer fluid level warning
light comes on, the washer tank may be
empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Adding washer fluid

08 SIENNA_U (L/O 0801)
540
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

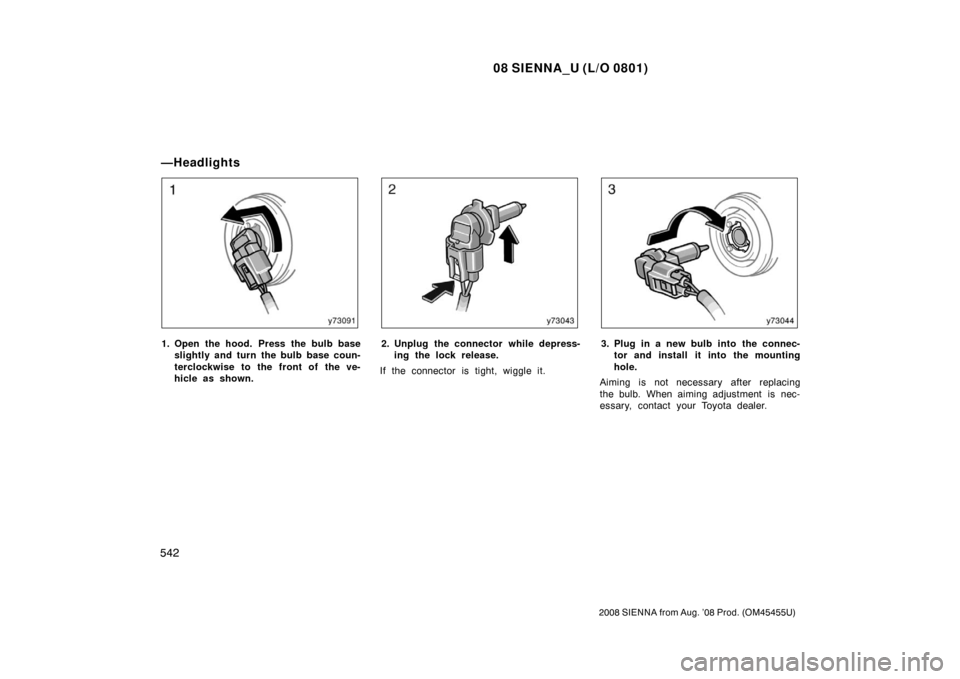

The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the engine switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
The high mounted stoplight consists of a
number of LEDs. If any of the LEDs burn
out, take your vehicle to your Toyota deal-
er to have the light replaced.

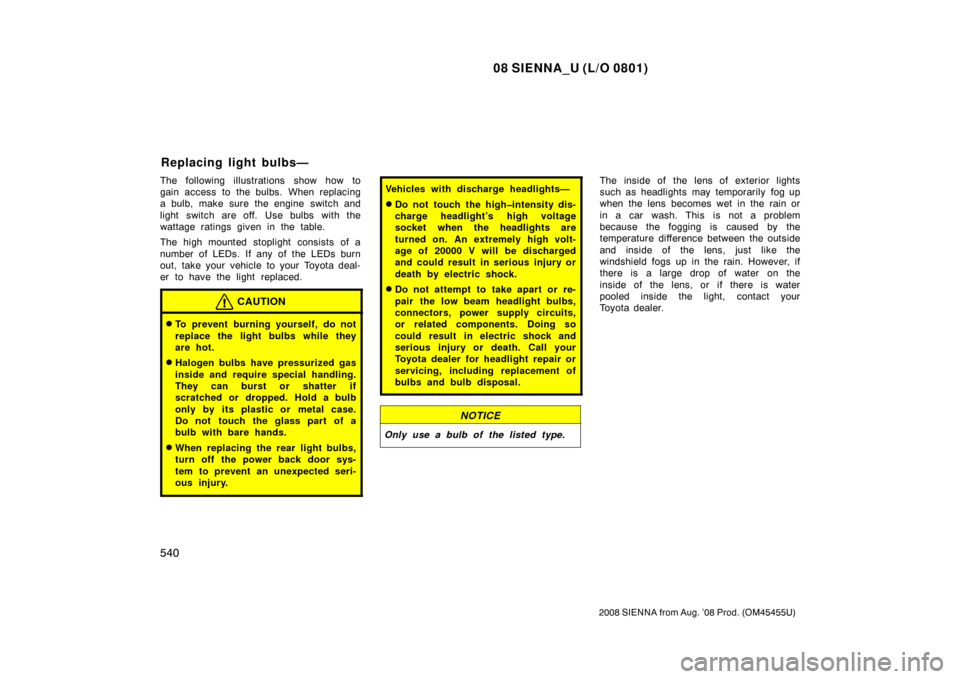

CAUTION
To prevent burning yourself, do not
replace the light bulbs while they
are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
When replacing the rear light bulbs,
turn off the power back door sys-
tem to prevent an unexpected seri-
ous injury.
Vehicles with discharge headlights—
Do not touch the highintensity dis-
charge headlight’s high voltage
socket when the headlights are
turned on. An extremely high volt-
age of 20000 V will be discharged
and could result in serious injury or
death by electric shock.
Do not attempt to take apart or re-
pair the low beam headlight bulbs,
connectors, power supply circuits,
or related components. Doing so
could result in electric shock and
serious injury or death. Call your
Toyota dealer for headlight repair or
servicing, including replacement of
bulbs and bulb disposal.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.
Replacing light bulbs—

08 SIENNA_U (L/O 0801)
541
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
A: D2R discharge bulbs
B: HB4 halogen bulbs
C: HB3 halogen bulbs
D: Wedge base bulbs (clear)
E: Wedge base bulbs (amber)
F: Single end bulbs
G: Double end bulbsTy p e
W
Bulb No.
35
51
Light bulbs
Headlights (low beam) With discharge headlights
Without discharge headlights
Headlights (high beam) —
9006 A
B
Front fog lights
Parking and front side marker lights Front turn signal lights
Rear turn signal lights
Stop/tail and rear side marker lights
Back −up lights
License plate lights
Luggage compartment light 60
9005 C
51
—B
5
—E 30
3457A E
21
—D
21/5
—D
18
921 D
5
—D
5
—G
Tail lights 3.8
194 D
Front personal lights 4.9
—F
Rear personal lights 4.9
—F
Vanity lights 3
—G
Door courtesy lights 3.8
—F

08 SIENNA_U (L/O 0801)
542
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
1. Open the hood. Press the bulb baseslightly and turn the bulb base coun-
terclockwise to the front of the ve-
hicle as shown.2. Unplug the connector while depress-ing the lock release.
If the connector is tight, wiggle it.3. Plug in a new bulb into the connec- tor and install it into the mounting
hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Headlights
