TOYOTA SIENNA 2008 XL20 / 2.G Manual PDF
Manufacturer: TOYOTA, Model Year: 2008, Model line: SIENNA, Model: TOYOTA SIENNA 2008 XL20 / 2.GPages: 572, PDF Size: 11.04 MB
Page 71 of 572
08 SIENNA_U (L/O 0801)
63
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
3. SEATBACK FOLDING LEVER (onsome models)
The front passenger ’s seat can be

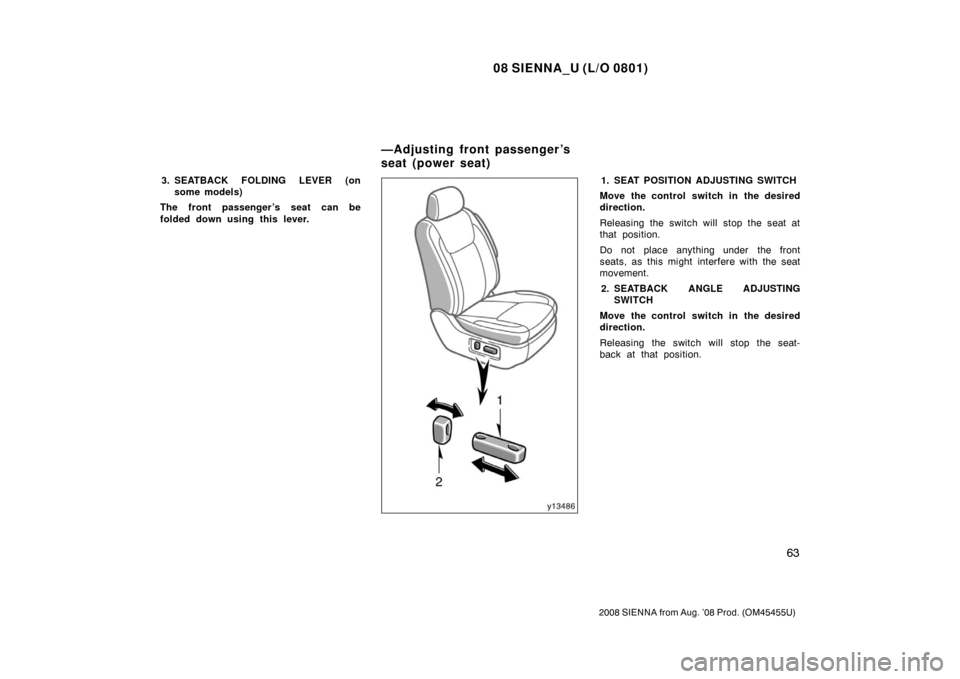

folded down using this lever.1. SEAT POSITION ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats, as this might interfere with the seat
movement.
2. SEATBACK ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.
—Adjusting front passenger ’s
seat (power seat)

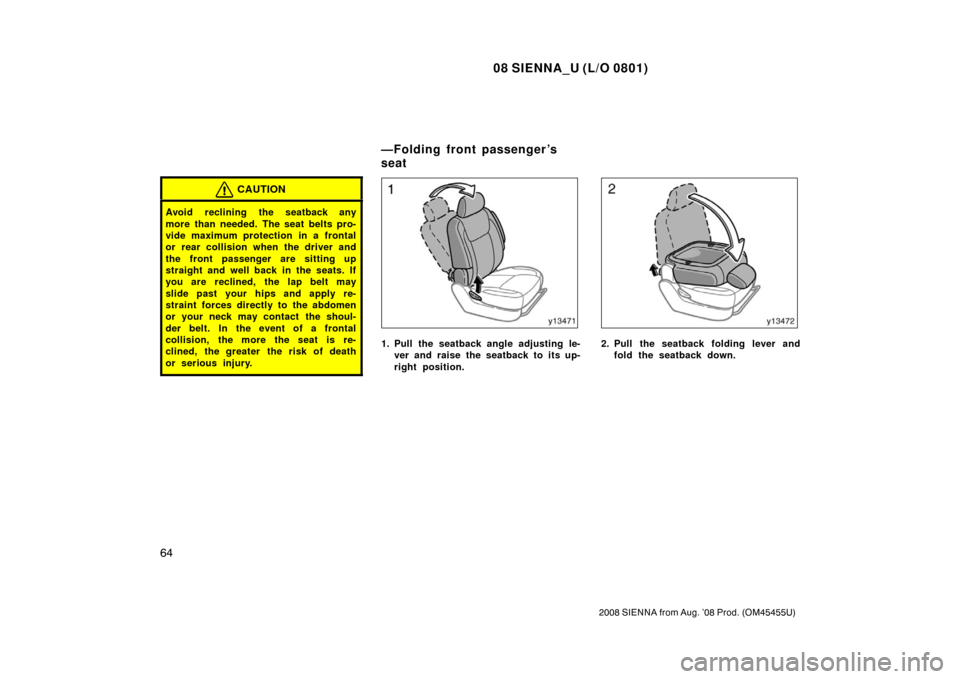

Page 72 of 572
08 SIENNA_U (L/O 0801)
64
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or serious injury.
1. Pull the seatback angle adjusting le-ver and raise the seatback to its up-
right position.2. Pull the seatback folding lever andfold the seatback down.
—Folding front passenger ’s
seat
Page 73 of 572
08 SIENNA_U (L/O 0801)
65
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
You can use the seatback as a temporary
table only when the vehicle is stopped.
CAUTION
To avoid death or serious injury:
Do not set up the seatback table
while the vehicle is moving.
Do not sit on the folded seatback.
Make sure the front passenger ’s
seat is securely locked in sliding
position when you set the seat as
a temporary table.
NOTICE
To prevent damage to the seat, avoid
putting heavy loads on the temporary
table.
This system can memorize the position
of the driver’s seat and outside rear
view mirrors, and recall them at the
touch of a button.
Buttons “1” and “2” can memorize two
separate positions.
Driving position memory
system
Page 74 of 572
08 SIENNA_U (L/O 0801)
66
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
SETTING THE DRIVING POSITION
The engine switch must be in the “ON”
position and the selector lever is in the
“P” position.1. Adjust the driver ’s seat and outside rear view mirrors to the desired
position.
2. While pushing the “SET” button, push button “1” or “2” until a beep
is heard.
The system can memorize up to 2 posi-
tions by repeating the above steps. If step
2 is performed when both buttons “1” and
“2” are memorized, the previous position
will be erased and a new position will be
set. To make only slight changes to an already
memorized position, the easiest way is to
first activate the memorized position, then
make the desired changes and perform
step 2 above.RECALLING THE MEMORIZED POSITION
When you push button “1” or “2”, a
beep will sound and the driving posi-
tion will be automatically adjusted to
the position recorded for that button.
The memorized position can be recalled
under the following conditions:
The engine switch is in the “ON posi-
tion and the selector lever is in the “P”
position.
The key is not in the engine switch
and less than 30 seconds have passed
since opening the driver ’s door.

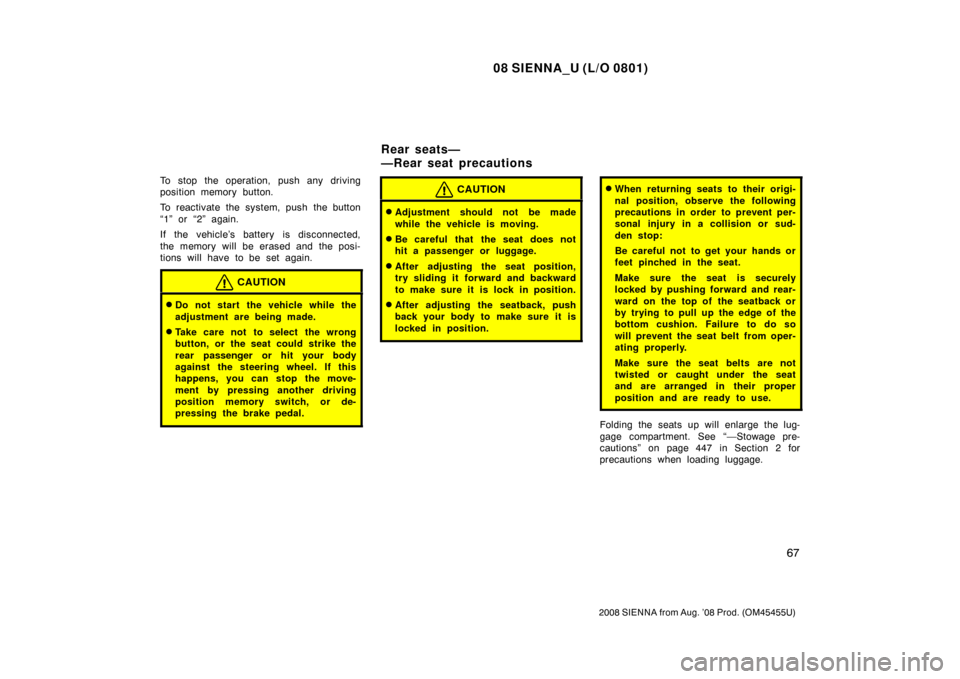

Page 75 of 572
08 SIENNA_U (L/O 0801)
67
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
To stop the operation, push any driving
position memory button.
To reactivate the system, push the button
“1” or “2” again.
If the vehicle’s battery is disconnected,
the memory will be erased and the posi-
tions will have to be set again.
CAUTION
Do not start the vehicle while the
adjustment are being made.
Take care not to select the wrong
button, or the seat could strike the
rear passenger or hit your body
against the steering wheel. If this
happens, you can stop the move-
ment by pressing another driving
position memory switch, or de-
pressing the brake pedal.
CAUTION
Adjustment should not be made
while the vehicle is moving.
Be careful that the seat does not
hit a passenger or luggage.
After adjusting the seat position,
try sliding it forward and backward
to make sure it is lock in position.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
When returning seats to their origi-
nal position, observe the following
precautions in order to prevent per-
sonal injury in a collision or sud-
den stop:
Be careful not to get your hands or
feet pinched in the seat.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
Folding the seats up will enlarge the lug-
gage compartment. See “—Stowage pre-
cautions” on page 447 in Section 2 for
precautions when loading luggage.
Rear seats—
—Rear seat precautions
Page 76 of 572
08 SIENNA_U (L/O 0801)
68
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

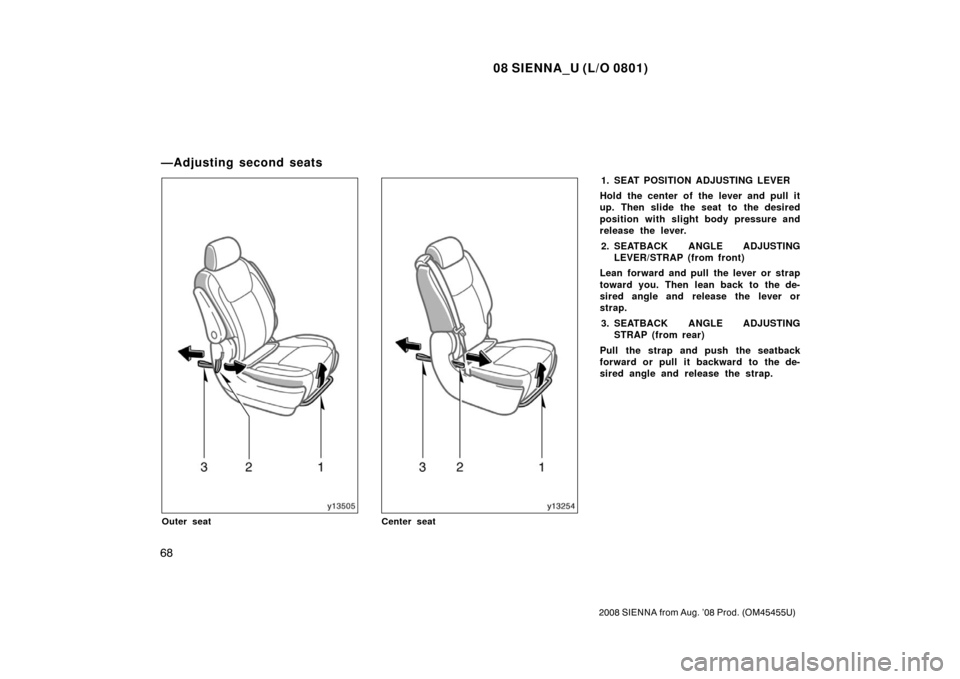

Outer seatCenter seat
1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEATBACK ANGLE ADJUSTING LEVER/STRAP (from front)
Lean forward and pull the lever or strap
toward you. Then lean back to the de-
sired angle and release the lever or
strap.
3. SEATBACK ANGLE ADJUSTING STRAP (from rear)
Pull the strap and push the seatback
forward or pull it backward to the de-
sired angle and release the strap.
—Adjusting second seats

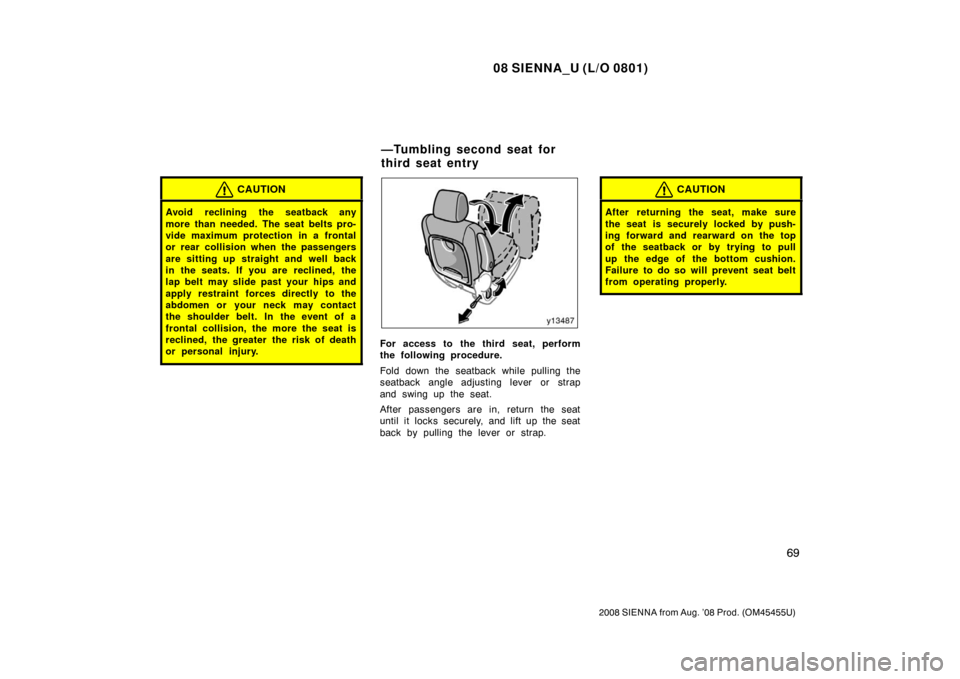

Page 77 of 572
08 SIENNA_U (L/O 0801)
69
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the passengers
are sitting up straight and well back
in the seats. If you are reclined, the
lap belt may slide past your hips and
apply restraint forces directly to the
abdomen or your neck may contact
the shoulder belt. In the event of a
frontal collision, the more the seat is
reclined, the greater the risk of death
or personal injury.
For access to the third seat, perform
the following procedure.
Fold down the seatback while pulling the
seatback angle adjusting lever or strap
and swing up the seat.
After passengers are in, return the seat
until it locks securely, and lift up the seat
back by pulling the lever or strap.
CAUTION
After returning the seat, make sure
the seat is securely locked by push-
ing forward and rearward on the top
of the seatback or by trying to pull
up the edge of the bottom cushion.
Failure to do so will prevent seat belt
from operating properly.
—Tumbling second seat for
third seat entry
