buttons TOYOTA SIENNA 2010 XL30 / 3.G Navigation Manual

3
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against anything
which may cause injury to people if
the warning is ignored. You are in-
formed about what you must or must
not do in order to reduce the risk of
injury to yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning
is ignored. You are informed about
what you must or must not do in or-
der to avoid or reduce the risk of dam-
age to your vehicle and its equip-
ment.
INFORMATION
This provides additional information.
To use this system in the safest possible
manner, follow all the safety tips shown be-
low.
This system is intended to assist in reach-
ing the destination and, if used properly,
can do so. The driver is solely responsible
for the safe operation of your vehicle and
the safety of your passengers.
Do not use any feature of this system to the
extent it becomes a distraction and pre-
vents safe driving. The first priority while
driving should always be the safe opera-
tion of the vehicle. While driving, be sure
to observe all traffic regulations.
Prior to the actual use of this system, learn
how to use it and become thoroughly famil-
iar with it. Read the entire Navigation Sys-
tem Owner’s Manual to make sure you un-
derstand the system. Do not allow other
people to use this system until they have
read and understood the instructions in
this manual.
For your safety, some functions may be-
come inoperable when driving. Unavail-
able touch screen buttons are dimmed.
Only when the vehicle is not moving, can
the destination and route selection be
done.
Important information about
this manualSafety Instruction

5
Table of Contents
Quick guide —
— Overview buttons and guidance screen 10. . . . . . . . . . .
— Registering home 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
— Registering preset memory points (Quick access) 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
— Operation flow: guiding the route 16 . . . . . . . . . . . . . . . . .
— Setting home as the destination 17 . . . . . . . . . . . . . . . . . .
Navigation system function index 18 . . . . . . . . . . . . . . . . . . .
1 Basic Functions
〈Basic information before operation〉
Display operation 22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Initial screen 23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Touch screen operation 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Inputting letters and numbers/list screen operation 25
. . . . . . . . . . . . . .
Function help 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Map screen operation 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Current position display 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen scroll operation 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching the screens 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map scale 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Foot print map 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Orientation of the map 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick
Guide

10
0U5116X
No.NameFunctionPage
1
Northup or
headingup
symbolThis symbol indicates a map view with
north−up or heading−up. Touching this
symbol changes the map orientation.
39
2Scale indicatorThis figure indicates the map scale.37
3“INFO” buttonPush this button to display the “Informa-
tion” screen.120, 124, 133,
181
4Zoom out touch
screen buttonTouch this touch screen button to re-
duce the map scale.37
5“Mark”
Touch this touch screen button to regis-
ter the current position or the cursor
position as a memory point.
32
6“Route”Touch this touch screen button to
change the route.74, 76
Quick guide —
— Overview buttons and guidance screen

11
No.NameFunctionPage
7“Map View”
Touch this touch screen button to
browse information about guidance
route, to set the Points of Interest to be
displayed on the screen, or to record the
route.
80, 82, 83, 84
8“DISPLAY”
buttonPush this button to display the “Display”
screen.179
9“  OFF”
Touch this touch screen button to obtain
a broader view. Some of the buttons on
the screen are not displayed. They are
displayed again by touching “ON”.
11 2
10Zoom in touch
screen buttonTouch this touch screen button to mag-
nify the map scale.37
11
Foot print map
touch screen
buttonTouch this touch screen button to dis-
play the foot print map and the building
information.
37
12“MAP/VOICE”
buttonPush this button to repeat a voice guid-
ance, cancel one touch scroll, start
guidance, and display the current posi-
tion.
29, 31, 72
13“DEST” buttonPush this button to display the “Destina-
tion” screen.42, 43
14
Screen
configuration
touch screen
button
Touch this touch screen button to
change the screen mode.34
15“MENU” buttonPush this button to display the “Menu”
screen.88, 90, 270
16Distance and time
to destinationDisplays the distance, the estimated
travel time to the destination, and the
estimated arrival time at the destination.
73
17
“GPS” mark
(Global
Positioning
System)Whenever your vehicle is receiving sig-
nals from the GPS, this mark is dis-
played.
258
18
Speech
command system
indicatorThis indicator is shown by pushing the
talk switch. The speech command sys-
tem can be operated while this indicator
is shown.
175

15
0U5010F
0U5011F
0U5012F
0U5013F

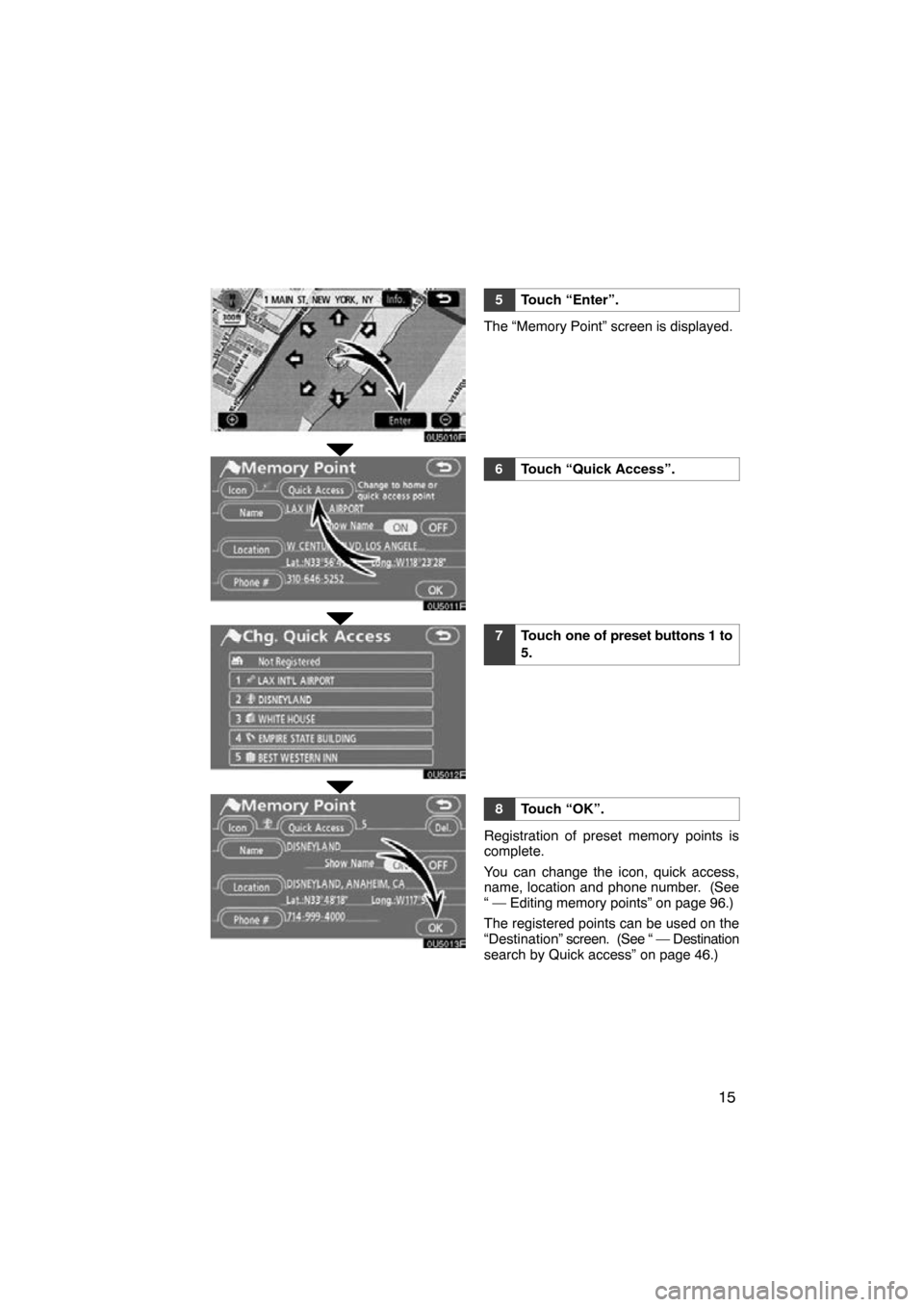

5Touch “Enter”.
The “Memory Point” screen is displayed.
6Touch “Quick Access”.
7Touch one of preset buttons 1 to
5.
8Touch “OK”.
Registration of preset memory points is
complete.
You can change the icon, quick access,
name, location and phone number. (See
“ — Editing memory points” on page 96.)
The registered points can be used on the
“Destination” screen. (See “ — Destination
search by Quick access” on page 46.)

SIENNA_Navi_U
18
Map
Displaying mapsPage
Viewing the map screen10
Displaying the current vehicle position29
Viewing the current position vicinity map30
Changing the scale37
Changing the map orientation39
Displaying POIs∗80
Displaying the estimated travel/arrival time to the destination73
Selecting the dual map screen34
Viewing foot print map37
Deleting map screen touch screen buttons11 2
Searching destinationPage
Searching the destination (by home, POI∗, phone #, etc.)43
Changing the search area44
Operating the map location of the selected destination63
Route guidance
Before starting route guidancePage
Setting the destination63
Viewing alternative routes63
Starting route guidance63
Before starting or during route guidancePage
Viewing the route63
Adding destinations74
Changing the route76
Displaying the estimated travel/arrival time to the destination73
∗: Point(s) of Interest
Navigation system function index

BASIC FUNCTIONS
23
When the engine switch is in the “ACC” or
“ON” position, the initial screen will be
displayed and the system will begin oper-
ating.
CAUTION
When the vehicle is stopped with the
engine running, always apply the
parking brake for safety.
After a few seconds, the “CAUTION”
screen will be displayed.
After about 5 seconds, the “CAUTION”
screen automatically switches to the map
screen. When the “MAP/VOICE” button
is also pushed, the map screen is dis-
played.
While the “CAUTION” screen is displayed,
the “DEST” or “MENU” button cannot be
operated. And if the “Language” , “Cal-
endar” or “Maintenance” buttons on the
“Information” screen are touched, the
screen will change back to “CAUTION”
screen and then change to the map screen
in about 5 seconds later or if the “MAP/
VOICE” button is pushed.
Initial screen

BASIC FUNCTIONS
25
This system is operated mainly by the
touch screen buttons on the screen.
To prevent damage to the screen, light-
ly touch the touch screen buttons on
the screen with the finger. When a
touch screen button on the screen is
touched, a beep sounds.
Do not use objects other than the finger
to touch the screen.
INFORMATION
If the system does not respond to
a touch on a touch screen button,
move the finger away from the
screen and then touch it again.
 Dimmed touch screen buttons
cannot be operated.
 Wipe off fingerprints on the sur-
face of the display using a glass
cleaning cloth. Do not use chemi-
cal cleaners to clean the touch
screen.
 The displayed image may become
darker and moving images may be
slightly distorted when the display
is cold.
 Under extremely cold conditions,
the map may not be displayed and
the data input by a user may be de-
leted. Also, the touch screen but-
tons may be harder than usual to
depress.
 When you look at the screen
through polarized material such as
polarized sunglasses, the screen
may be dark and hard to see. If so,
change the angle of the screen,
look at the screen from different
angles, adjust the screen settings
on the “Display” screen, or take off
your sunglasses.
When searching for an address or a name,
or entering a memo, letters and numbers
can be input via the touch screen.
INFORMATION
Key layout can be changed. (See “Input key layout” on page 110.)
Touch screen operation
Inputting letters and
numbers/list screen
operation

BASIC FUNCTIONS
34
DESTINATION INFORMATION
When the cursor is set on a destination
icon, the name and “Info.” are displayed
on the top of the screen.
Touch “Info.”.
Information such as the name, address,
and phone number are displayed.
To delete a destination, touch “Delete”.
If
is touched, the registered tele-
phone number can be called. Any one of the screen configurations can
be selected.
1. Touch this touch screen button to
display the following screen.
2. To select the desired screen config-
uration, touch one of the following
touch screen buttons.
— Switching the screens

BASIC FUNCTIONS
35
Depending on the conditions, certain
screen configuration buttons cannot be
selected.
:To display the single map screen.
(See page 35.)
: To display the dual map screen.
(See page 36.)
: To display the compass mode
screen. (See page 36.)
: To display the turn list screen.
(See page 70.)
: To display the arrow screen. (See
page 70.)
: To display the freeway information
screen. (See page 68.)
: To display the intersection guid-
ance screen or the guidance
screen on the freeway. (See page
69.)
Screen configurations
SINGLE MAP
This is a regular map screen.
While on a dif ferent screen, touching
will display the single map screen.
The screen shows the single map.
