BASIC FUNCTIONS
22
Adjustment of the angle of the display can
be done by pushing the “TILT” button.
Each push of the “TILT” button will tilt the
display to positions
1, 2, 3 and then
back to 0 in the reverse order.
If the engine switch is in the “LOCK” posi-
tion, the display will automatically move
back to position
0. The display will auto-
matically resume the previous position
when the engine switch is in the “ACC” or
“ON” position.
CAUTION
Injury may result from placing a hand
or any fingers on the display while it
is moving.
NOTICE
Do not place any foreign objects on
the display while it is moving. It could
damage your navigation system.
INFORMATION
Under extremely cold conditions, the
display may react slowly or operation
sound may become louder.
Display operation

BASIC FUNCTIONS
23
When the engine switch is in the “ACC” or
“ON” position, the initial screen will be
displayed and the system will begin oper-
ating.
CAUTION
When the vehicle is stopped with the
engine running, always apply the
parking brake for safety.
After a few seconds, the “CAUTION”
screen will be displayed.
After about 5 seconds, the “CAUTION”
screen automatically switches to the map
screen. When the “MAP/VOICE” button
is also pushed, the map screen is dis-
played.
While the “CAUTION” screen is displayed,
the “DEST” or “MENU” button cannot be
operated. And if the “Language” , “Cal-
endar” or “Maintenance” buttons on the
“Information” screen are touched, the
screen will change back to “CAUTION”
screen and then change to the map screen
in about 5 seconds later or if the “MAP/
VOICE” button is pushed.
Initial screen

OTHER FUNCTIONS
121
INFORMATION ITEMS
“ENGINE OIL”: Replace engine oil
“OIL FILTER”: Replace engine oil filter
“ROTATION”: Rotate tires
“TIRES”: Replace tires
“BATTERY”: Replace battery
“BRAKE PAD”: Replace brake linings
“WIPERS”: Replace wiper blades
“LLC”: Replace engine coolant
“BRAKE OIL”: Replace brake fluid
“ATF”: Replace ATF
“SERVICE”: Scheduled maintenance
“AIR FILTER”: Replace air filter
“PERSONAL”: New information items
can be created separately from provided
ones
4. Input the conditions.
Notice of “Date”: The next maintenance
date can be input.
Notice of “Distance”: The driving dis-
tance until the next maintenance check
can be input.
“Delete”: To cancel the date and distance
conditions.
“Reset”: To reset the date and distance
conditions .
5. Touch “OK”.
The screen then returns to the “Mainte-
nance” screen.
INFORMATION
 For scheduled maintenance infor-
mation, please refer to the “Sched-
uled Maintenance Guide” or “Own-
er’s Manual Supplement”.
 Depending on driving or road con-
ditions, the actual date and dis-
tance may differ from the stored
date and distance in the system.

OTHER FUNCTIONS
135

Connecting a Bluetooth
 phone
(i) Automatically
When you register your phone, auto
connection will be turned on. Always
set it to this mode and leave the
Bluetooth  phone in a condition where
connection can be established.
Each time you touch “Auto Connect”,
auto connection will be switched on or off.
When the engine switch is in the “ACC”
or “ON” position, the selected
Bluetooth  phone will be automatically
connected and the connection result is
displayed.
This screen appears when the Bluetooth
phone is first connected after the engine
switch is in the “ACC” or “ON” position. (ii) Manually
When the auto connection fails or is
turned off, you have to connect
Bluetooth
 manually.
Touch “Connect” after enabling the
Bluetooth  connection on the phone.
When the connection is completed, this
screen is displayed.
Now you can use the Bluetooth  phone.

OTHER FUNCTIONS
136

Reconnecting the Bluetooth

phone
If the Bluetooth phone is discon-
nected with a poor reception from the
Bluetooth  network when the engine
switch is in the “ACC” or “ON” position,
the system automatically reconnects
the Bluetooth phone. In this case, the
connection result is not displayed.
If the Bluetooth is disconnected on pur-
pose such as you turned your cellular
phone OFF, this does not happen. Recon-
nect it by the following methods.
Select the Bluetooth  phone again.
Enter the Bluetooth  phone.
(b) Call on the Bluetooth pho-
ne
After you enter the Bluetooth phone,
you can call by using handsfree sys-
tem. You can call using the 7 methods
described below.
(i) By dial
You can call by inputting the telephone
number.
This cannot be operated while driving.
Touch the desired key to input the tele-
phone number.
Each time you touch , an inputted digit is
deleted.
When you touch
, the number you
called last is inputted.
Touch
or push the switch of the
steering wheel.

OTHER FUNCTIONS
154

The Bluetooth
connection status at
startup
When the engine switch is in the “ACC”
or “ON” position and the Bluetooth  is
automatically connected, the connec-
tion check is displayed.
Touch “ON” or “OFF” of “Show
Bluetooth∗ connection status at start
up”.
∗: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
Initializing the settings
You can initialize the settings.
Touch “Default”.
Touch “Yes”.

OTHER FUNCTIONS
155
(v) Setting the phone book
You can register phone numbers in the
phone book.
Touch “Phone Book” to display the
“Phone Book Management” screen.
You can do the detail settings of phone
book.
Transferring a telephone number
You can transfer the telephone num-
bers in your Bluetooth phone to the
system. Up to 1000 person’s data (up to
2 numbers a person) can be registered
in the phone book.
Transfer it while the engine is running.
1. Touch “Transfer Data” to display
“Select Group” screen.
2. Select the group you want to trans-
fer to.
3. Touch “Overwrite” or “Add To”.

AUDIO/VIDEO SYSTEM
189
9“SEEK/TRACK” button
Push either side of this button to seek
up or down for a station, or to access
a desired track, file or chapter. For
details, see pages 197, 210, 214,221
and 224.
10“PWR·VOL” knob
Push this knob to turn the audio/video
system on and off, and turn it to adjust
the volume. For details, see page
190. This section describes some of the basic
features of your audio/video system.
Some information may not pertain to your
system.
Your audio/video system works when the
engine
switch is in the “ACC” or “ON” posi-
tion.
NOTICE
To prevent the battery from being dis-
charged, do not leave the audio/video
system on longer than necessary
when the engine is not running.
Using your audio/video
system —
— Some basics

AUDIO/VIDEO SYSTEM
206

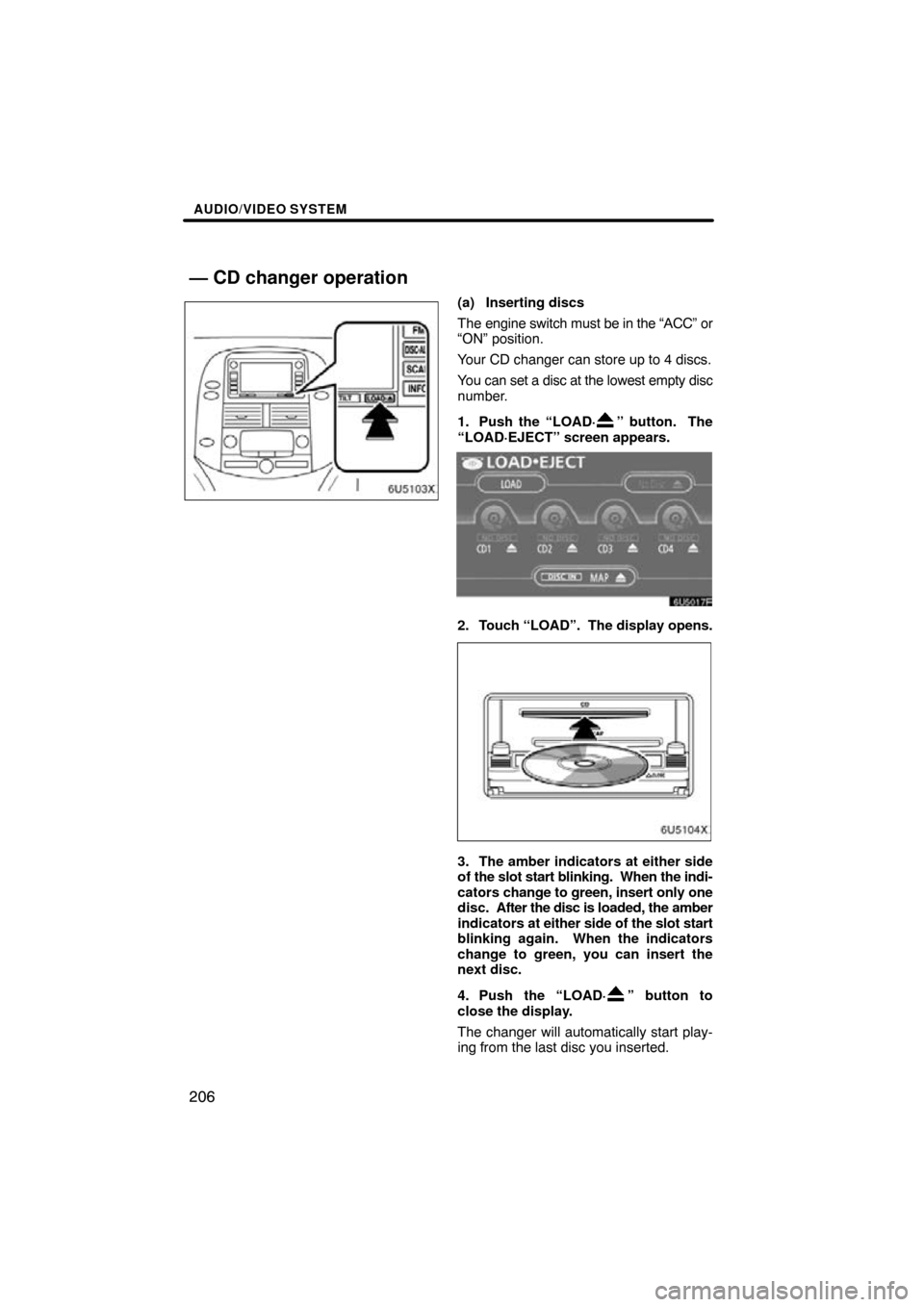

(a) Inserting discs
The engine switch must be in the “ACC” or
“ON” position.
Your CD changer can store up to 4 discs.
You can set a disc at the lowest empty disc
number.
1. Push the “LOAD·
” button. The
“LOAD·EJECT” screen appears.
2. Touch “LOAD”. The display opens.
3. The amber indicators at either side
of the slot start blinking. When the indi-
cators change to green, insert only one
disc. After the disc is loaded, the amber
indicators at either side of the slot start
blinking again. When the indicators
change to green, you can insert the
next disc.
4. Push the “LOAD·
” button to
close the display.
The changer will automatically start play-
ing from the last disc you inserted.
— CD changer operation

AUDIO/VIDEO SYSTEM
227

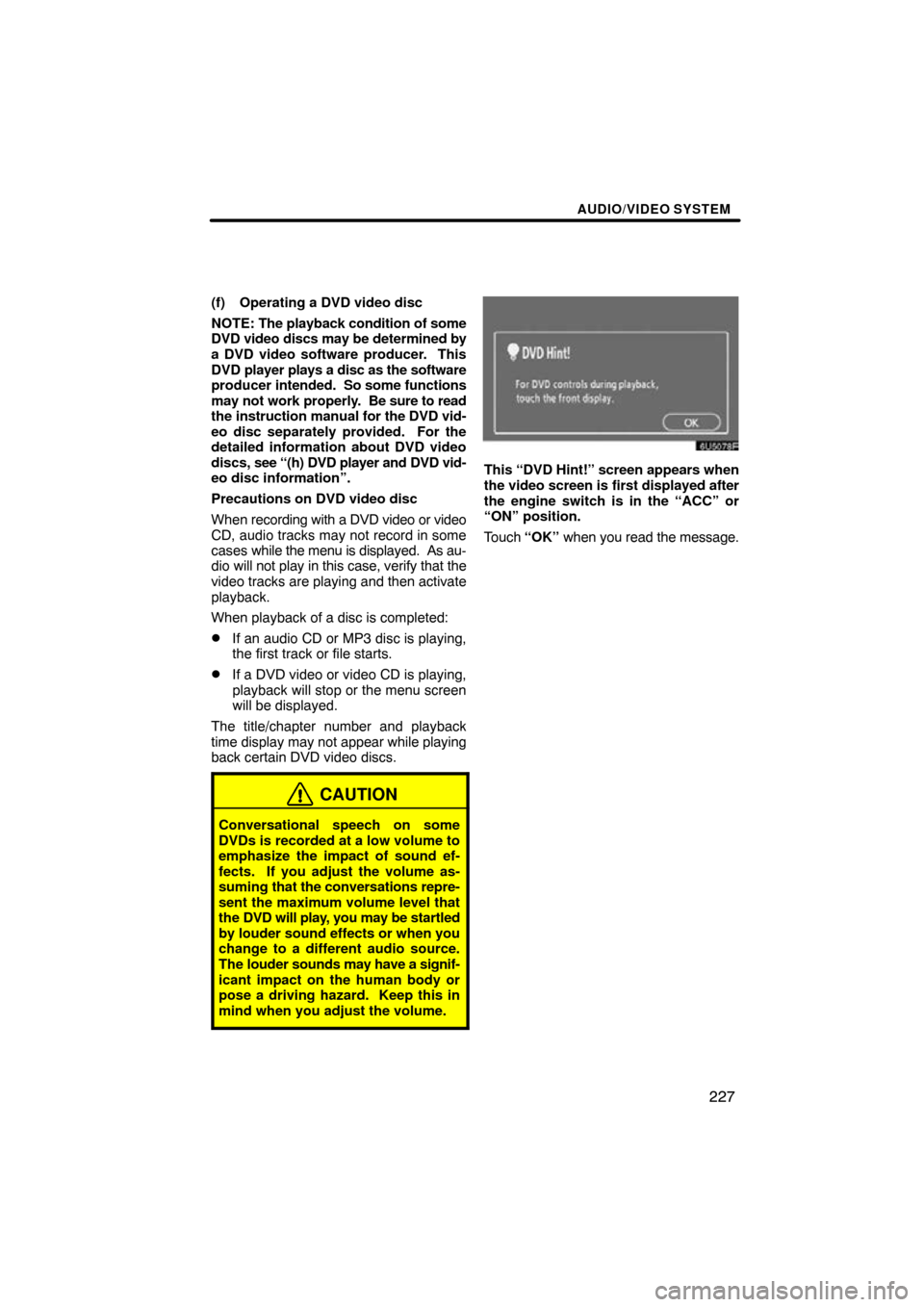

(f) Operating a DVD video disc
NOTE: The playback condition of some
DVD video discs may be determined by
a DVD video software producer. This
DVD player plays a disc as the software
producer intended. So some functions
may not work properly. Be sure to read
the instruction manual for the DVD vid-
eo disc separately provided. For the
detailed information about DVD video
discs, see “(h) DVD player and DVD vid-
eo disc information”.
Precautions on DVD video disc
When recording with a DVD video or video
CD, audio tracks may not record in some
cases while the menu is displayed. As au-
dio will not play in this case, verify that the
video tracks are playing and then activate
playback.
When playback of a disc is completed:
If an audio CD or MP3 disc is playing,
the first track or file starts.
If a DVD video or video CD is playing,
playback will stop or the menu screen
will be displayed.
The title/chapter number and playback
time display may not appear while playing
back certain DVD video discs.
CAUTION
Conversational speech on some
DVDs is recorded at a low volume to
emphasize the impact of sound ef-
fects. If you adjust the volume as-
suming that the conversations repre-
sent the maximum volume level that
the DVD will play, you may be startled
by louder sound effects or when you
change to a different audio source.
The louder sounds may have a signif-
icant impact on the human body or
pose a driving hazard. Keep this in
mind when you adjust the volume.
This “DVD Hint!” screen appears when
the video screen is first displayed after
the engine switch is in the “ACC” or
“ON” position.
Touch “OK” when you read the message.
