buttons TOYOTA SIENNA 2011 XL30 / 3.G Navigation Manual

SIENNA_Entry_Navi_U
OM45459U
3
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against anything
which may cause injury to people if
the warning is ignored. You are in-
formed about what you must or must
not do in order to reduce the risk of
injury to yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning
is ignored. You are informed about
what you must or must not do in or-
der to avoid or reduce the risk of dam-
age to your vehicle and its equip-
ment.
INFORMATION
This provides additional information.
To use this system in the safest possible
manner, follow all the safety tips shown be-
low.
This system is intended to assist in reach-
ing the destination and, if used properly,
can do so. The driver is solely responsible
for the safe operation of your vehicle and
the safety of your passengers.
Do not use any feature of this system to the
extent it becomes a distraction and pre-
vents safe driving. The first priority while
driving should always be the safe opera-
tion of the vehicle. While driving, be sure
to observe all traffic regulations.
Prior to the actual use of this system, learn
how to use it and become thoroughly famil-
iar with it. Read the entire Navigation Sys-
tem Owner’s Manual to make sure you un-
derstand the system. Do not allow other
people to use this system until they have
read and understood the instructions in
this manual.
For your safety, some functions may be-
come inoperable when driving. Unavail-
able touch screen buttons are dimmed.
Only when the vehicle is not moving, can
the destination and route selection be
done.
Important information about
this manualSafety Instruction

SIENNA_Entry_Navi_U
OM45459U
5
Table of Contents
Quick guide —
— Overview buttons and guidance screen 10. . . . . . . . . . .
— Registering home 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
— Registering preset memory points (Quick access) 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
— Operation flow: guiding the route 16 . . . . . . . . . . . . . . . . .
— Setting home as the destination 17 . . . . . . . . . . . . . . . . . .
Navigation system function index 18 . . . . . . . . . . . . . . . . . . .
1 Basic Functions 〈Basic information before operation〉
Display operation 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Initial screen 23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Touch screen operation 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Inputting letters and numbers/List screen operation 25
. . . . . . . . . . . . .
Function help 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Map screen operation 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Current position display 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen scroll operation 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching the screens 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map scale 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Foot print map 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Orientation of the map 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick
Guide

10
0U5111aX

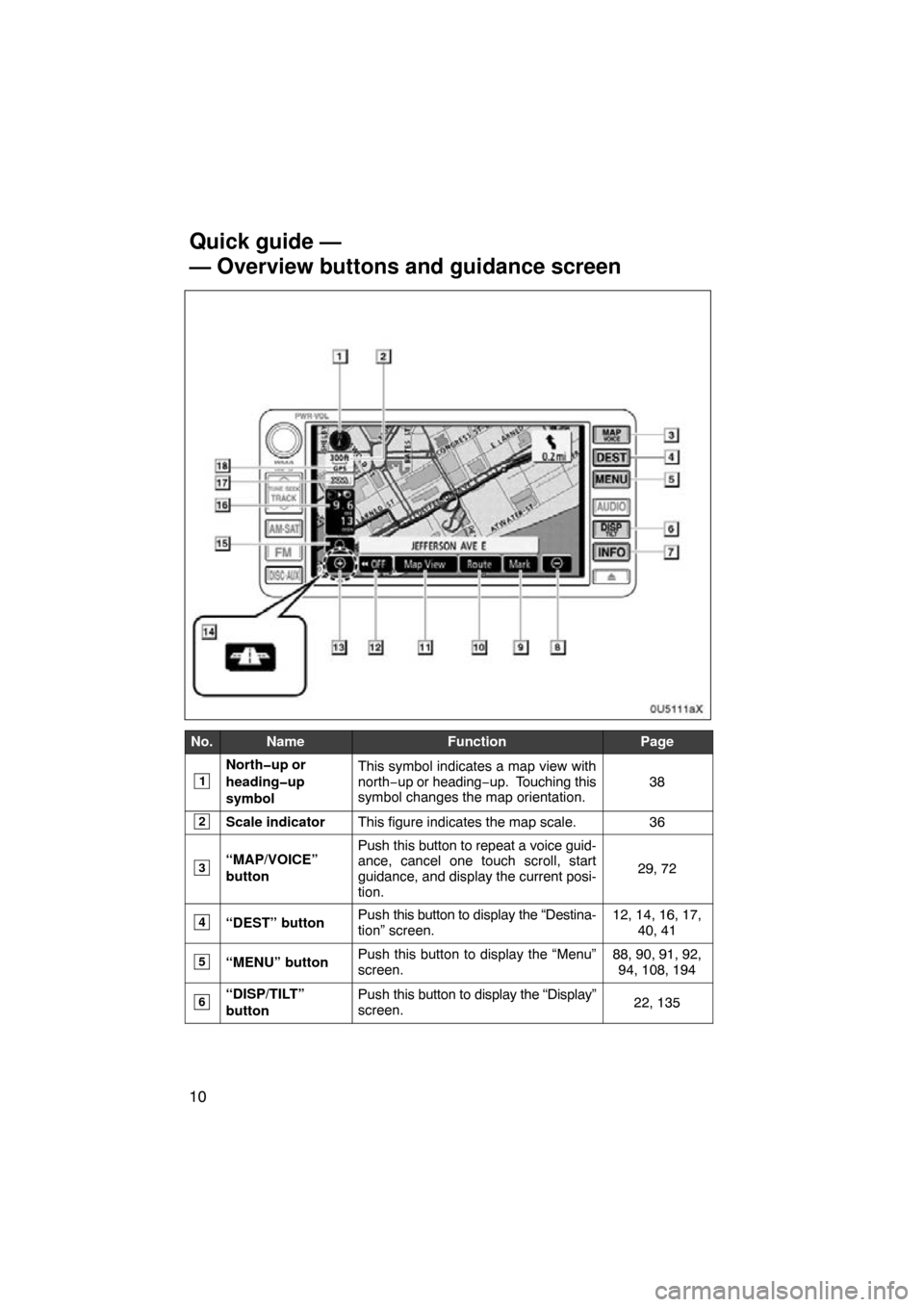

No.NameFunctionPage
1
Northup or
headingup
symbolThis symbol indicates a map view with
north−up or heading−up. Touching this
symbol changes the map orientation.
38
2Scale indicatorThis figure indicates the map scale.36
3“MAP/VOICE”
buttonPush this button to repeat a voice guid-
ance, cancel one touch scroll, start
guidance, and disp lay the current posi-
tion.
29, 72
4“DEST” buttonPush this button to display the “Destina-
tion” screen.12, 14, 16, 17, 40, 41
5“MENU” buttonPush this button to display the “Menu”
screen.88, 90, 91, 92,94, 108, 194
6“DISP/TILT”
buttonPush this button to display the “Display”
screen.22, 135
Quick guide —
— Overview buttons and guidance screen

11
No.NameFunctionPage
7“INFO” buttonPush this button to display the “Informa-
tion” screen.126, 130, 136, 139
8Zoom out buttonTouch this button to reduce the map
scale.36
9“Mark”
Touch th is button to register the current
position or the cursor position as a
memory point.
31
10“Route”Touch this button to change the route.74, 76
11“Map View”
Touch this button to browse information
about guidance route, to set the Points
of Interest to be displayed on the
screen, or to record the route.
80, 82, 83, 84
12“  OFF”
Touch this button to obtain a broader
view. Some of the buttons on the
screen are not displayed. They are dis-
played again by touching “ON”.
11 2
13Zoom in buttonTouch this button to magnify the map
scale.36
14Foot print map
buttonTouch this button to display the foot print
map and the building information.37
15
Screen
configuration
buttonTouch this button to change the screen
mode.34
16
Distance and
time to
destinationDisplays the distance, the estimated
travel time to the destination, and the
estimated arrival time at the destination.
73
17XM NavTraffic
markThis mark is displayed when XM  Nav-
Traffic information is received.11 8
18
“GPS” mark
(Global
Positioning
System)Whenever the vehicle is receiving sig-
nals from the GPS, this mark is dis-
played.
182

14

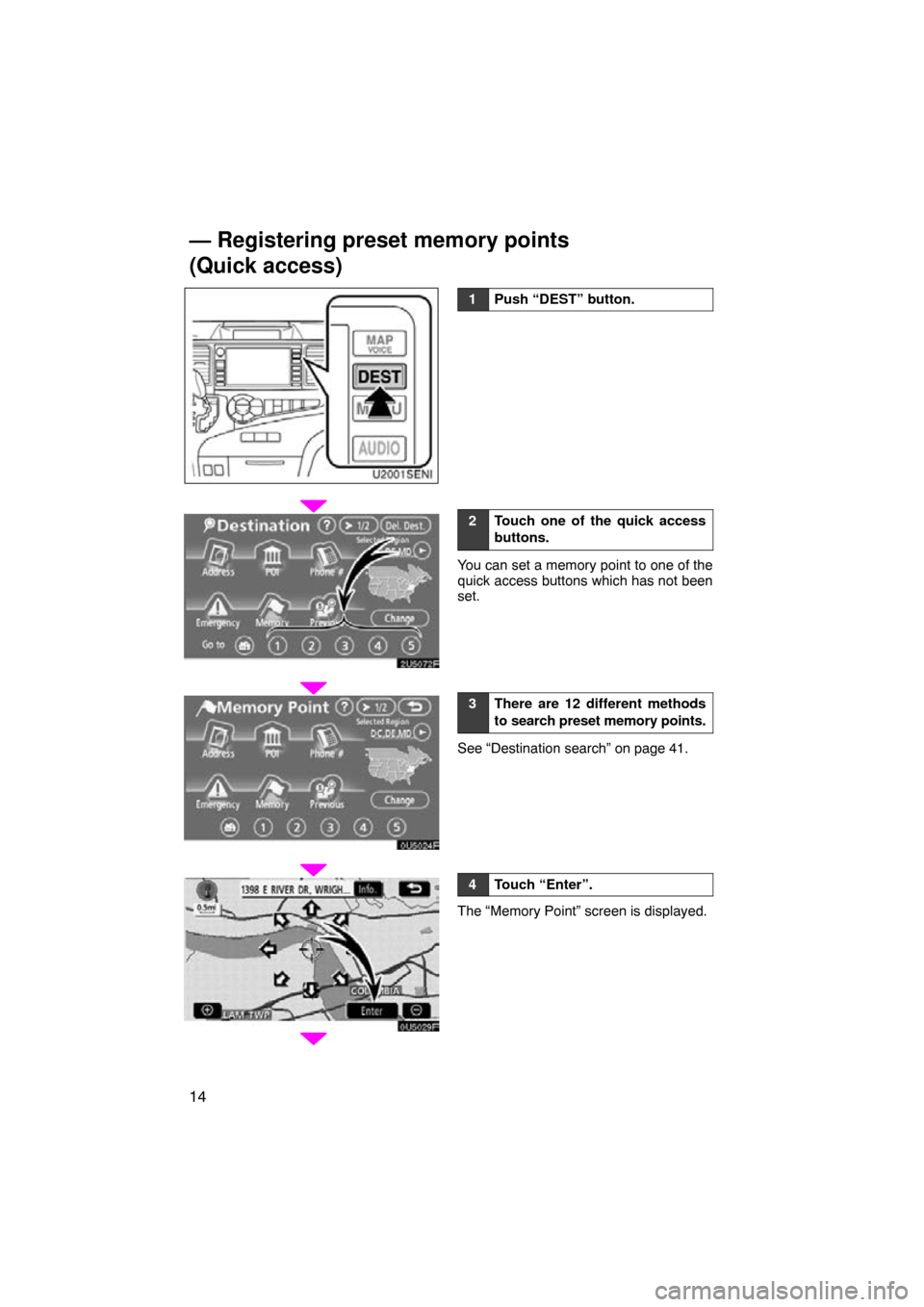

1Push “DEST” button.
2Touch one of the quick access
buttons.
You can set a memory point to one of the
quick access buttons which has not been
set.
3There are 12 different methods
to search preset memory points.
See “Destination search” on page 41.
4Touch “Enter”.
The “Memory Point” screen is displayed.
— Registering preset memory points
(Quick access)

SIENNA_Entry_Navi_U
OM45459U
18
Map
Displaying mapsPage
Viewing the map screen10
Displaying the current vehicle position29
Viewing the current position vicinity map30
Changing the scale36
Changing the map orientation38
Displaying POIs∗80
Displaying the estimated travel/arrival time to the destination73
Selecting the dual map screen34
Viewing foot print map37
Deleting map screen touch screen buttons11 2
Searching destinationPage
Searching the destination (by home, POI∗, phone #, etc.)41
Changing the selected region42
Operating the map location of the selected destination63
Route guidance
Before starting route guidancePage
Setting the destination63
Viewing alternative routes63
Starting route guidance63
Before starting or during route guidancePage
Viewing the route63
Adding destinations74
Changing the route76
Displaying the estimated travel/arrival time to the destination73
∗: Point(s) of Interest
Navigation system function index

BASIC FUNCTIONS
23
1U5001F
When the engine switch is in “ACC” or
“ON” position, the initial screen will be
displayed and the system will begin oper-
ating.
CAUTION
When the vehicle is stopped with the
engine running, always apply the
parking brake for safety.

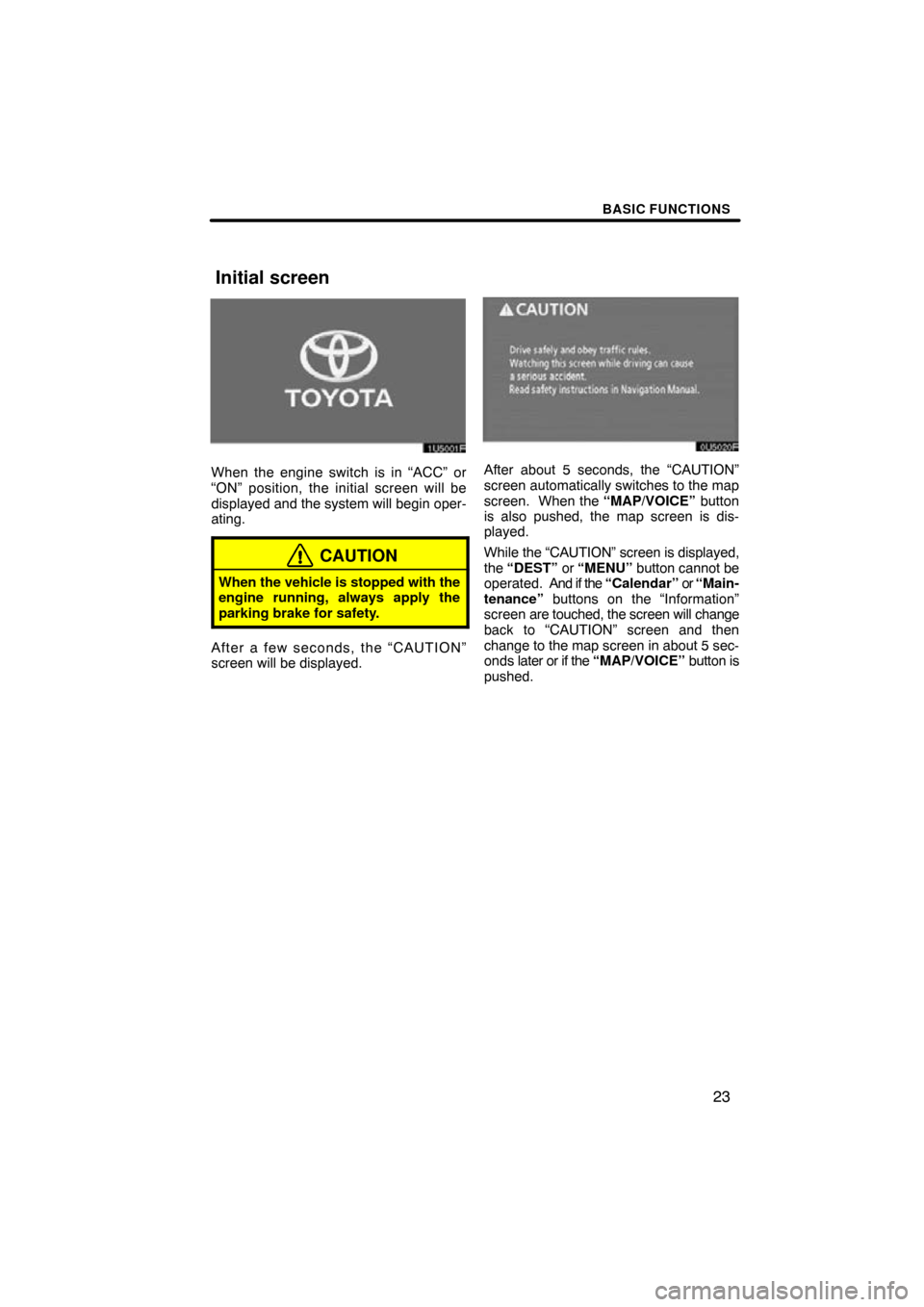

After a few seconds, the “CAUTION”
screen will be displayed.
0U5020F
After about 5 seconds, the “CAUTION”
screen automatically switches to the map
screen. When the “MAP/VOICE” button
is also pushed, the map screen is dis-
played.
While the “CAUTION” screen is displayed,
the “DEST” or “MENU” button cannot be
operated. And if the “Calendar” or “Main-
tenance” buttons on the “Information”
screen are touched, the screen will change
back to “CAUTION” screen and then
change to the map screen in about 5 sec-
onds later or if the “MAP/VOICE” button is
pushed.
Initial screen

BASIC FUNCTIONS
25
This system is operated mainly by the
touch screen buttons on the screen.
To prevent damage to the screen, light-
ly touch buttons on the screen with the
finger. When a button on the screen is
touched, a beep sounds.
Do not use objects other than the finger
to touch the screen.
INFORMATION
If the system does not respond to
a touch on a touch screen button,
move the finger away from the
screen and then touch it again.
 Dimmed touch screen buttons
cannot be operated.
 Wipe off fingerprints using a glass
cleaning cloth. Do not use chemi-
cal cleaners to clean the touch
screen.
 The displayed image may become
darker and moving images may be
slightly distorted when the display
is cold.
 Under extremely cold conditions,
the map may not be displayed and
the data input by a user may be de-
leted. Also, the touch screen but-
tons may be harder than usual to
depress.
 When you look at the screen
through polarized material such as
polarized sunglasses, the screen
may be dark and hard to see. If so,
change the angle of the screen,
look at the screen from different
angles, adjust the screen settings
on the “Display” screen, or take off
your sunglasses.
When searching for an address or a name,
or entering a memo, letters and numbers
can be input via the touch screen.
INFORMATION
Keyboard layout can be changed.
(See page 110.)
Touch screen operation
Inputting letters and
numbers/List screen
operation

BASIC FUNCTIONS
34
Any one of the screen configurations can
be selected .
1U5028F

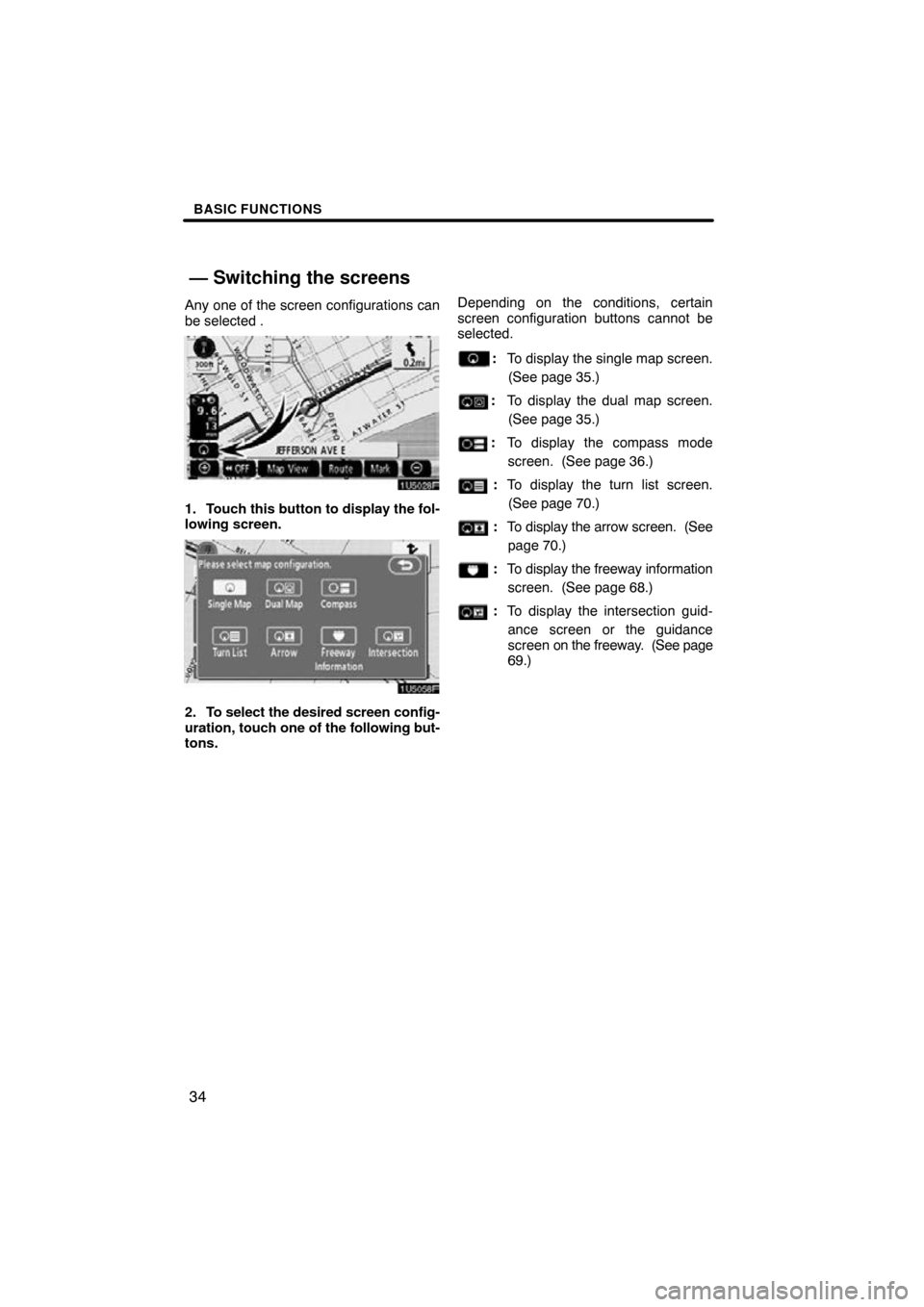

1. Touch this button to display the fol-
lowing screen.
1U5058F
2. To select the desired screen config-
uration, touch one of the following but-
tons. Depending on the conditions, certain
screen configuration buttons cannot be
selected.
:
To display the single map screen.
(See page 35.)
: To display the dual map screen.
(See page 35.)
: To display the compass mode
screen. (See page 36.)
: To display the turn list screen.
(See page 70.)
: To display the arrow screen. (See
page 70.)
: To display the freeway information
screen. (See page 68.)
: To display the intersection guid-
ance screen or the guidance
screen on the freeway. (See page
69.)
— Switching the screens

DESTINATION SEARCH
43
U.S.A.
ButtonStates included in the search
region
“US1”
Idaho
Oregon
Washington
“US2”California
Nevada
“US3”
Arizona
Colorado
Montana
New Mexico
Utah
Wyoming
“US4”
Iowa
Kansas
Minnesota
Missouri
North Dakota
Nebraska
South Dakota
“US5”Oklahoma
Texas
“US6”
Illinois
Indiana
Kentucky
Michigan
Ohio
Wisconsin
“US7”
Arkansas
Alabama
Louisiana
Mississippi
Tennessee
“US8”
Connecticut
Massachusetts
Maine
New Hampshire
New Jersey
New York
Rhode Island
Vermont
“US9”
Washington, D.C.
Delaware
Maryland
New Jersey
Pennsylvania
Virginia
West Virginia
“US10”
Florida
Georgia
North Carolina
South Carolina
“HI”Hawaii
Canada
ButtonProvinces and regions in-
cluded in the search region
“CAN”All provinces and regions in
Canada included in this button.
