AUDIO/VIDEO SYSTEM
178
(g) If the player malfunctions
If “CD Error” appears on the screen, audio
signals of the disc cannot be read or the
system has trouble. Push the “DISC” but-
ton once again.
If the changer does not operate, check that
the disc surface is not soiled or damaged.
If the disc is O.K., the temperature of the
changer’s internal mechanism may be
raised because of high external tempera-
ture. Remove the disc from the changer to
cool it.
If the changer still does not operate, have
it checked by your dealer.
If an MP3/WMA disc contains CD −DA
files, only CD−DA files are played. If an
MP3/WMA disc contains files other than
CD−DA, only MP3/WMA files are played. The Bluetooth
audio system enables
users to enjoy music played on a porta-
ble player from the vehicle speaker via
wireless communication.
U6086GS
This audio system supports
Bluetooth , a wireless data system
capable of playing portable audio
music without cables. If your portable
player does not support Bluetooth ,
the Bluetooth audio system will not
function.
—Bluetooth  audio
operation

AUDIO/VIDEO SYSTEM
179
INFORMATION
Portable players must correspond to
the following specifications in order
to be connected to the Bluetooth au-
dio system. However, please note
that some functions may be limited
depending on the type of portable
player.
 Bluetooth  Specification
Ver.1.1 or higher
(Recommended: Ver.2.0+EDR or
higher)
 Profile
 A2DP (Advanced Audio
Distribution Profile) Ver.1.0 or
higher
 AVRCP (Audio/Video Remote
Control Profile) Ver .1.0 or higher
(Recommended: Ver.1.3 or
higher)
Please go to “http://www.toyota.
letstalk.com/” to find approved
Bluetooth  phones for this system.
Bluetooth is a trademark owned by
Bluetooth SIG. Inc.
CAUTION
Do not operate the player’s controls
or connect to the Bluetooth  audio
system while driving.
NOTICE
Do not leave your portable player in
the car. In particular, high tempera-
tures inside the vehicle may damage
the portable player.
INFORMATION
In the following conditions, the
system may not function.
 The portable player is turned off.
 The portable player is not con-
nected.
 The portable player has a low bat-
tery.
It may take time, the phone connec-
tion is carried out during
Bluetooth  audio play.

AUDIO/VIDEO SYSTEM
180
1Indicates the condition of the
Bluetooth connection.
“Blue” indicates an excellent connection
to Bluetooth .
“Yellow” indicates a bad connection to
Bluetooth , resulting in possible deteriora-
tion of audio quality.
: No connection to Bluetooth .
2Indicates the amount of battery
charge left.
Empty Full
Remaining charge is not displayed while
the Bluetooth is connecting.
The amount left does not always corre-
spond with the one of your portable player.
This system doesn’t have a charging func-
tion. An antenna for the Bluetooth
connection is built in to the display. The
indication of the Bluetooth
connection may turn yellow and the
system
may not function when you use
the Bluetooth portable player in the
following conditions.
Your portable player is hiding behind
from the display (behind the seat or in
the glove box or console box).
Your portable player touches or is cov-
ered with metal materials.
Leave the Bluetooth  portable player in a
place where the “Blue” indication is dis-
played.
The portable player information is regis-
tered when the Bluetooth audio system is
connected. When you release possession
of your vehicle, remove your portable play-
er. (See “(a) Removing a Bluetooth  au-
dio” on page 313.)

AUDIO/VIDEO SYSTEM
181
FCC ID : HYQDNNS025
Type : DNNS025
IC : 1551ADNNS025 Canada 310
This device complies with Part 15 of the
FCC Rules and RSS −210. Operation is
subject to the following two conditions :
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, in-
cluding interference that may cause un-
desired operation.
CAUTION: Changes or modifications
not expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the equipment.
CAUTION: Radio Frequency Radi-
ation Exposure
This equipment complies with FCC/
IC radiation exposure limits set forth
for uncontrolled equipment and
meets the FCC radio frequency (RF)
Exposure Guidelines in Supplement
C to OET65 and RSS102 of the IC ra-
dio frequency (RF) Exposure rules.
This equipment has very low levels of
RF energy that it deemed to comply
without maximum permissive expo-
sure evaluation (MPE). But it is desir-
able that it should be installed and
operated with at least 20 cm and more
between the radiator and person’s
body (excluding extremities: hands,
wrists, feet and ankles).
Colocation: This transmitter must
not be colocated or operated in con-
junction with any other antenna or
transmitter.
(a) Connecting Bluetooth audio play-
er
To use the Bluetooth audio system,
you need to enter your portable player
into the system. Once you have
registered it, you can enjoy your music
on the vehicle’s audio system. (See
“—Setting Bluetooth audio” on page
311.)
For the operation procedure for the
portable player, see the instruction
manual that comes with it.
When the connection method is
“From Vehicle”.
When the auto connection is on
Vehicles with smart key sys-
tem—
When the portable player is
standby for the connection, it
will be automatically connected
whenever the “ENGINE START
STOP” switch is in either AC-
CESSORY or IGNITION ON
mode.
Vehicles without smart key sys-
tem—
When the portable player is
standby for the connection, it
will be automatically connected
whenever the engine switch is in
either “ACC” or “ON” position.
When the auto connection is off
Manually connect the portable
player in accordance with the
following procedure.

AUDIO/VIDEO SYSTEM
182

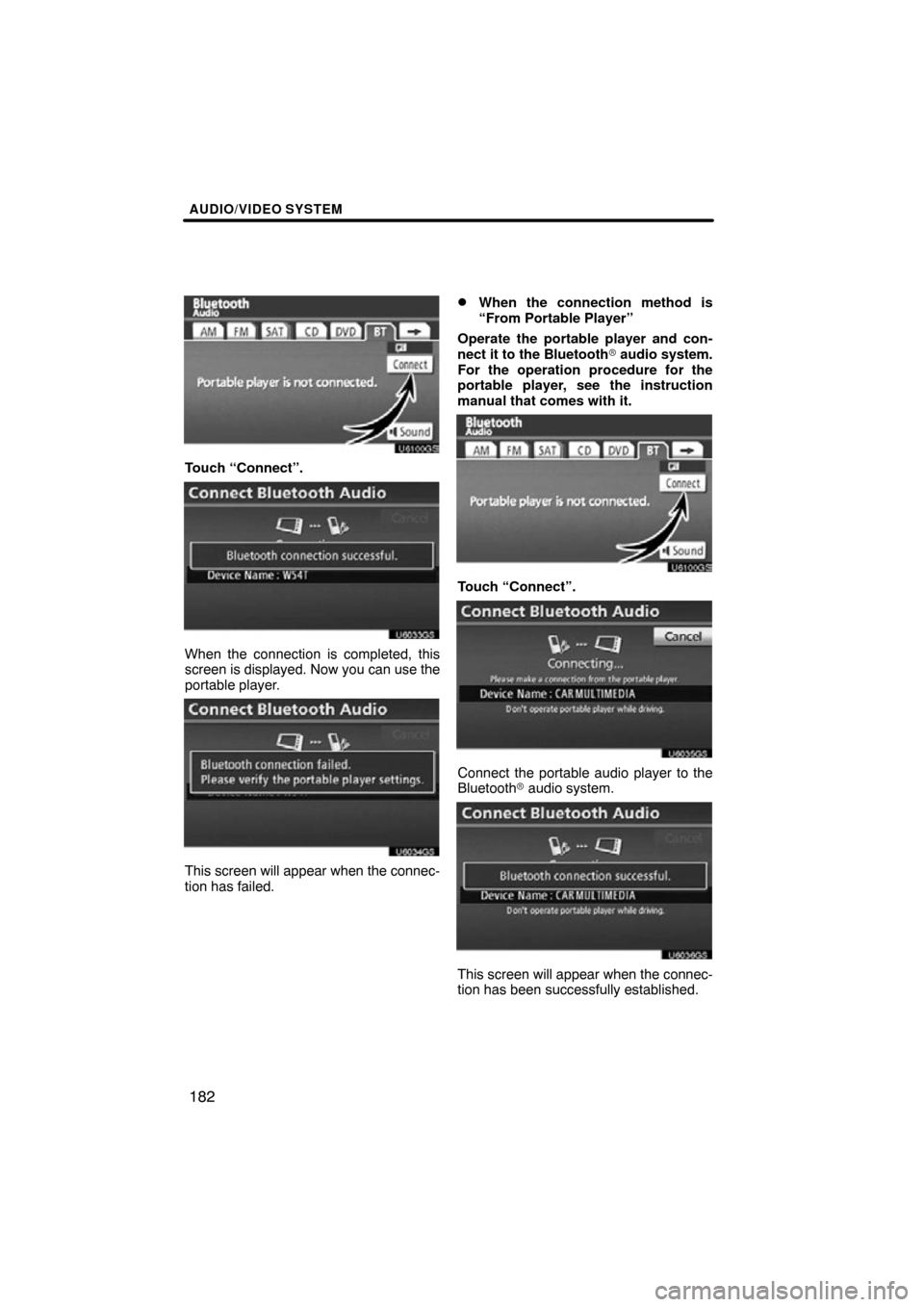

Touch “Connect”.
U6033GS
When the connection is completed, this
screen is displayed. Now you can use the
portable player.
U6034GS
This screen will appear when the connec-
tion has failed.
When the connection method is
“From Portable Player”
Operate the portable player and con-
nect it to the Bluetooth  audio system.
For the operation procedure for the
portable player, see the instruction
manual that comes with it.
Touch “Connect”.
U6035GS
Connect the portable audio player to the
Bluetooth  audio system.
U6036GS
This screen will appear when the connec-
tion has been successfully established.

AUDIO/VIDEO SYSTEM
183

Reconnecting the portable player
Vehicles with smart key system—
If the portable player is disconnected with
poor reception from the Bluetooth net-
work when the “ENGINE START STOP”
switch is in ACCESSORY or IGNITION
ON mode, the system automatically re-
connects the portable player . In this case,
the connection result is not displayed.
Vehicles without smart key system—
If the portable player is disconnected with
poor reception from the Bluetooth net-
work when the engine switch is in the
“ACC” or “ON” position, the system auto-
matically reconnects the portable player.
In this case, the connection result is not
displayed.
If the Bluetooth is disconnected on pur-
pose such as you turned your portable
player off, this does not happen.
Reconnect it by the following method.
Select the portable player again.
Enter the portable player. (b) Playing a Bluetooth
 audio
Playing and pausing Bluetooth au-
dio
U6086GS
Push the “DISC·AUX” button or push
the “AUDIO” button to display this
screen and touch the “BT” tab if the
Bluetooth  audio player is alreay
connected.
Touch
and the music will start playing.
Touch
and the music will pause.
Touch
and the music will start playing
again.
Depending on the portable player that is
connected to the system, the music may
start playing when touching
while it is
paused. On the other hand, the music may
pause when touching
while it is play-
ing.

AUDIO/VIDEO SYSTEM
184
Some titles may not be displayed depend-
ing on the type of portable player.
Selecting a desired track
“SEEK/TRACK” button: Use for direct
access to a desired track.
Push either side of the “SEEK/TRACK”
button and repeat it until the desired track
number appears on the screen. As you re-
lease the button, the portable player will
start playing the selected track from the
beginning.
Fast forward:
Push and hold the “ ” button of “SEEK/
TRACK” to fast forward the player. When
you release the button, the portable player
will resume playing from that position.
Reverse:
Push and hold the “ ” button of “SEEK/
TRACK” to reverse the player. When you
release the button, the player will resume
playing.
INFORMATION
Depending on the portable player that
is connected to the system, certain
functions may not be available.

AUDIO/VIDEO SYSTEM
185

Selecting a desired album
U6086GS
“Album
”: Touch this button to go to
the next album.
“Album \b”: Touch this button to go to
the previous album.
INFORMATION
Depending on the portable player that
is connected to the system, certain
functions may not be available.
Other function
U6086GS
“RPT”: Use this control to automatic re-
play the track you are currently listening to.
Repeating a track—
While the track is playing, touch “RPT”
briefly.
“RPT” appears on the screen. When the
track is finished, the player will automati-
cally play it again. To cancel the repeat,
touch “RPT” once again.

AUDIO/VIDEO SYSTEM
186
“RAND”: Use this for automatic and ran-
dom selection of tracks on the album that
you are currently listening to.
Playing the tracks in the album in ran-
dom order—
While the track is playing, touch
“RAND” briefly.
“RAND” appears on the screen. The sys-
tem selects a track in the album you are
currently listening to. To cancel this func-
tion, touch “RAND” once again.
INFORMATION
Depending on the portable player that
is connected to the system, certain
functions may not be available.
The DVD player can play DVD video, au-
dio CD, video CD, CD text, dtsCD or
MP3 disc only when a disc is loaded in
the DVD player. A WMA and DVD audio
disc cannot be played.
For details of “Rear seat entertainment
system”, refer to “Owner’s Manual”.
For appropriate discs for this player, see
“Audio/video system operating hints” on
page 221.
(a) Inserting the disc
U6012SNI
Pull down the cover and insert the disc
into the slot with the label side up.
An adapter must be used for 3 in. (8 cm)
discs which are loaded in the same man-
ner as for 4.7 in. (12 cm) discs.
—DVD player operation

AUDIO/VIDEO SYSTEM
187
U6013SNI
The indicator light turns on while the disc
is loaded.
If the label faces downward, the disc can-
not be played. In this case, “Check disc”
appears on the screen.
If a disc which is not playable is inserted,
“Check disc” will also appear on the
screen. For appropriate discs for this play-
er, see “Audio/video system operating
hints” on page 221.
NOTICE
Never try to disassemble or oil any
part of the DVD player. Do not insert
anything other than a disc into the
slot.
(b) Ejecting a disc
U6014SNI
Push the “” button.
