TOYOTA SIENNA 2012 XL30 / 3.G Navigation Manual

SETUP
271

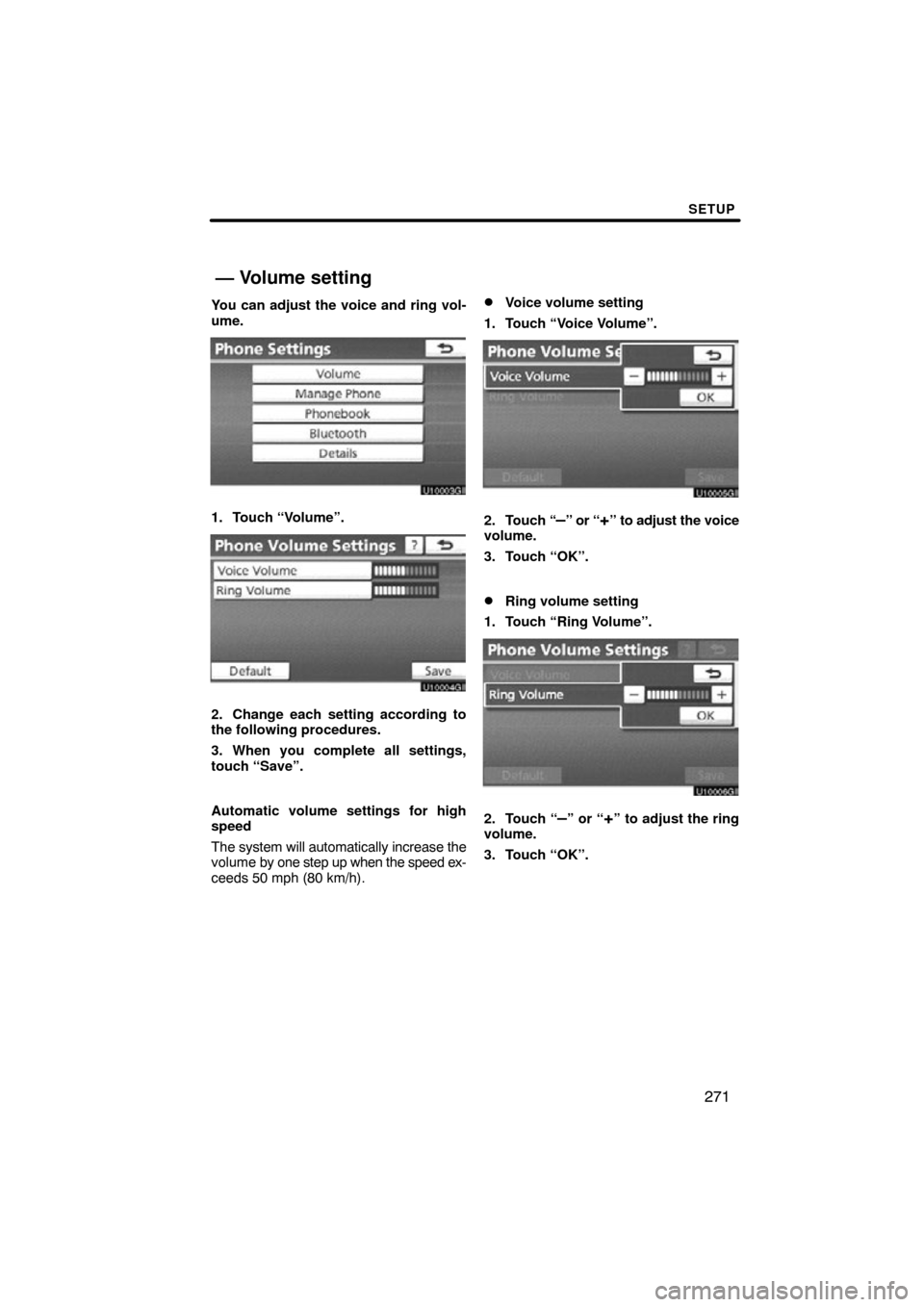

You can adjust the voice and ring vol-
ume.
1. Touch “Volume”.
2. Change each setting according to
the following procedures.
3. When you complete all settings,
touch “Save”.
Automatic volume settings for high
speed
The system will automatically increase the
volume by one step up when the speed ex-
ceeds 50 mph (80 km/h).
Voice volume setting
1. Touch “Voice Volume”.
2. Touch “–” or “+” to adjust the voice
volume.
3. Touch “OK”.
Ring volume setting
1. Touch “Ring Volume”.
2. Touch “–” or “+” to adjust the ring
volume.
3. Touch “OK”.
— Volume setting

SETUP
272

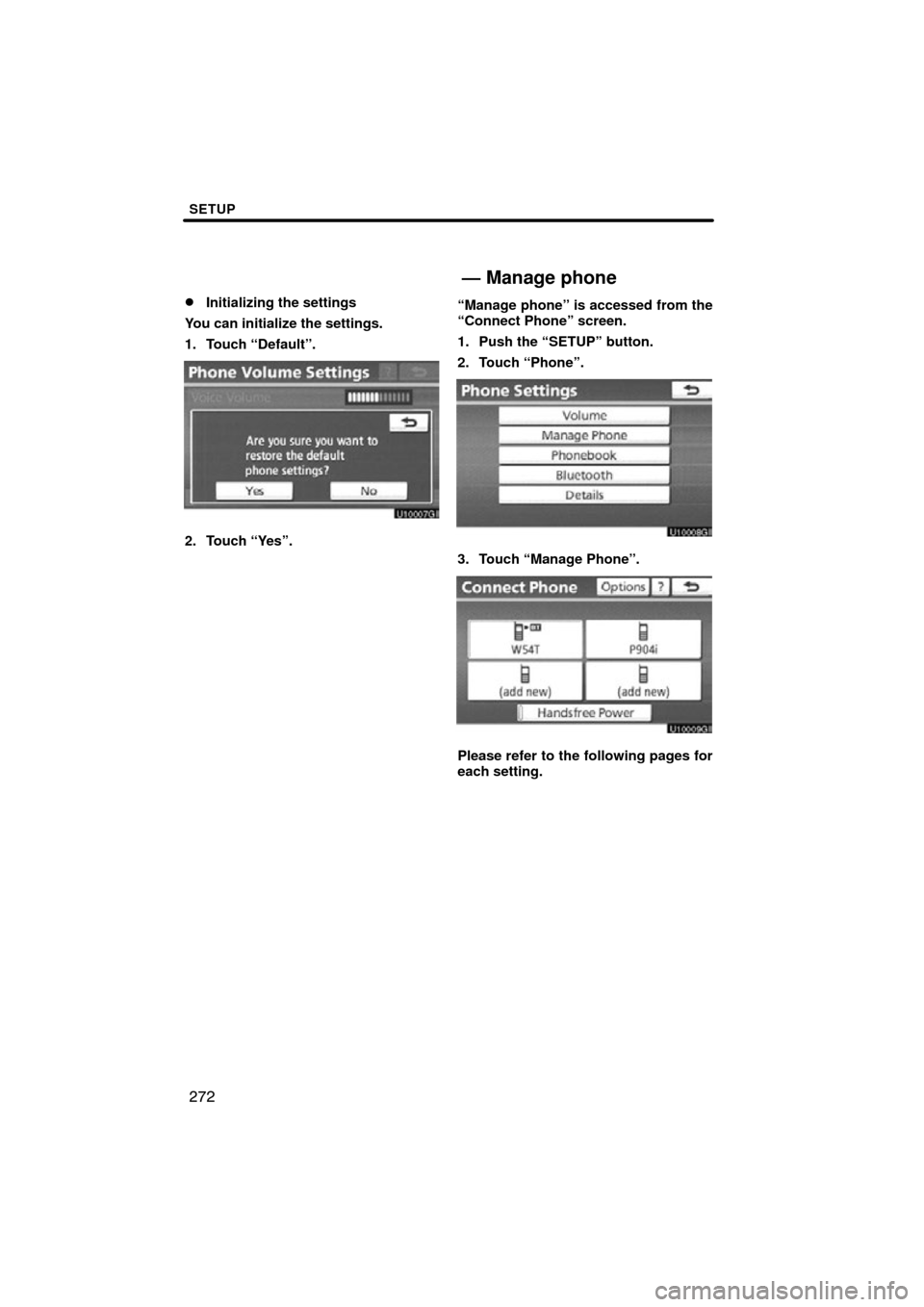

Initializing the settings
You can initialize the settings.
1. Touch “Default”.
2. Touch “Yes”. “Manage phone” is accessed from the
“Connect Phone” screen.
1. Push the “SETUP” button.
2. Touch “Phone”.
3. Touch “Manage Phone”.
Please refer to the following pages for
each setting.
— Manage phone

SETUP
273

Registering a Bluetooth
 phone
1. Touch “(add new)” to register your
cellular phone to the system.
2. When this screen is displayed, input
the passcode displayed on the screen
into the phone.
For the operation of the phone, see the
manual that comes with your cellular
phone.
If you want to cancel it, touch “Cancel”.
3. When the connection is completed,
this screen is displayed.
You do not need to enter the phone in case
of using the same one.
When this screen is displayed, follow the
guidance on the screen to try again.

SETUP
274

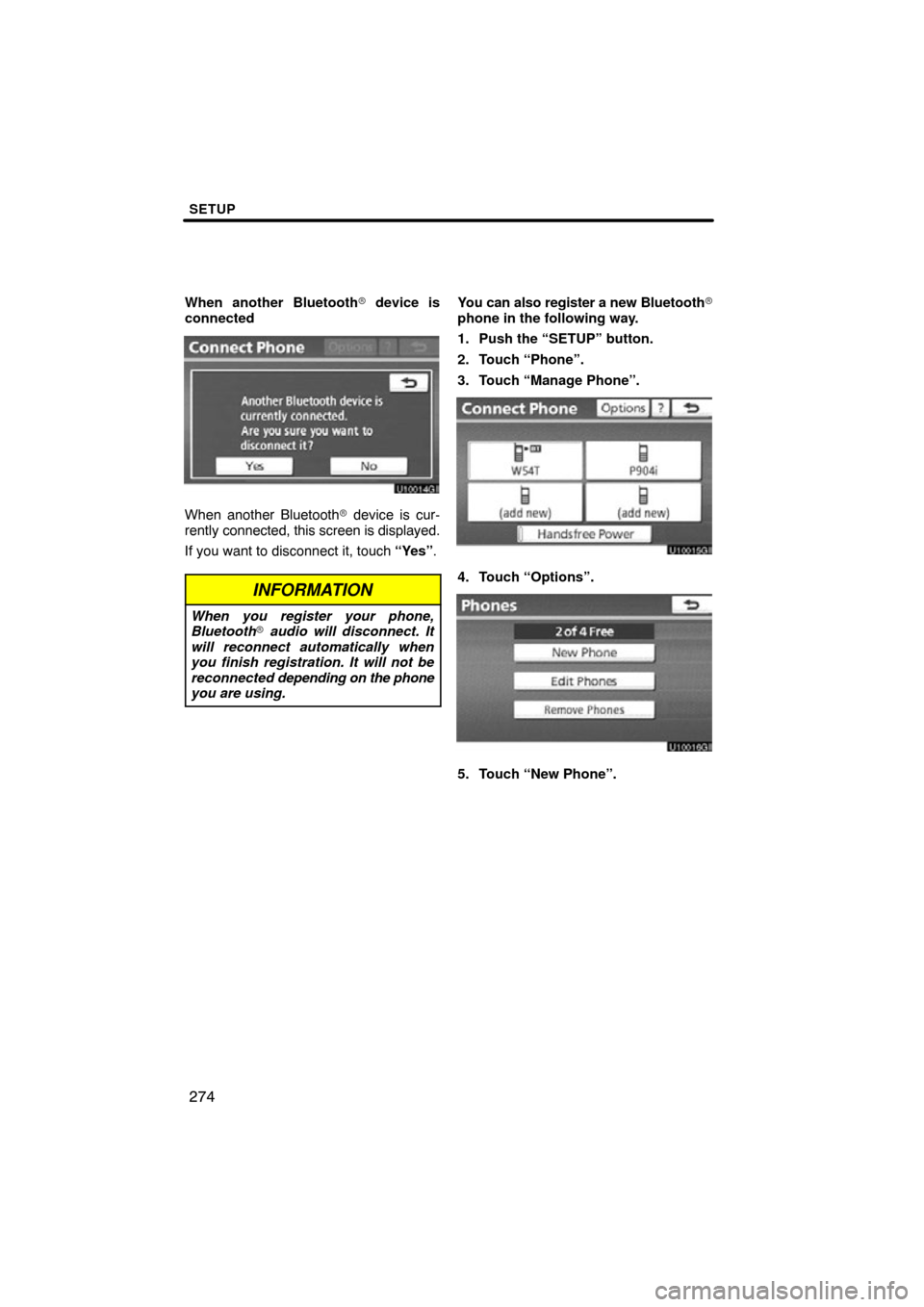

When another Bluetooth device is
connected
When another Bluetooth  device is cur-
rently connected, this screen is displayed.
If you want to disconnect it, touch “Yes”.
INFORMATION
When you register your phone,
Bluetooth  audio will disconnect. It
will reconnect automatically when
you finish registration. It will not be
reconnected depending on the phone
you are using.
You can also register a new Bluetooth
phone in the following way.
1. Push the “SETUP” button.
2. Touch “Phone”.
3. Touch “Manage Phone”.
4. Touch “Options”.
5. Touch “New Phone”.

SETUP
275

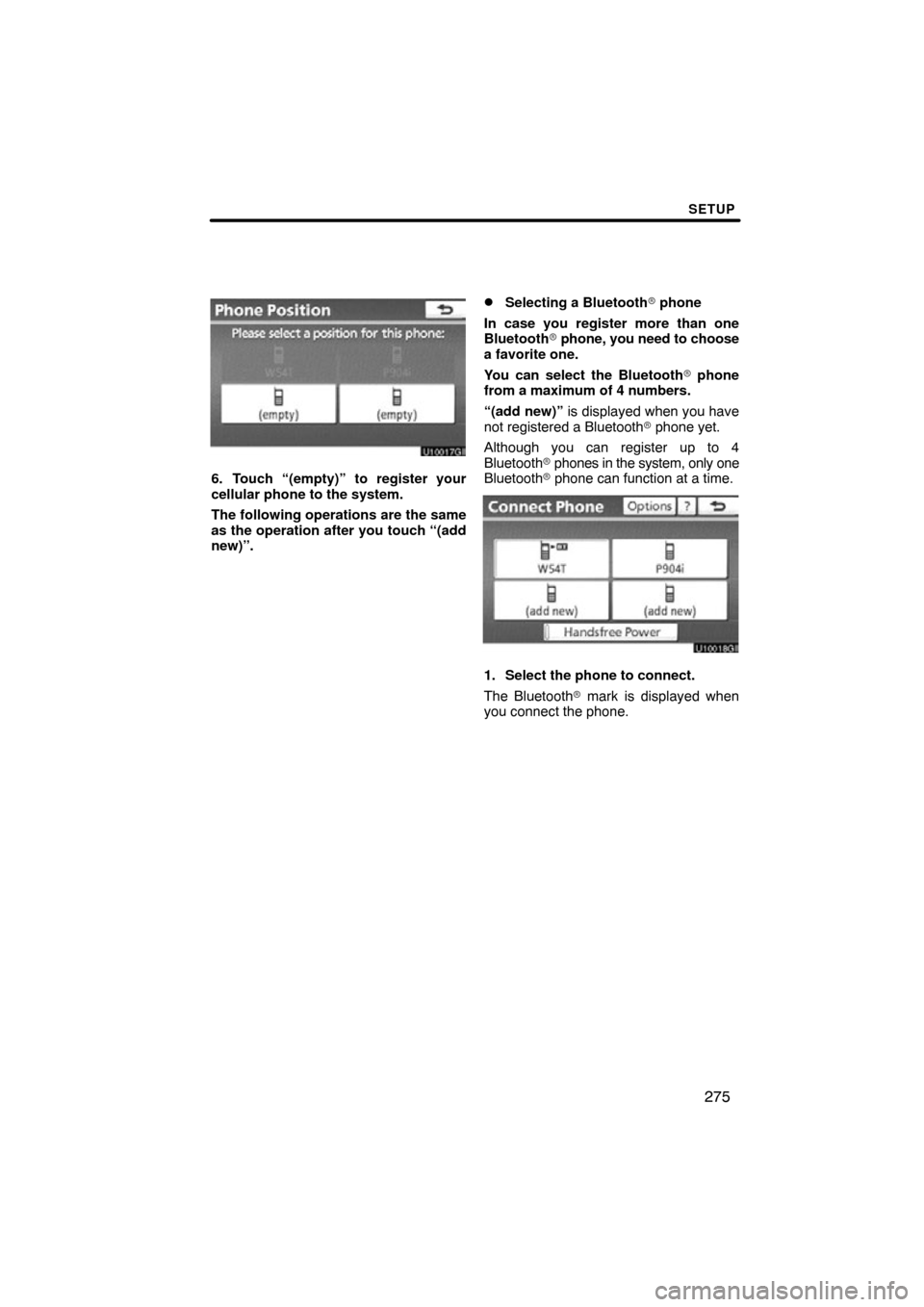

6. Touch “(empty)” to register your
cellular phone to the system.
The following operations are the same
as the operation after you touch “(add
new)”.
Selecting a Bluetooth phone
In case you register more than one
Bluetooth  phone, you need to choose
a favorite one.
You can select the Bluetooth phone
from a maximum of 4 numbers.
“(add new)” is displayed when you have
not registered a Bluetooth  phone yet.
Although you can register up to 4
Bluetooth  phones in the system, only one
Bluetooth  phone can function at a time.
1. Select the phone to connect.
The Bluetooth  mark is displayed when
you connect the phone.

SETUP
276

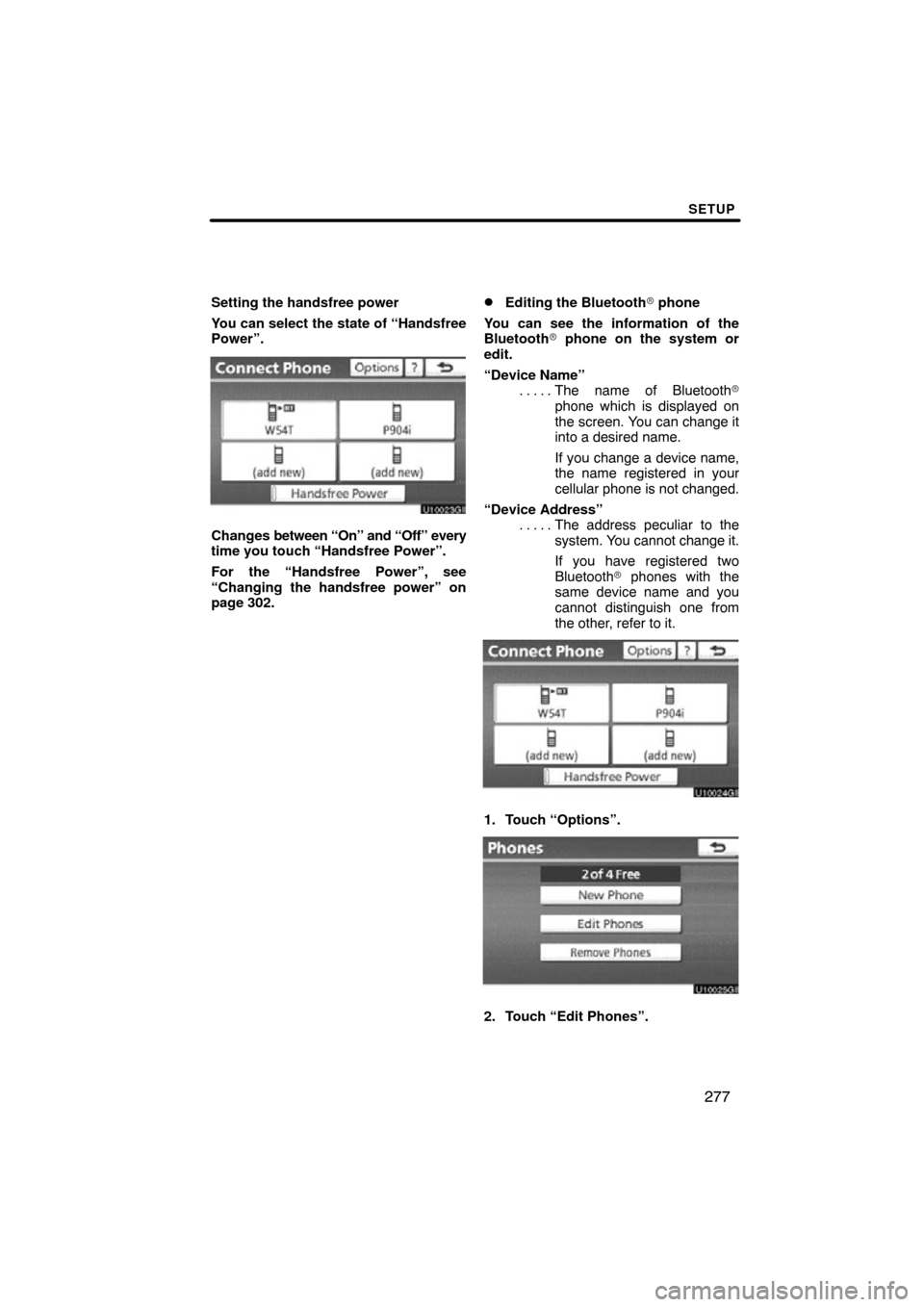

2. The “Connect Bluetooth*” screen is
displayed.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
3. When the result message is dis-
played, you can use the Bluetooth
phone. When you connect the phone while
Bluetooth
 audio is playing
This screen is displayed, and the
Bluetooth  audio will stop temporarily.
When another Bluetooth  device is
connected
When another Bluetooth  device is cur-
rently connected, this screen is displayed.
If you want to disconnect it, touch “Yes”.

SETUP
277
Setting the handsfree power
You can select the state of “Handsfree
Power”.
Changes between “On” and “Off” every
time you touch “Handsfree Power”.
For the “Handsfree Power”, see
“Changing the handsfree power” on
page 302.
Editing the Bluetooth  phone
You can see the information of the
Bluetooth  phone on the system or
edit.
“Device Name” The name of Bluetooth
. . . . .
phone which is displayed on
the screen. You can change it
into a desired name.
If you change a device name,
the name registered in your
cellular phone is not changed.
“Device Address” The address peculiar to the
. . . . .
system. You cannot change it.
If you have registered two
Bluetooth  phones with the
same device name and you
cannot distinguish one from
the other, refer to it.
1. Touch “Options”.
2. Touch “Edit Phones”.

SETUP
278

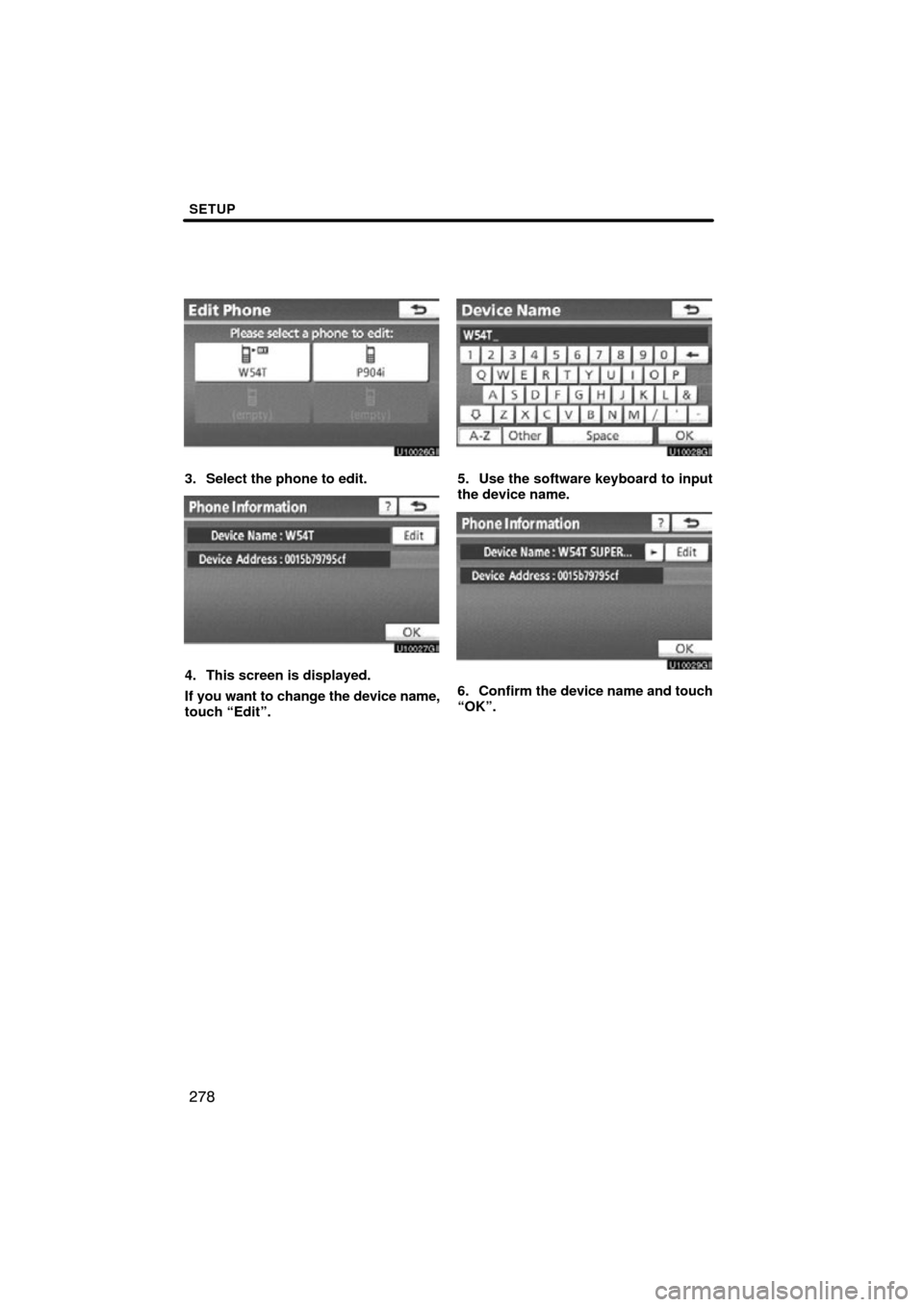

3. Select the phone to edit.
4. This screen is displayed.
If you want to change the device name,
touch “Edit”.
5. Use the software keyboard to input
the device name.
6. Confirm the device name and touch
“OK”.

SETUP
279

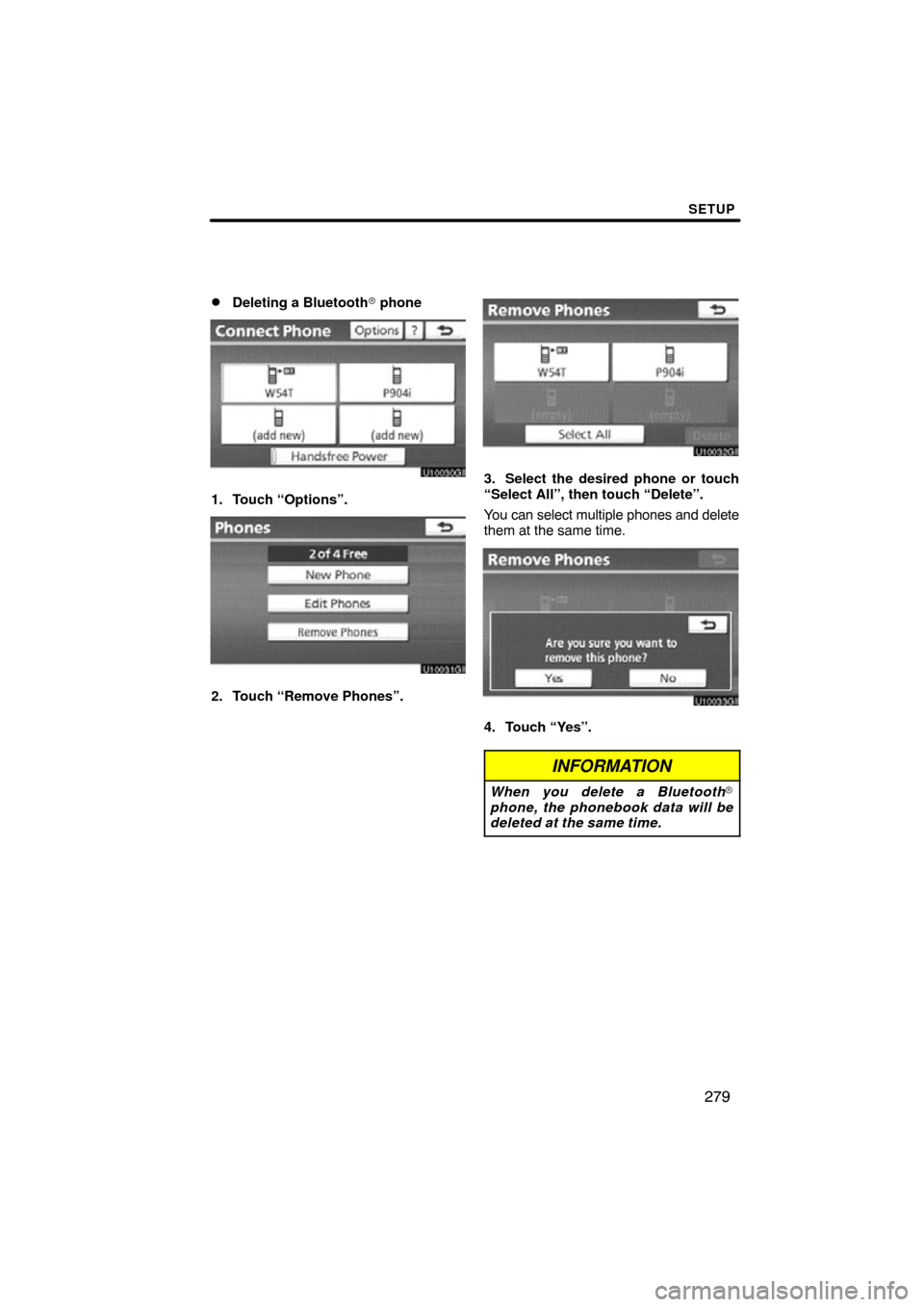

Deleting a Bluetooth
 phone
1. Touch “Options”.
2. Touch “Remove Phones”.
3. Select the desired phone or touch
“Select All”, then touch “Delete”.
You can select multiple phones and delete
them at the same time.
4. Touch “Yes”.
INFORMATION
When you delete a Bluetooth
phone, the phonebook data will be
deleted at the same time.

SETUP
280

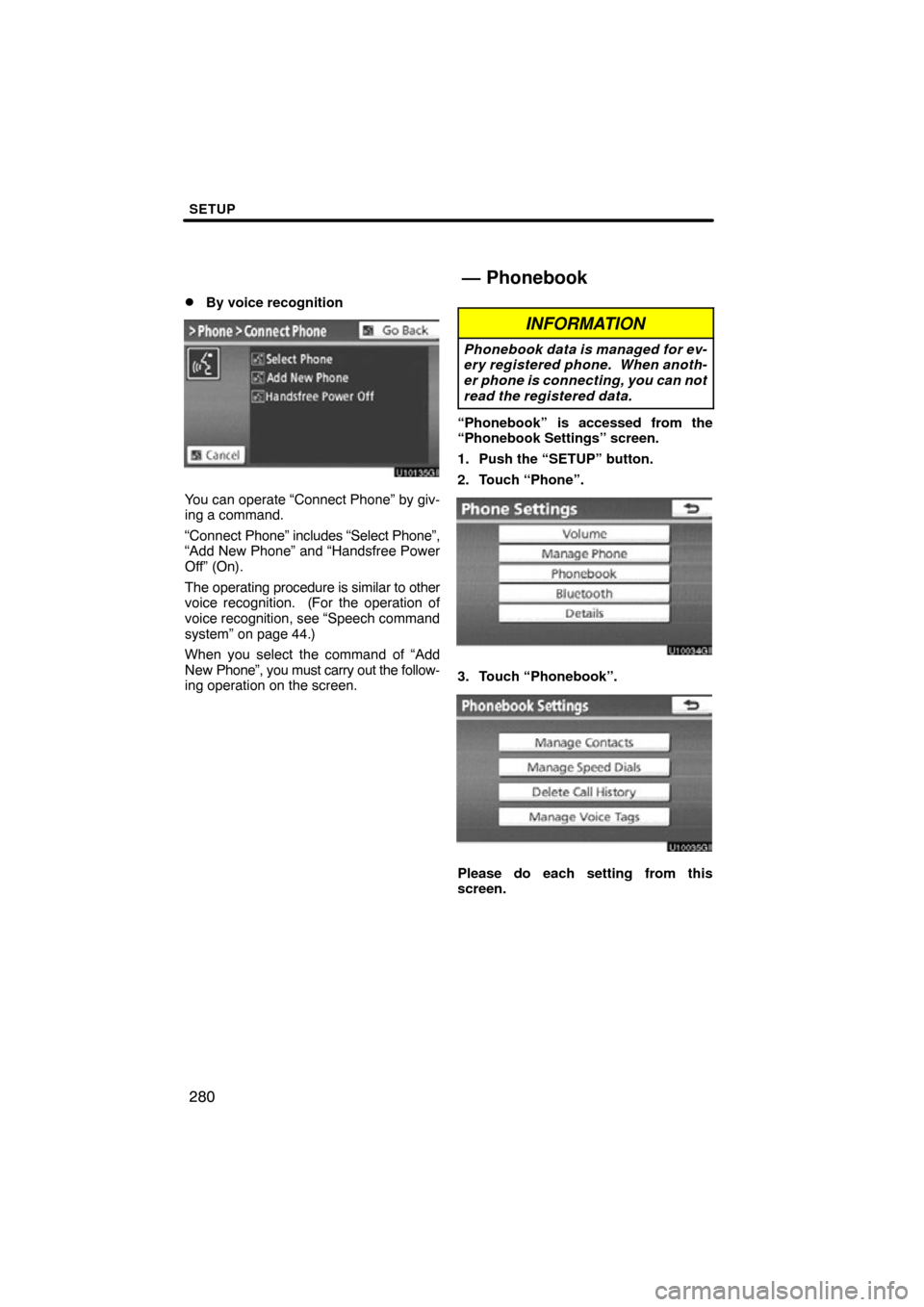

By voice recognition
You can operate “Connect Phone” by giv-
ing a command.
“Connect
Phone” includes “Select Phone”,
“Add New Phone” and “Handsfree Power
Off” (On).
The operating procedure is similar to other
voice recognition. (For the operation of
voice recognition, see “Speech command
system” on page 44.)
When you select the command of “Add
New Phone”, you must carry out the follow-
ing operation on the screen.
INFORMATION
Phonebook data is managed for ev-
ery registered phone. When anoth-
er phone is connecting, you can not
read the registered data.
“Phonebook” is accessed from the
“Phonebook Settings” screen.
1. Push the “SETUP” button.
2. Touch “Phone”.
3. Touch “Phonebook”.
Please do each setting from this
screen.
— Phonebook
