maintenance TOYOTA SIENNA 2012 XL30 / 3.G Navigation Manual

8
8 Setup
General settings252
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Clock settings 257
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Voice settings 259
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Navigation settings 261
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Detailed navigation settings 261
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Telephone settings 270
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Volume setting 271
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Manage phone 272
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Phonebook 280
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Setting the phonebook 281
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speed dials setting 289
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting call history 296
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the voice tag 297
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth  301
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Details 306
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Audio settings 309
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Select portable player 309
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Settings Bluetooth  audio 311
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle settings 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Maintenance 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
9 Appendix
Limitations of the navigation system 324
. . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 326
. . . . . . . . . . . . . . . . . . .
Changing the map DVD −ROM 335
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Index 339
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
For information about the optional “Rear seat entertainment system”,
please refer to the Owner’s Manual.

19
During route guidancePage
Pausing route guidance91
Adjusting route guidance volume260
Deleting the destination71, 85
Displaying the entire route map87
Useful functions
Address bookPage
Registering your own address book entries108
Marking icons on the map11 0
InformationPage
Displaying vehicle maintenance316
Displaying the calendar143
Handsfree system (for cellular phone)Page
Initiating Bluetooth126
Making a call on the Bluetooth  phone132
Receiving a call on the Bluetooth  phone139
Speech command systemPage
Operating the system with your voice44

22
The items shown on the “Setup” screen can be set. To display the “Setup” screen, push
the “SETUP” button.
1“General”
Settings are available for language selec-
tion, operation sounds, automatic screen
change, etc. 252 . . . . . . . . . . . . . . . . . . . .
2“Clock”
Used for changing settings for time zones,
daylight saving time, etc. 257 . . . . . . . . .
3“Voice”
Voice guidance can be set. 259 . . . . . . .
4“Navi.”
Settings are available for average cruising
speed, displayed screen contents, POI
icon categories, etc. 261 . . . . . . . . . . . . .
5“Vehicle”
Settings are available for vehicle informa-
tion such as maintenance information. 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6“Audio”
Settings are available for portable audio
devices, Bluetooth  audio devices etc.
309
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7“Phone”
Bluetooth  phones and phone numbers
can be registered, and the receiver volume
can be adjusted. 270 . . . . . . . . . . . . . . . .
Quick reference (“Setup” screen)

BASIC FUNCTIONS
27

Maintenance information
This system informs about when to replace
certain parts or components and shows
dealer information (if registered) on the
screen.
When the vehicle reaches a previously set
driving distance or date specified for a
scheduled maintenance check, the “Infor-
mation” screen will be displayed when the
navigation system is in operation.
To disable this screen, touch “Do Not
Display This Message Again”. This
screen goes off if the screen is not op-
erated for several seconds.
To prevent this information screen from be-
ing displayed again, touch “Do Not
Display This Message Again” .
To register “Maintenance information”, see
“—Maintenance” on page 316. This system is operated mainly by the
touch screen buttons on the screen.
To prevent damage to the screen, light-
ly touch buttons on the screen with the
finger. When a button on the screen is
touched, a beep sounds. (To set a beep
sound, see page 252.)
Do not use objects other than the finger
to touch the screen.
INFORMATION

If the system does not respond to
a touch on a touch screen button,
move the finger away from the
screen and then touch it again.
 Dimmed touch screen buttons
cannot be operated.
 Wipe off fingerprints using a glass
cleaning cloth. Do not use chemi-
cal cleaners to clean the touch
screen.
 The displayed image may become
darker and moving images may be
slightly distorted when the display
is cold.
 Under extremely cold conditions,
the map may not be displayed and
the data input by a user may be de-
leted. Also, the touch screen but-
tons may be harder than usual to
depress.
 When you look at the screen
through polarized material such as
polarized sunglasses, the screen
may be dark and hard to see. If so,
look at the screen from different
angles, adjust the screen settings
on the “Display” screen, or take off
your sunglasses.
Touch screen operation

SETUP
256

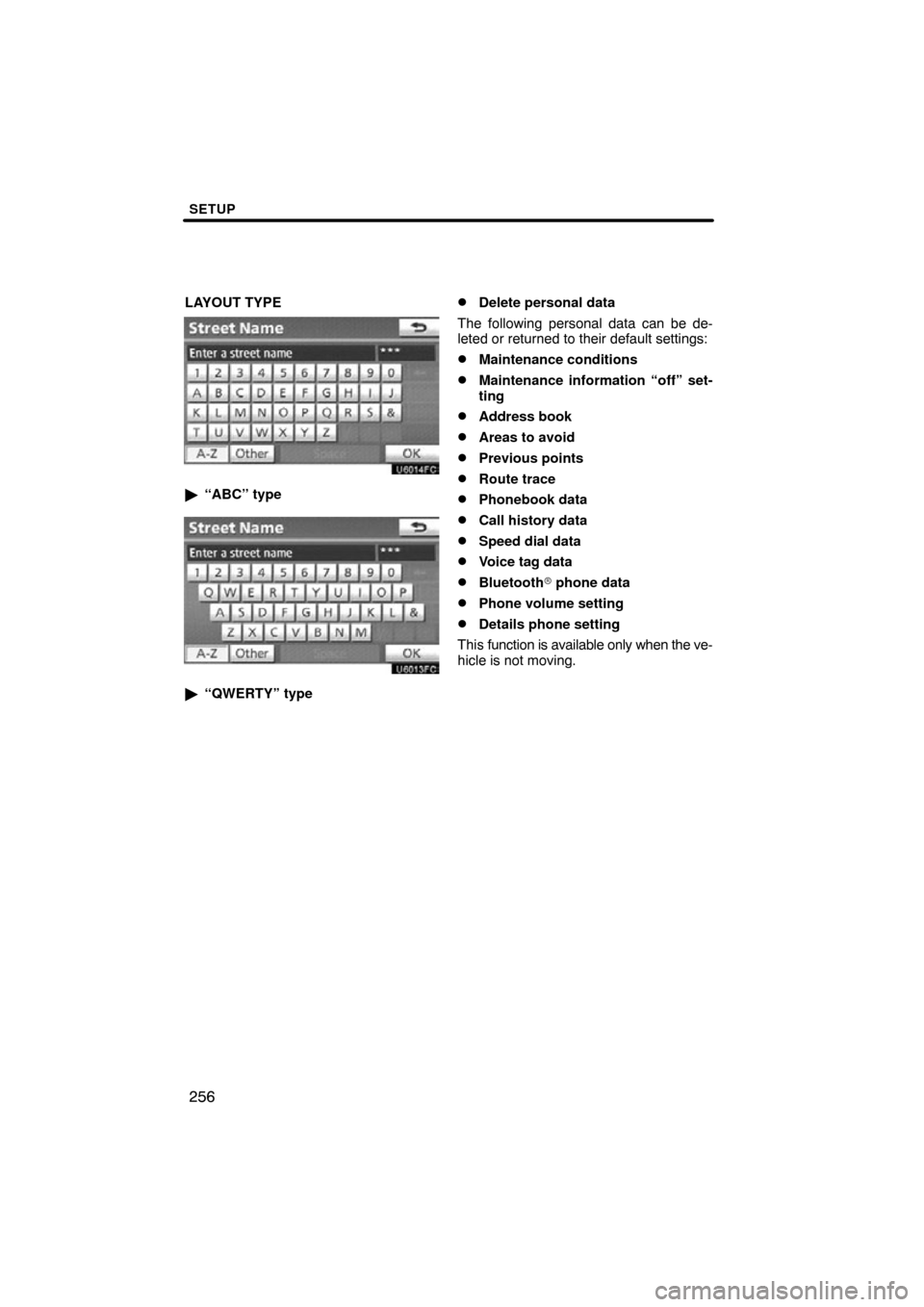

LAYOUT TYPE
“ABC” type
“QWERTY” type
Delete personal data
The following personal data can be de-
leted or returned to their default settings:
Maintenance conditions
Maintenance information “off” set-
ting
Address book
Areas to avoid
Previous points
Route trace
Phonebook data
Call history data
Speed dial data
Voice tag data
Bluetooth  phone data
Phone volume setting
Details phone setting
This function is available only when the ve-
hicle is not moving.

SETUP
316

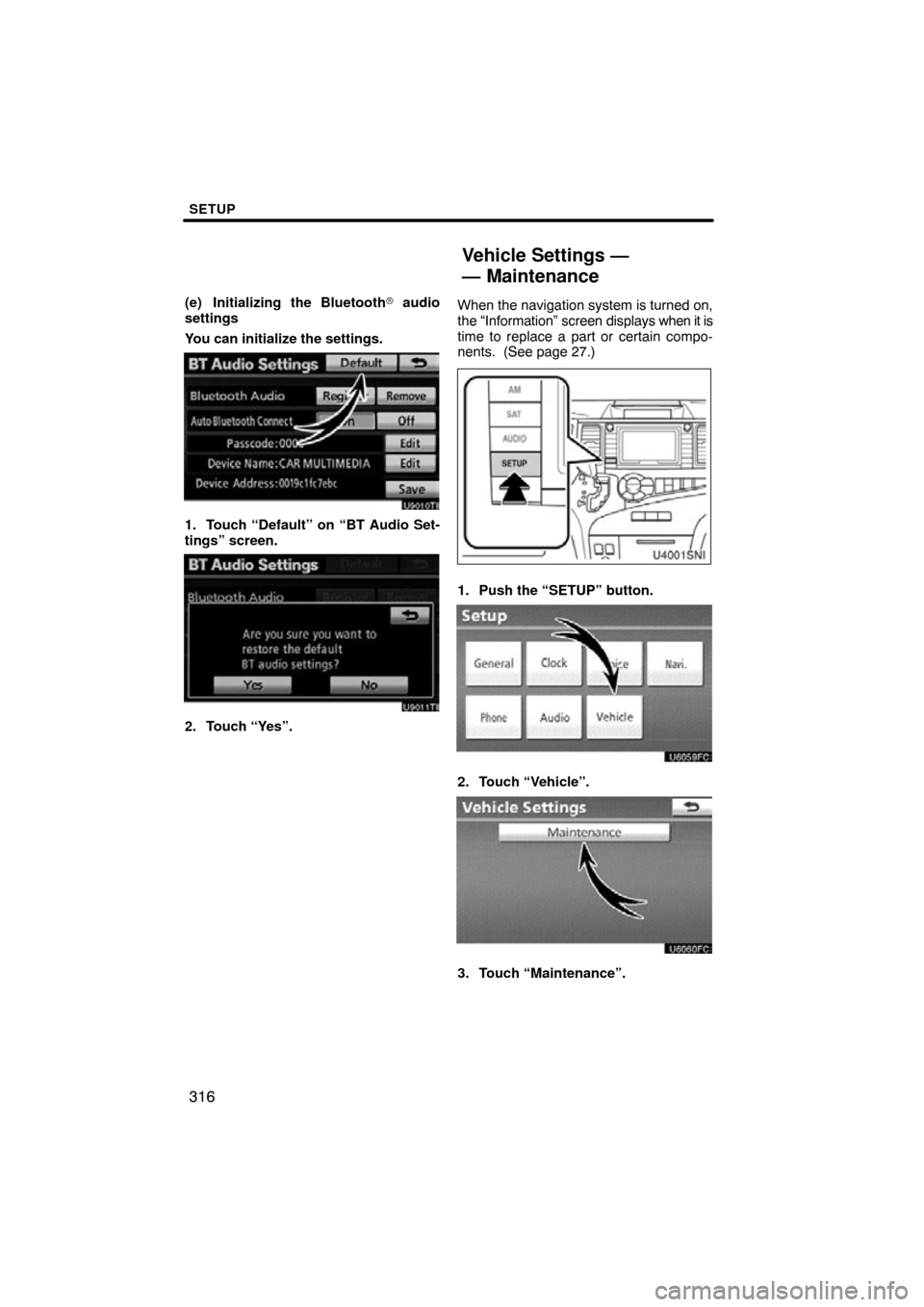

(e) Initializing the Bluetooth audio
settings
You can initialize the settings.
U9010TI
1. Touch “Default” on “BT Audio Set-
tings” screen.
U9011TI
2. Touch “Yes”. When the navigation system is turned on,
the “Information” screen displays
when it is
time to replace a part or certain compo-
nents. (See page 27.)
1. Push the “SETUP” button.
2. Touch “Vehicle”.
3. Touch “Maintenance”.
Vehicle Settings —
— Maintenance

SETUP
317
Setting maintenance information (See
page 317.)
Setting dealer (See page 319.)(a) Maintenance information setting
1. Push the “SETUP” button.
2. Touch “Vehicle” on the “Setup”
screen.
3. Touch “Maintenance” on the “Ve-
hicle Settings” screen.
4. Touch the desired button.
For details of each touch screen button,
see “INFORMATION ITEMS” on page
318.
“Delete All”: To cancel all conditions
which have been inputted.
“Reset All”: To reset the item which has
satisfied a condition.
“Set Dealer”: To register dealer informa-
tion. (See “ (b) Dealer setting” on page
319.)
“Dealer
Info.”: To edit dealer information.
(See “ (b) Dealer setting” on page 319.)
“Reminder”: When this button is touched,
the indicator is illuminated. The system is
set to give maintenance information with
the “Information” screen. (See page 27.)
When the vehicle needs to be serviced, the
touch screen button color will change to
orange.

SETUP
318
INFORMATION ITEMS
“Engine oil”: Replace engine oil
“Oil filter”: Replace engine oil filter
“Rotation”: Rotate tires
“Tires”: Replace tires
“Battery”: Replace battery
“Brake pad”: Replace brake linings
“Wipers”: Replace wiper blades
“Coolant”: Replace engine coolant
“Brake oil”: Replace brake fluid
“Trans. fluid”: Replace transmission fluid
“Service”: Scheduled maintenance
“Air filter”: Replace air filter
“Personal”: New information items can
be created separately from provided ones.
5. Input the conditions.
“Date”: The next maintenance date can be
input.
“Distance”: The driving distance until the
next maintenance check can be input.
“Delete”: To cancel the date and distance
conditions.
“Reset”: To reset the date and distance
conditions .
6. Touch “OK”.
The screen then returns to the “Mainte-
nance” screen.
INFORMATION
 For scheduled maintenance infor-
mation, please refer to the “Sched-
uled Maintenance Guide” or “Own-
er’s Manual Supplement”.
 Depending on driving or road con-
ditions, the actual date and dis-
tance may differ from the stored
date and distance in the system.

SETUP
319

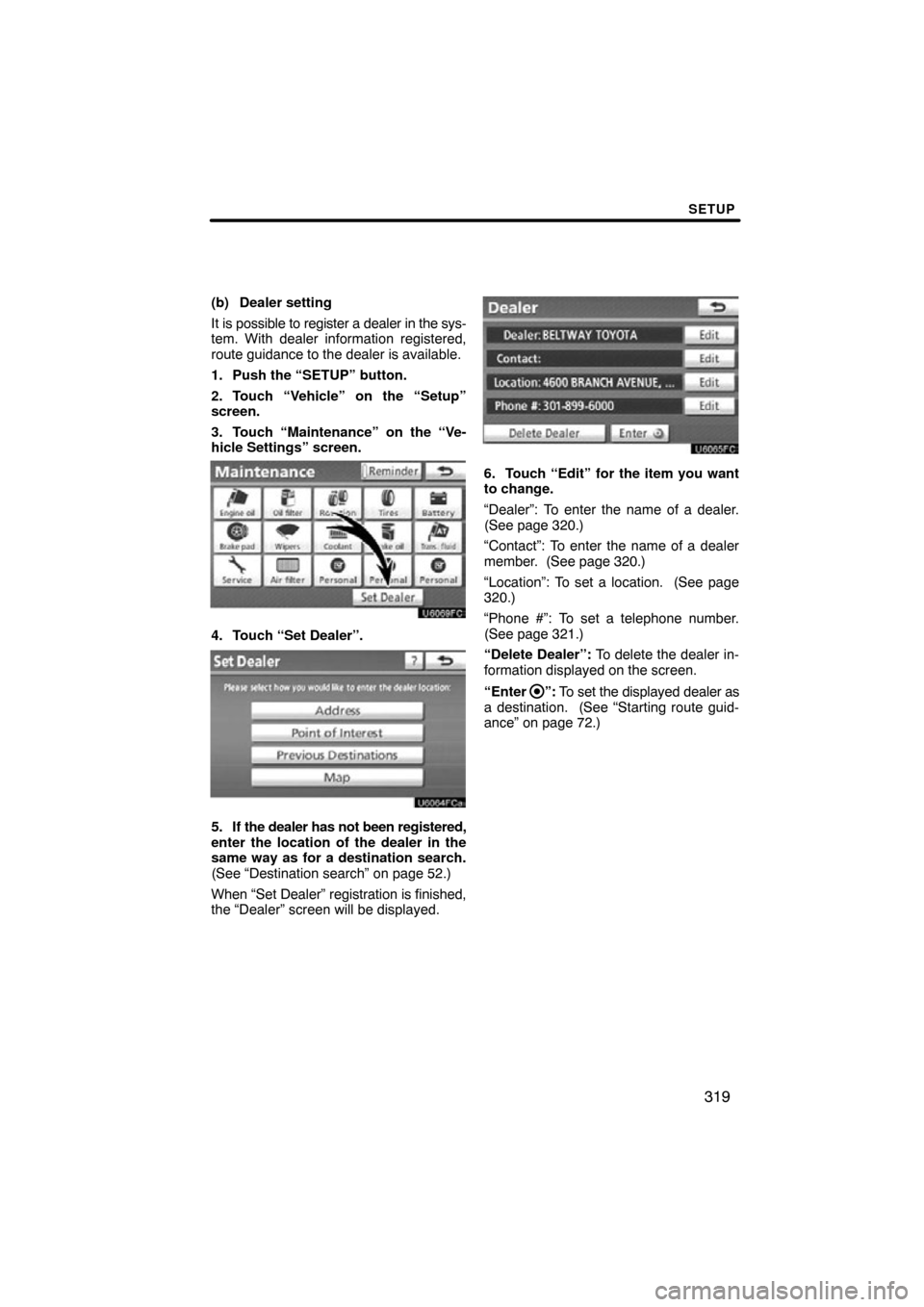

(b) Dealer setting
It is possible to register a dealer in the sys-
tem. With dealer information registered,
route guidance to the dealer is available.
1. Push the “SETUP” button.
2. Touch “Vehicle” on the “Setup”
screen.
3. Touch “Maintenance” on the “Ve-
hicle Settings” screen.
4. Touch “Set Dealer”.
5. If the dealer has not been registered,
enter the location of the dealer in the
same way as for a destination search.
(See “Destination search” on page 52.)
When “Set Dealer” registration is finished,
the “Dealer” screen will be displayed.
6. Touch “Edit” for the item you want
to change.
“Dealer”: To enter the name of a dealer.
(See page 320.)
“Contact”: To enter the name of a dealer
member. (See page 320.)
“Location”: To set a location. (See page
320.)
“Phone #”: To set a telephone number.
(See page 321.)
“Delete Dealer”: To delete the dealer in-
formation displayed on the screen.
“Enter
”: To set the displayed dealer as
a destination. (See “Starting route guid-
ance” on page 72.)

INDEX
343
I
If the message “System initializing”
will be displayed 249 . . . . . . . . . . . . . . . . .
If the player malfunctions 178, 209 . . . . . . .
Important information
about this manual 3 . . . . . . . . . . . . . . . . . .
Incoming call display 306 . . . . . . . . . . . . . . . .
INFO/PHONE button 10, 23, 126, 143, 335, 336
. . . . . . . . . . . .
Information about the icon 36
. . . . . . . . . . . .
Information items 318
. . . . . . . . . . . . . . . . . . .
Information screen 23
. . . . . . . . . . . . . . . . . .
Initial screen 26
. . . . . . . . . . . . . . . . . . . . . . . .
Initializing the Bluetooth
audio settings 316
. . . . . . . . . . . . . . . . . . . .
Initializing the Bluetooth
phone settings 305
. . . . . . . . . . . . . . . . . . .
Initializing the detailed phone settings 308
. . . . . . . . . . . . . . . . . . . . . . . . .
Input numbers 28
. . . . . . . . . . . . . . . . . . . . . .
Input symbols 29
. . . . . . . . . . . . . . . . . . . . . . .
Inputting letters and numbers/ List screen operation 28
. . . . . . . . . . . . . .
Inserting discs 166
. . . . . . . . . . . . . . . . . . . . .
Inserting the disc 186
. . . . . . . . . . . . . . . . . . .
Interrupt call 141
. . . . . . . . . . . . . . . . . . . . . . .
Intersection & Freeway button 20, 67 . . . . .
Intersection guidance screen 39, 79 . . . . . .
iPod compatibility 222
. . . . . . . . . . . . . . . . . .
iPod information 222
. . . . . . . . . . . . . . . . . . . .
iPod operation 212
. . . . . . . . . . . . . . . . . . . . .
K
Keyboard layout 252
. . . . . . . . . . . . . . . . . . . .
L
Language 252
. . . . . . . . . . . . . . . . . . . . . . . . .
Last 5 cities 57, 63
. . . . . . . . . . . . . . . . . . . . .
Limitations of the
navigation system 324
. . . . . . . . . . . . . . . .
Line color 252
. . . . . . . . . . . . . . . . . . . . . . . . .
List 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
List All Categories button 61, 64, 93, 266
. . . . . . . . . . . . . . . . . . . . . .
List screen operation 28
. . . . . . . . . . . . . . . .
Listening to satellite radio 161
. . . . . . . . . . .
Listening to the radio 155
. . . . . . . . . . . . . . .
LOAD·CLOSE button 146, 166, 167, 335
. . . . . . . . . . . . . . . . . .
Local POI list 94
. . . . . . . . . . . . . . . . . . . . . . .
M
Maintenance 316
. . . . . . . . . . . . . . . . . . . . . . .
Maintenance information 27
. . . . . . . . . . . . .
Maintenance information setting 317 . . . . . .
Manage phone 272
. . . . . . . . . . . . . . . . . . . . .
Maneuvering when parking 237
. . . . . . . . . .
Map button 20, 70
. . . . . . . . . . . . . . . . . . . . . .
Map data 336
. . . . . . . . . . . . . . . . . . . . . . . . . .
Map Data button 23, 336
. . . . . . . . . . . . . . .
Map database information and updates 326
. . . . . . . . . . . . . . . . . . . . .
Map DVD 336
. . . . . . . . . . . . . . . . . . . . . . . . .
Map icons 44
. . . . . . . . . . . . . . . . . . . . . . . . . .
Map scale 42
. . . . . . . . . . . . . . . . . . . . . . . . . .
Map screen operation 33
. . . . . . . . . . . . . . . .
MAP/VOICE button 10, 33, 34, 82 . . . . . . . .
Mark button 10, 35
. . . . . . . . . . . . . . . . . . . . .
Marks shown on DVD video discs 210 . . . .
Memory point names 112
. . . . . . . . . . . . . . .
Message button 157
. . . . . . . . . . . . . . . . . . . .
Microphone 46, 123
. . . . . . . . . . . . . . . . . . . .
Mid 152
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MP3 173, 191
. . . . . . . . . . . . . . . . . . . . . . . . .
My places 101
. . . . . . . . . . . . . . . . . . . . . . . . .
N
Names of areas to be avoided 117 . . . . . . .
Navi. button 22, 102, 261 . . . . . . . . . . . . . . .
Navigation settings 102, 261 . . . . . . . . . . . .
Navigation settings screen 102, 261 . . . . . .
Navigation system function index 18 . . . . . .
North−up 10, 43
. . . . . . . . . . . . . . . . . . . . . . . .
North−up symbol 43
. . . . . . . . . . . . . . . . . . . .
O
Off function 10, 262, 267
. . . . . . . . . . . . . . . .
One−touch scroll 34
. . . . . . . . . . . . . . . . . . . .
Operating a Bluetooth
audio player 178
. . . . . . . . . . . . . . . . . . . . .
Operating a DVD video disc 195
. . . . . . . . .
Operating a MP3 disc 191
. . . . . . . . . . . . . . .
Operating a MP3/WMA disc 173
. . . . . . . . .
Operating a video CD 206
. . . . . . . . . . . . . . .
Operating an audio CD 170, 188
. . . . . . . . .
Operating
by voice recognition 141, 280
. . . . . . . . .
OPP (Object Push Profile) 122
. . . . . . . . . . .
Orientation of the map 43
. . . . . . . . . . . . . . .
Overview buttons and guidance screen 10
. . . . . . . . . . . . . .
