TOYOTA SIENNA 2012 XL30 / 3.G Owners Manual

121
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
SIENNA_U (OM45477U)

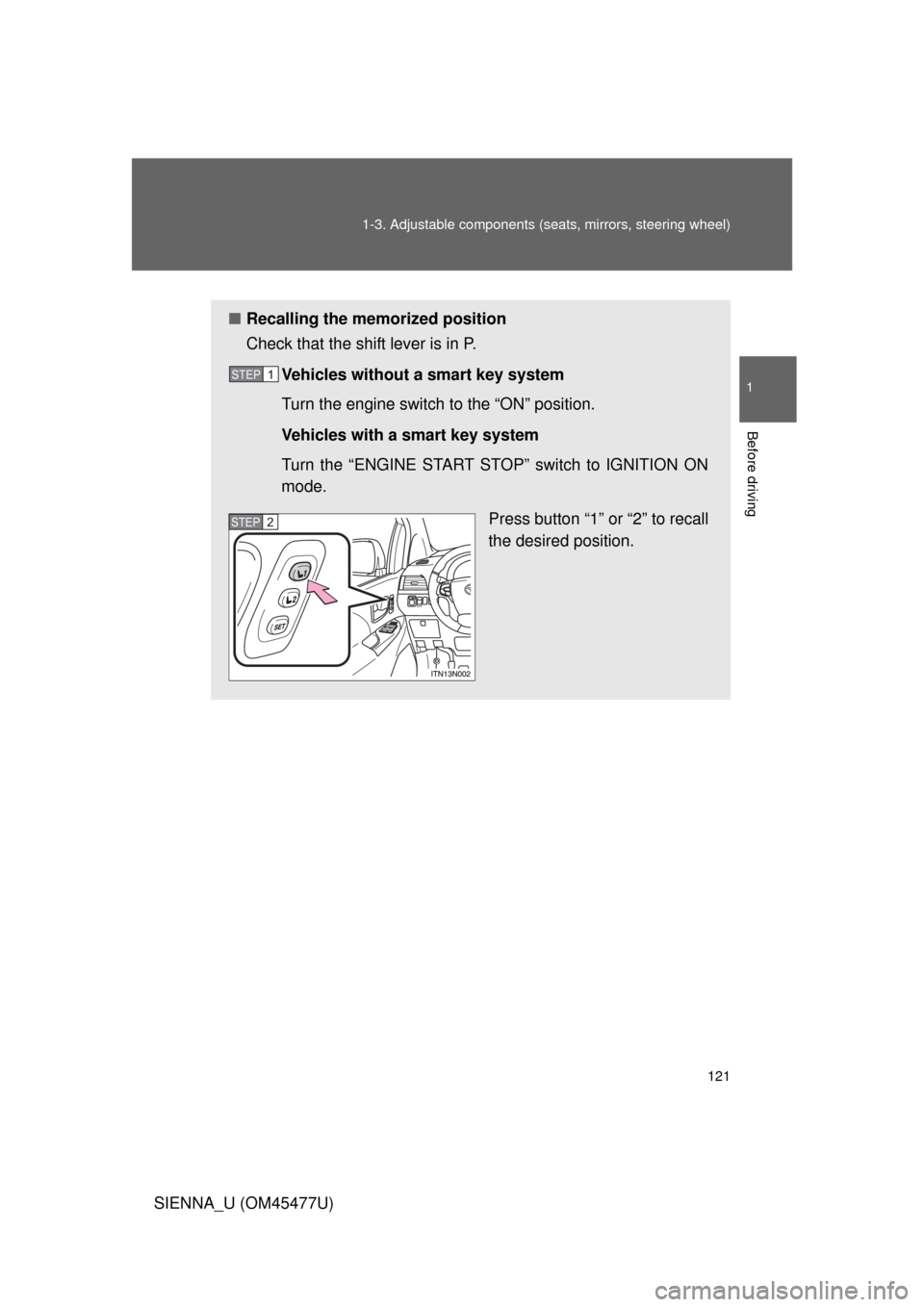

■Recalling the memorized position
Check that the shift lever is in P.
Vehicles without a smart key system
Turn the engine switch to the “ON” position.
Vehicles with a smart key system
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Press button “1” or “2” to recall
the desired position.
STEP1
STEP2

122 1-3. Adjustable components (seats, mirrors, steering wheel)
SIENNA_U (OM45477U)
Linking driving position memory with door unlock operation
Record your driving position to button “1” or “2” before performing the
following:
Vehicles without a smart key system
Carry only the wireless remote cont rol to which you want to link the
driving position.
Unlock the vehicle with the wireless remote control to which
you want to link the driving position.
Shift the shift lever to P and close the driver’s door. Turn the
engine switch to the “ON” position. Press the desired button (“1” or
“2”) to recall the position. Then,
while keep pressing the button,
press the driver’s door lock
switches (either lock or unlock)
until the signal beeps.
The driving position is recalled
when the driver’s door is
unlocked using the wireless
remote control and the driver’s
door is opened.
STEP1
STEP2
STEP3

123
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
SIENNA_U (OM45477U)Vehicles with a smart key system
Carry only the electronic key to wh
ich you want to link the driving
position. If 2 or more keys are in the vehicle, the driving position can-
not be linked properly.
Shift the shift lever to P and close the driver’s door. Turn the
“ENGINE START STOP” switch to IGNITION ON mode. Press the desired button (“1” or
“2”) to recall the position. Then,
while keep pressing the button,
press the driver’s door lock
switches (either lock or unlock)
until the signal beeps.
The driving position is recalled
when the driver’s door is
unlocked using the wireless
remote control and the driver’s
door is opened.
STEP1
STEP2

124 1-3. Adjustable components (seats, mirrors, steering wheel)
SIENNA_U (OM45477U)
■Operating the driving position memo ry after turning the engine off
Vehicles without a smart key system
Memorized positions can be activated up to 180 seconds after the driver’s
door is opened and another 60 seconds after it is closed again, even after
turning the engine switch to the “LOCK” position.
Vehicles with a smart key system
Memorized positions can be activated up to 180 seconds after the driver’s
door is opened and another 60 seconds after it is closed again, even after
turning the “ENGINE START STOP” switch off.
■ Stopping seat position ope ration part-way through
Perform any of the following operations.
● Press the “SET” button.
● Press button “1” or “2”.
● Adjust the seat using the switches (only cancels seat position recall).
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear
passenger or squeeze your body against the steering wheel.

125
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
SIENNA_U (OM45477U)

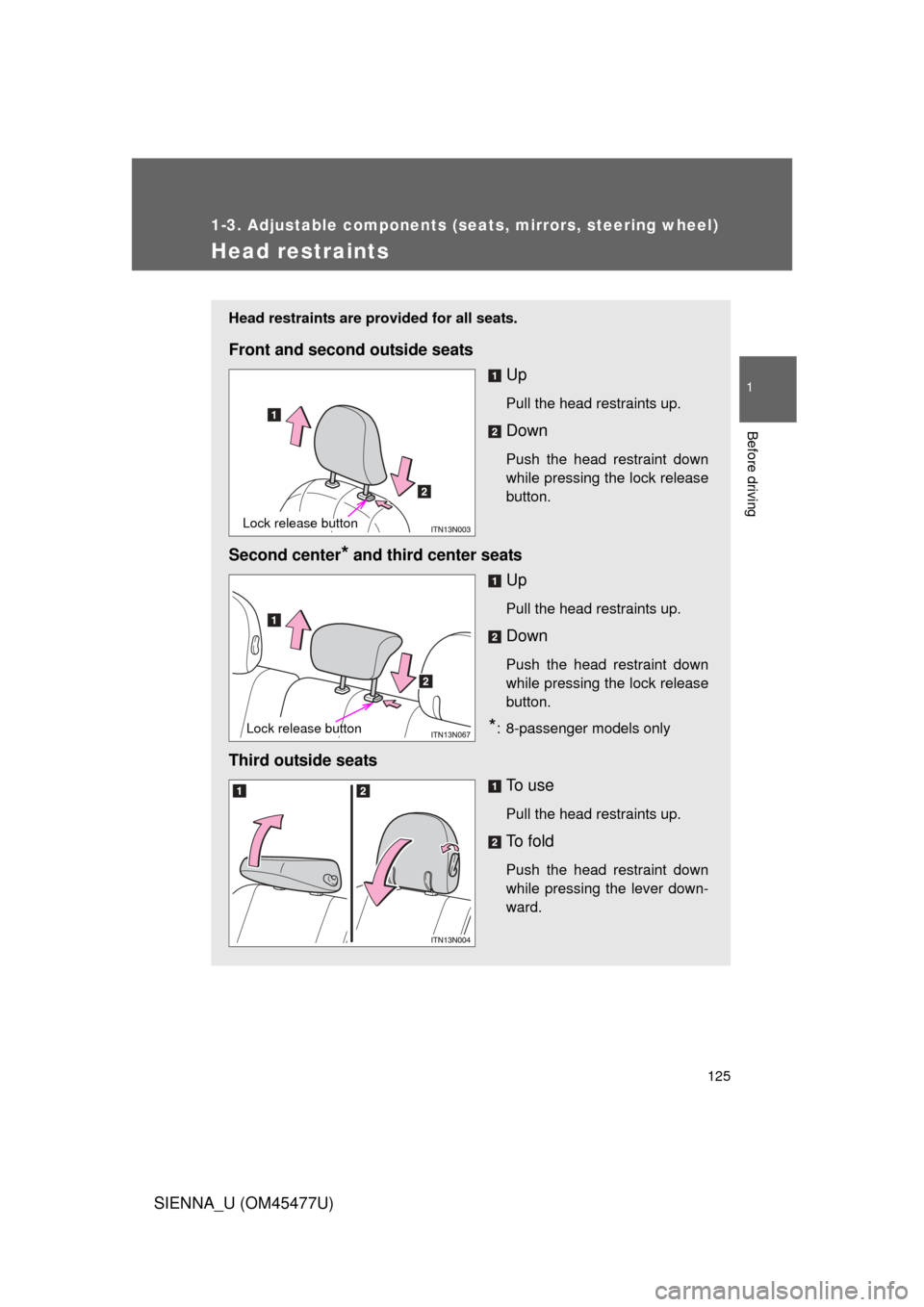

Head restraints
Head restraints are provided for all seats.
Front and second outside seatsUp
Pull the head restraints up.
Down
Push the head restraint down
while pressing the lock release
button.
Second center* and third center seatsUp
Pull the head restraints up.
Down
Push the head restraint down
while pressing the lock release
button.
*: 8-passenger models only
Third outside seats To u s e
Pull the head restraints up.
To f o l d
Push the head restraint down
while pressing the lever down-
ward.
Lock release button
Lock release button

126 1-3. Adjustable components (seats, mirrors, steering wheel)
SIENNA_U (OM45477U)
■Adjusting the height of the head restraints
■ Adjusting the center seat head restraints
Always raise the head restraint one level from the stowed position when
using.
■ Removing the head restraints
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
Pull the head restraint up while pressing
the lock release button.
The head restraint of third outside seat
can not be removed.

127
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
SIENNA_U (OM45477U)
■Installing the head restraints (front, second and third center seats)
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
● Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.

128
1-3. Adjustable components (seats, mirrors, steering wheel)
SIENNA_U (OM45477U)

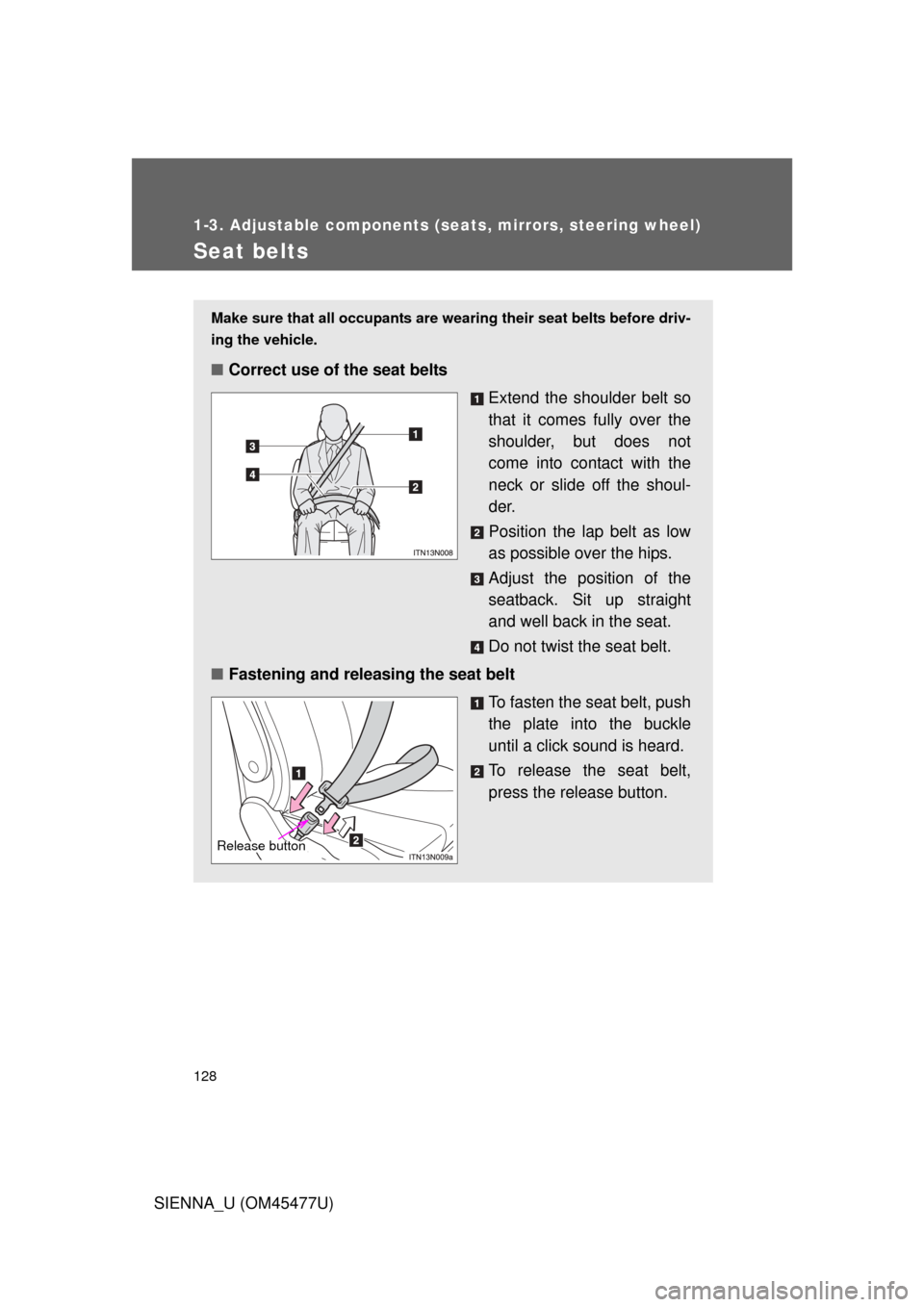

Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
■Correct use of the seat belts
Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
Position the lap belt as low
as possible over the hips.
Adjust the position of the
seatback. Sit up straight
and well back in the seat.
Do not twist the seat belt.
■ Fastening and releasing the seat belt
To fasten the seat belt, push
the plate into the buckle
until a click sound is heard.
To release the seat belt,
press the release button.
Release button

129
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
SIENNA_U (OM45477U)
Third center seat belt
The third center seat belt is a 3-point type restraint with 2 buckles.
Both seat belt buckles must be co rrectly located and securely latched
for proper operation.
Make sure that the buckle is
securely latched for ready use of
the center seat belt.Matches tab “B” with the
hooked end.
Matches tab “A” with the con-
cave end.
■Adjusting the seat belt shoulder anchor height (front and
second outside Tip-up seats)
Push the seat belt shoulder
anchor down while pressing
the release button.
Push the seat belt shoulder
anchor up.
Move the height adjuster up
and down as needed until you
hear a click.

130 1-3. Adjustable components (seats, mirrors, steering wheel)
SIENNA_U (OM45477U)■
Release method
The belt can be completely released when not required, such as
when folding down the third seat.
Insert the key or tab “A” into the
hole on the center seat belt
buckle to release the hooked tab
“B” and allow the belt to retract.
Retract the belt slowly when
releasing and stowing the seat
belt.
Stow the seat belt tabs in the
cover set in the roof as shown.
■ Extracting the belt
Pull tab “B” out and pull the
belt out a little.
Pull tab “A” out.
STEP1
STEP2
