Page 261 of 860
261
2-2. Instrument cluster and information display
2
When driving
SIENNA_U (OM45477U)
Press the “INFO”
or “SETUP”
button to adjust the contrast.
+: Strengthen
-: Weaken
Press the “SELECT RESET” but-
ton to exit the screen.
● Setting the color
Select “Color” on the “Screen
Settings” screen, and press the
“SELECT RESET” button.
Press the “INFO” or “SETUP”
button to adjust the color.
+: Green
-: Red
Press the “SELECT RESET” but-
ton to exit the screen.
STEP2
STEP1
STEP2
Page 262 of 860
262 2-2. Instrument cluster and information display
SIENNA_U (OM45477U)●
Setting the tone
Select “Tone” on the “Screen
Settings” screen, and press the
“SELECT RESET” button.
Press the “INFO” or “SETUP”
button to adjust the tone.
+: Brighter
-: Darker
Press the “SELECT RESET” but-
ton to exit the screen.
■ Returning to the previous screen
Select “Return” on the “Screen Settings” screen, and press the
“SELECT RESET” button.
STEP1
STEP2
Page 263 of 860
263
2-2. Instrument cluster and information display
2
When driving
SIENNA_U (OM45477U)
■
If the vehicle is moved while setti ngs are being changed on the multi-
information display
If the vehicle speed exceeds approxi-
mately 3 mph (5 km/h) while the settings
are being changed, “Please Stop Vehicle
to Change Settings” will be displayed on
the multi-information display, and setting
mode will exit after several seconds. If the
“SETUP” button is pressed at a speed in
excess of 3 mph (5 km/h), only some of
the settings can be changed. To change
the other settings, press the “SETUP”
button after bringing the vehicle to a com-
plete stop.
Page 264 of 860
264 2-2. Instrument cluster and information display
SIENNA_U (OM45477U)
■Eco Driving Indicator
Eco Driving Indicator Light
During Eco-friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on.
Eco Driving Indicator Zone Display
*
Suggests Zone of Eco driving with cur-
rent Eco driving ratio based on accel-
eration.
*: The display varies depending on its
specification.
Zone of Eco driving
Eco driving ratio based on acceleration
If the vehicle exceeds Zone of Eco
driving, the right side of Eco Driving
Indicator Zone Display will blink and
Eco Driving Indicator Light will turn off.
Eco Driving Indicator will operate in the
following conditions:
● The shift lever is in D.
● Vehicle speed is below approximately
80mph (130 km/h).
Page 265 of 860

265
2-2. Instrument cluster and information display
2
When driving
SIENNA_U (OM45477U)
■
System check display
Vehicles without a smart key system
After switching the engine switch to the “ON” position, “SIENNA” is dis-
played while system operation is checked. When the system check is
complete, the normal screen will return.
Vehicles with a smart key system After switching the “ENGINE START STOP” switch to IGNITION ON
mode, “SIENNA” is displayed while system operation is checked. When
the system check is complete, the normal screen will return.
■ When “--”, “E” or “F” is displayed on the outside temperature display
The system may be malfunctioning. Take your vehicle to your Toyota dealer.
■ Outside temperature display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
● When stopped, or driving at low speeds (less than 12 mph [20 km/h])
● When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
NOTICE
■The multi-information disp lay at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
Page 266 of 860
266
SIENNA_U (OM45477U)
2-3. Operating the lights and wipers

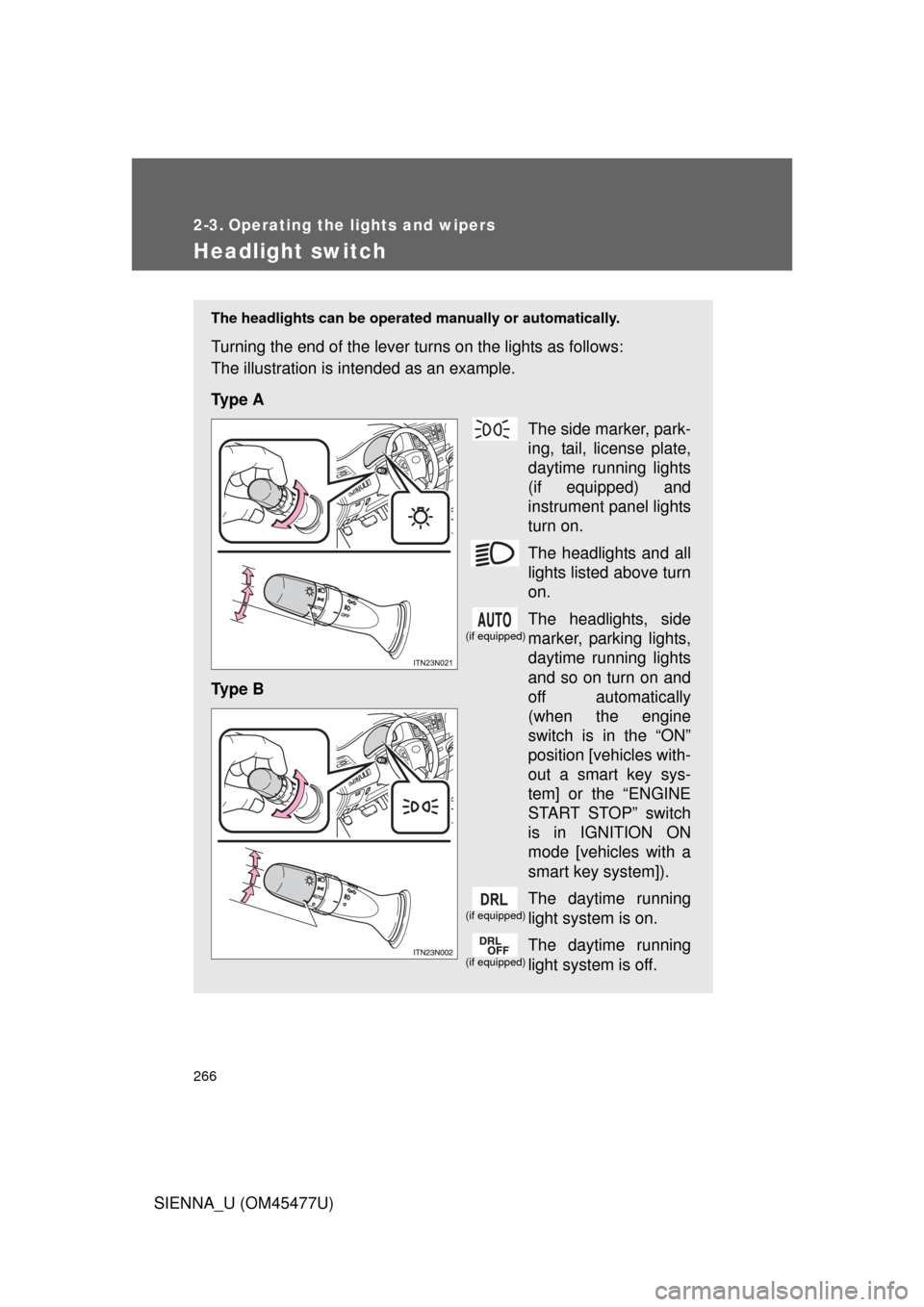

Headlight switch
The headlights can be operated manually or automatically.
Turning the end of the lever turns on the lights as follows:
The illustration is intended as an example.
Ty p e A
The side marker, park-
ing, tail, license plate,
daytime running lights
(if equipped) and
instrument panel lights
turn on.
The headlights and all
lights listed above turn
on.
The headlights, side
marker, parking lights,
daytime running lights
and so on turn on and
off automatically
(when the engine
switch is in the “ON”
position [vehicles with-
out a smart key sys-
tem] or the “ENGINE
START STOP” switch
is in IGNITION ON
mode [vehicles with a
smart key system]).
The daytime running
light system is on.
The daytime running
light system is off.
Ty p e B
(if equipped)
(if equipped)
(if equipped)
Page 267 of 860

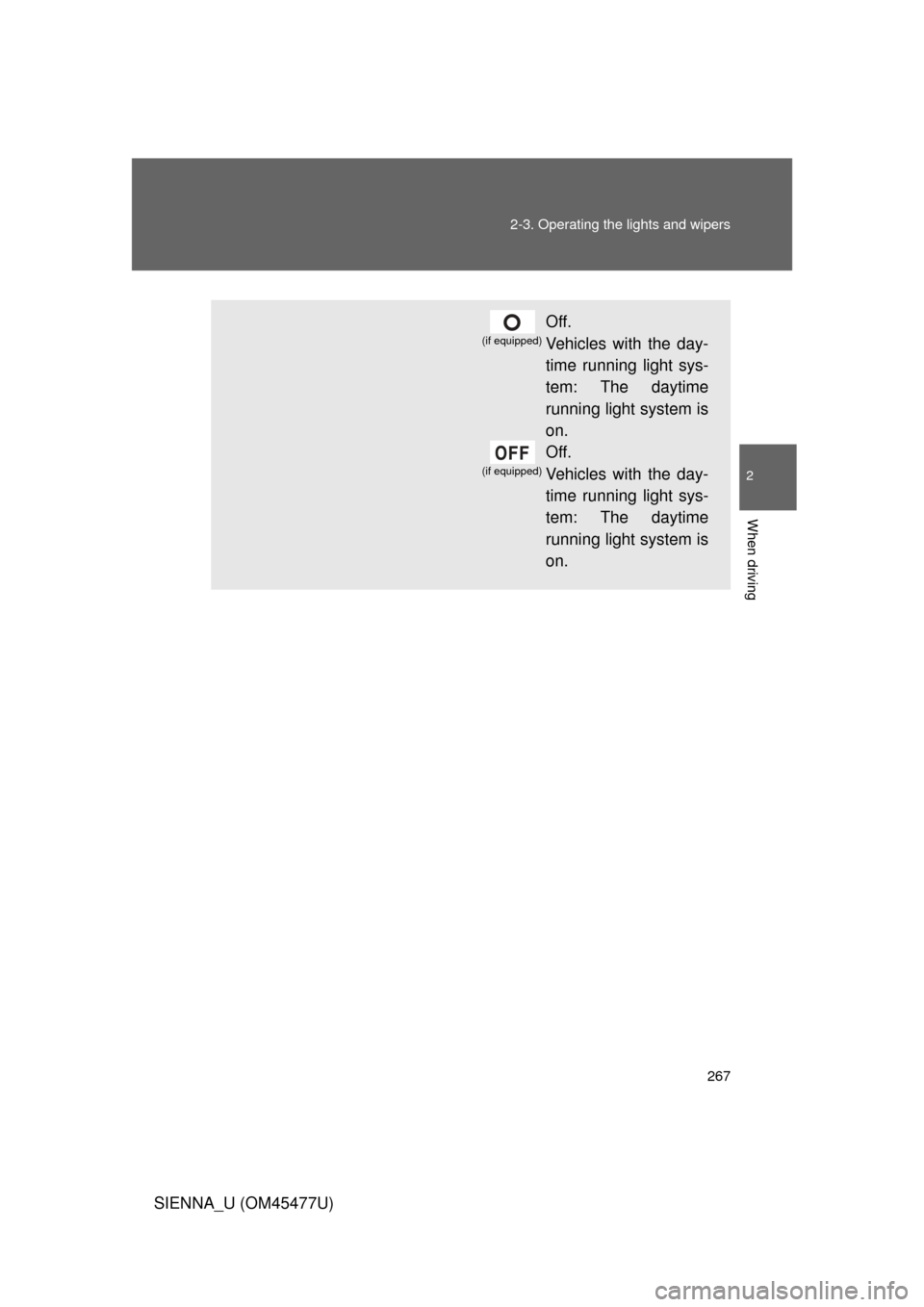

267
2-3. Operating the lights and wipers
2
When driving
SIENNA_U (OM45477U)
Off.
Vehicles with the day-
time running light sys-
tem: The daytime
running light system is
on.
Off.
Vehicles with the day-
time running light sys-
tem: The daytime
running light system is
on.
(if equipped)
(if equipped)
Page 268 of 860
268 2-3. Operating the lights and wipers
SIENNA_U (OM45477U)
Turning on the high beam headlightsWith the headlights on, push
the lever away from you to
turn on the high beams.
When the light switch is in
position, the Automatic High
Beam system will be activated.
(P. 273)
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams
with the headlights on or off.
Page 269 of 860
269
2-3. Operating the lights and wipers
2
When driving
SIENNA_U (OM45477U)
Manual headlight leveling dial
(vehicles with discharge
headlights)
The level of the headlight aim can be adjusted according to the num-
ber of passengers and the loadi ng condition of the vehicle.
Raises the level of the head-
lights
Lowers the level of the head-
lights
■ Guide to dial settings
A
B
Occupancy and luggage load conditionsDial position
OccupantsLuggage load2WD
modelsAWD
models
Driver None 0 0
Driver and front pas- senger None 0 0
Driver, front passen- ger and all passen-gers in the second seat None 0.5 0.5
All seats occupied None 2 2
All seats occupied Full luggage loading 4 3.5 Driver Full luggage loading 1.5 1.5
Page 270 of 860
270 2-3. Operating the lights and wipers
SIENNA_U (OM45477U)
■Daytime running light system (if equipped)
● To make your vehicle more visible to other drivers, the headlights turn on
automatically (at a reduced intensity) whenever the engine is started and
the parking brake is released. Daytime running lights are not designed for
use at night.
For the U.S.A.: Daytime running lights can be turned off by operating the
headlight switch.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help
improve fuel economy.
■ Headlight control sensor (if equipped)
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.
