navigation system TOYOTA SIENNA 2013 XL30 / 3.G Navigation Manual

SETUP
267

Screen layout function
(“
 Off” function)
Each touch screen button and current
street name on the map screen can be dis-
played or hidden.
1. Push the “SETUP” button.
2. Touch “Navi.” on the “Setup”
screen.
3. Touch “Detailed Navi. Settings” on
the “Navigation Settings” screen.
Then touch
to display page 2 of the
“Detailed Navi. Settings” screen.
4. Touch ““ Off” Function”.
5. Touch the button to be turned off.
The button becomes dimmed.
To set the default, touch “Default”.
6. Touch “Save”.
Current position/tire change cal-
ibration
The current vehicle position mark can be
adjusted manually. Miscalculation of the
distance caused by tire replacement can
also be adjusted.
1. Push the “SETUP” button.
2. Touch “Navi.” on the “Setup”
screen.
3. Touch “Detailed Navi. Settings” on
the “Navigation Settings” screen.
Then touch
to display page 2 of the
“Detailed Navi. Settings” screen.
4. Touch “Calibration”.
5. Touch the desired button.
INFORMATION
For additional information on the ac-
curacy of a current vehicle position,
see “Limitations of the navigation
system” on page 324.

SETUP
316
(e) Initializing the Bluetooth audio
settings
You can initialize the settings.
U9010TI
1. Touch “Default” on “BT Audio Set-
tings” screen.
U9011TI
2. Touch “Yes”. When the navigation system is turned on,
the “Information” screen displays
when it is
time to replace a part or certain compo-
nents. (See page 27.)
1. Push the “SETUP” button.
2. Touch “Vehicle”.
3. Touch “Maintenance”.
Vehicle Settings —
— Maintenance

SECTION 9
APPENDIX
323
APPENDIX
Limitations of the navigation system 324 . . . . . . . . . . . . . . . . . . . . .
 Map database information and updates 326
. . . . . . . . . . . . . . . .
Changing the map DVD −ROM 335 . . . . . . . . . . . . . . . . . . . . . . . .

APPENDIX
324
This navigation system calculates the
current vehicle position using satellite
signals, various vehicle signals, map
data, etc. However, the accurate posi-
tion may not be shown depending on
the satellite condition, road configura-
tion, vehicle condition or other circum-
stances.
The Global Positioning System (GPS) de-
veloped and operated by the U.S. Depart-
ment of Defense provides an accurate cur-
rent vehicle position, normally using 4 or
more satellites, and in some case 3 satel-
lites. The GPS system has a certain level
of inaccuracy. While the navigation sys-
tem will compensate for this most of the
time, occasional positioning errors of up to
300 feet (100 m) can and should be expec-
ted. Generally, position errors will be cor-
rected within a few seconds.
When your vehicle is receiving signals
from the satellites, the “GPS” mark ap-
pears at the top left of the screen.
The GPS signal may be physically ob-
structed, leading to inaccurate vehicle
position on the map display. Tunnels, tall
buildings, trucks, or even the placement of
objects on the instrument panel may ob-
struct the GPS signals.
The GPS satellites may not send signals
due to repairs or improvements being
made to them.
Even when the navigation system is re-
ceiving clear GPS signals, the vehicle
position may not be shown accurately or
inappropriate route guidance may occur in
some cases.
NOTICE
The installation of window tinting
may obstruct the GPS signals. Most
window tinting contains some metal-
lic content that will interfere with GPS
signal reception of the antenna in the
instrument panel. We advise against
the use of window tinting on vehicles
equipped with navigation systems.
Limitations of the
navigation system

APPENDIX
325
(a) Accurate current vehicle position
may not be shown in the following
cases:
When driving on a small angled Y−
shaped road.
When driving on a winding road.
When driving on a slippery road such
as in sand, gravel, snow, etc.
When driving on a long straight road.
When motorway and surface streets
run in parallel.
After moving by ferry or vehicle carrier.
When a long route is searched during
high speed driving.
When driving without setting the cur-
rent position calibration correctly.
After repeating a change of direction by
going forward and backward, or turning
on a turntable in the parking lot.
When leaving a covered parking lot or
parking garage.
When a roof carrier is installed.
When driving with tire chains installed.
When the tires are worn.
After replacing a tire or tires.
When using tires that are smaller or
larger than the factory specifications.
When the tire pressure in any of the
four tires is not correct.
INFORMATION
If your vehicle cannot receive GPS
signals, you can correct the current
position manually. For information
on setting the current position cal-
ibration, see page 267.
(b) Inappropriate route guidance may
occur in the following cases:
When turning at an intersection off the
designated route guidance.
If you set more than one destination but
skip any of them, auto reroute will dis-
play a route returning to the destination
on the previous route.
When turning at an intersection for
which there is no route guidance.
When passing through an intersection
for which there is no route guidance.
During auto reroute, the route guid-
ance may not be available for the next
turn to the right or left.
It may take a long time to operate auto
reroute during high speed driving. In
auto reroute, a detour route may be
shown.
After auto reroute, the route may not be
changed.
An unnecessary U −turn may be shown
or announced.
A location may have multiple names
and the system will announce one or
more.
Some routes may not be searched.
If the route to your destination includes
gravel, unpaved roads or alleys, the
route guidance may not be shown.
Your destination point might be shown
on the opposite side of the street.
When a portion of the route has regula-
tions prohibiting the entry of the vehicle
that vary by time or season or other
reasons.
The road and map data stored in your
navigation system may not be com-
plete or may not be the latest version.

APPENDIX
326
After replacing a tire, implement the op-
eration described in the “TIRE
CHANGE CALIBRATION”. (See page
269.)
This navigation system uses tire turning
data and is designed to work with factory −
specified tires for your vehicle. Installing
tires that are larger or smaller than the orig-
inally equipped diameter may cause inac-
curate display of the vehicle’s position.
The tire pressure also affects the diameter
of the tires so please make sure the tire
pressure of all four tires is correct. This system uses the maps of DENSO.
©
2011 DENSO CORPORATION
© 2010 NAVTEQ. All rights reserved.
© 2010 Tele Atlas North America, Inc.
All rights reserved. This material is
proprietary and the subject of copyright
protection and other intellectual
property rights owned by or licensed to
Tele Atlas North America, Inc. The use
of this material is subject to the terms
of a license agreement. You will be
held liable for any unauthorized
copying or disclosure of this material.
Data by infoUSA Copyright © 2010, All
Rights Reserved.
© 2010 VISA Corporation
Copyright © CoStar Realty
Information, Inc.
The Bullseye Design is a registered
trademark of Target Brands, Inc.
The building footprints and related
cartographic information in this
product comes with MAPMASTER
digital materials.
Map database information
and updates —

APPENDIX
327
END USER LICENSE AGREEMENTPLEASE READ THIS AGREEMENTCAREFULLY BEFORE USING THE NAVIGATION SYSTEM
THIS IS A LICENSE AGREEMENT
FOR YOUR COPY OF THE SPATIAL
MAP DATABASE, INCLUDING
LOCATION CODES AND RELATED
PRODUCTS (COLLECTIVELY, THE
“DATABASE”), USED IN THE
NAVIGATION SYSTEM. BY USING
THE NAVIGATION SYSTEM AND
THE DATABASE, YOU ACCEPT AND
AGREE TO BE BOUND BY ALL
TERMS AND CONDITIONS SET
FORTH BELOW.
LICENSE GRANT
DENSO CORPORATION (“DENSO”),
as a licensed distributor of the
DATABASE, grants to you a
non−exclusive, non− perpetual license
to use your copy of the DATABASE for
your personal use or for your use in
your business’ internal operations and
not for any other purpose. This license
does not include the right to grant
sub−licenses.
OWNERSHIP
The DATABASE and the copyrights
and intellectual property and
neighboring rights therein are owned
by Tele Atlas North America, Inc.
(“TANA”) and its licensors. This
Agreement does not transfer any title
or interest in the DATABASE, except
for the license to use the DATABASE
according and subject to the terms and
conditions of this Agreement. Y ou shall
not alter, obscure or remove any
copyright notices, trademark notices or
other restrictive legends relating to the
DATABASE.The DATABASE comprises
confidential and proprietary
information and materials of TANA.
Accordingly, you shall hold the
DATABASE in confidence and trust.
You shall take reasonable steps to
protect the DATABASE from
misappropriation or misuse. You shall
not extract stand−alone data from or
publish any part of the DATABASE
without the prior written consent of
TANA and its licensors.
LIMITATIONS ON USE
The DATABASE is restricted for use in
the specific system for which it was
created. Except to the extent explicitly
permitted by mandatory laws, you may
not extract or reutilize any portion of
the contents of the DATABASE, nor
reproduce, copy, duplicate, modify,
adapt, translate, disassemble,
decompile, or reverse engineer any
portion of the DATABASE.
TRANSFER
You may not transfer the DATABASE
to third parties, except together with
the system for which it was created,
provided that you do not retain any
copy of the DATABASE, and provided
that the transferee agrees to all terms
and conditions of this AGREEMENT.

APPENDIX
330

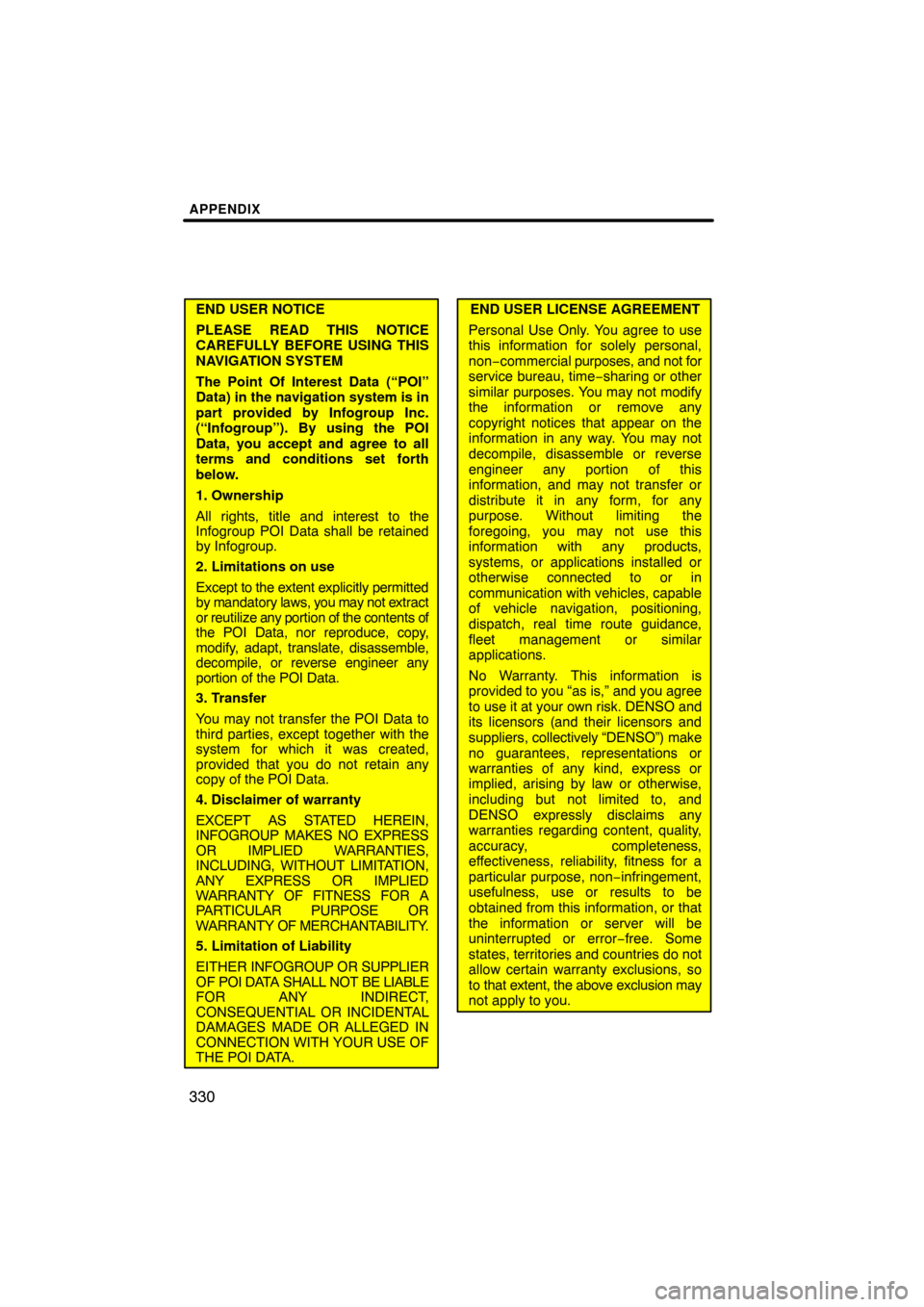

END USER NOTICE
PLEASE READ THIS NOTICE
CAREFULLY BEFORE USING THIS
NAVIGATION SYSTEM
The Point Of Interest Data (“POI”
Data) in the navigation system is in
part provided by Infogroup Inc.
(“Infogroup”). By using the POI
Data, you accept and agree to all
terms and conditions set forth
below.
1. Ownership
All rights, title and interest to the
Infogroup POI Data shall be retained
by Infogroup.
2. Limitations on use
Except to the extent explicitly permitted
by mandatory laws, you may not extract
or reutilize any portion of the contents of
the POI Data, nor reproduce, copy,
modify, adapt, translate, disassemble,
decompile, or reverse engineer any
portion of the POI Data.
3. Transfer
You may not transfer the POI Data to
third parties, except together with the
system for which it was created,
provided that you do not retain any
copy of the POI Data.
4. Disclaimer of warranty
EXCEPT AS STATED HEREIN,
INFOGROUP MAKES NO EXPRESS
OR IMPLIED WARRANTIES,
INCLUDING, WITHOUT LIMITATION,
ANY EXPRESS OR IMPLIED
WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE OR
WARRANTY OF MERCHANTABILITY.
5. Limitation of Liability
EITHER INFOGROUP OR SUPPLIER
OF POI DATA SHALL NOT BE LIABLE
FOR ANY INDIRECT,
CONSEQUENTIAL OR INCIDENTAL
DAMAGES MADE OR ALLEGED IN
CONNECTION WITH YOUR USE OF
THE POI DATA.END USER LICENSE AGREEMENT
Personal Use Only. You agree to use
this information for solely personal,
non−commercial purposes, and not for
service bureau, time −sharing or other
similar purposes. You may not modify
the information or remove any
copyright notices that appear on the
information in any way. You may not
decompile, disassemble or reverse
engineer any portion of this
information, and may not transfer or
distribute it in any form, for any
purpose. Without limiting the
foregoing, you may not use this
information with any products,
systems, or applications installed or
otherwise connected to or in
communication with vehicles, capable
of vehicle navigation, positioning,
dispatch, real time route guidance,
fleet management or similar
applications.
No Warranty. This information is
provided to you “as is,” and you agree
to use it at your own risk. DENSO and
its licensors (and their licensors and
suppliers, collectively “DENSO”) make
no guarantees, representations or
warranties of any kind, express or
implied, arising by law or otherwise,
including but not limited to, and
DENSO expressly disclaims any
warranties regarding content, quality,
accuracy, completeness,
effectiveness, reliability, fitness for a
particular purpose, non −infringement,
usefulness, use or results to be
obtained from this information, or that
the information or server will be
uninterrupted or error −free. Some
states, territories and countries do not
allow certain warranty exclusions, so
to that extent, the above exclusion may
not apply to you.

APPENDIX
332

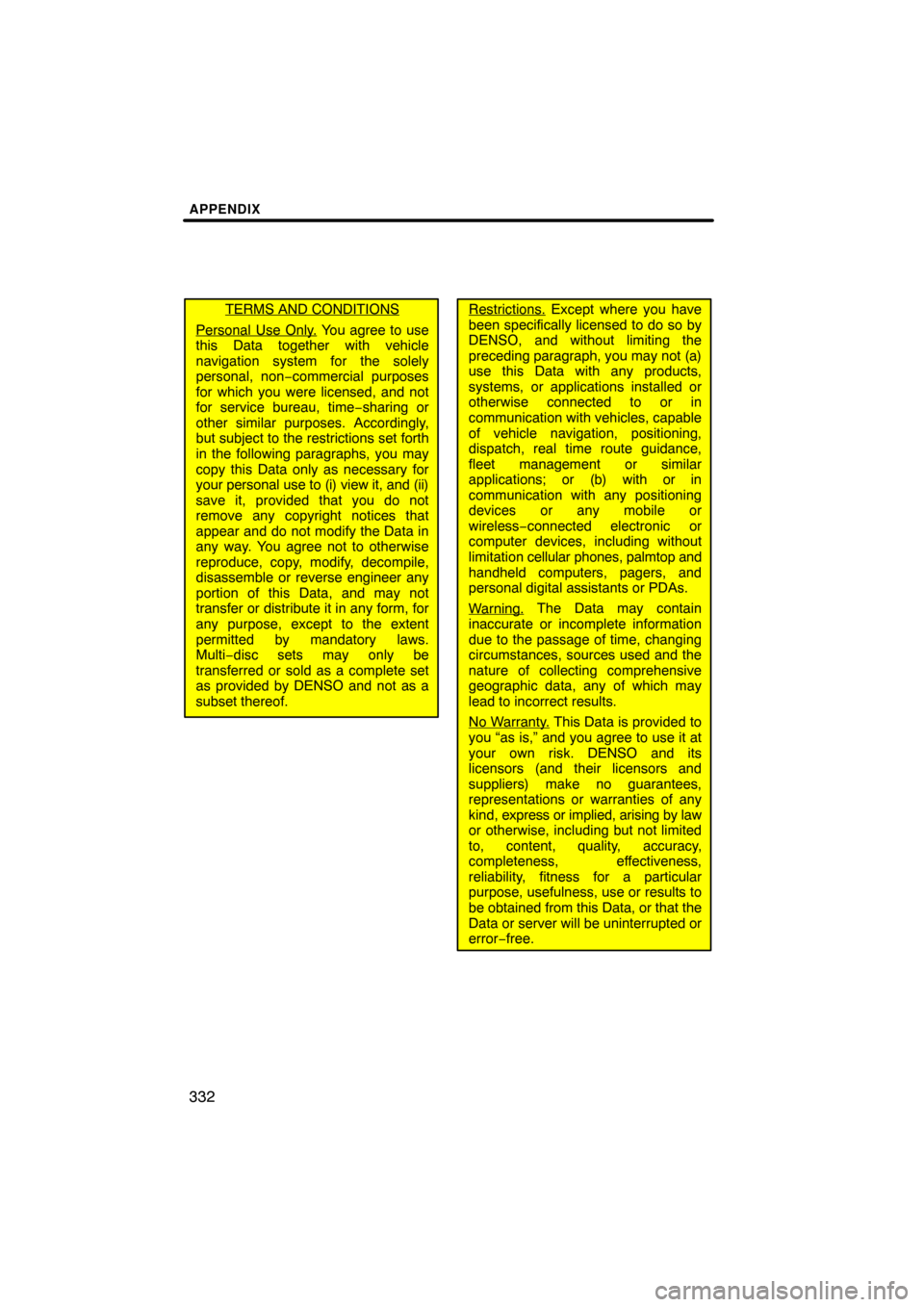

TERMS AND CONDITIONS
Personal Use Only. You agree to use
this Data together with vehicle
navigation system for the solely
personal, non −commercial purposes
for which you were licensed, and not
for service bureau, time −sharing or
other similar purposes. Accordingly,
but subject to the restrictions set forth
in the following paragraphs, you may
copy this Data only as necessary for
your personal use to (i) view it, and (ii)
save it, provided that you do not
remove any copyright notices that
appear and do not modify the Data in
any way. You agree not to otherwise
reproduce, copy, modify, decompile,
disassemble or reverse engineer any
portion of this Data, and may not
transfer or distribute it in any form, for
any purpose, except to the extent
permitted by mandatory laws.
Multi−disc sets may only be
transferred or sold as a complete set
as provided by DENSO and not as a
subset thereof.
Restrictions. Except where you have
been specifically licensed to do so by
DENSO, and without limiting the
preceding paragraph, you may not (a)
use this Data with any products,
systems, or applications installed or
otherwise connected to or in
communication with vehicles, capable
of vehicle navigation, positioning,
dispatch, real time route guidance,
fleet management or similar
applications; or (b) with or in
communication with any positioning
devices or any mobile or
wireless −connected electronic or
computer devices, including without
limitation cellular phones, palmtop and
handheld computers, pagers, and
personal digital assistants or PDAs.
Warning.
The Data may contain
inaccurate or incomplete information
due to the passage of time, changing
circumstances, sources used and the
nature of collecting comprehensive
geographic data, any of which may
lead to incorrect results.
No Warranty.
This Data is provided to
you “as is,” and you agree to use it at
your own risk. DENSO and its
licensors (and their licensors and
suppliers) make no guarantees,
representations or warranties of any
kind, express or implied, arising by law
or otherwise, including but not limited
to, content, quality, accuracy,
completeness, effectiveness,
reliability, fitness for a particular
purpose, usefulness, use or results to
be obtained from this Data, or that the
Data or server will be uninterrupted or
error−free.

APPENDIX
336
CAUTION
Do not place anything on the
opened display, as such items may
be thrown about and possibly in-
jure people in the vehicle during
sudden braking or in an accident.
To reduce the chance of injury in
the case of an accident or sudden
stopping while driving, keep the
display closed.
Take care not to jam your hand
while the display is moving. Other-
wise, you could be injured.
NOTICE
Do not obstruct the display while it
is moving. It could damage your
navigation system.
If a disc cannot be ejected, do not
forcibly take out the disc. Keep
pushing the “LOAD· / CLOSE”
button for approximately 5 sec-
onds and release it. At this time,
the audio disc and the map DVD
ROM will be ejected.
INFORMATION
Under extremely cold conditions, the
display may react slowly or operation
sound may become louder.
To confirm the database version
and disc coverage area
1. Push the “INFO/PHONE” button.
2. Touch “Map Data”.
Make sure the version of the database on
this screen.
To display the disc coverage area, touch
“Map Data Coverage” . Confirm the cov-
ered area on the screen.
Contact your Toyota dealer to find out if
there is a more recent update released.
