TOYOTA SIENNA 2013 XL30 / 3.G Owners Manual

161
1-6. Theft deterrent system
1
Before driving
SIENNA_OM_OM45472U_(U)
CAUTION
■
Certifications for the immobilizer system
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

162
1-6. Theft deterrent system
SIENNA_OM_OM45472U_(U)
Alarm
: If equipped
The system sounds the alarm and flashes the lights when forced
entry is detected.
■ Triggering of the alarm
The alarm is triggered in the fo llowing situations when the alarm
is set:
● A locked door is unlocked or opened in any way other than
using the entry function, wireless remote control or mechani-
cal key. (The doors will lock again automatically.)
● The hood is opened.
■ Setting the alarm system
Close the doors and hood,
and lock all doors. The system
will be set automatically after
14 seconds.
The indicator light changes
from being on to flashing when
the system is set.

163
1-6. Theft deterrent system
1
Before driving
SIENNA_OM_OM45472U_(U)
■
System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure
of the following:
● Nobody is in the vehicle.
● The windows and moon roof are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
■ Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm:
●Unlock the doors.
● Vehicles without a smart key system: Turn the engine switch
to the “ACC” or “ON” position, or start the engine.
Vehicles with a smart key system: Turn the “ENGINE START
STOP” switch to ACCESSORY or IGNITION ON mode, or
start the engine.
(The alarm will be deactivated or stopped after a few sec-
onds.)

164 1-6. Theft deterrent system
SIENNA_OM_OM45472U_(U)
■Triggering of the alarm
The alarm may be triggered in the following situations.
(Stopping the alarm deactivates the alarm system.)
■ Alarm-operated door lock
● When the alarm is operating, the door s are locked automatically to pre-
vent intruders.
● Do not leave the key inside the vehicle when the alarm is operating, and
make sure the key is not inside the vehicle when recharging or replacing
the battery.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
● A person inside the vehicle opens a
door or hood.
● The battery is recharged or replaced
when the vehicle is locked.

165
1
1-6. Theft deterrent system
Before driving
SIENNA_OM_OM45472U_(U)

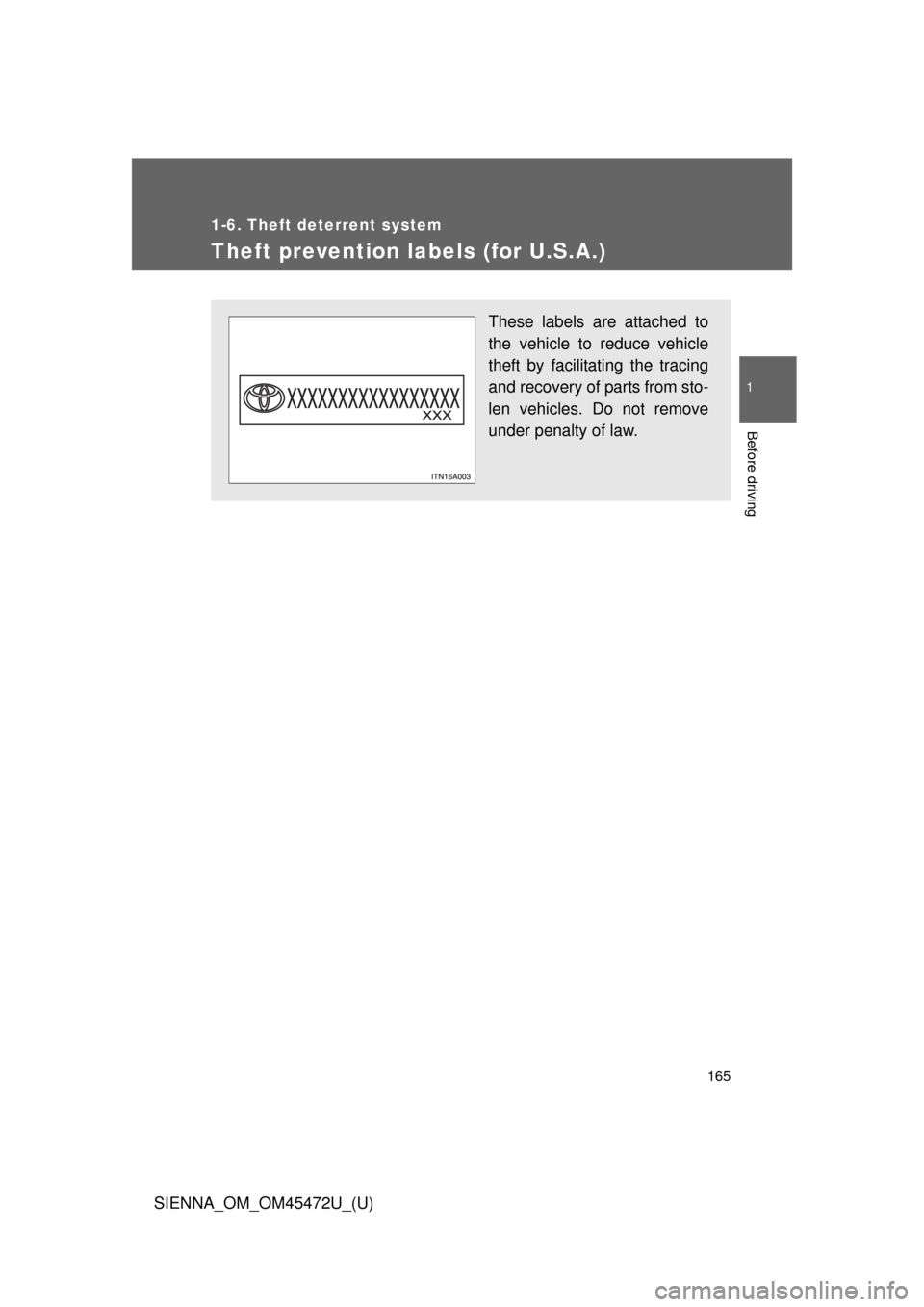

Theft prevention labels (for U.S.A.)
These labels are attached to
the vehicle to reduce vehicle
theft by facilitating the tracing
and recovery of parts from sto-
len vehicles. Do not remove
under penalty of law.

166
SIENNA_OM_OM45472U_(U)
1-7. Safety information

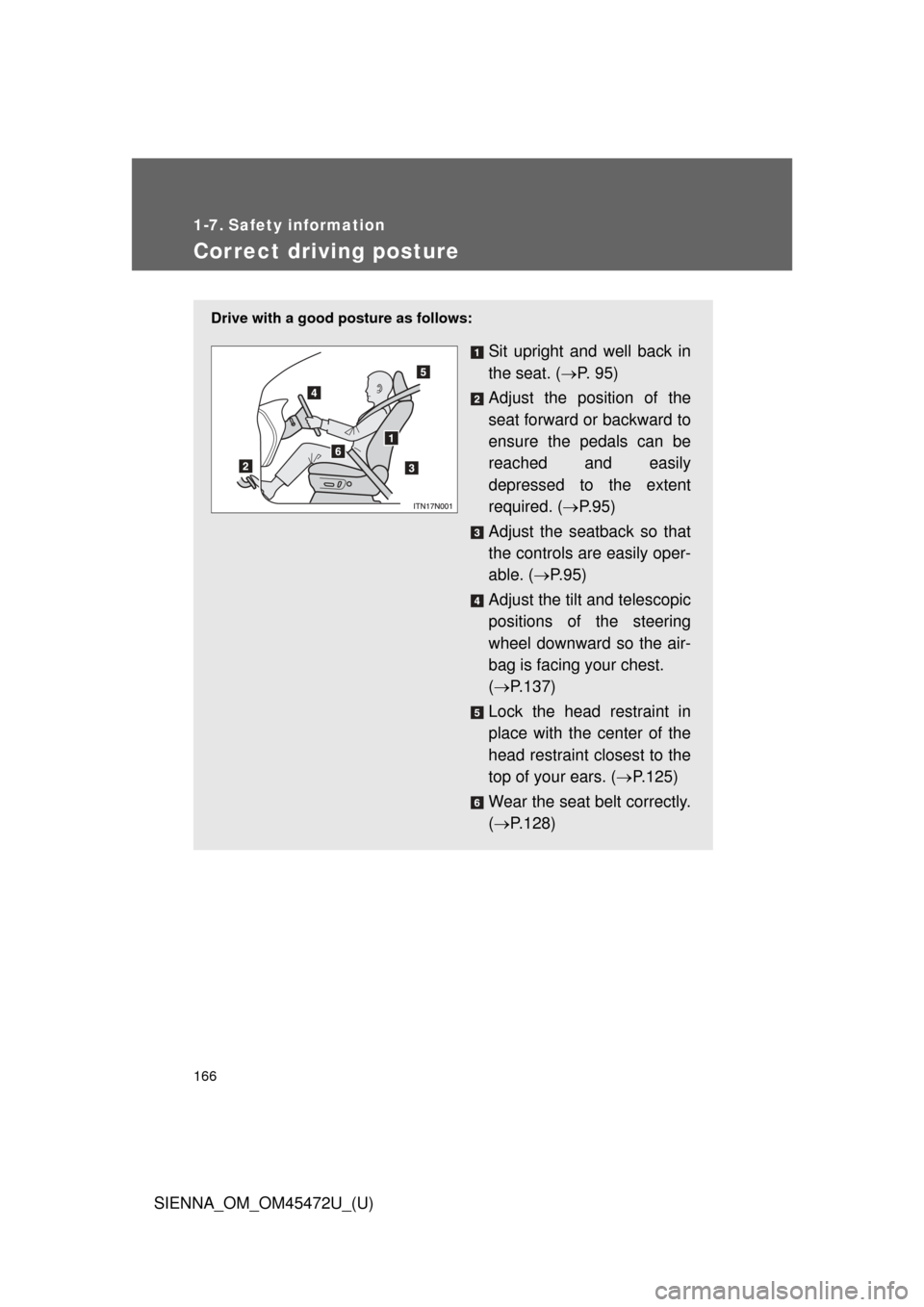

Correct driving posture
Drive with a good posture as follows:
Sit upright and well back in
the seat. (P. 9 5 )
Adjust the position of the
seat forward or backward to
ensure the pedals can be
reached and easily
depressed to the extent
required. ( P. 9 5 )
Adjust the seatback so that
the controls are easily oper-
able. ( P. 9 5 )
Adjust the tilt and telescopic
positions of the steering
wheel downward so the air-
bag is facing your chest.
(  P.137)
Lock the head restraint in
place with the center of the
head restraint closest to the
top of your ears. ( P.125)
Wear the seat belt correctly.
(  P.128)

167
1-7. Safety information
1
Before driving
SIENNA_OM_OM45472U_(U)
CAUTION
■
While driving
● Do not adjust the position of the driver’s seat.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint, increasing the risk of
death or serious injury to the driver or passenger.
● Do not place anything under the front seats except for putting them in the
auxiliary box.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent, resulting in death or serious injury. The adjustment mechanism may
also be damaged.
■ Adjusting the seat position
● Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
● Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.

168
1-7. Safety information
SIENNA_OM_OM45472U_(U)

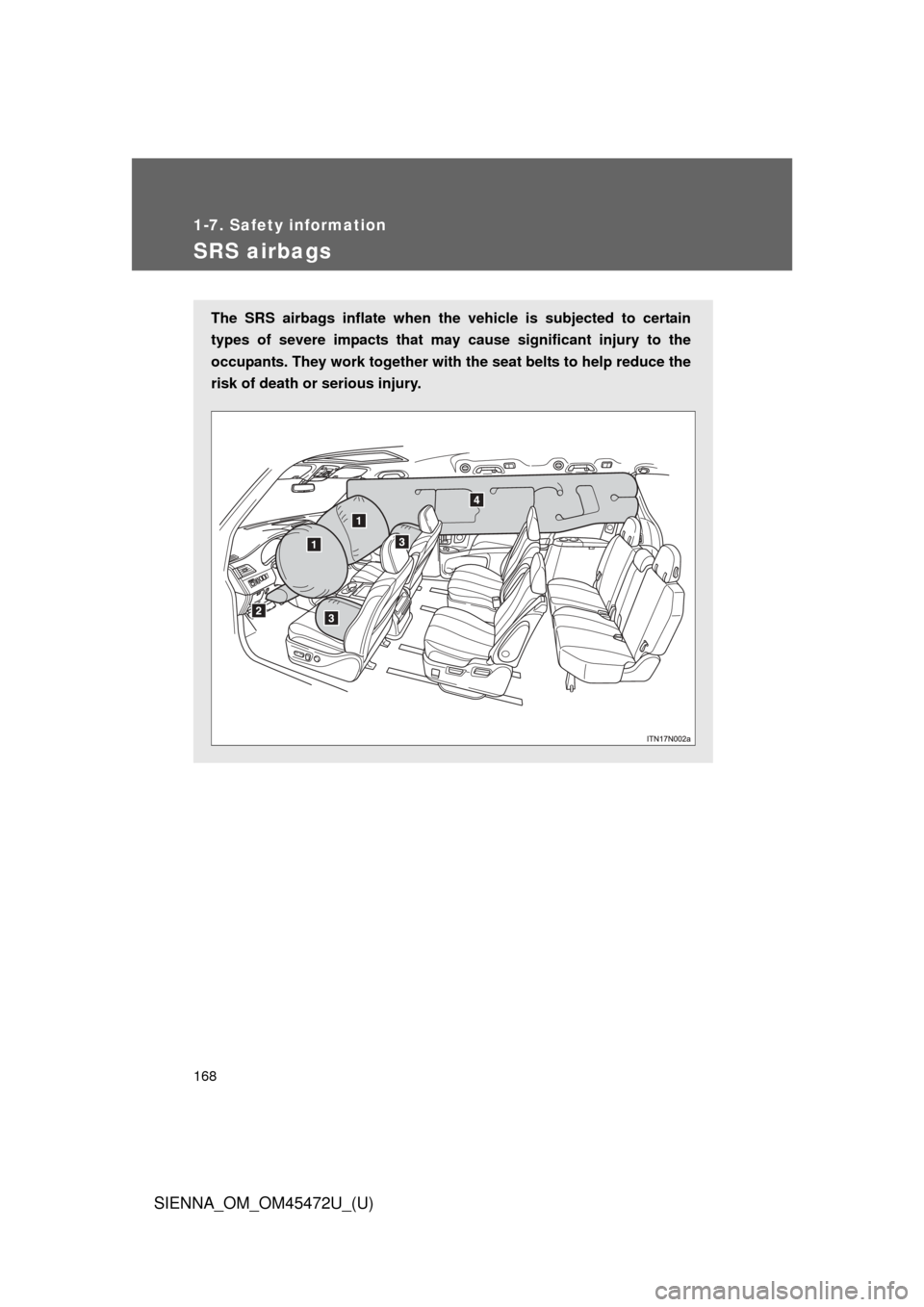

SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain
types of severe impacts that may cause significant injury to the
occupants. They work together with the seat belts to help reduce the
risk of death or serious injury.

169
1-7. Safety information
1
Before driving
SIENNA_OM_OM45472U_(U)

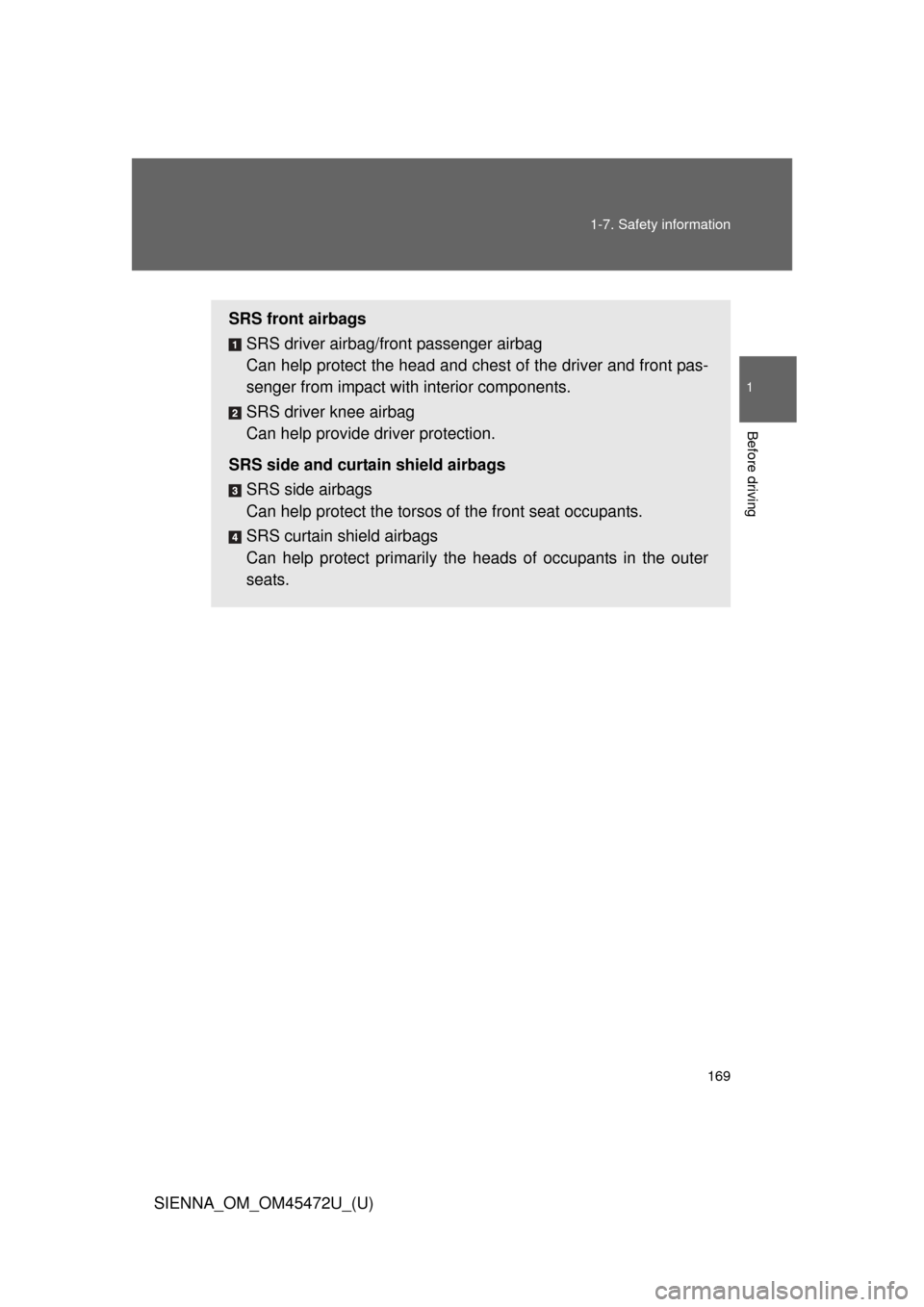

SRS front airbags
SRS driver airbag/front passenger airbag
Can help protect the head and ches t of the driver and front pas-
senger from impact with interior components.
SRS driver knee airbag
Can help provide driver protection.
SRS side and curtain shield airbags SRS side airbags
Can help protect the torsos of the front seat occupants.
SRS curtain shield airbags
Can help protect primarily the heads of occupants in the outer
seats.

170 1-7. Safety information
SIENNA_OM_OM45472U_(U)
Airbag system componentsFront passenger airbag
Curtain shield airbags
Side airbags
Front passenger occupant
classification system (ECU
and sensors)
Side impact sensors (rear)
Front passenger’s seat belt
buckle switch
SRS warning light
Driver airbag Side impact sensors (front
door)
Driver’s seat belt buckle
switch
Driver’s seat position sen-
sor
Driver’s knee airbag
Front impact sensors
Airbag sensor assembly
“AIR BAG ON” and “AIR
BAG OFF” indicator lights
Seat belt pretensioners
