TOYOTA SIENNA 2013 XL30 / 3.G Owners Manual

241
2-1. Driving procedures
2
When driving
SIENNA_OM_OM45472U_(U)
Tur n signal lever
■Turn signals can be operated when
Vehicles without a smart key system:
The engine switch is in the “ON” position.
Vehicles with a smart key system:
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
The turn signal lever can be used to show the following intentions of
the driver:
Right turn
Left turn
Lane change to the right
(push and hold the lever
partway)
The right hand signal will flash
until you release the lever.
Lane change to the left
(push and hold the lever
partway)
The left hand signal will flash
until you release the lever.

242
2-1. Driving procedures
SIENNA_OM_OM45472U_(U)
Parking brake
■Usage in winter time
See “Winter driving tips” for parking brake usage in winter time. ( P. 367)
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
To set the parking brake, fully
depress the parking brake
pedal with your left foot while
depressing the brake pedal
with your right foot.
(Depressing the pedal again
releases the parking brake.)
U.S.A. Canada

243
2-1. Driving procedures
2
When driving
SIENNA_OM_OM45472U_(U)
Hor n
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(P. 137)
To sound the horn, press on or
close to the mark.

244
SIENNA_OM_OM45472U_(U)
2-2. Instrument cluster and information display
Gauges and meters
Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Odometer and trip meter display
Odometer: Displays the total distance the vehicle has been driven.
Trip meter: Displays the distance the vehicle has been driven since themeter was last reset. Trip meters “A” and “B” can be used to
record and display different distances independently.
Odometer/trip meter display change button
P. 245

245
2-2. Instrument cluster and information display
2
When driving
SIENNA_OM_OM45472U_(U)
Changing the display
Pressing this button switches amon g odometer display, trip meter dis-
plays and Eco Driving Indicator Light setting screen.
Odometer
Trip meter A
*1
Trip meter B*1
Eco Driving Indicator Light
setting screen
*2
*1: Pressing and holding the but-ton will reset the trip meter.
*2: Pressing and holding the but-ton will activate or deactivate
Eco Driving Indicator Light.
Instrument panel light control
The brightness of the instrument pa nel lights can be adjusted by turn-
ing the knob.
Darker
Brighter

246 2-2. Instrument cluster and information display
SIENNA_OM_OM45472U_(U)
■The meters and display illuminate when (Optitron type meters)
Vehicles without a smart key system:
The engine switch is in the “ON” position.
Vehicles with a smart key system:
The “ENGINE START STOP” switch is in IGNITION ON mode.
NOTICE
■To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (
P. 791)

247
2-2. Instrument cluster and information display
2
When driving
SIENNA_OM_OM45472U_(U)

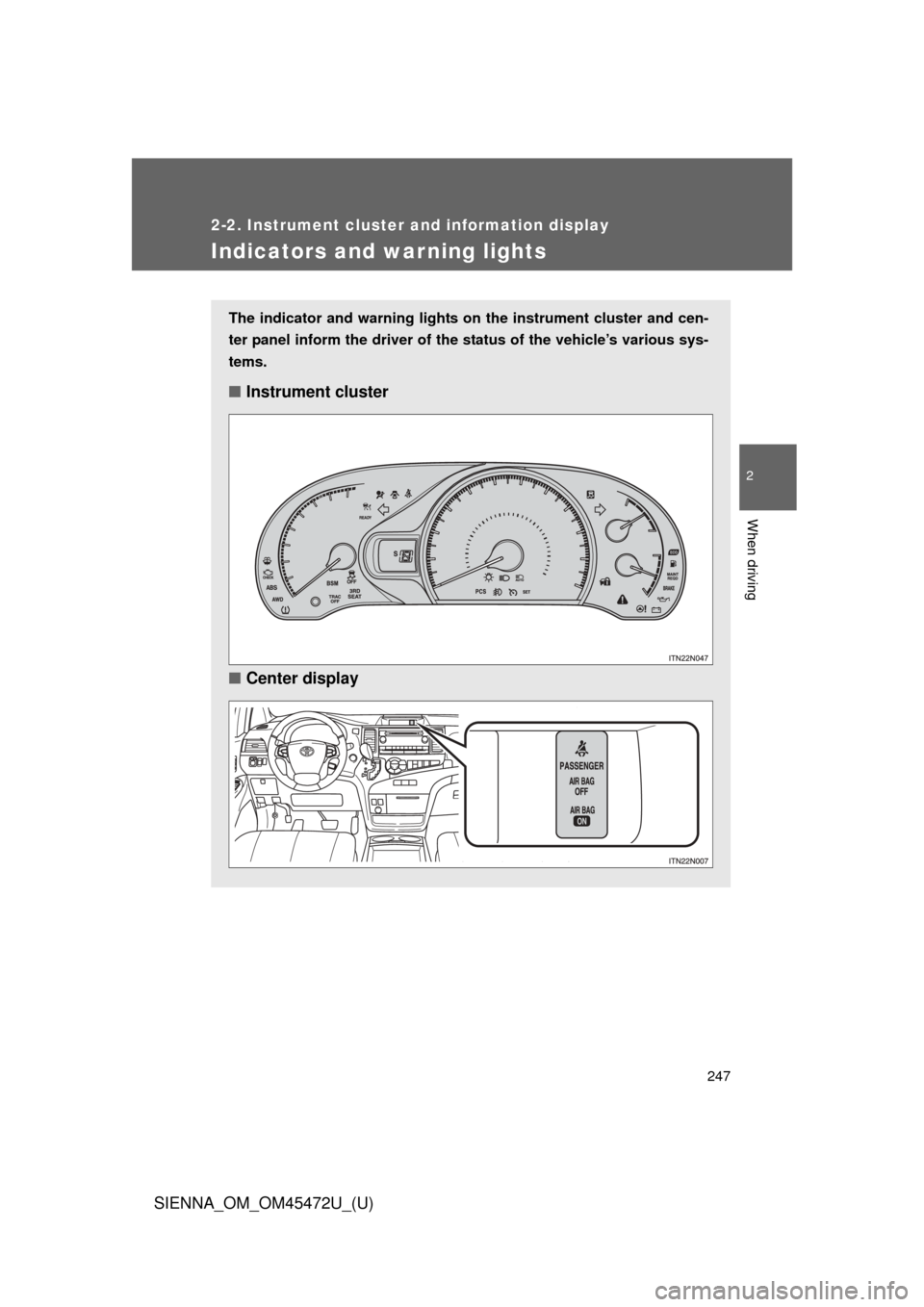

Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
■ Instrument cluster
■ Center display

248 2-2. Instrument cluster and information display
SIENNA_OM_OM45472U_(U)
■Outside rear view mirrors (if equipped)

249
2-2. Instrument cluster and information display
2
When driving
SIENNA_OM_OM45472U_(U)
■

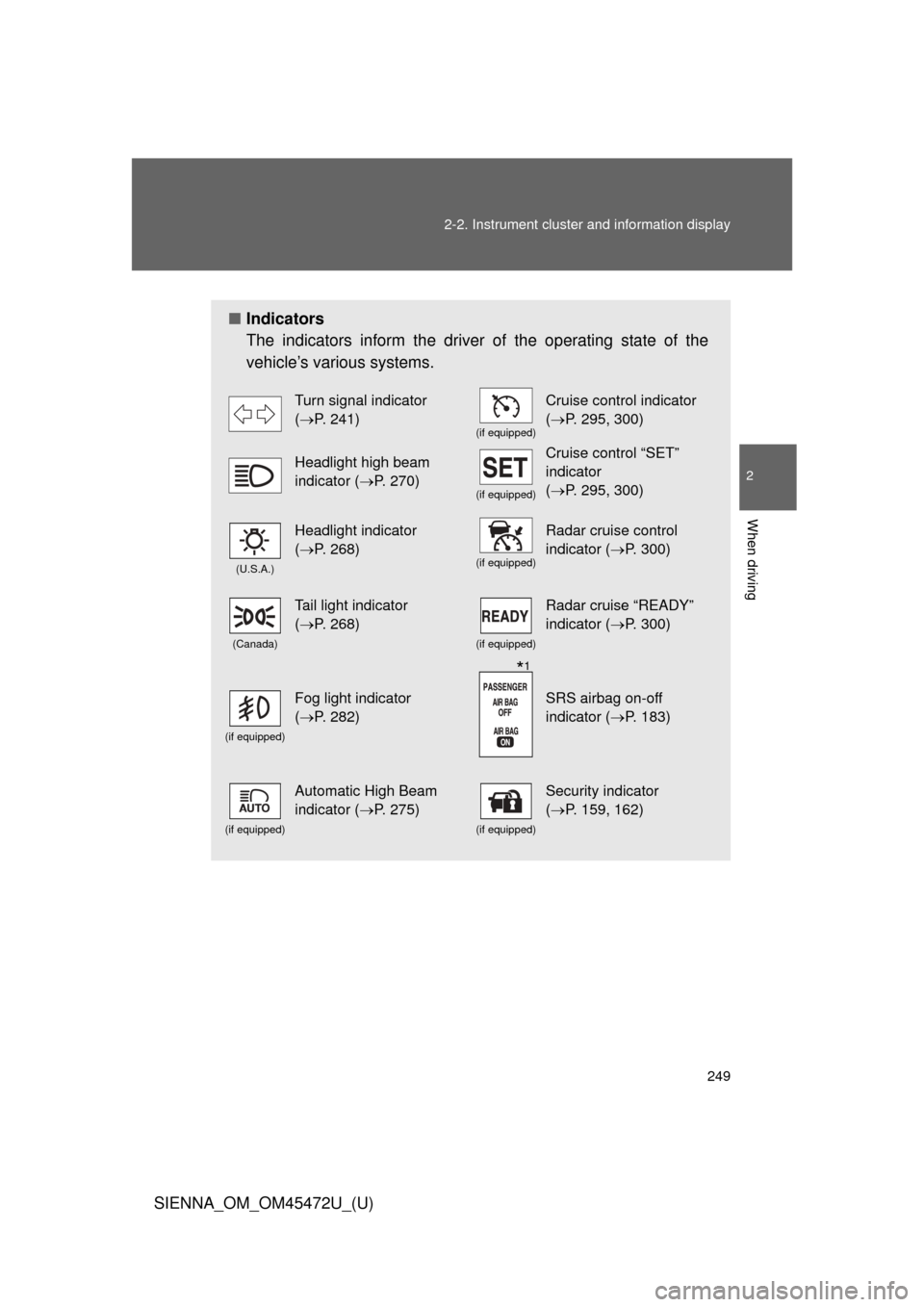

Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 241)
(if equipped)
Cruise control indicator
(P. 295, 300)
Headlight high beam
indicator ( P. 270)
(if equipped)
Cruise control “SET”
indicator
(P. 295, 300)
(U.S.A.)
Headlight indicator
(P. 268)
(if equipped)
Radar cruise control
indicator ( P. 300)
(Canada)
Tail light indicator
(P. 268)
(if equipped)
Radar cruise “READY”
indicator ( P. 300)
(if equipped)
Fog light indicator
(P. 282)SRS airbag on-off
indicator ( P. 183)
(if equipped)
Automatic High Beam
indicator (P. 275)
(if equipped)
Security indicator
(P. 159, 162)
*1

250 2-2. Instrument cluster and information display
SIENNA_OM_OM45472U_(U)
*1: These lights turn on when the “ENGINE START STOP” switch isturned to IGNITION ON mode (vehicles with a smart key system) or
the engine switch is turned to the “ON” position (vehicles without a
smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected
by your Toyota dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light turns on when the system is turned off. The light flashesquickly to indicate that the system is operating.

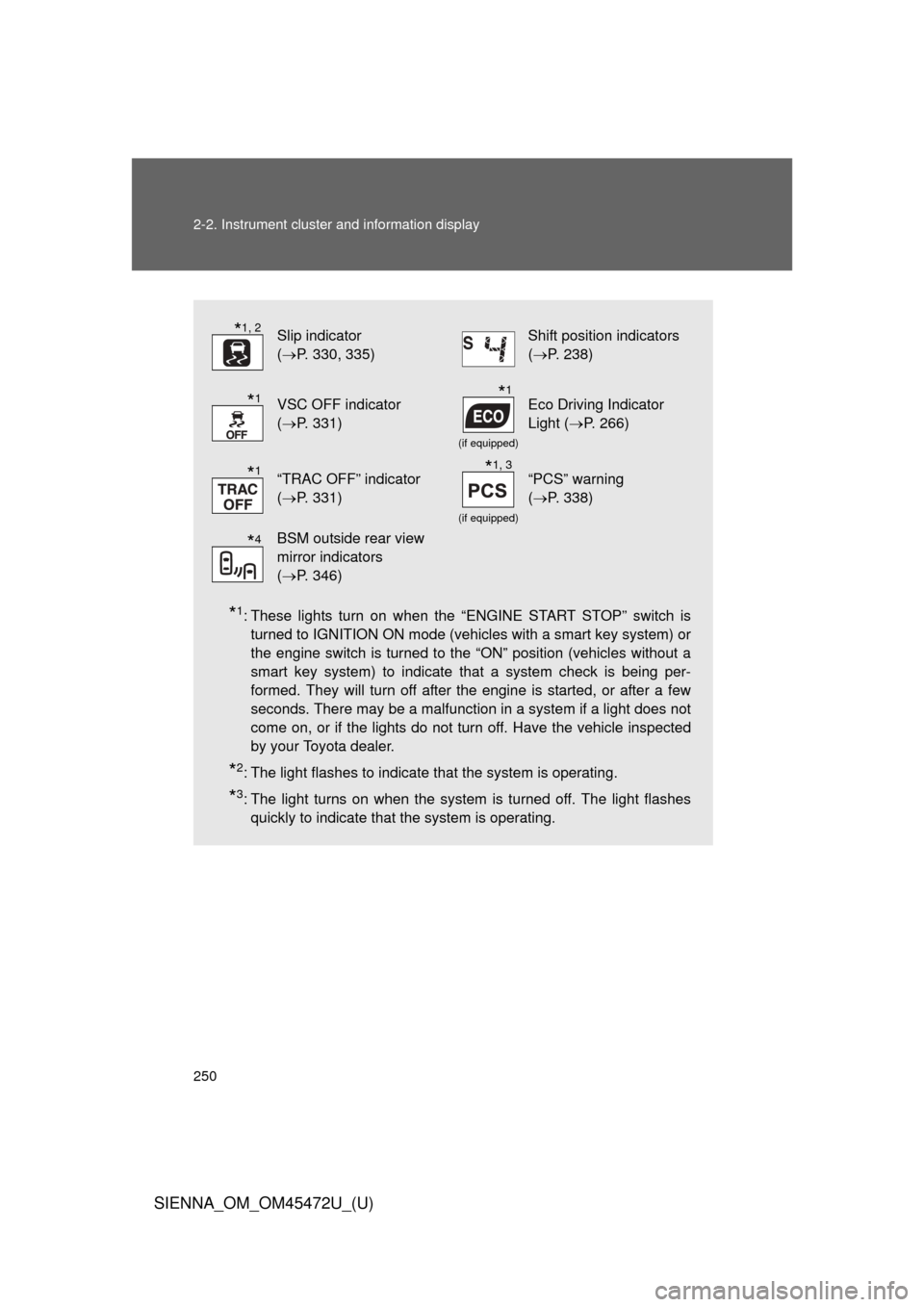

Slip indicator
(P. 330, 335)Shift position indicators
(P. 238)
VSC OFF indicator
(P. 331)
(if equipped)
Eco Driving Indicator
Light ( P. 266)
“TRAC OFF” indicator
(P. 331)
(if equipped)
“PCS” warning
(P. 338)
BSM outside rear view
mirror indicators
(P. 346)
*1, 2
*1*1
*1*1, 3
*4
