set clock TOYOTA SIENNA 2013 XL30 / 3.G Owners Manual

1
2
3
4
5
6
7
5
SIENNA_OM_OM45472U_(U)
3-5. Using the hands-free phone system (for cellular phone)
Hands-free phone system (for cellular phone)
features ............................. 543
Using the hands-free phone system
(for cellular phone) ............ 548
Making a phone call ............ 557
Setting a cellular phone ...... 562
Security and system setup ................................. 567
Using the phone book ......... 572
3-6. Using the interior lights Interior lights list .................. 580
• Personal/interior light main switch ....................... 581
• Personal/interior lights ...... 582
• Personal lights .................. 584
• Rear ceiling lights ............. 584 3-7. Using the storage features
List of storage features ....... 586
• Glove boxes ..................... 587
• Console box ..................... 589
• Overhead console ............ 592
• Cup holders ...................... 593
• Bottle holders ................... 596
• Door pockets .................... 598
• Auxiliary boxes ................. 599
3-8. Other interior features Sun visors........................... 604
Vanity mirrors ..................... 605
Clock .................................. 606
Conversation mirror ............ 607
Power outlets...................... 608
Seat heaters ....................... 612
Armrests ............................. 614
Assist grips ......................... 616
Rear side sunshades.......... 617
Grocery bag hooks ............. 618
Floor mat ............................ 620
Luggage compartment features ............................ 622
Garage door opener ........... 624
Compass ............................ 632
Safety Connect ................... 637

254
2-2. Instrument cluster and information display
SIENNA_OM_OM45472U_(U)

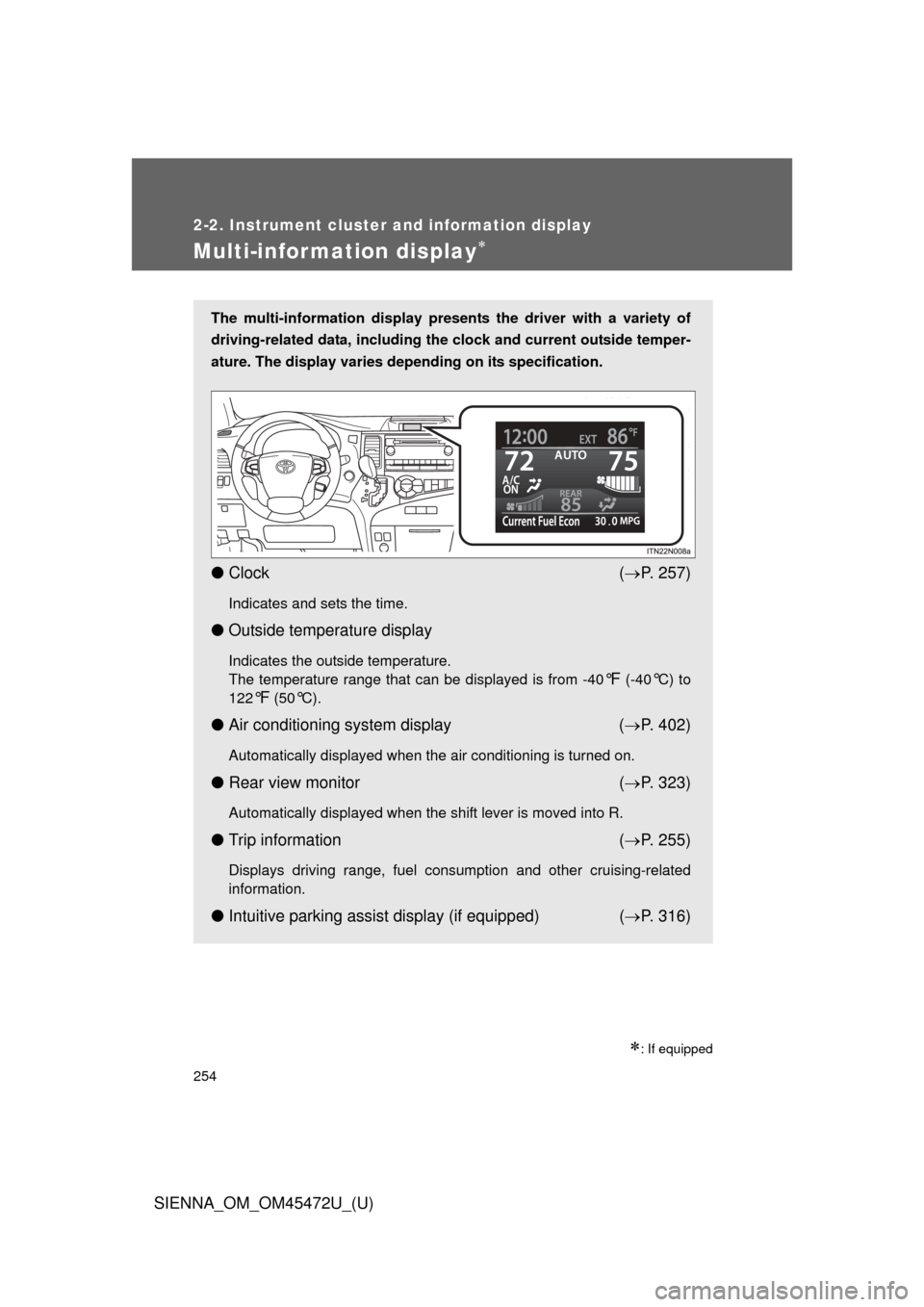

Multi-information display
: If equipped
The multi-information display presents the driver with a variety of
driving-related data, including the clock and current outside temper-
ature. The display varies depending on its specification.
● Clock ( P. 257)
Indicates and sets the time.
● Outside temperature display
Indicates the outside temperature.
The temperature range that can be displayed is from -40
°F (-40°C) to
122
°F (50°C).
● Air conditioning system display ( P. 402)
Automatically displayed when the air conditioning is turned on.
● Rear view monitor ( P. 323)
Automatically displayed when the shift lever is moved into R.
● Trip information ( P. 255)
Displays driving range, fuel consumption and other cruising-related
information.
● Intuitive parking assist display (if equipped) ( P. 316)

257
2-2. Instrument cluster and information display
2
When driving
SIENNA_OM_OM45472U_(U)
■
Tr i p Ti m e r
Set up display
■ Before setting
Press the “SETUP” button while
the vehicle is stopped.
The “Custom Settings” screen is
displayed on the multi-information
display.
If left idle for approximately 20
seconds, the display will revert to
the previous screen.
Select “Display / Clock” by
pressing the “INFO” or “SETUP”
button, and press the “SELECT
RESET” button.
If you select “Exit” and press
“SELECT RESET”, the display
will revert to the previous screen.
Displays the elapsed time since the timer was
reset.
The timer only functions when the engine is running.
The timer can be started and paused by pressing the
“SELECT RESET” button, and reset by pressing and
holding the “SELECT RESET” button when the trip
timer is displayed.
STEP1
STEP2

258 2-2. Instrument cluster and information display
SIENNA_OM_OM45472U_(U)Select the desired item by press-
ing the “INFO” or “SETUP” but-
ton.
Press the “SELECT RESET” but-
ton to enter the setting mode.
The current setting is indicated by
yellow text.
■
Setting the clock
Select “Clock” on the “Display Settings” screen, and press the
“SELECT RESET” button.
Press the “INFO” button to adjust
the hours and the “SETUP” but-
ton to adjust the minutes.
Press the “SELECT RESET” but-
ton to set the clock.
■Selecting the units
Select “Units” on the “Display Settings” screen, and press the
“SELECT RESET” button.
Select the units you want to read
by pressing the “INFO” or
“SETUP” button.
Press the “SELECT RESET” but-
ton to set the units.
The current setting is indicated by
yellow text.
STEP3
STEP1
STEP2
STEP1
STEP2

Interior features3
393
SIENNA_OM_OM45472U_(U)

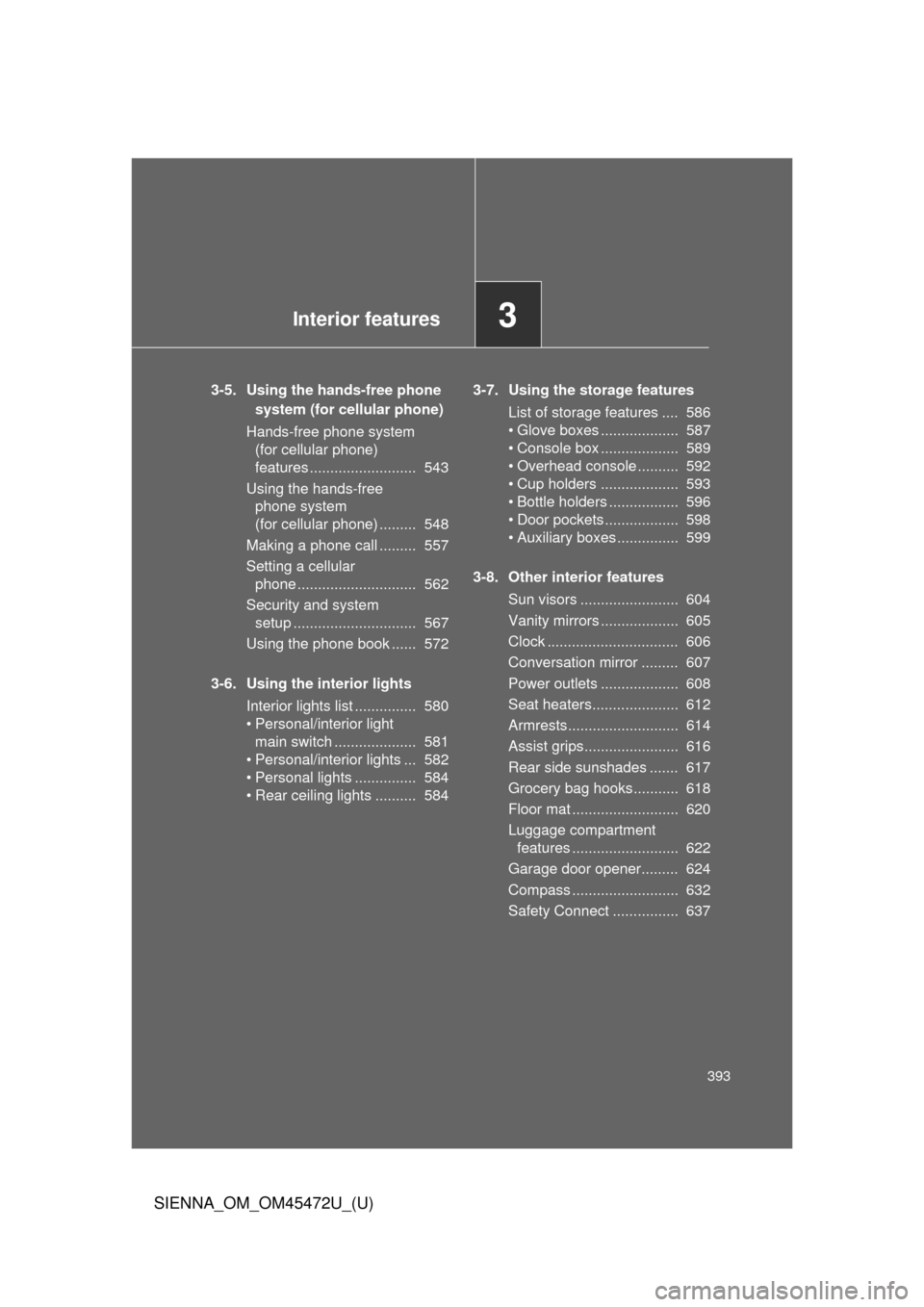

3-5. Using the hands-free phone system (for cellular phone)
Hands-free phone system (for cellular phone)
features .......................... 543
Using the hands-free phone system
(for cellular phone) ......... 548
Making a phone call ......... 557
Setting a cellular phone ............................. 562
Security and system setup .............................. 567
Using the phone book ...... 572
3-6. Using the interior lights Interior lights list ............... 580
• Personal/interior light main switch .................... 581
• Personal/interior lights ... 582
• Personal lights ............... 584
• Rear ceiling lights .......... 584 3-7. Using the storage features
List of storage features .... 586
• Glove boxes ................... 587
• Console box ................... 589
• Overhead console .......... 592
• Cup holders ................... 593
• Bottle holders ................. 596
• Door pockets .................. 598
• Auxiliary boxes ............... 599
3-8. Other interior features Sun visors ........................ 604
Vanity mirrors ................... 605
Clock ................................ 606
Conversation mirror ......... 607
Power outlets ................... 608
Seat heaters..................... 612
Armrests........................... 614
Assist grips....................... 616
Rear side sunshades ....... 617
Grocery bag hooks........... 618
Floor mat .......................... 620
Luggage compartment features .......................... 622
Garage door opener......... 624
Compass .......................... 632
Safety Connect ................ 637

395
3-1. Using the air conditioning system
and defogger
3
Interior features
SIENNA_OM_OM45472U_(U)Driver’s side temperature control dial
Turn the temperature control dial clockwise (warm) or coun-
terclockwise (cool).
If is not pressed, the system will blow ambient temperature air
or heated air.
For quick cooling, turn the temperature control dial to the “MAX A/C”
position. The air conditioning will automatically turn on and the air
circulation mode will be set to recirculated air mode.
When the dial is in the “MAX A/C” position, the air conditioning sys-
tem cannot be turned off even if is pressed.
Front passenger’s side temperature control dial
Turn the temperature control dial clockwise (warm) or counter
clockwise (cool).
STEP2

397
3-1. Using the air conditioning system
and defogger
3
Interior features
SIENNA_OM_OM45472U_(U) Air flows to the feet and the
windshield defogger operates.
■ Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (introduces air from out-
side the vehicle) (indicator off) and recirculated air mode (recycles air
inside the vehicle) (indicator on) each time the button is pressed.
Changing the rear setting
■ Adjusting the temperature setting
Turn the rear temperature control dial clockwise (increase) or
counterclockwise (decrease).
When the rear temperature control dial is turned to “REAR
CTRL”, the rear temperature and fan speed can be operated
from the rear air conditioning control panel. ( P. 412)

403
3-1. Using the air conditioning system
and defogger
3
Interior features
SIENNA_OM_OM45472U_(U)
Using the automatic mode
Press .
The air conditioning system will begin to operate. In outside air or
recirculated air mode, air outlets, fan speed and air conditioning on/
off are automatically adjusted according to the temperature setting.
“AUTO” will be displayed on the multi-information display.
Turn the temperature control dial clockwise (warm) or coun-
terclockwise (cool).
The temperature for the driver and passenger seat can be set sepa-
rately.
Multi-information display
Automatic mode indicator
Passenger’s side
temperature setting display
Front fan speed
display
Rear airflow display
Rear temperature setting display
Rear fan speed display
Air conditioning
on indicator
Front Airflow display
Driver’s side
temperature
setting display
STEP1
STEP2

404 3-1. Using the air conditioning system and defogger
SIENNA_OM_OM45472U_(U)
Adjusting the settings
■ Adjusting the temperature setting
Turn the temperature control dial clockwise (warm) or counter-
clockwise (cool).
The air conditioning system switch es between individual and simulta-
neous modes each time is pressed.
Individual mode: The temperature for the driver’s, passenger’s and rear seats can be set separately. Operating the passenger’s
side or rear temperature control will enter individual
mode.
Simultaneous mode: Only the temperature control dial (driver’s side) can be used to adjust the temperature for all seats.
■Adjusting the fan speed
Press “ ” (increase) or “ ” (decrease) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.

405
3-1. Using the air conditioning system
and defogger
3
Interior features
SIENNA_OM_OM45472U_(U)
Adjusting the settings manually
■ Basic setting
To turn on the air conditioning system and adjust the fan
speed, press “ ” on to increase the fan speed and “ ” to
decrease the fan speed.
Press to turn the fan off.
To adjust the temperature setting, turn the temperature control
dial (driver’s side) clockwise to increase the temperature and
turn the temperature control dial (driver’s side) counterclock-
wise to decrease the temperature.
When is pressed or the passenger’s side temperature
control is pressed, the temper ature for the driver and passen-
ger seats can be adjusted separately.
Press .
STEP1
STEP2
STEP3
