TELEPHONE AND INFORMATION
130

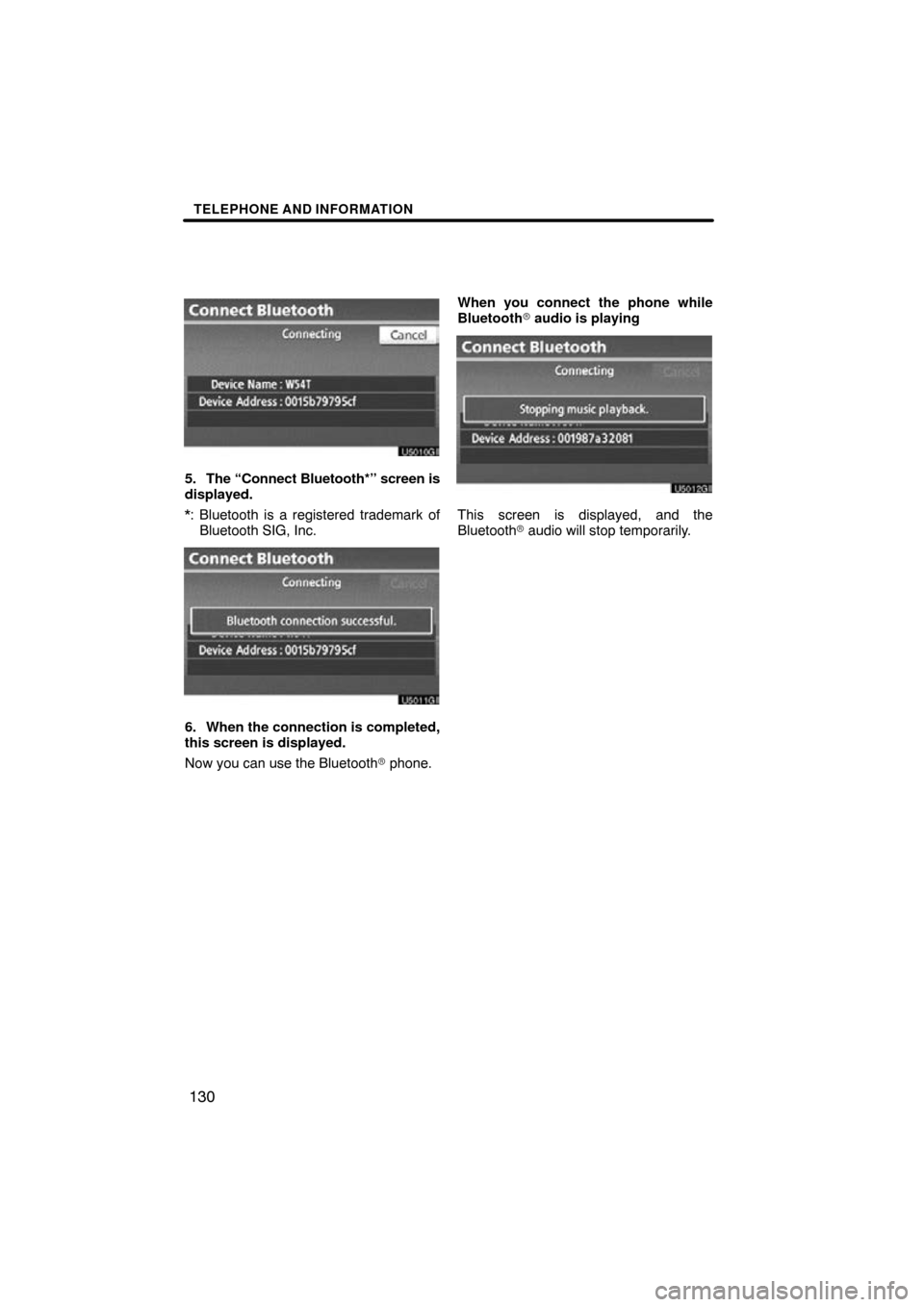

5. The “Connect Bluetooth*” screen is
displayed.
*: Bluetooth is a registered trademark ofBluetooth SIG, Inc.
6. When the connection is completed,
this screen is displayed.
Now you can use the Bluetooth phone.When you connect the phone while
Bluetooth
 audio is playing
This screen is displayed, and the
Bluetooth  audio will stop temporarily.

TELEPHONE AND INFORMATION
131

Reconnecting the Bluetooth

phone
Vehicles with smart key system—
If the Bluetooth phone is
disconnected with poor reception from
the Bluetooth network; when the
“ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode,
the system automatically reconnects
the Bluetooth  phone. In this case, the
connection result is not displayed.
Vehicles without smart key system—
If the Bluetooth phone is discon-
nected with poor reception from the
Bluetooth  network; when the engine
switch is in the “ACC” or “ON” position
the system automatically reconnects
the Bluetooth  phone. In this case, the
connection result is not displayed.
If the Bluetooth is disconnected on pur-
pose such as you turned your cellular
phone off, this does not happen. Recon-
nect it by the following methods.
Select the Bluetooth phone again.
Enter the Bluetooth phone.

TELEPHONE AND INFORMATION
132
After you enter the Bluetooth phone,
you can call by using handsfree sys-
tem. You can call using the 6 methods
described below.

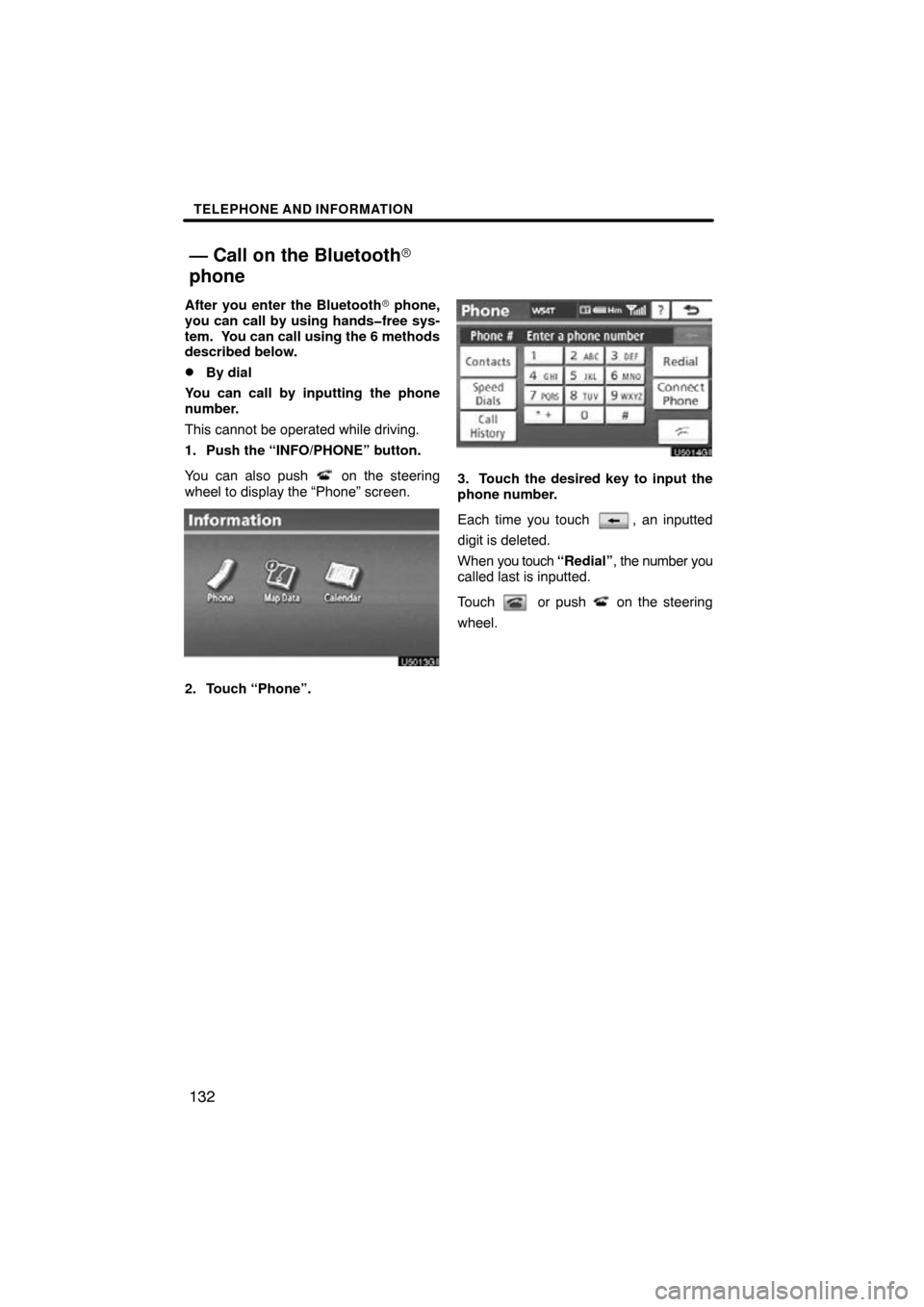

By dial
You can call by inputting the phone
number.
This cannot be operated while driving.
1. Push the “INFO/PHONE” button.
You can also push
on the steering
wheel to display the “Phone” screen.
2. Touch “Phone”.
3. Touch the desired key to input the
phone number.
Each time you touch
, an inputted
digit is deleted.
When you touch “Redial” , the number you
called last is inputted.
Touch
or push on the steering
wheel.
— Call on the Bluetooth
phone

TELEPHONE AND INFORMATION
136
You can call using the latest call history
item.
1. Push
on the steering wheel to
display the “Phone” screen.
2. Push
on the steering wheel to
display the “Call History” screen.
3. Push
on the steering wheel to se-
lect the latest history item.
4. Touch
or push on the steer-
ing wheel to call the latest history item.
When you call by phonebook, the
name (if registered) is displayed.
When you call the same number con-
tinuously, only the newest number is
registered.
When a phone number registered in
the phonebook is received, the name
and the number are displayed.
Number −withheld calls are also mem-
orized in the system.
A international phone call may not be
made depending on the cellular phone
which you have.

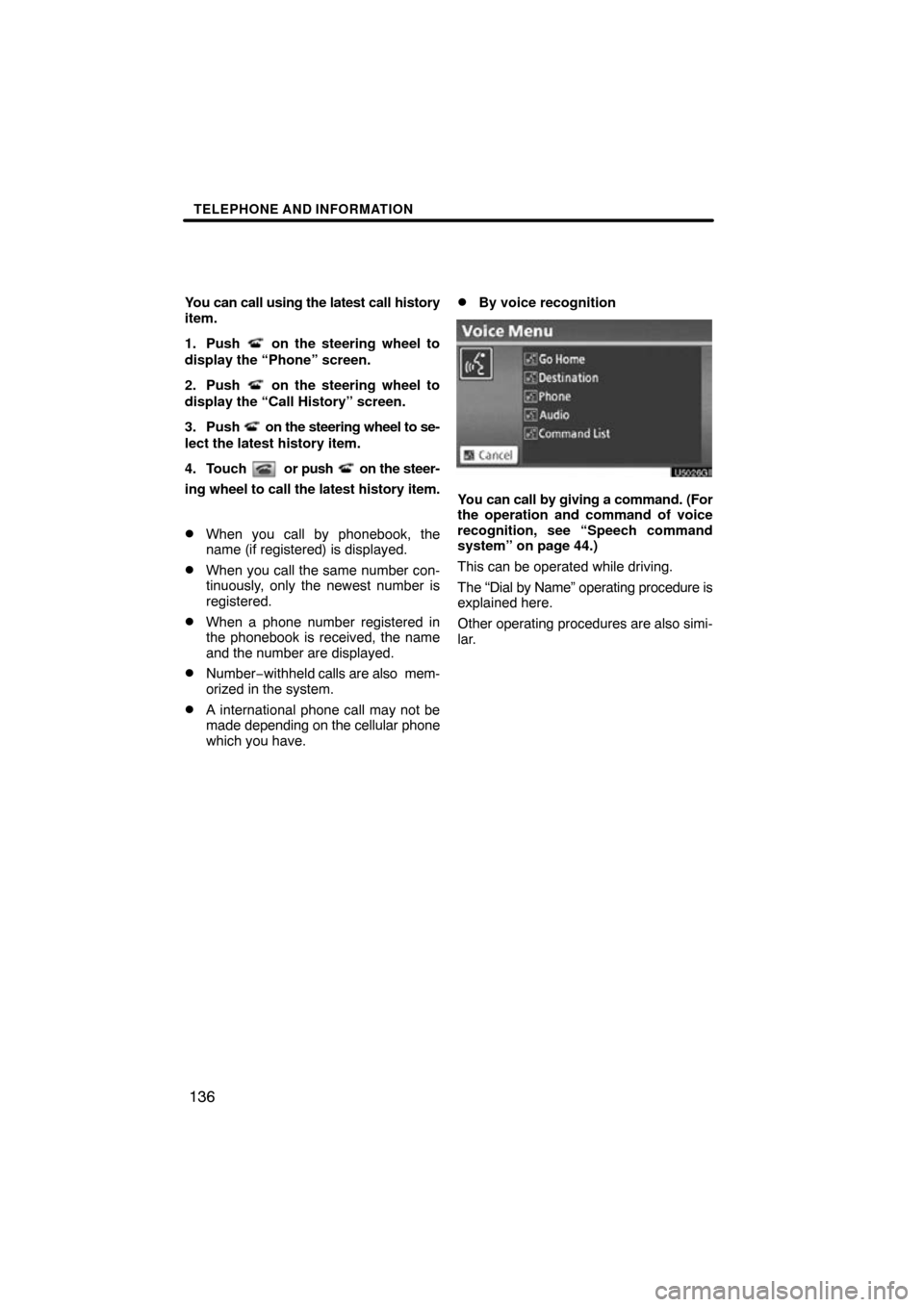

By voice recognition
You can call by giving a command. (For
the operation and command of voice
recognition, see “Speech command
system” on page 44.)
This can be operated while driving.
The “Dial by Name” operating procedure is
explained here.
Other operating procedures are also simi-
lar.

TELEPHONE AND INFORMATION
138
Calling without the voice recognition
After the entered number is displayed, you
can also call by pushing
on the steering
wheel or touching “Dial”.
Cancelling the voice recognition
The voice recognition will be cancelled
when you do the following.
Push and hold the talk switch.
Push on the steering wheel.
Touch “Cancel” . (Except for recogniz-
ing the command.)
Say “Cancel”.

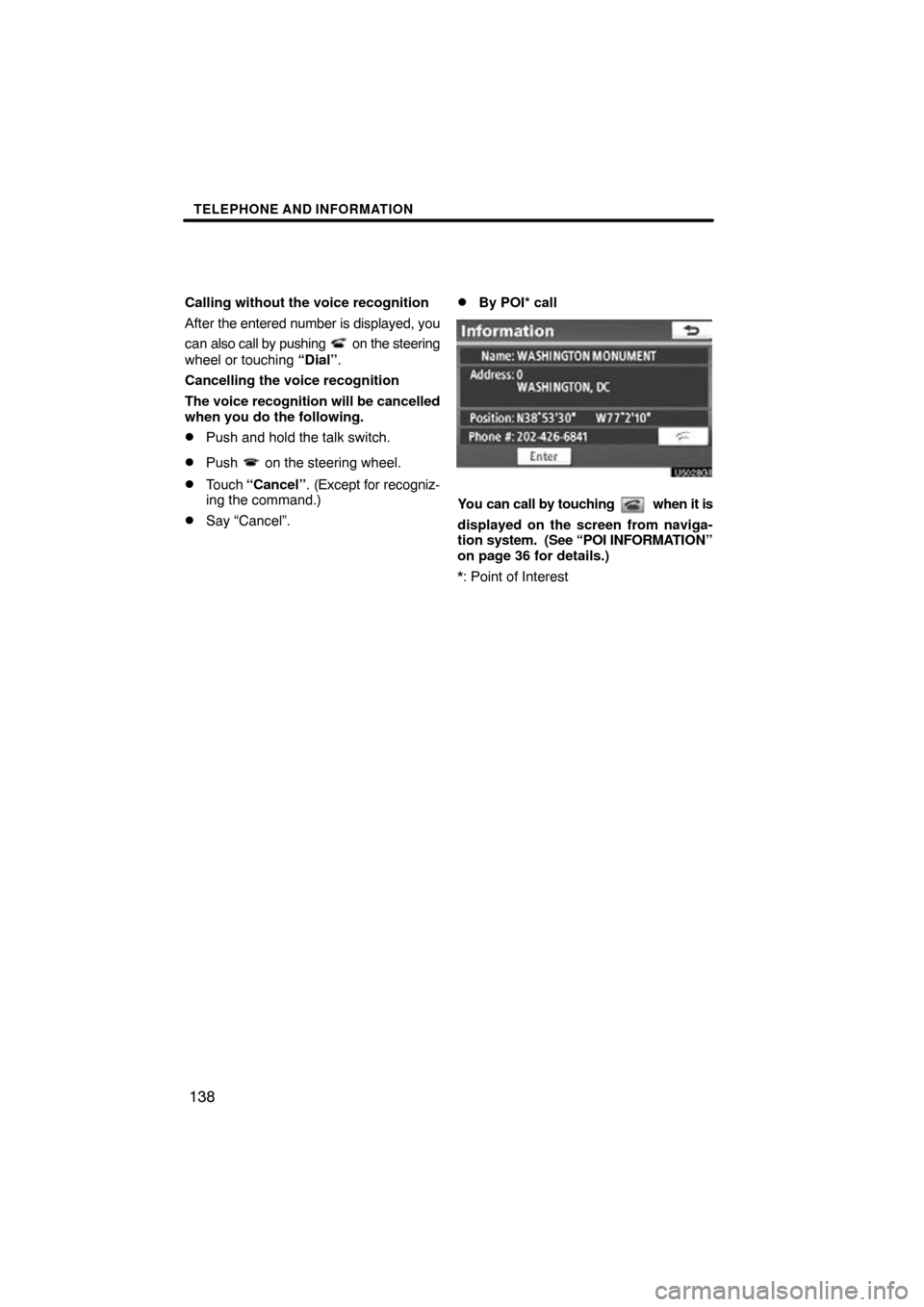

By POI* call
You can call by touching when it is
displayed on the screen from naviga-
tion system. (See “POI INFORMA TION”
on page 36 for details.)
*: Point of Interest

TELEPHONE AND INFORMATION
139

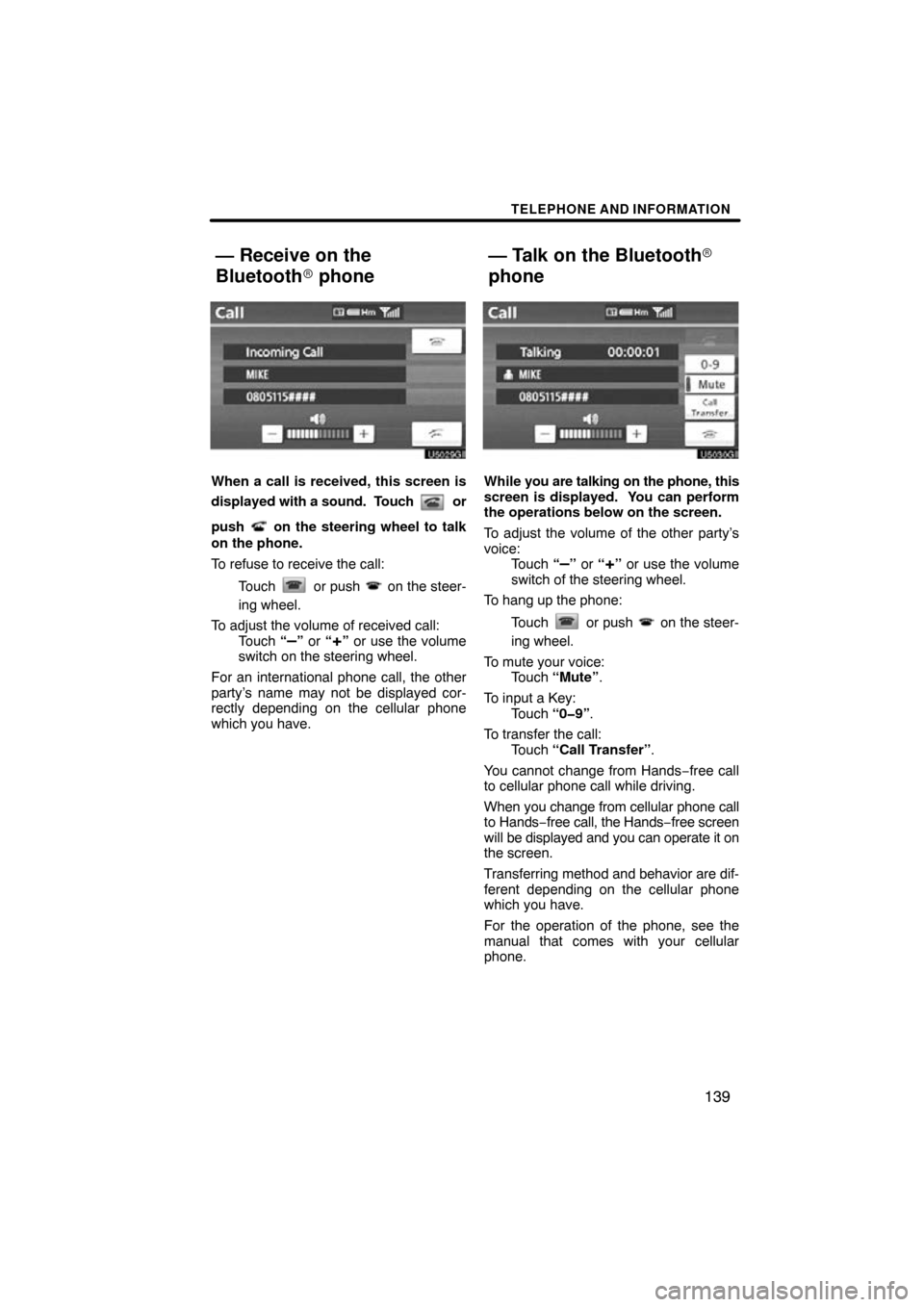

When a call is received, this screen is
displayed with a sound. Touch
or
push
on the steering wheel to talk
on the phone.
To refuse to receive the call:
Touch
or push on the steer-
ing wheel.
To adjust the volume of received call: Touch “
–” or “+” or use the volume
switch on the steering wheel.
For an international phone call, the other
party’s name may not be displayed cor-
rectly depending on the cellular phone
which you have.
While you are talking on the phone, this
screen is displayed. You can perform
the operations below on the screen.
To adjust the volume of the other party’s
voice: Touch “
–” or “+” or use the volume
switch of the steering wheel.
To hang up the phone:
Touch
or push on the steer-
ing wheel.
To mute your voice: Touch “Mute” .
To input a Key: Touch “09” .
To transfer the call: Touch “Call Transfer” .
You cannot change from Hands −free call
to cellular phone call while driving.
When you change from cellular phone call
to Hands −free call, the Hands −free screen
will be displayed and you can operate it on
the screen.
Transferring metho d and behavior are dif-
ferent depending on the cellular phone
which you have.
For the operation of the phone, see the
manual that comes with your cellular
phone.
— Receive on the
Bluetooth  phone
— Talk on the Bluetooth
phone

TELEPHONE AND INFORMATION
140

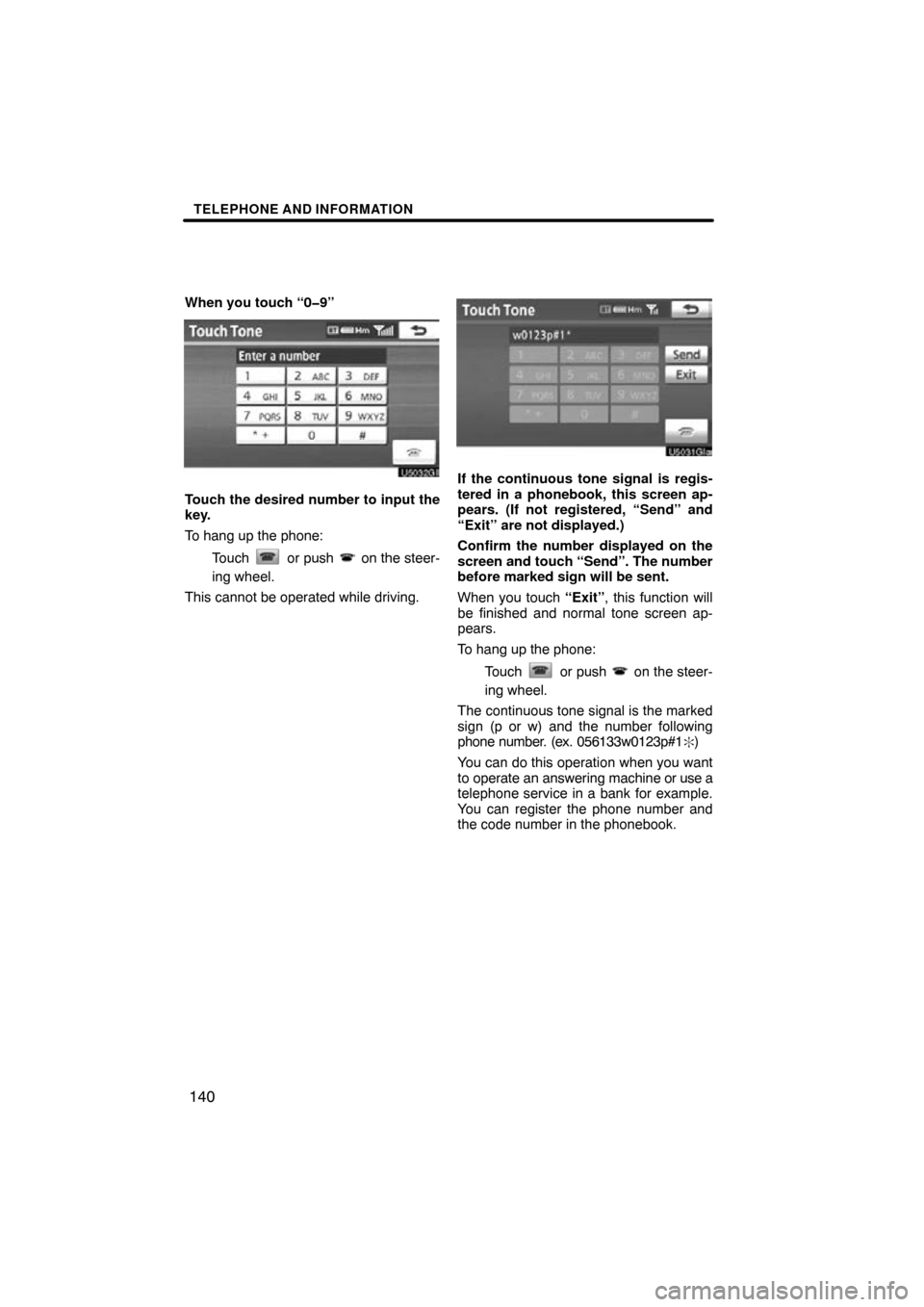

When you touch “09”
Touch the desired number to input the
key.
To hang up the phone:Touch
or push on the steer-
ing wheel.
This cannot be operated while driving.
If the continuous tone signal is regis-
tered in a phonebook, this screen ap-
pears. (If not registered, “Send” and
“Exit” are not displayed.)
Confirm the number displayed on the
screen and touch “Send”. The number
before marked sign will be sent.
When you touch “Exit”, this function will
be finished and normal tone screen ap-
pears.
To hang up the phone:
Touch
or push on the steer-
ing wheel.
The continuous tone signal is the marked
sign (p or w) and the number following
phone number. (ex. 056133w0123p#1
)
You can do this operation when you want
to operate an answering machine or use a
telephone service in a bank for example.
You can register the phone number and
the code number in the phonebook.

TELEPHONE AND INFORMATION
141

By voice recognition
You can operate “Mute” and “Send
Tones” by giving a command during a
call.
The operating
procedure is similar to other
voice recognition. (For the operation of
voice recognition, see “Speech command
system” on page 44.)
Interrupt call
When a connected call is interrupted by
a third party, this screen is displayed.
Touch
or push on the steering
wheel to start talking with the other party.
Touch
or push on the steering
wheel to refuse the call.

TELEPHONE AND INFORMATION
143

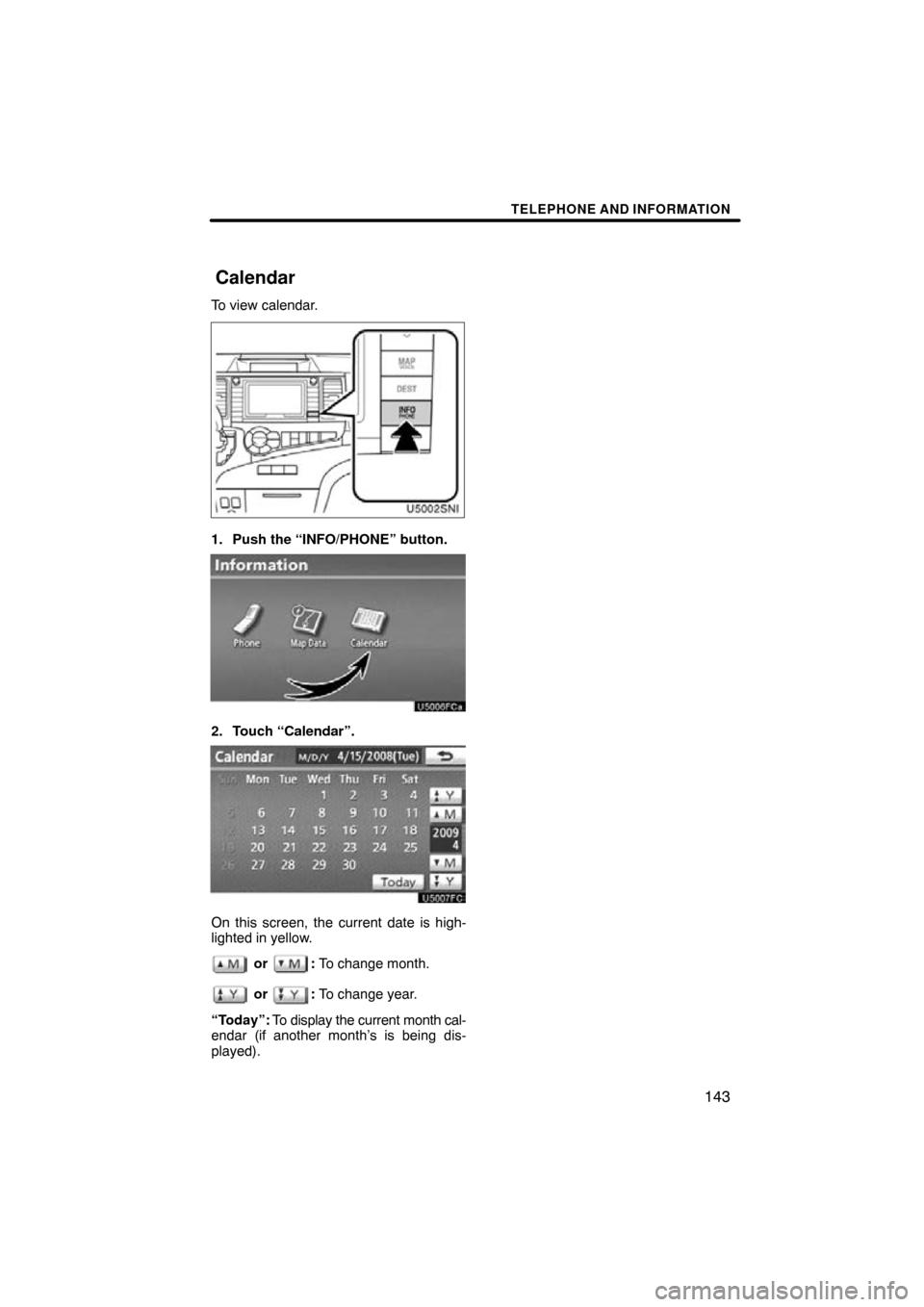

To view calendar.
1. Push the “INFO/PHONE” button.
2. Touch “Calendar”.
On this screen, the current date is high-
lighted in yellow.
or : To change month.
or : To change year.
“Today”: To display the current month cal-
endar (if another month’s is being dis-
played).
Calendar

AUDIO/VIDEO SYSTEM
146

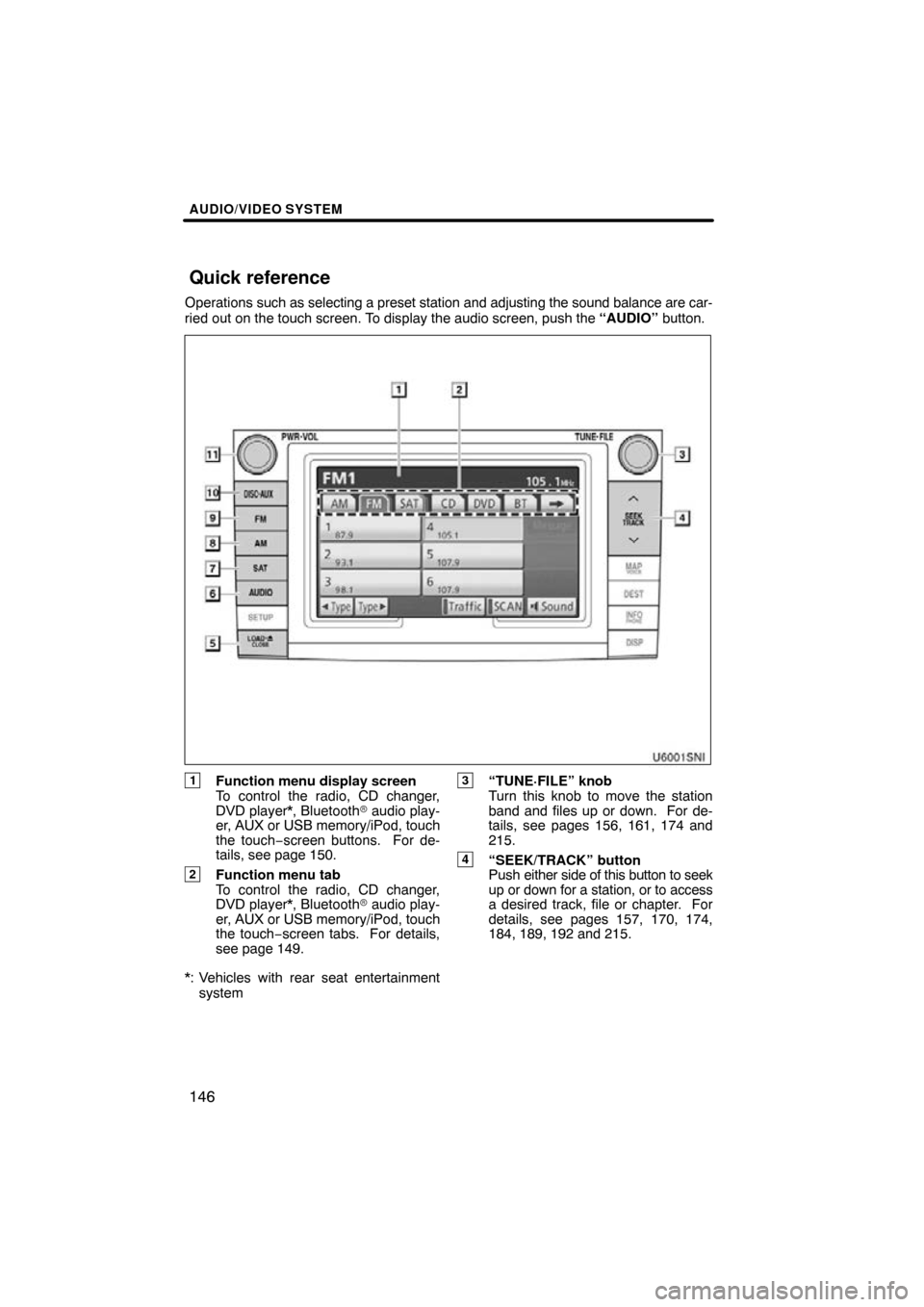

Operations such as selecting a preset station and adjusting the sound balance are c\
ar-
ried out on the touch screen. To display the audio screen, push the “AUDIO” button.
1Function menu display screen
To control the radio, CD changer,
DVD player*, Bluetooth  audio play-
er, AUX or USB memory/iPod, touch
the touch−screen buttons. For de-
tails, see page 150.
2Function menu tab
To control the radio, CD changer,
DVD player*, Bluetooth  audio play-
er, AUX or USB memory/iPod, touch
the touch−screen tabs. For details,
see page 149.
*: Vehicles with rear seat entertainment system
3“TUNE·FILE” knob
Turn this knob to move the station
band and files up or down. For de-
tails, see pages 156, 161, 174 and
215.
4“SEEK/TRACK” button
Push either side of this button to seek
up or down for a station, or to access
a desired track, file or chapter. For
details, see pages 157, 170, 174,
184, 189, 192 and 215.
Quick reference
