ad blue TOYOTA SIENNA 2014 XL30 / 3.G Navigation Manual

7
4 My Places
Navigation settings102
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Setting up the “Home” 103 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting up the “Preset Destinations” 105
. . . . . . . . . . . . . . . . . . . . . .
Setting up the “Address Book” 108
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting up the “Areas to Avoid” 114
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting previous destinations 119
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Telephone and Information
Telephone (Handsfree system for cellular phone) 122
. . . . . . . . .
Enter a Bluetooth  phone 126 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Call on the Bluetooth  phone 132 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Receive on the Bluetooth  phone 139 . . . . . . . . . . . . . . . . . . . . . . . .
Talk on the Bluetooth  phone 139 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Calendar 143 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
6 Audio/video system
Quick reference 146
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Using your audio/video system 147
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Some basics 147
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Radio operation 155
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
CD changer operation 166
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth  audio operation 178
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DVD player operation 186
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USB memory/iPod operation 212
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video remote controls 219
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video system operating hints 221
. . . . . . . . . . . . . . . . . . . . . . . . .
7 Rear View Monitor System
Rear view monitor system 232
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8
8 Setup
General settings252
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Clock settings 257
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Voice settings 259
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Navigation settings 261
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Detailed navigation settings 261
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Telephone settings 270
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Volume setting 271
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Manage phone 272
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Phonebook 280
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Setting the phonebook 281
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speed dials setting 289
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting call history 296
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the voice tag 297
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth  301
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Details 306
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Audio settings 309
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Select portable player 309
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Settings Bluetooth  audio 311
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle settings 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Maintenance 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
9 Appendix
Limitations of the navigation system 324
. . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 326
. . . . . . . . . . . . . . . . . . .
Changing the map DVD −ROM 335
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Index 339
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
For information about the optional “Rear seat entertainment system”,
please refer to the Owner’s Manual.

19
During route guidancePage
Pausing route guidance91
Adjusting route guidance volume260
Deleting the destination71, 85
Displaying the entire route map87
Useful functions
Address bookPage
Registering your own address book entries108
Marking icons on the map11 0
InformationPage
Displaying vehicle maintenance316
Displaying the calendar143
Handsfree system (for cellular phone)Page
Initiating Bluetooth126
Making a call on the Bluetooth  phone132
Receiving a call on the Bluetooth  phone139
Speech command systemPage
Operating the system with your voice44

22
The items shown on the “Setup” screen can be set. To display the “Setup” screen, push
the “SETUP” button.
1“General”
Settings are available for language selec-
tion, operation sounds, automatic screen
change, etc. 252 . . . . . . . . . . . . . . . . . . . .
2“Clock”
Used for changing settings for time zones,
daylight saving time, etc. 257 . . . . . . . . .
3“Voice”
Voice guidance can be set. 259 . . . . . . .
4“Navi.”
Settings are available for average cruising
speed, displayed screen contents, POI
icon categories, etc. 261 . . . . . . . . . . . . .
5“Vehicle”
Settings are available for vehicle informa-
tion such as maintenance information. 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6“Audio”
Settings are available for portable audio
devices, Bluetooth  audio devices etc.
309
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7“Phone”
Bluetooth  phones and phone numbers
can be registered, and the receiver volume
can be adjusted. 270 . . . . . . . . . . . . . . . .
Quick reference (“Setup” screen)

SECTION 5
TELEPHONE AND INFORMATION
121
TELEPHONE AND INFORMATION
Telephone (Handsfree system for cellular phone) 122
. . . . .
Enter a Bluetooth  phone 126
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Call on the Bluetooth  phone 132
. . . . . . . . . . . . . . . . . . . . . . . . .
Receive on the Bluetooth  phone 139
. . . . . . . . . . . . . . . . . . . . .
Talk on the Bluetooth phone 139
. . . . . . . . . . . . . . . . . . . . . . . . .
 Calendar 143
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .

TELEPHONE AND INFORMATION
122
Handsfree system allows you to make
or receive a call without taking your
hands off the steering wheel by con-
necting your cellular phone.
This system supports Bluetooth .
Bluetooth  is a wireless data system by
which you can call without your cellular
phone being connected with a cable or
placed on a cradle.
If your cellular phone does not support
Bluetooth , this system can not function.
The operating procedure of the phone is
explained here.
For registering and setting of the phone,
see “Telephone settings” on page 270.
CAUTION
While driving, do not use a cellular
phone or connect the Bluetooth
phone.
An antenna for the Bluetooth  con-
nection is built in the instrument
panel. People with implanted pace-
makers or cardiac defibrillators
should maintain a reasonable dis-
tance between themselves and the
Bluetooth  antennas. The radio
waves may affect the operation of
such devices.
Before using cellular phones, us-
ers of any electrical medical device
other than implanted pacemakers
and implanted cardiac defibrilla-
tors should consult the manufac-
turer of the device for information
about its operation under the influ-
ence of radio waves. Radio waves
could have unexpected effects on
the operation of such medical de-
vices.
NOTICE
Do not leave your cellular phone in
the car. The temperature inside may
be high and damage the phone.
INFORMATION
In the following conditions, the
system may not function.
 The cellular phone is turned off.
 The current position is outside
the communication area.
 The cellular phone is not connec-
ted.
 The cellular phone has a low bat-
tery.
Even if your cellular phone sup-
ports both handsfree and audio
Bluetooth  connections, it may not
be able to connect to the hands
free connection at the same time.
When using Bluetooth  audio and
handsfree at the same time, the
following problems may occur.
 The Bluetooth connection may
be cut.
 Noise may be heard on the
Bluetooth  audio playback.
Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
Telephone
(Handsfree system for
cellular phone)

TELEPHONE AND INFORMATION
123
INFORMATION
This system supports the following
service.
Bluetooth  Specification
Ver.1.1 or higher
(Recommended: Ver.2.0+EDR or
higher)
 Profiles
 HFP (Hands Free Profile)
Ver.1.0 or higher
(Recommended: Ver.1.5 or
higher)
 OPP (Object Push Profile)
Ver.1.1
 PBAP (Phone Book Access
Profile) Ver.1.0
If your cellular phone does not
support HFP, you cannot enter the
Bluetooth  phone, and take OPP or
PBAP service individually.
Please go to “http://www.toyota.
com/bluetooth” to find approved
Bluetooth  phones for this system.
By pushing the telephone switch above,
you can receive a call or hang up without
taking your hands off the steering wheel.
You can use the microphone above
when talking on the phone.
The other party’s voice outputs from the
front speaker. When the received calls or
received voice outputs, the audio from the
audio system or voice guidance from the
navigation system will be muted.

TELEPHONE AND INFORMATION
124
INFORMATION
Talk alternately with the other party
on the phone. If you talk at the same
time, the voice may not reach each
other. (It is not a malfunction.)
Keep the volume of receiving voice
down. Otherwise, echo is coming
up. When you talk on the phone,
speak clearly towards the micro-
phone.
In the following situations, your
voice may not reach the other
party.
 Driving on unpaved road. (Mak-
ing a traffic noise.)
 Driving at the high speed.
 The window is open.
 Turning the airconditioning
vents towards the microphone.
 The sound of the aircondition-
ing fan is loud.
 There is an effect from the net-
work of the cellular phone.
1Indicates the condition of
Bluetooth  connection.
“Blue” indicates an excellent connection
to Bluetooth .
“Yellow” indicates a bad connection to
Bluetooth , resulting in possible deteriora-
tion of voice quality.
: No connection to Bluetooth .
2Indicates the amount of battery
charge left.
Empty Full
This is not displayed when the Bluetooth
is not connected.
The amount left does not always corre-
spond with the one of your cellular phone.
The amount of battery charge left may not
be displayed depending on the phone you
have. This system doesn’t have a charg-
ing function.
3Indicates the receiving area.
“Rm” is displayed when receiving in
Roaming area.
“Hm” is displayed when receiving in
Home area.
The receiving area may not be displayed
depending on the phone you have.

TELEPHONE AND INFORMATION
125
4Indicates the level of reception.

Poor Excellent
The level of reception does not always cor-
respond with the one of your cellular
phone.
The level of reception may not be dis-
played depending on the phone you have.
When you are out of the service area or in
a place inaccessible by radio waves, “No
Service” is displayed.
An antenna for the Bluetooth  connec-
tion is built in the display. The indica-
tion of the Bluetooth connection may
turn yellow and the system may not
function when you use the Bluetooth
phone in the following conditions and
places.
Your cellular phone is hiding behind the
display (behind the seat or in the glove
box and console box).
Your cellular phone touches or is
covered with metal materials.
Leave the Bluetooth  phone on the place
where “Blue” indication is displayed. About the phonebook in this system
The following data is stored for every regis-
tered phone.
When another phone is con-
necting, you cannot read the registered
data.
Phonebook data
Voice tag
All of call history
Speed dial
When you delete the phone, the
above −mentioned data is also deleted.
When you release your car:
A lot of personal data is registered
when you use the Handsfree system.
When you release your car, initialize
your data. (See “ Delete personal
data” on page 256.)
If you initialize it, the former state will never
come back again. Pay much attention
when initializing the data.
You can initialize the following data in the
system.
Phonebook data
Call history data
Speed dial data
Voice tag data
Bluetooth  phone data
Volume setting
Details setting

TELEPHONE AND INFORMATION
126

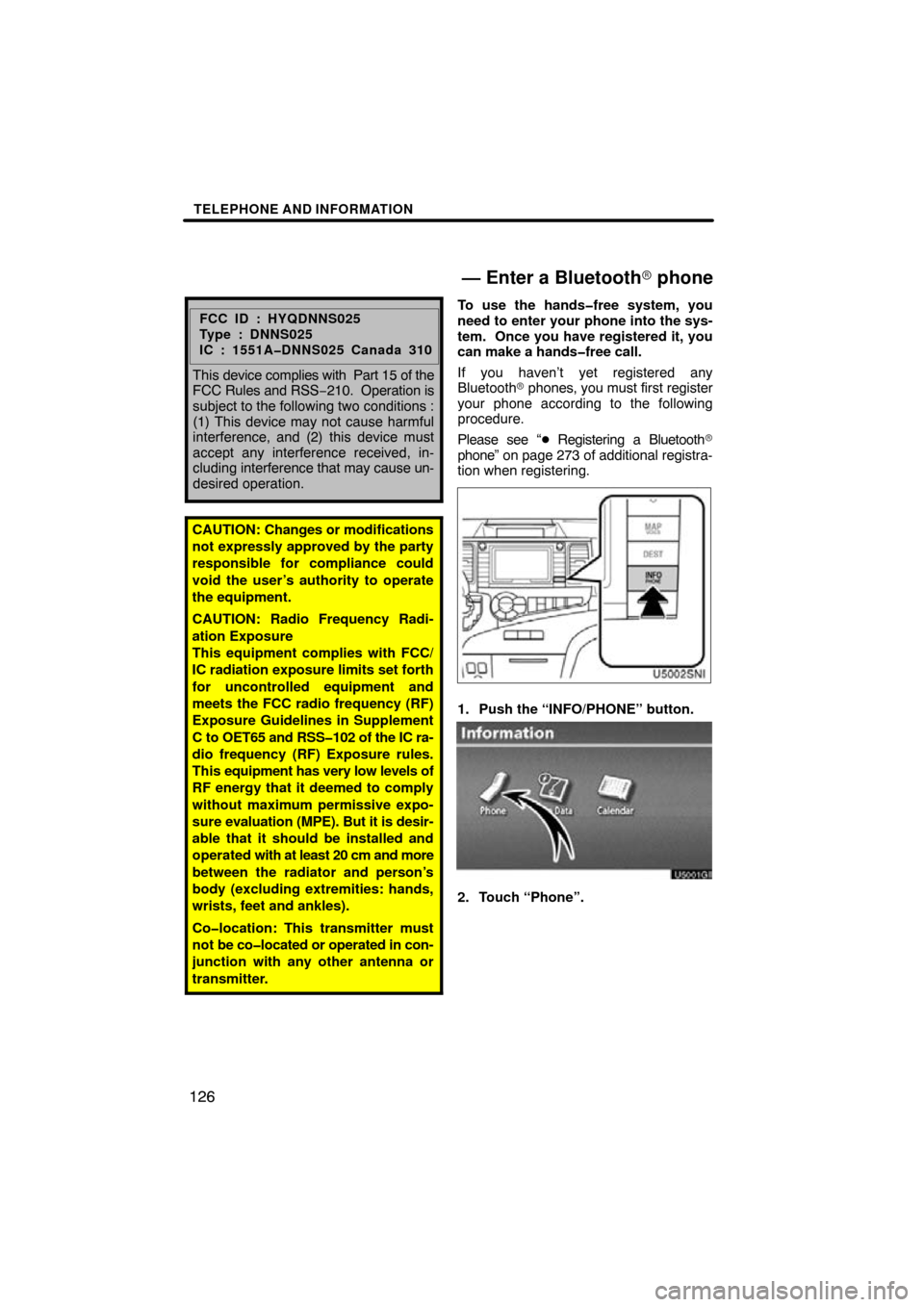

FCC ID : HYQDNNS025
Type : DNNS025
IC : 1551ADNNS025 Canada 310
This device complies with Part 15 of the
FCC Rules and RSS −210. Operation is
subject to the following two conditions :
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, in-
cluding interference that may cause un-
desired operation.
CAUTION: Changes or modifications
not expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the equipment.
CAUTION: Radio Frequency Radi-
ation Exposure
This equipment complies with FCC/
IC radiation exposure limits set forth
for uncontrolled equipment and
meets the FCC radio frequency (RF)
Exposure Guidelines in Supplement
C to OET65 and RSS102 of the IC ra-
dio frequency (RF) Exposure rules.
This equipment has very low levels of
RF energy that it deemed to comply
without maximum permissive expo-
sure evaluation (MPE). But it is desir-
able that it should be installed and
operated with at least 20 cm and more
between the radiator and person’s
body (excluding extremities: hands,
wrists, feet and ankles).
Colocation: This transmitter must
not be colocated or operated in con-
junction with any other antenna or
transmitter.
To use the handsfree system, you
need to enter your phone into the sys-
tem. Once you have registered it, you
can make a handsfree call.
If you haven’t yet registered any
Bluetooth  phones, you must first register
your phone according to the following
procedure.
Please see “  Registering a Bluetooth
phone” on page 273 of additional registra-
tion when registering.
1. Push the “INFO/PHONE” button.
2. Touch “Phone”.
— Enter a Bluetooth phone
