clock setting TOYOTA SIENNA 2014 XL30 / 3.G Navigation Manual

8
8 Setup
General settings252
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Clock settings 257
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Voice settings 259
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Navigation settings 261
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Detailed navigation settings 261
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Telephone settings 270
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Volume setting 271
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Manage phone 272
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Phonebook 280
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Setting the phonebook 281
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speed dials setting 289
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting call history 296
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the voice tag 297
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth  301
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Details 306
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Audio settings 309
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Select portable player 309
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Settings Bluetooth  audio 311
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle settings 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Maintenance 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
9 Appendix
Limitations of the navigation system 324
. . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 326
. . . . . . . . . . . . . . . . . . .
Changing the map DVD −ROM 335
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Index 339
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
For information about the optional “Rear seat entertainment system”,
please refer to the Owner’s Manual.

22
The items shown on the “Setup” screen can be set. To display the “Setup” screen, push
the “SETUP” button.
1“General”
Settings are available for language selec-
tion, operation sounds, automatic screen
change, etc. 252 . . . . . . . . . . . . . . . . . . . .
2“Clock”
Used for changing settings for time zones,
daylight saving time, etc. 257 . . . . . . . . .
3“Voice”
Voice guidance can be set. 259 . . . . . . .
4“Navi.”
Settings are available for average cruising
speed, displayed screen contents, POI
icon categories, etc. 261 . . . . . . . . . . . . .
5“Vehicle”
Settings are available for vehicle informa-
tion such as maintenance information. 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6“Audio”
Settings are available for portable audio
devices, Bluetooth  audio devices etc.
309
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7“Phone”
Bluetooth  phones and phone numbers
can be registered, and the receiver volume
can be adjusted. 270 . . . . . . . . . . . . . . . .
Quick reference (“Setup” screen)

AUDIO/VIDEO SYSTEM
156

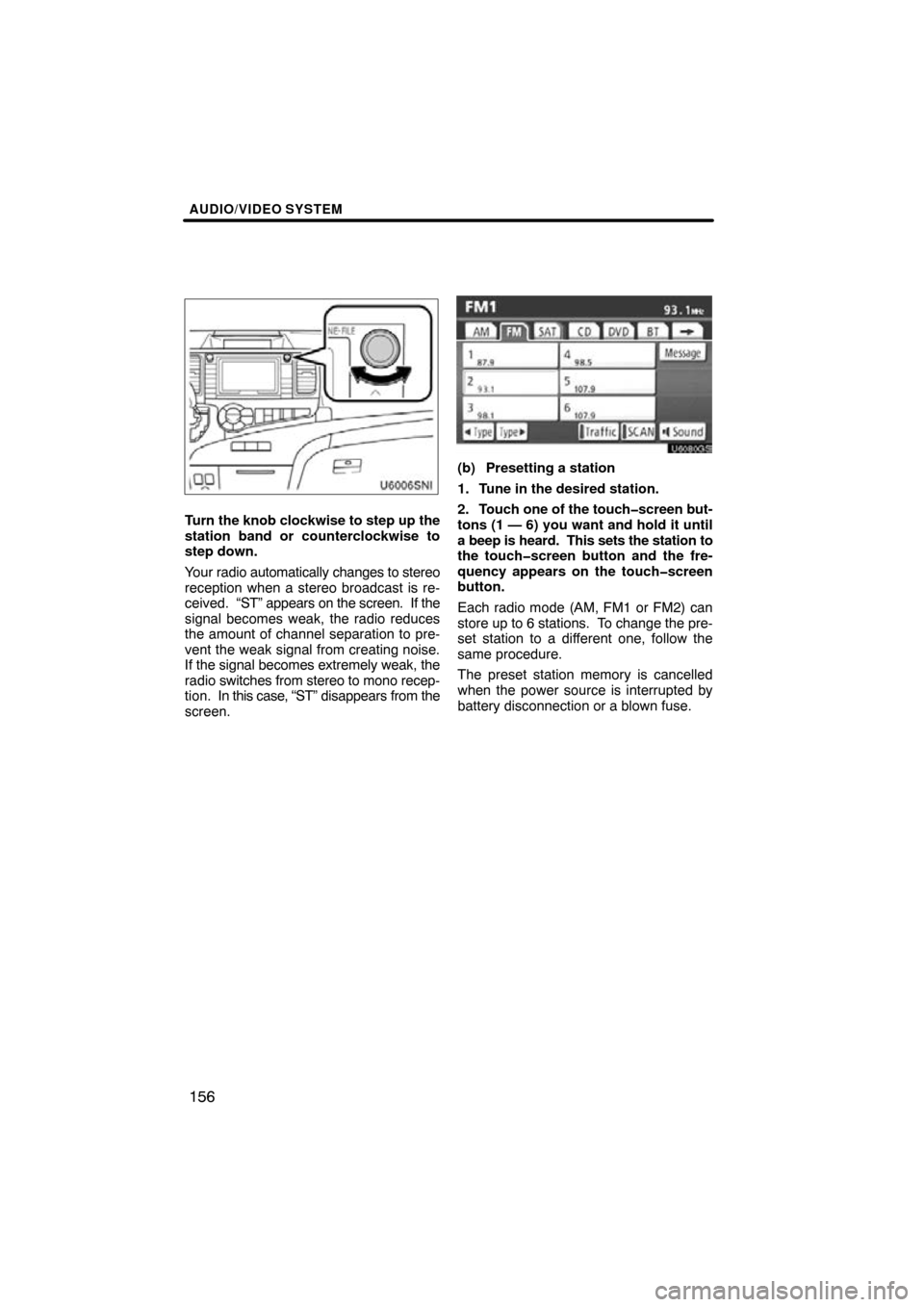

Turn the knob clockwise to step up the
station band or counterclockwise to
step down.
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the screen. If the
signal becomes weak, the radio reduces
the amount of channel separation to pre-
vent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion. In this case, “ST” disappears from the
screen.
U6080GS
(b) Presetting a station
1. Tune in the desired station.
2. Touch one of the touchscreen but-
tons (1 — 6) you want and hold it until
a beep is heard. This sets the station to
the touchscreen button and the fre-
quency appears on the touchscreen
button.
Each radio mode (AM, FM1 or FM2) can
store up to 6 stations. To change the pre-
set station to a different one, follow the
same procedure.
The preset station memory is cancelled
when the power source is interrupted by
battery disconnection or a blown fuse.

SECTION 8
SETUP
251
SETUP
General settings 252 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
(Used for language selection and the on/off settings of
operation sounds and automatic screen change.)
 Clock settings 257 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
(Used for changing time zones and the on/off settings of
daylight saving time.)
 Voice settings 259 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
(Voice guidance can be set.)
 Navigation settings 261 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(“Home” and “Preset Destinations” can be set and edited.)
 Detailed navigation settings 261 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(Average cruising speed, displayed screen contents,
and POI icon categories can be set.)
 Telephone settings 270 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(Bluetooth  phones can be registered.)
 Audio settings 309
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
(Settings are available for portable audio devices and
Bluetooth  audio devices players.)
 Vehicle settings 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
(Vehicle information can be set.)

SETUP
257

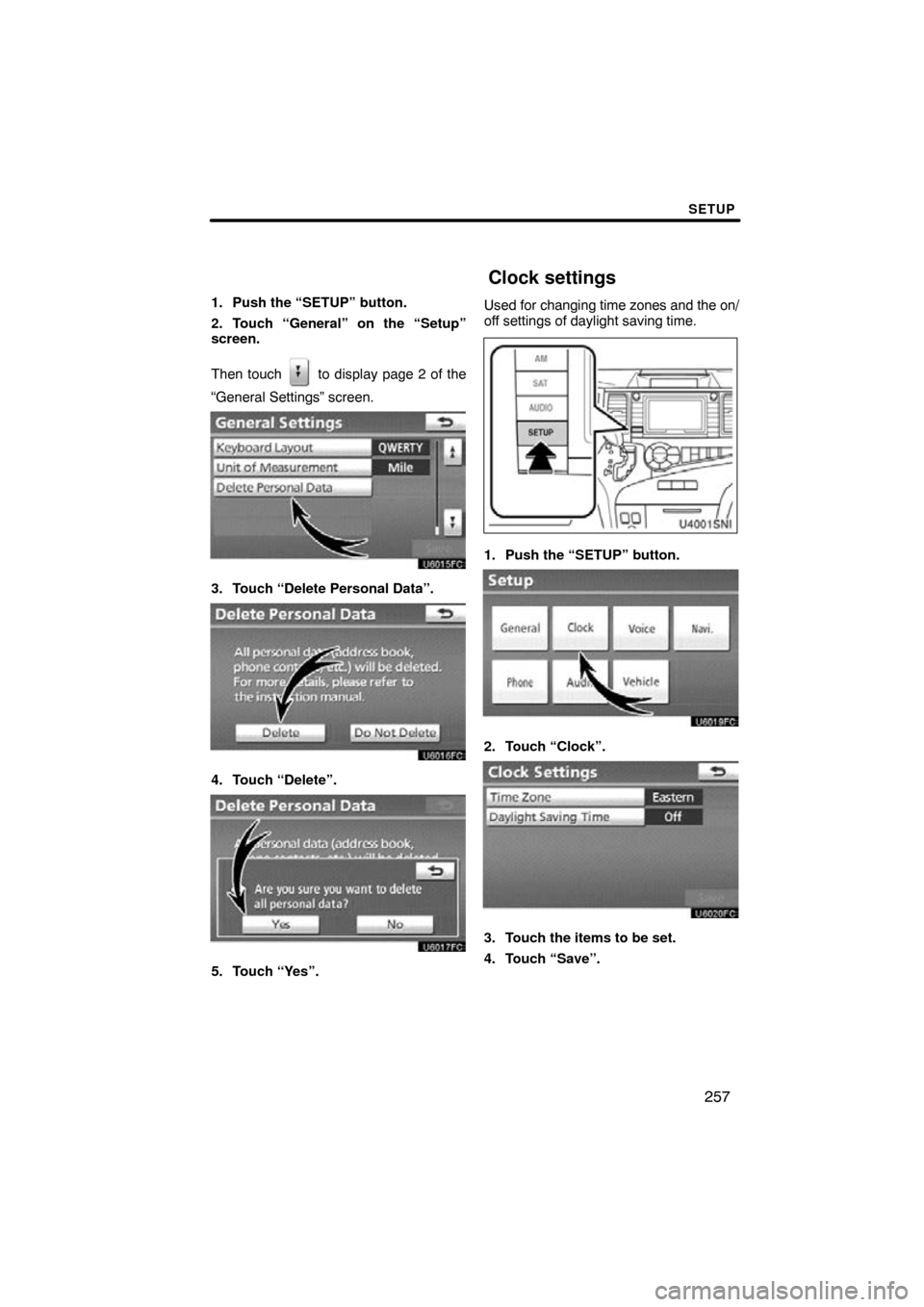

1. Push the “SETUP” button.
2. Touch “General” on the “Setup”
screen.
Then touch
to display page 2 of the
“General Settings” screen.
3. Touch “Delete Personal Data”.
4. Touch “Delete”.
5. Touch “Yes”. Used for
changing time zones and the on/
off settings of daylight saving time.
1. Push the “SETUP” button.
2. Touch “Clock”.
3. Touch the items to be set.
4. Touch “Save”.
Clock settings

SETUP
258

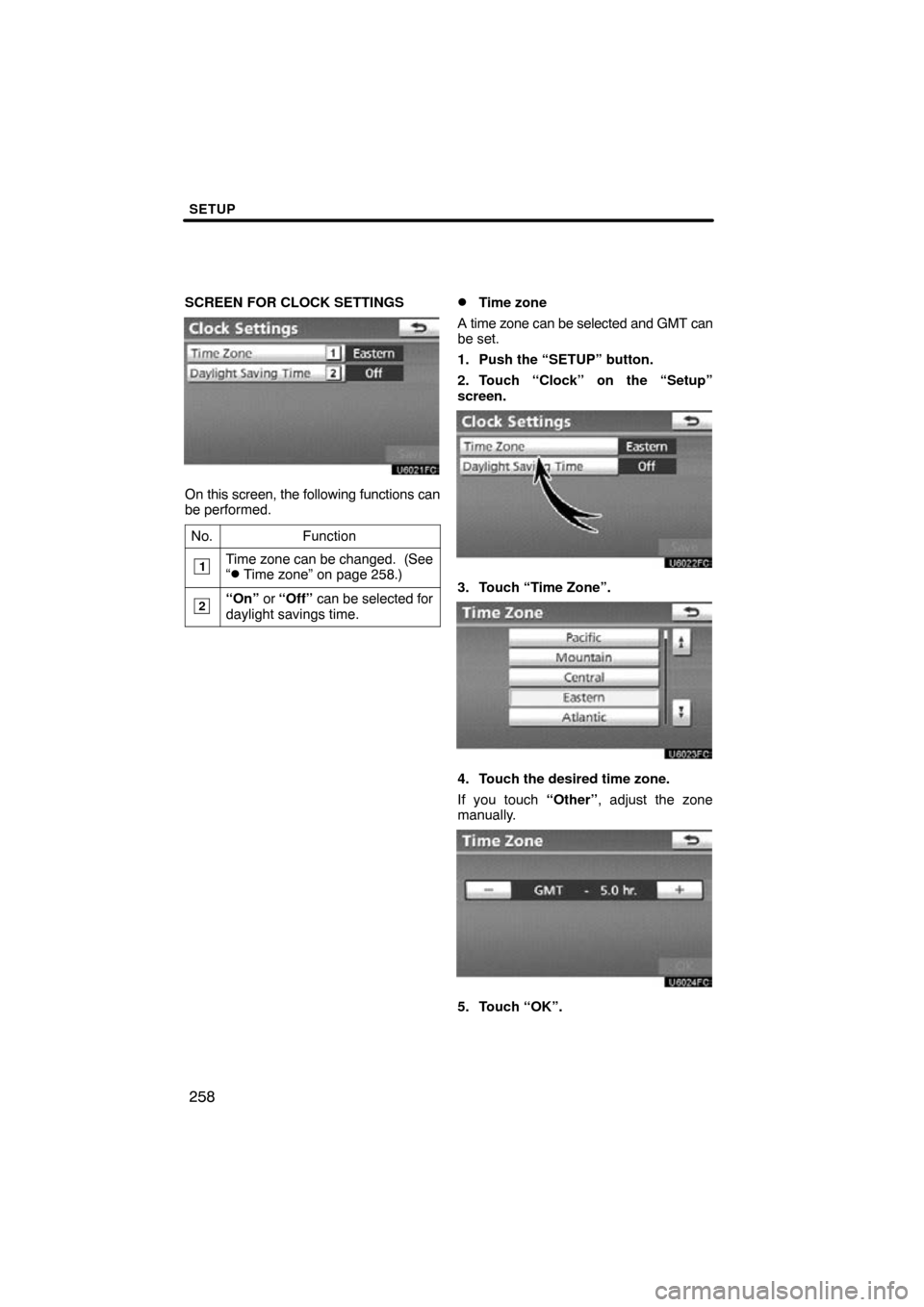

SCREEN FOR CLOCK SETTINGS
On this screen, the following functions can
be performed.No.
Function
1Time zone can be changed. (See
“ Time zone” on page 258.)
2“On” or “Off” can be selected for
daylight savings time.
Time zone
A time zone can be selected and GMT can
be set.
1. Push the “SETUP” button.
2. Touch “Clock” on the “Setup”
screen.
3. Touch “Time Zone”.
4. Touch the desired time zone.
If you touch “Other”, adjust the zone
manually.
5. Touch “OK”.

INDEX
341
Change “Icon”111
. . . . . . . . . . . . . . . . . . . . .
Change “Location” 113, 118
. . . . . . . . . . . . . .
Change “Name” 117
. . . . . . . . . . . . . . . . . . . .
Change “Phone #” 113
. . . . . . . . . . . . . . . . . .
Change “Show Name” 112
. . . . . . . . . . . . . .
Change “Size” 118
. . . . . . . . . . . . . . . . . . . . .
Changing a device name 310
. . . . . . . . . . . .
Changing the angle 201
. . . . . . . . . . . . . . . . .
Changing the audio language 201 . . . . . . . .
Changing the Bluetooth  settings 302 . . . . .
Changing the device name 315
. . . . . . . . . .
Changing the handsfree power 302 . . . . . . .
Changing the map DVD −ROM 335 . . . . . . .
Changing the passcode 315
. . . . . . . . . . . . .
Changing the subtitle language 200 . . . . . . .
Chapter 211
. . . . . . . . . . . . . . . . . . . . . . . . . . .
City center 62
. . . . . . . . . . . . . . . . . . . . . . . . .
City name 55, 60
. . . . . . . . . . . . . . . . . . . . . . .
City to search 55, 60
. . . . . . . . . . . . . . . . . . . .
Clock button 22, 257
. . . . . . . . . . . . . . . . . . .
Clock settings 257
. . . . . . . . . . . . . . . . . . . . . .
Color 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Command list 47
. . . . . . . . . . . . . . . . . . . . . . .
Compass mode 41
. . . . . . . . . . . . . . . . . . . . .
Compass mode screen 39, 41
. . . . . . . . . . .
Connecting a Bluetooth
audio player 181, 314
. . . . . . . . . . . . . . . .
Connecting a Bluetooth  phone 128 . . . . . .
Contacts 133, 284
. . . . . . . . . . . . . . . . . . . . .
Contrast 31
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Coordinates button 20, 71
. . . . . . . . . . . . . . .
Current position display 33
. . . . . . . . . . . . . .
Current position/tire change calibration 267
. . . . . . . . . . . . . . . . . . . . . . .
Cursor position as a destination 34 . . . . . . .
Cursor position as an address book entry 35
. . . . . . . . . . . . .
Customize POI icons 262
. . . . . . . . . . . . . . . D
Database version 337
. . . . . . . . . . . . . . . . . .
Dayligth saving time 258
. . . . . . . . . . . . . . . .
Dealer setting 319
. . . . . . . . . . . . . . . . . . . . . .
Default
202, 263, 267, 272, 305, 308, 316
. . . . .
Del. Dest. button 20, 71
. . . . . . . . . . . . . . . . .
Delete personal data 252, 256
. . . . . . . . . . .
Deleting a Bluetooth  phone 279
. . . . . . . . .
Deleting address book entries 114 . . . . . . . .
Deleting areas to avoid 119
. . . . . . . . . . . . . .
Deleting call history 296
. . . . . . . . . . . . . . . . .
Deleting destinations 85
. . . . . . . . . . . . . . . .
Deleting home 105
. . . . . . . . . . . . . . . . . . . . .
Deleting preset destinations 108
. . . . . . . . .
Deleting previous destinations 119 . . . . . . .
Deleting set destinations 71, 85
. . . . . . . . . .
Deleting the phonebook data 287 . . . . . . . .
Deleting the speed dial 295
. . . . . . . . . . . . . .
Deleting the voice tag 301
. . . . . . . . . . . . . . .
Description of DVD controls 199
. . . . . . . . .
Description of settings 198
. . . . . . . . . . . . . .
Description of video CD controls 208 . . . . .
Description of video CD settings 207 . . . . . .
DEST button 10, 12, 14, 16, 17, 20, 52 . . . .
Destination information 38
. . . . . . . . . . . . . . .
Destination screen 20, 52
. . . . . . . . . . . . . . .
Destination search 51, 52
. . . . . . . . . . . . . . .
Destination search by “Address” 55 . . . . . . .
Destination search by
“Address Book” 66
. . . . . . . . . . . . . . . . . . .
Destination search by “Coordinates” 71 . . .
Destination search by “Emergency” 66 . . . .
Destination search by “Intersection & Freeway” 67
. . . . . . . . . . .
Destination search by “Map” 70
. . . . . . . . . .
Destination search by “Point of Interest” 59
. . . . . . . . . . . . . . . . . .
Destination search by “Previous Destinations” 65
. . . . . . . . . . . .
Destination search by Home 54
. . . . . . . . . .
Destination search by
Preset destinations 54
. . . . . . . . . . . . . . . .
Detailed navigation settings 261
. . . . . . . . . .
Details 306
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Detour setting 86
. . . . . . . . . . . . . . . . . . . . . . .
Dialing by name 137
. . . . . . . . . . . . . . . . . . . .
13/02/20 SIENNA (Mid)_Navi_U
OM45485U

INDEX
345
S
Safety instruction
3
. . . . . . . . . . . . . . . . . . . . .
SAT button 146, 149, 155, 161
. . . . . . . . . .
SAT tab 149, 161
. . . . . . . . . . . . . . . . . . . . . .
Satellite radio channel category 161 . . . . . .
Satellite radio tuner malfunctions 164 . . . . .
Satellite tuner 160
. . . . . . . . . . . . . . . . . . . . . .
Scale indicator 10, 42
. . . . . . . . . . . . . . . . . . .
SCAN button 171, 176, 190, 193, 194, 217
. . . . . . . . . .
Screen adjustment 31
. . . . . . . . . . . . . . . . . .
Screen configuration button 10, 39 . . . . . . . .
Screen for navigation settings 262 . . . . . . . .
Screen for voice settings 259
. . . . . . . . . . . .
Screen layout function 267
. . . . . . . . . . . . . .
Screen off 31
. . . . . . . . . . . . . . . . . . . . . . . . . .
Screen scroll operation 34
. . . . . . . . . . . . . . .
Screen size 153
. . . . . . . . . . . . . . . . . . . . . . . .
Screens for clock settings 258
. . . . . . . . . . .
Screens for general settings 252
. . . . . . . . .
Search area 52
. . . . . . . . . . . . . . . . . . . . . . . .
Search by “Address Book” 66
. . . . . . . . . . . .
Search by “Address” 55
. . . . . . . . . . . . . . . . .
Search by “Category” 61
. . . . . . . . . . . . . . . .
Search by “Coordinates” 71
. . . . . . . . . . . . .
Search by “Emergency” 66
. . . . . . . . . . . . . .
Search by “Intersection & Freeway” 67 . . . .
Search by “Map” 70
. . . . . . . . . . . . . . . . . . . .
Search by “Name” 59
. . . . . . . . . . . . . . . . . . .
Search by “Phone #” 64
. . . . . . . . . . . . . . . . .
Search by “Point of Interest” 59
. . . . . . . . . .
Search by “Previous Destinations” 65 . . . . .
Search by Freeway Entrance/Exit 69 . . . . .
Search by Home 54
. . . . . . . . . . . . . . . . . . . .
Search by Intersection 68
. . . . . . . . . . . . . . .
Search by Preset destinations 54 . . . . . . . .
Search by street address 57
. . . . . . . . . . . . .
Search point from along my route 62 . . . . .
Search point from near a destination 63 . . .
Search point from near city center 62 . . . . .
Search point from near here 62
. . . . . . . . . .
Searching by title 200
. . . . . . . . . . . . . . . . . . .
Searching by track 209
. . . . . . . . . . . . . . . . .
Searching for a desired disc 171
. . . . . . . . .
Searching for a desired file 176, 193, 217
. . . . . . . . . . . . . . . . . . . . . . .
Searching for a desired folder 176, 194, 217
. . . . . . . . . . . . . . . . . . . . . . .
Searching for a desired track 171, 190 . . .
SEEK/TRACK button 146, 157, 162, 170, 174,
. . . . . . . . . . . . .
184, 189, 192, 200, 209,215 Select POI icons
266
. . . . . . . . . . . . . . . . . . .
Select portable player 309
. . . . . . . . . . . . . . .
Select route features 90
. . . . . . . . . . . . . . . . .
Select route type 89
. . . . . . . . . . . . . . . . . . . .
Selecting a Bluetooth  phone 275 . . . . . . . .
Selecting a city to search 55, 60
. . . . . . . . . .
Selecting a desired album 185
. . . . . . . . . . .
Selecting a desired disc 169
. . . . . . . . . . . . .
Selecting a desired file 174, 192
. . . . . . . . .
Selecting a desired file or track 215 . . . . . . .
Selecting a desired folder 173, 191, 214 . .
Selecting a desired track 170, 184, 189 . . .
Selecting a keyboard layout 255
. . . . . . . . .
Selecting a language 253
. . . . . . . . . . . . . . .
Selecting a menu item 199
. . . . . . . . . . . . . .
Selecting a play mode 213
. . . . . . . . . . . . . .
Selecting a satellite radio channel 162 . . . .
Selecting a station 157
. . . . . . . . . . . . . . . . . .
Selecting connection method 311 . . . . . . . .
Selecting from the categories 61
. . . . . . . . .
Selecting from the last 5 cities 63 . . . . . . . .
Selecting the desired mode 149, 219 . . . . .
Selecting the line color 254
. . . . . . . . . . . . . .
Selecting the search area 52
. . . . . . . . . . . .
Setting and deleting destinations 84 . . . . . .
Setting Bluetooth  audio 311
. . . . . . . . . . . .
Setting home as the destination 17 . . . . . . .
Setting route 86
. . . . . . . . . . . . . . . . . . . . . . . .
Setting the phonebook 281
. . . . . . . . . . . . . .
Setting the voice tag 297
. . . . . . . . . . . . . . . .
Setting up the “Address Book” 108 . . . . . . .
Setting up the “Areas to Avoid” 114 . . . . . . .
Setting up the “Home” 103
. . . . . . . . . . . . . .
Setting up the “Preset Destinations” 105
. . . . . . . . . . . . .
Setup 251
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SETUP button
10, 22, 102, 252, 257, 259,
. . . . . . . . . . .
261, 270, 309, 316
Setup menu 202
. . . . . . . . . . . . . . . . . . . . . . .
Setup operation from the rear seat 206 . . . .
Setup screen 22
. . . . . . . . . . . . . . . . . . . . . . .
Show free flowing traffic 98, 262, 265 . . . . .
Show on map 92
. . . . . . . . . . . . . . . . . . . . . . .
Show on Map button 10, 92, 96
. . . . . . . . . .
Show XM  NavTraffic
information 98, 99
. . . . . . . . . . . . . . . . . . . .
Single map 40
. . . . . . . . . . . . . . . . . . . . . . . . .
Single map screen 39, 40
. . . . . . . . . . . . . . .
Sort 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sound icons 111
. . . . . . . . . . . . . . . . . . . . . . .
Speech command system 44, 148 .
. . . . . .
Speed dial 134, 290, 294, 295
. . . . . . . . . . .
Speed dials setting 289
. . . . . . . . . . . . . . . . .
