TOYOTA SIENNA 2014 XL30 / 3.G Owners Manual

191
1
1-7. Safety information
Before driving
SIENNA_OM_OM45483U_(U)
Child restraint systems
Points to rememberStudies have shown that installing a child restraint system on a rear
seat is much safer than installing one on the front passenger seat.
● Choose a child restraint system th at suits your vehicle and is
appropriate to the age and size of the child.
● For installation details, follow the instructions provided with the
child restraint system.
General installation instructions are provided in this manual.
( P.196)
A child restraint system for a small child or baby must itself be prop-
erly restrained on the seat with the lap portion of the lap/shoulder
belt.
The laws of all 50 states of U.S.A. and Canada now require the use of
child restraint systems.

192 1-7. Safety information
SIENNA_OM_OM45483U_(U)
Types of child restraintsChild restraint systems are clas sified into the following 3 types
according to the age and size of the child:
Rear facing  Infant seat/convertible seat
Forward facing  Convertible seat
Booster seat

193
1-7. Safety information
1
Before driving
SIENNA_OM_OM45483U_(U)
■
Selecting an appropriat e child restraint system
● Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
● If the child is too large for a child restraint system, sit the child on a rear
seat and use the vehicle’s seat belt. ( P. 129)
CAUTION
■Child restraint precautions
●For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
● Never install a rear-facing child restraint system on the front passenger
seat even if the “AIR BAG OFF” indicator light is illuminated. In the event
of an accident, the force of the rapid inflation of the front passenger airbag
can cause death or serious injury to the child if the rear-facing child
restraint system is installed on the front passenger seat.
● A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint system that
requires a top tether strap should not be used in the front passenger seat
since there is no top tether strap anchor for the front passenger seat.
Adjust the seatback as uprights as possible and always move the seat as
far back as possible even if the “AIR BAG OFF” indicator light is illumi-
nated, because the front passenger airbag could inflate with considerable
speed and force. Otherwise, the child may be killed or seriously injured.

194 1-7. Safety information
SIENNA_OM_OM45483U_(U)
CAUTION
■Child restraint precautions
●Do not use the seat belt extender when installing a child restraint system
on the front or rear passenger seat. If installing a child restraint system
with the seat belt extender connected to the seat belt, the seat belt will not
securely hold the child restraint system, which could cause death or seri-
ous injury to the child or other passengers in the event of a sudden stop,
sudden swerve or an accident.
● Do not allow the child to lean his/her head or any part of his/her body
against the side door or the area of the seat, front and side pillars or roof
side rail from which the SRS side airbags or curtain shield airbags deploy
even if the child is seated in the child restraint system. It is dangerous if
the SRS side airbags and curtain shield airbags inflate, and the impact
could cause death or serious injury to the child.
● Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or an accident.

195
1-7. Safety information
1
Before driving
SIENNA_OM_OM45483U_(U)
CAUTION
■
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ When the child restrain t system is not in use
● Keep the child restraint system properly secured on the seat even if it is
not in use.
Do not store the restraint unsecured in the passenger compartment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. This will prevent it
from injuring passengers in the event of a sudden stop, sudden swerve or
an accident.

196
1-7. Safety information
SIENNA_OM_OM45483U_(U)

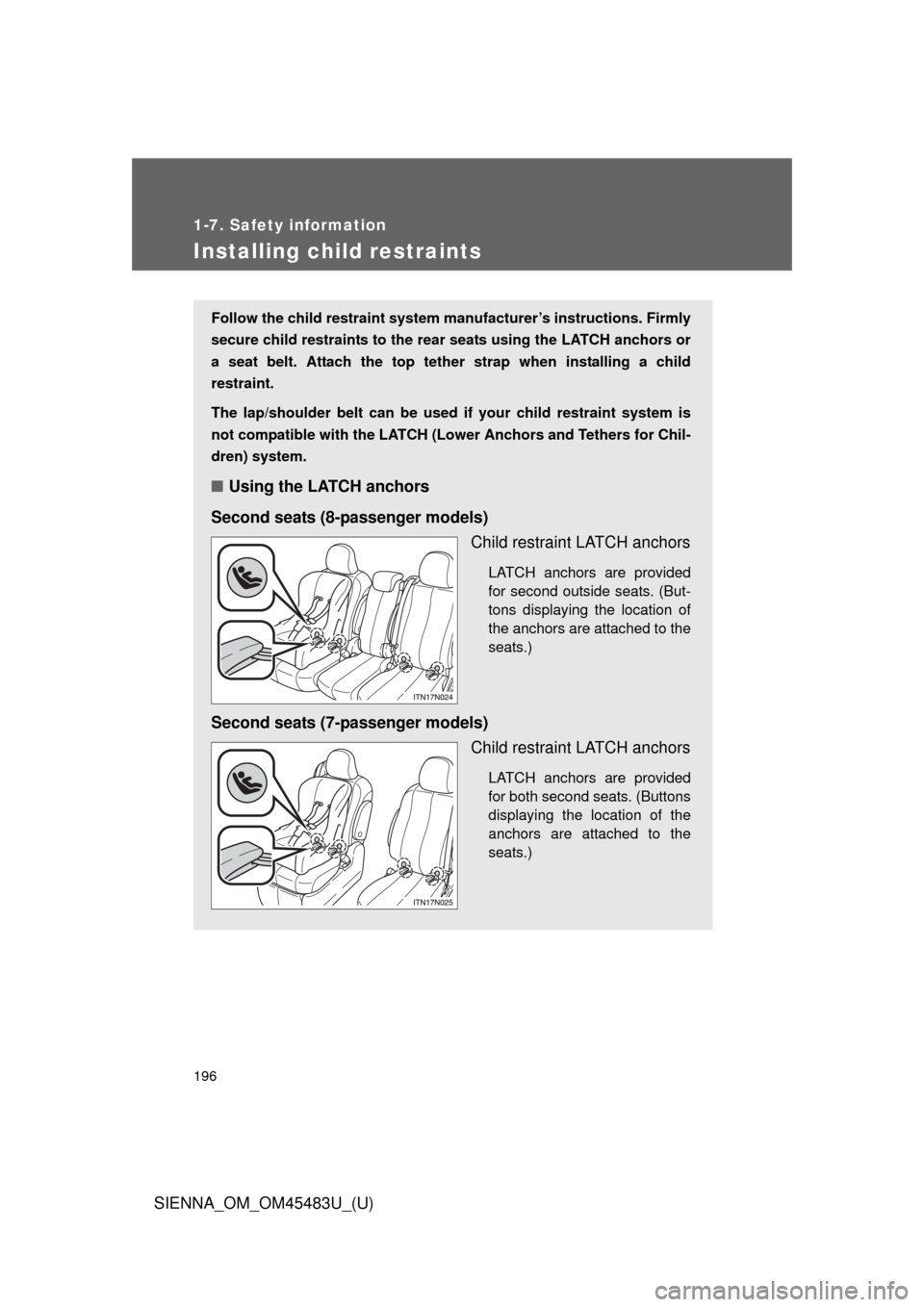

Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the r ear seats using the LATCH anchors or
a seat belt. Attach the top teth er strap when installing a child
restraint.
The lap/shoulder belt can be used if your child restraint system is
not compatible with the LATCH (Low er Anchors and Tethers for Chil-
dren) system.
■ Using the LATCH anchors
Second seats (8-passenger models) Child restraint LATCH anchors
LATCH anchors are provided
for second outside seats. (But-
tons displaying the location of
the anchors are attached to the
seats.)
Second seats (7-passenger models)Child restraint LATCH anchors
LATCH anchors are provided
for both second seats. (Buttons
displaying the location of the
anchors are attached to the
seats.)

197
1-7. Safety information
1
Before driving
SIENNA_OM_OM45483U_(U)

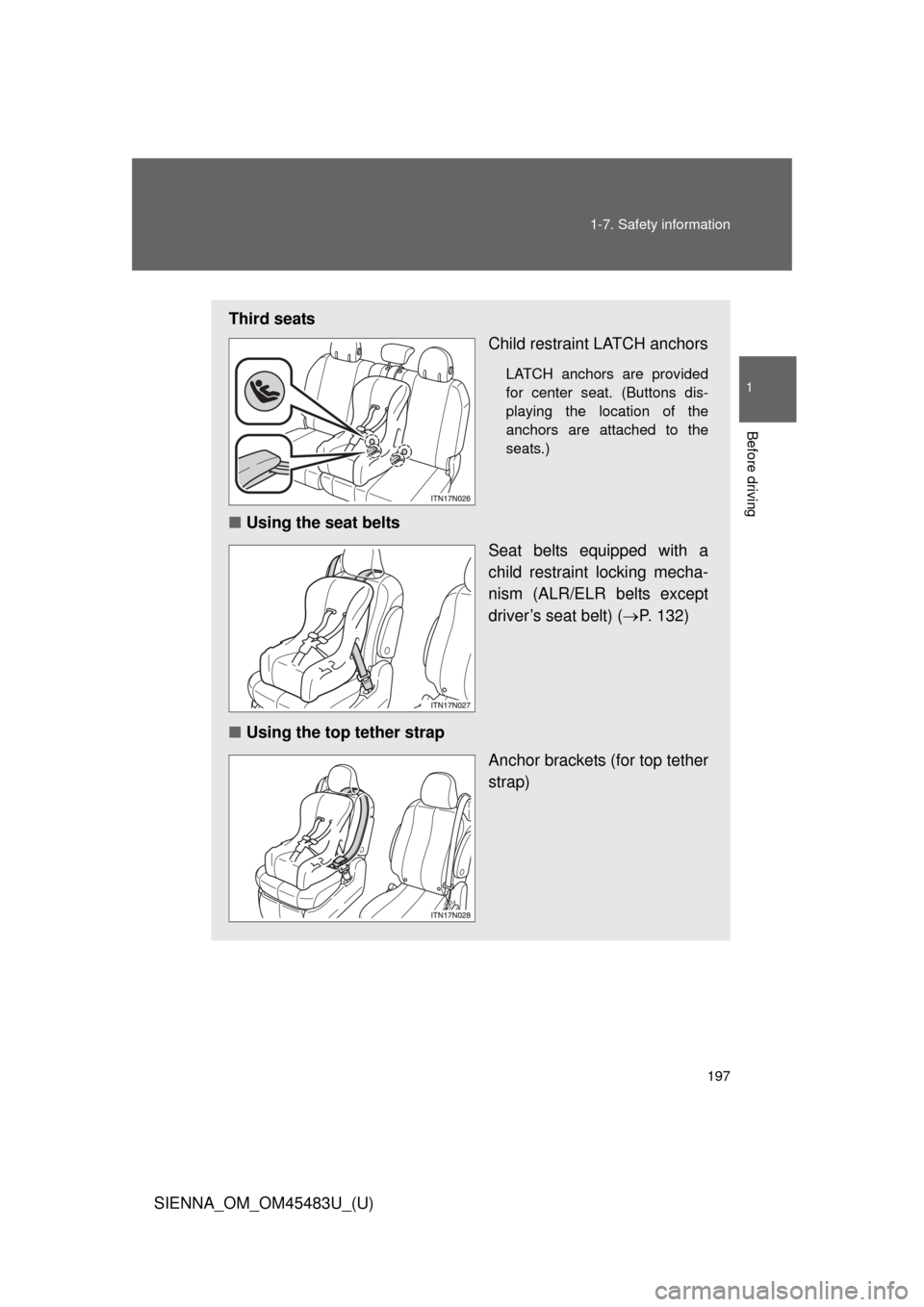

Third seats
Child restraint LATCH anchors
LATCH anchors are provided
for center seat. (Buttons dis-
playing the location of the
anchors are attached to the
seats.)
■Using the seat belts
Seat belts equipped with a
child restraint locking mecha-
nism (ALR/ELR belts except
driver’s seat belt) (P. 132)
■ Using the top tether strap
Anchor brackets (for top tether
strap)

198 1-7. Safety information
SIENNA_OM_OM45483U_(U)

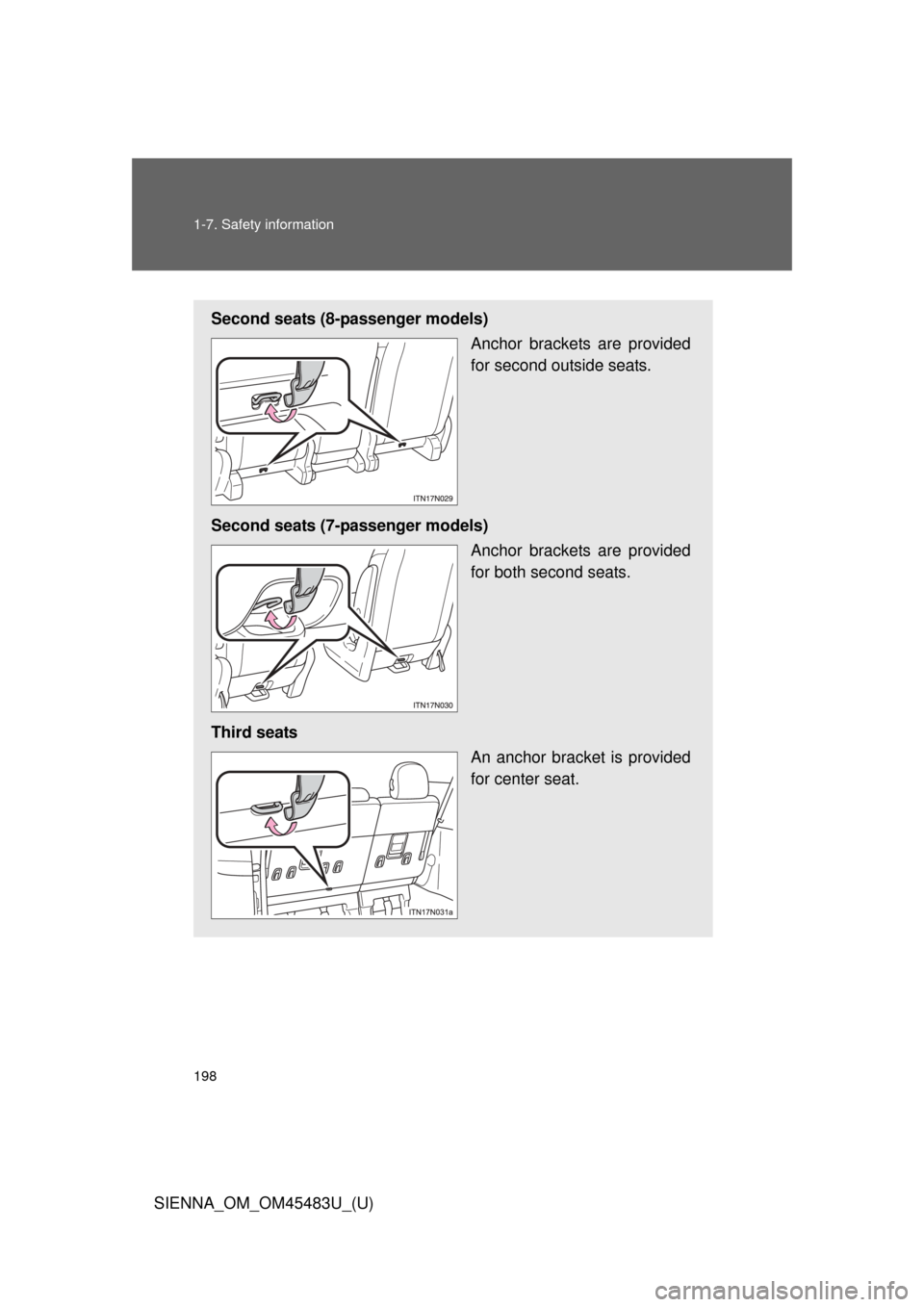

Second seats (8-passenger models)Anchor brackets are provided
for second outside seats.
Second seats (7-passenger models) Anchor brackets are provided
for both second seats.
Third seats An anchor bracket is provided
for center seat.

199
1-7. Safety information
1
Before driving
SIENNA_OM_OM45483U_(U)
Installation with LATCH system (second seat)
Fold the seatback while pulling
the lever and move to the rear-
most recline position.
Widen the gap between the seat cushion and seatback
slightly.
Ty p e A Latch the buckles onto the
LATCH anchors. If the child
restraint has a top tether strap,
the top tether strap should be
latched onto the top tether strap
anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
STEP1
STEP2
Canada only
STEP3

200 1-7. Safety information
SIENNA_OM_OM45483U_(U)Ty p e B
Latch the hooks of the lower
straps onto the LATCH anchors.
If the child restraint has a top
tether strap, the top tether strap
should be latched onto the top
tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
STEP3
Canada only
