remote control TOYOTA SIENNA 2014 XL30 / 3.G Owners Manual

TABLE OF CONTENTSIndex
2
SIENNA_OM_OM45483U_(U)
1-1. Key informationKeys ..................................... 32
1-2. Opening, closing and locking the doors
Smart key system................. 36
Wireless remote control ....... 53
Front doors ........................... 60
Sliding doors ........................ 67
Back door ............................. 82
1-3. Adjustable components (seats, mirrors, steering
wheel)
Front seats ........................... 95
Rear seats .......................... 100
Driving position memory..... 121
Head restraints ................... 126
Seat belts ........................... 129
Steering wheel ................... 138
Inside rear view mirror........ 139
Outside rear view mirrors .............................. 141 1-4. Opening and closing the
windows and moon roof
Power windows................... 145
Quarter windows................. 149
Moon roof ........................... 151
1-5. Refueling Opening the fuel tank cap .................................... 156
1-6. Theft deterrent system Engine immobilizer system .............................. 160
Alarm .................................. 163
Theft prevention labels (for U.S.A.) ....................... 167
1-7. Safety information Correct driving posture ....... 168
SRS airbags ....................... 170
Front passenger occupant classification system ......... 185
Child restraint systems ....... 191
Installing child restraints ..... 196
1Before driving

TABLE OF CONTENTSIndex
6
SIENNA_OM_OM45483U_(U)
4-1. Maintenance and careCleaning and protecting the vehicle exterior ........... 648
Cleaning and protecting the vehicle interior ............ 653
4-2. Maintenance Maintenance requirements .................... 657
General maintenance ......... 660
Emission inspection and maintenance (I/M)
programs .......................... 664
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ...................... 665
Hood................................... 669
Positioning a floor jack ....... 671
Engine compartment .......... 673
Tires ................................... 688
Tire inflation pressure......... 699
Wheels ............................... 703
Air conditioning filter ........... 706
Wireless remote control/ electronic key battery ....... 708
Checking and replacing fuses ................................ 711
Light bulbs .......................... 724 5-1. Essential information
Emergency flashers ............ 736
If your vehicle needs to be towed ....................... 737
If you think something is wrong ............................ 741
Fuel pump shut off system .............................. 742
5-2. Steps to take in an emergency If a warning light turns on or a warning buzzer
sounds... .......................... 743
If a warning message is displayed .......................... 758
If you have a flat tire (vehicles with
run-flat tires) ..................... 759
If you have a flat tire (vehicles with
standard tires) .................. 761
If the engine will not start ............................ 776
If the shift lever cannot be shifted from P .............. 778
If you lose your keys ........... 780
If the electronic key does not operate properly ......... 781
If the battery is discharged ........................ 784
If your vehicle overheats..... 790
If the vehicle becomes stuck ................................. 793
If your vehicle has to be stopped in an
emergency........................ 795
4Maintenance and care5When trouble arises

SIENNA_OM_OM45483U_(U)
18
Pictorial indexInstrument panel
B
Talk switch* P. 551
Audio remote control
switches
 P. 479
Telephone switch* P. 551
Distance switch P. 302
Engine (ignition) switch
(vehicles without a smart key system)
P. 228
Cruise control switch P. 297, 302

Before driving1

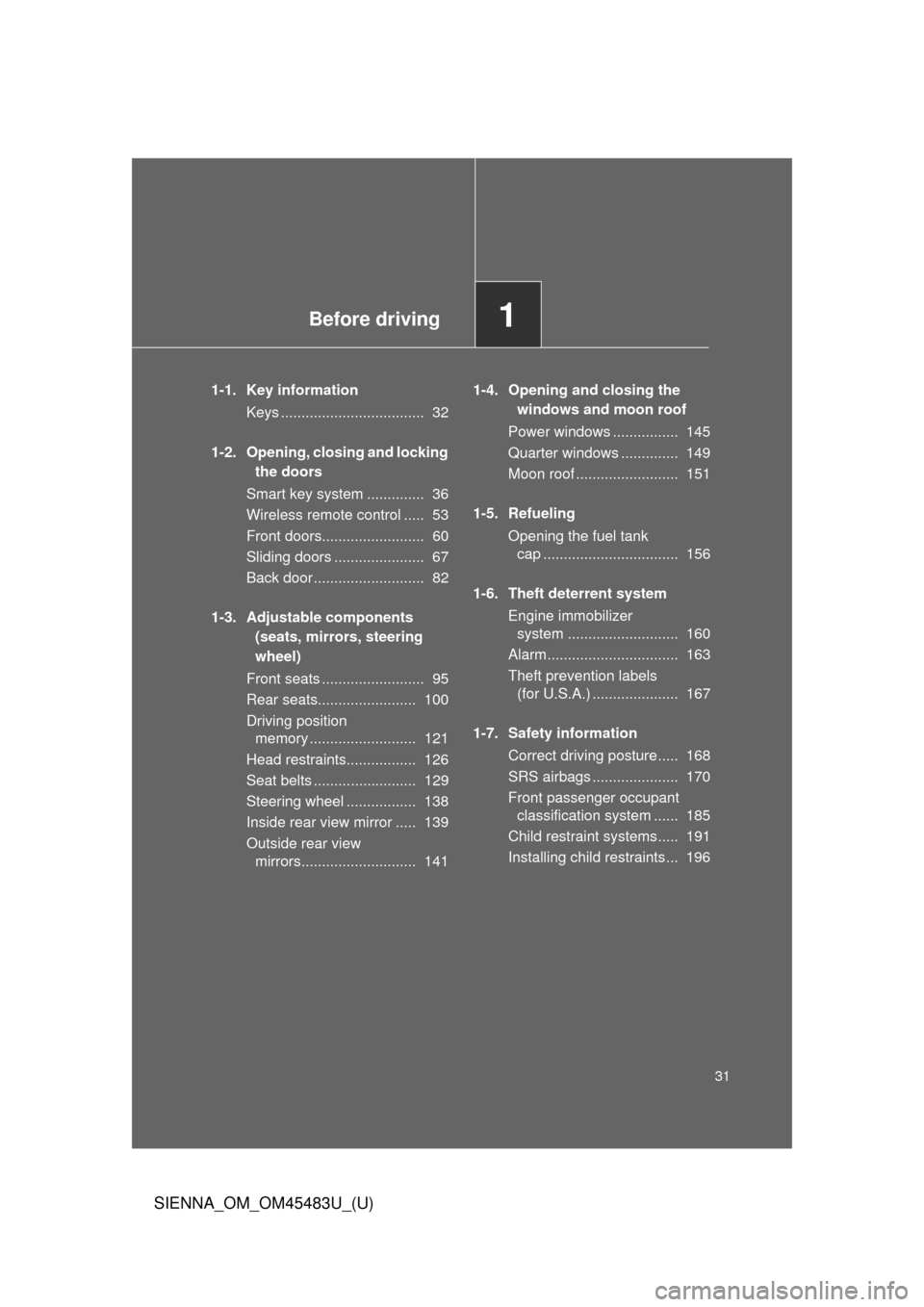

31
SIENNA_OM_OM45483U_(U)
1-1. Key informationKeys ................................... 32
1-2. Opening, closing and locking the doors
Smart key system .............. 36
Wireless remote control ..... 53
Front doors......................... 60
Sliding doors ...................... 67
Back door ........................... 82
1-3. Adjustable components (seats, mirrors, steering
wheel)
Front seats ......................... 95
Rear seats........................ 100
Driving position memory .......................... 121
Head restraints................. 126
Seat belts ......................... 129
Steering wheel ................. 138
Inside rear view mirror ..... 139
Outside rear view mirrors............................ 141 1-4. Opening and closing the
windows and moon roof
Power windows ................ 145
Quarter windows .............. 149
Moon roof ......................... 151
1-5. Refueling Opening the fuel tank cap ................................. 156
1-6. Theft deterrent system Engine immobilizer system ........................... 160
Alarm................................ 163
Theft prevention labels (for U.S.A.) ..................... 167
1-7. Safety information Correct driving posture..... 168
SRS airbags ..................... 170
Front passenger occupant classification system ...... 185
Child restraint systems..... 191
Installing child restraints... 196

32
SIENNA_OM_OM45483U_(U)
1-1. Key information

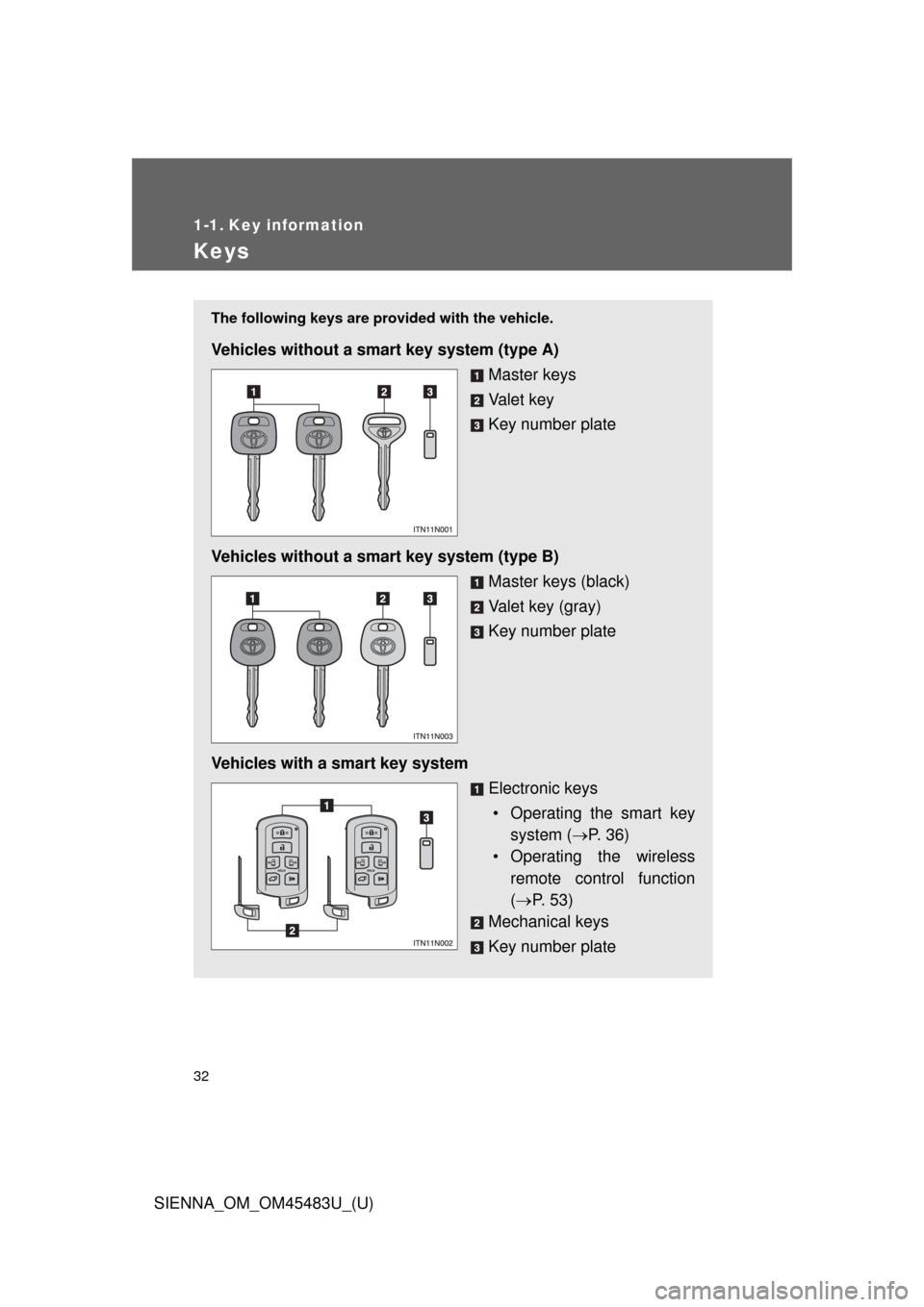

Keys
The following keys are provided with the vehicle.
Vehicles without a smart key system (type A)
Master keys
Va l e t k e y
Key number plate
Vehicles without a smart key system (type B) Master keys (black)
Valet key (gray)
Key number plate
Vehicles with a smart key system Electronic keys• Operating the smart key system ( P. 36)
• Operating the wireless
remote control function
( P. 53)
Mechanical keys
Key number plate

34 1-1. Key information
SIENNA_OM_OM45483U_(U)
■When required to leave the vehicle ’s key with a parking attendant
Lock the glove box as circumstances demand. ( P. 589)
On vehicles without the smart key system, provide the attendant with the
valet key.
On vehicles with the smart key system, remove the mechanical key for your
own use and provide the attendant with the electronic key only.
■ Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key (without a smart key system) or mechanical key (with a
smart key system) is lost, a new key can be made by your Toyota dealer
using the key number plate. ( P. 780)
■ When riding in an aircraft
When bringing a key with wireless remote control function onto an aircra\
ft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons
are not likely to be pressed accidentally. Pressing a button may cause the
key to emit radio waves that could interfere with the operation of the a\
ircraft.

44 1-2. Opening, closing and locking the doors
SIENNA_OM_OM45483U_(U)
■Switching the door unlock function
It is possible to set which doors the entry function unlocks using the wireless
remote control.
Turn the “ENGINE START STOP” switch off.
When the indicator on the key surface is not on, press and hold
, , , or for about 5 seconds while pressing
and holding .
The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at least
5 seconds, and repeat .)
For vehicles equipped with an alarm, to prevent unintended triggering of the\
alarm, unlock the doors using the wireless remote control and open and
close a door once after the settings have been changed. (If a door is not
opened within 60 seconds after is pressed, the doors will be locked
again and the alarm will automatically be set.)
In case that the alarm is triggered, immediately stop the alarm. (P. 163)
STEP1
STEP2
STEP2
Multi-information display Unlocking functionBeep
Holding the driver’s door
handle unlocks only the
driver’s door and driver
side power sliding door. Exterior: Beeps three
times
Interior: Pings once
Holding the front passen-
ger’s door handle or pull-
ing either power sliding
door handle unlocks all
doors.
Holding either front door
handle or pulling either
power sliding door handle
unlocks all doors. Exterior: Beeps twice
Interior: Pings once

45
1-2. Opening, closing and locking the doors
1
Before driving
SIENNA_OM_OM45483U_(U)
■
Battery-saving function
In the following circumstances, the entry function is disabled in order to pre-
vent the vehicle battery from discharging and the electronic key battery from
discharging.
●When the entry function has not been used for 5 days or more
● When the electronic key has been left within approximately 6 ft. (2 m) of
the vehicle for 10 minutes or more
● If the entry function has not been used for 14 days or more, the vehicle
cannot be unlocked by a door other than the driver’s door. To unlock the
vehicle, grip the driver’s door handle or use the wireless remote control
or the mechanical key.
The system will resume operation when...
● The vehicle is locked using the lock sensor when carrying the electronic
key on your person.
● The vehicle is locked/unlocked using the wireless remote control.
( P. 5 3 )
● The vehicle is locked/unlocked using the mechanical key. ( P. 781)

46 1-2. Opening, closing and locking the doors
SIENNA_OM_OM45483U_(U)
■Conditions affecting operation
The smart key system uses weak radio waves. In the following situations,
the communication between the electronic key and the vehicle may be
affected, preventing the smart key system and wireless remote control from
operating properly. (Way of coping P. 781)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
● When carrying a portable radio, ce llular phone, cordless phone or other
wireless communication devices
● When the electronic key is in contact with, or is covered by the following
objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
● When multiple electronic keys are in the vicinity
● When another wireless key (that emits radio waves) is being used nearby
● When carrying or using the electronic key together with the following
devices that emit radio waves
• Another vehicle’s electronic key
• A wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems

47
1-2. Opening, closing and locking the doors
1
Before driving
SIENNA_OM_OM45483U_(U)
●
If window tint with a metallic content or metallic objects are attached to
the rear window
● Vehicles with AUTO ACCESS SEAT: If the wireless remote control of the
AUTO ACCESS SEAT is operated simultaneously, the AUTO ACCESS
SEAT may not operate properly.
For details, refer to “AUTO ACCESS SEAT OWNER’S MANUAL”.
■ Notes for the entry function
●Even when the electronic key is within the effective range (detection
areas), the system may not operate properly in the following cases.
• The electronic key is too close to the window or outside door handle,
near the ground, or in a high place when the doors are locked or
unlocked.
• The electronic key is on the instrument panel, floor or in the glove box when the engine is started or “ENGINE START STOP” switch modes
are changed.
● Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave
reception conditions, it may be detected by the antenna outside the cabin
and the door will become lockable from the outside, possibly trapping the
electronic key inside the vehicle.
● As long as the electronic key is within the effective range, the doors may
be locked or unlocked by anyone. However, only the doors detecting the
electronic key can be used to unlock the vehicle.
● The doors may unlock or lock if a large amount of water splashes on the
door handle, such as in the rain or in a car wash when the electronic key
is within the effective range. (The doors will automatically be locked after
approximately 60 seconds if the doors are not opened and closed.)
● If the wireless remote control is used to lock the doors when the elec-
tronic key is near the vehicle, there is a possibility that the door may not
be unlocked by the smart key system. (Use the wireless remote control to
unlock the doors.)
● If power slide door is unable to operate due to prohibition by the power
sliding door main switch, the door unlock and open operation will not be
performed. ( P. 70)
