TOYOTA SIENNA 2015 XL30 / 3.G Navigation Manual

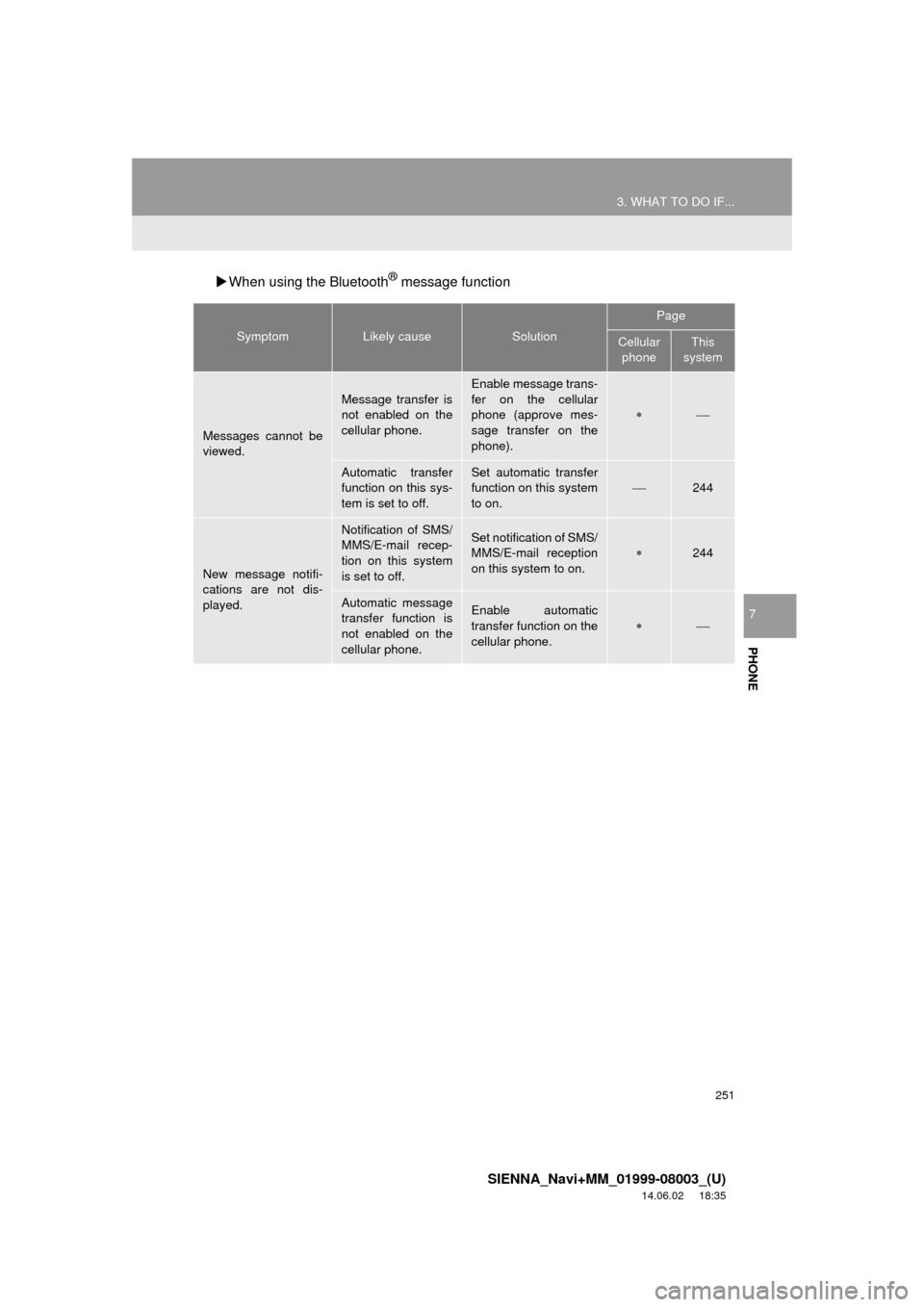

251
3. WHAT TO DO IF...
SIENNA_Navi+MM_01999-08003_(U)
14.06.02 18:35
PHONE
7
When using the Bluetooth® message function
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
Messages cannot be
viewed.
Message transfer is
not enabled on the
cellular phone.
Enable message trans-
fer on the cellular
phone (approve mes-
sage transfer on the
phone).

Automatic transfer
function on this sys-
tem is set to off.Set automatic transfer
function on this system
to on.
244
New message notifi-
cations are not dis-
played.
Notification of SMS/
MMS/E-mail recep-
tion on this system
is set to off.Set notification of SMS/
MMS/E-mail reception
on this system to on.
244
Automatic message
transfer function is
not enabled on the
cellular phone.Enable automatic
transfer function on the
cellular phone.


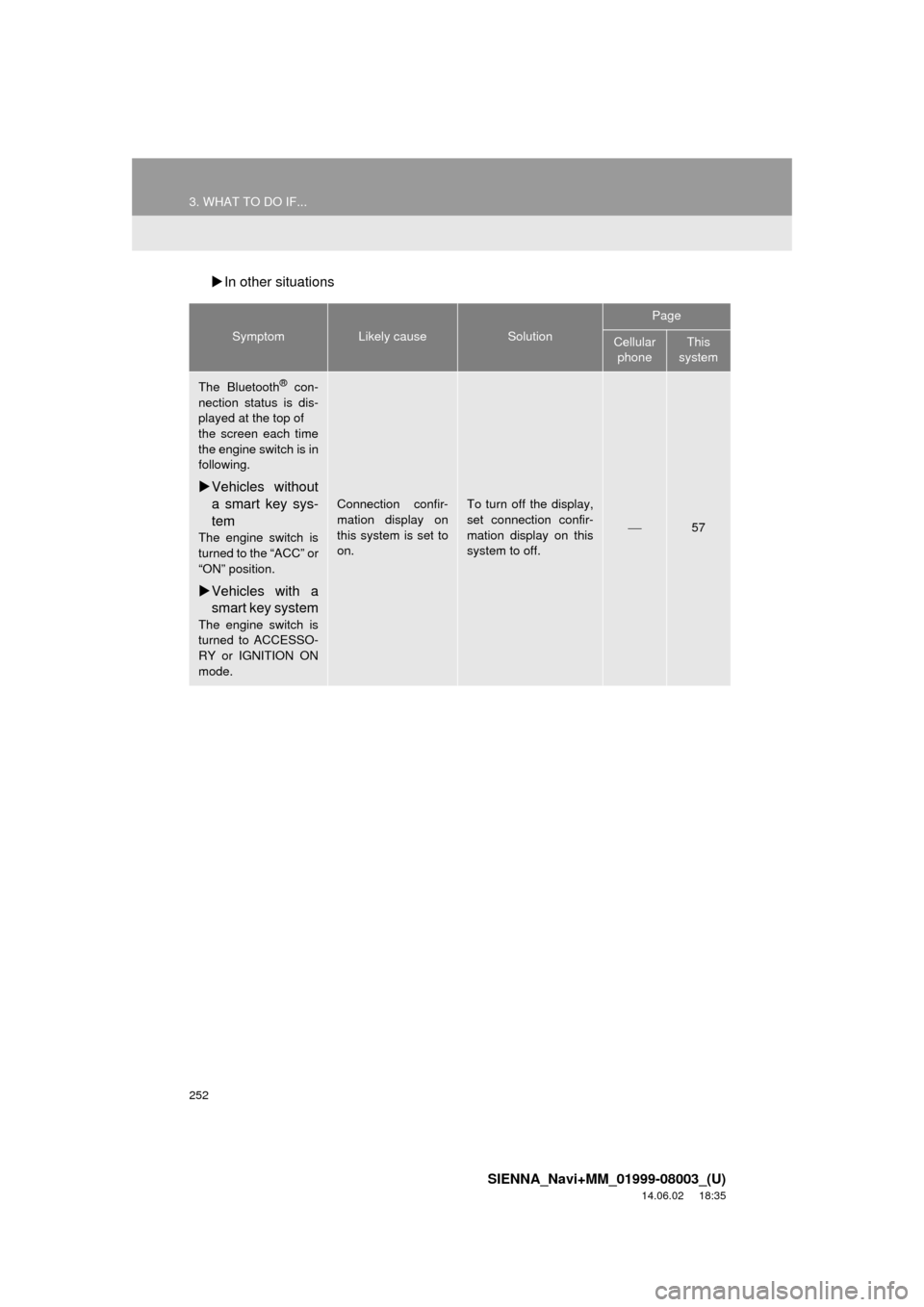

252
3. WHAT TO DO IF...
SIENNA_Navi+MM_01999-08003_(U)
14.06.02 18:35
In other situations
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
The Bluetooth® con-
nection status is dis-
played at the top of
the screen each time
the engine switch is in
following.
 Vehicles without
a smart key sys-
tem
The engine switch is
turned to the “ACC” or
“ON” position.
Vehicles with a
smart key system
The engine switch is
turned to ACCESSO-
RY or IGNITION ON
mode.
Connection confir-
mation display on
this system is set to
on.To turn off the display,
set connection confir-
mation display on this
system to off.
57

253
3. WHAT TO DO IF...
SIENNA_Navi+MM_01999-08003_(U)
14.06.02 18:35
PHONE
7
: For details, refer to the owner’s manual that came with the cellular phone.
Even though all con-
ceivable measures
have been taken, the
symptom status does
not change.
The cellular phone
is not close enough
to this system.Bring the cellular
phone closer to this
system.
The cellular phone
is the most likely
cause of the symp-
tom.
Turn the cellular phone
off, remove and rein-
stall the battery pack,
and then restart the
cellular phone.

Enable the cellular
phone’s Bluetooth®
connection.

Stop the cellular
phone’s security soft-
ware and close all ap-
plications.

Before using an appli-
cation installed on the
cellular phone, careful-
ly check its source and
how its operation might
affect this system.

SymptomLikely causeSolution
Page
Cellular phoneThis
system

254
SIENNA_Navi+MM_01999-08003_(U)
14.06.02 18:35
1. QUICK REFERENCE ................... 256
MAP SCREEN ..................................... 256
NAVIGATION OPTIONS SCREEN...... 258
2. MAP SCREEN OPERATION ....... 259
CURRENT POSITION DISPLAY ......... 259
MAP SCALE ........................................ 259
ORIENTATION OF THE MAP ............. 260
SWITCHING THE MAP MODE............ 261
SCREEN SCROLL OPERATION ........ 263
ADJUSTING LOCATION IN SMALL INCREMENTS................................... 264
3. MAP SCREEN INFORMATION .......................... 265
DISPLAYING MAP INFORMATION .... 265
DISPLAYING INFORMATION
ABOUT THE ICON WHERE THE
CURSOR IS SET .............................. 267
STANDARD MAP ICONS .................... 268
4. TRAFFIC INFORMATION ............ 269
DISPLAYING TRAFFIC INFORMATION ON THE MAP .......... 271
1. DESTINATION SEARCH SCREEN .................................... 272
2. SEARCH OPERATION.. .............. 274
SELECTING SEARCH AREA .............. 275
SETTING HOME AS
DESTINATION................................... 275
SETTING PRESET DESTINATIONS AS DESTINATION ............................. 275
SEARCHING BY ADDRESS ................ 276
SEARCHING BY POINT OF INTEREST ......................................... 277
SEARCHING FROM PREVIOUS DESTINATIONS ................................ 280
SEARCHING BY ADDRESS BOOK .............................. 280
SEARCHING BY EMERGENCY .......... 281
SEARCHING BY INTERSECTION AND FREEWAY..... 281
SEARCHING BY MAP ......................... 283
SEARCHING BY COORDINATES ....... 283
3. STARTING ROUTE GUIDANCE ....... ......................... 284
STARTING ROUTE GUIDANCE.......... 284
PAUSING GUIDANCE ......................... 287
1BASIC OPERATION2DESTINATION SEARCH
8
NAVIGATION SYSTEM *

8
255
SIENNA_Navi+MM_01999-08003_(U)
14.06.02 18:35
1
2
3
4
5
6
7
8
9
1. ROUTE GUIDANCE SCREEN ..... 288
SCREEN FOR ROUTE GUIDANCE ... 288
ROUTE OVERVIEW............................ 289
DURING FREEWAY DRIVING............ 290
WHEN APPROACHING INTERSECTION ............................... 291
TURN LIST SCREEN .......................... 292
TURN-BY-TURN ARROW SCREEN ........................................... 292
2. TYPICAL VOICE GUIDANCE PROMPTS.................................. 293
3. EDITING ROUTE ......................... 294
ADDING DESTINATIONS ................... 295
REORDERING DESTINATIONS ......... 295
DELETING DESTINATIONS ............... 295
SETTING ROUTE PREFERENCES ... 296
SELECTING ROUTE TYPE ................ 296
DETOUR SETTING ............................. 297
STARTING FROM ADJACENT ROAD ................................................ 298
1. MEMORY POINTS SETTINGS ................................. 299
SETTING UP HOME ........................... 300
SETTING UP PRESET
DESTINATIONS................................ 301 SETTING UP ADDRESS BOOK.......... 303
SETTING UP AREAS TO AVOID ........ 305
DELETING PREVIOUS
DESTINATIONS ................................ 307
1. DETAILED NAVIGATION SETTINGS ................................. 308
SCREENS FOR NAVIGATION
SETTINGS ........................................ 308
2. TRAFFIC SETTINGS................... 312
SCREEN FOR TRAFFIC SETTINGS ........................................ 312
AUTO AVOID TRAFFIC....................... 313
MY TRAFFIC ROUTES ....................... 314
1. GPS (GLOBAL POSITIONING SYSTEM) .................... ............... 318
LIMITATIONS OF THE
NAVIGATION SYSTEM..................... 318
2. MAP DATABASE VERSION AND COVERED AREA ............. 320
MAP INFORMATION ........................... 320
ABOUT THE MAP DATA ..................... 321
3ROUTE GUIDANCE
4MEMORY POINTS
5SETUP
6TIPS FOR THE NAVIGATION
SYSTEM
NAVIGATION SYSTEM*
*: With navigation function

256
SIENNA_Navi+MM_01999-08003_(U)
14.06.02 18:35
1. BASIC OPERATION
1. QUICK REFERENCE
MAP SCREEN
To display this screen, press the “APPS” button, then select “Navigation” on the
“Apps” screen.
No.NameFunctionPage
2D North-up, 2D
heading-up or 3D
heading-up sym-
bolIndicates whether the map orientation is set to
north-up or heading-up. The letter(s) beside this
symbol indicate the vehicle’s heading direction
(e.g. N for north). In 3D map, only a heading-up
view is available.
260
Options buttonSelect to display the “Navigation Options” screen.258
“GPS” mark
(Global
Positioning
System)Shows that the vehicle is receiving signals from
the GPS.318
Traffic indicator
Shows that traffic information is received. Select
to start voice guidance for traffic information.
When traffic information is received via HD Radio
broadcast, HD mark is displayed on the right.
269
Scale indicatorThis figure indicates the map scale.259

257
1. BASIC OPERATION
SIENNA_Navi+MM_01999-08003_(U)
14.06.02 18:35
NAVIGATION SYSTEM
8
Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.259
Footprint map
buttonSelect to display the footprint map screen.260
Current position
button/voice
guidance buttonSelect to display the current position address.
 Select to repeat voice guidance.293
Destination but-
tonSelect to display the “Destination” screen.272
Speed limit iconIndicates the speed limit on the current road. The
display of the speed limit icon can be set to on/off.265
Route informa-
tion bar
Displays the current street name, or the distance
with the estimated travel time/arrival time to the
destination. The route information bar fills from
left to right as the vehicle progresses on the
route.
288
Route informa-
tion buttonSelect to change the display between the current
street name and the distance with the estimated
travel/arrival time.
288
No.NameFunctionPage

258
1. BASIC OPERATION
SIENNA_Navi+MM_01999-08003_(U)
14.06.02 18:35

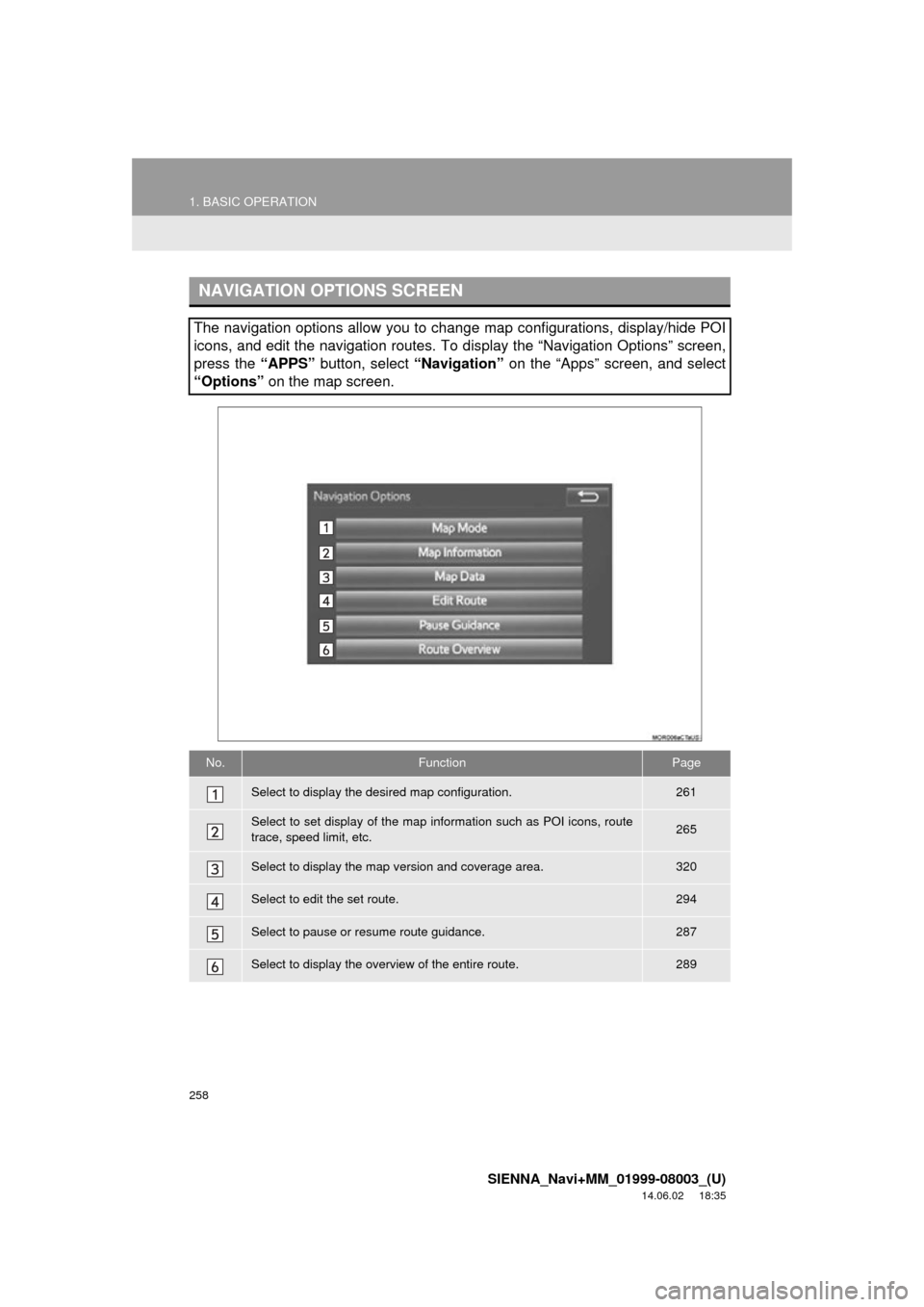

NAVIGATION OPTIONS SCREEN
The navigation options allow you to change map configurations, display/hide POI
icons, and edit the navigation routes. To display the “Navigation Options” screen,
press the “APPS” button, select “Navigation” on the “Apps” screen, and select
“Options” on the map screen.
No.FunctionPage
Select to display the desired map configuration.261
Select to set display of the map information such as POI icons, route
trace, speed limit, etc.265
Select to display the map version and coverage area.320
Select to edit the set route.294
Select to pause or resume route guidance.287
Select to display the overview of the entire route.289

259
1. BASIC OPERATION
SIENNA_Navi+MM_01999-08003_(U)
14.06.02 18:35
NAVIGATION SYSTEM
8
2. MAP SCREEN OPERATION
1Press the “APPS” button.
2Select “Navigation” .
3Check that the current position map is
displayed.
1Select or to change the
scale of the map screen.
The scale indicator bar appears at the bot-
tom of the screen.
 Select and hold or to con-
tinue changing the scale of the map
screen.
 The scale of the map screen can also be
changed by selecting the scale bar
directly. This function is not available while
driving.
CURRENT POSITION
DISPLAY
To correct the current position manu-
ally:
P. 3 1 0
INFORMATION
● While driving, the current position mark
is fixed on the screen and the map
moves.
● The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
● After the battery disconnection, or on a
new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the cor-
rect current position is displayed.
MAP SCALE
INFORMATION
●The map scale is displayed above the
zoom in button at the bottom left of the
screen.
● In areas where the footprint map is avail-
able the map scale changes from
to when at the minimum range.

260
1. BASIC OPERATION
SIENNA_Navi+MM_01999-08003_(U)
14.06.02 18:35
1Select on the map screen.
2Check that the footprint map is dis-
played.
To return to the normal map display, select
.
1Select , or .
 North-up screen
 Heading-up screen
FOOTPRINT MAP
For areas covered by the footprint map
(some major cities), a footprint map on
a scale of 75 ft. (25 m) can be selected.
When the map is scaled down to 150 ft.
(50 m), changes to and
can be selected to display the footprint
map.
INFORMATION
● If the map or the current position is
moved to the area which is not covered
by the footprint map, the screen scale
automatically changes to 150 ft. (50 m).
● On the footprint map, a one way street is
displayed by .
● Scrolling on the footprint map is not
available while driving.
Building footprints in the database
were created and provided by
NAVTEQ.

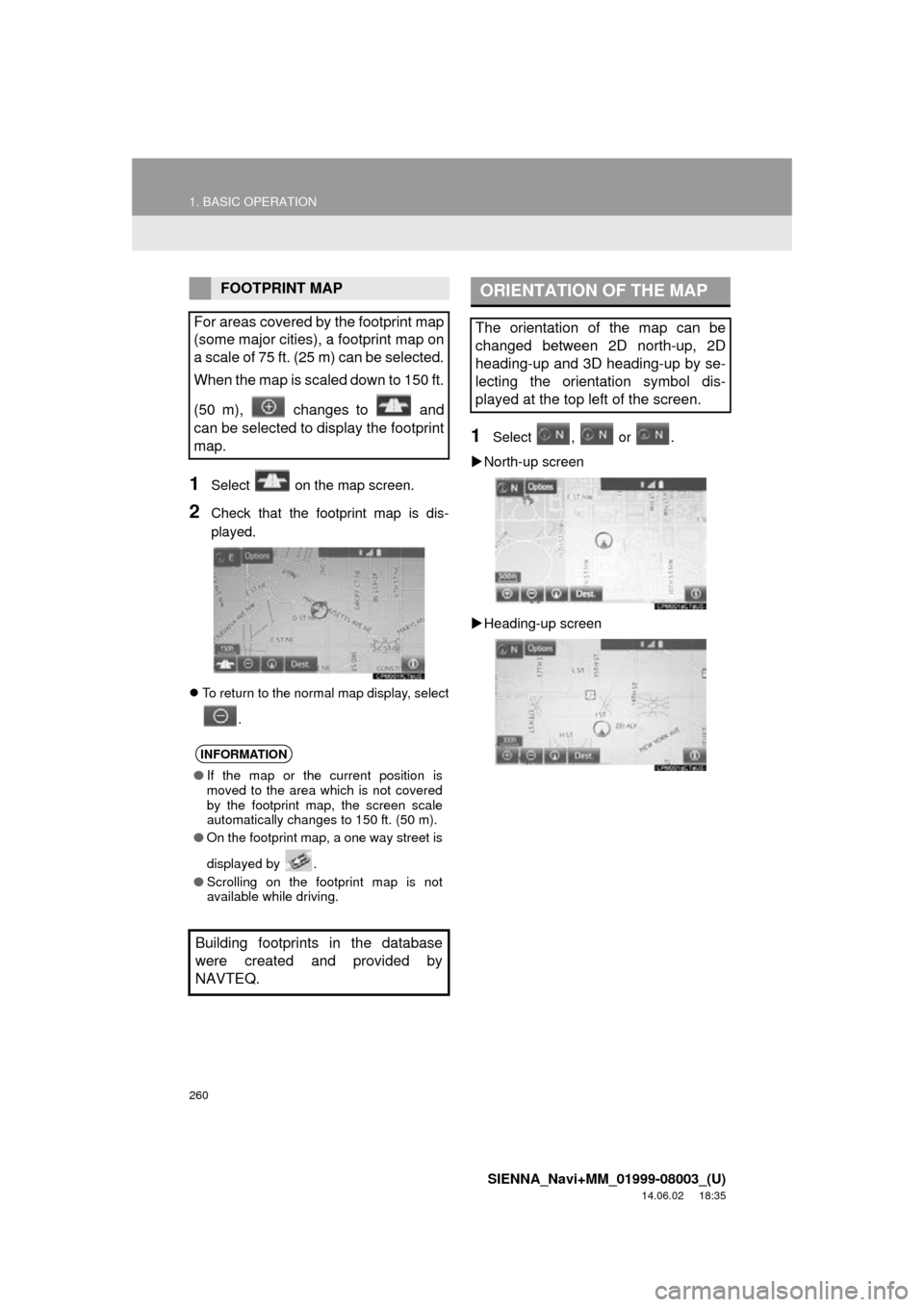

ORIENTATION OF THE MAP
The orientation of the map can be
changed between 2D north-up, 2D
heading-up and 3D heading-up by se-
lecting the orientation symbol dis-
played at the top left of the screen.
