1. BASIC FUNCTION
SIENNA_Navi+MM_OM08015U_(U)
15.09.16 18:08
QUICK GUIDE
1No.FunctionPage
By touching the screen with your finger, you can control the selected
functions.35, 36
Insert a disc into this slot. The CD player turns on immediately.78
Press to play/pause.82, 102,
105, 109,
113, 118
Press the “ ” or “ ” button to seek up or down for a radio station or to
access a desired track/file.82, 93, 102,
105, 109,
11 3
Press to access the Bluetooth® hands-free system.224
Turn the “TUNE·SCROLL” knob to select a radio station or skip to the
next or previous track/file.82, 93, 102,
105, 109,
11 3
*MAP card slot
Do not eject the SD card, as doing so may deactivate the navigation
system.334
Press the “PWR·VOL” knob to turn the system on and off, and turn it
to adjust the volume.77
Press to display the home screen.16, 37
Press to display the “Apps” screen.14
Press to access the audio/visual system. The audio/visual system
turns on in the last mode used.74, 77
Press to eject a disc.78
*: Entune Premium Audio only

14
1. BASIC FUNCTION
SIENNA_Navi+MM_OM08015U_(U)
15.09.16 18:08
2. “Apps” SCREEN
Entune Premium Audio
Entune Audio Plus

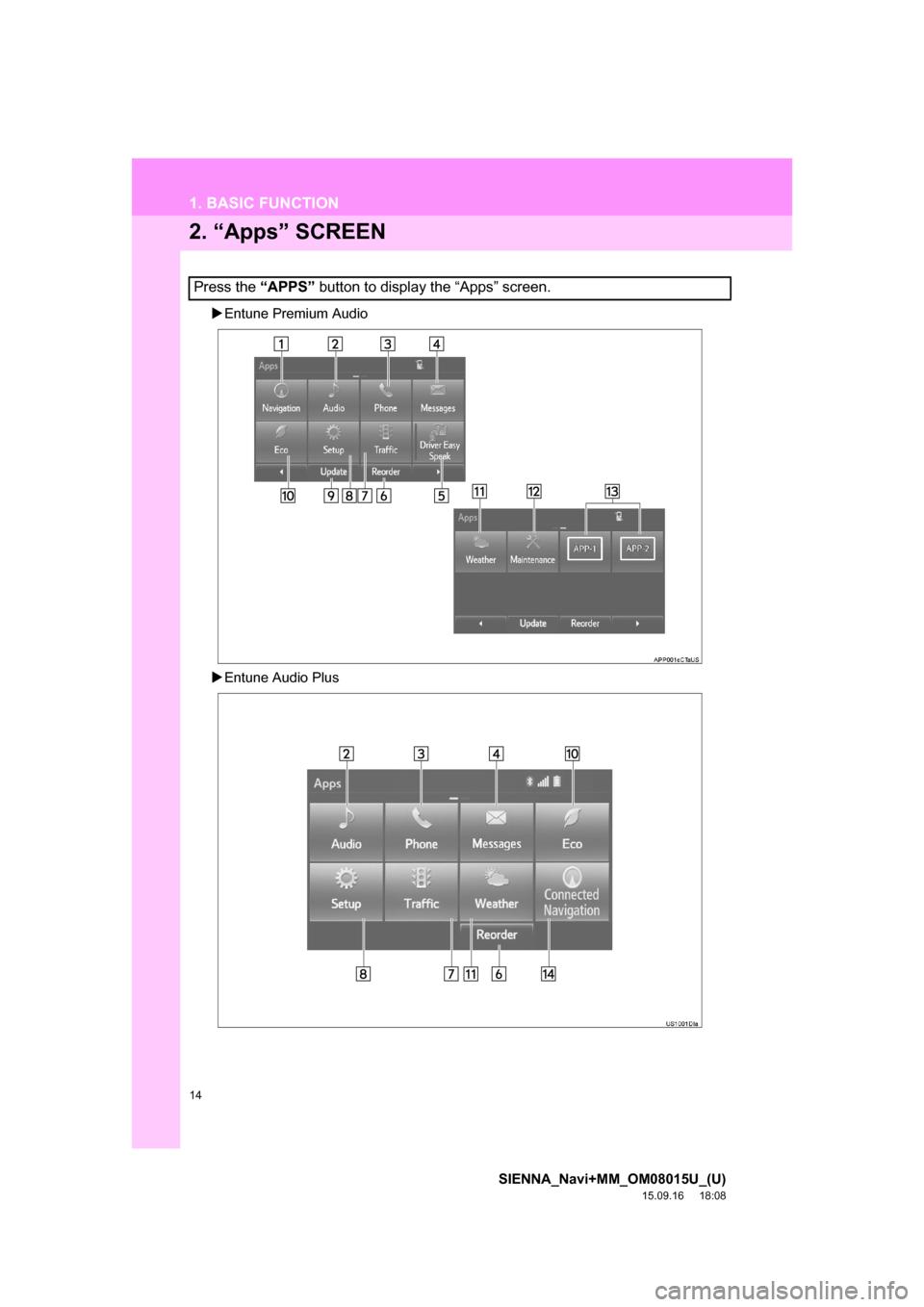

Press the “APPS” button to display the “Apps” screen.

15
1. BASIC FUNCTION
SIENNA_Navi+MM_OM08015U_(U)
15.09.16 18:08
QUICK GUIDE

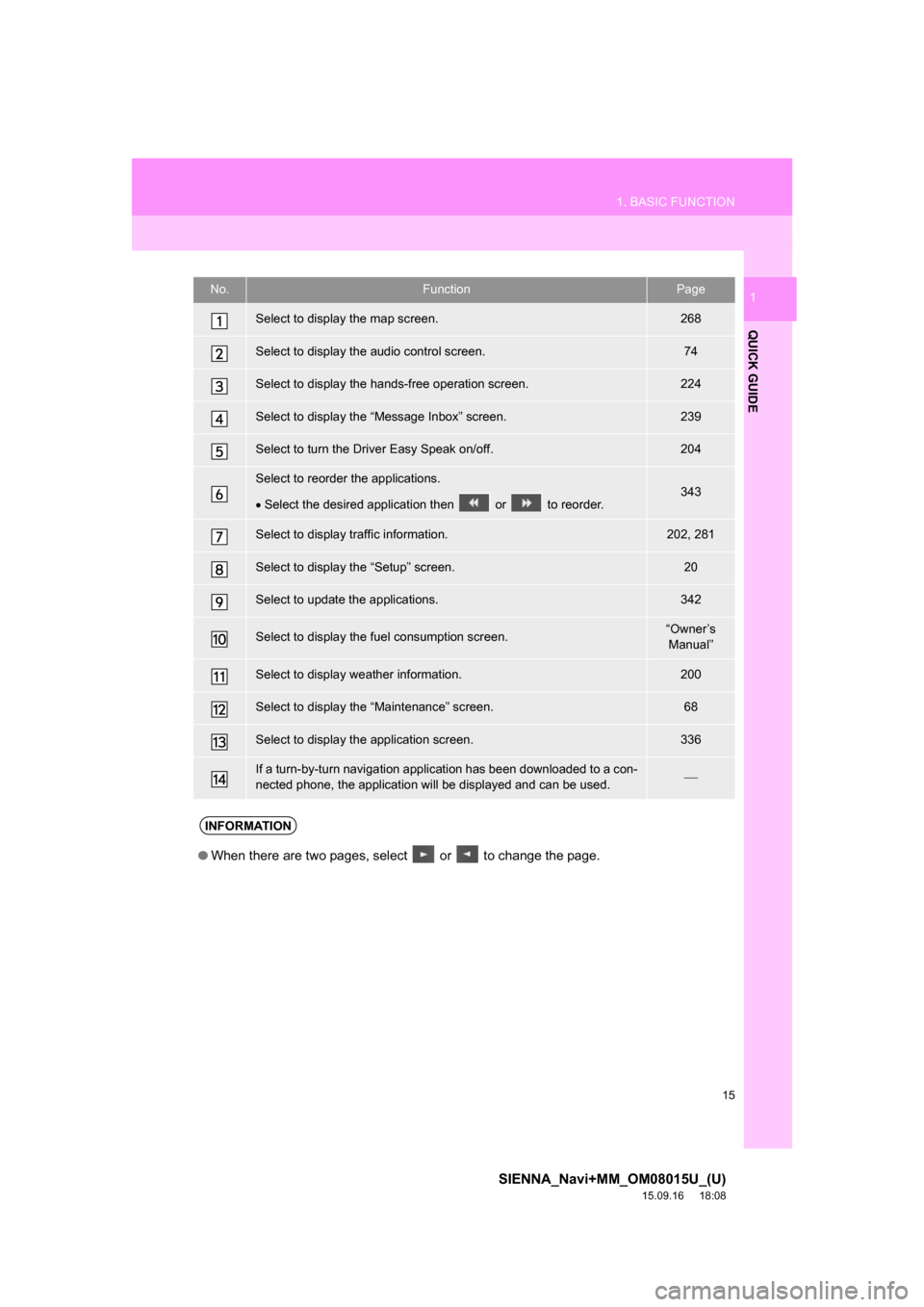

1No.FunctionPage
Select to display the map screen.268
Select to display the audio control screen.74
Select to display the hands-free operation screen.224
Select to display the “Message Inbox” screen.239
Select to turn the Driver Easy Speak on/off.204
Select to reorder the applications.
Select the desired application then or to reorder.343
Select to display traffic information.202, 281
Select to display the “Setup” screen.20
Select to update the applications.342
Select to display the fuel consumption screen.“Owner’s
Manual”
Select to display weather information.200
Select to display the “Maintenance” screen.68
Select to display the application screen.336
If a turn-by-turn navigation application has been downloaded to a con-
nected phone, the application will be displayed and can be used.
INFORMATION
●When there are two pages, select or to change the page.

16
1. BASIC FUNCTION
SIENNA_Navi+MM_OM08015U_(U)
15.09.16 18:08
3. HOME SCREEN
Three-way split screen
Press the “HOME” button to display the home screen.
The home screen can display multiple information screens, such as the audio sys-
tem screen, driver easy speak screen, hands-free screen, and navigation screen,
simultaneously. When hands-free mode is selected, it is possible to make a call on
the home screen if the desired phone number is registered to one of the 4 displayed
buttons. In order to register the contact, select and hold the desired button and reg-
ister the desired contact by following the displayed messages on the screen.
(P.233)
When a screen is selected, the selected screen is switched to a full-screen display.
The home screen can be set to either a three-way split screen or a two-way split
screen.
For details about setting the home screen: P.37

17
1. BASIC FUNCTION
SIENNA_Navi+MM_OM08015U_(U)
15.09.16 18:08
QUICK GUIDE
1Two-way split screen
No.FunctionPage
Displays the current time
Select the displaying time to set the clock. (P.61)
The clock setting can be also set from the “General Settings”
screen. (P.59)

Displays the condition of the Bluetooth® connection18
Select to display the “Setup” screen.20
INFORMATION
●Entune Audio Plus only: Turn-by-turn navigation application screen can be displayed.

18
1. BASIC FUNCTION
SIENNA_Navi+MM_OM08015U_(U)
15.09.16 18:08
STATUS DISPLAY
The condition of the Bluetooth® connection, as well as the level of reception and
the amount of cellular phone battery charge left, are displayed on the status dis-
play.
No.IndicatorsConditions
The condition of
the Bluetooth®
connection
(Gray) (Blue)
No connection Poor Good
An antenna for the Bluetooth
® connection is built into the instru-
ment panel. The condition of the Bluetooth® connection may dete-
riorate and the system may not function when a Bluetooth® phone
is used in the following conditions and/or places:
The cellular phone is obstructed by certain objects (such as when
it is behind the seat or in the glove box or console box).
The cellular phone is touching or is covered with metal materials.
Leave the Bluetooth
® phone in a place where the condition of the
Bluetooth® connection is good.

19
1. BASIC FUNCTION
SIENNA_Navi+MM_OM08015U_(U)
15.09.16 18:08
QUICK GUIDE
1
The level of
reception
Poor Excellent
The level of reception does not always correspond with the level
displayed on the cellular phone. The level of reception may not be
displayed depending on the phone you have.
When the cellular phone is out of the service area or in a place
inaccessible by radio waves, “No Service” is displayed.
“Rm” is displayed when receiving in a roaming area. While roam-
ing, display “Rm” top-left on the icon.
The receiving area may not be displayed depending on the type of
phone you have.
The amount of
battery charge
leftEmpty Full
The amount displayed does not always correspond with the
amount displayed on the Bluetooth
® device.
The amount of battery charge left may not be displayed depend-
ing on the type of the Bluetooth
® device connected.
This system does not have a charging function.
No.IndicatorsConditions
