TOYOTA SIENNA 2016 XL30 / 3.G Owners Manual

SIENNA_OM_OM08013U_(U)
1613-3. Adjusting the seats
3
Operation of each component

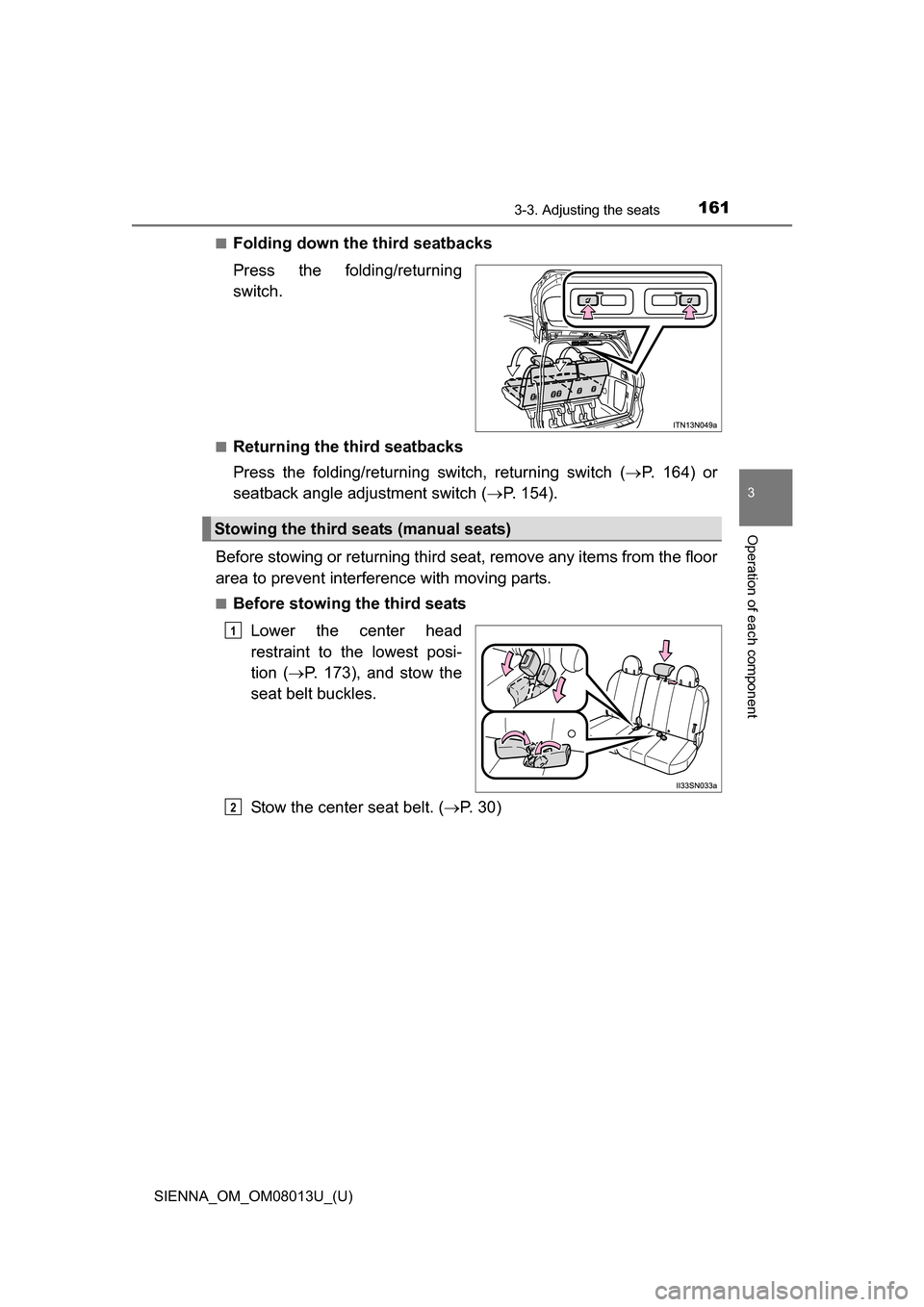

■Folding down the third seatbacks
Press the folding/returning
switch.
■Returning the third seatbacks
Press the folding/returning switch, returning switch (P. 164) or
seatback angle adjustment switch ( P. 154).
Before stowing or returning third seat, remove any items from the floor
area to prevent interference with moving parts.
■Before stowing the third seats Lower the center head
restraint to the lowest posi-
tion ( P. 173), and stow the
seat belt buckles.
Stow the center seat belt. ( P. 3 0 )
Stowing the third seats (manual seats)
1
2

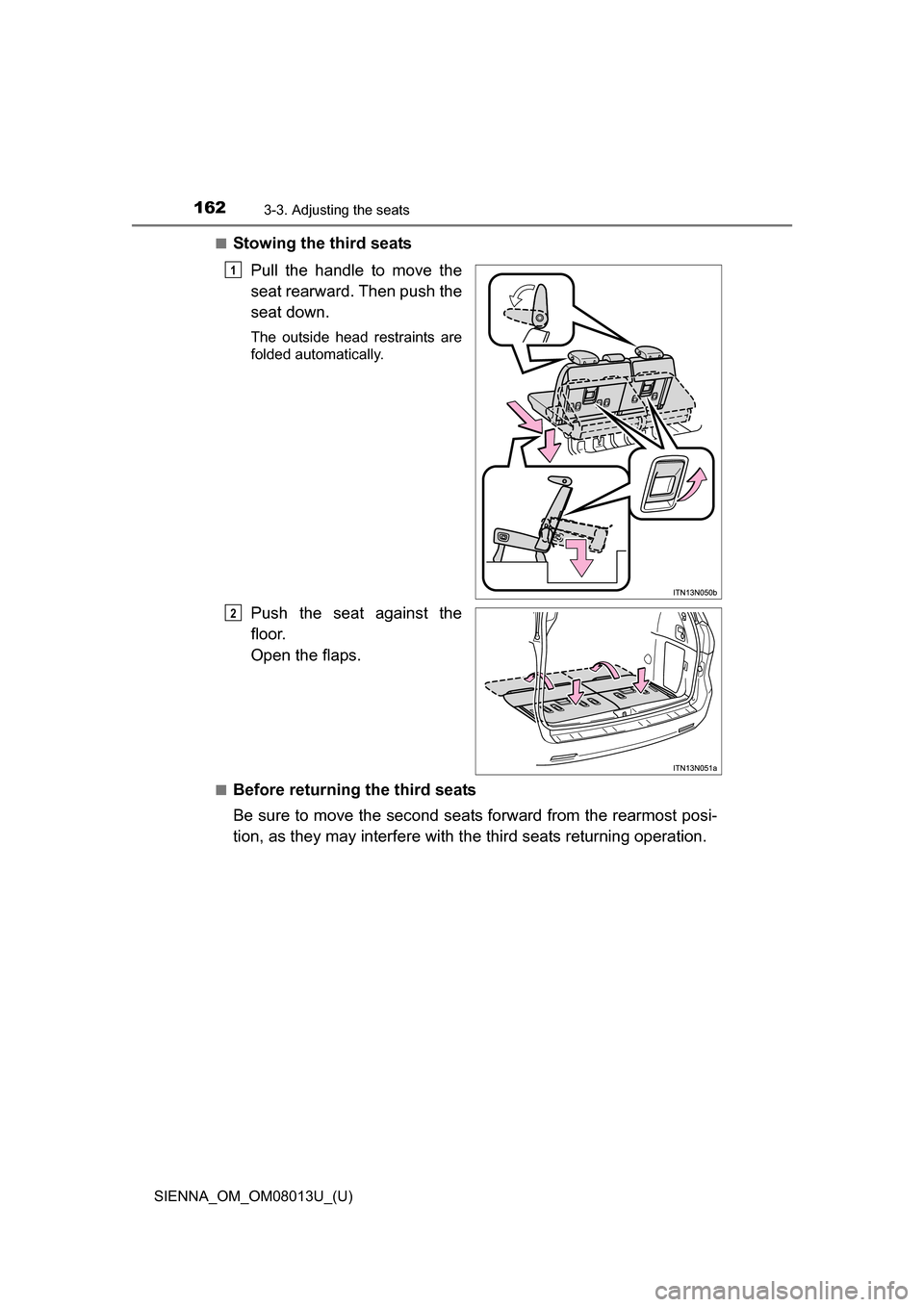

162
SIENNA_OM_OM08013U_(U)
3-3. Adjusting the seats
■Stowing the third seatsPull the handle to move the
seat rearward. Then push the
seat down.
The outside head restraints are
folded automatically.
Push the seat against the
floor.
Open the flaps.
■Before returning the third seats
Be sure to move the second seats forward from the rearmost posi-
tion, as they may interfere with the third seats returning operation.
1
2

SIENNA_OM_OM08013U_(U)
1633-3. Adjusting the seats
3
Operation of each component

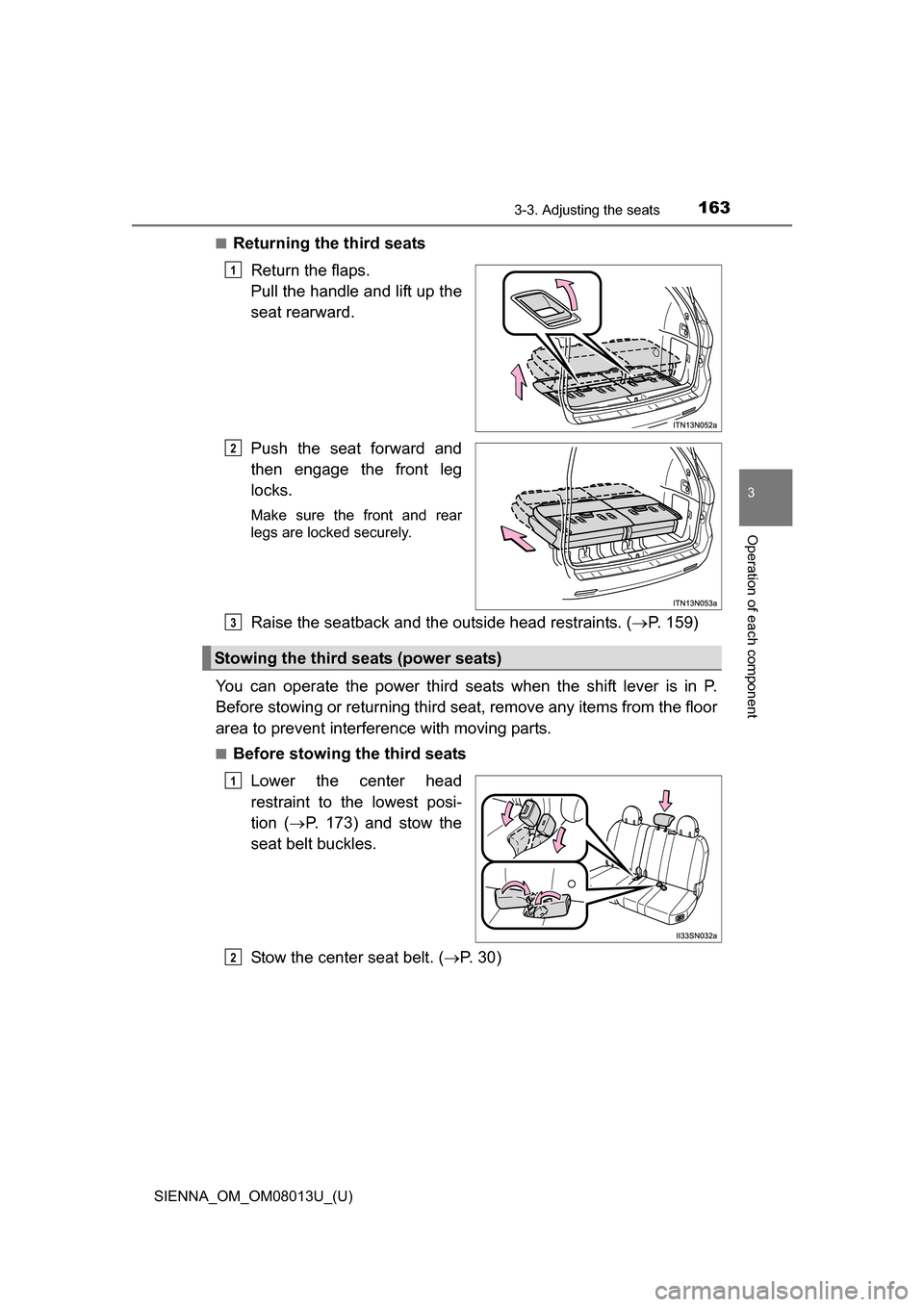

■Returning the third seatsReturn the flaps.
Pull the handle and lift up the
seat rearward.
Push the seat forward and
then engage the front leg
locks.
Make sure the front and rear
legs are locked securely.
Raise the seatback and the outside head restraints. ( P. 159)
You can operate the power third seats when the shift lever is in P.
Before stowing or returning third seat, remove any items from the floor
area to prevent interference with moving parts.
■Before stowing the third seats Lower the center head
restraint to the lowest posi-
tion ( P. 173) and stow the
seat belt buckles.
Stow the center seat belt. ( P. 3 0 )
1
2
Stowing the third seats (power seats)
3
1
2

164
SIENNA_OM_OM08013U_(U)
3-3. Adjusting the seats

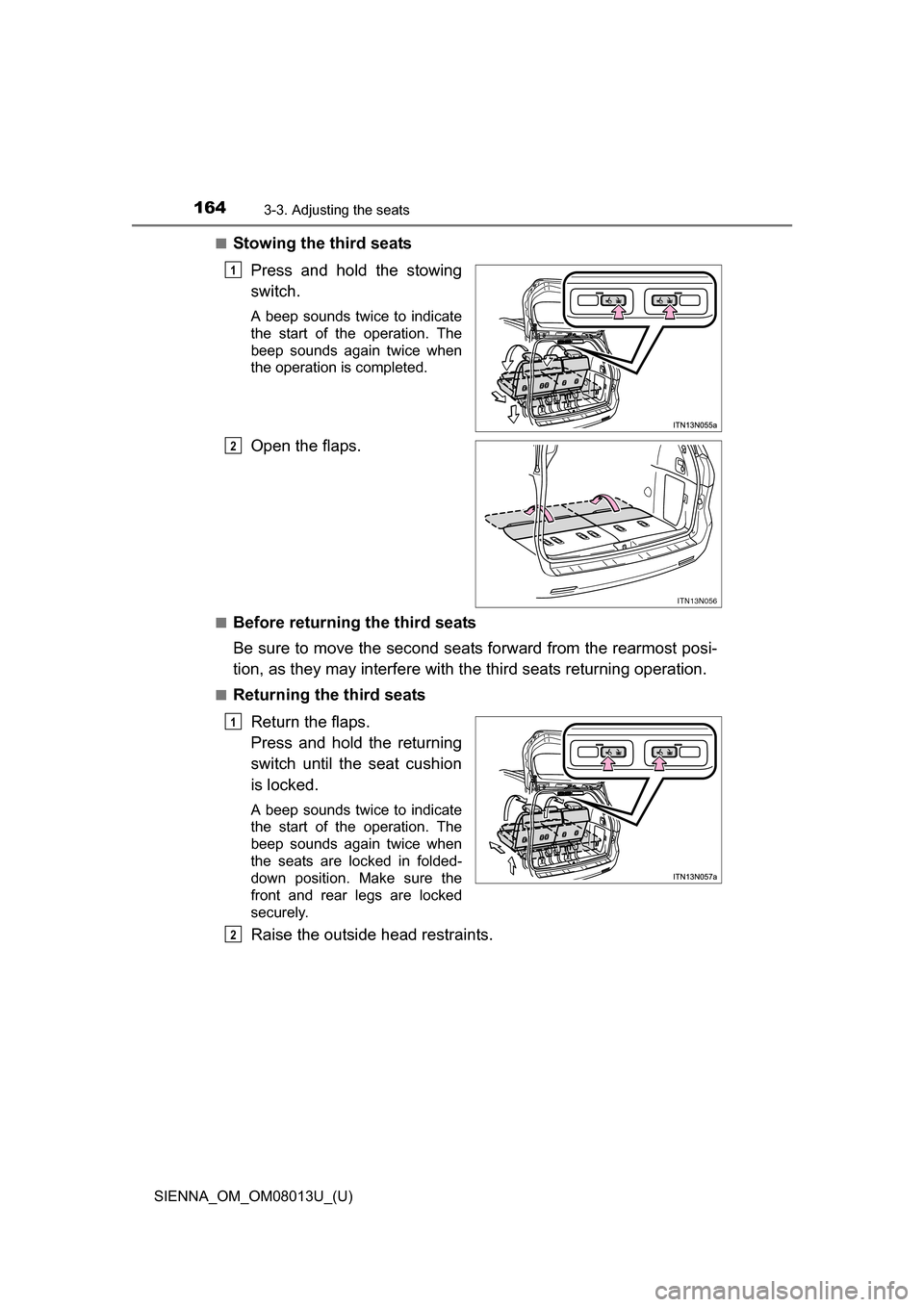

■Stowing the third seatsPress and hold the stowing
switch.
A beep sounds twice to indicate
the start of the operation. The
beep sounds again twice when
the operation is completed.
Open the flaps.
■Before returning the third seats
Be sure to move the second seats forward from the rearmost posi-
tion, as they may interfere with the third seats returning operation.
■Returning the third seatsReturn the flaps.
Press and hold the returning
switch until the seat cushion
is locked.
A beep sounds twice to indicate
the start of the operation. The
beep sounds again twice when
the seats are locked in folded-
down position. Make sure the
front and rear legs are locked
securely.
Raise the outside head restraints.
1
ITN13N056
2
1
2

SIENNA_OM_OM08013U_(U)
1653-3. Adjusting the seats
3
Operation of each component

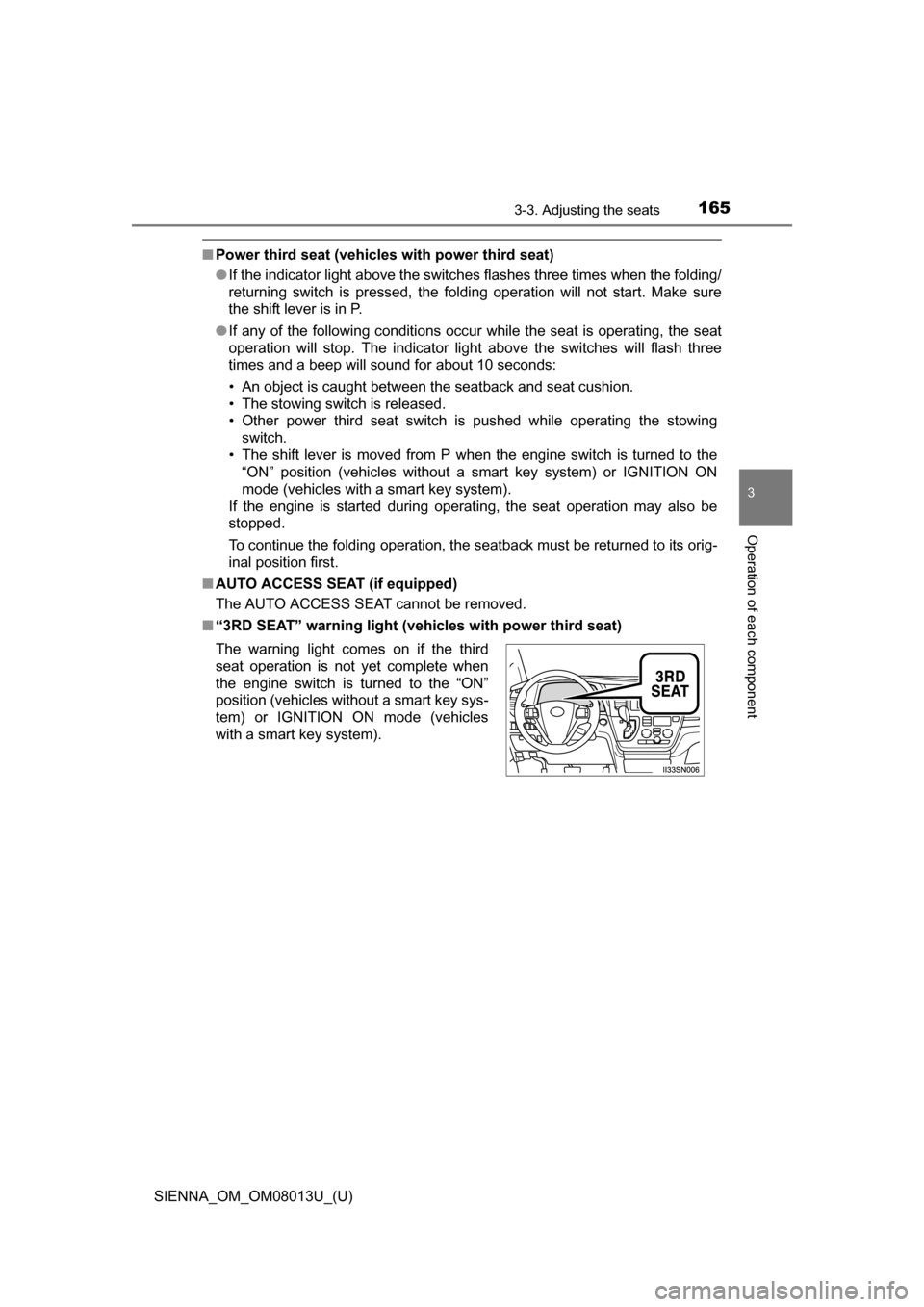

■Power third seat (vehicles with power third seat)
● If the indicator light above the switches flashes three times when the folding/
returning switch is pressed, the folding operation will not start. Make sure
the shift lever is in P.
● If any of the following conditions occur while the seat is operating, the seat
operation will stop. The indicator light above the switches will flash three
times and a beep will sound for about 10 seconds:
• An object is caught between the seatback and seat cushion.
• The stowing switch is released.
• Other power third seat switch is pushed while operating the stowing
switch.
• The shift lever is moved from P when the engine switch is turned to the “ON” position (vehicles without a smart key system) or IGNITION ON
mode (vehicles with a smart key system).
If the engine is started during operating, the seat operation may also be
stopped.
To continue the folding operation, the seatback must be returned to its orig-
inal position first.
■ AUTO ACCESS SEAT (if equipped)
The AUTO ACCESS SEAT cannot be removed.
■ “3RD SEAT” warning light ( vehicles with power third seat)
The warning light comes on if the third
seat operation is not yet complete when
the engine switch is turned to the “ON”
position (vehicles without a smart key sys-
tem) or IGNITION ON mode (vehicles
with a smart key system).

166
SIENNA_OM_OM08013U_(U)
3-3. Adjusting the seats

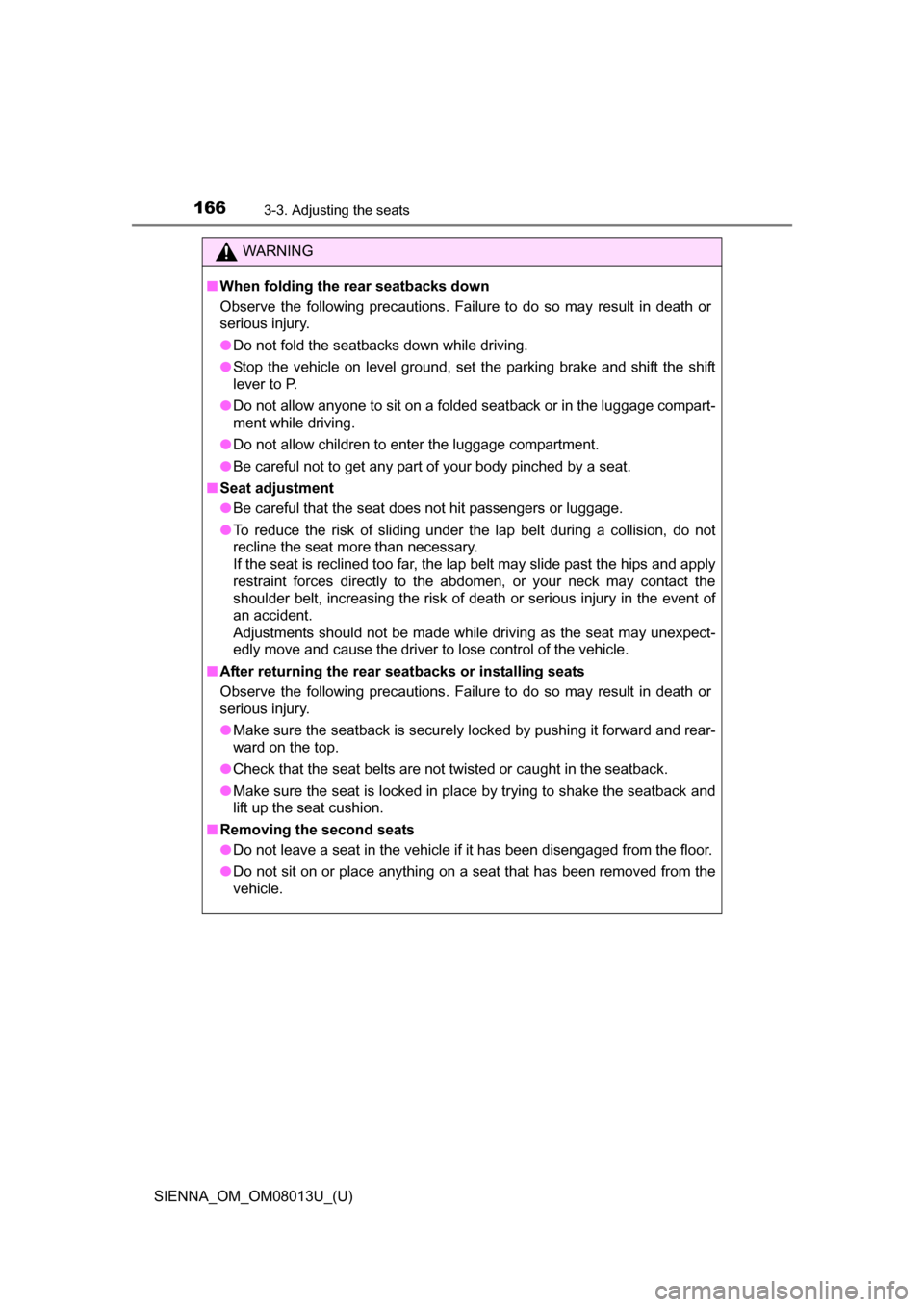

WARNING
■When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P.
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.
● Be careful not to get any part of your body pinched by a seat.
■ Seat adjustment
●Be careful that the seat does not hit passengers or luggage.
● To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is reclined too far, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
■ After returning the rear seatbacks or installing seats
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Make sure the seatback is securely locked by pushing it forward and rear-
ward on the top.
● Check that the seat belts are not twisted or caught in the seatback.
● Make sure the seat is locked in place by trying to shake the seatback and
lift up the seat cushion.
■ Removing the second seats
●Do not leave a seat in the vehicle if it has been disengaged from the floor.
● Do not sit on or place anything on a seat that has been removed from the
vehicle.

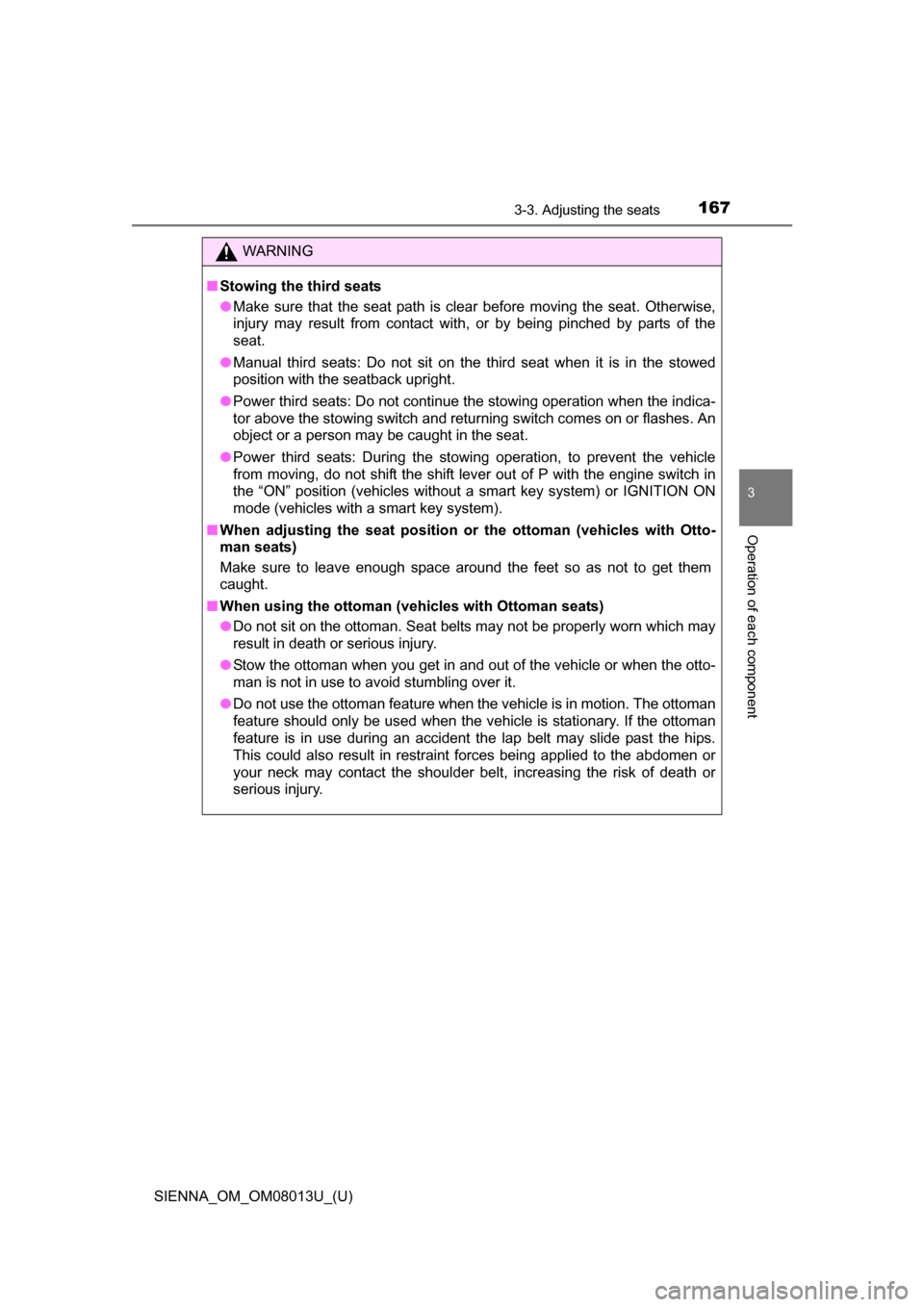

SIENNA_OM_OM08013U_(U)
1673-3. Adjusting the seats
3
Operation of each component
WARNING
■Stowing the third seats
●Make sure that the seat path is clear before moving the seat. Otherwise,
injury may result from contact with, or by being pinched by parts of the
seat.
● Manual third seats: Do not sit on the third seat when it is in the stowed
position with the seatback upright.
● Power third seats: Do not continue the stowing operation when the indica-
tor above the stowing switch and returning switch comes on or flashes. An
object or a person may be caught in the seat.
● Power third seats: During the stowing operation, to prevent the vehicle
from moving, do not shift the shift lever out of P with the engine switch in
the “ON” position (vehicles without a smart key system) or IGNITION ON
mode (vehicles with a smart key system).
■ When adjusting the seat position or the ottoman (vehicles with Otto-
man seats)
Make sure to leave enough space around the feet so as not to get them
caught.
■ When using the ottoman ( vehicles with Ottoman seats)
● Do not sit on the ottoman. Seat belts may not be properly worn which may
result in death or serious injury.
● Stow the ottoman when you get in and out of the vehicle or when the otto-
man is not in use to avoid stumbling over it.
● Do not use the ottoman feature when the vehicle is in motion. The ottoman
feature should only be used when the vehicle is stationary. If the ottoman
feature is in use during an accident the lap belt may slide past the hips.
This could also result in restraint forces being applied to the abdomen or
your neck may contact the shoulder belt, increasing the risk of death or
serious injury.

168
SIENNA_OM_OM08013U_(U)
3-3. Adjusting the seats

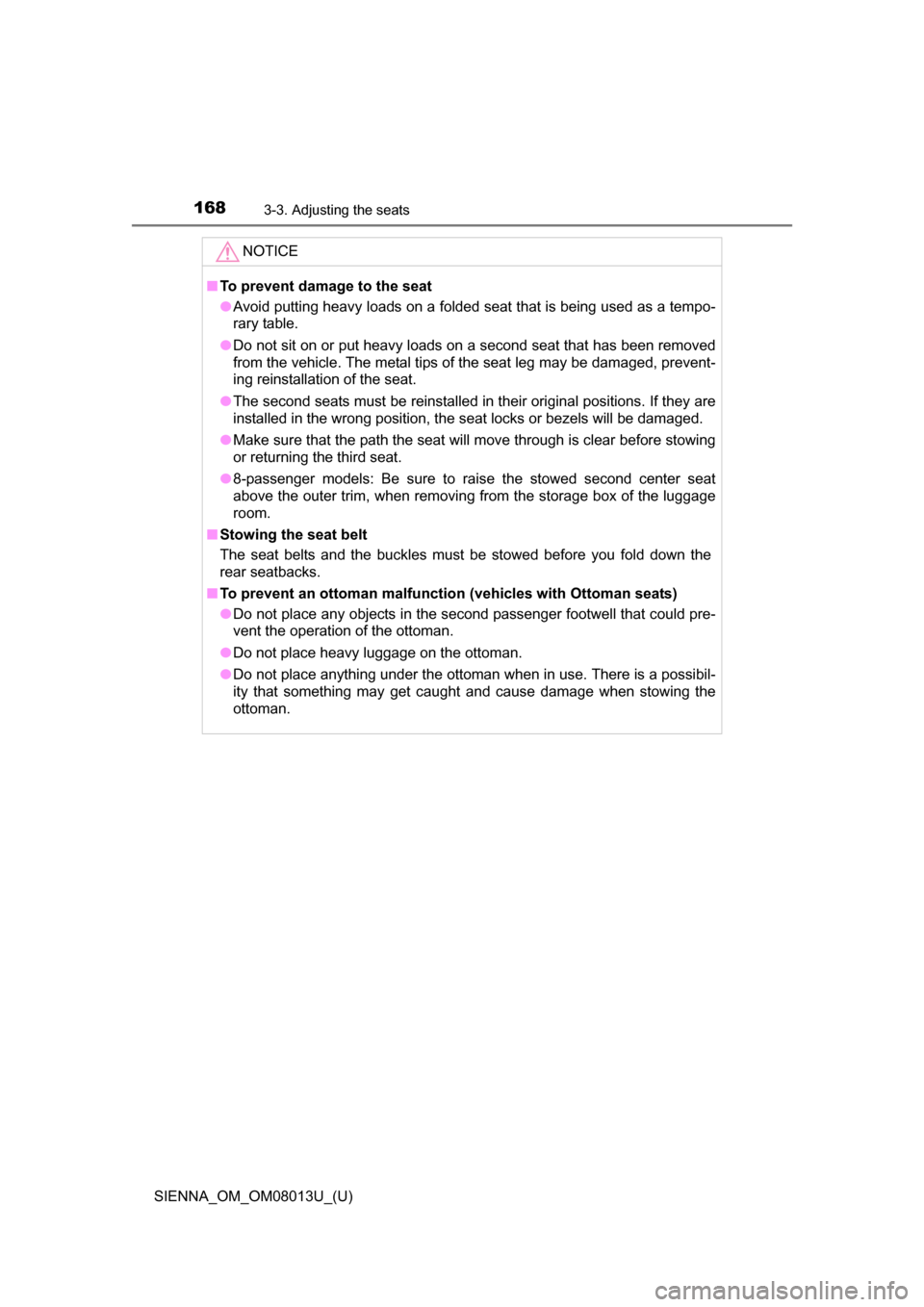

NOTICE
■To prevent damage to the seat
●Avoid putting heavy loads on a folded seat that is being used as a tempo-
rary table.
● Do not sit on or put heavy loads on a second seat that has been removed
from the vehicle. The metal tips of the seat leg may be damaged, prevent-
ing reinstallation of the seat.
● The second seats must be reinstalled in their original positions. If they are
installed in the wrong position, the seat locks or bezels will be damaged.
● Make sure that the path the seat will move through is clear before stowing
or returning the third seat.
● 8-passenger models: Be sure to raise the stowed second center seat
above the outer trim, when removing from the storage box of the luggage
room.
■ Stowing the seat belt
The seat belts and the buckles must be stowed before you fold down the
rear seatbacks.
■ To prevent an ottoman malfunctio n (vehicles with Ottoman seats)
● Do not place any objects in the second passenger footwell that could pre-
vent the operation of the ottoman.
● Do not place heavy luggage on the ottoman.
● Do not place anything under the ottoman when in use. There is a possibil-
ity that something may get caught and cause damage when stowing the
ottoman.

169
SIENNA_OM_OM08013U_(U)
3-3. Adjusting the seats
3
Operation of each component

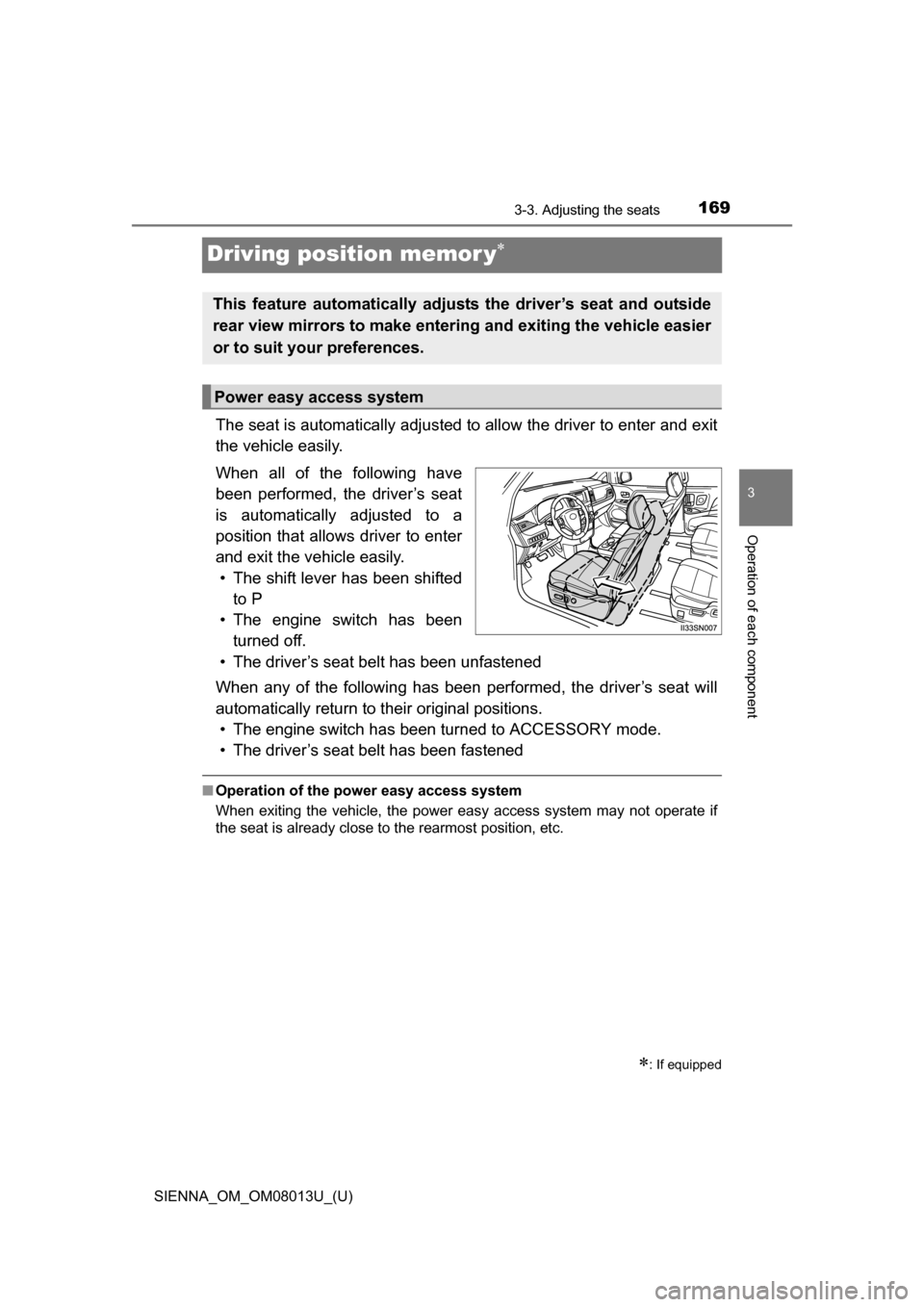

Driving position memor y
The seat is automatically adjusted to allow the driver to enter and exit
the vehicle easily.
When all of the following have
been performed, the driver’s seat
is automatically adjusted to a
position that allows driver to enter
and exit the vehicle easily.• The shift lever has been shifted to P
• The engine switch has been turned off.
• The driver’s seat belt has been unfastened
When any of the following has been performed, the driver’s seat will
automatically return to their original positions. • The engine switch has been turned to ACCESSORY mode.
• The driver’s seat belt has been fastened
■ Operation of the power easy access system
When exiting the vehicle, the power easy access system may not operate if
the seat is already close to the rearmost position, etc.
: If equipped
This feature automatically adjusts the driver’s seat and outside
rear view mirrors to make entering and exiting the vehicle easier
or to suit your preferences.
Power easy access system

170
SIENNA_OM_OM08013U_(U)
3-3. Adjusting the seats

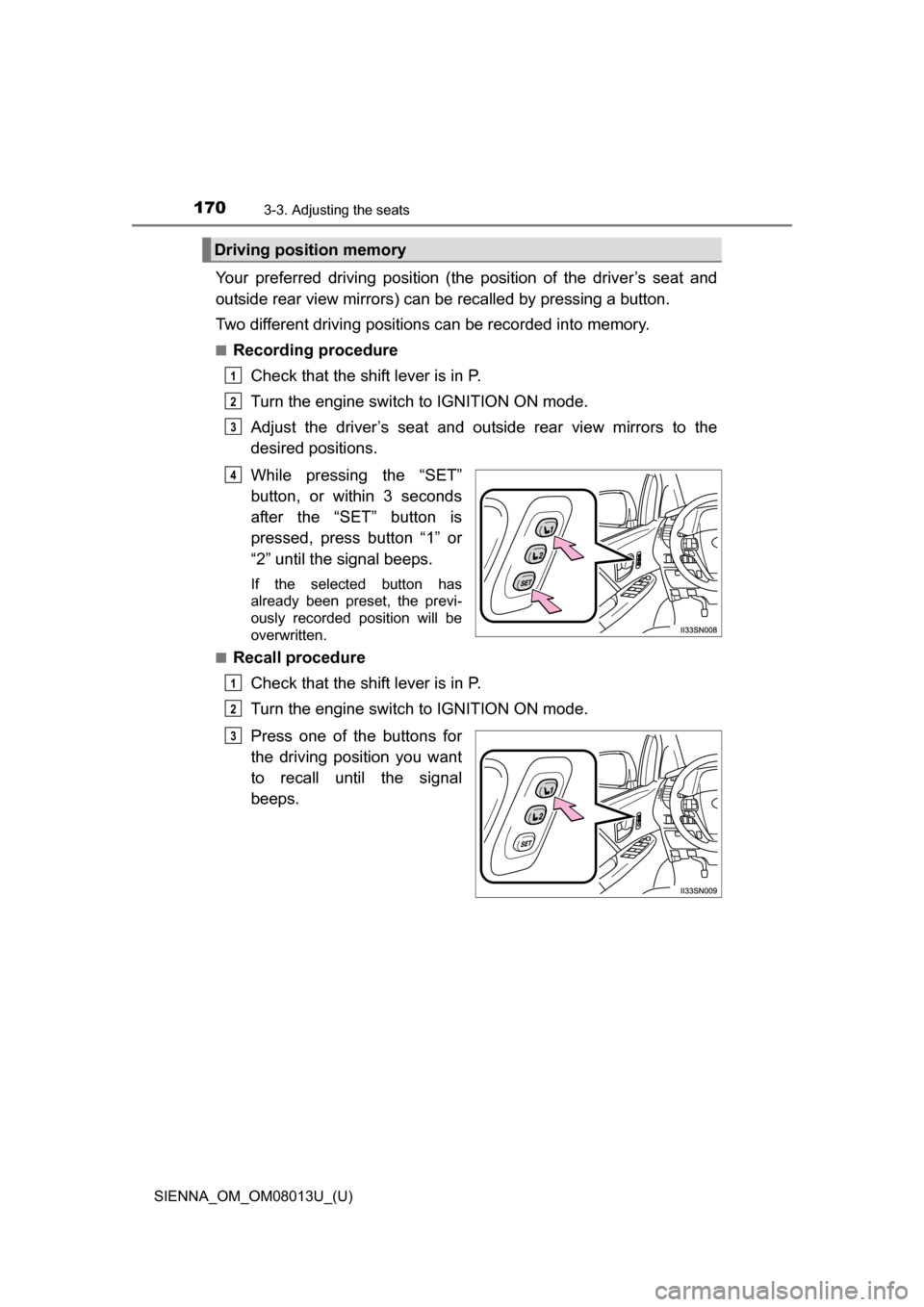

Your preferred driving position (the position of the driver’s seat and
outside rear view mirrors) can be recalled by pressing a button.
Two different driving positions can be recorded into memory.
■Recording procedureCheck that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Adjust the driver’s seat and outside rear view mirrors to the
desired positions.
While pressing the “SET”
button, or within 3 seconds
after the “SET” button is
pressed, press button “1” or
“2” until the signal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
■
Recall procedure
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Press one of the buttons for
the driving position you want
to recall until the signal
beeps.
Driving position memory
1
2
3
4
1
2
3
