21Pictorial index

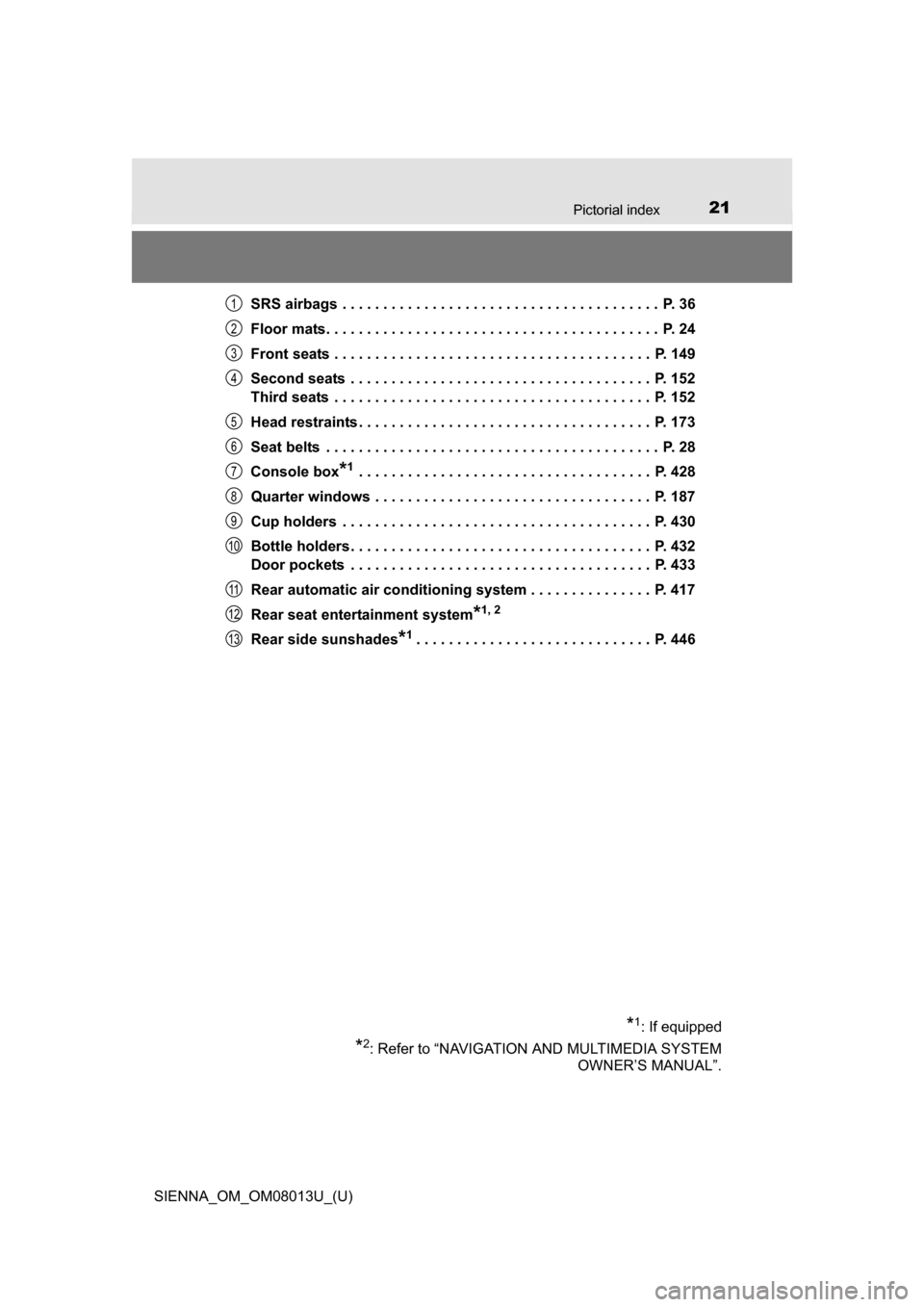

SIENNA_OM_OM08013U_(U)SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 36
Floor mats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 24
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 149
Second seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 152
Third seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 152
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 173
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 28
Console box
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 428
Quarter windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 187
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 430
Bottle holders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 432
Door pockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 433
Rear automatic air conditioning system . . . . . . . . . . . . . . . P. 417
Rear seat entertainment system
*1, 2
Rear side sunshades*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 446
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
1
2
3
4
5
6
7
8
9
10
11
12
13
Page 22 of 668
22Pictorial index

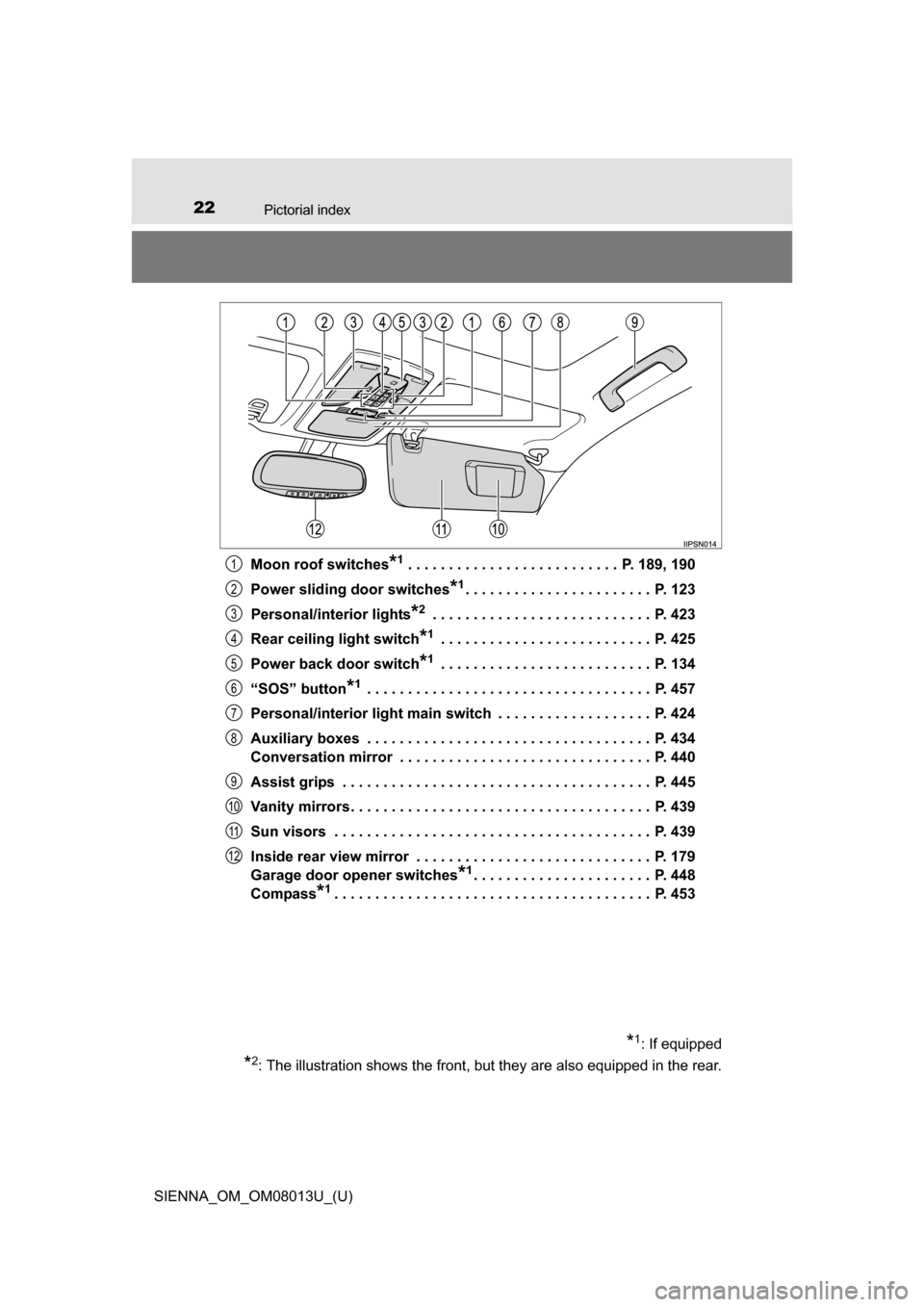

SIENNA_OM_OM08013U_(U)Moon roof switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 189, 190
Power sliding door switches
*1. . . . . . . . . . . . . . . . . . . . . . . P. 123
Personal/interior lights
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 423
Rear ceiling light switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 425
Power back door switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 134
“SOS” button
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 457
Personal/interior light main switch . . . . . . . . . . . . . . . . . . . P. 424
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 434
Conversation mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 440
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 445
Vanity mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 439
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 439
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 179
Garage door opener switches
*1. . . . . . . . . . . . . . . . . . . . . . P. 448
Compass
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 453
*1: If equipped
*2: The illustration shows the front, but they are also equipped in the rear.
1
2
3
4
5
6
7
8
9
10
11
12
Page 23 of 668
23
SIENNA_OM_OM08013U_(U)
For safety and security1
1-1. For safe useBefore driving ...................... 24
For safety drive ................... 26
Seat belts ............................ 28
SRS airbags ........................ 36
Front passenger occupant classification system ......... 50
Safety information for children ........................ 55
Child restraint systems........ 56
Installing child restraints...... 60
Exhaust gas precautions..... 74
1-2. Theft deterrent system Engine immobilizer system .............................. 75
Alarm................................... 77
Page 24 of 668
241-1. For safe use
SIENNA_OM_OM08013U_(U)
Before driving

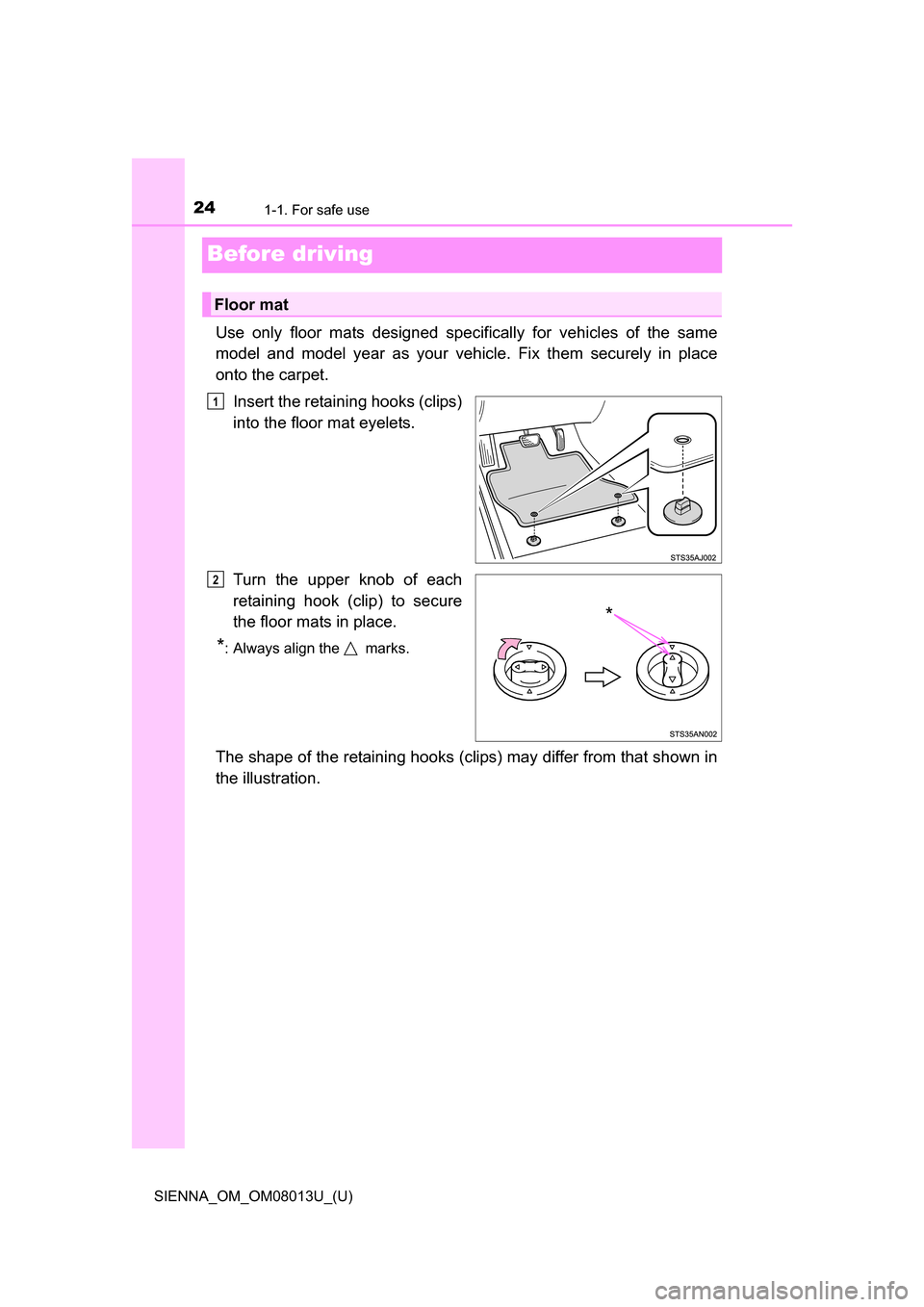

Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in
the illustration.
Floor mat
1
*
O
Page 25 of 668
251-1. For safe use
SIENNA_OM_OM08013U_(U)
1
For safety and security
WARNING

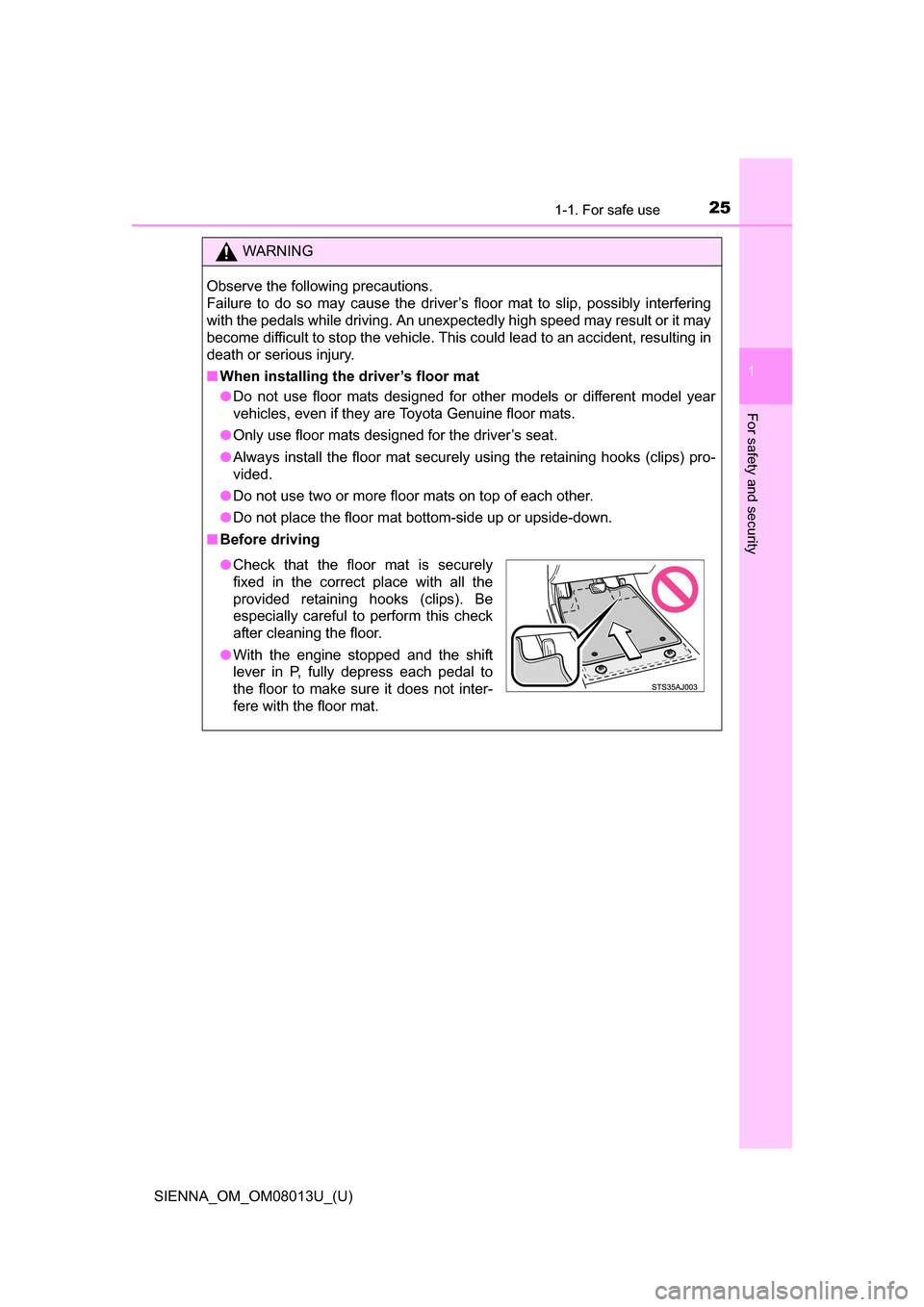

Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.
Page 26 of 668
261-1. For safe use
SIENNA_OM_OM08013U_(U)
For safety drive

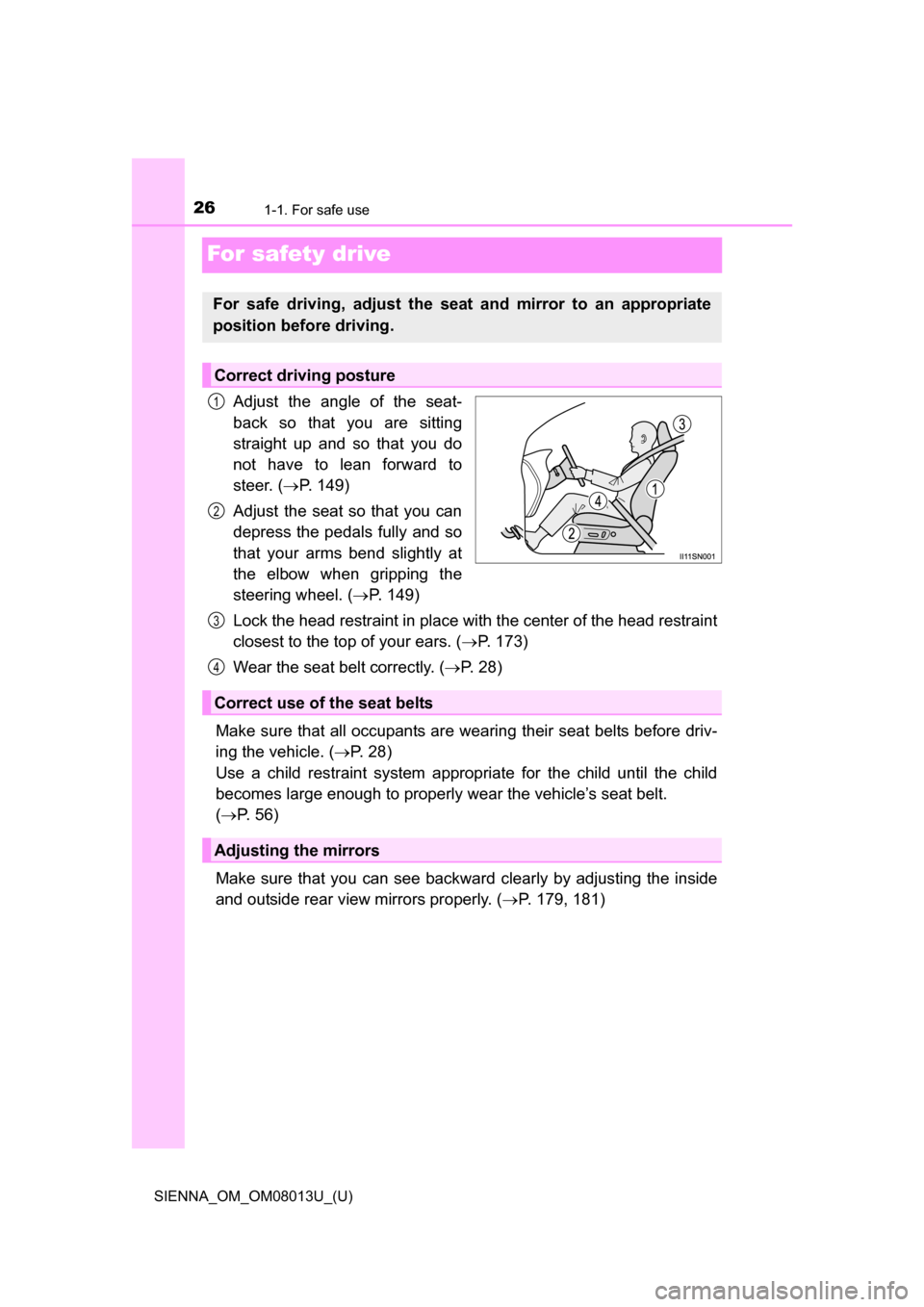

Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 149)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 149)
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. ( P. 173)
Wear the seat belt correctly. ( P. 2 8 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 2 8 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
( P. 56)
Make sure that you can see backwar d clearly by adjusting the inside
and outside rear view mirrors properly. ( P. 179, 181)
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
Adjusting the mirrors
3
4
Page 27 of 668

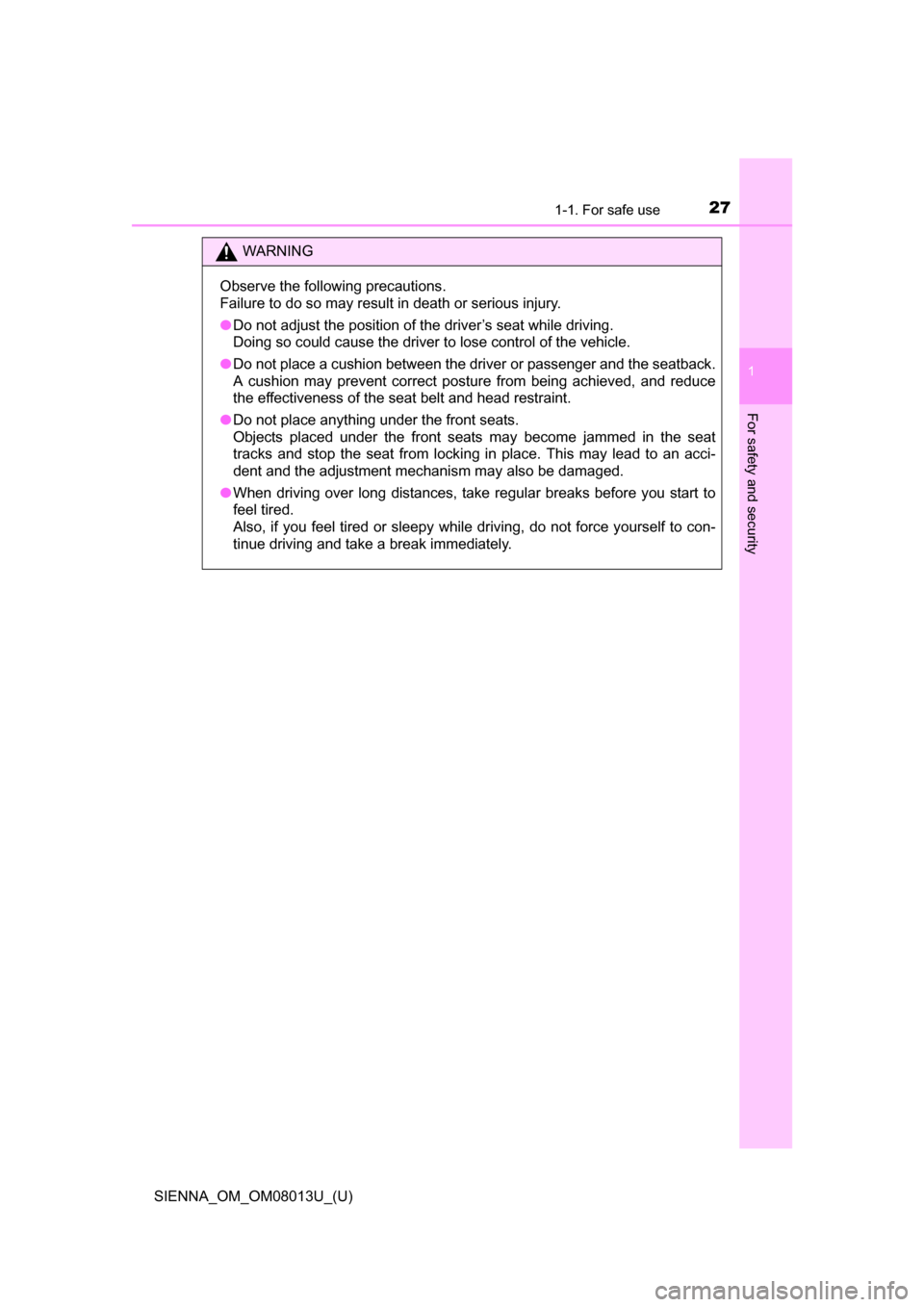

271-1. For safe use
SIENNA_OM_OM08013U_(U)
1
For safety and security
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.
Page 28 of 668
281-1. For safe use
SIENNA_OM_OM08013U_(U)
Seat belts

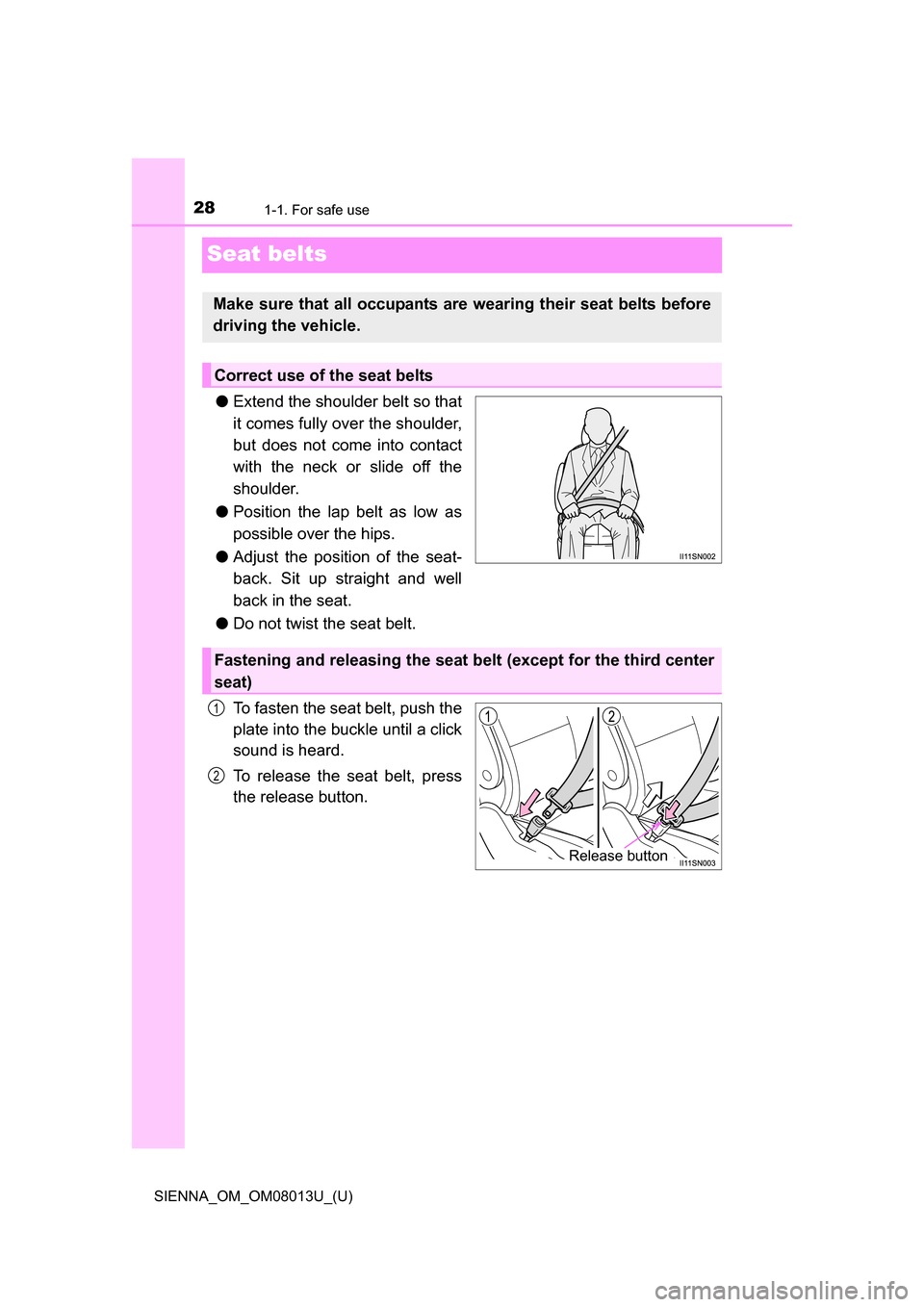

●Extend the shoulder belt so that
it comes fully over the shoulder,
but does not come into contact
with the neck or slide off the
shoulder.
● Position the lap belt as low as
possible over the hips.
● Adjust the position of the seat-
back. Sit up straight and well
back in the seat.
● Do not twist the seat belt.
To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To release the seat belt, press
the release button.
Make sure that all occupants are wearing their seat belts before
driving the vehicle.
Correct use of the seat belts
Fastening and releasing the seat belt (except for the third center
seat)
Release button
1
2
Page 29 of 668
291-1. For safe use
SIENNA_OM_OM08013U_(U)
1
For safety and security

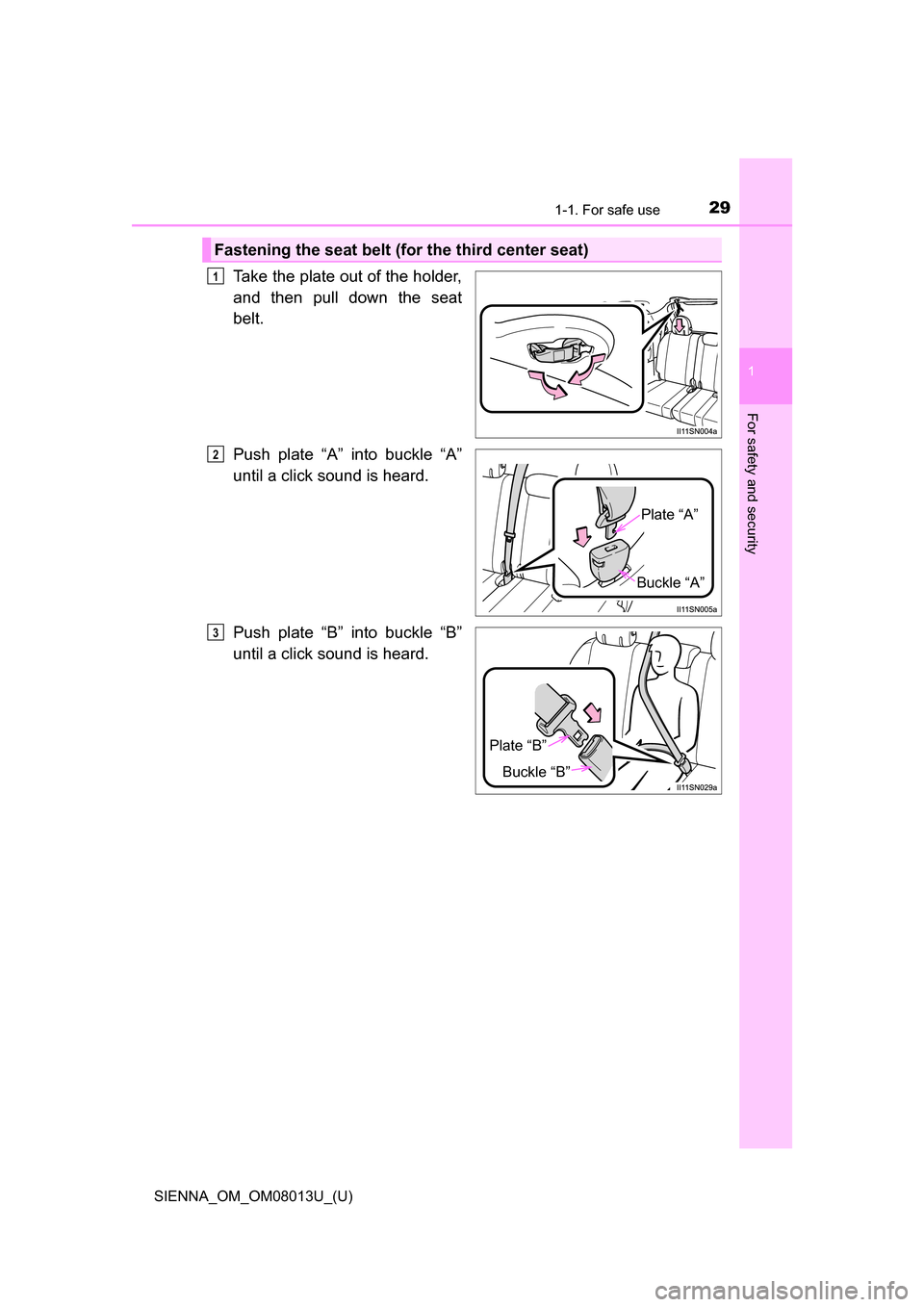

Take the plate out of the holder,
and then pull down the seat
belt.
Push plate “A” into buckle “A”
until a click sound is heard.
Push plate “B” into buckle “B”
until a click sound is heard.
Fastening the seat belt (for the third center seat)
1
Plate “A”
Buckle “A”
O
Plate “B”
Buckle “B”
P
Page 30 of 668
301-1. For safe use
SIENNA_OM_OM08013U_(U)

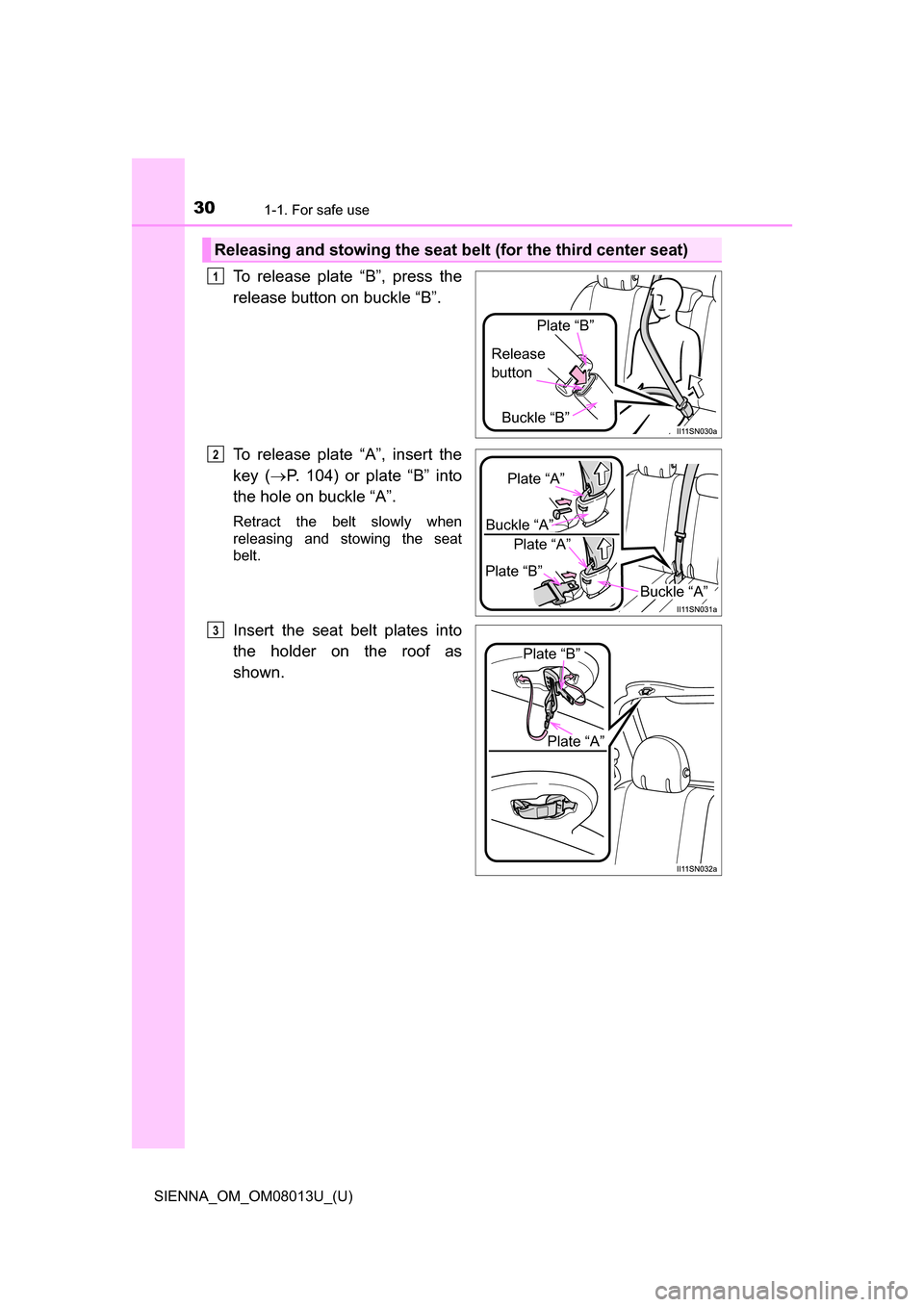

To release plate “B”, press the
release button on buckle “B”.
To release plate “A”, insert the
key (P. 104) or plate “B” into
the hole on buckle “A”.
Retract the belt slowly when
releasing and stowing the seat
belt.
Insert the seat belt plates into
the holder on the roof as
shown.
Releasing and stowing the seat belt (for the third center seat)
Buckle “B”
Release
button
Plate “B”
1
Buckle “A”
Plate “A”
Plate “A”
Plate “B”
Buckle “A”
O
Plate “A”
Plate “B”
P
