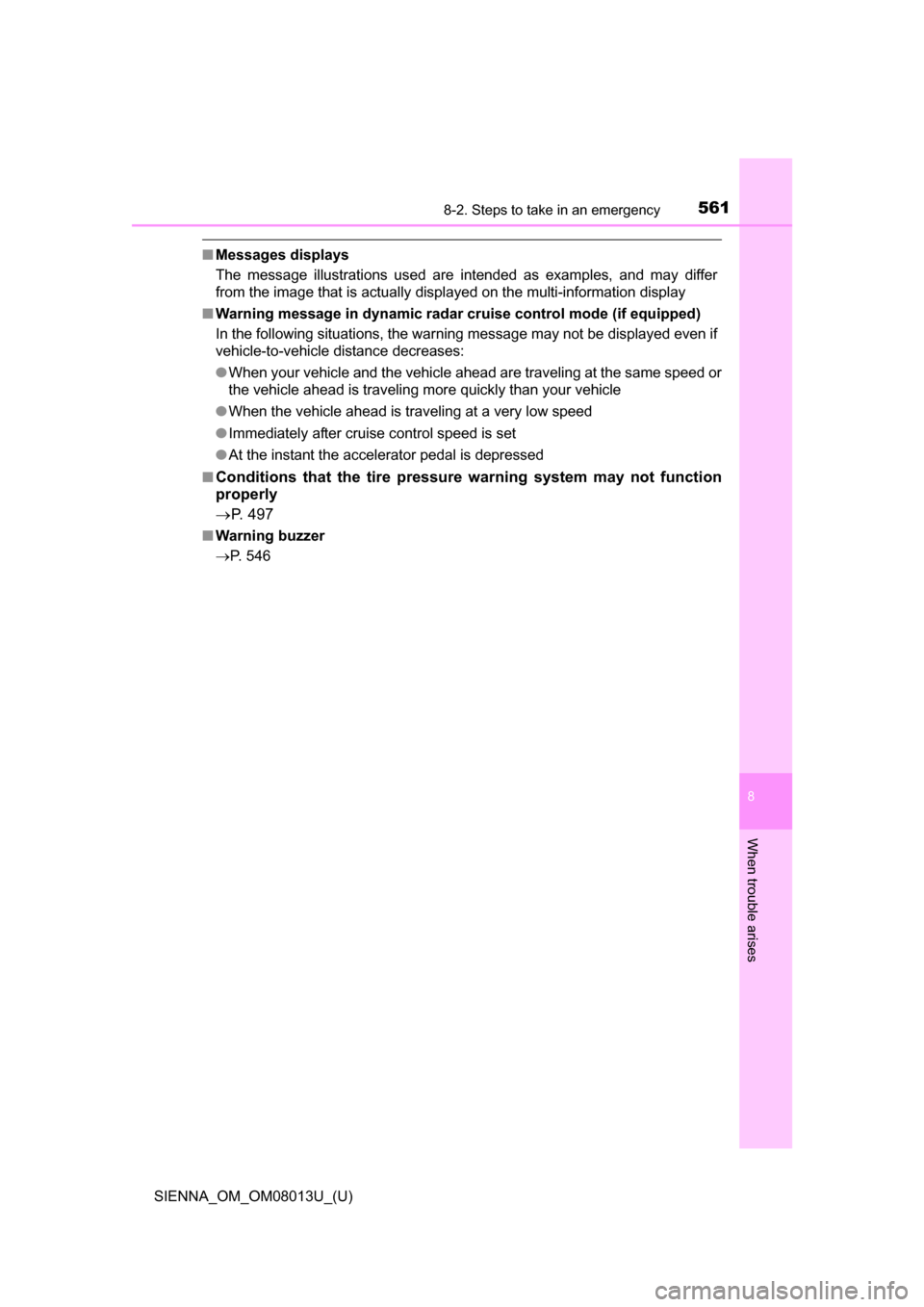

5618-2. Steps to take in an emergency
SIENNA_OM_OM08013U_(U)
8
When trouble arises
■Messages displays
The message illustrations used are intended as examples, and may differ
from the image that is actually displayed on the multi-information display
■ Warning message in dynamic radar cr uise control mode (if equipped)
In the following situations, the warning message may not be displayed even if
vehicle-to-vehicle distance decreases:
● When your vehicle and the vehicle ahead are traveling at the same speed or
the vehicle ahead is traveling more quickly than your vehicle
● When the vehicle ahead is traveling at a very low speed
● Immediately after cruise control speed is set
● At the instant the accelerator pedal is depressed
■
Conditions that the tire pressure warning system may not function
properly
 P. 4 9 7
■Warning buzzer
P. 546

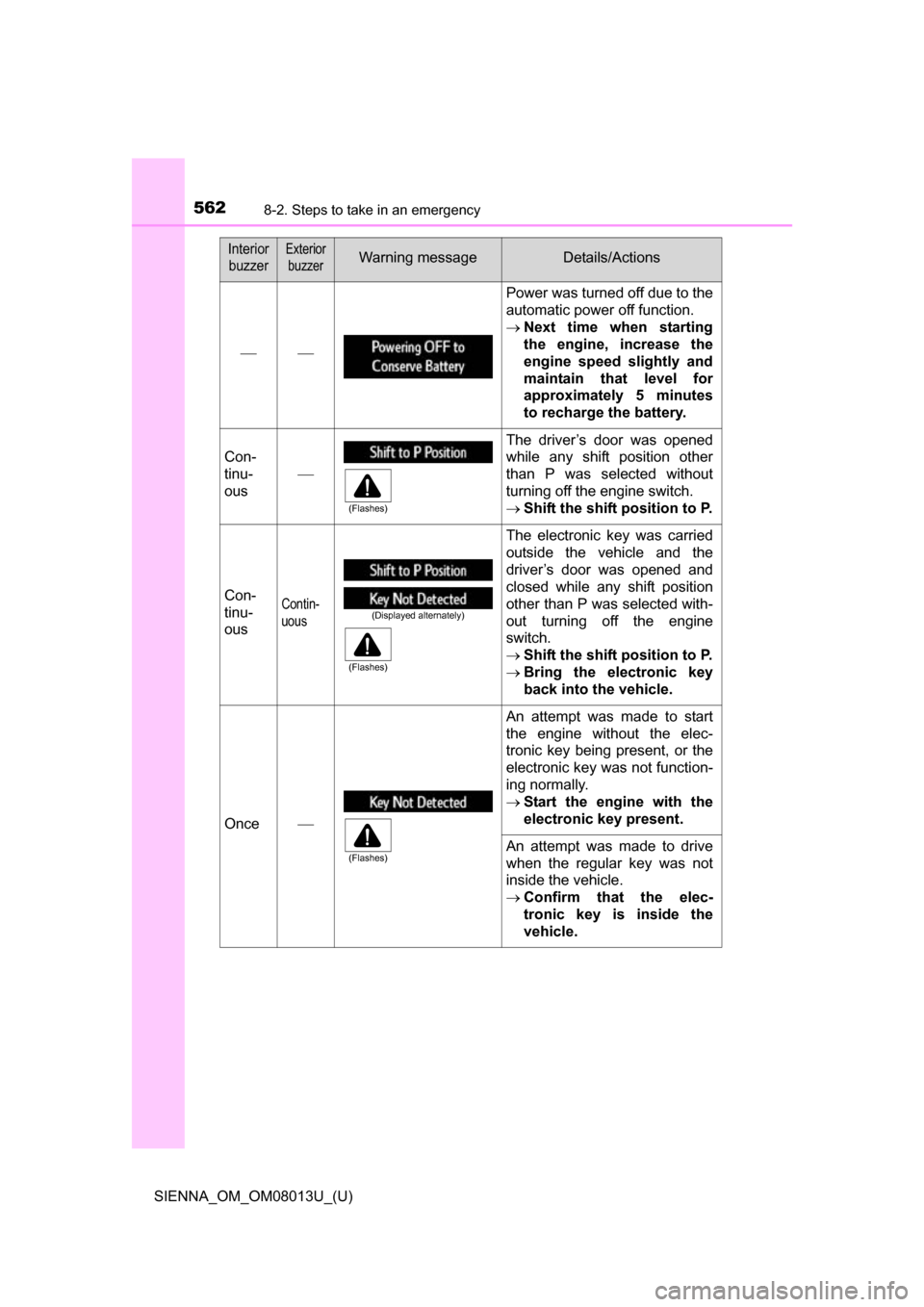

5628-2. Steps to take in an emergency
SIENNA_OM_OM08013U_(U)
InteriorbuzzerExterior buzzerWarning messageDetails/Actions

Power was turned off due to the
automatic power off function.
 Next time when starting
the engine, increase the
engine speed slightly and
maintain that level for
approximately 5 minutes
to recharge the battery.
Con-
tinu-
ous  The driver’s door was opened
while any shift position other
than P was selected without
turning off the engine switch.

Shift the shift position to P.
Con-
tinu-
ousContin-
uous
The electronic key was carried
outside the vehicle and the
driver’s door was opened and
closed while any shift position
other than P was selected with-
out turning off the engine
switch.
Shift the shift position to P.
 Bring the electronic key
back into the vehicle.
Once  An attempt was made to start
the engine without the elec-
tronic key being present, or the
electronic key was not function-
ing normally.

Start the engine with the
electronic key present.
An attempt was made to drive
when the regular key was not
inside the vehicle.
 Confirm that the elec-
tronic key is inside the
vehicle.
(Flashes)
(Displayed alternately)
(Flashes)
(Flashes)

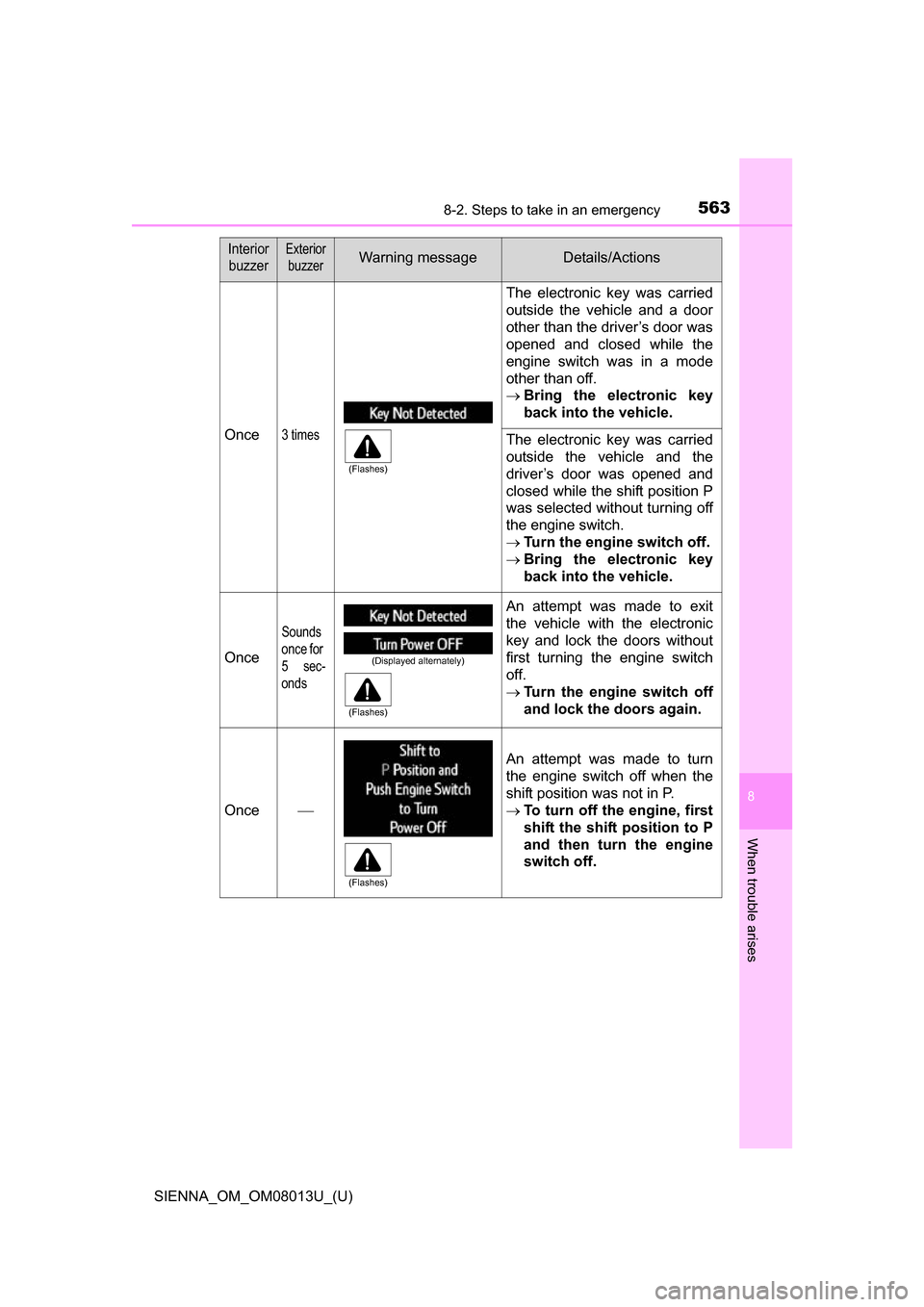

5638-2. Steps to take in an emergency
SIENNA_OM_OM08013U_(U)
8
When trouble arises
Once3 times
The electronic key was carried
outside the vehicle and a door
other than the driver’s door was
opened and closed while the
engine switch was in a mode
other than off.
Bring the electronic key
back into the vehicle.
The electronic key was carried
outside the vehicle and the
driver’s door was opened and
closed while the shift position P
was selected without turning off
the engine switch.
Turn the engine switch off.
 Bring the electronic key
back into the vehicle.
Once
Sounds
once for
5 sec-
onds
An attempt was made to exit
the vehicle with the electronic
key and lock the doors without
first turning the engine switch
off.
Turn the engine switch off
and lock the doors again.
Once
An attempt was made to turn
the engine switch off when the
shift position was not in P.
To turn off the engine, first
shift the shift position to P
and then turn the engine
switch off.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Displayed alternately)
(Flashes)
(Flashes)

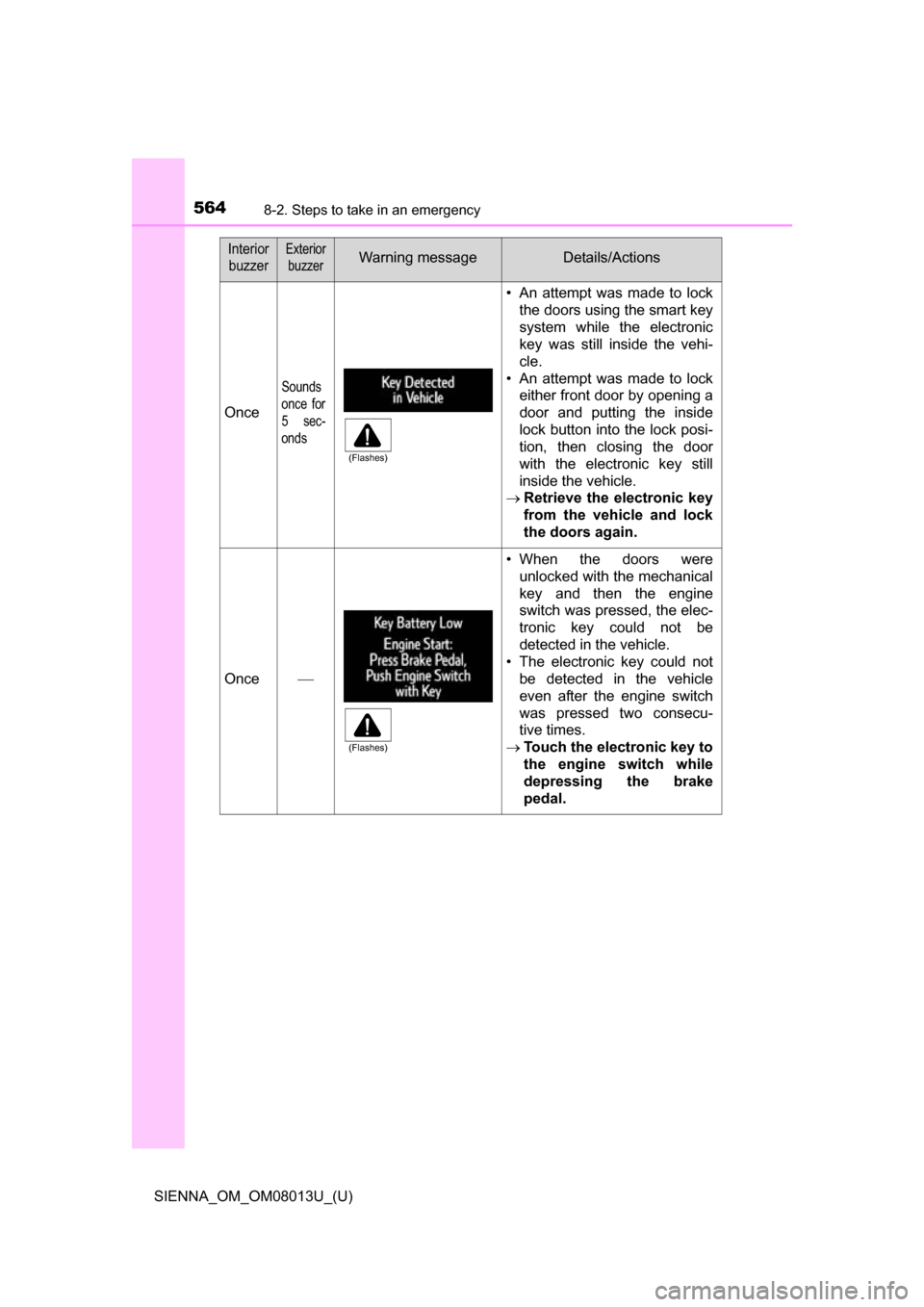

5648-2. Steps to take in an emergency
SIENNA_OM_OM08013U_(U)
Once
Sounds
once for
5 sec-
onds
• An attempt was made to lockthe doors using the smart key
system while the electronic
key was still inside the vehi-
cle.
• An attempt was made to lock either front door by opening a
door and putting the inside
lock button into the lock posi-
tion, then closing the door
with the electronic key still
inside the vehicle.
 Retrieve the electronic key
from the vehicle and lock
the doors again.
Once
• When the doors were
unlocked with the mechanical
key and then the engine
switch was pressed, the elec-
tronic key could not be
detected in the vehicle.
• The electronic key could not
be detected in the vehicle
even after the engine switch
was pressed two consecu-
tive times.
 Touch the electronic key to
the engine switch while
depressing the brake
pedal.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

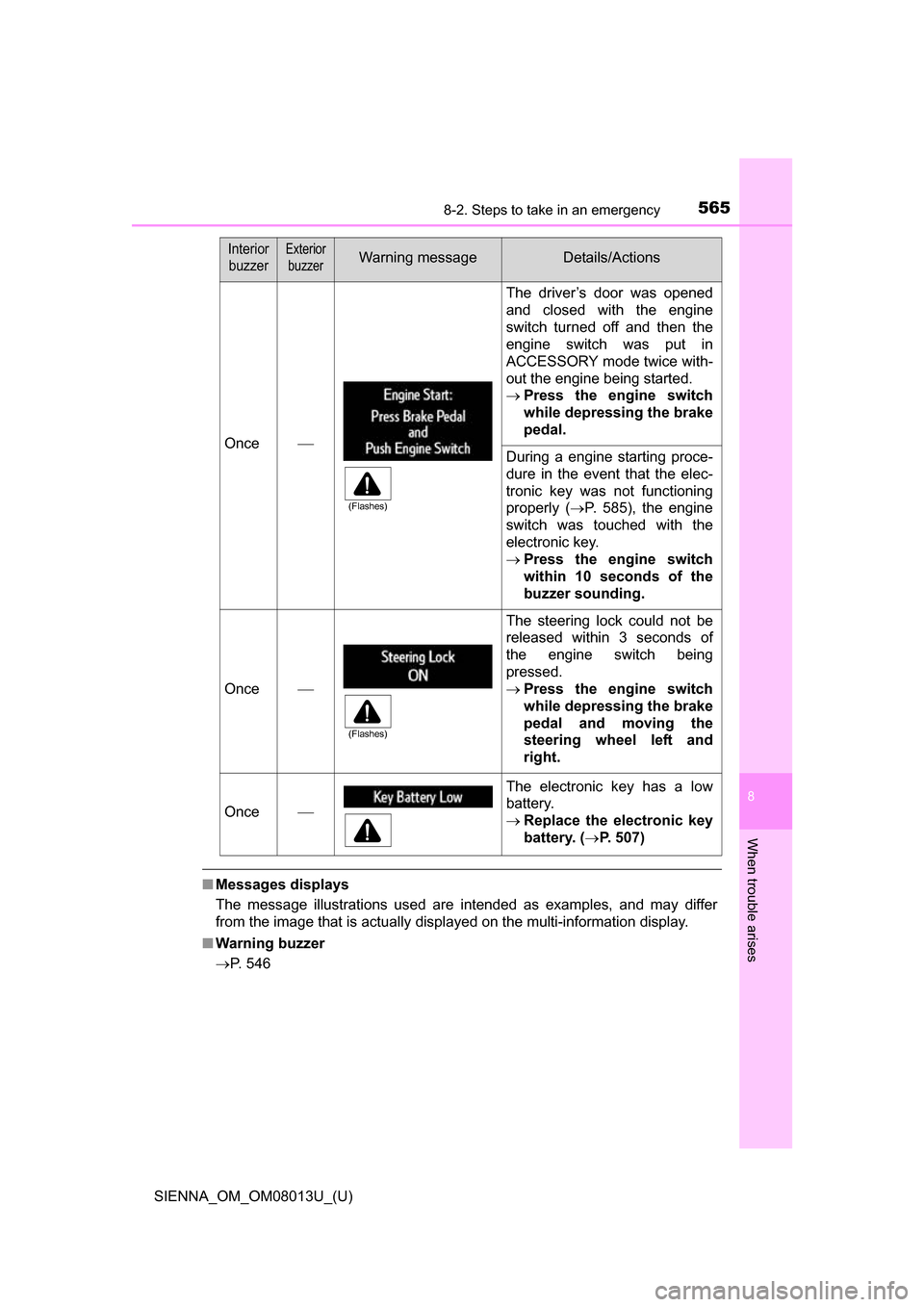

5658-2. Steps to take in an emergency
SIENNA_OM_OM08013U_(U)
8
When trouble arises
■Messages displays
The message illustrations used are intended as examples, and may differ
from the image that is actually displayed on the multi-information display.
■ Warning buzzer
P. 546
Once
The driver’s door was opened
and closed with the engine
switch turned off and then the
engine switch was put in
ACCESSORY mode twice with-
out the engine being started.
 Press the engine switch
while depressing the brake
pedal.
During a engine starting proce-
dure in the event that the elec-
tronic key was not functioning
properly ( P. 585), the engine
switch was touched with the
electronic key.
 Press the engine switch
within 10 seconds of the
buzzer sounding.
Once
The steering lock could not be
released within 3 seconds of
the engine switch being
pressed.
Press the engine switch
while depressing the brake
pedal and moving the
steering wheel left and
right.
Once
The electronic key has a low
battery.
Replace the electronic key
battery. ( P. 507)
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

566
SIENNA_OM_OM08013U_(U)
8-2. Steps to take in an emergency

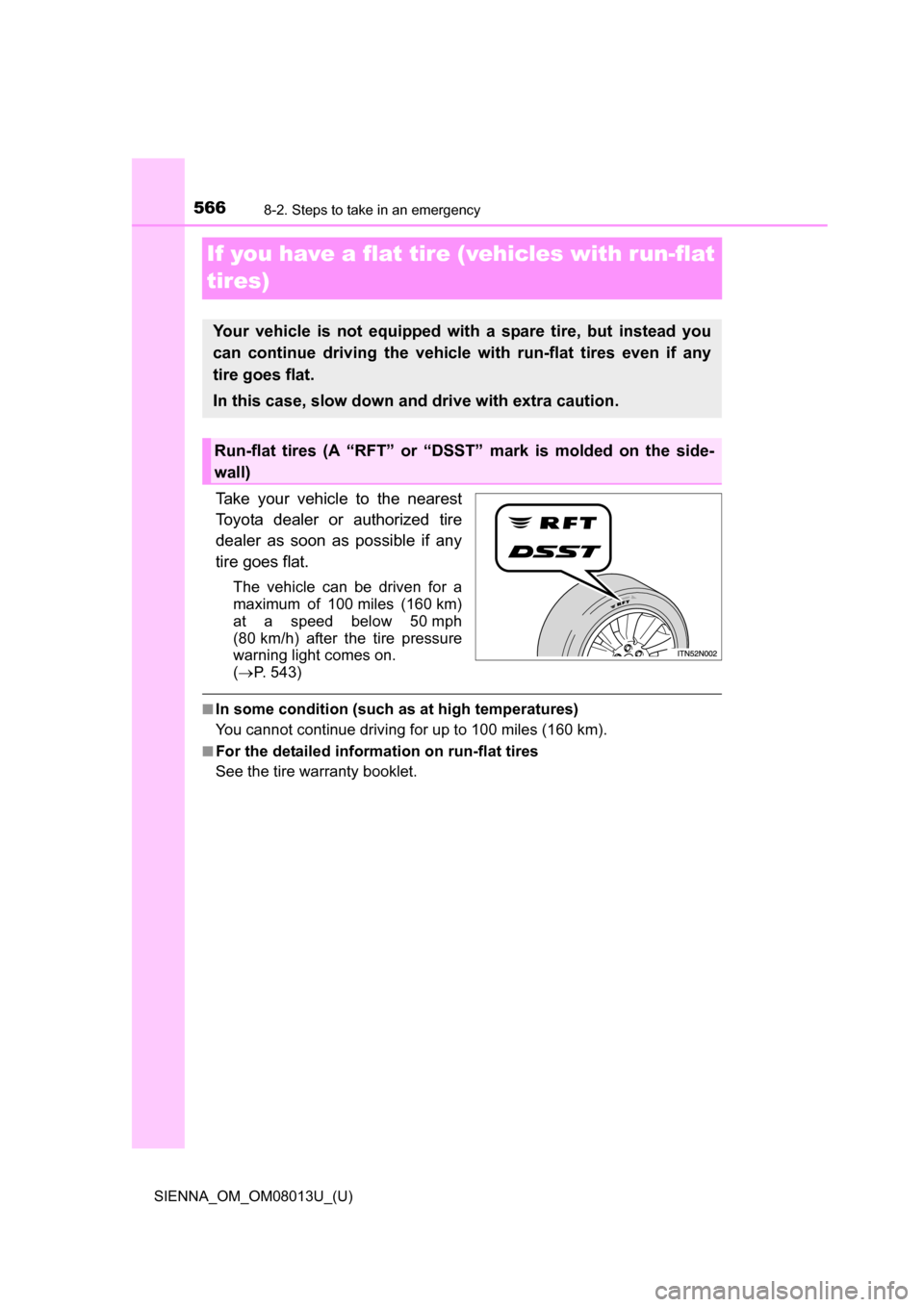

If you have a flat tire (vehicles with run-flat
tires)
Take your vehicle to the nearest
Toyota dealer or authorized tire
dealer as soon as possible if any
tire goes flat.
The vehicle can be driven for a
maximum of 100 miles (160 km)
at a speed below 50 mph
(80 km/h) after the tire pressure
warning light comes on.
( P. 543)
■In some condition (such as at high temperatures)
You cannot continue driving for up to 100 miles (160 km).
■For the detailed information on run-flat tires
See the tire warranty booklet.
Your vehicle is not equipped wi th a spare tire, but instead you
can continue driving the vehicle with run-flat tires even if any
tire goes flat.
In this case, slow down and drive with extra caution.
Run-flat tires (A “RFT” or “DSS T” mark is molded on the side-
wall)

5678-2. Steps to take in an emergency
SIENNA_OM_OM08013U_(U)
8
When trouble arises

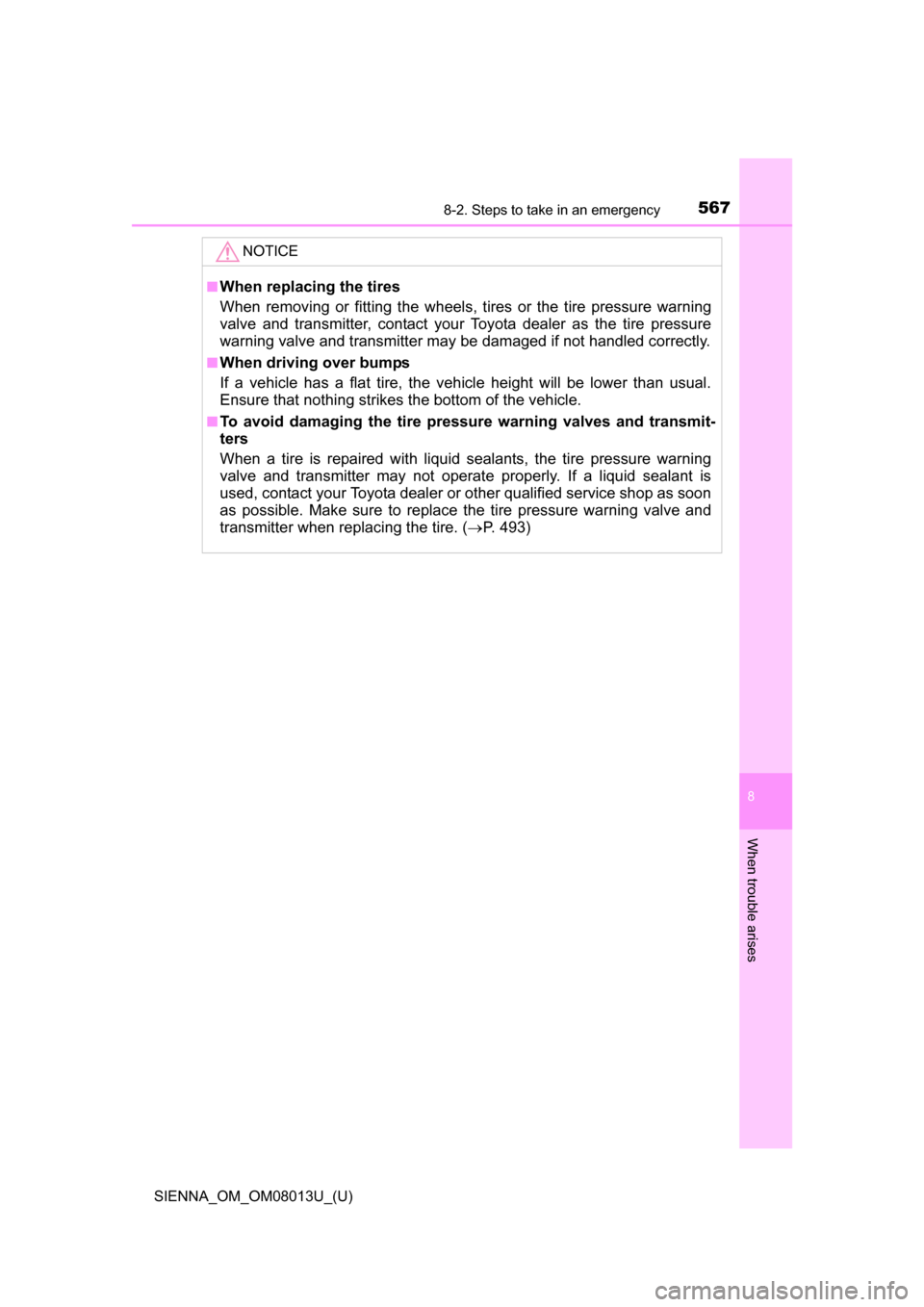

NOTICE
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.
■When driving over bumps
If a vehicle has a flat tire, the vehicle height will be lower than usual.
Ensure that nothing strikes the bottom of the vehicle.
■To avoid damaging the tire pressure warning valves and transmit-
ters
When a tire is repaired with liquid sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Toyota dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire. ( P. 493)

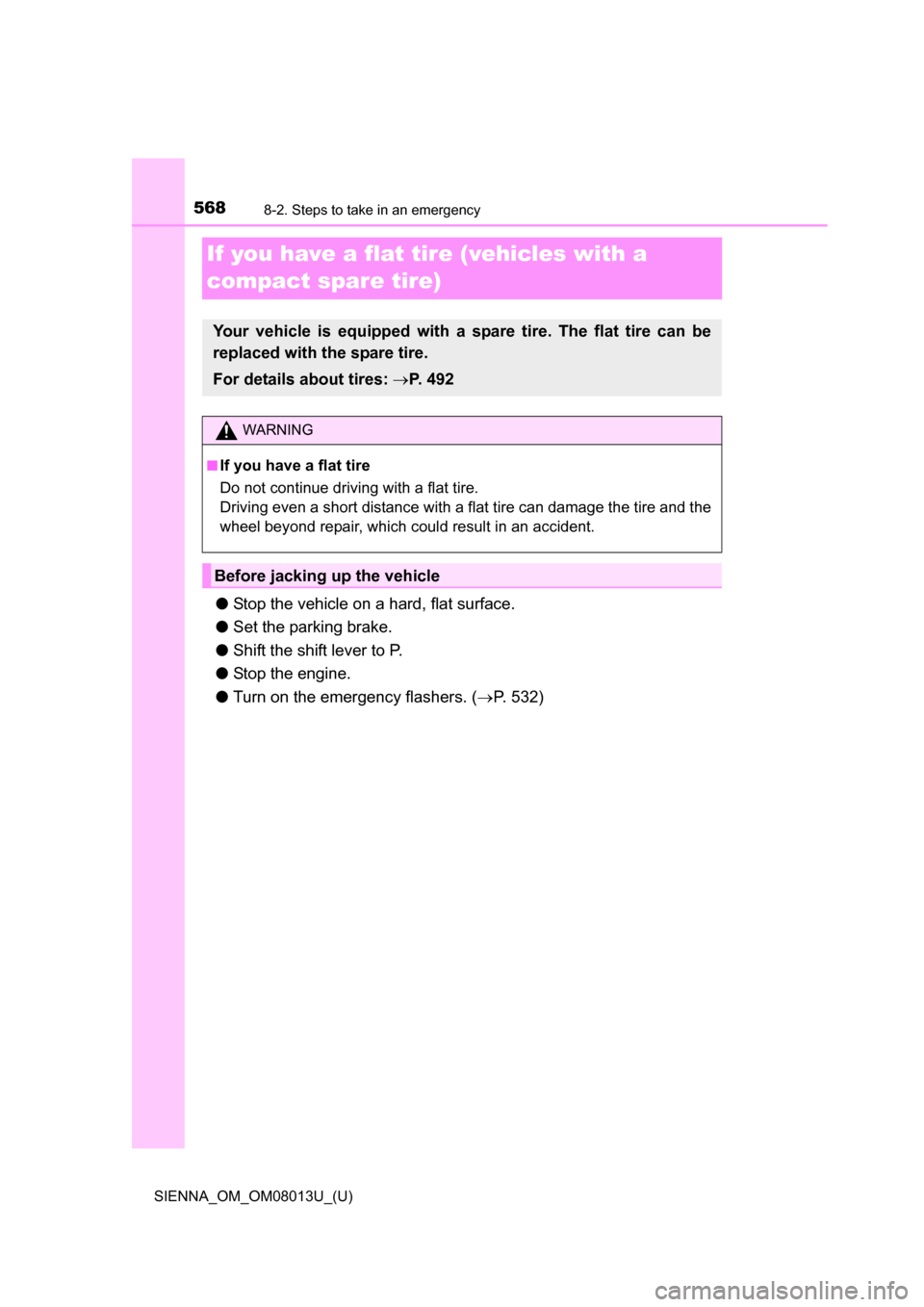

568
SIENNA_OM_OM08013U_(U)
8-2. Steps to take in an emergency
If you have a flat tire (vehicles with a
compact spare tire)
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the engine.
● Turn on the emergency flashers. ( P. 532)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P. 4 9 2
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a fl at tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle

5698-2. Steps to take in an emergency
SIENNA_OM_OM08013U_(U)
8
When trouble arises

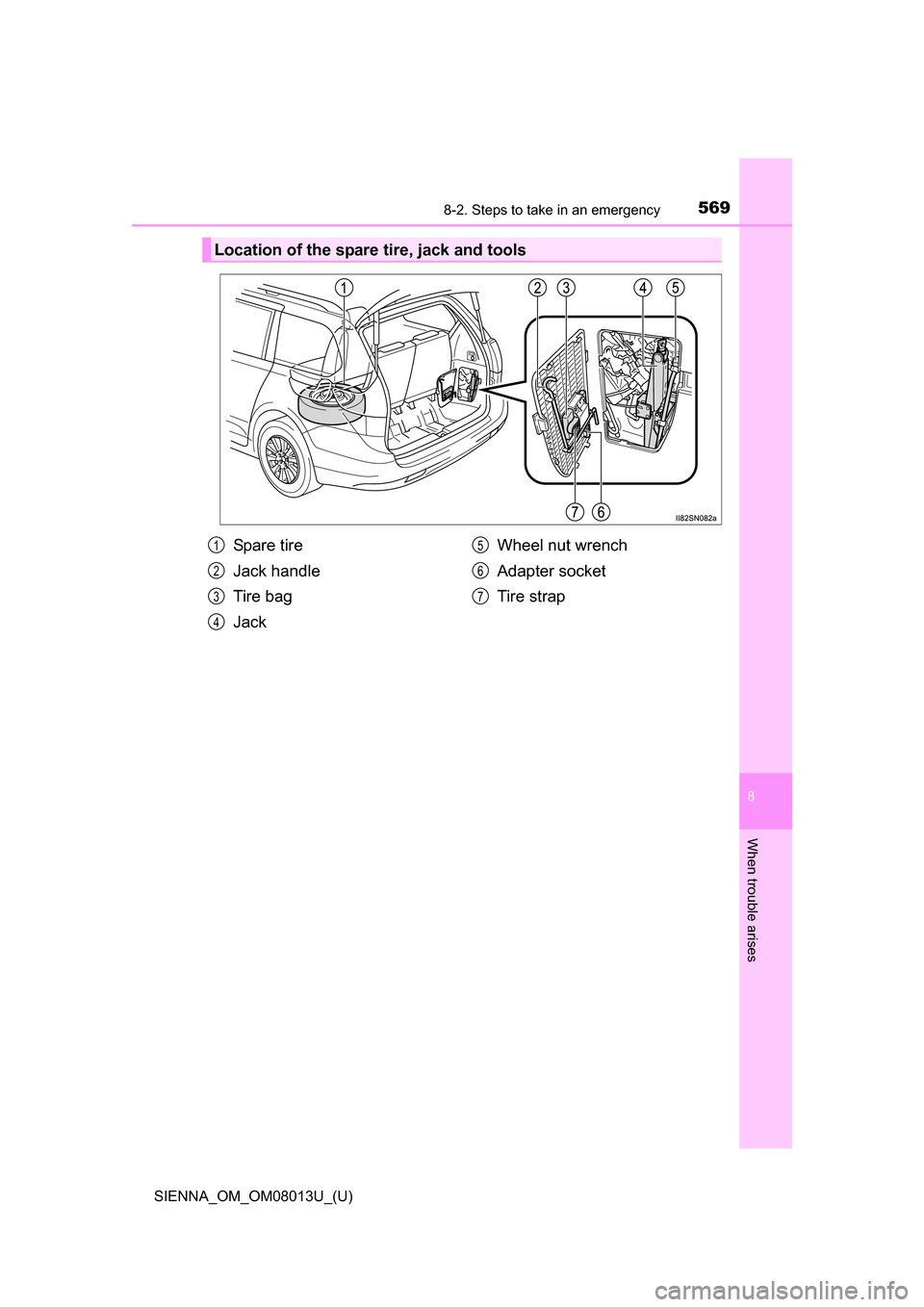

Location of the spare tire, jack and tools
Spa re ti r e
Jack handle
Tire bag
JackWheel nut wrench
Adapter socket
Tire strap1
2
3
4
5
6
7

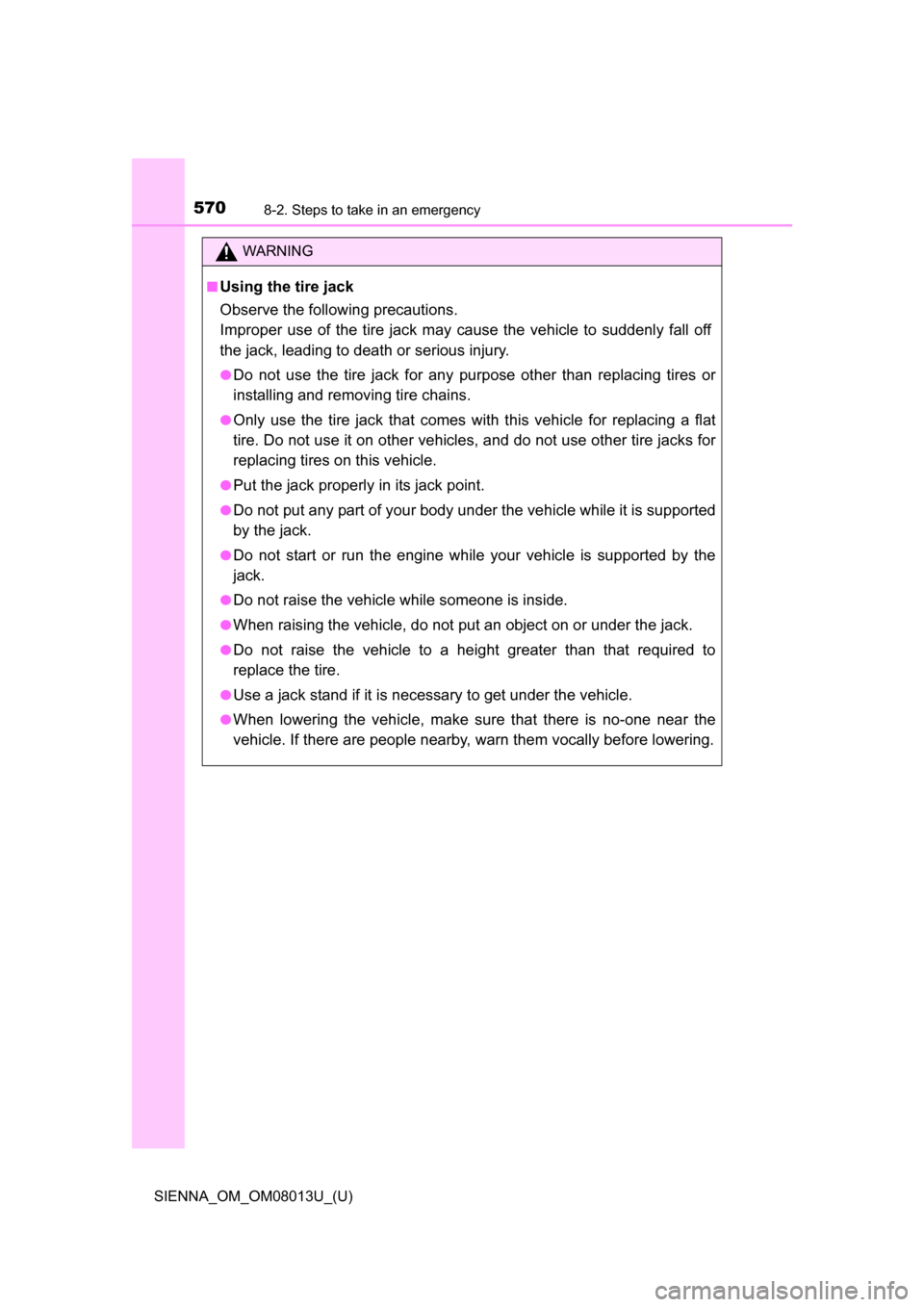

5708-2. Steps to take in an emergency
SIENNA_OM_OM08013U_(U)
WARNING
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire. Do not use it on other vehicles , and do not use other tire jacks for
replacing tires on this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body und er the vehicle while it is supported
by the jack.
●Do not start or run the engine while your vehicle is supported by the
jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make su re that there is no-one near the
vehicle. If there are people nearby, warn them vocally before lowering.
