TOYOTA SIENNA 2017 XL30 / 3.G Navigation Manual

201
1. USEFUL INFORMATION
SIENNA_Navi+MM_OM08009U_(U)
16.01.25 16:40
INFORMATION
5
1Display the “Weather” screen.
(P.200)
2Select “Current Weather” .
3Select the desired tab to be displayed.
DISPLAYING THE WEATHER
OF THE CURRENT LOCATION
INFORMATION
●If weather is set to the home screen, the
weather screen of the current location
will be displayed.

202
1. USEFUL INFORMATION
SIENNA_Navi+MM_OM08009U_(U)
16.01.25 16:40
2. RECEIVING TRAFFIC MAP INFORMATION*
1Press the “APPS” button.
2Select “Traffic” .
3Check that the “Traffic Map” screen is
displayed.Traffic map information can be re-
ceived via the HD Radio.
DISPLAYING TRAFFIC MAP
INFORMATION
No.Function
Current position of your car
Traffic information line
The line color means the following:
Red: Heavy congestion
Yellow: Moderate traffic
Green: Freely flowing traffic
INFORMATION
●Traffic map information is available in
the 48 states, D.C. and Alaska of the
United States.
*: Entune Audio Plus only

203
1. USEFUL INFORMATION
SIENNA_Navi+MM_OM08009U_(U)
16.01.25 16:40
INFORMATION
5
3. DATA SERVICES SETTINGS*
1Press the “APPS” button.
2Select “Setup” .
3Select “HD Data” .
4Select the desired item to be set.
Select a checkbox on the right to set.
SETTING DOWNLOAD
METHODS
Data service information, which is
comprised of traffic information and
weather information, can be received
via HD Radio broadcast and by the
Entune App Suite application on a
Bluetooth
® phone. The receiving meth-
od can be set to both or only via HD
Radio broadcast. For details about the
Entune App Suite application: P.339
No.Function
Select to receive data service infor-
mation via both HD Radio broadcast
and the Entune App Suite applica-
tion on a Bluetooth
® phone. When
both methods are available, HD Ra-
dio broadcast will be selected.
Select to receive data only via HD
Radio broadcast.
INFORMATION
● These settings are available in the 48
states, D.C. and Alaska of the United
States.
*: Entune Premium Audio only

204
1. USEFUL INFORMATION
SIENNA_Navi+MM_OM08009U_(U)
16.01.25 16:40

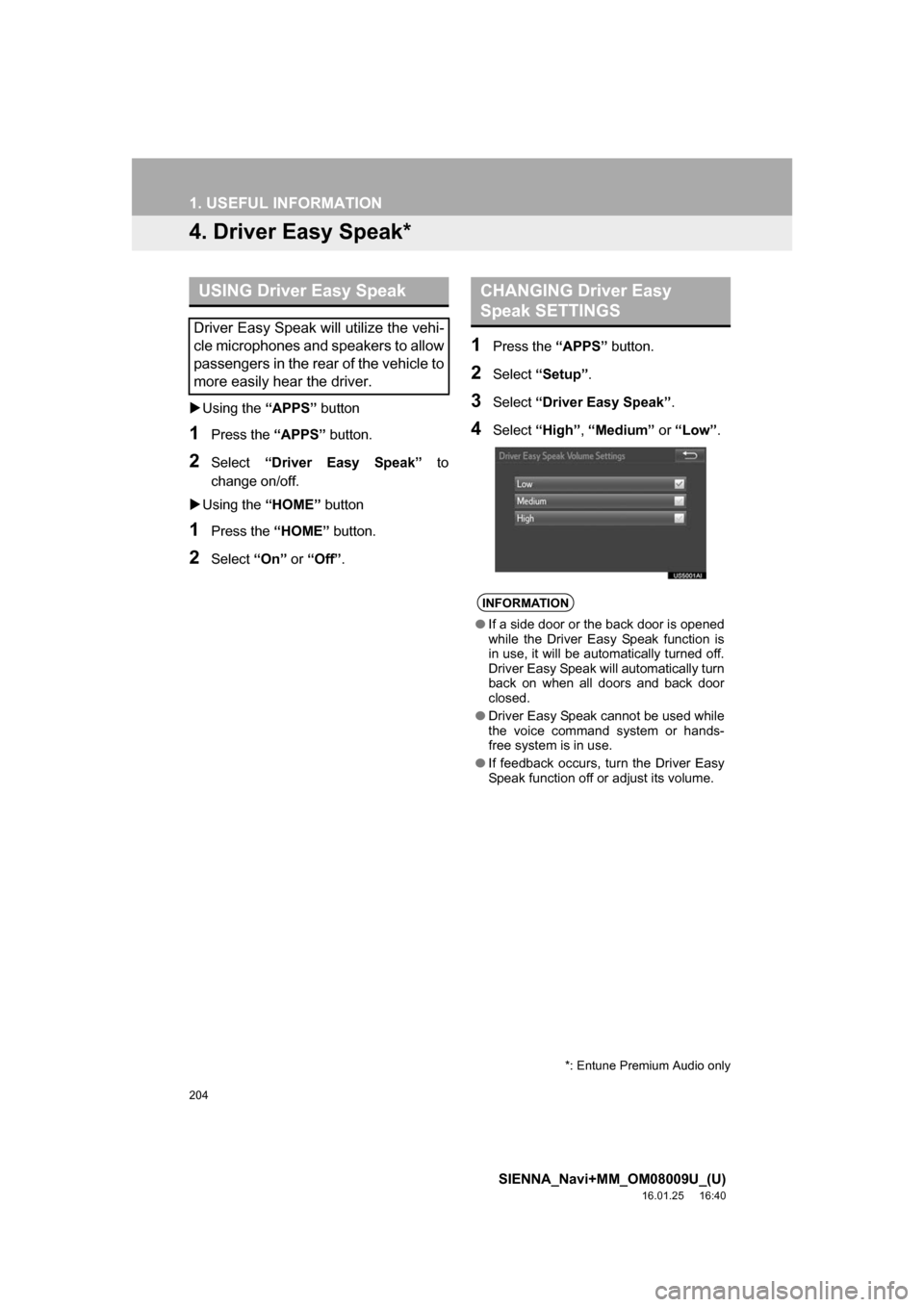

4. Driver Easy Speak*
Using the “APPS” button
1Press the “APPS” button.
2Select “Driver Easy Speak” to
change on/off.
 Using the “HOME” button
1Press the “HOME” button.
2Select “On” or “Off” .
1Press the “APPS” button.
2Select “Setup”.
3Select “Driver Easy Speak” .
4Select “High” , “Medium” or “Low” .
USING Driver Easy Speak
Driver Easy Speak will utilize the vehi-
cle microphones and speakers to allow
passengers in the rear of the vehicle to
more easily hear the driver.
CHANGING Driver Easy
Speak SETTINGS
INFORMATION
●If a side door or the back door is opened
while the Driver Easy Speak function is
in use, it will be automatically turned off.
Driver Easy Speak will automatically turn
back on when all doors and back door
closed.
● Driver Easy Speak cannot be used while
the voice command system or hands-
free system is in use.
● If feedback occurs, turn the Driver Easy
Speak function off or adjust its volume.
*: Entune Premium Audio only

6
205
SIENNA_Navi+MM_OM08009U_(U)
16.01.25 16:40
1
2
3
4
5
6
7
8
9
1. REAR VIEW MONITOR SYSTEM .......... ....................... ... 206
REAR VIEW MONITOR SYSTEM ....... 206
DRIVING PRECAUTIONS ................... 206
SCREEN DISPLAY .............................. 208
USING THE SYSTEM.......................... 209
2. ESTIMATED COURSE LINE
DISPLAY MODE ....................... 211
SCREEN DESCRIPTION .................... 211
PARKING ............................................. 212
3. PARKING ASSIST GUIDE LINE DISPLAY MODE ....................... 213
SCREEN DESCRIPTION .................... 213
PARKING ............................................. 214
4. REAR VIEW MONITOR SYSTEM PRECAUTIONS ......... 215
AREA DISPLAYED ON SCREEN ........ 215
THE CAMERA ..................................... 216
DIFFERENCES BETWEEN THE
SCREEN AND THE ACTUAL
ROAD ................................................ 217
WHEN APPROACHING THREE-DIMENSIONAL
OBJECTS .......................................... 218
5. THINGS YOU SHOULD KNOW ....................................... 220
IF YOU NOTICE ANY SYMPTOMS .... 220
1
REAR VIEW MONITOR
SYSTEM (WITH GUIDE
FUNCTION)
PERIPHERAL MONITORING SYSTEM

206
SIENNA_Navi+MM_OM08009U_(U)
16.01.25 16:40
1. REAR VIEW MONITOR SYSTEM (WITH GUIDE FUNCTION)
1. REAR VIEW MONITOR SYSTEM
REAR VIEW MONITOR
SYSTEM
The rear view monitor system assists
the driver by displaying an image of the
view behind the vehicle while backing
up, for example while parking.
INFORMATION
●The screen illustrations used in this text
are intended as examples, and may dif-
fer from the image that is actually dis-
played on the screen.
DRIVING PRECAUTIONS
The rear view monitor system is a sup-
plemental device intended to assist the
driver when backing up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors before proceeding. If you do
not, you may hit another vehicle, and
could possibly cause an accident.
Pay attention to the following precau-
tions when using the rear view monitor
system.
WA R N I N G
●Never depend on the rear view monitor
system entirely when backing up. The
image and the position of the guide lines
displayed on the screen may differ from
the actual state.
Use caution, just as you would when
backing up any vehicle.
● Be sure to back up slowly, depressing
the brake pedal to control vehicle speed.
● If you seem likely to hit nearby vehicles,
obstacles, people or mount the shoulder,
depress the brake pedal to stop the
vehicle.

207
1. REAR VIEW MONITOR SYSTEM (WITH GUIDE FUNCTION)
SIENNA_Navi+MM_OM08009U_(U)
16.01.25 16:40
PERIPHERAL MONITORING SYSTEM
6
WA R N I N G
●The instructions given are only guide-
lines. When and how much to turn the
steering wheel will vary according to
traffic conditions, road surface condi-
tions, vehicle condition, etc. when park-
ing. It is necessary to be fully aware of
this before using the rear view monitor
system.
● When parking, be sure to check that the
parking space will accommodate your
vehicle before maneuvering into it.
● Do not use the rear view monitor system
in the following cases:
• On icy or slick road surfaces, or in
snow
• When using tire chains or emergency
tires
• When the back door is not closed com- pletely
• On roads that are not flat or straight, such as curves or slopes
● In the evening, or in other situations with
no light sources, the sides may not be
visible in wide mode.
● In low temperatures, the screen may
darken or the image may become faint.
The image could distort when the vehi-
cle is moving, or you may become
unable to see the image on the screen.
Be sure to visually check all around the
vehicle both directly and using the mir-
rors before proceeding.
● If the tire sizes are changed, the position
of the guide lines displayed on the
screen may change.
● The camera uses a special lens. The
distances between objects and pedestri-
ans that appear in the image displayed
on the screen will differ from the actual
distances. ( P.217)

208
1. REAR VIEW MONITOR SYSTEM (WITH GUIDE FUNCTION)
SIENNA_Navi+MM_OM08009U_(U)
16.01.25 16:40
SCREEN DISPLAY
Vehicles without a smart key system
The rear view monitor system screen will be displayed if the shift lever is shifted to
the “R” position while the engine switch is in the “ON” position.
Vehicles with a smart key system
The rear view monitor system screen will be displayed if the shift lever is shifted to
the “R” position while the engine switch is in IGNITION ON mode.
No.DisplayFunction
Wide/regular mode select switchTouching this button changes between regular
mode and wide mode. ( P.210)
Intuitive parking assist
If an obstacle is detected while the Intuitive park-
ing assist is on, a display is shown in the top right
corner of the screen.
Display mode switch screen but-
tonSwitches the display mode. ( P.210)
CANCELING TOYOTA REAR VIEW MONITOR SYSTEM
The rear view monitor system is canceled when the shift lever is shifted into any
position other than the “R” position.

209
1. REAR VIEW MONITOR SYSTEM (WITH GUIDE FUNCTION)
SIENNA_Navi+MM_OM08009U_(U)
16.01.25 16:40
PERIPHERAL MONITORING SYSTEM
6
Estimated course line display mode
(P.211) 
Parking assist guide line display mode
(P.213)
 Distance guide line display mode
USING THE SYSTEM
Use any of the following modes.
Estimated course lines are displayed
which move in accordance with the op-
eration of the steering wheel.The steering wheel return points (park-
ing assist guide lines) are displayed.
Distance guide lines only are dis-
played.

210
1. REAR VIEW MONITOR SYSTEM (WITH GUIDE FUNCTION)
SIENNA_Navi+MM_OM08009U_(U)
16.01.25 16:40
1Select the display mode switch screen
button.
With each select, the perpendicular park-
ing assist screen switches as follows:
Regular mode
 Wide mode
SWITCHING THE DISPLAY
MODE
Parking assist guide line
display mode
Estimated course line
display mode
Distance guide linedisplay mode
SELECTING WIDE OR
REGULAR MODE
Regular mode and wide mode are
switched when the wide/regular mode
selection switch is touched.
The current mode is indicated by the
yellow indicator.
