The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota dealer
before you scrap your vehicle.
Special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.

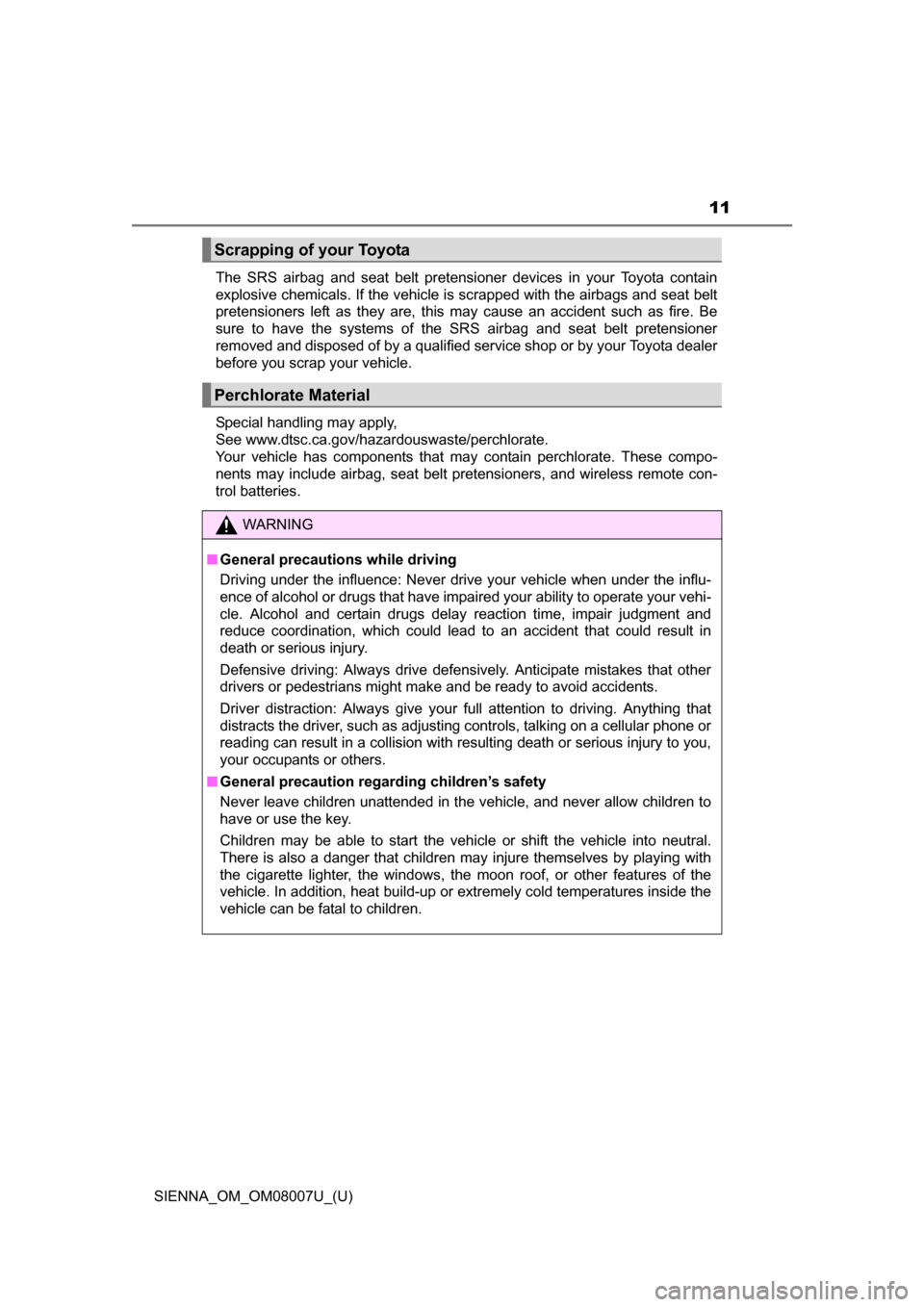

Your vehicle has components that may contain perchlorate. These compo-
nents may include airbag, seat belt pretensioners, and wireless remote con-
trol batteries.
Scrapping of your Toyota
Perchlorate Material
WARNING
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regard ing children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the cigarette lighter, the windows, the moon roof, or other features of the
vehicle. In addition, heat build-up or extremely cold temperatures inside the
vehicle can be fatal to children.

12
SIENNA_OM_OM08007U_(U)

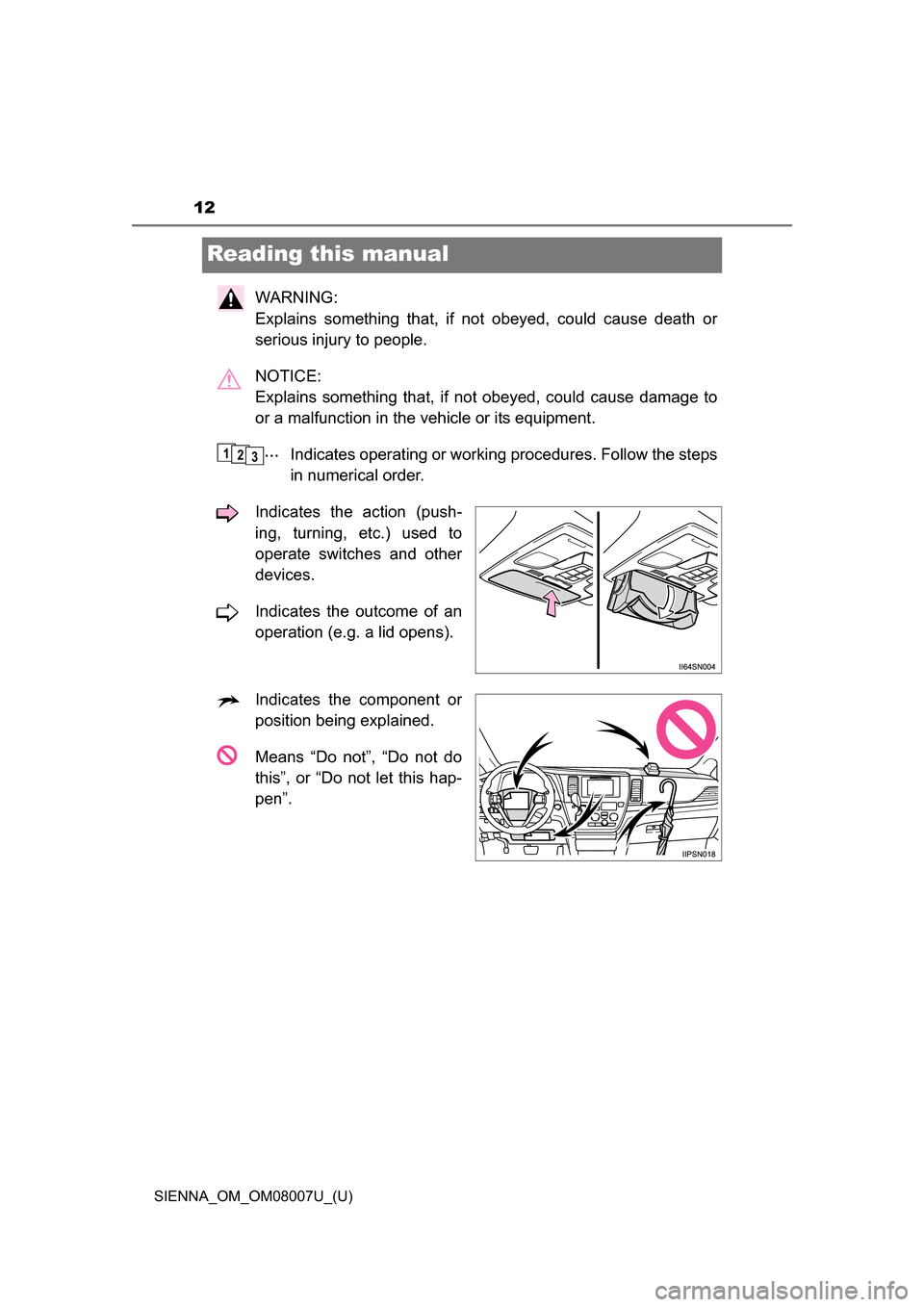

Reading this manual
WARNING:
Explains something that, if not obeyed, could cause death or
serious injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to
or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps
in numerical order.
Indicates the action (push-
ing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not do
this”, or “Do not let this hap-
pen”.
123

13
SIENNA_OM_OM08007U_(U)
How to search
■Searching by name• Alphabetical index .......P. 655
■Searching by installation
position• Pictorial index ................P. 14
■Searching by symptom or
sound• What to do if... (Troubleshooting) ........P. 650
■Searching by title• Table of contents .............P. 2

14Pictorial index
SIENNA_OM_OM08007U_(U)
Pictorial index
■
Exterior
The shape of the headlights may differ depending on the grade, etc. ( P. 517)
Front doors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 110
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 110
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . P. 184
Locking/unlocking by using the mechanical key
* . . . . . . . . . . P. 588
Warning lights
*/warning messages . . . . . . . . . . . . . . . . . P. 547, 555
Sliding doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 121
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 121
Opening from outside. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 122
Opening/closing the quarter windows . . . . . . . . . . . . . . . . . . . P. 187
Warning lights
*/warning messages . . . . . . . . . . . . . . . . . P. 547, 555
Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 133
Opening from outside. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 134
Warning lights/warning messages . . . . . . . . . . . . . . . . . . P. 547, 556
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 181
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 181
Folding the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 181
Driving position memory
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 169
Defogging the mirrors
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 416
1
2
3
4

15Pictorial index

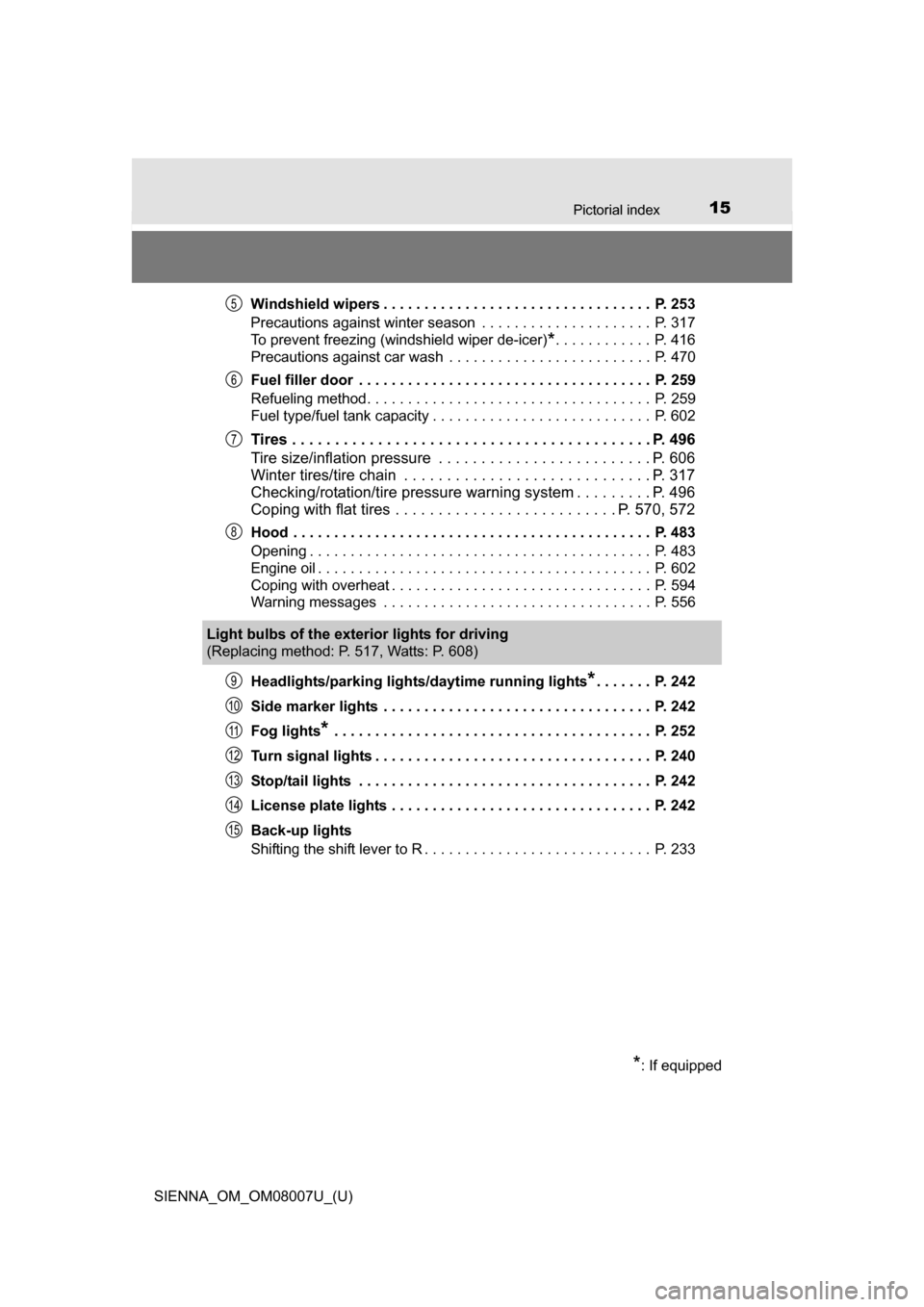

SIENNA_OM_OM08007U_(U)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 253
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 317
To prevent freezing (windshield wiper de-icer)
*. . . . . . . . . . . . P. 416
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 259
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 259
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 602
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 496
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 606
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 317
Checking/rotation/tire pressure warning system . . . . . . . . . P. 496
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . P. 570, 572
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 483
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 483
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 602
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 594
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 556
Headlights/parking lights/ daytime running lights
*. . . . . . . P. 242
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 242
Fog lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 252
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 240
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 242
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 242
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
5
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 517, Watts: P. 608)
*: If equipped
9
10
11
12
13
14
15

16Pictorial index
SIENNA_OM_OM08007U_(U)

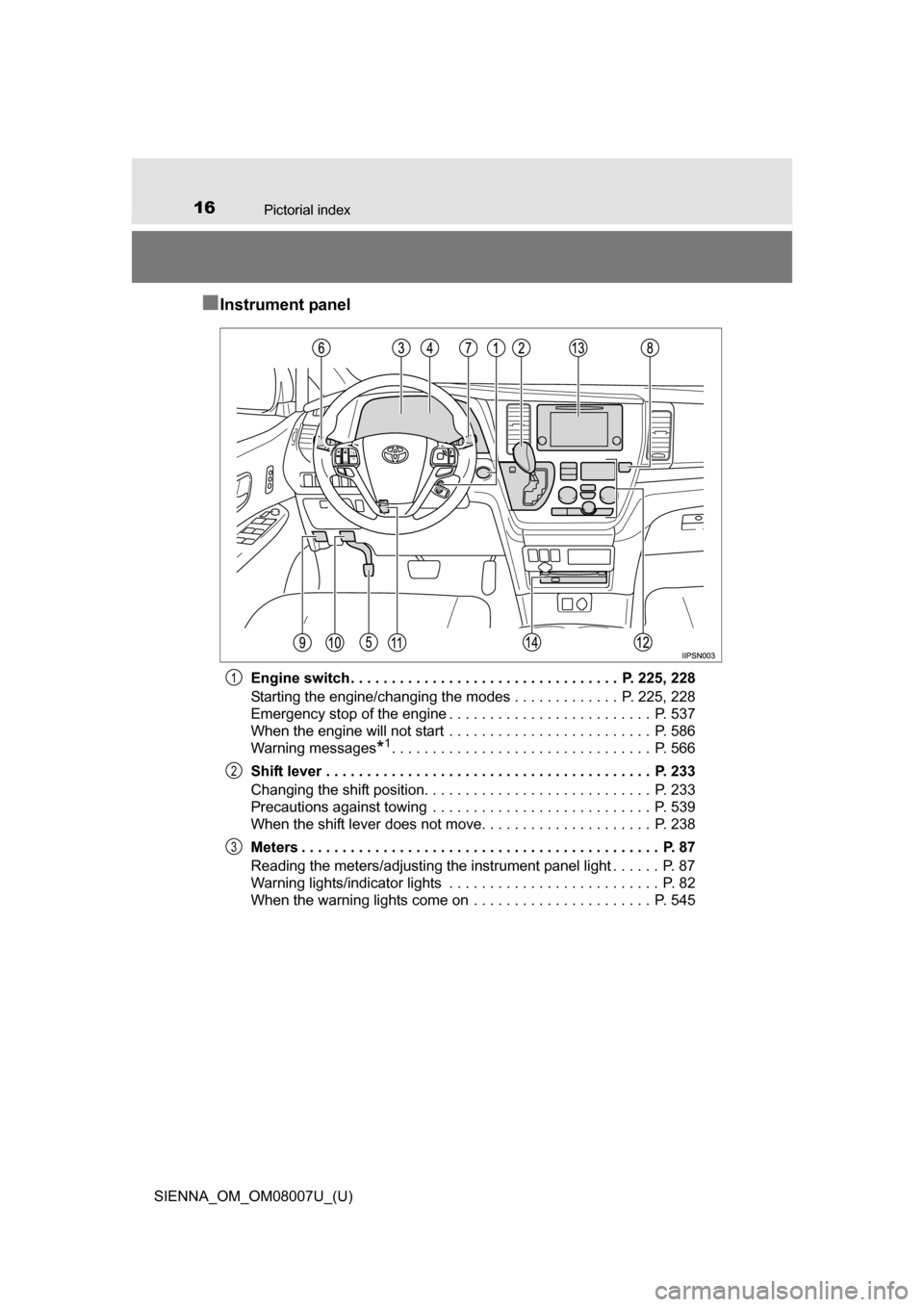

■Instrument panel
Engine switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225, 228
Starting the engine/changing the modes . . . . . . . . . . . . . P. 225, 228
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . P. 537
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 586
Warning messages
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 566
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Changing the shift position. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 539
When the shift lever does not move. . . . . . . . . . . . . . . . . . . . . P. 238
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 87
Reading the meters/adjusting the instrument panel light . . . . . . P. 87
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . P. 82
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 545
1
2
3

17Pictorial index
SIENNA_OM_OM08007U_(U)Multi-information display . . . . . . . . . . . . . . . . . . . . . . . P. 90, P. 93
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 90, 93
When the warning messages are displayed . . . . . . . . . . . . . . P. 554
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 318
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 558
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 240
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 242
Headlights/parking lights/tail lights/
daytime running lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 242
Fog lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 252
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 253
Rear window wiper and washer switch . . . . . . . . . . . . . . . . P. 257
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 253, 257
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 495
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 563
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 536
Fuel filler door opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 259
Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 483
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 177
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 412
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 412
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 416
Audio system
*1, 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 322
Navigation system
*1, 3
Blu-ray disc/DVD player*1, 3
*1: If equipped
*2: For vehicles with an Entune Audio Plus or Entune Premium Audio
with Navigation, refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*3: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
4
5
6
7
8
9
10
11
12
13
14

18Pictorial index
SIENNA_OM_OM08007U_(U)
■Switches
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 184
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 184
Driving position memory switches
*1. . . . . . . . . . . . . . . . . . P. 169
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . P. 181
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 114
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 114, 122
Power quarter window switch
*1. . . . . . . . . . . . . . . . . . . . . . P. 187
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 298
Intuitive parking assist switch
*1 . . . . . . . . . . . . . . . . . . . . . P. 279
BSM (Blind Spot Monitor) main switch
*1 . . . . . . . . . . . . . . P. 309
Heated steering wheel switch
*1. . . . . . . . . . . . . . . . . . . . . . P. 424
Manual headlight leveling dial
*1 . . . . . . . . . . . . . . . . . . . . . P. 244
Power sliding d oor main switch
*1. . . . . . . . . . . . . . . . . . . . P. 124
Power back door main switch
*1. . . . . . . . . . . . . . . . . . . . . . P. 136
Seat heater dials
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 424
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . P. 497
Pre-collision braking off switch*1 . . . . . . . . . . . . . . . . . . . . P. 303
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

19Pictorial index

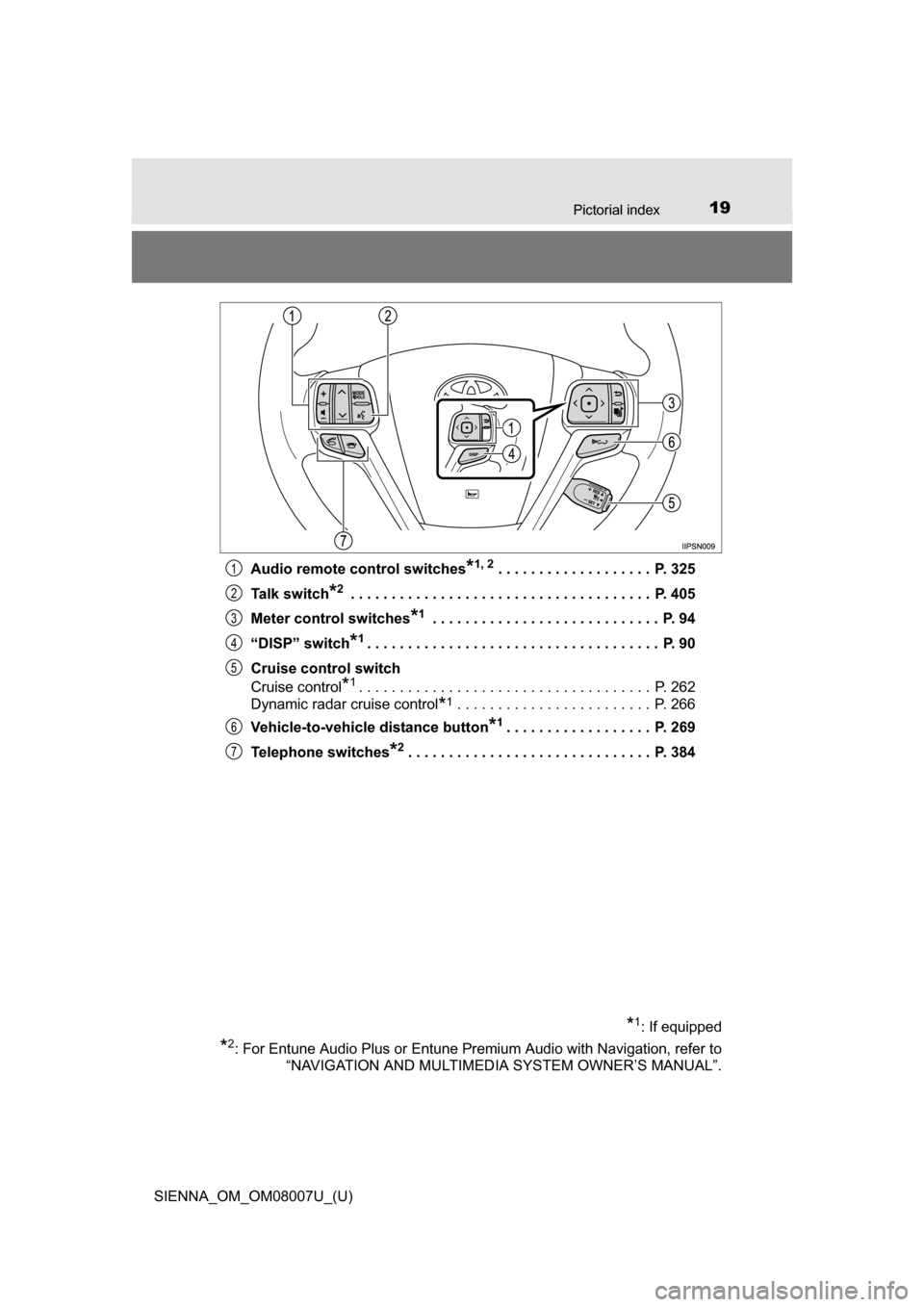

SIENNA_OM_OM08007U_(U)Audio remote control switches
*1, 2 . . . . . . . . . . . . . . . . . . . P. 325
Talk switch
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
Meter control switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 94
“DISP” switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 90
Cruise control switch
Cruise control
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 262
Dynamic radar cruise control
*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 266
Vehicle-to-vehicle distance button
*1. . . . . . . . . . . . . . . . . . P. 269
Telephone switches
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 384
1
2
3
4
5
6
7
*1: If equipped
*2: For Entune Audio Plus or Entune Premium Audio with Navigation, refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

20Pictorial index
SIENNA_OM_OM08007U_(U)

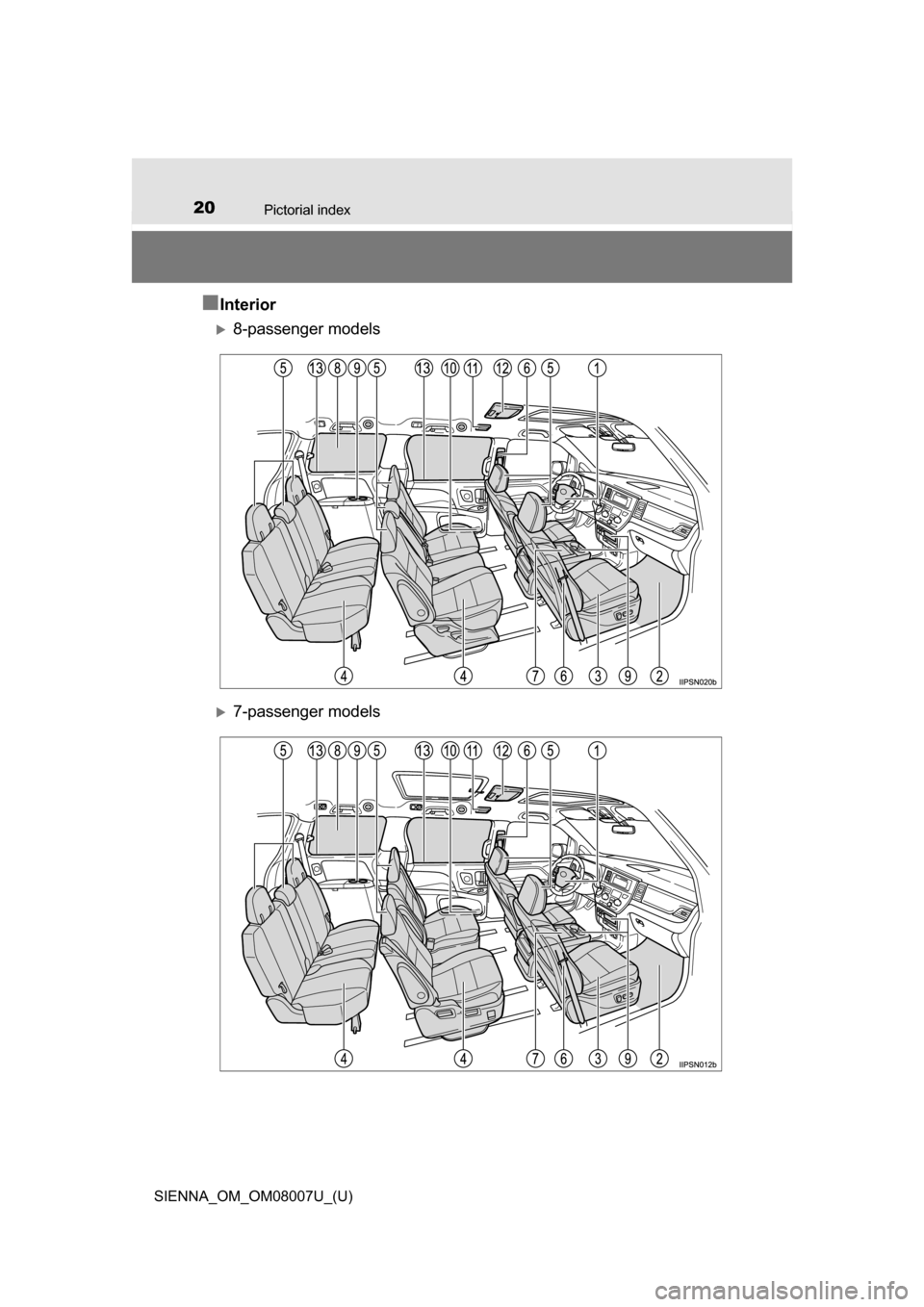

■Interior
8-passenger models
7-passenger models
