lock TOYOTA SIENNA 2017 XL30 / 3.G Owners Manual

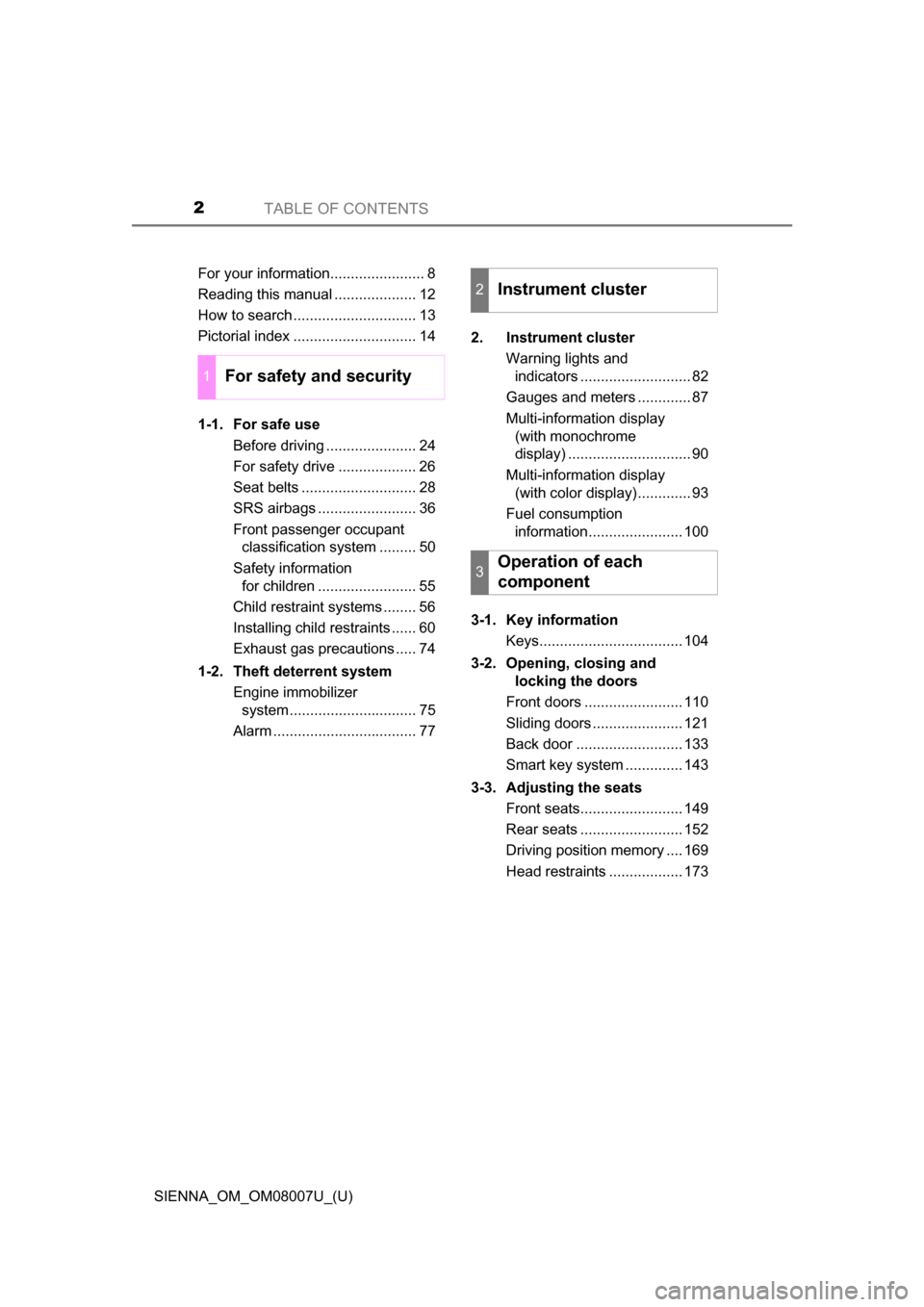

TABLE OF CONTENTS2
SIENNA_OM_OM08007U_(U)For your information....................... 8
Reading this manual .................... 12
How to search .............................. 13
Pictorial index .............................. 14
1-1. For safe use
Before driving ...................... 24
For safety drive ................... 26
Seat belts ............................ 28
SRS airbags ........................ 36
Front passenger occupant classification system ......... 50
Safety information for children ........................ 55
Child restraint systems ........ 56
Installing child restraints ...... 60
Exhaust gas precautions ..... 74
1-2. Theft deterrent system Engine immobilizer system............................... 75
Alarm ................................... 77 2. Instrument cluster
Warning lights and indicators ........................... 82
Gauges and meters ............. 87
Multi-information display (with monochrome
display) .............................. 90
Multi-information display (with color display)............. 93
Fuel consumption information....................... 100
3-1. Key information Keys................................... 104
3-2. Opening, closing and locking the doors
Front doors ........................ 110
Sliding doors ...................... 121
Back door .......................... 133
Smart key system .............. 143
3-3. Adjusting the seats Front seats......................... 149
Rear seats ......................... 152
Driving position memory .... 169
Head restraints .................. 173
1For safety and security
2Instrument cluster
3Operation of each
component

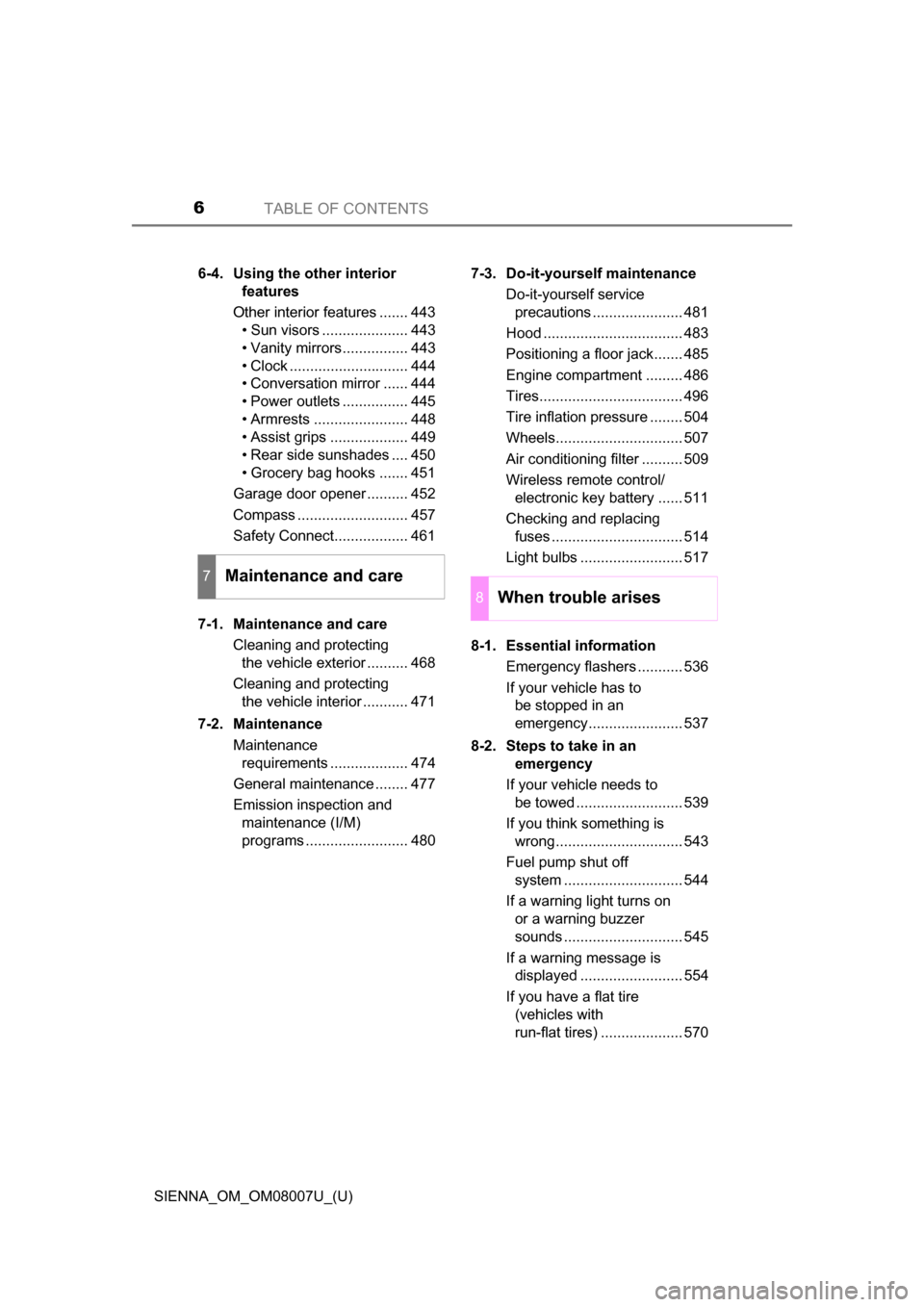

TABLE OF CONTENTS6
SIENNA_OM_OM08007U_(U)6-4. Using the other interior
features
Other interior features ....... 443 • Sun visors ..................... 443
• Vanity mirrors................ 443
• Clock ............................. 444
• Conversation mirror ...... 444
• Power outlets ................ 445
• Armrests ....................... 448
• Assist grips ................... 449
• Rear side sunshades .... 450
• Grocery bag hooks ....... 451
Garage door opener .......... 452
Compass ........................... 457
Safety Connect.................. 461
7-1. Maintenance and care Cleaning and protecting the vehicle exterior .......... 468
Cleaning and protecting the vehicle interior ........... 471
7-2. Maintenance Maintenance requirements ................... 474
General maintenance ........ 477
Emission inspection and maintenance (I/M)
programs ......................... 480 7-3. Do-it-yourself maintenance
Do-it-yourself service precautions ...................... 481
Hood .................................. 483
Positioning a floor jack....... 485
Engine compartment ......... 486
Tires................................... 496
Tire inflation pressure ........ 504
Wheels............................... 507
Air conditioning filter .......... 509
Wireless remote control/ electronic key battery ...... 511
Checking and replacing fuses ................................ 514
Light bulbs ......................... 517
8-1. Essential information Emergency flashers ........... 536
If your vehicle has to be stopped in an
emergency....................... 537
8-2. Steps to take in an emergency
If your vehicle needs to be towed .......................... 539
If you think something is wrong............................... 543
Fuel pump shut off system ............................. 544
If a warning light turns on or a warning buzzer
sounds ............................. 545
If a warning message is displayed ......................... 554
If you have a flat tire (vehicles with
run-flat tires) .................... 570
7Maintenance and care
8When trouble arises

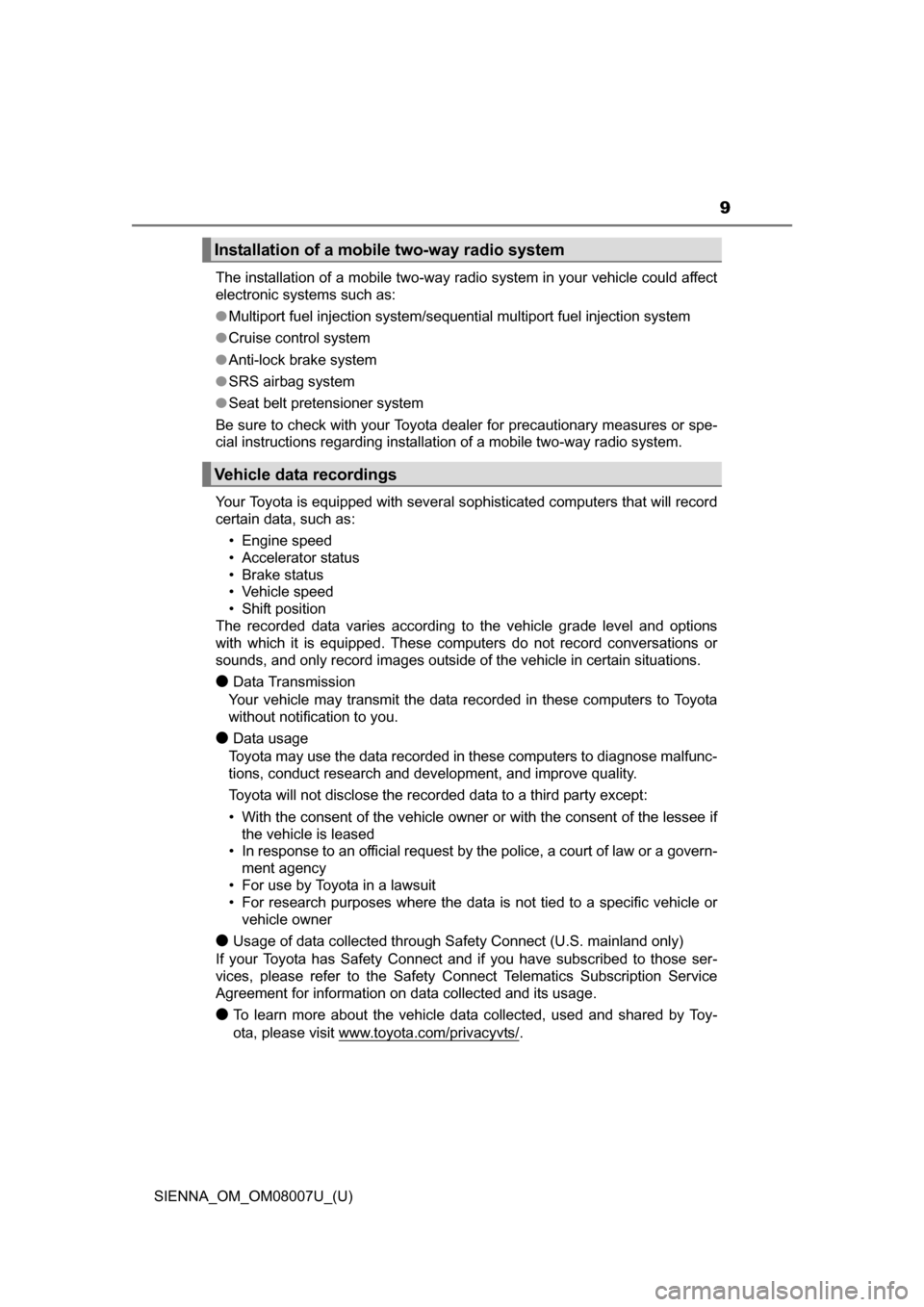

SIENNA_OM_OM08007U_(U)
9
The installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as:
●Multiport fuel injection system/sequential multiport fuel injection system
● Cruise control system
● Anti-lock brake system
● SRS airbag system
● Seat belt pretensioner system
Be sure to check with your Toyota dealer for precautionary measures or spe-
cial instructions regarding installation of a mobile two-way radio system.
Your Toyota is equipped with several sophisticated computers that will record
certain data, such as: • Engine speed
• Accelerator status
• Brake status
• Vehicle speed
• Shift position
The recorded data varies according to the vehicle grade level and options
with which it is equipped. These computers do not record conversations or
sounds, and only record images outside of the vehicle in certain situations.
●Data Transmission
Your vehicle may transmit the data recorded in these computers to Toyota
without notification to you.
●Data usage
Toyota may use the data recorded in these computers to diagnose malfunc-
tions, conduct research and development, and improve quality.
Toyota will not disclose the recorded data to a third party except:
• With the consent of the vehicle owner or with the consent of the lessee if the vehicle is leased
• In response to an official request by the police, a court of law or a govern- ment agency
• For use by Toyota in a lawsuit
• For research purposes where the data is not tied to a specific vehicle or vehicle owner
●Usage of data collected through Safety Connect (U.S. mainland only)
If your Toyota has Safety Connect and if you have subscribed to those ser-
vices, please refer to the Safety Connect Telematics Subscription Service
Agreement for information on data collected and its usage.
●To learn more about the vehicle data collected, used and shared by Toy-
ota, please visit www.toyota.com/privacyvts/
.
Installation of a mobile two-way radio system
Vehicle data recordings

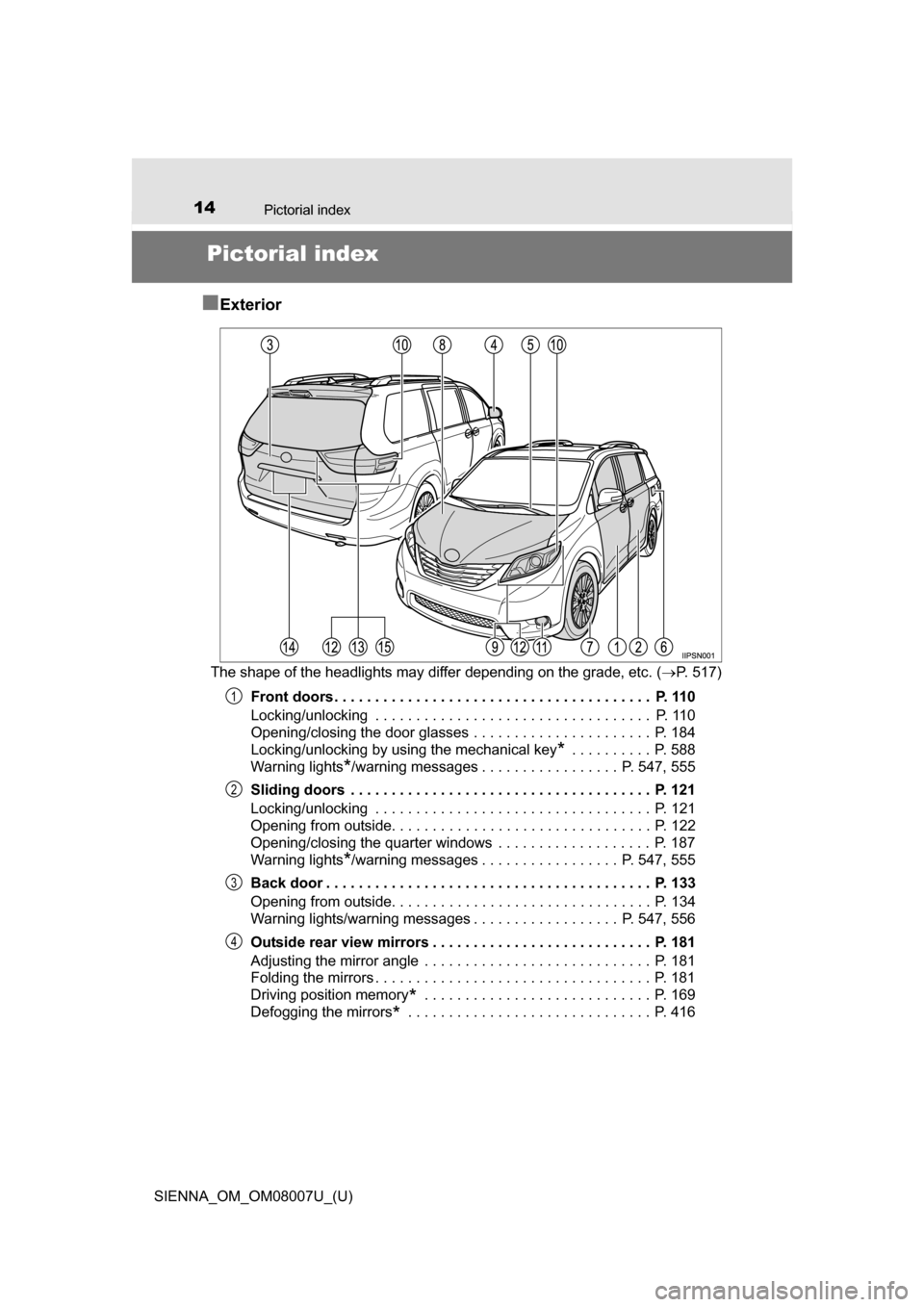

14Pictorial index
SIENNA_OM_OM08007U_(U)
Pictorial index
■
Exterior
The shape of the headlights may differ depending on the grade, etc. ( P. 517)
Front doors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 110
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 110
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . P. 184
Locking/unlocking by using the mechanical key
* . . . . . . . . . . P. 588
Warning lights
*/warning messages . . . . . . . . . . . . . . . . . P. 547, 555
Sliding doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 121
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 121
Opening from outside. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 122
Opening/closing the quarter windows . . . . . . . . . . . . . . . . . . . P. 187
Warning lights
*/warning messages . . . . . . . . . . . . . . . . . P. 547, 555
Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 133
Opening from outside. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 134
Warning lights/warning messages . . . . . . . . . . . . . . . . . . P. 547, 556
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 181
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 181
Folding the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 181
Driving position memory
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 169
Defogging the mirrors
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 416
1
2
3
4

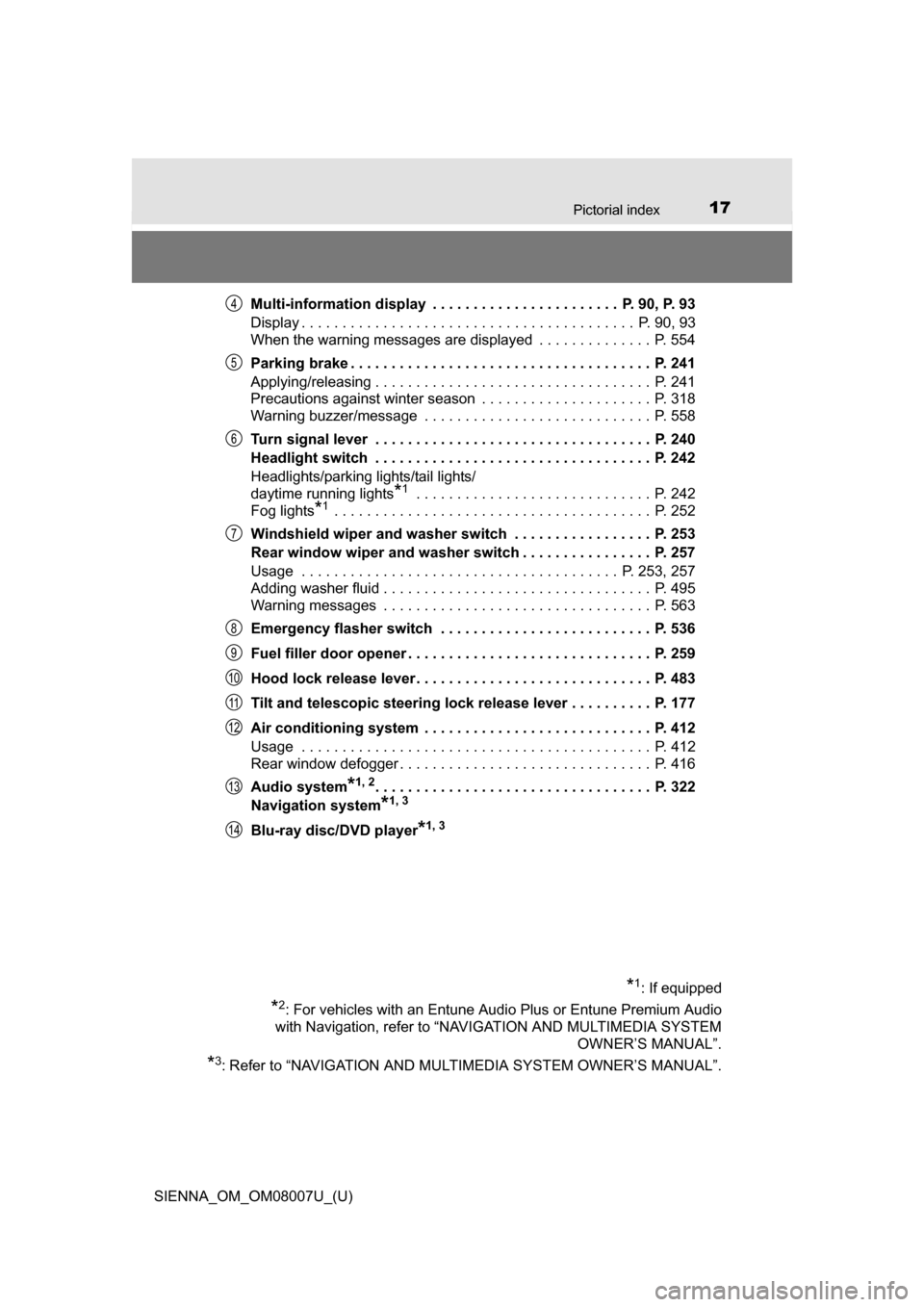

17Pictorial index
SIENNA_OM_OM08007U_(U)Multi-information display . . . . . . . . . . . . . . . . . . . . . . . P. 90, P. 93
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 90, 93
When the warning messages are displayed . . . . . . . . . . . . . . P. 554
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 318
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 558
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 240
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 242
Headlights/parking lights/tail lights/
daytime running lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 242
Fog lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 252
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 253
Rear window wiper and washer switch . . . . . . . . . . . . . . . . P. 257
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 253, 257
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 495
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 563
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 536
Fuel filler door opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 259
Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 483
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 177
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 412
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 412
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 416
Audio system
*1, 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 322
Navigation system
*1, 3
Blu-ray disc/DVD player*1, 3
*1: If equipped
*2: For vehicles with an Entune Audio Plus or Entune Premium Audio
with Navigation, refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*3: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
4
5
6
7
8
9
10
11
12
13
14

18Pictorial index
SIENNA_OM_OM08007U_(U)

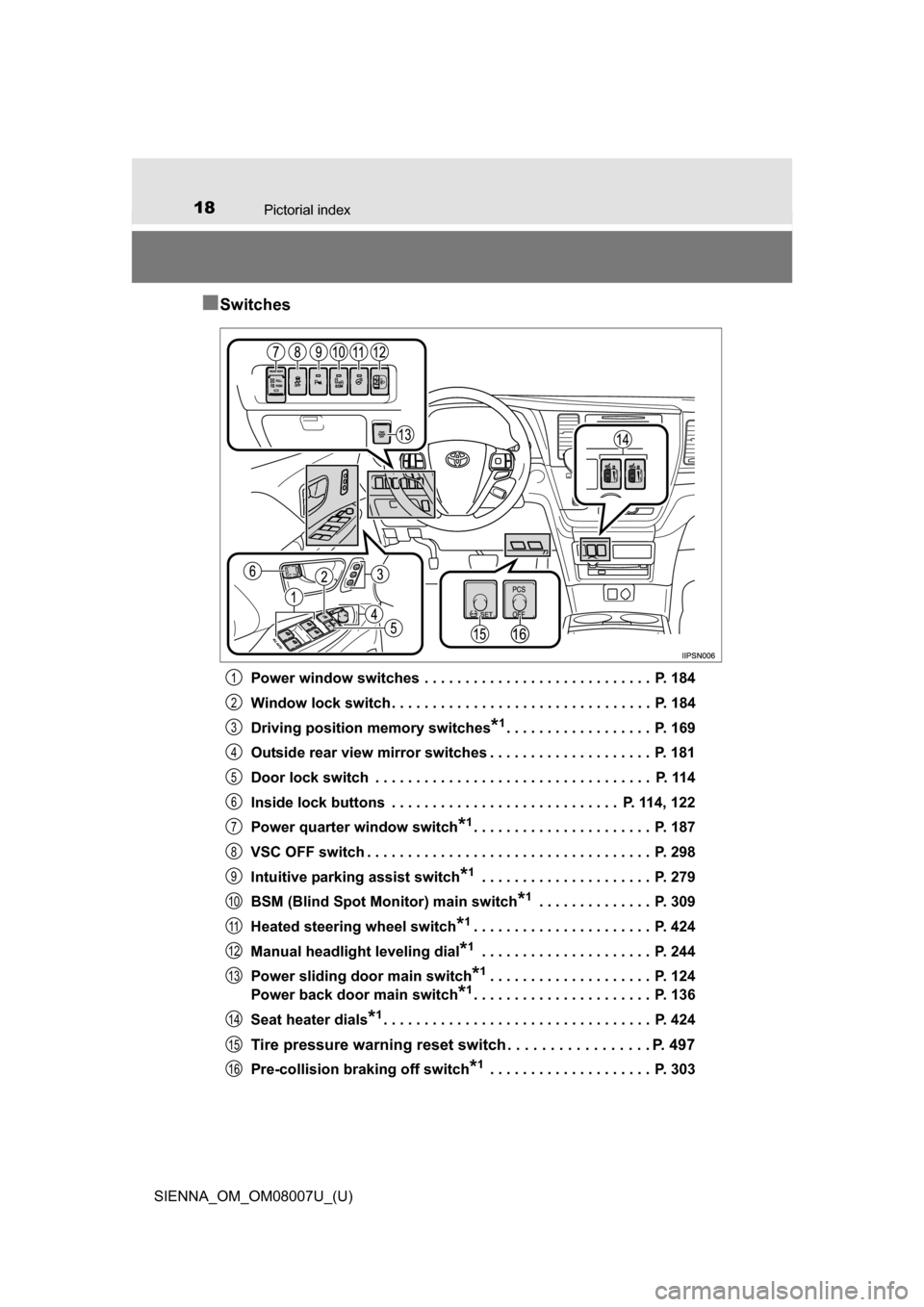

■Switches
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 184
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 184
Driving position memory switches
*1. . . . . . . . . . . . . . . . . . P. 169
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . P. 181
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 114
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 114, 122
Power quarter window switch
*1. . . . . . . . . . . . . . . . . . . . . . P. 187
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 298
Intuitive parking assist switch
*1 . . . . . . . . . . . . . . . . . . . . . P. 279
BSM (Blind Spot Monitor) main switch
*1 . . . . . . . . . . . . . . P. 309
Heated steering wheel switch
*1. . . . . . . . . . . . . . . . . . . . . . P. 424
Manual headlight leveling dial
*1 . . . . . . . . . . . . . . . . . . . . . P. 244
Power sliding d oor main switch
*1. . . . . . . . . . . . . . . . . . . . P. 124
Power back door main switch
*1. . . . . . . . . . . . . . . . . . . . . . P. 136
Seat heater dials
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 424
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . P. 497
Pre-collision braking off switch*1 . . . . . . . . . . . . . . . . . . . . P. 303
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

261-1. For safe use
SIENNA_OM_OM08007U_(U)

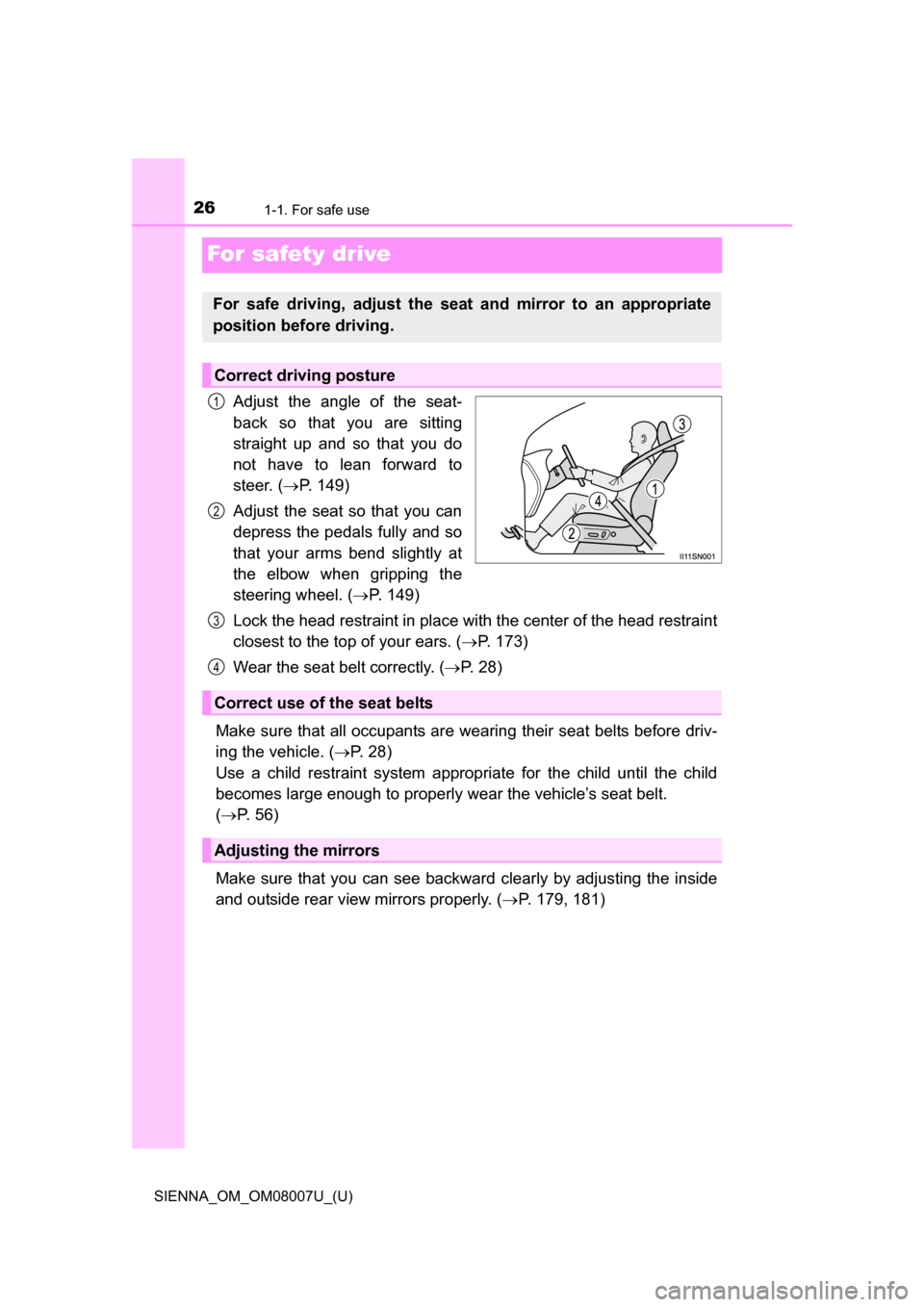

For safety drive
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 149)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 149)
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. ( P. 173)
Wear the seat belt correctly. ( P. 2 8 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 2 8 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
(  P. 56)
Make sure that you can see backwar d clearly by adjusting the inside
and outside rear view mirrors properly. ( P. 179, 181)
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
Adjusting the mirrors
3
4

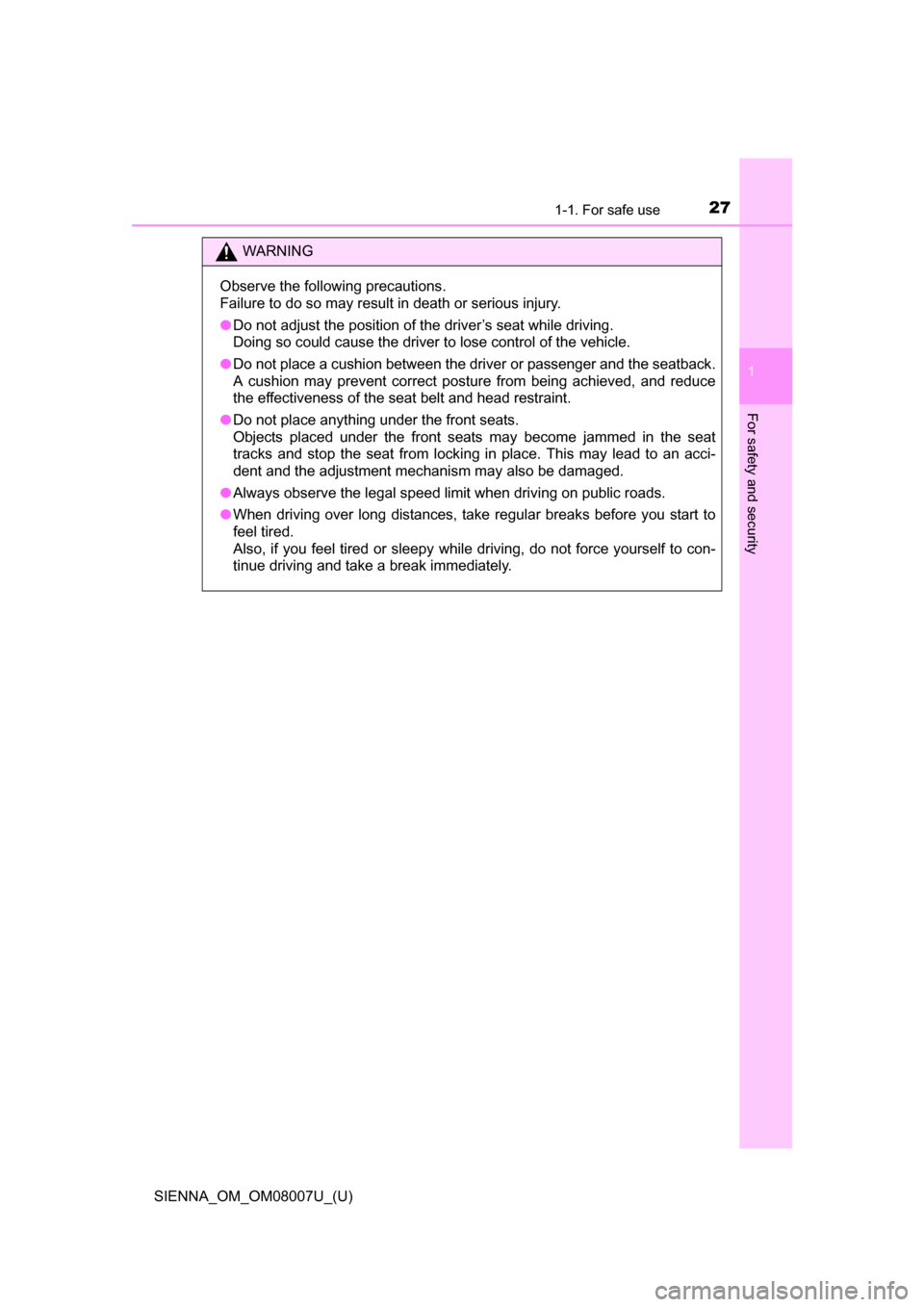

271-1. For safe use
SIENNA_OM_OM08007U_(U)
1
For safety and security
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
● Always observe the legal speed limit when driving on public roads.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.

321-1. For safe use
SIENNA_OM_OM08007U_(U)

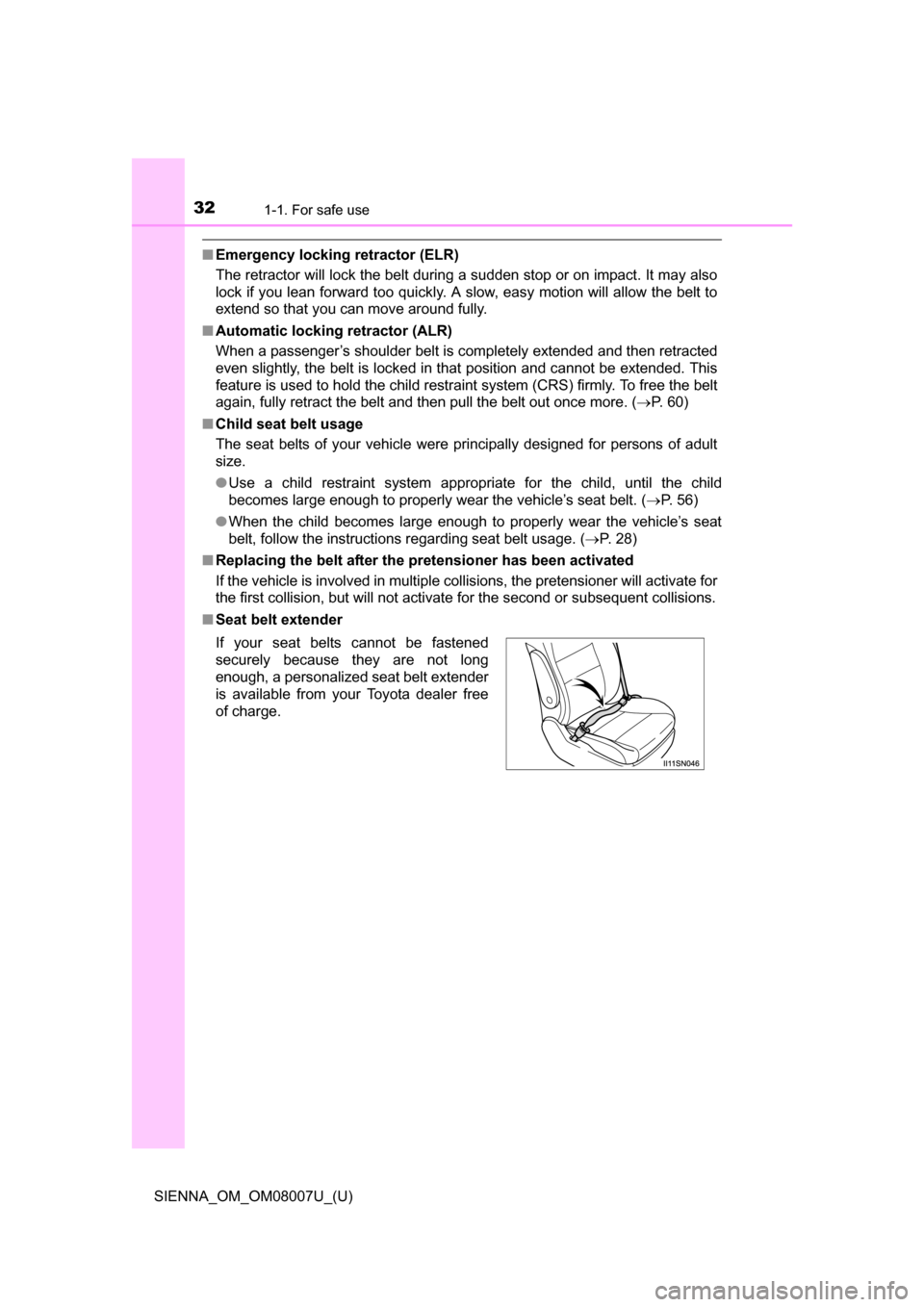

■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■ Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted
even slightly, the belt is locked in that position and cannot be extended. This
feature is used to hold the child restraint system (CRS) firmly. To free the belt
again, fully retract the belt and then pull the belt out once more. ( P. 60)
■ Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
●Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. ( P. 56)
● When the child becomes large enough to properly wear the vehicle’s seat
belt, follow the instructions regarding seat belt usage. ( P. 28)
■ Replacing the belt after the pr etensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for
the first collision, but will not activate for the second or subsequent collisions.
■ Seat belt extender
If your seat belts cannot be fastened
securely because they are not long
enough, a personalized seat belt extender
is available from your Toyota dealer free
of charge.

341-1. For safe use
SIENNA_OM_OM08007U_(U)

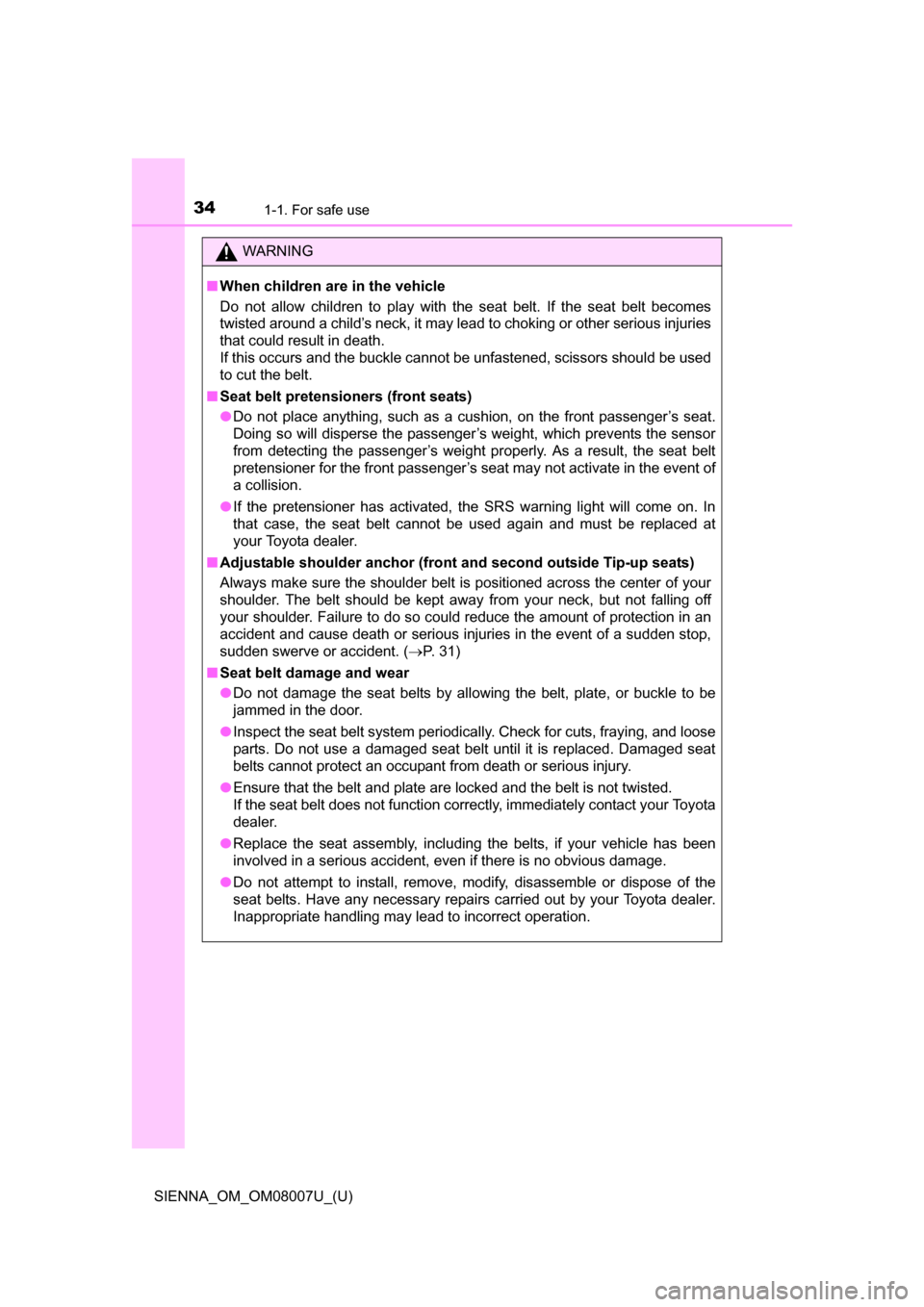

WARNING
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ Seat belt pretensioners (front seats)
●Do not place anything, such as a cushion, on the front passenger’s seat.
Doing so will disperse the passenger’s weight, which prevents the sensor
from detecting the passenger’s weight properly. As a result, the seat belt
pretensioner for the front passenger’s seat may not activate in the event of
a collision.
● If the pretensioner has activated, the SRS warning light will come on. In
that case, the seat belt cannot be used again and must be replaced at
your Toyota dealer.
■ Adjustable shoulder an chor (front and second outside Tip-up seats)
Always make sure the shoulder belt is positioned across the center of your
shoulder. The belt should be kept away from your neck, but not falling off
your shoulder. Failure to do so could reduce the amount of protection in an
accident and cause death or serious injuries in the event of a sudden stop,
sudden swerve or accident. ( P. 31)
■ Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
● Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belts cannot protect an occupant from death or serious injury.
● Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Toyota
dealer.
● Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.
● Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by your Toyota dealer.
Inappropriate handling may lead to incorrect operation.
