TOYOTA SOLARA 2000 Owners Manual (in English)

SOLARA_U
126
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.
Heating
For best results, set controls to:
Fan speed Any setting except "OFF"
Temperature To w a r d s WA R M
(red zone)
Air intakeFRESH (outside air)
Air flowFLOOR
Air conditioningOFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.
Press the "A/C" button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield. Air conditioning
For best results, set controls to:
Fan speed Any setting except "OFF"
Temperature To w a r d s COLD
(blue zone)
Air intakeFRESH (outside air)
Air flowPANEL
Air conditioningON
For quick cooling, select recirculated
air for a few minutes.
Ventilation
For best results, set controls to:
Fan speed Any setting except "OFF"
Temperature To w a r d s COLD
(blue zone)
Air intakeFRESH (outside air)
Air flowPANEL
Air conditioningOFF

SOLARA_U
127
Defogging
The inside of the windshield
For best results, set controls to:Fan speed Any setting except OFF"
Temperature To w a r d s WARM
(red zone) to heat;
COLD (blue zone) to
cool
Air intakeFRESH (outside air)
Air flowWINDSHIELD
Turning the air flow selector to the wind-
shield position turns on the defogging
function with the purpose of clearing the
front view.
When turning the air flow control knob to
windshield position, the air intake selects
FRESH automatically. This is to clean up
the front view more quickly.
Press the A/C" button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshieldthe difference be-
tween the outside and inside tempera-
tures could make the fogging worse. Defrosting
The outside of the windshield
For best results, set controls to:
Fan speed Any setting except OFF"
Temperature To w a r d s WA R M
(red zone)
Air intakeFRESH (outside air)
Air flowWINDSHIELD
Turning the air flow selector to the wind-
shield position turns on the defrosting
function with the purpose of clearing the
front view.
When turning the air flow control knob to
windshield position, the air intake selects
FRESH automatically. This is to clean up
the front view more quickly.
Press the A/C" button for dehumidified
heating. This setting clears the front view
more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.

SOLARA_U
128

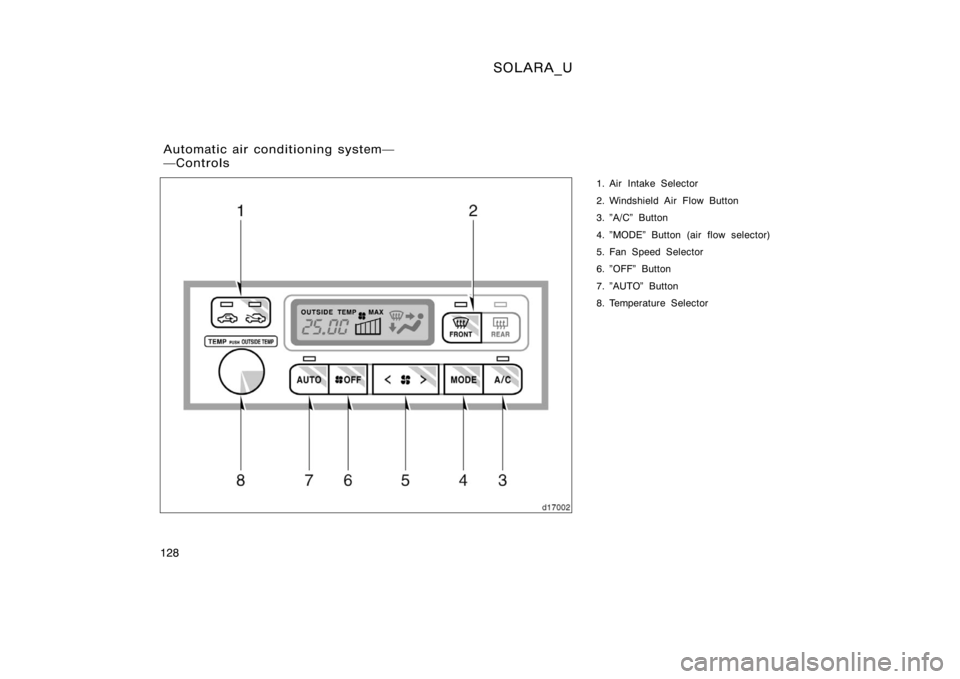

1. Air Intake Selector
2. Windshield Air Flow Button
3. "A/C" Button
4. "MODE" Button (air flow selector)
5. Fan Speed Selector
6. "OFF" Button
7. "AUTO" Button
8. Temperature Selector
Automatic air conditioning system
Controls

SOLARA_U
129
"AUTO" button
For automatic operation of the air condi-
tioning, press the "AUTO" button. An indi-
cator light will illuminate to show that the
automatic operation mode has been se-
lected.
In the automatic operation mode, the air
conditioning selects the most suitable fan
speed, air flow, air intake and on−off of
the air conditioning according to the tem-
perature.
When you adjust the temperature selector
button to maximum cooling, a MAX
COLD" message will appear on the display
and the air intake mode will be automati-
cally changed to RECIRCULATE.
You may use manual controls if you want
to select your own settings.
To turn off the automatic operation, press
the "OFF" button.
Fan speed selector
Push the ">" (increase) or "<" (decrease)
side of the button to adjust the fan speed.
In automatic operation, you do not have
to adjust the fan speed unless you desire
another fan speed mode.Temperature selector
Turn the knob to adjust the temperature
to the right to warm, to the left to cool.
"OFF" button
Push the button to turn off the air condi-
tioning system.
MODE" button (air flow selector)
Push the "MODE" button to select the
vents used for air flow.
In automatic operation, you do not have
to select the air flow unless you desire
another air flow mode.
1. Panel Air flows mainly from the
instrument panel vents.
2. Bi−level Air flows from both the floor
vents and the instrument panel vents.
3. Floor Air flows mainly from the floor
vents.
4. Floor/Windshield Air flows mainly
from the floor vents and windshield
vents.

SOLARA_U
130

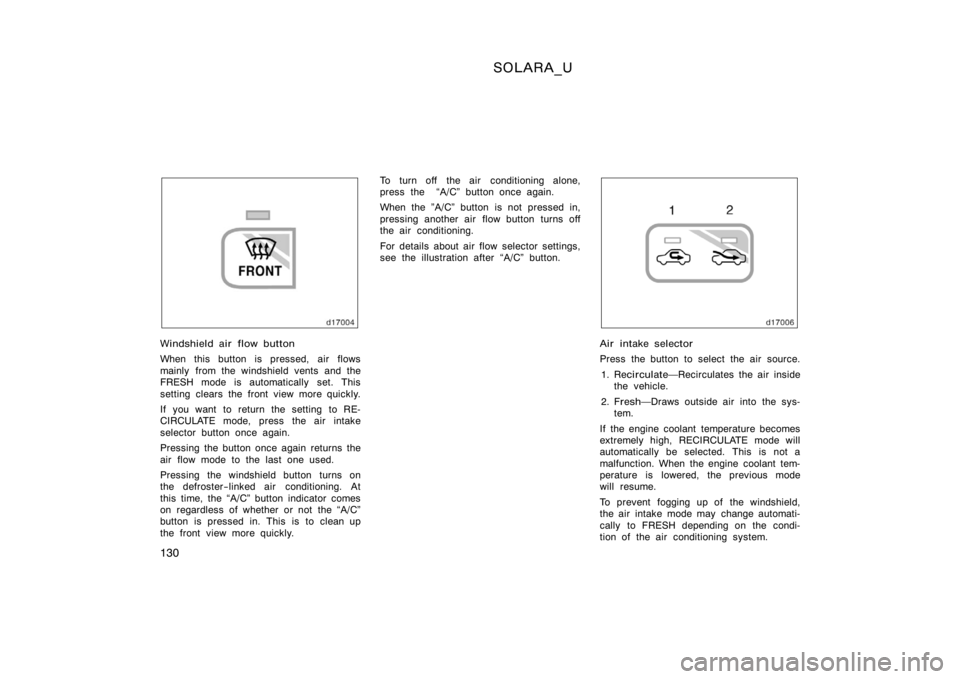

Windshield air flow button
When this button is pressed, air flows
mainly from the windshield vents and the
FRESH mode is automatically set. This
setting clears the front view more quickly.
If you want to return the setting to RE-
CIRCULATE mode, press the air intake
selector button once again.
Pressing the button once again returns the
air flow mode to the last one used.
Pressing the windshield button turns on
the defroster−linked air conditioning. At
this time, the A/C" button indicator comes
on regardless of whether or not the A/C"
button is pressed in. This is to clean up
the front view more quickly.To turn off the air conditioning alone,
press the A/C" button once again.
When the "A/C" button is not pressed in,
pressing another air flow button turns off
the air conditioning.
For details about air flow selector settings,
see the illustration after A/C" button.Air intake selector
Press the button to select the air source.
1. Recirculate Recirculates the air inside
the vehicle.
2. Fresh Draws outside air into the sys-
tem.
If the engine coolant temperature becomes
extremely high, RECIRCULATE mode will
automatically be selected. This is not a
malfunction. When the engine coolant tem-
perature is lowered, the previous mode
will resume.
To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system.

SOLARA_U
131
"A/C" button
To turn on the air conditioning, press the
"A/C" button. The "A/C" button indicator
will come on. To turn the air conditioning
off, press the button again.
If the "A/C" button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to a Toyota dealer for service.

SOLARA_U
132

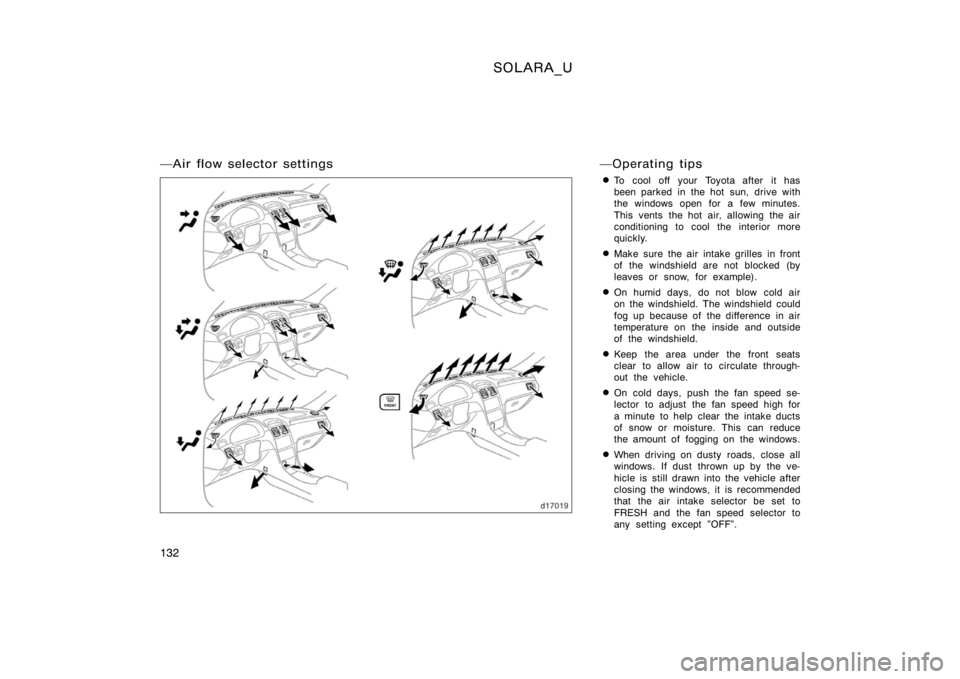

Air flow selector settingsOperating tips
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, push the fan speed se-
lector to adjust the fan speed high for
a minute to help clear the intake ducts
of snow or moisture. This can reduce
the amount of fogging on the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except "OFF".

SOLARA_U
133

If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.
Heating
For best results, set controls to:
For automatic operation
Press in the "AUTO " button.
Temperature To the desired
temperature
Air intakeFRESH (outside air)
Air conditioningOFF
For manual operation
Fan speed To the desired fan speed
Temperature To w a r d s WARM
(to the right)
Air intakeFRESH (outside air)
Air flowFLOOR
Air conditioningOFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.
Press the "A/C" button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield.
Air conditioning
For best results, set controls to:
For automatic operation
Press in the "AUTO " button .
Temperature To the desired
temperature
Air intakeFRESH (outside air)
Air conditioningON
For manual operation
Fan speed To the desired fan speed
Temperature To w a r d s COLD
(to the left)
Air intakeFRESH (outside air)
Air flowPANEL
Air conditioningON
For quick cooling, select recirculated
air for a few minutes.
Ventilation
For best results, set controls to:
For automatic operation
Press in the "AUTO " button .
Temperature To w a r d s COLD
(to the left)
Air intakeFRESH (outside air)
Air conditioningOFF
For manual operation
Fan speed To the desired fan speed
Temperature To w a r d s COLD
(to the left)
Air intakeFRESH (outside air)
Air flowPANEL
Air conditioningOFF

SOLARA_U
134
Defogging and defrosting
The inside of the windshield
For best results, set controls to:
For automatic operationTemperature To w a r d s WARM
(to the right) to heat;
COLD (to the left) to
cool
Air intakeFRESH (outside air)
Air flowWINDSHIELD
For manual operation
Fan speed To the desired fan speed
Temperature To w a r d s WARM
(to the right) to heat;
COLD (to the left) to
cool
Air intakeFRESH (outside air)
Air flowWINDSHIELD
When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically. This is to clean up the front
view more quickly.
If you want to return the setting to RE-
CIRCULATE mode, press the air intake
selector button once again. Pressing the windshield button turns on
the defroster−linked air conditioning. At
this time, the A/C" button indicator comes
on regardless of whether or not the A/C"
button is pressed in. This is to clean up
the front view more quickly.
To turn off the air conditioning alone,
press the A/C" button once again.
When the "A/C" button is not pressed in,
pressing another air flow button turns off
the air conditioning.
On humid days, do not blow cold air
on the windshieldthe difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
The outside of the windshield
For best results, set controls to:
For automatic operation
Temperature To w a r d s WARM
(to the right)
Air intakeFRESH (outside air)
Air flowWINDSHIELD
For manual operation
Fan speed To the desired fan speed
Temperature To w a r d s WARM
(to the right)
Air intakeFRESH (outside air)
Air flowWINDSHIELD
When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically. This is to clean up the front
view more quickly.
If you want to return the setting to RE-
CIRCULATE mode, press the air intake
selector button once again.
Pressing the windshield button turns on
the defroster−linked air conditioning. At
this time, the A/C" button indicator comes
on regardless of whether or not the A/C"
button is pressed in. This is to clean up
the front view more quickly.
To turn off the air conditioning alone,
press the A/C" button once again.
When the "A/C" button is not pressed in,
pressing another air flow button turns off
the air conditioning.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.

SOLARA_U
135

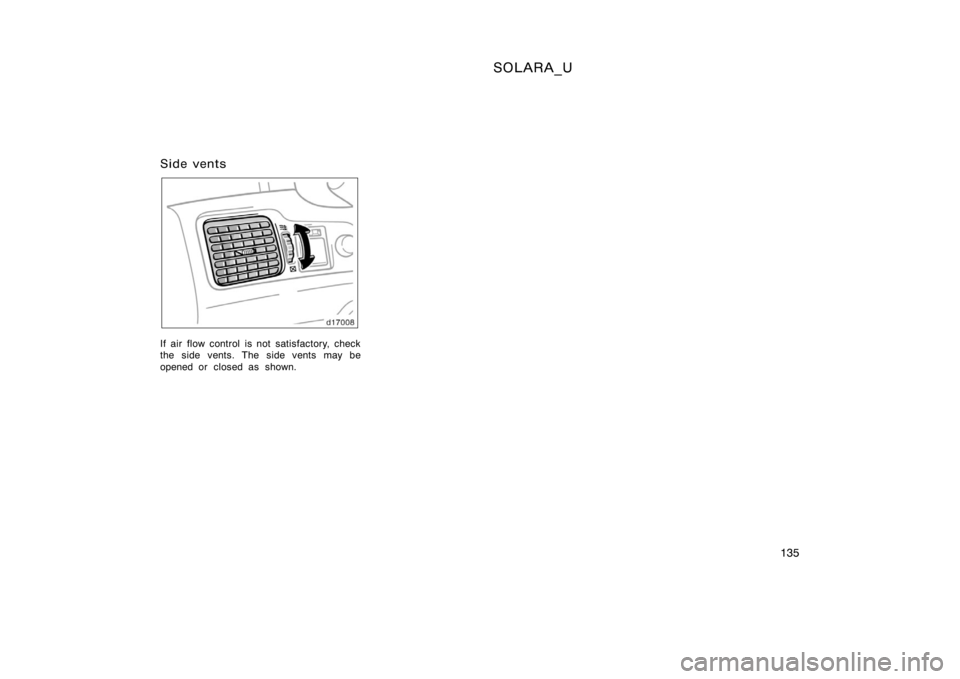

Side vents
If air flow control is not satisfactory, check
the side vents. The side vents may be
opened or closed as shown.
