TOYOTA SOLARA 2000 (in English) Owner's Manual

SOLARA_U
192000 MY CAMRY SOLARA (OM33523U)
For front passenger’s use
Window
lock switch
For driver ’s use

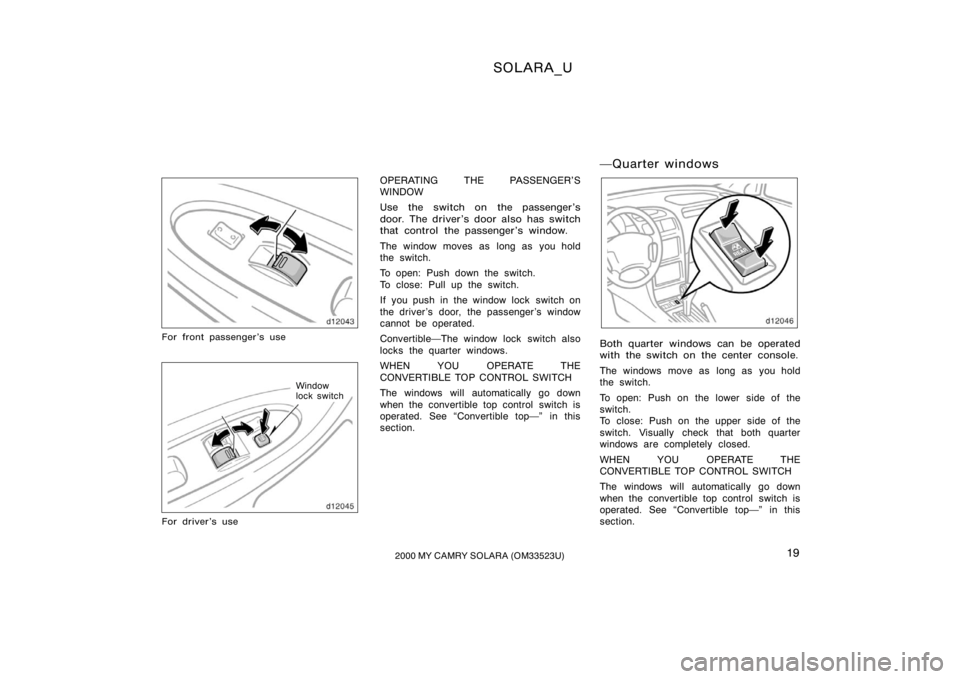

OPERATING THE PASSENGER’S
WINDOW
Use the switch on the passenger’s
door. The driver ’s door also has switch
that control the passenger ’s window.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passenger ’s window
cannot be operated.
ConvertibleThe window lock switch also
locks the quarter windows.
WHEN YOU OPERATE THE
CONVERTIBLE TOP CONTROL SWITCH
The windows will automatically go down
when the convertible top control switch is
operated. See Convertible top" in this
section.
Quarter windows
Both quarter windows can be operated
with the switch on the center console.
The windows move as long as you hold
the switch.
To open: Push on the lower side of the
switch.
To close: Push on the upper side of the
switch. Visually check that both quarter
windows are completely closed.
WHEN YOU OPERATE THE
CONVERTIBLE TOP CONTROL SWITCH
The windows will automatically go down
when the convertible top control switch is
operated. See Convertible top" in this
section.

SOLARA_U
202000 MY CAMRY SOLARA (OM33523U)

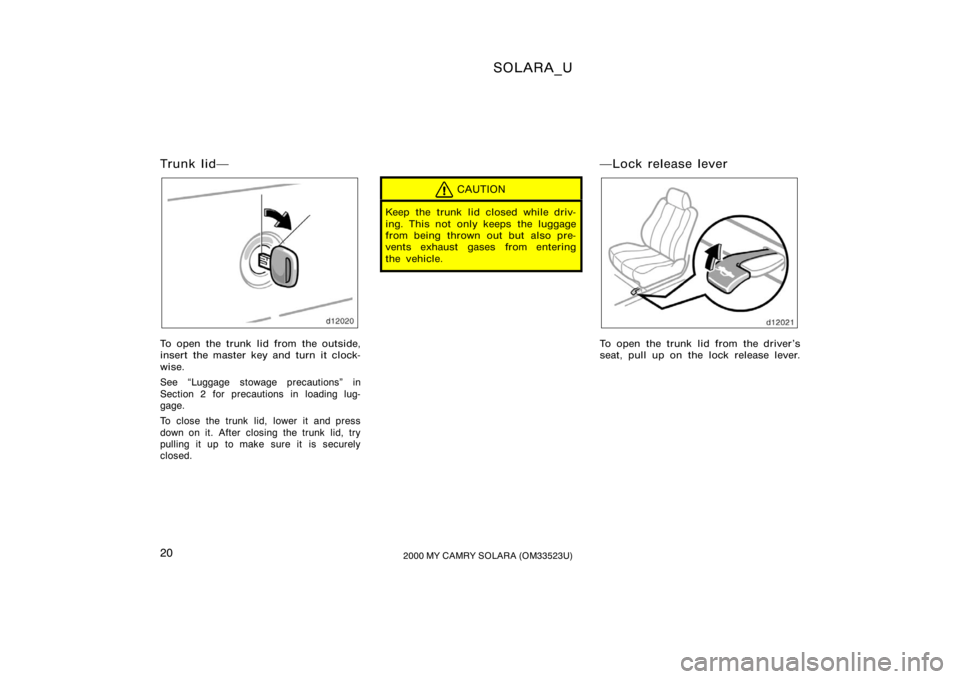

Trunk lid
To open the trunk lid from the outside,
insert the master key and turn it clock-
wise.
See Luggage stowage precautions" in
Section 2 for precautions in loading lug-
gage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
Lock release lever
To open the trunk lid from the driver’s
seat, pull up on the lock release lever.

SOLARA_U
212000 MY CAMRY SOLARA (OM33523U)

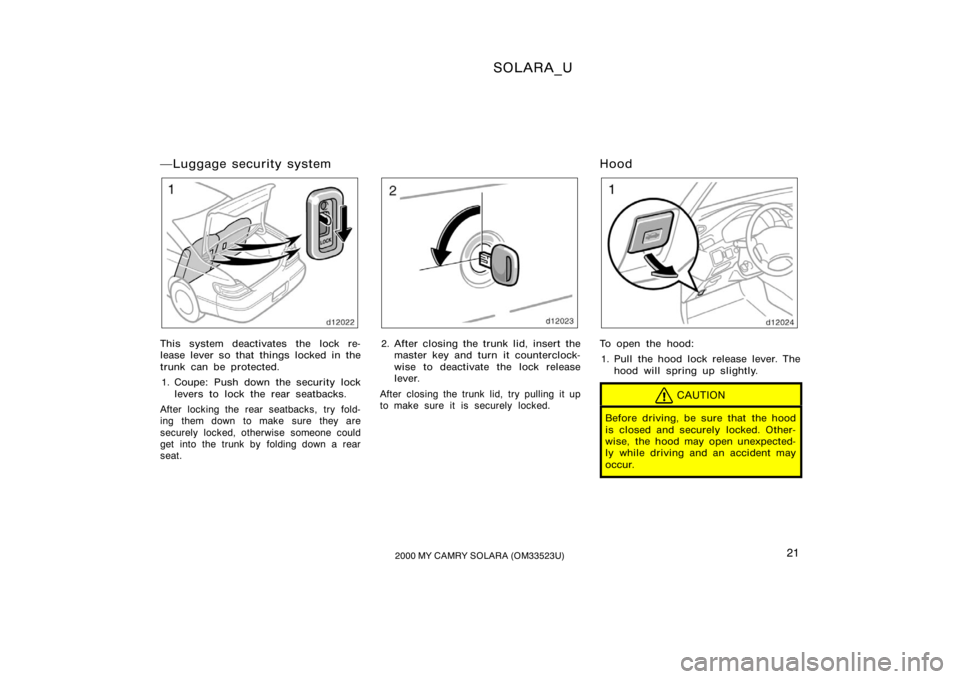

Luggage security system
This system deactivates the lock re-
lease lever so that things locked in the
trunk can be protected.
1. Coupe: Push down the security lock levers to lock the rear seatbacks.
After locking the rear seatbacks, try fold-
ing them down to make sure they are
securely locked, otherwise someone could
get into the trunk by folding down a rear
seat.2. After closing the trunk lid, insert the master key and turn it counterclock-
wise to deactivate the lock release
lever.
After closing the trunk lid, try pulling it up
to make sure it is securely locked.
Hood
To open the hood: 1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.

SOLARA_U
222000 MY CAMRY SOLARA (OM33523U)
2. In front of the vehicle, pull up the
auxiliary catch lever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.
Theft deterrent system
To deter the vehicle theft, The system
is designed to give an alarm if any of
the doors, trunk or hood is forcibly un-
locked or the battery terminal is discon-
nected and then reconnected when the
vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights and tail lights.SETTING THE SYSTEM 1. Turn the ignition key to the LOCK" position and remove it.
The indicator light will start flashing every
1 second when the key is removed from
the ignition switch. (See Engine
immobiliser system" for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the doors, trunk and hood.
The indicator light will come on when all
the doors, trunk and hood are closed and
locked.

SOLARA_U
232000 MY CAMRY SOLARA (OM33523U)
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm under the
following conditions:
If any of the doors is unlocked or if
the trunk or hood is forcibly opened
without the key or wireless remote con-
trol transmitter
If the battery terminal is disconnected
and then reconnected
The indicator light will come on when the
system is activating. If any of the door is unlocked without the
key or wireless remote control transmitter
and the key is not in the ignition switch,
all the doors will be automatically locked
again.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
Activating the system".
Stopping the alarm
The alarm will be stopped by the following
three ways:Turn the ignition key from the LOCK"
to ON" position.
Unlock any of the doors with the key
or wireless remote control transmitter.
Open the trunk with the key.CANCELLING THE SYSTEM
The system will be cancelled by the
above mentioned 3 ways.
If the tail light come on for 2 seconds, the
theft deterrent system has been alarmed.
Check to see if there is any abnormality
on your vehicle.
TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The doors should be locked with the
key or wireless remote control transmit-
ter. Be sure to wait until the indicator
light goes off or starts flashing.
3. Unlock any door from the inside. The system s hould activate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for the other doors, trunk and hood. When testing on
the hood, also check that the system
is activated when the battery terminal
is disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.

SOLARA_U
242000 MY CAMRY SOLARA (OM33523U)

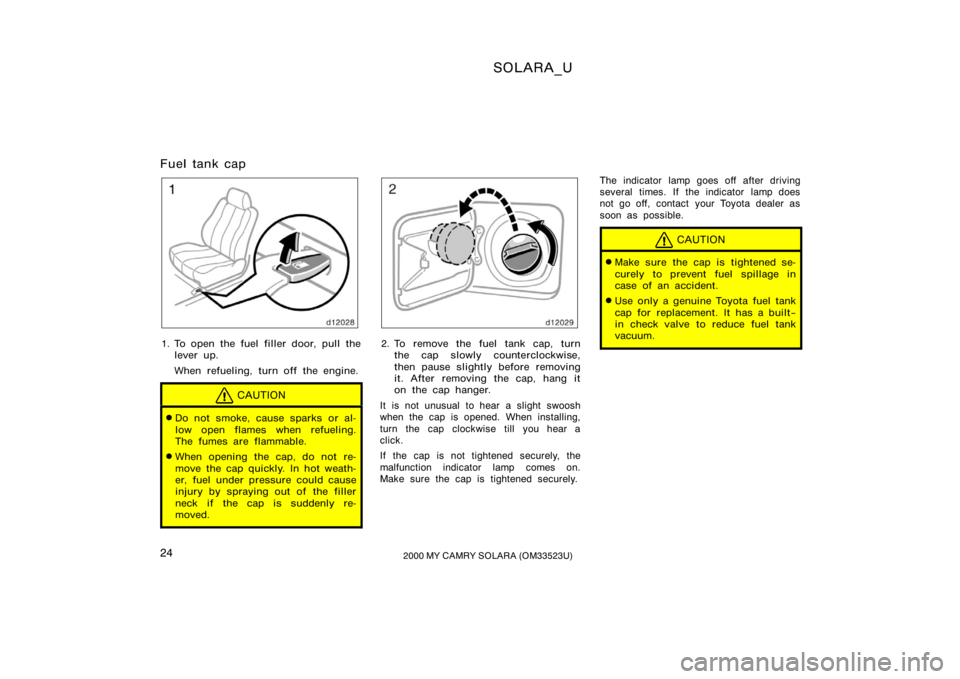

Fuel tank cap
1. To open the fuel filler door, pull the
lever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When insta lling,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely. The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel spillage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It has a built−
in check valve to reduce fuel tank
vacuum.

SOLARA_U
252000 MY CAMRY SOLARA (OM33523U)

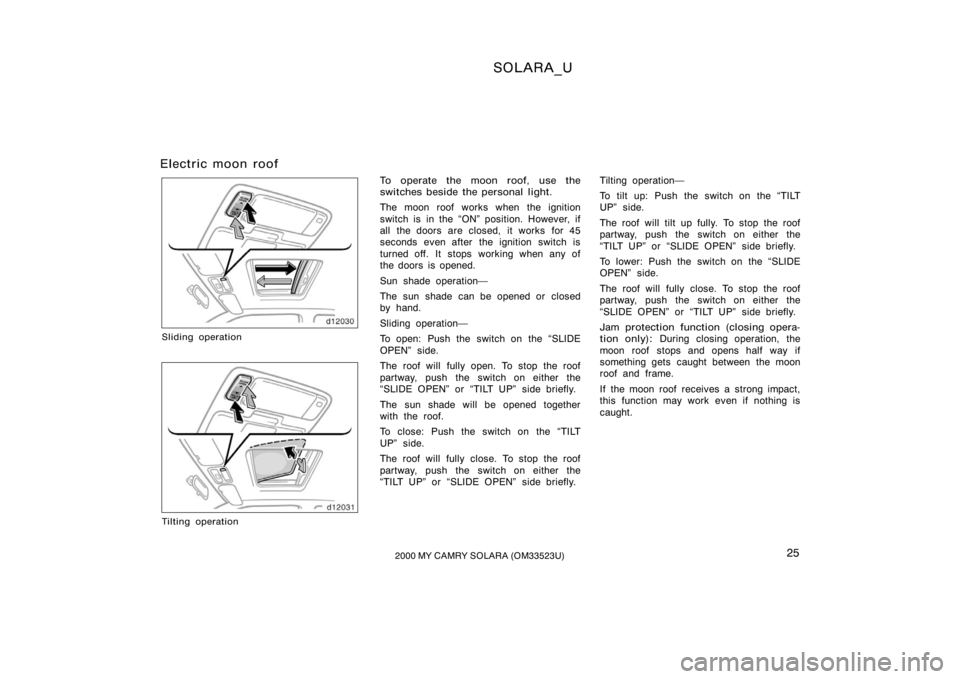

Electric moon roof
Sliding operation
Tilting operation
To operate the moon roof, use the
switches beside the personal light.
The moon roof works when the ignition
switch is in the ON" position. However, if
all the doors are closed, it works for 45
seconds even after the ignition switch is
turned off. It stops working when any of
the doors is opened.
Sun shade operation
The sun shade can be opened or closed
by hand.
Sliding operation
To open: Push the switch on the SLIDE
OPEN" side.
The roof will fully open. To stop the roof
partway, push the switch on either the
SLIDE OPEN" or TILT UP" side briefly.
The sun shade will be opened together
with the roof.
To close: Push the switch on the TILT
UP" side.
The roof will fully close. To stop the roof
partway, push the switch on either the
TILT UP" or SLIDE OPEN" side briefly. Tilting operation
To tilt up: Push the switch on the TILT
UP" side.
The roof will tilt up fully. To stop the roof
partway, push the switch on either the
TILT UP" or SLIDE OPEN" side briefly.
To lower: Push the switch on the SLIDE
OPEN" side.
The roof will fully close. To stop the roof
partway, push the switch on either the
SLIDE OPEN" or TILT UP" side briefly.
Jam protection function (closing opera-
tion only):
During closing operation, the
moon roof stops and opens half way if
something gets caught between the moon
roof and frame.
If the moon roof receives a strong impact,
this function may work even if nothing is
caught.

SOLARA_U
262000 MY CAMRY SOLARA (OM33523U)

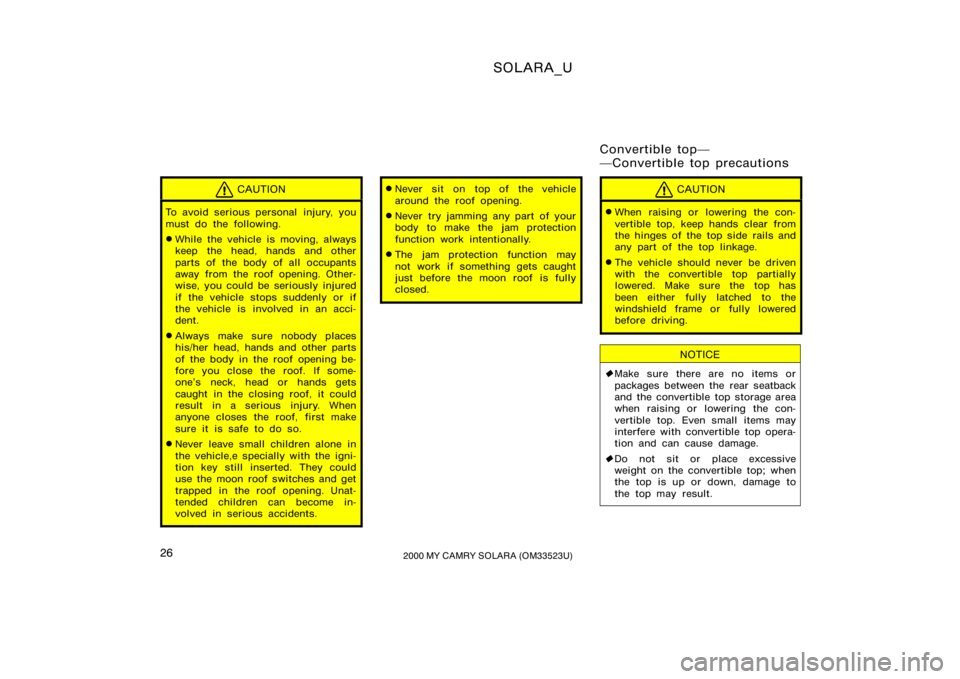

CAUTION
To avoid serious personal injury, you
must do the following.
While the vehicle is moving, always
keep the head, hands and other
parts of the body of all occupants
away from the roof opening. Other-
wise, you could be seriously injured
if the vehicle stops suddenly or if
the vehicle is involved in an acci-
dent.
Always make sure nobody places
his/her head, hands and other parts
of the body in the roof opening be-
fore you close the roof. If some-
one’s neck, head or hands gets
caught in the closing roof, it could
result in a serious injury. When
anyone closes the roof, first make
sure it is safe to do so.
Never leave small children alone in
the vehicle,e specially with the igni-
tion key still inserted. They could
use the moon roof switches and get
trapped in the roof opening. Unat-
tended children can become in-
volved in serious accidents.
Never sit on top of the vehicle
around the roof opening.
Never try jamming any part of your
body to make the jam protection
function work intentionally.
The jam protection function may
not work if something gets caught
just before the moon roof is fully
closed.
CAUTION
When raising or lowering the con-
vertible top, keep hands clear from
the hinges of the top side rails and
any part of the top linkage.
The vehicle should never be driven
with the convertible top partially
lowered. Make sure the top has
been either fully latched to the
windshield frame or fully lowered
before driving.
NOTICE
Make sure there are no items or
packages between the rear seatback
and the convertible top storage area
when raising or lowering the con-
vertible top. Even small items may
interfere with convertible top opera-
tion and can cause damage.
 Do not sit or place excessive
weight on the convertible top; when
the top is up or down, damage to
the top may result.

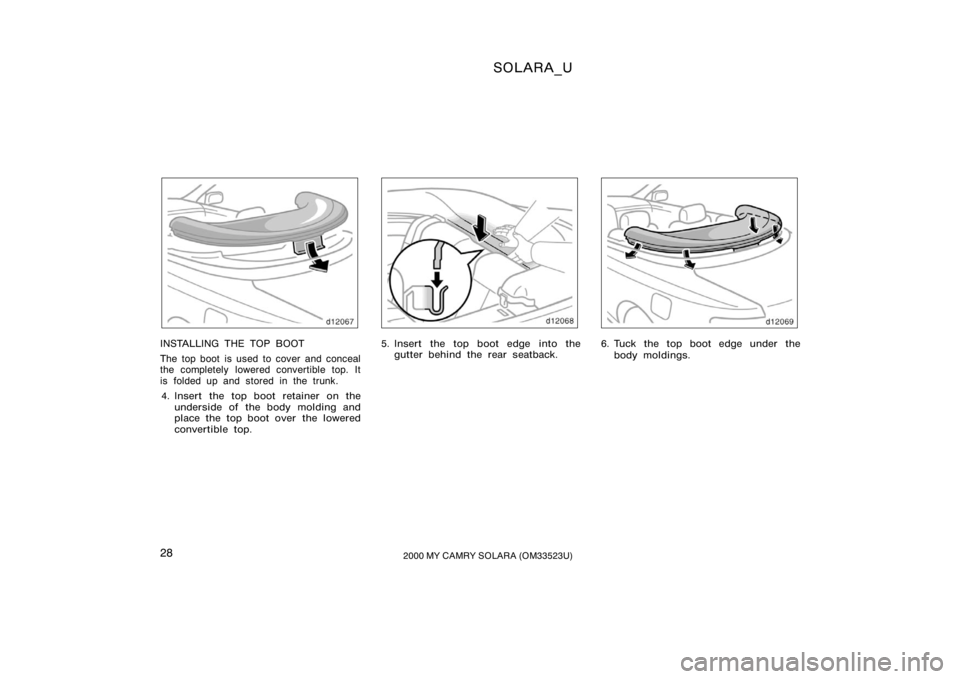

Convertible top
Convertible top precautions

SOLARA_U
272000 MY CAMRY SOLARA (OM33523U)
To prevent from damaging the con-
vertible top material, do not raise
or lower the convertible top when
the temperature is below 0 C (32 F)
or the convertible top is frozen. If
necessary to do so, warm the ve-
hicle in a heated garage prior to
operating the convertible top mech-
anism.
 Do not lower the convertible top if
the top is damp or wet. Possible
interior water damage, water stains
or mildew of the top material may
result.
 When the convertible top is com-
pletely lowered, keep the rear win-
dow defogger turned off to avoid
damage to the convertible top.
Lowering the convertible top
LOWERING THE CONVERTIBLE TOP
The ignition switch must be in the ON"
position to operate the convertible top.
1. Lower the sun visors and pull the latch handles fully backward.
Visually check that the hooks of latch
handles are not hooked.2. Push the convertible top control switch on the OPEN" side until the
convertible top and windshield frame
are disengaged. Then retract the
latch handles.
3. Push and hold the convertible top control switch on the OPEN" side
until the convertible top is complete-
ly lowered. Raise the sun visors.
The side windows and quarter windows
will go completely down when the convert-
ible top control switch is operated on the
OPEN" side.
If the convertible top does not lower, see
If the convertible top does not raise or
lower" in Section 4 for instructions.

SOLARA_U
282000 MY CAMRY SOLARA (OM33523U)
INSTALLING THE TOP BOOT
The top boot is used to cover and conceal
the completely lowered convertible top. It
is folded up and stored in the trunk.
4. Insert the top boot retainer on the underside of the body molding and
place the top boot over the lowered
convertible top.5. Insert the top boot edge into thegutter behind the rear seatback.6. Tuck the top boot edge under the
body moldings.
