SOLARA_U
692000 MY CAMRY SOLARA (OM33523U)

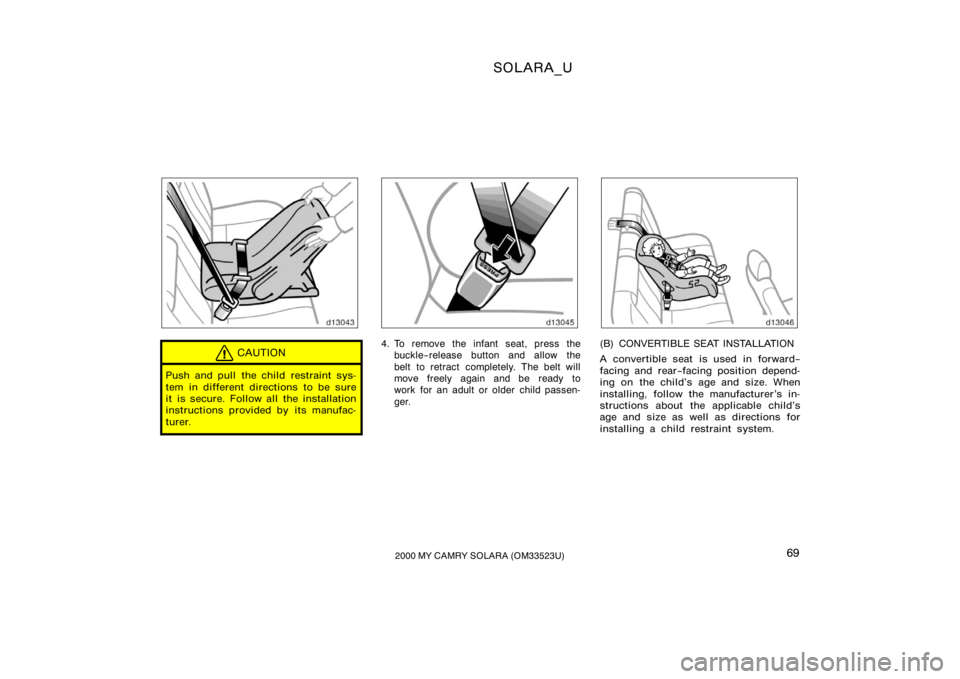

CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the infant seat, press the
buckle−release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward−
facing and rear−facing position depend-
ing on the child’s age and size. When
installing, follow the manufacturer’s in-
structions about the applicable child’s
age and size as well as directions for
installing a child restraint system.

SOLARA_U
702000 MY CAMRY SOLARA (OM33523U)

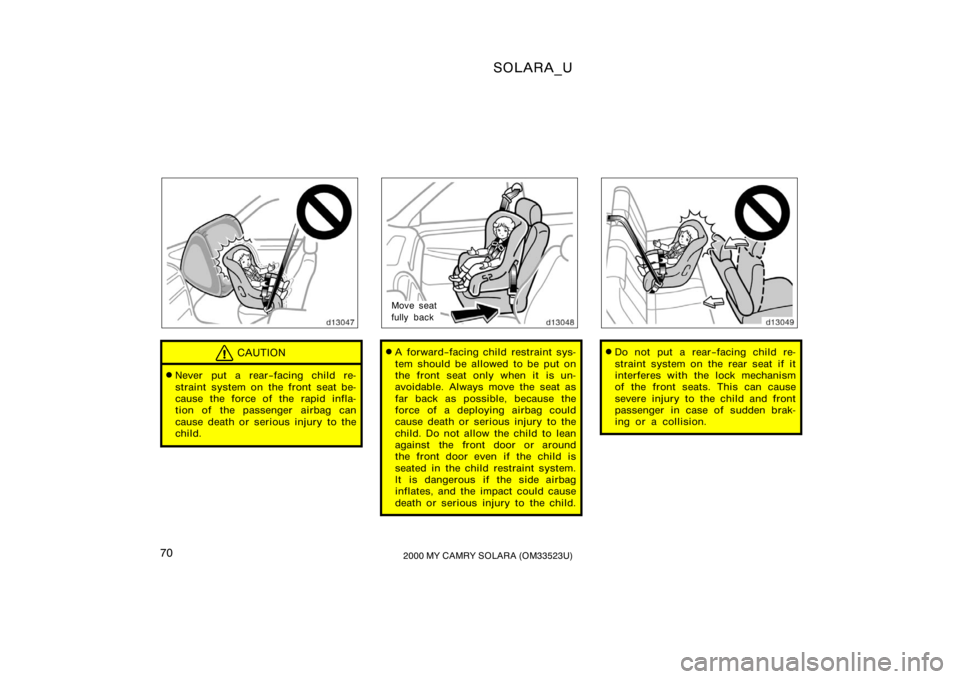

CAUTION
Never put a rear−facing child re-
straint system on the front seat be-
cause the force of the rapid infla-
tion of the passenger airbag can
cause death or serious injury to the
child.
Move seat
fully back
A forward−facing child restraint sys-
tem should be allowed to be put on
the front seat only when it is un-
avoidable. Always move the seat as
far back as possible, because the
force of a deploying airbag could
cause death or serious injury to the
child. Do not allow the child to lean
against the front door or around
the front door even if the child is
seated in the child restraint system.
It is dangerous if the side airbag
inflates, and the impact could cause
death or serious injury to the child.Do not put a rear−facing child re-
straint system on the rear seat if it
interferes with the lock mechanism
of the front seats. This can cause
severe injury to the child and front
passenger in case of sudden brak-
ing or a collision.

SOLARA_U
712000 MY CAMRY SOLARA (OM33523U)

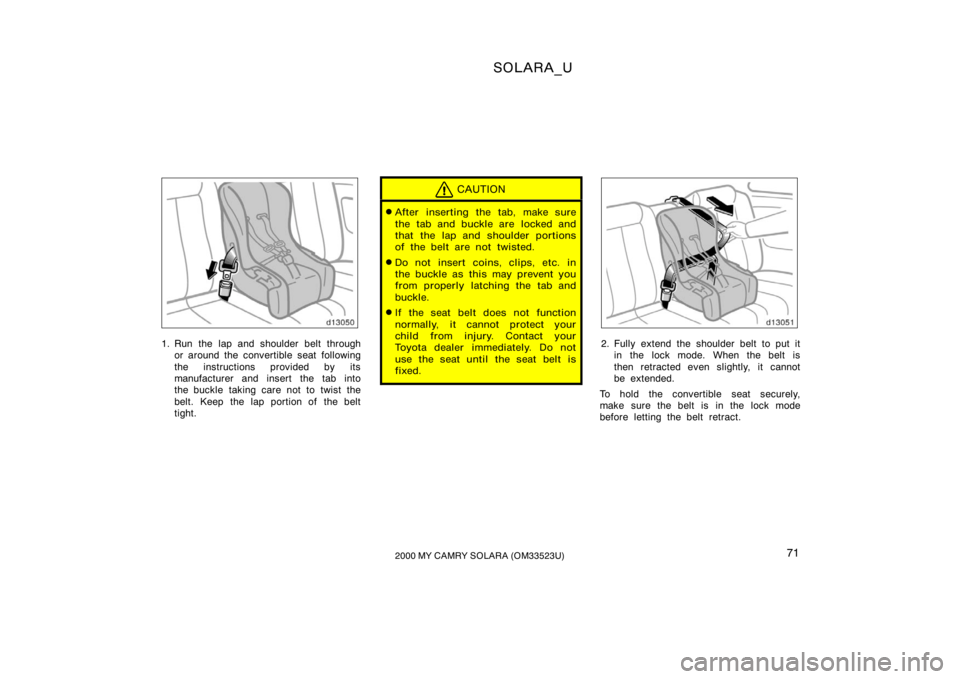

1. Run the lap and shoulder belt through
or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.

SOLARA_U
722000 MY CAMRY SOLARA (OM33523U)

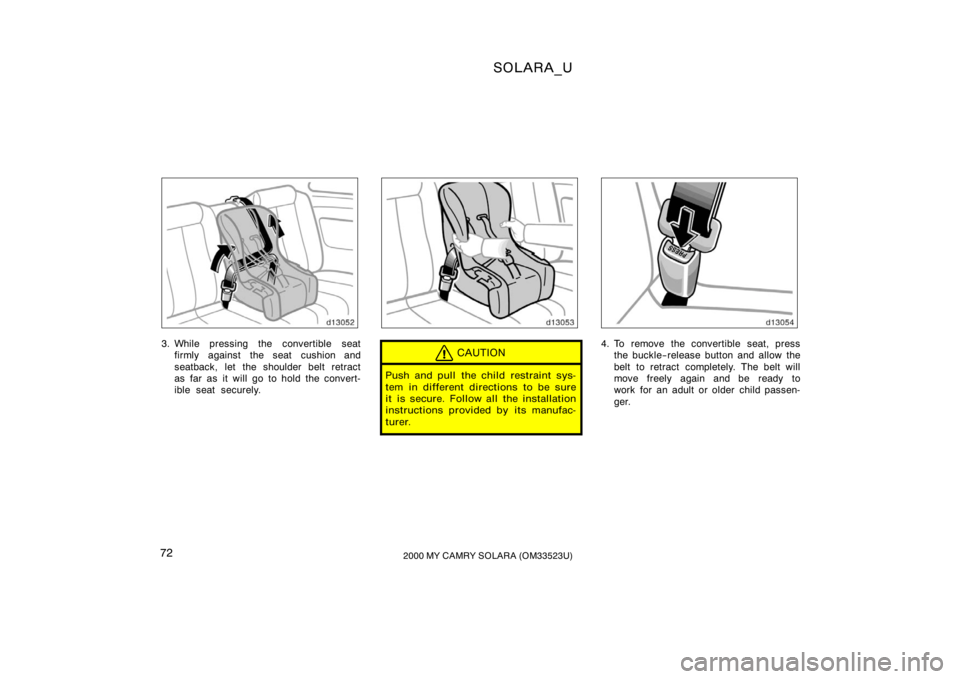

3. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the convertible seat, pressthe buckle−release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.

SOLARA_U
732000 MY CAMRY SOLARA (OM33523U)

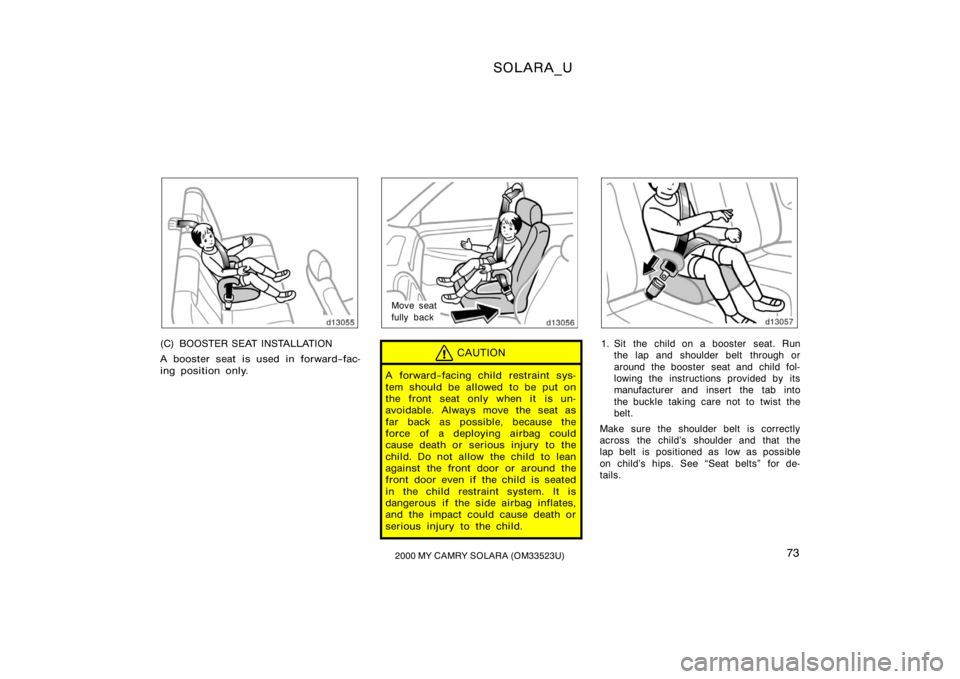

(C) BOOSTER SEAT INSTALLATION
A booster seat is used in forward−fac-
ing position only.
Move seat
fully back
CAUTION
A forward−facing child restraint sys-
tem should be allowed to be put on
the front seat only when it is un-
avoidable. Always move the seat as
far back as possible, because the
force of a deploying airbag could
cause death or serious injury to the
child. Do not allow the child to lean
against the front door or around the
front door even if the child is seated
in the child restraint system. It is
dangerous if the side airbag inflates,
and the impact could cause death or
serious injury to the child.
1. Sit the child on a booster seat. Run
the lap and shoulder belt through or
around the booster seat and child fol-
lowing the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on child’s hips. See Seat belts" for de-
tails.

SOLARA_U
742000 MY CAMRY SOLARA (OM33523U)

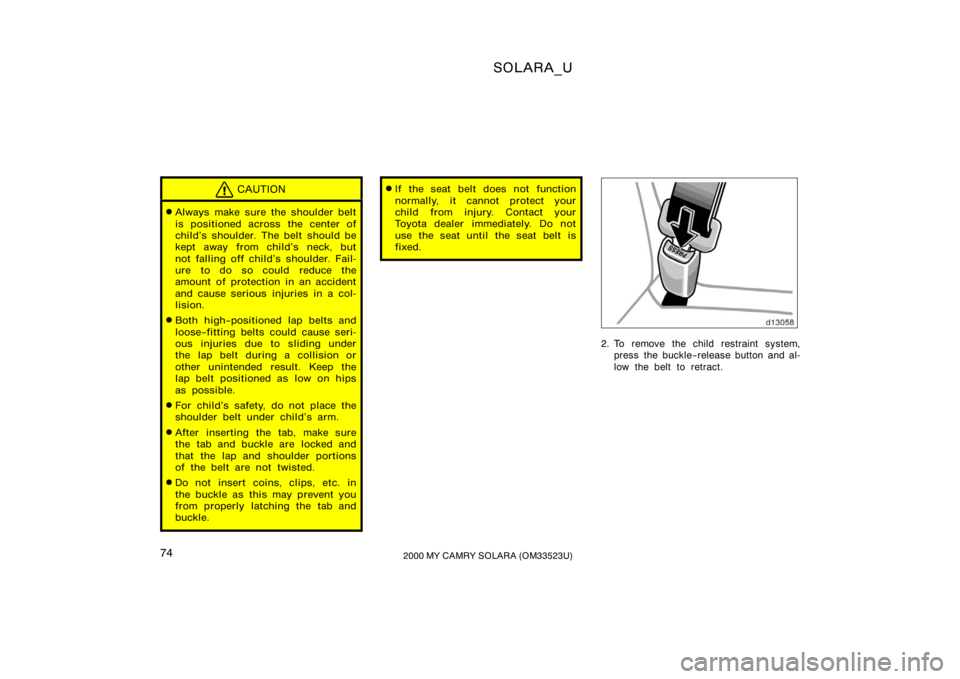

CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s s houlder. Fail-
ure to do so could reduce the
amount of protection in an accident
and cause serious injuries in a col-
lision.
Both high−positioned lap belts and
loose−fitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended result. Keep the
lap belt positioned as low on hips
as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. To remove the child restraint system, press the buckle−release button and al-
low the belt to retract.

SOLARA_U
752000 MY CAMRY SOLARA (OM33523U)

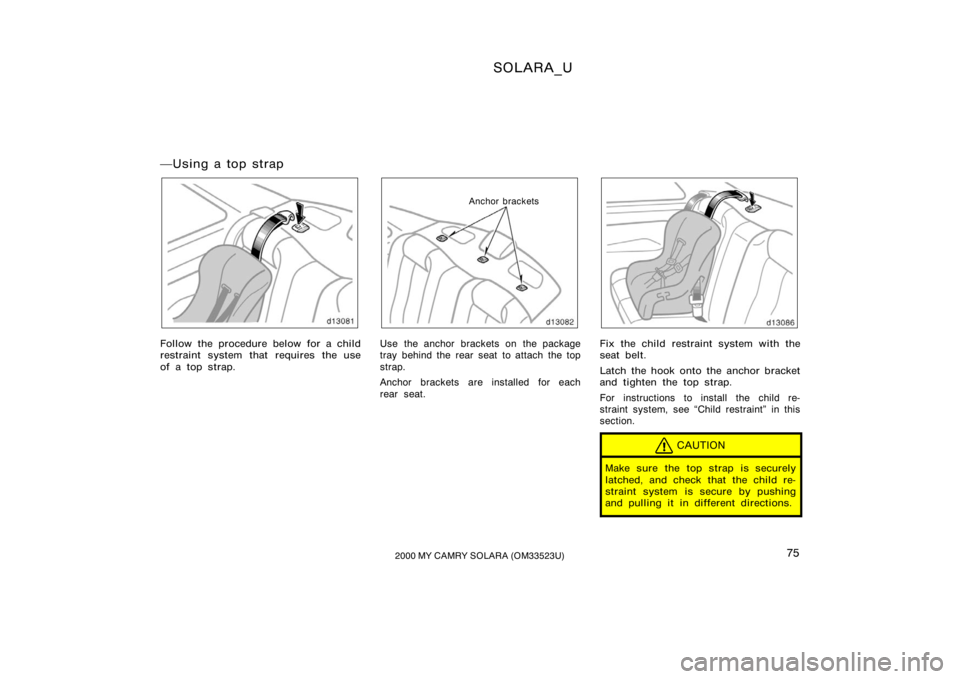

 U sin g a to p st rap
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Anchor brackets
Use the anchor brackets on the package
tray behind the rear seat to attach the top
strap.
Anchor brackets are installed for each
rear seat.Fix the child restraint system with the
seat belt.
Latch the hook onto the anchor bracket
and tighten the top strap.
For instructions to install the child re-
straint system, see Child restraint" in this
section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.

SOLARA_U
762000 MY CAMRY SOLARA (OM33523U)

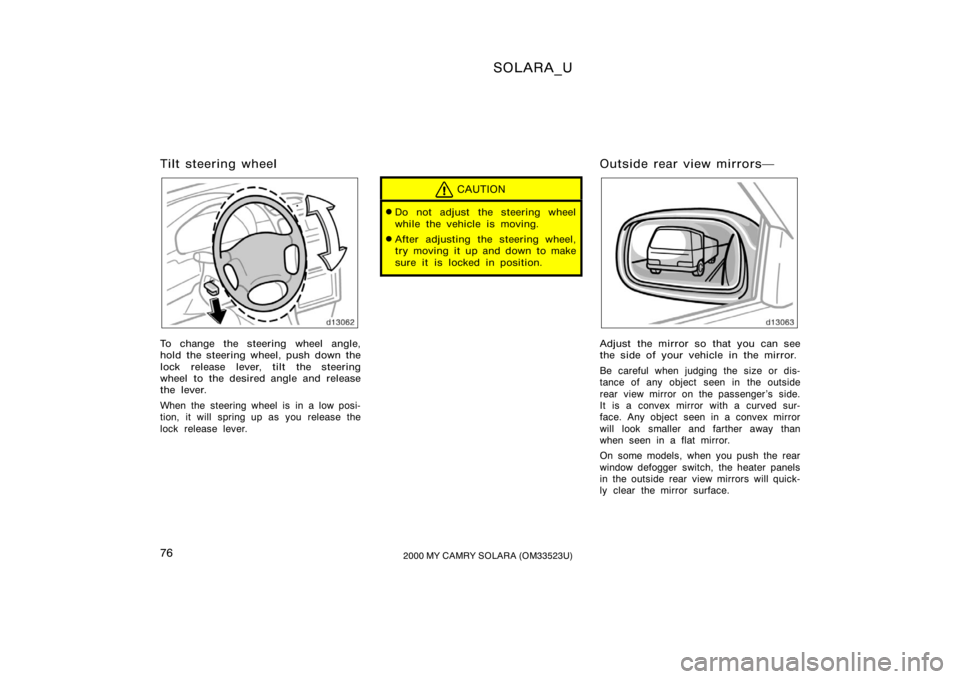

Tilt steering wheel
To change the steering wheel angle,
hold the steering wheel, push down the
lock release lever, tilt the steering
wheel to the desired angle and release
the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Outside rear view mirrors
Adjust the mirror so that you can see
the side of your vehicle in the mirror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side.
It is a convex mirror with a curved sur-
face. Any object seen in a convex mirror
will look smaller and farther away than
when seen in a flat mirror.
On some models, when you push the rear
window defogger switch, the heater panels
in the outside rear view mirrors will quick-
ly clear the mirror surface.

SOLARA_U
772000 MY CAMRY SOLARA (OM33523U)
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
personal injuries.
Since the mirror surfaces can get
hot, keep your hands off them when
the defogger switch is on.
To adjust a mirror, use the switches.
1. Master switchTo select the mirror to be adjusted
Place the switch at L" (left) or R"
(right).
2. Control switchTo move the mirror Push the switch in the desired direc-
tion.
Mirror can be adjusted when key is in the
ACC" or ON" position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrap the mir-
ror face. Use a spray de−icer to free
the mirror.
Power rear view mirror
control

SOLARA_U
782000 MY CAMRY SOLARA (OM33523U)

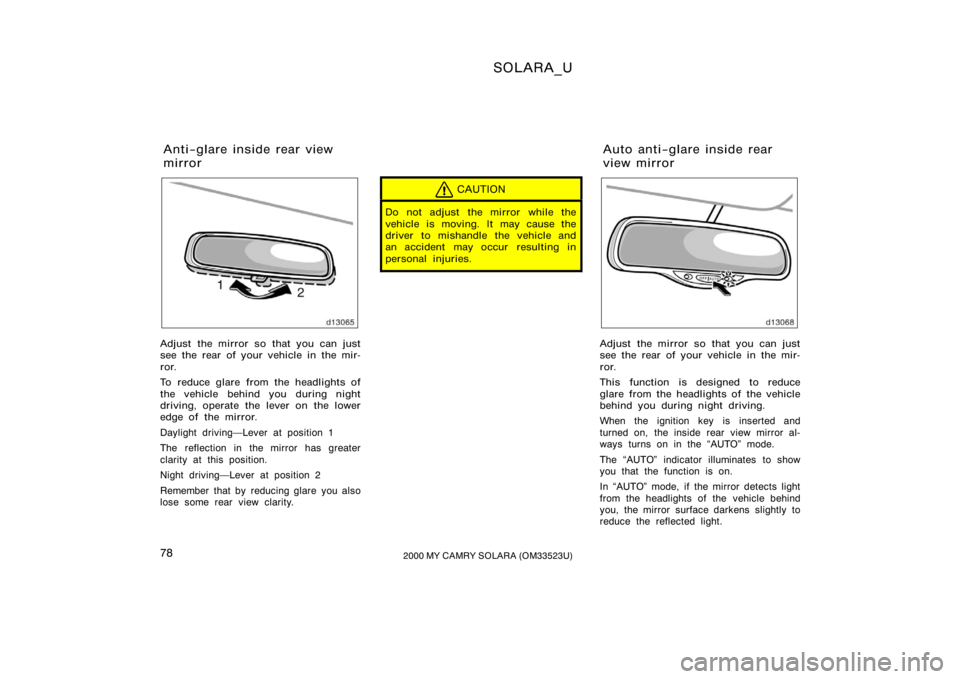

Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight drivingLever at position 1
The reflection in the mirror has greater
clarity at this position.
Night drivingLever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
personal injuries.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This function is designed to reduce
glare from the headlights of the vehicle
behind you during night driving.
When the ignition key is inserted and
turned on, the inside rear view mirror al-
ways turns on in the AUTO" mode.
The AUTO" indicator illuminates to show
you that the function is on.
In AUTO" mode, if the mirror detects light
from the headlights of the vehicle behind
you, the mirror surface darkens slightly to
reduce the reflected light.
Anti−glare inside rear view
mirror Auto anti−glare inside rear
view mirror
