wiring TOYOTA SOLARA 2003 Accessories, Audio & Navigation (in English)

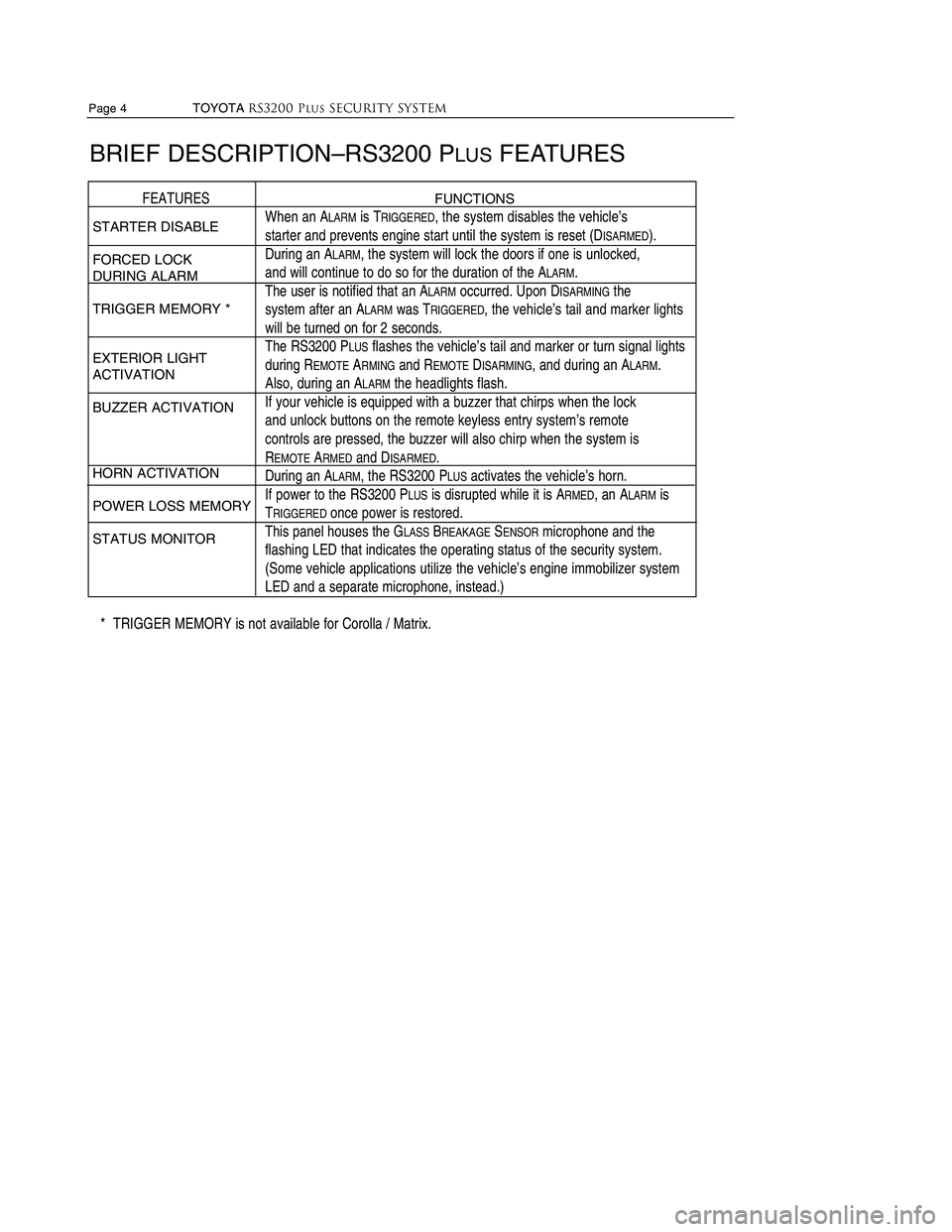

Page 4 TOYOTARS3200 PLUSSecurity system
STARTER DISABLE
FORCED LOCK
DURING ALARM
TRIGGER MEMORY *
EXTERIOR LIGHT
ACTIVATION
BUZZER ACTIVATION
HORN ACTIVATION
POWER LOSS MEMORY
STATUS MONITOR
BRIEF DESCRIPTION–RS3200 PLUSFEATURES
FEATURESFUNCTIONS
When an ALARMis TRIGGERED, the system disables the vehicle’s
starter and prevents engine start until the system is reset (D
ISARMED).
During an A
LARM, the system will lock the doors if one is unlocked,
and will continue to do so for the duration of the A
LARM.
The user is notified that an A
LARMoccurred. Upon DISARMINGthe
system after an A
LARMwas TRIGGERED, the vehicle’s tail and marker lights
will be turned on for 2 seconds.
The RS3200 P
LUSflashes the vehicle’s tail and marker or turn signal lights
during R
EMOTEARMINGand REMOTEDISARMING, and during an ALARM.
Also, during an A
LARMthe headlights flash.
If your vehicle is equipped with a buzzer that chirps when the lock
and unlock buttons on the remote keyless entry system’s remote
controls are pressed, the buzzer will also chirp when the system is
R
EMOTEARMEDand DISARMED.
During an A
LARM,t he RS3200 PLUSactivates the vehicle’s horn.
If power to the RS3200 P
LUSis disrupted while it is ARMED, an ALARMis
T
RIGGEREDonce power is restored.
This panel houses the G
LASSBREAKAGESENSORmicrophone and the
flashing LED that indicates the operating status of the security system.
(Some vehicle applications utilize the vehicle’s engine immobilizer system
LED and a separate microphone, instead.)
* TRIGGER MEMORY is not available for Corolla / Matrix.

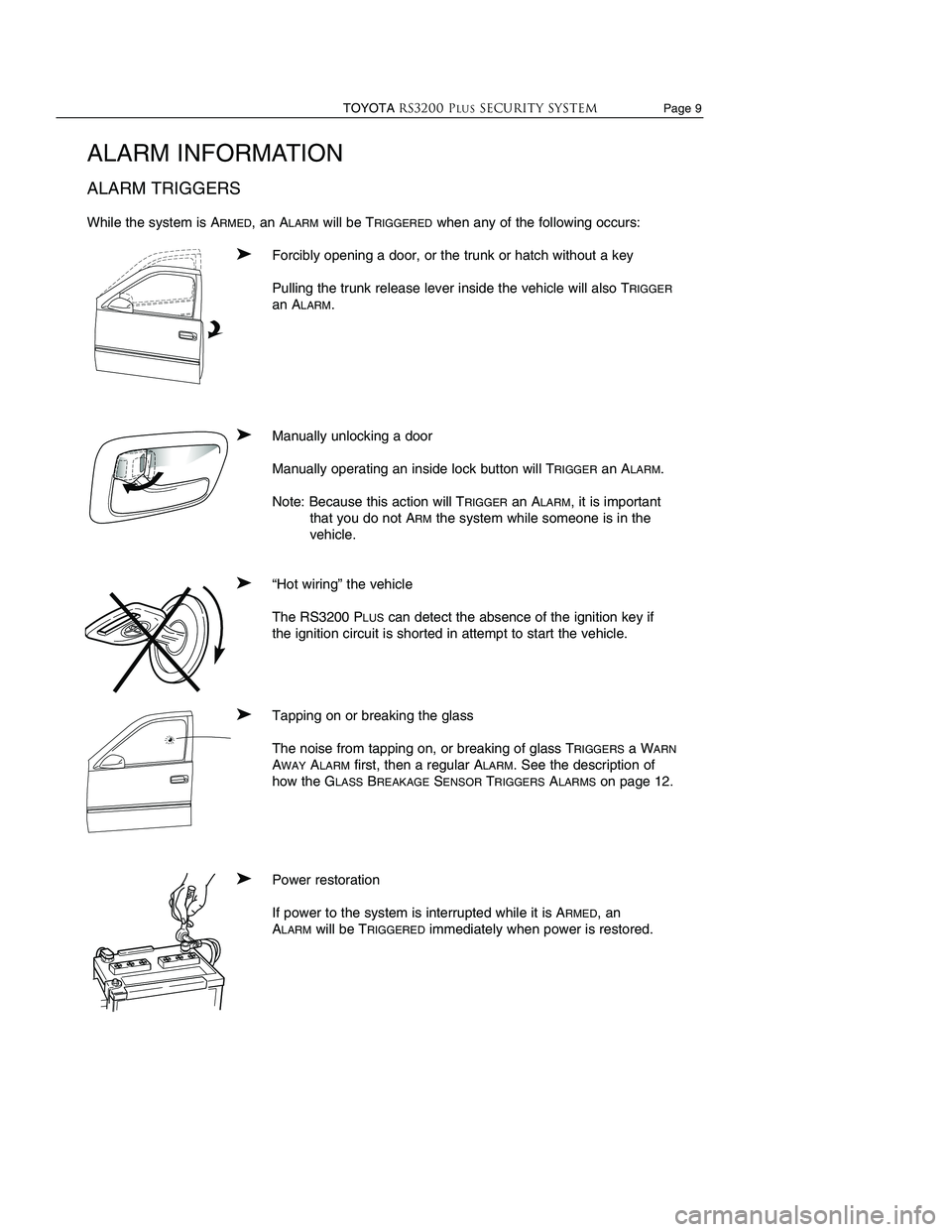

TOYOTARS3200 PLUSSecurity system Page 9
ALARM INFORMATION
ALARM TRIGGERS
While the system is ARMED, an ALARMwill be TRIGGEREDwhen any of the following occurs:
�Forcibly opening a door, or the trunk or hatch without a key
Pulling the trunk release lever inside the vehicle will also T
RIGGER
an ALARM.
�Manually unlocking a door
Manually operating an inside lock button will T
RIGGERan ALARM.
Note: Because this action will T
RIGGERan ALARM, it is important
that you do not A
RMthe system while someone is in the
vehicle.
�“Hot wiring” the vehicle
The RS3200 P
LUScan detect the absence of the ignition key if
the ignition circuit is shorted in attempt to start the vehicle.
�Tapping on or breaking the glass
The noise from tapping on, or breaking of glass T
RIGGERSa WARN
AWAYALARMfirst, then a regular ALARM. See the description of
how the G
LASSBREAKAGESENSORTRIGGERSALARMSon page 12.
�Power restoration
If power to the system is interrupted while it is A
RMED, an
A
LARMwill be TRIGGEREDimmediately when power is restored.
