To better understand the features and functions of this security system, please read this Owner’s
Guide completely prior to use.
TABLE OF CONTENTS
DESCRIPTIONPAGE
INTRODUCTION2
BRIEF DESCRIPTION–RS3200 PLUSFEATURES3, 4
OPERATION
ARMING THE RS3200 PLUS (except PASSIVE ARMING) 5
DISARMING THE RS3200 PLUS (except PASSIVE DISARMING) 6
PASSIVE (AUTOMATIC) ARMING & DISARMING7
AUTOMATIC REARMING8
ARMING SUSPENSION8
ALARM INFORMATION9
ALARM TRIGGERS9
ALARM DESCRIPTIONS10
STOPPING AN ALARM 10
GLASS BREAKAGE SENSOR INFORMATION
GLASS BREAKAGE SENSOR CHECK PROCEDURE11
PROGRAMMING
PASSIVE (AUTOMATIC) ARMING AND ENTRY DELAY 12
(Not applicable to Highlander and Sienna. Please consult your
Toyota Dealer for programming information.)
WARNING and CAUTION INFORMATION13
TOYOTARS3200 PLUSSecurity systemPage 1
PROGRAMMING
The RS3200 PLUSis factory-set to not PASSIVELYARM. To change the system’s operation for
PASSIVEARMINGoperation, as well as adjust the ENTRYDELAYtime, follow the procedure below. For
more information on this feature, please refer to page 7.(Not applicable to Highlander and
Sienna. Please consult your Toyota Dealer for programming information.)
PASSIVE ARMING ON/OFF SELECTION, ENTRY DELAY TIME SELECTION
1. Before you begin:
Open the driver’s door. Close the remaining doors
and the trunk or hatch. Unlock all doors with the inside
lock switch. Remove the key from the ignition switch.
Start the Programming Procedure. (Complete these steps within 40 seconds.)
3. Select the Operating Mode and Complete the Programming Procedure.
Page 12 TOYOTARS3200 PLUSSecurity system

a. Close the driver’s
door.
b.Lockandunlockall
doors3 timesby key
or remote control.
b.Lockthenunlockthe
driver’s door inside lock
button1 time.

a. Close, then Open the driver’s door:
2 times = PASSIVEARMINGOFF
3 times = PASSIVEARMINGON,
0 Sec. ENTRYDELAY
4 times = PASSIVEARMINGON,
15 Sec. ENTRYDELAY
5 times = PASSIVEARMINGON,
30 Sec. ENTRYDELAY
c. Open and close
the driver’s door.

c.The system locks the
door in 2 seconds; if this
does not happen, start
over. Programming is now
complete.
e. Open the driver’s
door.
d.Lock, then unlock
the driver’s door
inside lock button
3times.

2. Insert and remove the key from
the ignition key cylinder 3
times; this must be completed
within 5 seconds.

f. The system locks the door
in 2 seconds; if this does
not happen, start over.
g. Unlock the driver’s
door knob.

INTRODUCTION
Congratulations on your choice of the RS3200 PLUSadd-on security system to protect your vehicle!
To get the most from the system, we strongly recommend that you read this Owner’s Guide com-
pletely to learn all of its features and functions.
The RS3200 PLUSprovides security through point-of-entry monitoring, glass breakage detection and
ignition switch monitoring. While ARMED, the system will be TRIGGEREDand sound an ALARMwhen a
door, trunk or hatch is forcibly unlocked or opened*, or when a window is tapped on or broken.
During the ALARM, the vehicle’s horn sounds and the headlights, tail lights and front marker or turn
signal lights flash.A l s o ,the vehicle’sstarter is disabled, preventing engine start. In addition to the
comprehensive protection, the RS3200 PLUSworks in conjunction with your vehicle’s remote key-
less entry system, enabling you to ARMand DISARMthe security system at the same time the doors
are remotely locked and unlocked. In vehicles equipped with a buzzer, it will chirp when the system
is REMOTEARMEDand DISARMED.
An important note about your system
Throughout this guide, there are references to the STATUSMONITORfor this system. Illustrated
below, this panel holds the LED indicator (for the system’s operating status) and the GLASS
BREAKAGESENSOR’Smicrophone. In vehicles equipped with an engine immobilizer system, there is
a LED already installed, so the RS3200 PLUSutilizes the vehicle’s engine immobilizer system LED
instead and a microphone mounted in a separate location. If your vehicle falls into this category,
remember to look at that LED when the information refers to the STATUSMONITOR. If you do not
know where the LED is located, refer to your vehicle’s owner’s guide for specific information.
*When the system is PASSIVELY(AUTOMATICALLY) ARMED, there is an ENTRYDELAYthat will elapse
when a door is opened before an ALARMis TRIGGERED.
YOUR ENGINE IMMOBILIZER SYSTEM LED MAY LOOKDIFFERENT THAN THE ONEILLUSTRATED HERE

Page 2 TOYOTARS3200 PLUSSecurity system

LIGHTSFOR 30SECONDS(PRE-ARMING)THENSTARTSFLASHING(SYSTEMISARMED)
➀➁
➀ ➁
➂
➂
TOYOTARS3200 PLUSSecurity systemPage 11
GLASS BREAKAGE SENSOR INFORMATION
The RS3200 PLUSprovides protection for your vehicle above and beyond entry point monitoring–it
“listens” for the noise made by tapping on, or breaking of glass. Using a microphone designed
specifically for this task, the GLASSBREAKAGESENSORis capable of ignoring other noises, which
helps to prevent “false alarms” from occurring.
GLASS BREAKAGE SENSOR CHECK PROCEDURE
When the RS3200 PLUSwas installed in your vehicle, care was taken to adjust the sensitivity level
of the GLASSBREAKAGESENSOR. You may observe how it works following the procedure listed
below.
1. ARMthe system.
Press the lock button on the remote control or lock the doors
with the key.
(Remember, the system will not ARMif any door, the trunk or
hatch is open.)
2. Wait until the STATUSMONITOR’SLED starts flashing.
The LED will flash 30 seconds after the last door, the trunk or
hatch is closed.
3. With the tip of a key, tap the center of the driver’s door window.
Tap the glass with light to moderate force.
WARNING: Do not hit the glass with excessive force, especially
in cold weather, or you may crack or break it.
A WARNAWAYALARMshould be TRIGGERED. If the ALARMis not
TRIGGERED, make sure you performed the procedure correctly
and try again. If you find that the system did not perform as
expected, contact your Toyota dealer for more information.
4. DISARMthe system to stop the WARNAWAYALARM.
Press the unlock button on the remote control or use the key
to DISARMthe system.

TOYOTARS3200 PLUSSecurity systemPage 3
REMOTE
ARMING/DISARMING
AUTOMATIC
REARMING
KEY
ARMING/DISARMING
ARMED MODE
SUSPENSION**
PASSIVE (AUTOMATIC)
ARMING
PASSIVE DISARMING
ADJUSTABLE ENTRY
DELAY
MANUAL ARMING
IGNITION KEY
DISARMING
POINT-OF-ENTRY
PROTECTION
GLASS BREAKAGE
SENSOR
WARN AWAY ALARM
IGNITION SWITCH
MONITORING
FEATURESFUNCTIONS
The RS3200 PLUSwill ARM30 seconds after the lock button on the remote
keyless entry system’s remote control is pressed, and DISARMwhen the
unlock button is pressed. If your vehicle is equipped with a buzzer that chirps
when the lock and unlock buttons on the remote controls are pressed, the
buzzer will also chirp when the system is REMOTEARMEDand DISARMED.
The RS3200 PLUSwill automatically REARMat the same time the
vehicle’s remote keyless entry system relocks the vehicle’s
doors, if no door is opened within 30 seconds after REMOTEDISARMING.
The RS3200 PLUSwill ARM30 seconds after you close the trunk (if
open) and lock the vehicle’s doors with the key, and will DISARMwhen
you unlock a door with the key.
While ARMED, the trunk may be opened with the key (or trunk release button
on your remote control, if so equipped) without TRIGGERINGan ALARM. Once
the open trunk is closed, the system ARMSagain.
The RS3200 PLUSmay be programmed to automatically ARM30
seconds after the ignition key is removed, the vehicle exited and the
last door and the trunk closed, without the necessity of locking doors.
The RS3200 PLUSmay be DISARMEDwith the vehicle’s ignition key
after it was PASSIVELYARMED.
When the RS3200 PLUShas been PASSIVELYARMED, an ENTRYDELAY
(user-selectable at 0, 15, or 30 seconds) will start when a door is
opened before an ALARMis TRIGGERED.
When you lock the vehicle with the central lock switch (while a door
is open), the RS3200 PLUSwill ARM30 seconds after you close all
the doors and the trunk (if open).
The RS3200 PLUSmay be DISARMEDby inserting the key into the
ignition switch and turning it to “ON.”
Forcibly unlocking or opening a door or trunk while the RS3200 PLUS
is ARMEDwill TRIGGERan ALARMimmediately. (If the system was PASSIVELY
ARMED,the ENTRYDELAYmust pass after opening a door before the ALARMis
TRIGGERED.)
The RS3200 PLUSutilizes a microphone (usually mounted in the
STATUSMONITOR)to sense the noise from tapping on window glass, or
glass breaking, and TRIGGERthe system to sound an ALARM. It is fine
tuned to “listen” for this type of noise, and ignore other sounds.
When the GLASSBREAKAGESENSOR’Smicrophone picks up tapping or
breaking of window glass, it TRIGGERSa WARNAWAYALARM; the headlights
and tail and marker or turn signal lights flash, and the horn sounds for 20
seconds, but the starter is not disabled. If there is another detection of glass
tapping or breaking, or if a door is opened or unlocked without a key, the
regular ALARMis TRIGGERED.
While ARMED, the RS3200 PLUSmonitors the ignition switch. If an attempt is
made to start the vehicle without a key, an ALARMis TRIGGERED.
BRIEF DESCRIPTION–RS3200 PLUSFEATURES
**Starting from 2002 M.Y., Arming Suspension Mode by using the key to unlock the trunk is not applicable to Camry, Solara, and Corolla.
Page 10 TOYOTARS3000 PLUS Security system
ALARM INFORMATION
ALARM DESCRIPTIONS
Regular ALARM
When an ALARMis triggered in any way other than initial detection by the GLASSBREAKAGESENSOR,
the following occur:
The horn sounds repeatedly for 60 seconds.
The headlights flash repeatedly for 60 seconds.
The tail and marker or turn signal lights flash repeatedly for 60 seconds.
The starter is disabled (no engine start) until the system is DISARMED.
The door lock will be relocked if someone reaches in and unlocks the inside lock button.
After 60 seconds of ALARM, the system will REARMand continue to protect the vehicle.
WARN-AWAYALARM
Upon initial detection of noise from tapping on, or breaking glass, the GLASSBREAKAGESENSOR
TRIGGERSa WARNAWAYALARM:
The horn sounds repeatedly for 20 seconds.
The headlights flash repeatedly for 20 seconds.
The tail and marker or turn signal lights flash repeatedly for 20 seconds.
If the GLASSBREAKAGESENSORdetects noise again, or if a door or trunk is opened while the system
is still ARMED, the regular ALARM(described above) is activated.
STOPPING AN ALARM
Simply DISARMthe system using the remote control or key as described on page 6.

THE HORNSOUNDSFOR 20 SECONDS
THE HORNSOUNDSFOR 60 SECONDS
HEAD LIGHTSFLASHFOR 60 SECONDS
THE STARTER IS DIS-ABLED UNTIL THE SYSTEMIS DISARMED
MARKER OR TURNSIGNAL LIGHTSFLASHFOR 60 SECONDS
HEADLIGHTS FLASHFOR 20 SECONDSMARKER OR TURNSIGNAL LIGHTS FLASH FOR 20 SECONDS
TAIL OR TURN SIG-NAL LIGHTS FLASH FOR 60 SECONDS
TAIL OR TURN SIG-NAL LIGHTS FLASH FOR 20 SECONDS
➀
➁
➀
➁

Page 6 TOYOTARS3200 PLUSSecurity system
OPERATION
DISARMING THE RS3200 PLUS(except PASSIVE DISARMING)
The system may be DISARMEDin several ways. Do one of the following:
Unlock the doors with your key:
Insert the key into the door key switch and turn it toward the rear of
the vehicle:
The STATUSMONITOR’SLED stops flashing. The system is
now DISARMED.*
In the case of Highlander, Sienna, and 4Runner, you may also disarm
the system using the key in the back door; all doors will unlock at the
same time.
Unlock the doors with the remote control:
Press the unlock button on the remote control. Simultaneously:
The driver’s door unlocks.
The vehicle’s tail and marker or turn signal lights flash
twice.
The vehicle’s buzzer chirps twice.∆
The STATUSMONITOR’SLED stops flashing. The system is
now DISARMED.*
Press the unlock button again within 3 seconds after unlocking the
driver’s door to unlock the remaining doors.
Use the ignition switch:
Insert the key into the ignition switch, then turn it to ON.
The STATUSMONITOR’SLED stops flashing. The system is
now DISARMED.*
This method of disarming is rarely used. You must be inside the
vehicle while the system is armed in order to do it.
NOTE: If your vehicle’s tail and marker or turn signal lights turn on for 2 seconds when the system
is DISARMED,* the TRIGGERMEMORYwas activated; something TRIGGEREDan ALARMwhile
you were away from the vehicle. This feature is not available for Corolla / Matrix.
*Please note, if the system utilizes your vehicle’s engine immobilizer system LED instead of the
STATUSMONITOR, the LED will continue to flash.
∆If your vehicle is equipped with a buzzer.

TURN TOWARD THEREAROF THE VEHICLE

TURN THE KEY TO “ON”TODISARM THE SYSTEM
THE DRIVER’S DOORUNLOCKS WHEN THESYSTEM IS REMOTE DISARMED
THE TAIL AND MARKER OR TURN SIGNALLIGHTS FLASH TWICE WHEN THE SYSTEMIS REMOTE DISARMED

PUSH THE UNLOCKBUTTON
STOPSFLASH-INGWHENTHE SYS-TEM ISDIS-ARMED
➀➁➂
➀
➁
➂
➀
➀
TOYOTARS3200 PLUSSecurity systemPage 7
OPERATION

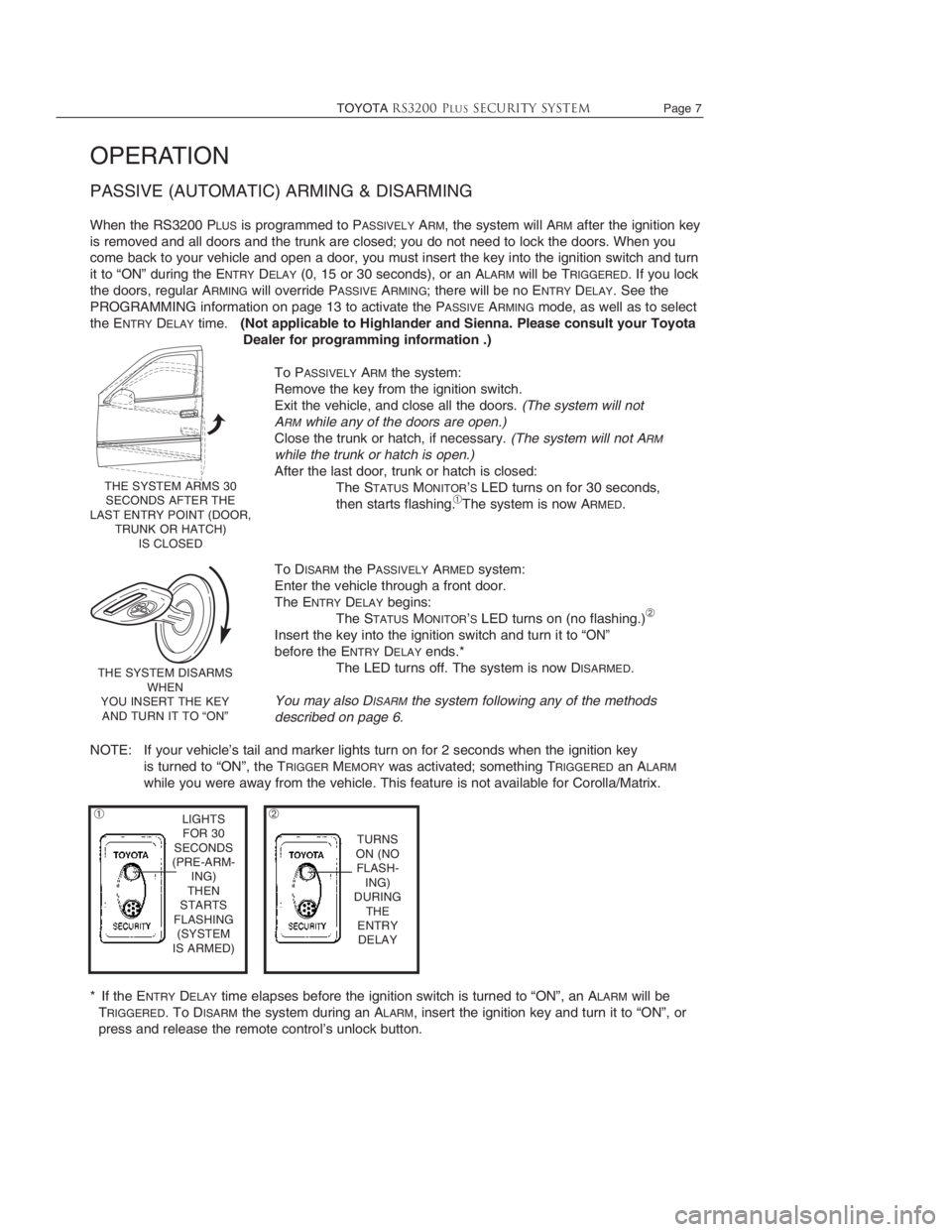

PASSIVE (AUTOMATIC) ARMING & DISARMING
When the RS3200 PLUSis programmed to PASSIVELYARM, the system will ARMafter the ignition key
is removed and all doors and the trunk are closed; you do not need to lock the doors. When you
come back to your vehicle and open a door, you must insert the key into the ignition switch and turn
it to “ON” during the ENTRYDELAY(0, 15 or 30 seconds), or an ALARMwill be TRIGGERED. If you lock
the doors, regular ARMINGwill override PASSIVEARMING; there will be no ENTRYDELAY. See the
PROGRAMMING information on page 13 to activate the PASSIVEARMINGmode, as well as to select
the ENTRYDELAYtime. (Not applicable to Highlander and Sienna. Please consult your Toyota
Dealer for programming information .)
To PASSIVELYARMthe system:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors. (The system will not
ARMwhile any of the doors are open.)
Close the trunk or hatch, if necessary. (The system will not ARM
while the trunk or hatch is open.)
After the last door, trunk or hatch is closed:
The STATUSMONITOR’SLED turns on for 30 seconds,
then starts flashing. The system is now ARMED.
To DISARMthe PASSIVELYARMEDsystem:
Enter the vehicle through a front door.
The ENTRYDELAYbegins:
The STATUSMONITOR’SLED turns on (no flashing.)
Insert the key into the ignition switch and turn it to “ON”
before the ENTRYDELAYends.*
The LED turns off. The system is now DISARMED.
You may also DISARMthe system following any of the methods
described on page 6.
NOTE: If your vehicle’s tail and marker lights turn on for 2 seconds when the ignition key
is turned to “ON”, the TRIGGERMEMORYwas activated; something TRIGGEREDan ALARM
while you were away from the vehicle. This feature is not available for Corolla/Matrix.
*If the ENTRYDELAYtime elapses before the ignition switch is turned to “ON”, an ALARMwill be
TRIGGERED. To DISARMthe system during an ALARM, insert the ignition key and turn it to “ON”, or
press and release the remote control’s unlock button.
TURNSON (NO FLASH-ING)DURINGTHEENTRYDELAY

THE SYSTEM ARMS 30SECONDS AFTER THELAST ENTRY POINT (DOOR,TRUNK OR HATCH) IS CLOSED

THE SYSTEM DISARMSWHENYOU INSERT THE KEYAND TURN IT TO “ON”

LIGHTSFOR 30SECONDS(PRE-ARM-ING)THENSTARTSFLASHING(SYSTEMIS ARMED)

➁
➁➀
➀

Page 6 TOYOTARS3200 PLUSSecurity system
OPERATION

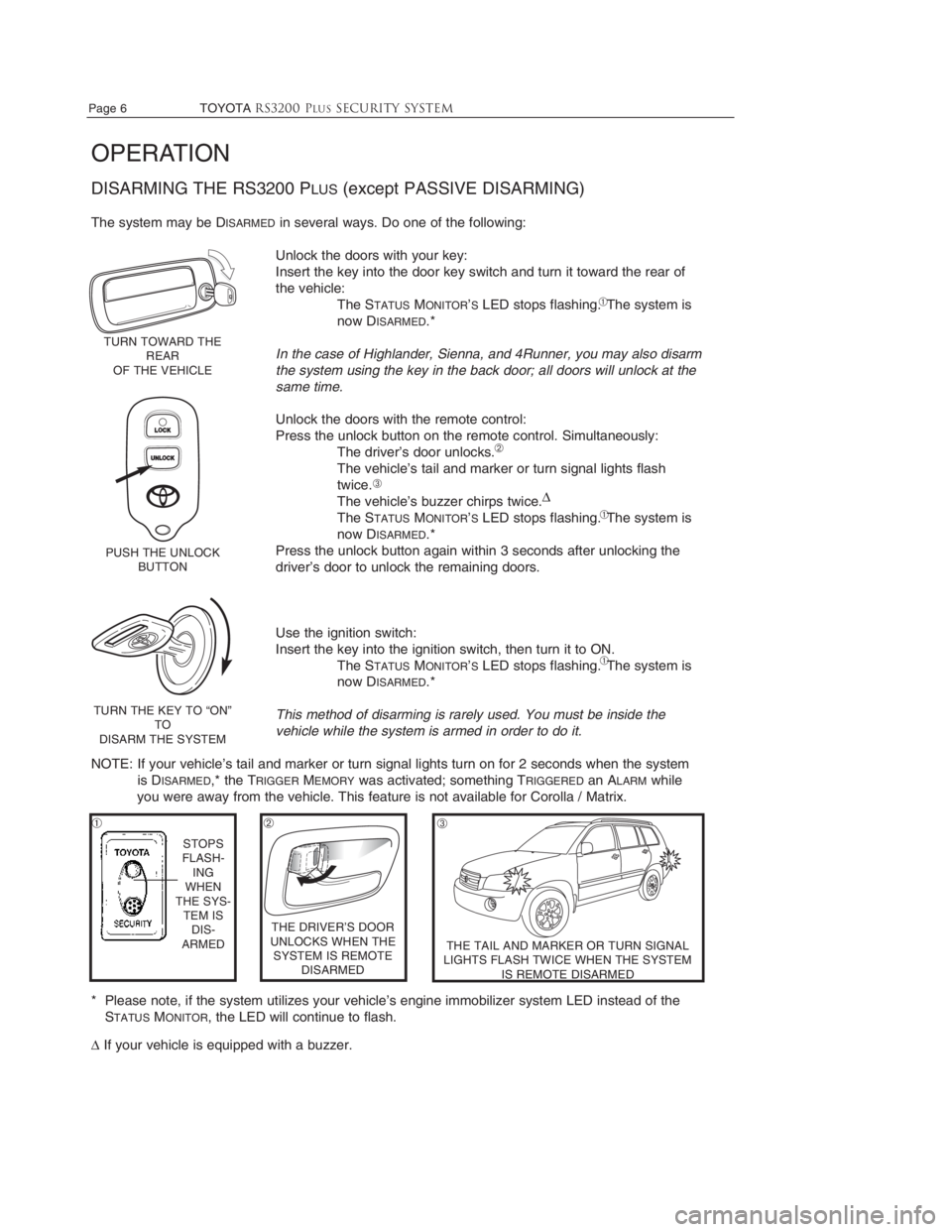

DISARMING THE RS3200 PLUS(except PASSIVE DISARMING)
The system may be DISARMEDin several ways. Do one of the following:
Unlock the doors with your key:
Insert the key into the door key switch and turn it toward the rear of
the vehicle:
The STATUSMONITOR’SLED stops flashing. The system is
now DISARMED.*
In the case of Highlander, Sienna, and 4Runner, you may also disarm
the system using the key in the back door; all doors will unlock at the
same time.
Unlock the doors with the remote control:
Press the unlock button on the remote control. Simultaneously:
The driver’s door unlocks.
The vehicle’s tail and marker or turn signal lights flash
twice.
The vehicle’s buzzer chirps twice.∆
The STATUSMONITOR’SLED stops flashing. The system is
now DISARMED.*
Press the unlock button again within 3 seconds after unlocking the
driver’s door to unlock the remaining doors.
Use the ignition switch:
Insert the key into the ignition switch, then turn it to ON.
The STATUSMONITOR’SLED stops flashing. The system is
now DISARMED.*
This method of disarming is rarely used. You must be inside the
vehicle while the system is armed in order to do it.
NOTE: If your vehicle’s tail and marker or turn signal lights turn on for 2 seconds when the system
is DISARMED,* the TRIGGERMEMORYwas activated; something TRIGGEREDan ALARMwhile
you were away from the vehicle. This feature is not available for Corolla / Matrix.
*Please note, if the system utilizes your vehicle’s engine immobilizer system LED instead of the
STATUSMONITOR, the LED will continue to flash.
∆If your vehicle is equipped with a buzzer.

TURN TOWARD THEREAROF THE VEHICLE

TURN THE KEY TO “ON”TODISARM THE SYSTEM
THE DRIVER’S DOORUNLOCKS WHEN THESYSTEM IS REMOTE DISARMED
THE TAIL AND MARKER OR TURN SIGNALLIGHTS FLASH TWICE WHEN THE SYSTEMIS REMOTE DISARMED

PUSH THE UNLOCKBUTTON
STOPSFLASH-INGWHENTHE SYS-TEM ISDIS-ARMED
➀➁➂
➀
➁
➂
➀
➀
TOYOTARS3200 PLUSSecurity systemPage 7
OPERATION
PASSIVE (AUTOMATIC) ARMING & DISARMING
When the RS3200 PLUSis programmed to PASSIVELYARM, the system will ARMafter the ignition key
is removed and all doors and the trunk are closed; you do not need to lock the doors. When you
come back to your vehicle and open a door, you must insert the key into the ignition switch and turn
it to “ON” during the ENTRYDELAY(0, 15 or 30 seconds), or an ALARMwill be TRIGGERED. If you lock
the doors, regular ARMINGwill override PASSIVEARMING; there will be no ENTRYDELAY. See the
PROGRAMMING information on page 13 to activate the PASSIVEARMINGmode, as well as to select
the ENTRYDELAYtime. (Not applicable to Highlander and Sienna. Please consult your Toyota
Dealer for programming information .)
To PASSIVELYARMthe system:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors. (The system will not
ARMwhile any of the doors are open.)
Close the trunk or hatch, if necessary. (The system will not ARM
while the trunk or hatch is open.)
After the last door, trunk or hatch is closed:
The STATUSMONITOR’SLED turns on for 30 seconds,
then starts flashing. The system is now ARMED.
To DISARMthe PASSIVELYARMEDsystem:
Enter the vehicle through a front door.
The ENTRYDELAYbegins:
The STATUSMONITOR’SLED turns on (no flashing.)
Insert the key into the ignition switch and turn it to “ON”
before the ENTRYDELAYends.*
The LED turns off. The system is now DISARMED.
You may also DISARMthe system following any of the methods
described on page 6.
NOTE: If your vehicle’s tail and marker lights turn on for 2 seconds when the ignition key
is turned to “ON”, the TRIGGERMEMORYwas activated; something TRIGGEREDan ALARM
while you were away from the vehicle. This feature is not available for Corolla/Matrix.
*If the ENTRYDELAYtime elapses before the ignition switch is turned to “ON”, an ALARMwill be
TRIGGERED. To DISARMthe system during an ALARM, insert the ignition key and turn it to “ON”, or
press and release the remote control’s unlock button.
TURNSON (NO FLASH-ING)DURINGTHEENTRYDELAY

THE SYSTEM ARMS 30SECONDS AFTER THELAST ENTRY POINT (DOOR,TRUNK OR HATCH) IS CLOSED

THE SYSTEM DISARMSWHENYOU INSERT THE KEYAND TURN IT TO “ON”

LIGHTSFOR 30SECONDS(PRE-ARM-ING)THENSTARTSFLASHING(SYSTEMIS ARMED)

➁
➁➀
➀

TOYOTARS3200 PLUSSecurity systemPage 3
REMOTE
ARMING/DISARMING
AUTOMATIC
REARMING
KEY
ARMING/DISARMING
ARMED MODE
SUSPENSION**
PASSIVE (AUTOMATIC)
ARMING
PASSIVE DISARMING
ADJUSTABLE ENTRY
DELAY
MANUAL ARMING
IGNITION KEY
DISARMING
POINT-OF-ENTRY
PROTECTION
GLASS BREAKAGE
SENSOR
WARN AWAY ALARM
IGNITION SWITCH
MONITORING
FEATURESFUNCTIONS
The RS3200 PLUSwill ARM30 seconds after the lock button on the remote
keyless entry system’s remote control is pressed, and DISARMwhen the
unlock button is pressed. If your vehicle is equipped with a buzzer that chirps
when the lock and unlock buttons on the remote controls are pressed, the
buzzer will also chirp when the system is REMOTEARMEDand DISARMED.
The RS3200 PLUSwill automatically REARMat the same time the
vehicle’s remote keyless entry system relocks the vehicle’s
doors, if no door is opened within 30 seconds after REMOTEDISARMING.
The RS3200 PLUSwill ARM30 seconds after you close the trunk (if
open) and lock the vehicle’s doors with the key, and will DISARMwhen
you unlock a door with the key.
While ARMED, the trunk may be opened with the key (or trunk release button
on your remote control, if so equipped) without TRIGGERINGan ALARM. Once
the open trunk is closed, the system ARMSagain.
The RS3200 PLUSmay be programmed to automatically ARM30
seconds after the ignition key is removed, the vehicle exited and the
last door and the trunk closed, without the necessity of locking doors.
The RS3200 PLUSmay be DISARMEDwith the vehicle’s ignition key
after it was PASSIVELYARMED.
When the RS3200 PLUShas been PASSIVELYARMED, an ENTRYDELAY
(user-selectable at 0, 15, or 30 seconds) will start when a door is
opened before an ALARMis TRIGGERED.
When you lock the vehicle with the central lock switch (while a door
is open), the RS3200 PLUSwill ARM30 seconds after you close all
the doors and the trunk (if open).
The RS3200 PLUSmay be DISARMEDby inserting the key into the
ignition switch and turning it to “ON.”
Forcibly unlocking or opening a door or trunk while the RS3200 PLUS
is ARMEDwill TRIGGERan ALARMimmediately. (If the system was PASSIVELY
ARMED,the ENTRYDELAYmust pass after opening a door before the ALARMis
TRIGGERED.)
The RS3200 PLUSutilizes a microphone (usually mounted in the
STATUSMONITOR)to sense the noise from tapping on window glass, or
glass breaking, and TRIGGERthe system to sound an ALARM. It is fine
tuned to “listen” for this type of noise, and ignore other sounds.
When the GLASSBREAKAGESENSOR’Smicrophone picks up tapping or
breaking of window glass, it TRIGGERSa WARNAWAYALARM; the headlights
and tail and marker or turn signal lights flash, and the horn sounds for 20
seconds, but the starter is not disabled. If there is another detection of glass
tapping or breaking, or if a door is opened or unlocked without a key, the
regular ALARMis TRIGGERED.
While ARMED, the RS3200 PLUSmonitors the ignition switch. If an attempt is
made to start the vehicle without a key, an ALARMis TRIGGERED.
BRIEF DESCRIPTION–RS3200 PLUSFEATURES
**Starting from 2002 M.Y., Arming Suspension Mode by using the key to unlock the trunk is not applicable to Camry, Solara, and Corolla.
Page 10 TOYOTARS3000 PLUS Security system
ALARM INFORMATION
ALARM DESCRIPTIONS
Regular ALARM
When an ALARMis triggered in any way other than initial detection by the GLASSBREAKAGESENSOR,
the following occur:
The horn sounds repeatedly for 60 seconds.
The headlights flash repeatedly for 60 seconds.
The tail and marker or turn signal lights flash repeatedly for 60 seconds.
The starter is disabled (no engine start) until the system is DISARMED.
The door lock will be relocked if someone reaches in and unlocks the inside lock button.
After 60 seconds of ALARM, the system will REARMand continue to protect the vehicle.
WARN-AWAYALARM
Upon initial detection of noise from tapping on, or breaking glass, the GLASSBREAKAGESENSOR
TRIGGERSa WARNAWAYALARM:
The horn sounds repeatedly for 20 seconds.
The headlights flash repeatedly for 20 seconds.
The tail and marker or turn signal lights flash repeatedly for 20 seconds.
If the GLASSBREAKAGESENSORdetects noise again, or if a door or trunk is opened while the system
is still ARMED, the regular ALARM(described above) is activated.
STOPPING AN ALARM
Simply DISARMthe system using the remote control or key as described on page 6.

THE HORNSOUNDSFOR 20 SECONDS
THE HORNSOUNDSFOR 60 SECONDS
HEAD LIGHTSFLASHFOR 60 SECONDS
THE STARTER IS DIS-ABLED UNTIL THE SYSTEMIS DISARMED
MARKER OR TURNSIGNAL LIGHTSFLASHFOR 60 SECONDS
HEADLIGHTS FLASHFOR 20 SECONDSMARKER OR TURNSIGNAL LIGHTS FLASH FOR 20 SECONDS
TAIL OR TURN SIG-NAL LIGHTS FLASH FOR 60 SECONDS
TAIL OR TURN SIG-NAL LIGHTS FLASH FOR 20 SECONDS
➀
➁
➀
➁

INTRODUCTION
Congratulations on your choice of the RS3200 PLUSadd-on security system to protect your vehicle!
To get the most from the system, we strongly recommend that you read this Owner’s Guide com-
pletely to learn all of its features and functions.
The RS3200 PLUSprovides security through point-of-entry monitoring, glass breakage detection and
ignition switch monitoring. While ARMED, the system will be TRIGGEREDand sound an ALARMwhen a
door, trunk or hatch is forcibly unlocked or opened*, or when a window is tapped on or broken.
During the ALARM, the vehicle’s horn sounds and the headlights, tail lights and front marker or turn
signal lights flash.A l s o ,the vehicle’sstarter is disabled, preventing engine start. In addition to the
comprehensive protection, the RS3200 PLUSworks in conjunction with your vehicle’s remote key-
less entry system, enabling you to ARMand DISARMthe security system at the same time the doors
are remotely locked and unlocked. In vehicles equipped with a buzzer, it will chirp when the system
is REMOTEARMEDand DISARMED.
An important note about your system
Throughout this guide, there are references to the STATUSMONITORfor this system. Illustrated
below, this panel holds the LED indicator (for the system’s operating status) and the GLASS
BREAKAGESENSOR’Smicrophone. In vehicles equipped with an engine immobilizer system, there is
a LED already installed, so the RS3200 PLUSutilizes the vehicle’s engine immobilizer system LED
instead and a microphone mounted in a separate location. If your vehicle falls into this category,
remember to look at that LED when the information refers to the STATUSMONITOR. If you do not
know where the LED is located, refer to your vehicle’s owner’s guide for specific information.
*When the system is PASSIVELY(AUTOMATICALLY) ARMED, there is an ENTRYDELAYthat will elapse
when a door is opened before an ALARMis TRIGGERED.
YOUR ENGINE IMMOBILIZER SYSTEM LED MAY LOOKDIFFERENT THAN THE ONEILLUSTRATED HERE

Page 2 TOYOTARS3200 PLUSSecurity system

LIGHTSFOR 30SECONDS(PRE-ARMING)THENSTARTSFLASHING(SYSTEMISARMED)
➀➁
➀ ➁
➂
➂
TOYOTARS3200 PLUSSecurity systemPage 11
GLASS BREAKAGE SENSOR INFORMATION
The RS3200 PLUSprovides protection for your vehicle above and beyond entry point monitoring–it
“listens” for the noise made by tapping on, or breaking of glass. Using a microphone designed
specifically for this task, the GLASSBREAKAGESENSORis capable of ignoring other noises, which
helps to prevent “false alarms” from occurring.
GLASS BREAKAGE SENSOR CHECK PROCEDURE
When the RS3200 PLUSwas installed in your vehicle, care was taken to adjust the sensitivity level
of the GLASSBREAKAGESENSOR. You may observe how it works following the procedure listed
below.
1. ARMthe system.
Press the lock button on the remote control or lock the doors
with the key.
(Remember, the system will not ARMif any door, the trunk or
hatch is open.)
2. Wait until the STATUSMONITOR’SLED starts flashing.
The LED will flash 30 seconds after the last door, the trunk or
hatch is closed.
3. With the tip of a key, tap the center of the driver’s door window.
Tap the glass with light to moderate force.
WARNING: Do not hit the glass with excessive force, especially
in cold weather, or you may crack or break it.
A WARNAWAYALARMshould be TRIGGERED. If the ALARMis not
TRIGGERED, make sure you performed the procedure correctly
and try again. If you find that the system did not perform as
expected, contact your Toyota dealer for more information.
4. DISARMthe system to stop the WARNAWAYALARM.
Press the unlock button on the remote control or use the key
to DISARMthe system.

To better understand the features and functions of this security system, please read this Owner’s
Guide completely prior to use.
TABLE OF CONTENTS
DESCRIPTIONPAGE
INTRODUCTION2
BRIEF DESCRIPTION–RS3200 PLUSFEATURES3, 4
OPERATION
ARMING THE RS3200 PLUS (except PASSIVE ARMING) 5
DISARMING THE RS3200 PLUS (except PASSIVE DISARMING) 6
PASSIVE (AUTOMATIC) ARMING & DISARMING7
AUTOMATIC REARMING8
ARMING SUSPENSION8
ALARM INFORMATION9
ALARM TRIGGERS9
ALARM DESCRIPTIONS10
STOPPING AN ALARM 10
GLASS BREAKAGE SENSOR INFORMATION
GLASS BREAKAGE SENSOR CHECK PROCEDURE11
PROGRAMMING
PASSIVE (AUTOMATIC) ARMING AND ENTRY DELAY 12
(Not applicable to Highlander and Sienna. Please consult your
Toyota Dealer for programming information.)
WARNING and CAUTION INFORMATION13
TOYOTARS3200 PLUSSecurity systemPage 1
PROGRAMMING
The RS3200 PLUSis factory-set to not PASSIVELYARM. To change the system’s operation for
PASSIVEARMINGoperation, as well as adjust the ENTRYDELAYtime, follow the procedure below. For
more information on this feature, please refer to page 7.(Not applicable to Highlander and
Sienna. Please consult your Toyota Dealer for programming information.)
PASSIVE ARMING ON/OFF SELECTION, ENTRY DELAY TIME SELECTION
1. Before you begin:
Open the driver’s door. Close the remaining doors
and the trunk or hatch. Unlock all doors with the inside
lock switch. Remove the key from the ignition switch.
Start the Programming Procedure. (Complete these steps within 40 seconds.)
3. Select the Operating Mode and Complete the Programming Procedure.
Page 12 TOYOTARS3200 PLUSSecurity system

a. Close the driver’s
door.
b.Lockandunlockall
doors3 timesby key
or remote control.
b.Lockthenunlockthe
driver’s door inside lock
button1 time.

a. Close, then Open the driver’s door:
2 times = PASSIVEARMINGOFF
3 times = PASSIVEARMINGON,
0 Sec. ENTRYDELAY
4 times = PASSIVEARMINGON,
15 Sec. ENTRYDELAY
5 times = PASSIVEARMINGON,
30 Sec. ENTRYDELAY
c. Open and close
the driver’s door.

c.The system locks the
door in 2 seconds; if this
does not happen, start
over. Programming is now
complete.
e. Open the driver’s
door.
d.Lock, then unlock
the driver’s door
inside lock button
3times.

2. Insert and remove the key from
the ignition key cylinder 3
times; this must be completed
within 5 seconds.

f. The system locks the door
in 2 seconds; if this does
not happen, start over.
g. Unlock the driver’s
door knob.
