rear view mirror TOYOTA SOLARA 2005 Owners Manual (in English)

’05 Solara_U (L/O 0409)
2
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Personal lights
6. Electric moon roof switch
7. Garage door opener
8. Auxiliary box
9. Power door lock switches
10. Power window switches
11 . G l o v e b o x
12. Portable ashtray
13. Power outlet
14. Cup holder
15. Parking brake lever
16. Automatic transmission selector lever or manual transmission gear shift lever
17. Theft deterrent system/engine immobilizer system indicator light
18. Power rear view mirror control switches
19. Hood lock release lever
20. Window lock switch

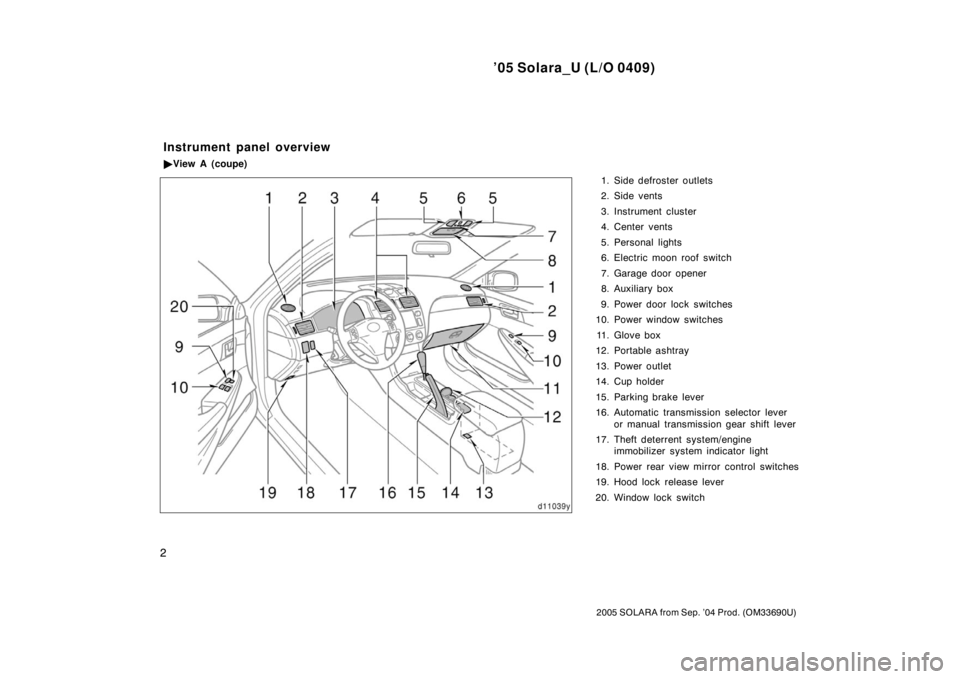

Instrument panel overview
 View A (coupe)

’05 Solara_U (L/O 0409)
3
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Garage door opener
5. Convertible top latch handles
6. Center vents
7. Personal lights
8. Power door lock switches
9. Power window switches
10. Glove box
11. Portable ashtray
12. Power outlet
13. Cup holder
14. Parking brake lever
15. Automatic transmission selector lever
16. Theft deterrent system/engine immobilizer system indicator light
17. All window control switch
18. Convertible top control switch
19. Power rear view mirror control switches
20. Hood lock release lever
21. Window lock switch

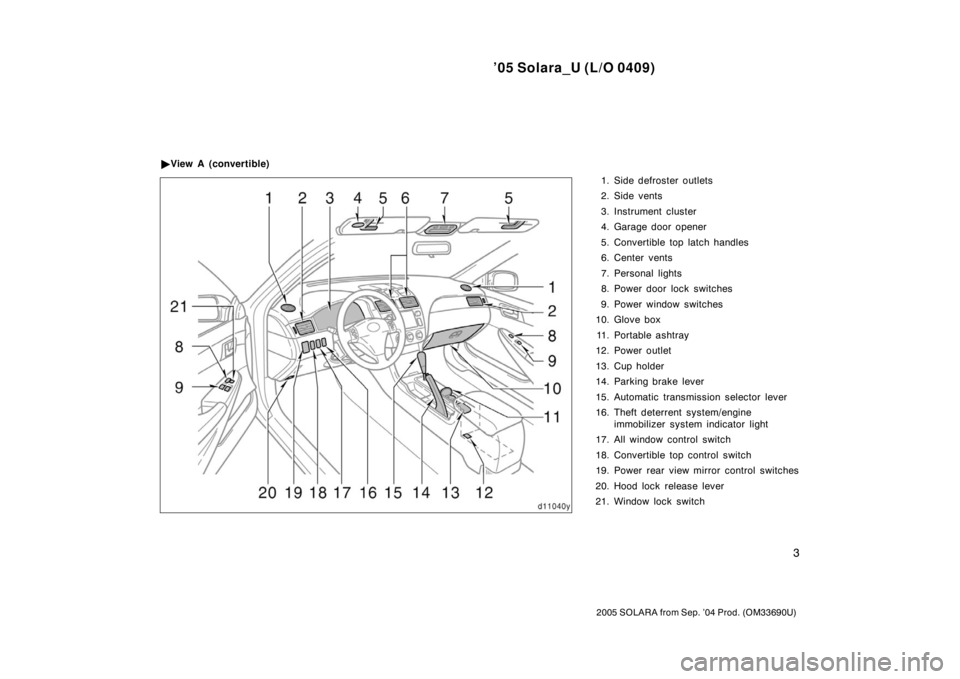

View A (convertible)

’05 Solara_U (L/O 0409)
5
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
1. Headlight, turn signal and front foglight switches
2. Audio remote control switches
3. Multi −information display control switch
4. Wiper and washer switches
5. Multi −information displays
6. Front passenger ’s occupant classification indicator light/front
passenger seat belt reminder light
7. Emergency flasher switch
8. Audio system or navigation system including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
9. Air conditioning controls
10. Rear window and outside rear view mirror defogger switch
11. Auxiliary box
12. Power outlet
13. Seat heater switches
14. Ignition switch
15. Cruise control switch
16. Tilt steering lock release lever
17. Telescopic steering lock release lever

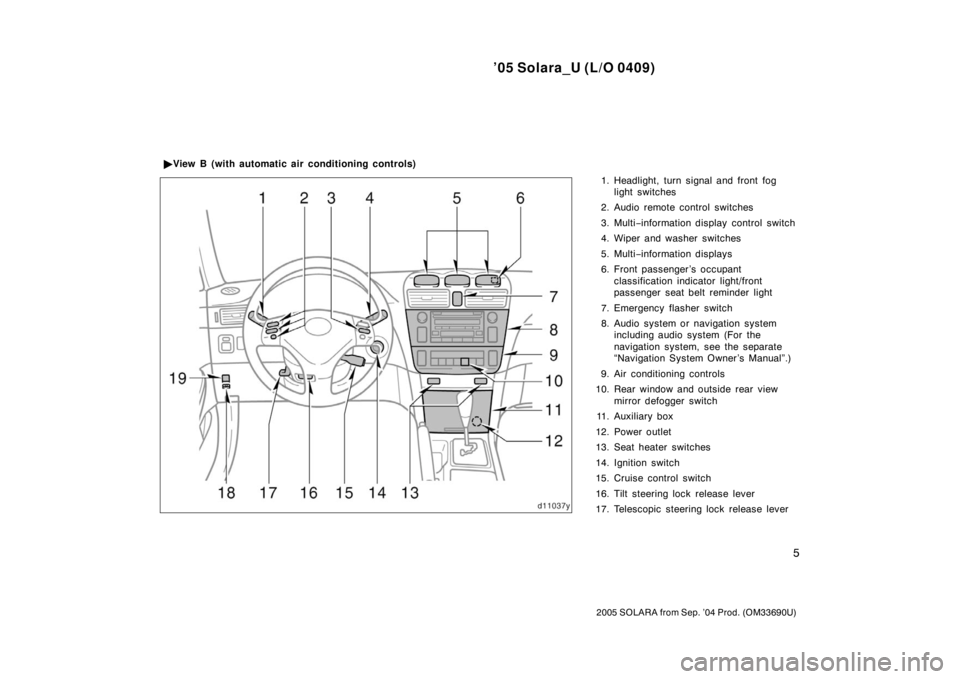

View B (with automatic air conditioning controls)

’05 Solara_U (L/O 0409)
105
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt and telescopic steering wheel106
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors 107
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Anti −glare inside rear view mirror 108
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto anti −glare inside rear view mirror 109
. . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 11 0
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
SECTION 1 4

’05 Solara_U (L/O 0409)
107
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.With auto anti
−glare inside rear view mir-
ror—
When the inside rear view mirror darkens
in automatic function mode, the driver ’s
outside rear view mirror also darkens to
reduce the reflection of the headlights of
the following vehicle. For details, see
“Auto anti −glare inside rear view mirror”
on page 109 in this Section.
When you push the rear window defogger
switch, the heater panels in the outside
rear view mirrors will quickly clear the
mirror surface. (See “Rear window and
outside rear view mirror defoggers” on
page 123 in Section 1 −5.)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
Since the mirror surfaces can get
hot, do not touch them when the
defogger switch is on.
NOTICE
The outside rear view mirrors are
fixed in place. Do not try to fold the
mirrors. It may damage the mirrors.
Outside rear view mirrors—

’05 Solara_U (L/O 0409)
108
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
To adjust a mirror, use the switches.1. Master switch—To select the mirror to be adjusted
Push the switch to “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the key is
in the “ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
—Power rear view mirror
control Antiglare inside rear view
mirror

’05 Solara_U (L/O 0409)
109
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This mirror is equipped with auto anti
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the ignition key is inserted and
turned on, the inside rear view mirror al-
ways turns on in the automatic function
mode.
The indicator illuminates to show you that
the function is on.In automatic function mode, if the mirror
detects light from the headlights of the
vehicle behind you, the mirror surface
darkens slightly to reduce the reflected
light.
To turn off the automatic function, push
the “MIRROR” switch.
To turn on the automatic function again,
push the “MIRROR” switch.
Adjust it before driving so that the rear
view is in the best condition.
When the inside air temperature is low, it
may take a little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
Auto antiglare inside rear
view mirror

’05 Solara_U (L/O 0409)
11 0
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
To ensure correct functioning of an
antiglare mirror sensors located on
both sides of the mirror, do not touch
or cover the sensors with your finger
or a piece of cloth, etc.Coupe
Convertible
To block out glare, move the sun visor.
To block out glare from the front—Swing
down the sun visor (position 1).
To block out glare from the side—Swing
down the sun visor, remove it from the
hook and swing it to the lateral side (posi-
tion 2).
Convertible—If glare comes from obliquely
behind you, extend the plate at the end
of the visor (to position 3).
CAUTION
Convertible—Do not extend the plate
at the end of the sun visor when the
visor is in the position 1. It can cover
the antiglare inside rear view mirror
and obstruct the rear view.
Su n viso rs—

’05 Solara_U (L/O 0409)
11 3
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defoggers
Headlights and turn signals11 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 11 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Instrument panel light control 11 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 11 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Interior light 120
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Ignition switch light and quarter trim courtesy light 120
. . . . . . . . . . . . . .
Personal lights 121
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Windshield wipers and washer 122
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror defoggers 123
. . . . . . . . . . .
SECTION 1 5

’05 Solara_U (L/O 0409)
123
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
When waxing your vehicle, make sure that
the washer nozzles do not become
blocked. If a nozzle becomes blocked,
contact your Toyota dealer to have the
vehicle serviced.
NOTICE
If a nozzle becomes blocked, do not
try to clear it with a pin or other
object. The nozzle will be damaged.
With manual air conditioning controls
With automatic air conditioning controls
To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the sur-
faces. An indicator light will illuminate to
indicate the defogger is operating.
With automatic air conditioning controls—
Heater panels in the outside rear view
mirrors will also quickly clear the sur-
faces.
Push the switch once again to turn the
defogger off.
The system will automatically shut off af-
ter the defogger has operated about 15
minutes.
CAUTION
Since the mirror surfaces can get hot
do not touch them when the defogger
switch is on.
Rear window and outside rear
view mirror defoggers
