TOYOTA SOLARA 2006 Owners Manual (in English)

’06 Solara_U (L/O 0502)
103
2006 SOLARA from Feb. ’05 Prod. (OM33667U)
CHILD RESTRAINT SYSTEM
INSTALLATION1. Widen the gap between the seat cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
2. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 98 in this Section.)
For installation details, refer to the instruc-

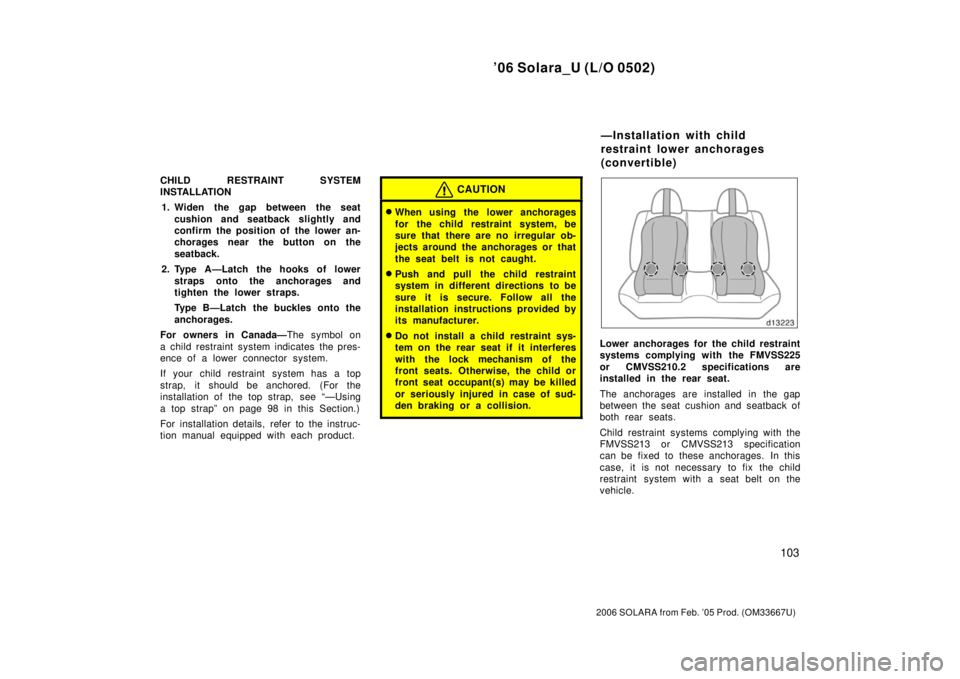

tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the rear seat.
The anchorages are installed in the gap
between the seat cushion and seatback of
both rear seats.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
—Installation with child
restraint lower anchorages
(convertible)

’06 Solara_U (L/O 0502)
104
2006 SOLARA from Feb. ’05 Prod. (OM33667U)
Canada only
Ty p e ACanada only
Ty p e B
CHILD RESTRAINT SYSTEM

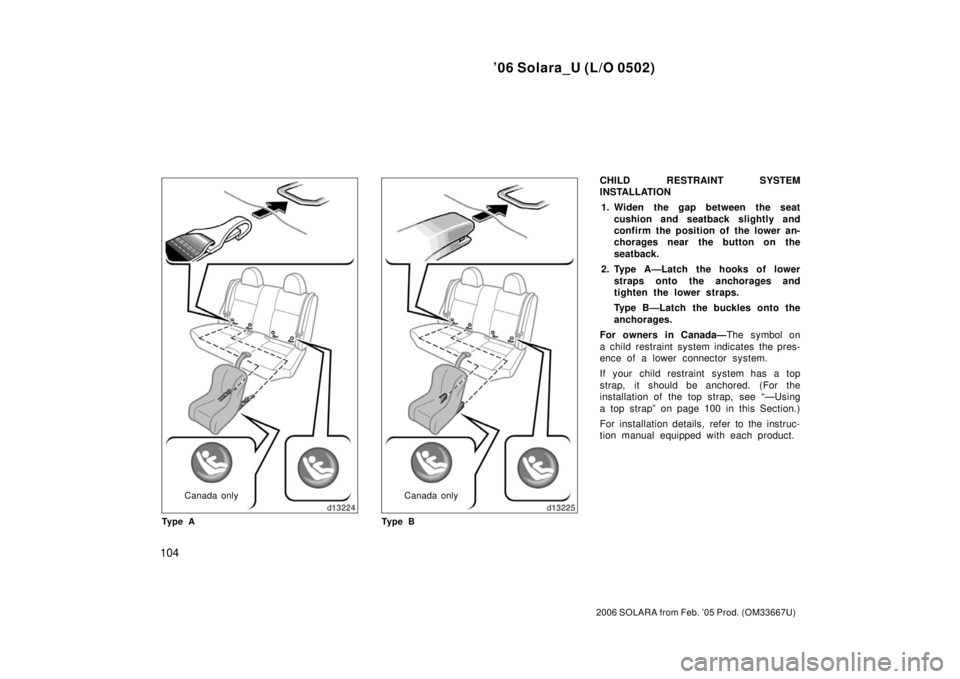

INSTALLATION 1. Widen the gap between the seat cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
2. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 100 in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.

’06 Solara_U (L/O 0502)
105
2006 SOLARA from Feb. ’05 Prod. (OM33667U)

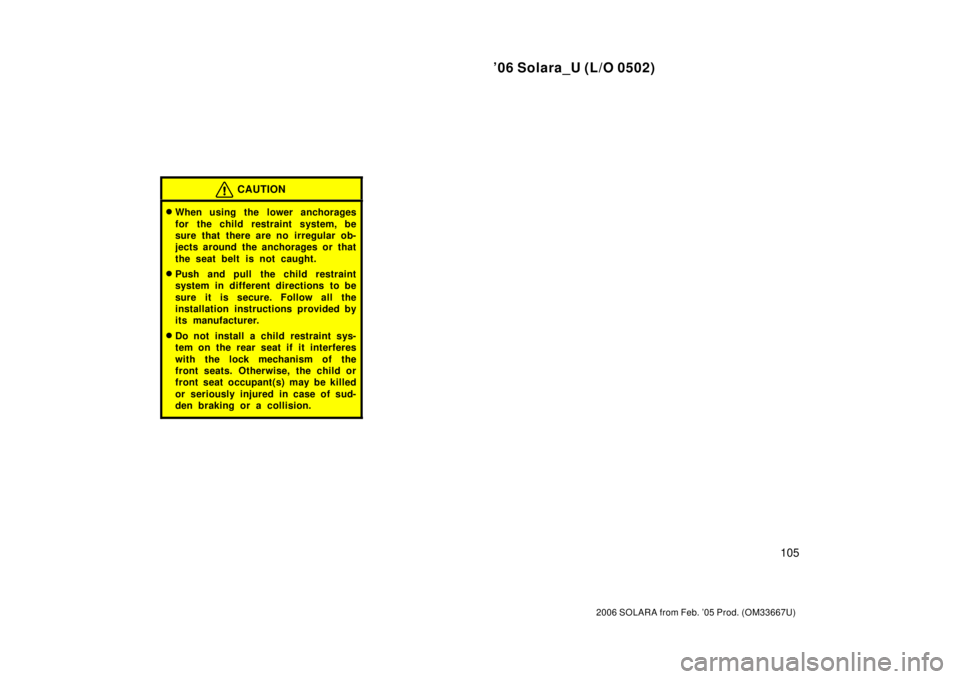

CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.

’06 Solara_U (L/O 0502)
106
2006 SOLARA from Feb. ’05 Prod. (OM33667U)

’06 Solara_U (L/O 0502)
107
2006 SOLARA from Feb. ’05 Prod. (OM33667U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt and telescopic steering wheel108
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors 109
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Anti −glare inside rear view mirror 11 0
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto anti −glare inside rear view mirror 111
. . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 11 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
SECTION 1 4

’06 Solara_U (L/O 0502)
108
2006 SOLARA from Feb. ’05 Prod. (OM33667U)

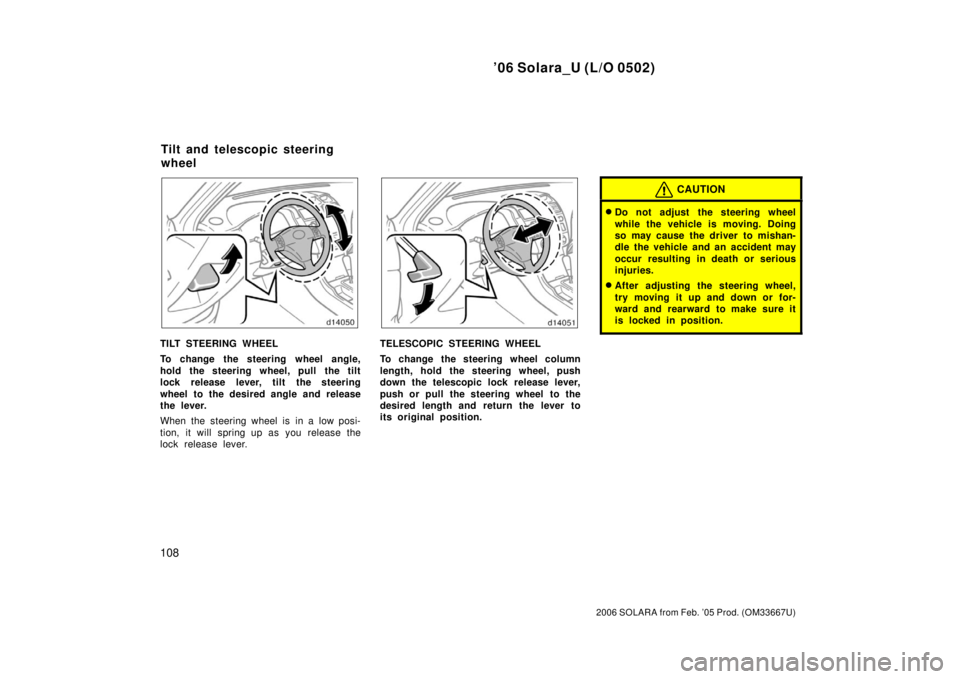

TILT STEERING WHEEL
To change the steering wheel angle,
hold the steering wheel, pull the tilt
lock release lever, tilt the steering
wheel to the desired angle and release
the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.TELESCOPIC STEERING WHEEL
To change the steering wheel column
length, hold the steering wheel, push
down the telescopic lock release lever,
push or pull the steering wheel to the
desired length and return the lever to
its original position.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down or for-
ward and rearward to make sure it
is locked in position.
Tilt and telescopic steering
wheel

’06 Solara_U (L/O 0502)
109
2006 SOLARA from Feb. ’05 Prod. (OM33667U)

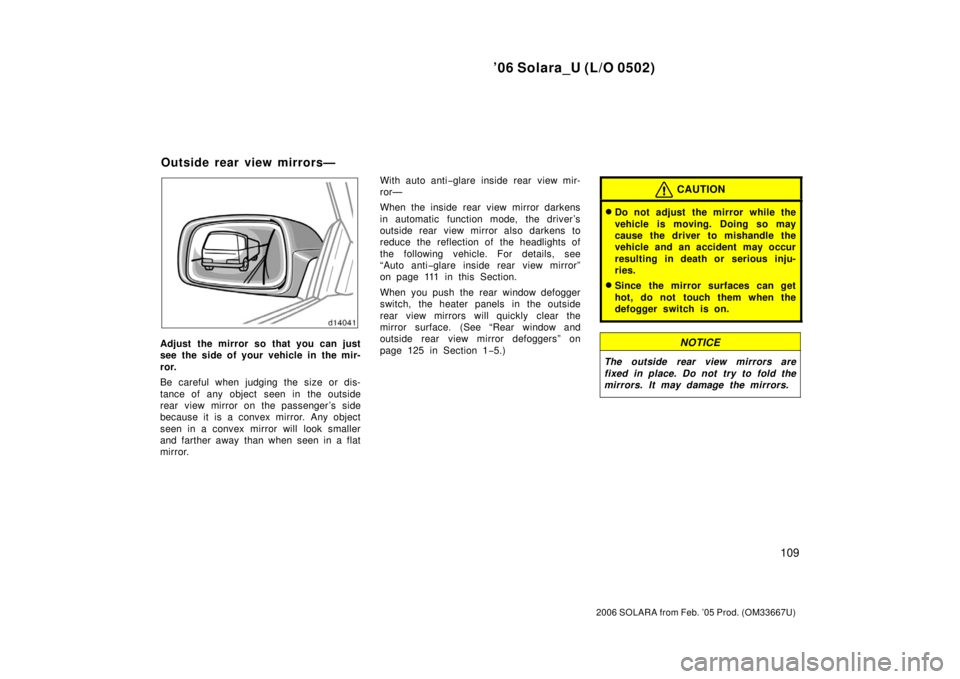

Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.With auto anti−
glare inside rear view mir-
ror—
When the inside rear view mirror darkens
in automatic function mode, the driver ’s
outside rear view mirror also darkens to
reduce the reflection of the headlights of
the following vehicle. For details, see
“Auto anti −glare inside rear view mirror”
on page 111 in this Section.
When you push the rear window defogger
switch, the heater panels in the outside
rear view mirrors will quickly clear the
mirror surface. (See “Rear window and
outside rear view mirror defoggers” on
page 125 in Section 1 −5.)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
Since the mirror surfaces can get
hot, do not touch them when the
defogger switch is on.
NOTICE
The outside rear view mirrors are
fixed in place. Do not try to fold the
mirrors. It may damage the mirrors.
Outside rear view mirrors—

’06 Solara_U (L/O 0502)
11 0
2006 SOLARA from Feb. ’05 Prod. (OM33667U)

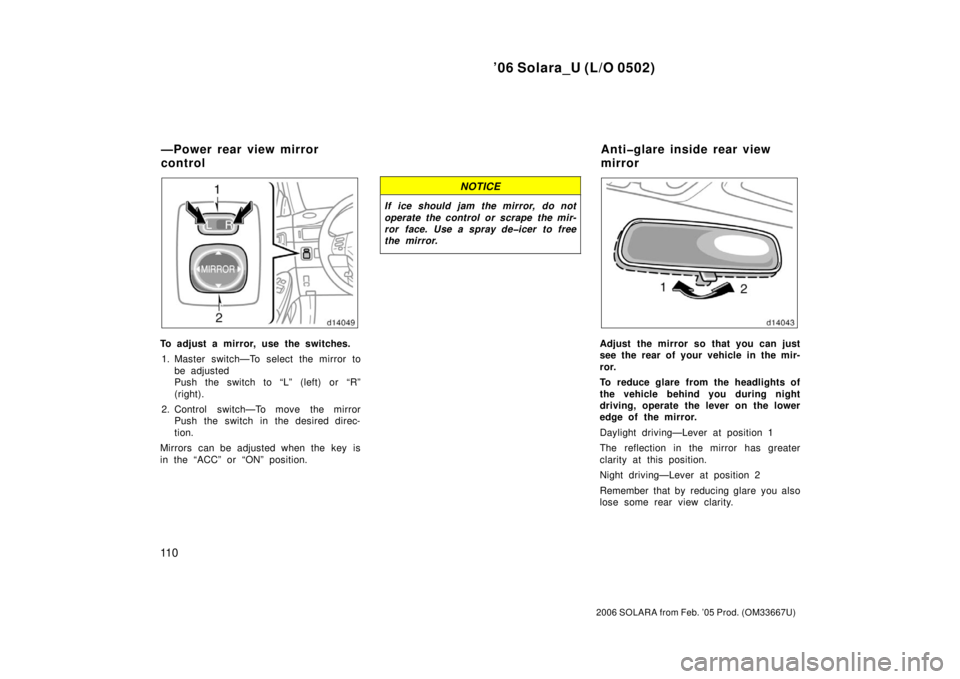

To adjust a mirror, use the switches.1. Master switch—To select the mirror to be adjusted
Push the switch to “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the key is
in the “ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
—Power rear view mirror
control Antiglare inside rear view
mirror

’06 Solara_U (L/O 0502)
111
2006 SOLARA from Feb. ’05 Prod. (OM33667U)

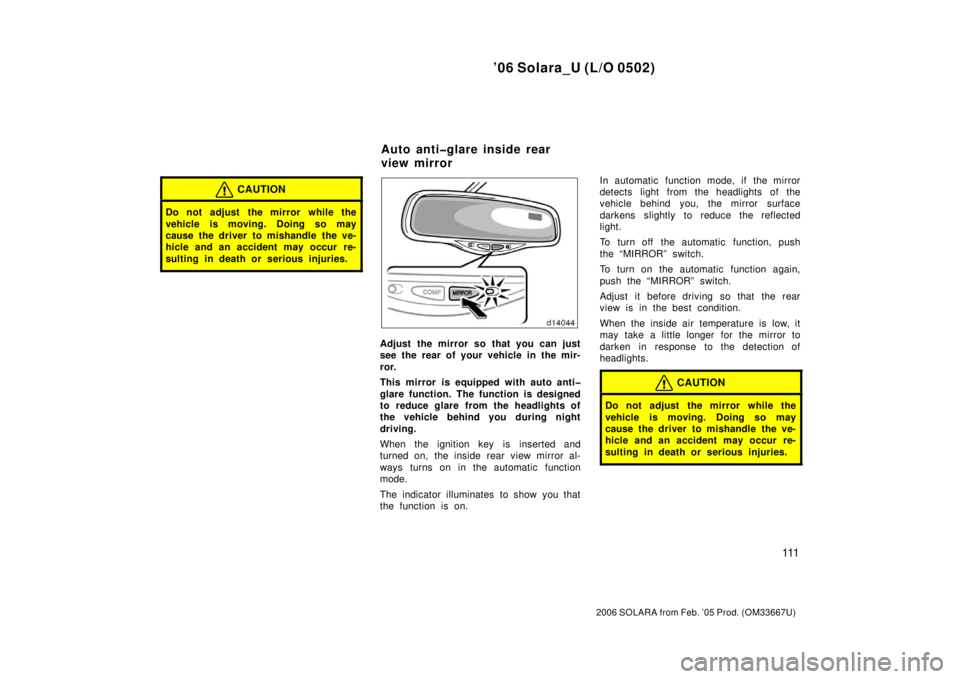

CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This mirror is equipped with auto anti
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the ignition key is inserted and
turned on, the inside rear view mirror al-
ways turns on in the automatic function
mode.
The indicator illuminates to show you that
the function is on.In automatic function mode, if the mirror
detects light from the headlights of the
vehicle behind you, the mirror surface
darkens slightly to reduce the reflected
light.
To turn off the automatic function, push
the “MIRROR” switch.
To turn on the automatic function again,
push the “MIRROR” switch.
Adjust it before driving so that the rear
view is in the best condition.
When the inside air temperature is low, it
may take a little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
Auto antiglare inside rear
view mirror

’06 Solara_U (L/O 0502)
11 2
2006 SOLARA from Feb. ’05 Prod. (OM33667U)
To ensure correct functioning of anti
glare mirror sensors located on both
sides of the mirror, do not touch or
cover the sensors with your finger or
a piece of cloth, etc.Coupe
Convertible
To block out glare, move the sun visor.
To block out glare from the front—Swing
down the sun visor (position 1).
To block out glare from the side—Swing
down the sun visor, remove it from the
hook and swing it to the lateral side (posi-
tion 2).
Convertible—If glare comes from obliquely
behind you, extend the plate at the end
of the visor (to position 3).
CAUTION
Convertible—Do not extend the plate
at the end of the sun visor when the
visor is in the position 1. It can cover
the antiglare inside rear view mirror
and obstruct the rear view.
Su n viso rs—
