TOYOTA SOLARA 2008 Owners Manual (in English)

’08 Solara_U (L/O 0802)
93
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

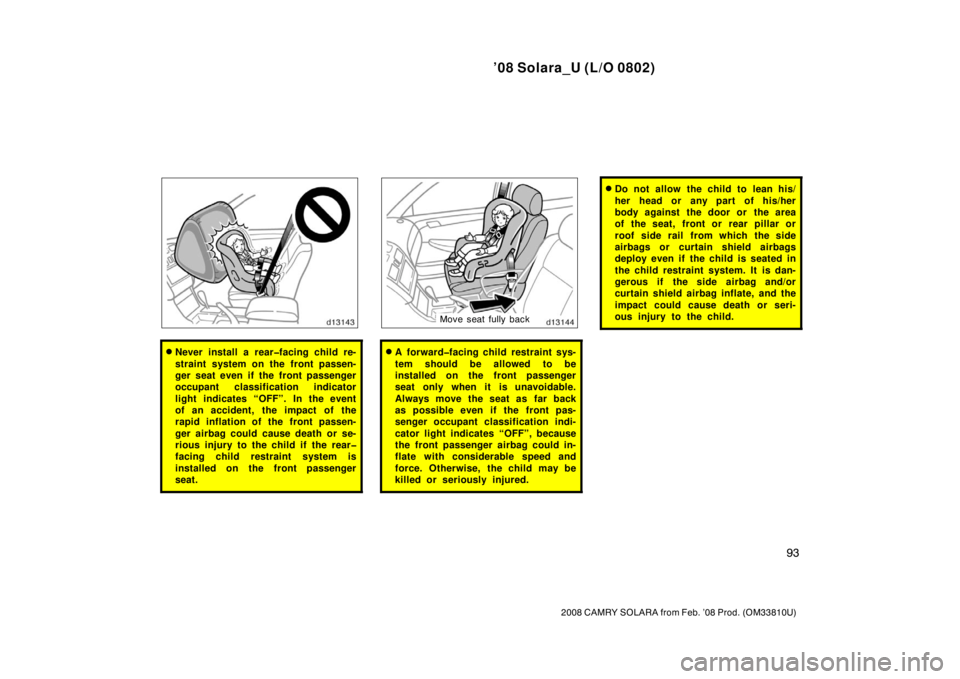

Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the front passenger
occupant classification indicator
light indicates “OFF”. In the event
of an accident, the impact of the
rapid inflation of the front passen-
ger airbag could cause death or se-
rious injury to the child if the rear
facing child restraint system is
installed on the front passenger
seat.
Move seat fully back
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the front pas-
senger occupant classification indi-
cator light indicates “OFF”, because
the front passenger airbag could in-
flate with considerable speed and
force. Otherwise, the child may be
killed or seriously injured.
Do not allow the child to lean his/
her head or any part of his/her
body against the door or the area
of the seat, front or rear pillar or
roof side rail from which the side
airbags or curtain shield airbags
deploy even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag and/or
curtain shield airbag inflate, and the
impact could cause death or seri-
ous injury to the child.

’08 Solara_U (L/O 0802)
94
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

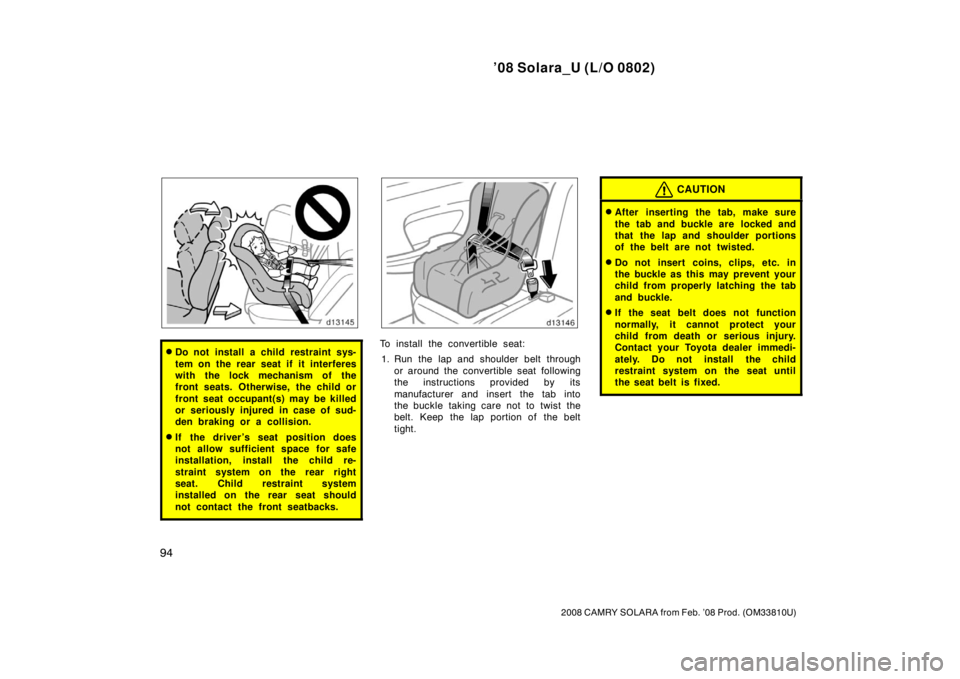

Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat. Child restraint system
installed on the rear seat should
not contact the front seatbacks.
To install the convertible seat:1. Run the lap and shoulder belt through or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.

’08 Solara_U (L/O 0802)
95
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.3. While pressing the convertible seat firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.

’08 Solara_U (L/O 0802)
96
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
To remove the convertible seat:
Press the buckle release button and allow
the belt to retract completely. The belt will
move freely again and be ready to work
for an adult or older child passenger.(C) BOOSTER SEAT INSTALLATION
A booster seat must be used in for-
wardfacing position only.
Move seat fully back
CAUTION
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the front pas-
senger occupant classification indi-
cator light indicates “OFF”, because
the front passenger airbag could in-
flate with considerable speed and
force. Otherwise, the child may be
killed or seriously injured.

’08 Solara_U (L/O 0802)
97
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

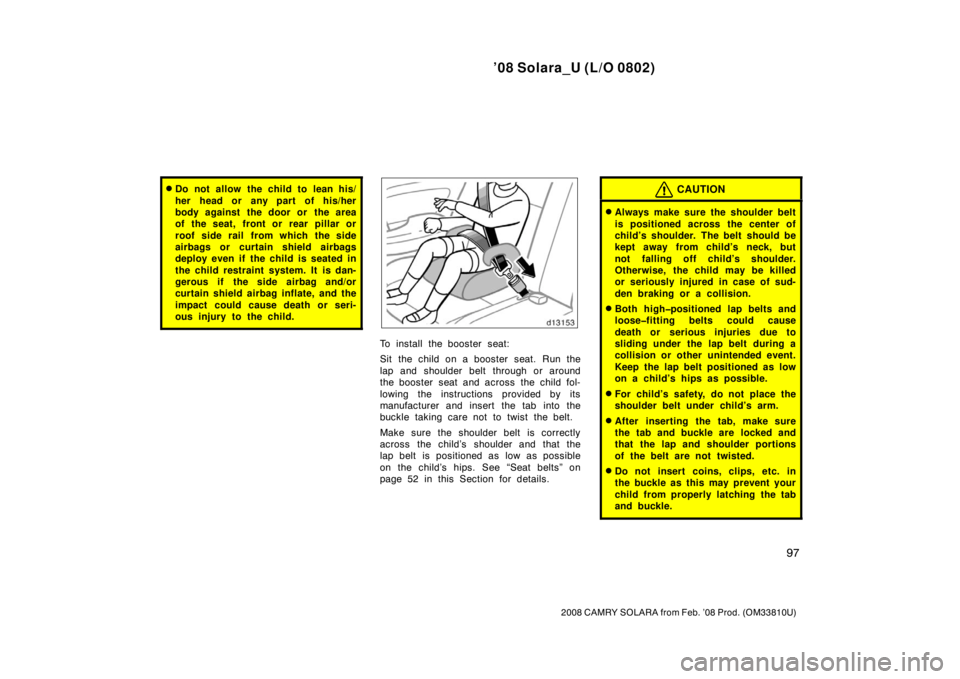

Do not allow the child to lean his/
her head or any part of his/her
body against the door or the area
of the seat, front or rear pillar or
roof side rail from which the side
airbags or curtain shield airbags
deploy even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag and/or
curtain shield airbag inflate, and the
impact could cause death or seri-
ous injury to the child.
To install the booster seat:
Sit the child on a booster seat. Run the
lap and shoulder belt through or around
the booster seat and across the child fol-
lowing the instructions provided by its
manufacturer and insert the tab into the
buckle taking care not to twist the belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on the child’s hips. See “Seat belts” on
page 52 in this Section for details.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s shoulder.
Otherwise, the child may be killed
or seriously injured in case of sud-
den braking or a collision.
Both highpositioned lap belts and
loosefitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on a child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.

’08 Solara_U (L/O 0802)
98
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
To remove the booster seat:
Press the buckle release button and allow
the belt to retract.Follow the procedure below for a child
restraint system that requires the use
of a top strap.
—Using a top strap (coupe)

’08 Solara_U (L/O 0802)
99
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
Symbol
Anchor brackets
Use the anchor brackets on the package
tray behind the rear seat to attach the top
strap.
Anchor brackets are installed for each
rear seating position.
This symbol indicates the locations of the
anchor brackets.TO USE THE ANCHOR BRACKET: 1. Outside anchor brackets only— Remove the head restraint.2. Open the lid of the anchor bracket.

’08 Solara_U (L/O 0802)
100
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
3. Securely fasten the child restraintsystem with the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 85 in this Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
4. Outside anchor brackets only— Replace the head restraint.Follow the procedure below for a child
restraint system that requires the use
of a top strap.
— U sin g a to p st rap
(convertible)

’08 Solara_U (L/O 0802)
101
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
Anchor bracketsSymbol
Use the anchor brackets on the back of
the rear seat head restraints to attach the
top strap.
Anchor brackets are installed for each
rear seating position.
This symbol indicates the locations of the
anchor brackets.TO USE THE ANCHOR BRACKET:1. Remove the cover for the anchor bracket.2. Securely fasten the child restraintsystem with the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 85 in this Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.

’08 Solara_U (L/O 0802)
102
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

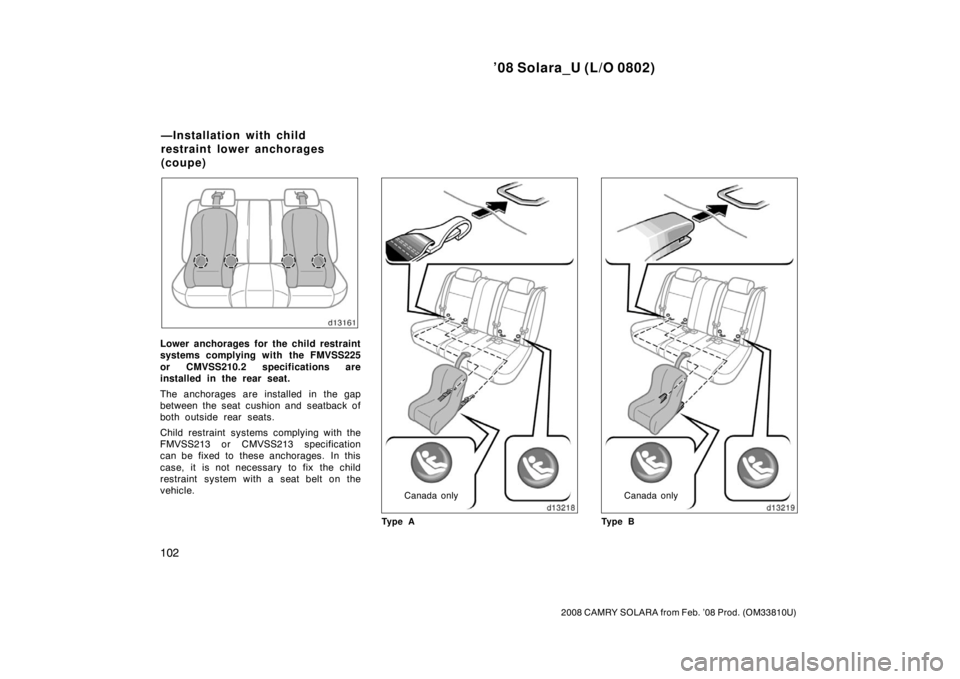

Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the rear seat.
The anchorages are installed in the gap
between the seat cushion and seatback of
both outside rear seats.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
Canada only
Ty p e ACanada only
Ty p e B
—Installation with child
restraint lower anchorages
(coupe)
