TOYOTA SOLARA 2008 (in English) Owner's Guide

’08 Solara_U (L/O 0802)
23
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
The power door lock switch can be reset
in the following ways.
Turn the engine switch to “ON”.
Unlock both doors with the key or wire-
less remote control transmitter.
Unlock the driver ’s door or passenger ’s
door with the inside lock knob, and
then unlock both doors with the power
door lock switch.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle in an accident. It also helps pre-
vent the doors from being opened
unintentionally.
AUTOMATIC DOOR LOCKING
You can set or cancel the following au-
tomatic door locking function:
Locking linked with the shift position
(vehicles with automatic transmis-
sion only)
All doors are automatically locked when
the selector lever is moved out of “P”
position.
Be sure to apply the parking brake when
performing the following operations.
To set the locking linked with the shift
position:
1. Close all doors and turn the engine switch to the “ON” position.
2. Shift the selector lever to the “P” posi- tion.
3. Within 10 seconds of turning the en- gine switch to the “ON” position, press
and hold the driver’s side power door
lock switch in the lock position for 5
seconds and then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again. AUTOMATIC DOOR UNLOCKING
You can select the following functions:
Unlocking linked with the shift posi-
tion (vehicles with automatic trans-
mission only)
All doors are automatically unlocked
when the selector lever is moved to
“P” position.
Unlocking linked with the driver ’s
door
All doors are automatically unlocked
when the driver ’s door is opened within
10 seconds after the engine switch is
turned to the “ACC” or “LOCK” posi-
tion, or the key is removed.
You can set or cancel the automatic
door unlocking functions:
Be sure to apply the parking brake when
performing the following operations.
—Automatic door locking and
unlocking functions

’08 Solara_U (L/O 0802)
24
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
To select the unlocking linked with the
shift position:1. Close all doors and turn the engine switch to the “ON” position.
2. Shift the selector lever to the “P” posi- tion.
3. Within 10 seconds of turning the en- gine switch to the “ON” position, press
and hold the driver’s side power door
lock switch in the unlock position for
5 seconds and then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again. To select the unlocking linked with the
driver ’s door:
1. Close all doors and turn the engine switch to the “ON” position.
2. Automatic transmission models only— Shift the selector lever from “P” to the
“N” position.
3. Within 10 seconds of turning the en- gine switch to the “ON” position, press
and hold the driver’s side power door
lock switch in the unlock position for
5 seconds and then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again.
The windows can be operated with the
switch on each door.
The power windows work when the engine
switch is in the “ON” position.
Key off operation: Both windows work for
about 43 seconds even after the engine
switch is turned off. They stop working
when either door is opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
Power windows

’08 Solara_U (L/O 0802)
25
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
Coupe
Convertible
Automatic operation:
Coupe—Push the switch completely down
or pull it completely up, and then release
it. The window will fully open or close. To
stop the window partway, lightly move the
switch in the opposite direction and then
release it.
Convertible—Push the switch completely
down and then release it. The window will
fully open. To stop the window partway,
lightly pull the switch up and then release
it.
Jam protection function (coupe):
During automatic closing operation or key
off closing operation, the window stops
and opens half way if something gets
caught between the window and body.
If the window receives a strong impact,
this function may work even if nothing is
caught.CAUTION
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in a death or serious injury.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.

’08 Solara_U (L/O 0802)
26
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
Window
lock
switch
OPERATING THE PASSENGER’S
WINDOW
Use the switch on the passenger ’s
door. The driver ’s door also has a
switch that controls the passenger ’s
window.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passenger ’s window
cannot be operated.
OPERATING THE ALL WINDOW
CONTROL SWITCH (convertible)
Both side windows and quarter win-
dows can be operated simultaneously
with the all window control switch.
The windows move as long as you hold
the switch.
To open: Push on the lower side of the
switch
To close: Push on the upper side of the
switch. The side windows will open slightly
before closing if they are not fully opened.
If the side windows stop partway, release
the switch and push it again after a mo-
ment, or operate the side power window
switches on the doors.

’08 Solara_U (L/O 0802)
27
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
INITIALIZATION OF THE DRIVER’S
POWER WINDOW (coupe)
If the driver ’s power window does not
operate automatically or the jam protec-
tion function does not operate correctly,
you should normalize the power win-
dow.
To initialize the power window1. Push down the power window switch and lower the window halfway.
2. Pull up the switch until the window closes and hold the switch for at least
one second.
Make sure that the window opens and
closes automatically. If the power window
cannot be operated properly, have it

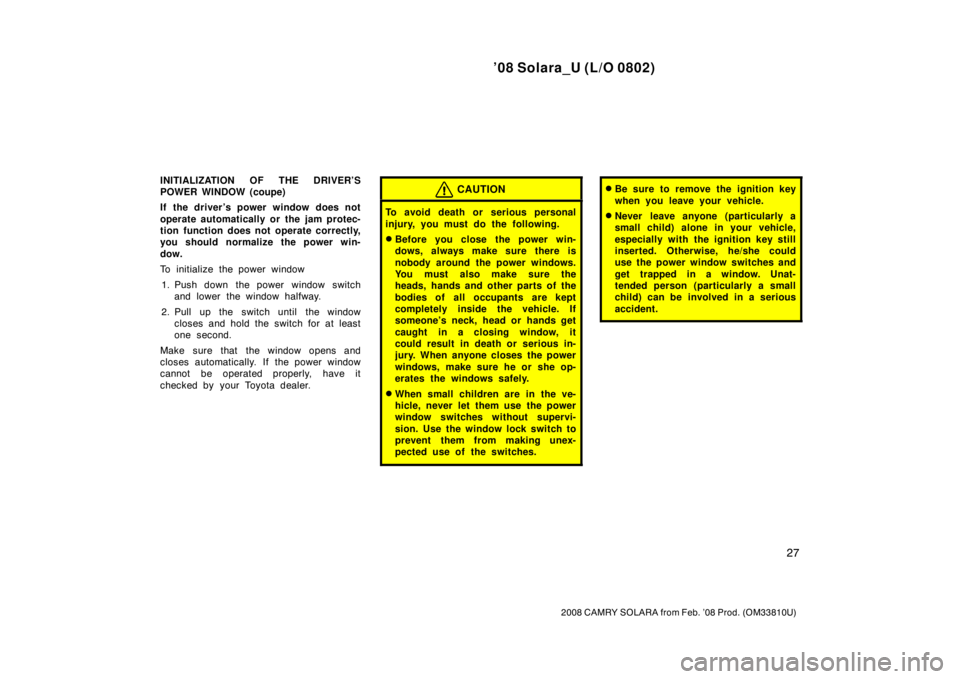

checked by your Toyota dealer.CAUTION
To avoid death or serious personal
injury, you must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.

’08 Solara_U (L/O 0802)
28
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

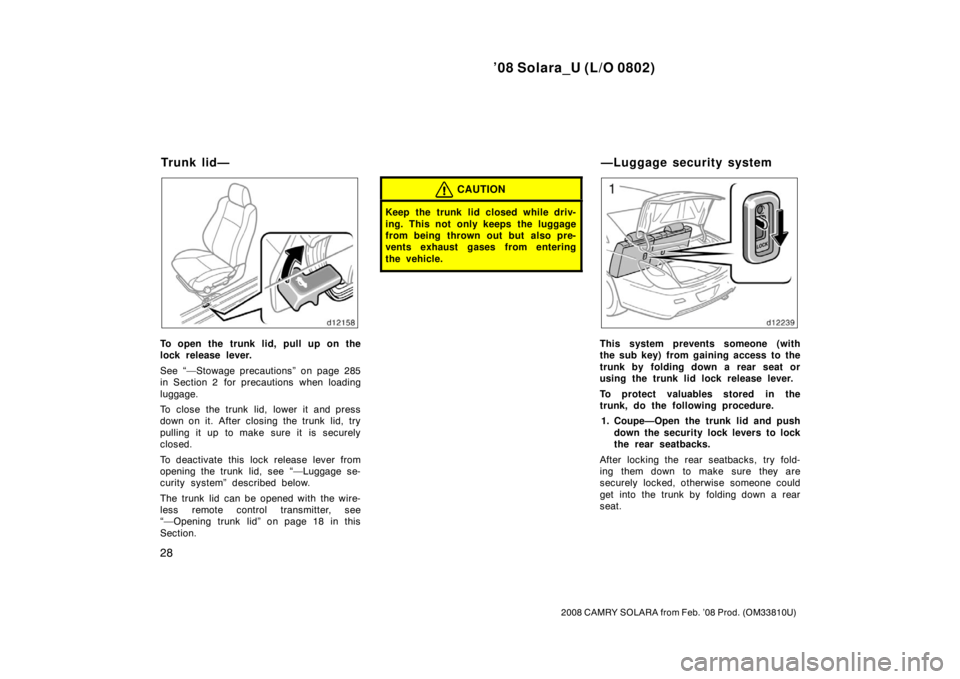

To open the trunk lid, pull up on the
lock release lever.
See “—Stowage precautions” on page 285
in Section 2 for precautions when loading
luggage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
To deactivate this lock release lever from
opening the trunk lid, see “—Luggage se-
curity system” described below.
The trunk lid can be opened with the wire-
less remote control transmitter, see
“—Opening trunk lid” on page 18 in this
Section.
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
This system prevents someone (with
the sub key) from gaining access to the
trunk by folding down a rear seat or
using the trunk lid lock release lever.
To protect valuables stored in the
trunk, do the following procedure.1. Coupe—Open the trunk lid and push down the security lock levers to lock
the rear seatbacks.
After locking the rear seatbacks, try fold-
ing them down to make sure they are
securely locked, otherwise someone could
get into the trunk by folding down a rear
seat.
Trunk lid— —Luggage security system

’08 Solara_U (L/O 0802)
29
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

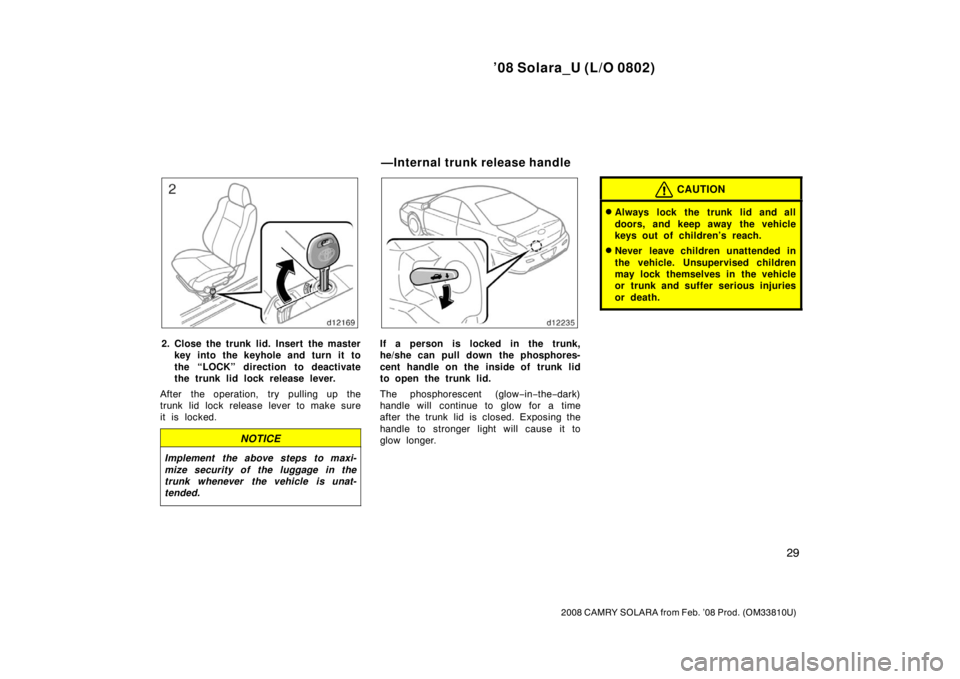

2. Close the trunk lid. Insert the masterkey into the keyhole and turn it to
the “LOCK” direction to deactivate
the trunk lid lock release lever.
After the operation, try pulling up the
trunk lid lock release lever to make sure
it is locked.
NOTICE
Implement the above steps to maxi-
mize security of the luggage in the
trunk whenever the vehicle is unat-
tended.
If a person is locked in the trunk,
he/she can pull down the phosphores-
cent handle on the inside of trunk lid
to open the trunk lid.
The phosphorescent (glow −in −the −dark)
handle will continue to glow for a time
after the trunk lid is closed. Exposing the
handle to stronger light will cause it to
glow longer.
CAUTION
Always lock the trunk lid and all
doors, and keep away the vehicle
keys out of children’s reach.
Never leave children unattended in
the vehicle. Unsupervised children
may lock themselves in the vehicle
or trunk and suffer serious injuries
or death.
—Internal trunk release handle

’08 Solara_U (L/O 0802)
30
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

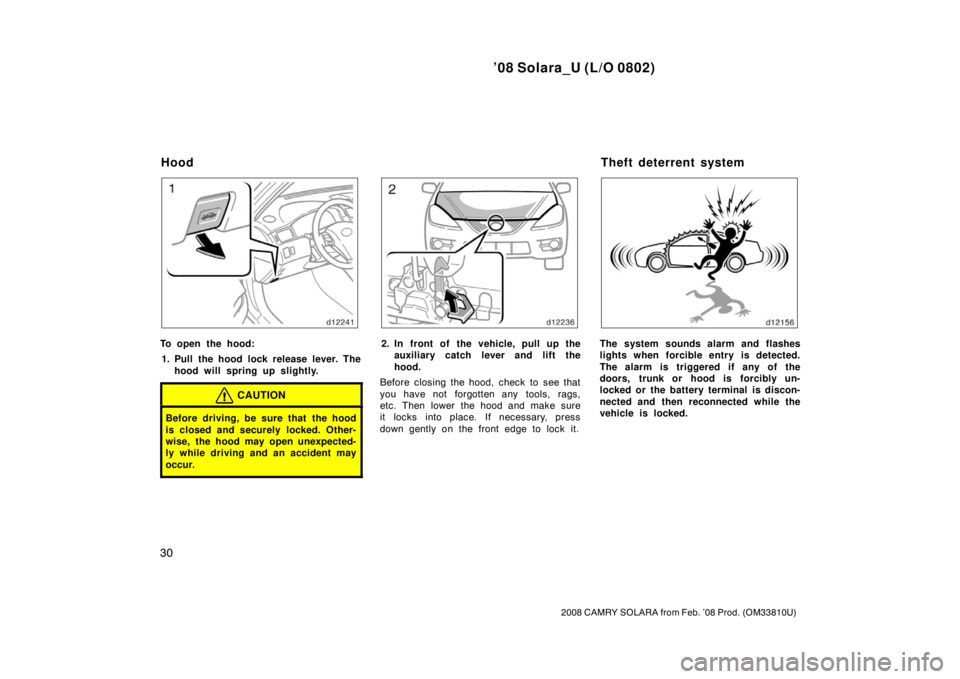

To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.The system sounds alarm and flashes
lights when forcible entry is detected.
The alarm is triggered if any of the
doors, trunk or hood is forcibly un-
locked or the battery terminal is discon-
nected and then reconnected while the
vehicle is locked.
Hood Theft deterrent system

’08 Solara_U (L/O 0802)
31
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

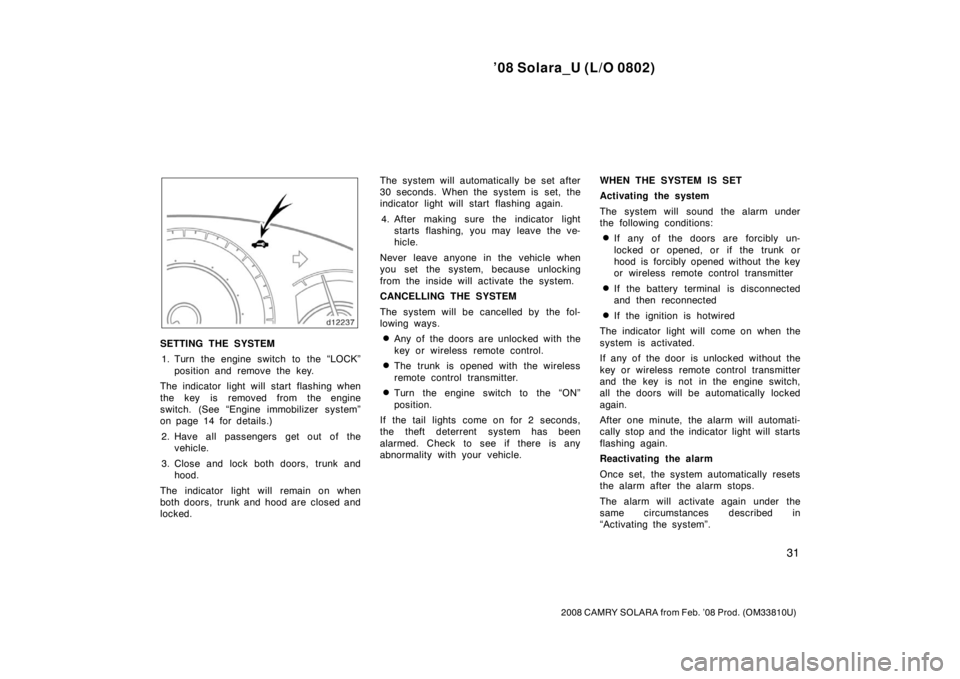

SETTING THE SYSTEM1. Turn the engine switch to the “LOCK” position and remove the key.
The indicator light will start flashing when
the key is removed from the engine
switch. (See “Engine immobilizer system”
on page 14 for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock both doors, trunk and hood.
The indicator light will remain on when
both doors, trunk and hood are closed and
locked. The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
CANCELLING THE SYSTEM
The system will be cancelled by the fol-
lowing ways.Any of the doors are unlocked with the
key or wireless remote control.
The trunk is opened with the wireless
remote control transmitter.
Turn the engine switch to the “ON”
position.
If the tail lights come on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality with your vehicle. WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:
If any of the doors are forcibly un-
locked or opened, or if the trunk or
hood is forcibly opened without the key
or wireless remote control transmitter
If the battery terminal is disconnected
and then reconnected
If the ignition is hotwired
The indicator light will come on when the
system is activated.
If any of the door is unlocked without the
key or wireless remote control transmitter
and the key is not in the engine switch,
all the doors will be automatically locked
again.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.

’08 Solara_U (L/O 0802)
32
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
Stopping the alarm
The alarm will be stopped by the following
three ways:
Turn the engine switch from the
“LOCK” to “ON” position.
Unlock any of the doors with the key
or wireless remote control transmitter.
Open the trunk with the wireless re-
mote control transmitter.
These ways cancel the system at the
same time.
If the battery becomes discharged due
to the vehicle being unused for a long
time, etc., when the battery is recharged
or replaced, the system will give the
alarm. If this happens, immediately unlock
any of the doors with the key or the wire-
less remote control transmitter, and the
alarm will stop. TESTING THE SYSTEM
1. Open both windows.
2. Set the system as described above. The doors should be locked with the
key or wireless remote control transmit-
ter. Be sure to wait until the indicator
light goes off or starts flashing.
3. Unlock any door from the inside. The system s hould activate the alarm.
4. Stop the alarm as described above.
5. Repeat this operation for the other doors, trunk and hood. When testing
the hood, also check that the system
is activated when the battery terminal
is disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
This indicates that the fuel filler door
is on the left side of your vehicle.
Fuel tank cap
