fuel fill door release TOYOTA SOLARA 2008 Owners Manual (in English)

’08 Solara_U (L/O 0802)
33
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

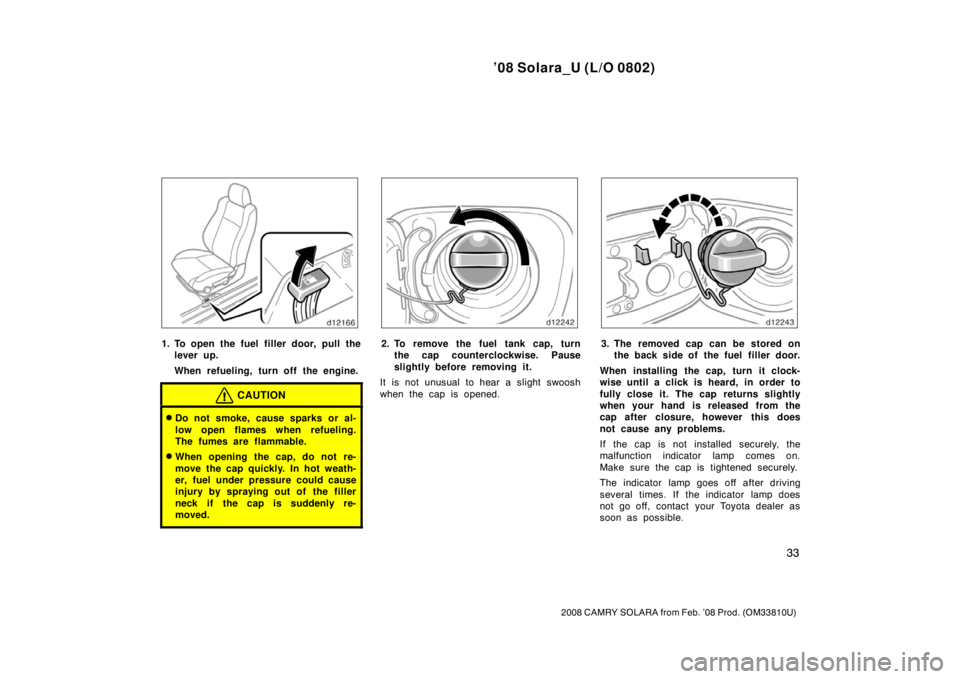

1. To open the fuel filler door, pull thelever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
2. To remove the fuel tank cap, turnthe cap counterclockwise. Pause
slightly before removing it.
It is not unusual to hear a slight swoosh
when the cap is opened.3. The removed cap can be stored on the back side of the fuel filler door.
When installing the cap, turn it clock-
wise until a click is heard, in order to
fully close it. The cap returns slightly
when your hand is released from the
cap after closure, however this does
not cause any problems.
If the cap is not installed securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.

’08 Solara_U (L/O 0802)
390
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
Engine coolant temperature gauge 130. . . . .
Engine immobilizer system 14 . . . . . . . . . . . . .
Engine oil
Winter driving tips 293 . . . . . . . . . . . . . . . . . .
Engine oil replacement reminder
light 133 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine switch 144 . . . . . . . . . . . . . . . . . . . . . . . .
Exhaust gas caution 262 . . . . . . . . . . . . . . . . . .
F
Facts about engine oil consumption 263 . . . .
Flasher, Headlight 116,119 . . . . . . . . . . . . . . . .
Flat tire
After changing wheels 314 . . . . . . . . . . . . . .
Changing tire 311 . . . . . . . . . . . . . . . . . . . . . .
If you have a flat tire 305 . . . . . . . . . . . . . . . .
Jack point 310 . . . . . . . . . . . . . . . . . . . . . . . . .
Jacking precautions 305 . . . . . . . . . . . . . . . .
Jacking up 311 . . . . . . . . . . . . . . . . . . . . . . . .
Loosening wheel nuts 310 . . . . . . . . . . . . . . .
Lowering vehicle 313 . . . . . . . . . . . . . . . . . . .
Reinstalling w heel ornament 313 . . . . . . . . .
Removing wheel ornament 309 . . . . . . . . . .
Wheel block 309 . . . . . . . . . . . . . . . . . . . . . . .
Wheel nuts 312 . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat 256 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid level
Brake 348 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power steering 348 . . . . . . . . . . . . . . . . . . . . .
Washer fluid 363 . . . . . . . . . . . . . . . . . . . . . . .
Fog light switch, Front 123 . . . . . . . . . . . . . . . .
Fold −down rear seat 49 . . . . . . . . . . . . . . . . . . . Foreign countries, Operation in 260
. . . . . . . .
Front fog light switch 123 . . . . . . . . . . . . . . . . .
Front passenger occupant
classification system 81 . . . . . . . . . . . . . . . .
Front passenger ’s seat belt
reminder buzzer 133 . . . . . . . . . . . . . . . . . . .
Front passenger ’s seat belt
reminder light 133 . . . . . . . . . . . . . . . . . . . . . .
Front seat
Rear seat entry 48 . . . . . . . . . . . . . . . . . . . . .
Front seats 45,46,47 . . . . . . . . . . . . . . . . . . . . .
Fuel
Filler door opener 32 . . . . . . . . . . . . . . . . . . .
Fuel economy 296 . . . . . . . . . . . . . . . . . . . . .
Fuel pump shut off system 260 . . . . . . . . . .
Gauge 130 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries 260 . . . . . . .
Tank cap 32 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel information 258 . . . . . . . . . . . . . . . . . . . . .
Fuel pump shut off system 260 . . . . . . . . . . . .
Fuse
Fuse box 362 . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 338 . . . . . . . . . . . . . . . . . . . . . . .
G
Garage door opener 247
. . . . . . . . . . . . . . . . . .
Gauge
Engine coolant temperature 130
. . . . . . . . .
Fuel 130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box 252
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Good driving practice 146,150
. . . . . . . . . . . . .
Grocery bag hooks 255
. . . . . . . . . . . . . . . . . . .
H
Hands −free phone system 189 . . . . . . . . . . . .
Hazard switch 122 . . . . . . . . . . . . . . . . . . . . . . .
Head restraints 51 . . . . . . . . . . . . . . . . . . . . . . .
Headlight beam level control dial 121 . . . . . . .
Headlight switch 116,119 . . . . . . . . . . . . . . . . .
High speed operation
During break −in 258 . . . . . . . . . . . . . . . . . . . .
Hood release, Engine 30 . . . . . . . . . . . . . . . . . .
How to start the engine 290 . . . . . . . . . . . . . . .
I
I/M test 334
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Identification
Engine 269
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire 274
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle 268
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch 144
. . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 124
. . . . . . . . . . . . . . . . . . .
Indicator symbols 8
. . . . . . . . . . . . . . . . . . . . . .
Instrument panel
Brightness control 123
. . . . . . . . . . . . . . . . . .
Fuel gauge 130
. . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols 8
. . . . . . . . . . . . . . . . . . . .
Odometer 131
. . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 131
. . . . . . . . . . . . . . . . . . . . . . . .
Trip meter 131
. . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control 123
. . . . . . . . . .
Instrument panel overview 2,7
. . . . . . . . . . . .
Internal trunk release handle 29
. . . . . . . . . . .
