TOYOTA SUPRA 1996 User Guide

10
OPERATING THE PASSENGER'S WIN-
DOW
Use the switch on the passenger's
door. The driver's door also has a
switch that controls the passenger's
window.
The window moves as long as you hold the switch.
To open: Pull down the switch.
To close: Push up the switch.
If you push in the window lock button on
the driver's door, the passenger's window cannot be operated.
CAUTION!
To avoid serious personal injury,
you must do the following. Always make sure the head,
hands and other parts of the
body of all occupants are kept
completely inside the vehicle be-
fore you close the power win-
dows. If someone's neck, head or
hands gets caught in a closing
window, it could result in a seri-
ous injury. When anyone closes
the power windows, be sure that
they operate the windows safely.
When small children are in the ve-
hicle, never let them use the pow-
er window switches without su-
pervision. Use the window lock
button to prevent them from mak-
ing unexpected use of the switches.
Never leave small children alone
in the vehicle, especially with the
ignition key still inserted. They
could use the power window
switches and get trapped in a
window. Unattended children
can become involved in serious accidents.

11
To open the back door from the out-
side, insert the key and turn it clock- wise.
See ``Luggage stowage precautionsº in
Part 2 for precautions to observe in load- ing luggage.
To close the back door, lower it and press
down on it. After closing the back door, try
pulling it up to make sure it is securely closed.
Keep the back door closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.
CAUTION!
To open the back door from the driv-
er's seat, pull up on the lock release
lever.To open the hood, pull the hood lock
release lever under the dash. The hood
will spring up slightly. In front of the
vehicle, press up on the auxiliary
catch lever and lift the hood. Then
hold the hood open by inserting the
support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its clipÐthis prevents rattles.
Your Supra has two hood locks at the front
edge of the hood. Hood
ÐLock release lever
Back doorÐ

12
To close the hood, lower the hood until it is about 30 cm (12 in.) above the engine
compartment and release it. If the hood is
still not fully closed, press down on it
above the two hood locks. Make sure the
hood is locked securely.
If you notice while driving that the hood is not securely locked, stop the vehicle at
once and close the hood.

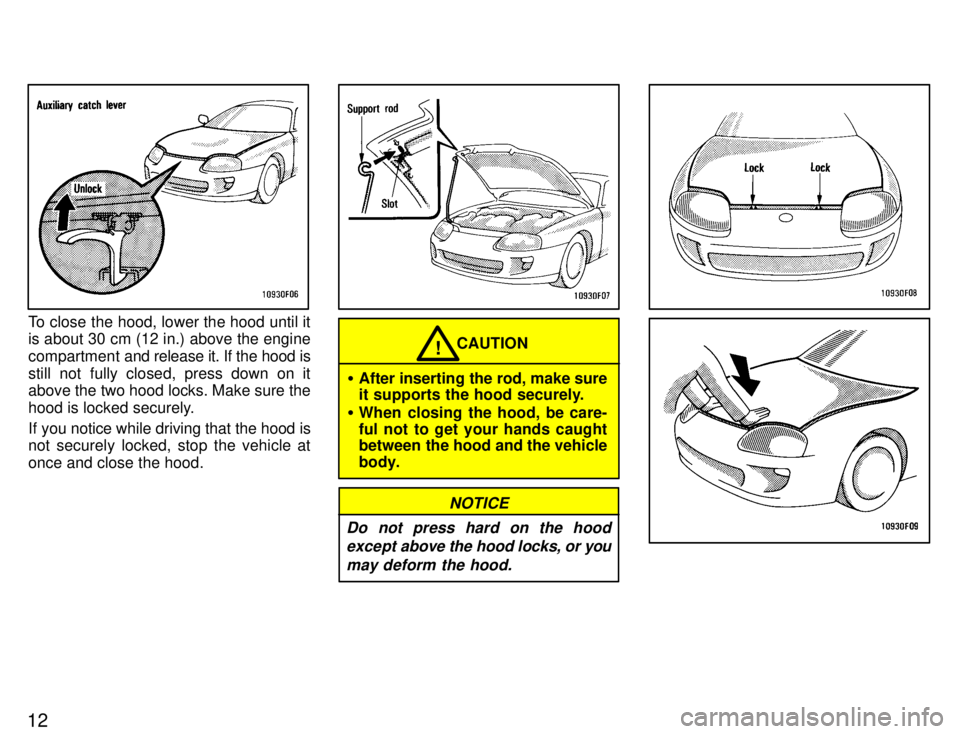

CAUTION!
After inserting the rod, make sure
it supports the hood securely.
When closing the hood, be care- ful not to get your hands caught
between the hood and the vehicle
body.
NOTICE
Do not press hard on the hood except above the hood locks, or you
may deform the hood.

13
To deter the vehicle theft, the system is
designed to give an alarm and keep the
engine from being started if any of the
side doors, back door or hood is forci-
bly unlocked or the battery terminal is
disconnected and then reconnected
when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights, tail lights andother exterior lights. The engine cannot
be started because the starter circuit will be cut.SETTING THE SYSTEM
1. Turn the ignition key to the LOCKº
position and remove it.
2. Have all passengers get out of the ve- hicle.
3. Close and lock all the side doors, back
door and hood.
The indicator light will come on when all
the side doors, back door and hood are
closed and locked.
As the side doors are locked, the system
will give you a preparation time of 30 sec-
onds before the setting, during which the
side doors, back door and hood may be
opened to prepare for the setting. Be careful not to use the key when open-
ing either side door. This will cancel the system.
4. After making sure the indicator light
starts fl
ashing, you may leave the vehicle.
The system will automatically be set after the preparation time passes. The indica-
tor light will flash to show the system is
set. If any of the side doors, back door or
hood is open at that time, the setting is in-
terrupted until it is closed and locked. Never leave anyone in the vehicle when you set the system, because unlocking
from the inside will activate the system. WHEN THE SYSTEM IS SET Activating the system
The system will give the alarm and cut the
starter circuit under the following condi- tions: If any of the side doors, back door or
hood is unlocked without using the
key.
If the battery terminal is disconnectedand then reconnected
After one minute, the alarm will automati-
cally stop with the starter circuit cut kept on.
Theft deterrent system

14Reactivating the alarm
Once
set, the system automatically resets
the alarm each time all the side doors, back door and hood are closed after the alarm stops.
The alarm will be activated again under the following conditions: If any of the side doors, back door or
hood is opened
If the battery terminal is disconnectedand then reconnected
Stopping the alarm
Turn the ignition key from the LOCKº to
ACCº position . The alarm will be stopped
with the starter circuit cut kept on. Stop-
ping the alarm in this manner will keep the
alarm from being reactivated when any of
the side doors, back door or hood is opened.
Interrupting the setting When the system set, the back door can
be opened by using the key without set-
ting off the system. While the back door is
open, the setting is interrupted and the
side doors and hood may be opened in
addition. However, when the battery ter-
minal is disconnected and then recon-
nected, the system is activated. Close and lock the side doors and hood,
and the system will automatically be reset
after two seconds when the back door isclosed with the key removed. CANCELLING THE SYSTEM
Unlock either side door with the key. This
cancels the system completely and the
starter ci
rcuit cut will be cancelled at once.
INDICATOR LIGHT
The indicator light gives the following three indications.
FLASHINGÐThe system is set. You
need the key to open the side doors, back
door and hood.
ONÐThe system will automatically be set
when the time comes. The side doors,back door and hood may be opened with-
out a key.
OFFÐThe system is inactive. You may
open any of the side doors, back door and
hood. TESTING THE SYSTEM
1. Open the windows
2. Set the system as described above.
The side doors should be locked with the
key. Be sure to wait until the indicator light
starts flashing.
3. Unlock
either side door from the inside.
The system should activate the alarm.
4. Cancel the system by unlocking either
side door with the key.
5. Repeat this operation for the other side
door, back door and hood. When testing
on the hood, also check that the system is activated when the battery terminal is dis-
connected and then reconnected.
If the system does not work properly, have
it checked by your Toyota dealer.

15
1. To open the fuel filler door, pull the
lever up.

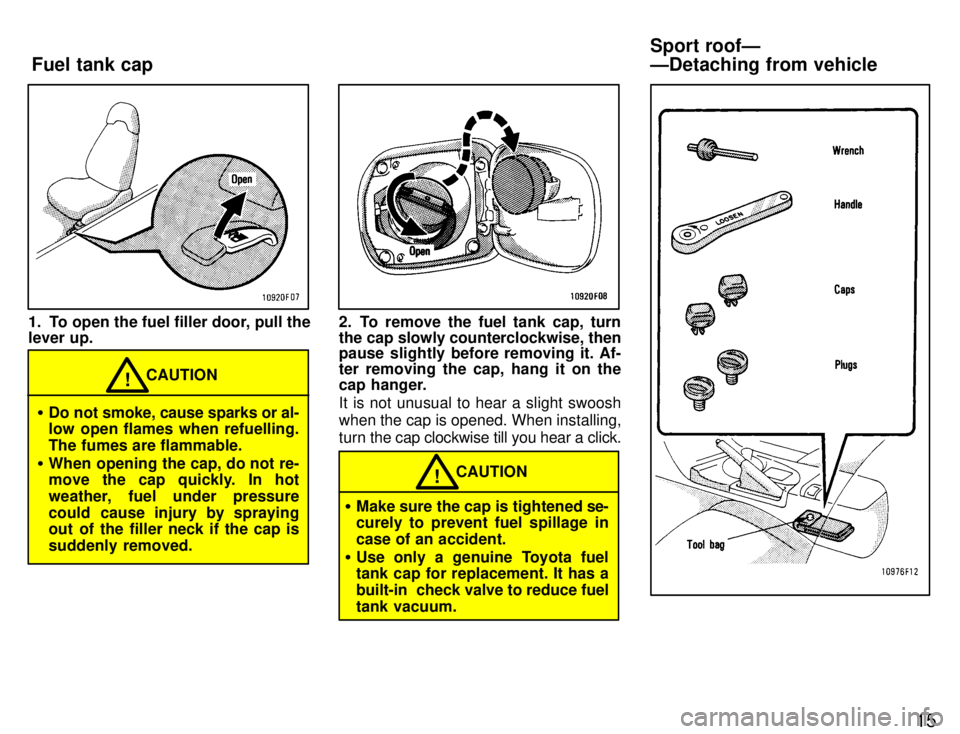

CAUTION!
Do not smoke, cause sparks or al-
low open flames when refuelling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot
weather, fuel under pressure
could cause injury by spraying
out of the filler neck if the cap is
suddenly removed.
2. To remove the fuel tank cap, turn
the cap slowly counterclockwise, then
pause slightly before removing it. Af-
ter removing the cap, hang it on the
cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a click.
CAUTION!
Make sure the cap is tightened se-
curely to prevent fuel spillage in
case of an accident.
Use only a genuine Toyota fuel
tank cap for replacement. It has a
built-in check valve to reduce fuel
tank vacuum.
Fuel tank cap Sport roofÐ ÐDetaching from vehicle

161. Get the tool bag out of the console box.
In the tool bag, you will find a special kit
consisting of:
Wrench and handle
ÐFor turning the center lock and the
front and rear bolts
Caps ÐFor covering the front bolts
PlugsÐFor stopping up the rear holes
2. Face the LOOSENº side of the
handle toward you and insert the
wrench into the handle .3. Unlock the center lock by inserting
the wrench and turning it a 1/4 turn counterclockwise.
Before detaching the sport roof from the
vehicle, fully open both of the side doorsand windows, and clear the seats.

17
4. Loosen the bolts in the order shown
by turning the wrench counterclock-
wise. Then lift up the front edge of the sport roof and lift off the roof forward.

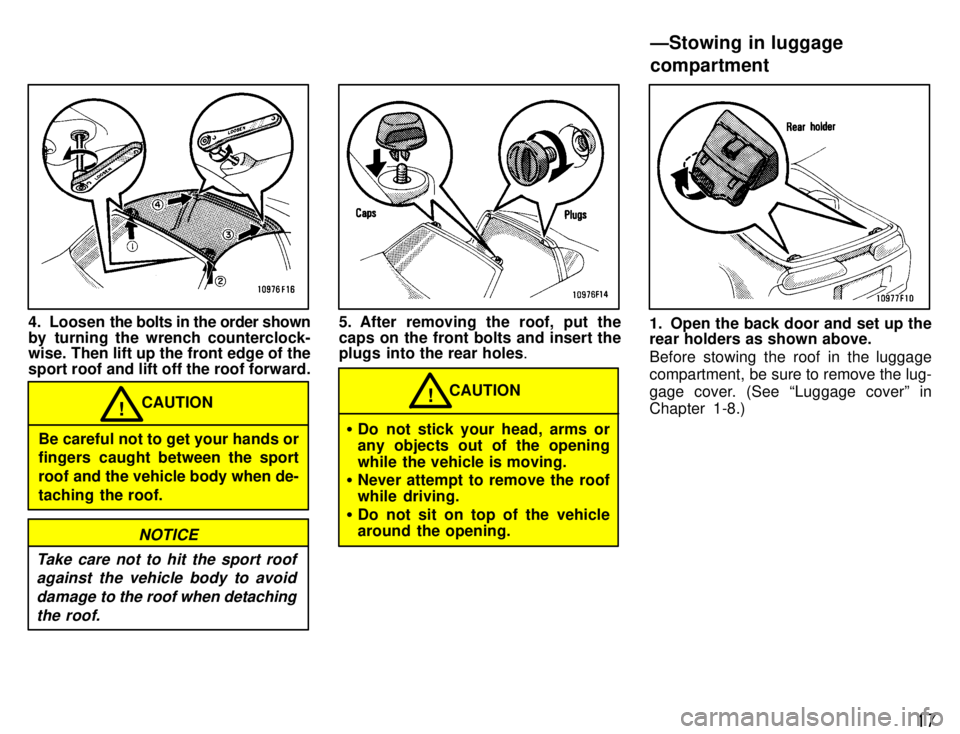

Be careful not to get your hands or
fingers caught between the sport
roof and the vehicle body when de-
taching the roof.
CAUTION!
NOTICE
Take care not to hit the sport roof against the vehicle body to avoid
damage to the roof when detaching the roof.
5. After removing the roof, put the caps on the front bolts and insert the
plugs into the rear holes .
Do not stick your head, arms or
any objects out of the opening
while the vehicle is moving.
Never attempt to remove the roof
while driving.
Do not sit on top of the vehicle
around the opening.
CAUTION!
1. Open the back door and set up the rear holders as shown above.
Before stowing the roof in the luggage
compartment, be sure to remove the lug-
gage cover. (See Luggage coverº in Chapter 1-8.)ÐStowing in luggage compartment

18
2. Put in the roof from the left side
as shown. Then insert the front edge
of the roof in the front holders, and
engage the rear edge with the rear holders.
Put the front edge on the triangle marks of the front holders.
To engage the rear edge of the roof with
the rear holders, put the rear edge on the holders while pushing the front edge fully forward against the front holders.

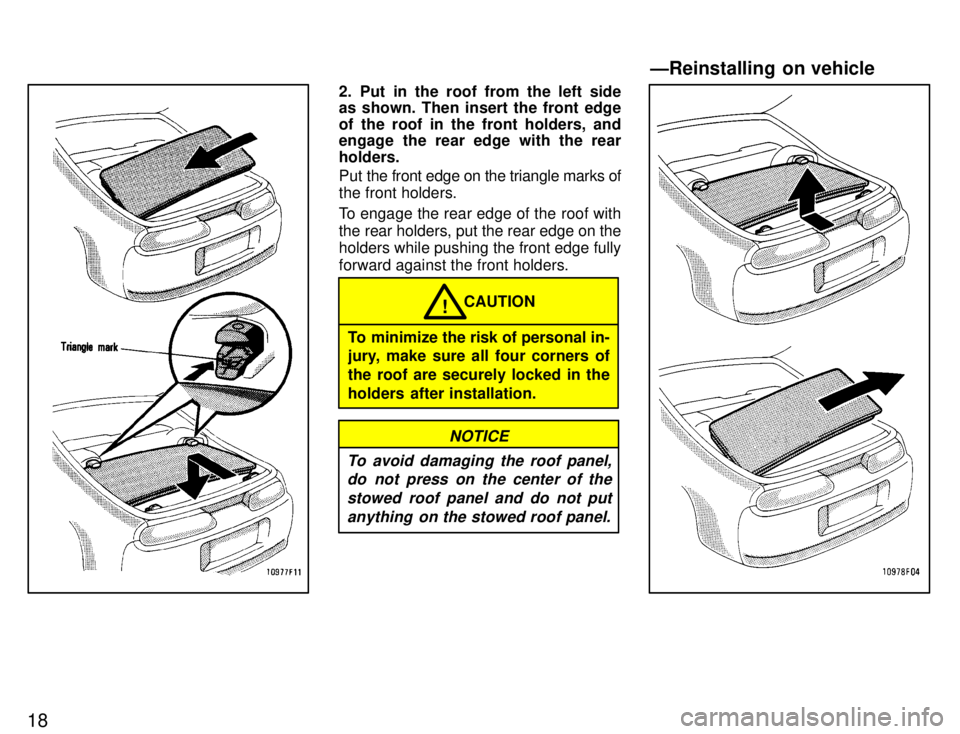

To minimize the risk of personal in-
jury, make sure all four corners of
the roof are securely locked in the
holders after installation.
CAUTION!
NOTICE
To avoid damaging the roof panel, do not press on the center of the
stowed roof panel and do not put anything on the stowed roof panel.
ÐReinstalling on vehicle

19
1. Lift up the rear edge while pushing
the roof fully forward, then pull the
front edge out of the holders. Remove
the roof from the right side as shown.
After removing the roof, put back the rear
holders by pulling up the lock release knob.
NOTICE
Do not operate the knob until the roof has been removed.
2. Place the rear edge on first and then
the front edge.
Before installation, be sure to take the
caps and plugs off.

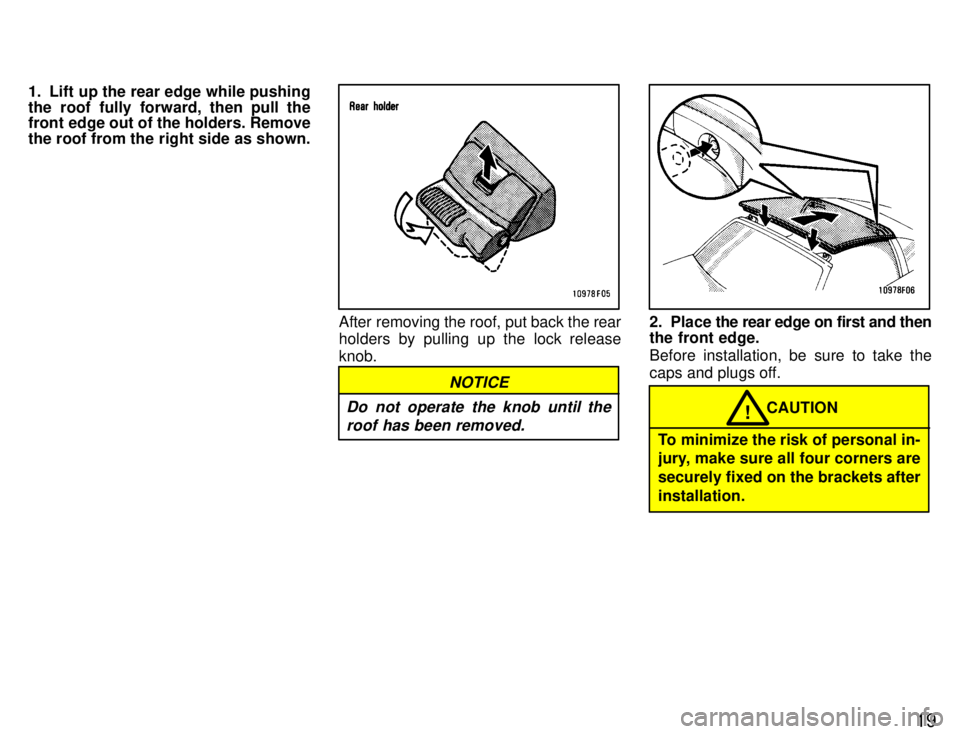

CAUTION!
To minimize the risk of personal in-
jury, make sure all four corners are
securely fixed on the brackets afterinstallation.
