TOYOTA SUPRA 1998 User Guide

SUPRA (U)11
Back doorÐ
To open the back door from the out-
side, insert the key and turn it clock-
wise.
See ºLuggage stowage precautionsº in
Part
2 for precautions to observe in load-
ing luggage.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
CAUTION
Keep the back door closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
ÐLock release lever
To open the back door from the driver's
seat, pull up on the lock release lever.

SUPRA (U)
12
Hood
To open the hood, do the following.
1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up on the
a uxilialy catch l ever and lift the
hood.
3. Hold the hood open by inserting the support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its clip-
this prevents rattles.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.

SUPRA (U)13
Your Supra has two hood locks at the
front edge of the hood.
To close the hood, lower the hood until it
is about 30 cm (12 in.) about the engine
compartment and release it. If the hood is
still not fully closed, press down on it
above the two hood locks. Make sure the
hood is locked securely.
If you notice while driving that the hood
is not securely locked, stop the vehicle at
once and close the hood.
CAUTION
When closing the hood, be careful
not to get your hands caught between
the hood and the vehicle body.
NOTICE
Do not press hard on the hood except
above the hood locks, or you maydeform the hood.
Theft deterrent system
To deter the vehicle theft, the system
is designed to give an alarm and keep
the engine from being started if any of
the side doors, back door or hood is
forcibly unlocked or the battery termi-
nal is disconnected and then recon-
nected when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights, tail lights and
other exterior lights. The engine cannot be
started because the starter circuit will be
cut.

SUPRA (U)
14
SETTING THE SYSTEM 1. Turn the ignition key to the ºLOCKº position and remove it.
2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors, back door and hood.
The indicator light will come on when all
the side doors, back door and hood are
closed and locked.
As the side doors are locked, the system
will give you a preparation time of 30
seconds before the setting, during which
the side doors, back door and hood may
be opened to prepare for the setting. Be careful not to use the key when open-
ing any side door. This will cancel the
system.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
The system will automatically be set after
the preparation time passes. The indicator
light will flash to show the system is set.
If any of the side doors, back door or
hood is open at that time, the setting is
interrupted until it is closed and locked.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm and cut
the starter circuit under the following
conditions: If any of the side doors, back door or
hood is unlocked without using the key
If the battery terminal is disconnected
and then reconnected
After one minute, the alarm will automati-
cally stop with the starter circuit cut kept on. Reactivating the alarm
Once set, the system automatically resets
the alarm each time all the side doors,
back door and hood are closed after the
alarm stops.
The alarm will be activated again under
the following conditions:
If any of the side doors, back door or
hood is opened
If the battery terminal is disconnected
and then reconnected
Stopping the alarm
Turn the ignition key from the ºLOCKº to
ºACCº position. The alarm will be stopped
with the starter circuit cut kept on. Stop-
ping the alarm in this manner will keep
the alarm from being reactivated when any
of the side doors, back door or hood is opened.
Interrupting the setting
With the system set, the back door can
be opened by using the key without set-
ting off the system. While the back door
is open, the setting is interrupted and the
side doors and hood may be opened in
addition. However, when the battery termi-
nal is disconnected and then reconnected,
the system is activated.

SUPRA (U)15
Close and lock the side doors and hood,
and the system will automatically be reset
after two seconds when the back door is
closed with the key removed.
CANCELLING THE SYSTEM
Unlock either side door with the key. This
cancels the system completely and the
starter circuit cut will be cancelled at
once.
INDICATOR LIGHT
The indicator light gives the following
three indications.
FLASHINGÐThe system is set. You need
the key to open the side doors, back door
and hood.
ONÐThe system will automatically be set
when the time comes. The side doors,
back door and hood may be opened with-
out a key.
OFFÐThe system is inactive. You may
open any of the side doors, back door
and hood.
TESTING THE SYSTEM
1. Open the windows.
2. Set the system as described above. The side doors should be locked with
the key. Be sure to wait until the indi-
cator light starts flashing.
3. Unlock either side door from the inside. The system should activate the alarm.
4. Cancel the system by unlocking either side doors with the key.
5. Repeat this operation for the other side doors, back door and hood. When test-
ing on the hood, also check that the
system is activated when the battery
terminal is disconnected and then re-
connected.
If the system does not work properly,
have it checked by your Toyota dealer. Fuel tank cap
1. To open the fuel filler door, pull the
lever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.

SUPRA (U)
16
2. To remove the fuel tank cap, turn the cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When insta lling,
turn the cap clockwise till you hear aclick.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.

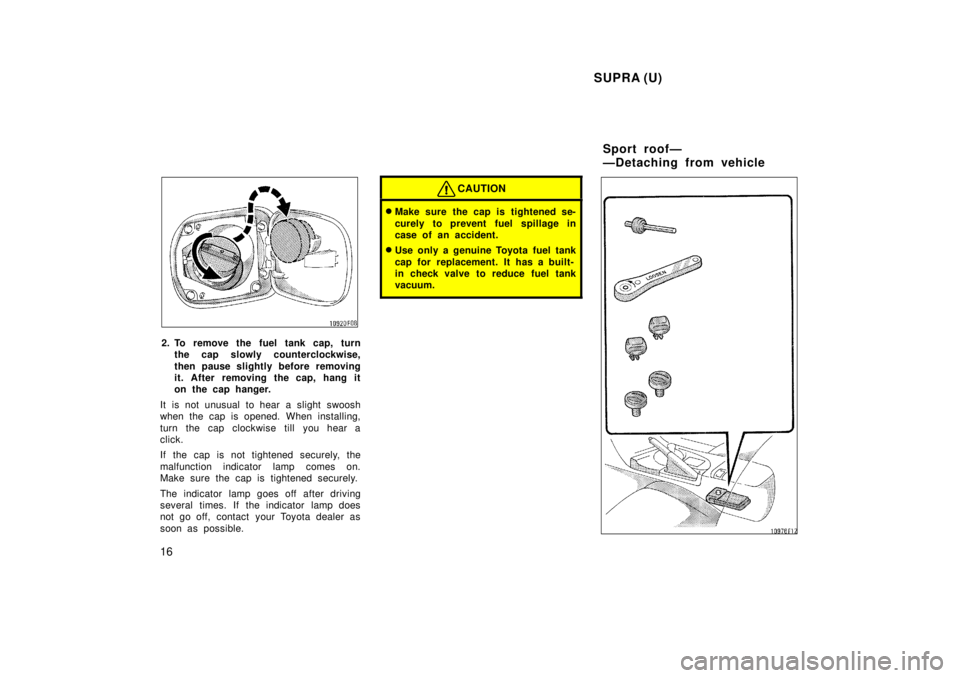

CAUTION
Make sure the cap is tightened se-
curely to prevent fuel sp illage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It has a built-
in check valve to reduce fuel tank
vacuum.
Sport roofÐ
ÐDetaching from vehicle

SUPRA (U)17
1. Get the tool bag out of the console
box.
In the tool bag, you will find a special kit
consisting of: Wrench and handle
ÐFor turning the center lock and the
front and rear bolts
Caps
ÐFor covering the front bolts
Plugs
ÐFor stopping up the rear holes
2. Face the ºLOOSENº side of the han-
dle toward you and insert the
wrench into the handle.3. Unlock the center lock by insertingthe wrench and turning it a 1/4 turn
counterclockwise.
Before detaching the sport roof from the
vehicle, fully open both of the side doors
and windows, and clear the seats.

SUPRA (U)
18
4. Loosen the bolts in the order shown by turning the wrench counterclock-
wise. Then lift up the front edge of
the sport roof and lift off the roof
forward.
CAUTION
Be careful not to get your hands or
fingers caught between the sport roof
and the vehicle body when detaching
the roof.
NOTICE
Take care not to hit the sport roof
against the vehicle body to avoiddamage to the roof when detaching the roof.
5. After removing the roof, put the caps on the front bolts and insert
the plugs into the rear holes.
CAUTION
Do not stick your head, arms or
any objects out of the opening
while the vehicle is moving.
Never attempt to remove the roof
while driving.
Do not sit on top of the vehicle
around the opening.

SUPRA (U)19
1. Open the back door and set up therear holders as shown above.
Before stowing the roof in the luggage
compartment, be sure to remove the lug-
gage cover. (See ºLuggage coverº in
Chapter 1- 8.)
2. Put in the roof from the left side as shown. Then insert the front edge of
the roof in the front holders, and
engage the rear edge with the rear
holders.
Put the front edge on the triangle marks
of the front holders.
To engage the rear edge of the roof with
the rear holders, put the rear edge on
the holders while pushing the front edge
fully forward against the front holders.
CAUTION
To minimize the risk of personal inju-
ry, make sure all four corners of the
roof are securely locked in the hold-
ers after installation.
NOTICE
To avoid damage the roof panel, do not press on the center of the stowedroof panel and do not put anyting on the stowed roof panel.
ÐStowing in luggage
compartment

SUPRA (U)
20
ÐReinstalling on vehicle
1. Lift up the rear edge while pushing
the roof fully forward, then pull the
front edge out of the holders. Re-
move the roof from the right side as shown.
After removing the roof, put back the rear
holders by pulling up the lock release
knob.
NOTICE
Do not operate the knob until the roof
has been removed.
