TOYOTA TACOMA 2006 Owners Manual (in English)

1212006 TACOMA from Jan.’06 Prod. (OM35871U)
LS13066
TO USE THE ANCHOR BRACKET:1. Remove the head restraint.
LS13067
2. Pull the seatback release strap and swing the seatback forward slightly,
then latch the hook onto the anchor
bracket.
Return the seatback to its original
position.
LS13068
3. Fix the child restraint system withthe seat belt and tighten the top
strap.
Replace the head restraint.
For instructions on installing the child re-
straint system, see “Child restraint” on
page 90 in this Section.

1222006 TACOMA from Jan.’06 Prod. (OM35871U)
CAUTION
When returning the seatback to its
original position, make sure the
seatback is securely locked by
pushing forward and rearward on
the top of the seatback. Failure to
do so will prevent the seat belt
from operating properly.
Make sure the top strap is securely
latched, and check that the child
restraint system is secure by push-
ing and pulling it in different direc-
tions. Follow all the installation in-
structions provided by its manufac-
turer.
LS13078
Separate seats
LS13079
Bench seat
Lower anchorages for Child Restraint
Systems equipped with hook or buckle
type attachments are installed in the
front passenger seat.
The anchorages are installed in the gap
between the seat cushion and seatback of
the right side of the seat as shown in the
illustration.
Child Restraint Systems equipped with
hook or buckle type attachements can be
installed using these anchorages. For such
systems, it is not necessary to use the
vehicle seatbelts.
—Installation with child
restraint lower anchorages
(regular cab models)

1232006 TACOMA from Jan.’06 Prod. (OM35871U)
LS13160a
1st lock
position
10th lock
position
CHILD RESTRAINT SYSTEM
INSTALLATION 1. Separate seats only—Fold down the seatback and back to the 1st lock
position (most upright position) until
it locks into place. Adjust the seat-
back to the 10th lock position.
Make sure the seatback is locked secure-
ly.LS13080
Canada only
Ty p e A
LS13081
Canada only
Ty p e B

1242006 TACOMA from Jan.’06 Prod. (OM35871U)
2. Widen the gap between the seatcushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
3. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 114 in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
After securing the child restraint
system, never slide or recline the
seat.
LS13078
Front seat
LS13099
Rear seat
—Installation with child
restraint lower anchorages
(access cab models)

1252006 TACOMA from Jan.’06 Prod. (OM35871U)
Lower anchorages for Child Restraint
Systems equipped with hook or buckle
type attachments are installed in the
front passenger seat and the right rear
auxiliary seat.
For front seat without a seatback table—
The anchorages are installed in the gap
between the seat cushion and seatback as
shown in the illustration.
For front seat with a seatback table—
The anchorages are installed in the seat
cushion.
Child Restraint Systems equipped with
hook or buckle type attachments can be
installed using these anchorages. For such
systems, it is not necessary to use the
vehicle seatbelts.
Instructions for installing these types of
Child Restraint Systems in the right rear
seating area are shown in the illustration
on page 127.
CAUTION
To install the child restraint system
properly, make sure the bottom cush-
ion is flipped over whenever you use
a child restraint system in the rear
seating area.
LS13160a
1st lock
position
10th lock
position
CHILD RESTRAINT SYSTEM
INSTALLATION 1. Front seat—Fold down the front seat seatback and back to the 1st lock
position (most upright position) until
it locks into place. Adjust the seat-
back to the 10th lock position.
Make sure the seatback is locked secure-
ly.LS13082
Canada only
Front seat without seatback table (type A)

1262006 TACOMA from Jan.’06 Prod. (OM35871U)

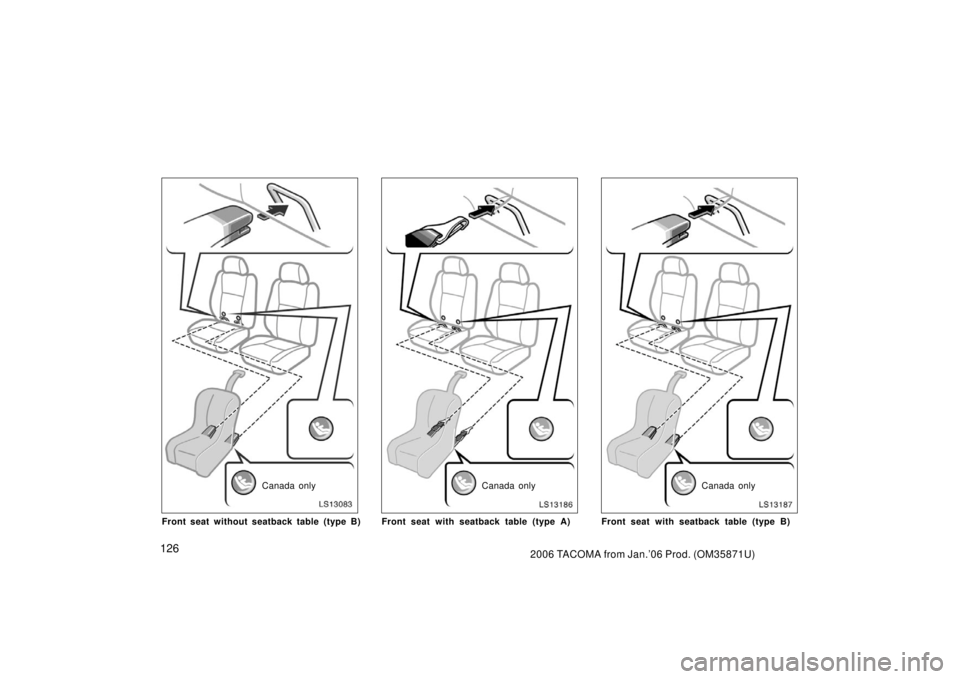

LS13083
Canada only
Front seat without seatback table (type B)
LS13186
Canada only
Front seat with seatback table (type A)
LS13187
Canada only
Front seat with seatback table (type B)

1272006 TACOMA from Jan.’06 Prod. (OM35871U)
Front seat—2. Front seat without seatback table— Widen the gap between the seat
cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
Front seat with seatback table—Wid-
en the slits of the seat cushion
slightly and confirm the position of
the lower anchorages near the but-
ton on the seat cushion.
3. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
Rear seat—
See the diagrams at right and the in-
structions on page 128.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.

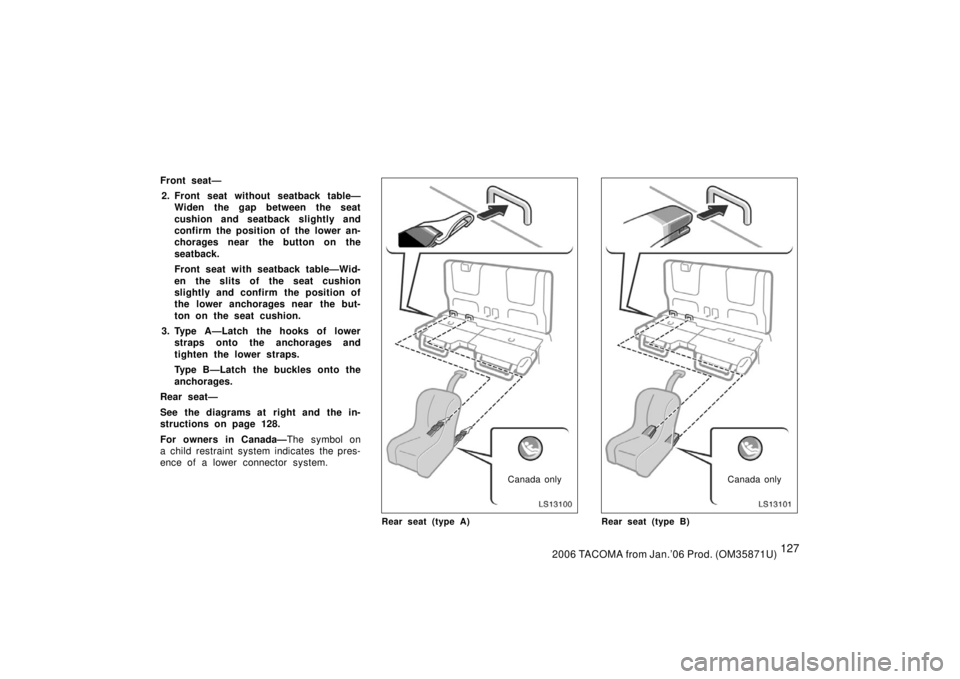

LS13100
Canada only
Rear seat (type A)
LS13101
Canada only
Rear seat (type B)

1282006 TACOMA from Jan.’06 Prod. (OM35871U)
To install a Child Restraint System in the
rear seat properly, make sure the bottom
seat cushion is flipped over. If the bottom
seat cushion is already flipped over, pro-
ceed to step 3.1. Pull the lock release strap.
2. Flip over the bottom cushion.
LS13004a
3. Be sure to follow the Child Restraint System manufacturer ’s instructions for
the recommended installation proce-
dure.
4. Push and pull the Child Restraint Sys- tem in different directions to ensure a
secure installation.
5. If the Child Restraint System shakes or vibrates when used, install a cushion
between the Child Restraint System
and the flipped −over surface of the
seat.
CAUTION
To install the child restraint system
properly, make sure the bottom cush-
ion is flipped over whenever you use
a child restraint system in the rear
seating area.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 117 in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.
CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.

1292006 TACOMA from Jan.’06 Prod. (OM35871U)
After securing the child restraint
system, never slide or recline the
seat.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.

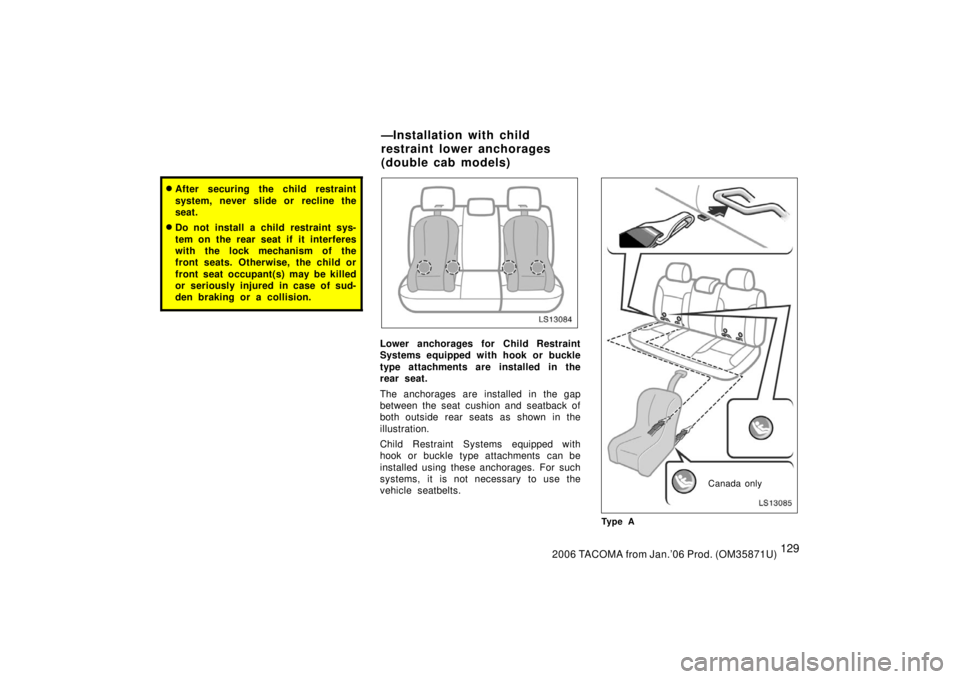

LS13084
Lower anchorages for Child Restraint
Systems equipped with hook or buckle
type attachments are installed in the
rear seat.
The anchorages are installed in the gap
between the seat cushion and seatback of
both outside rear seats as shown in the
illustration.
Child Restraint Systems equipped with
hook or buckle type attachments can be
installed using these anchorages. For such
systems, it is not necessary to use the
vehicle seatbelts.LS13085
Canada only
Ty p e A
—Installation with child
restraint lower anchorages
(double cab models)

1302006 TACOMA from Jan.’06 Prod. (OM35871U)

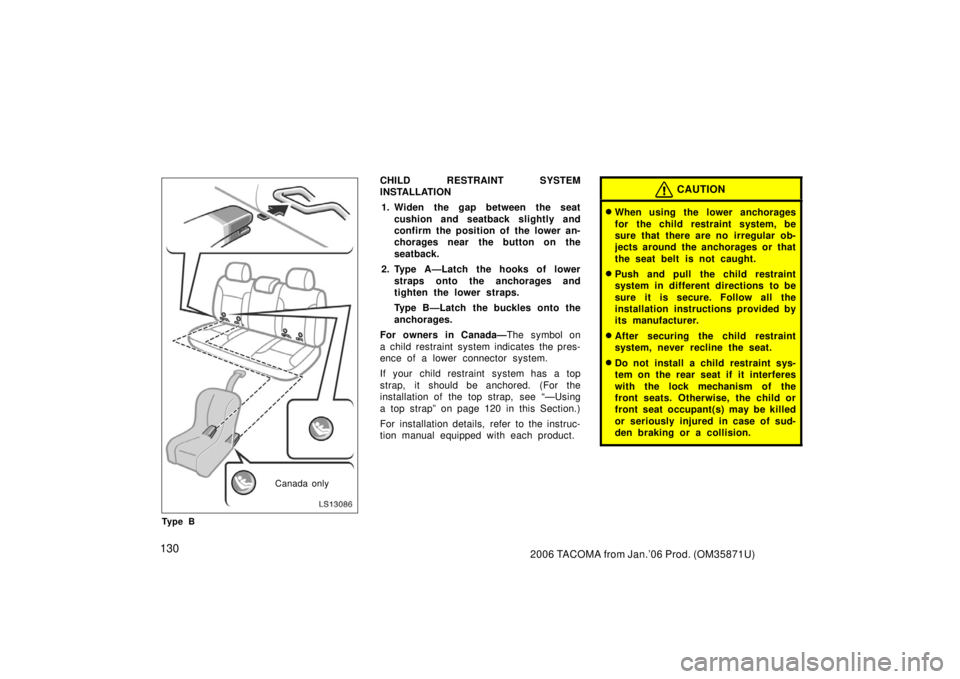

LS13086
Canada only
Ty p e B
CHILD RESTRAINT SYSTEM
INSTALLATION 1. Widen the gap between the seat cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
2. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 120 in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
After securing the child restraint
system, never recline the seat.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.
