TOYOTA TACOMA 2008 Owners Manual (in English)

131
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
After securing the child restraint
system, never slide or recline the
seat.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.

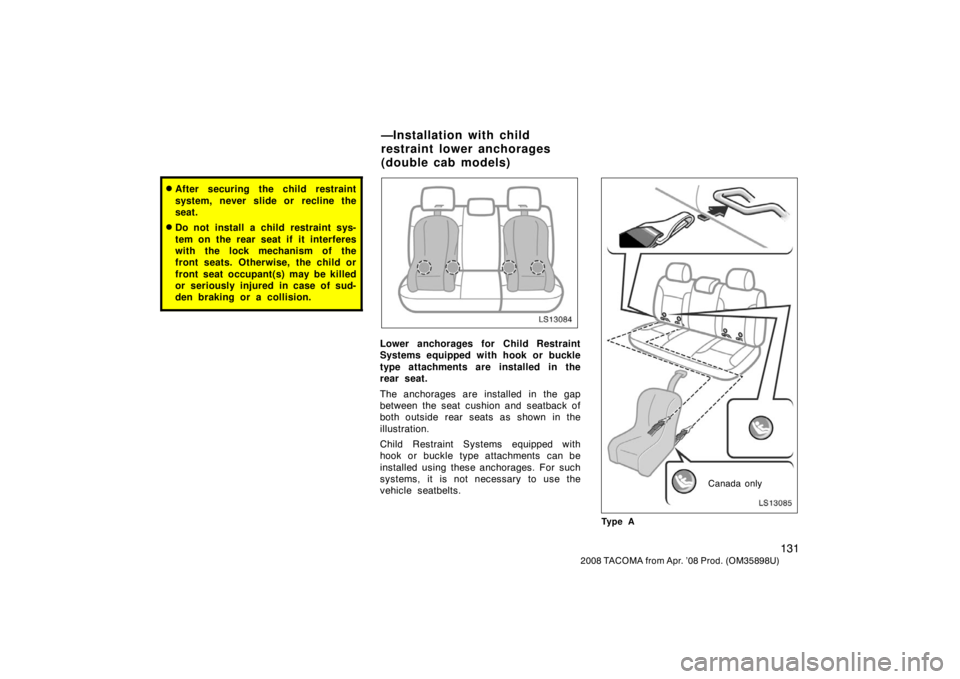

LS13084
Lower anchorages for Child Restraint
Systems equipped with hook or buckle
type attachments are installed in the
rear seat.
The anchorages are installed in the gap
between the seat cushion and seatback of
both outside rear seats as shown in the
illustration.
Child Restraint Systems equipped with
hook or buckle type attachments can be
installed using these anchorages. For such
systems, it is not necessary to use the
vehicle seatbelts.LS13085
Canada only
Ty p e A
—Installation with child
restraint lower anchorages
(double cab models)

132
2008 TACOMA from Apr. ’08 Prod. (OM35898U)

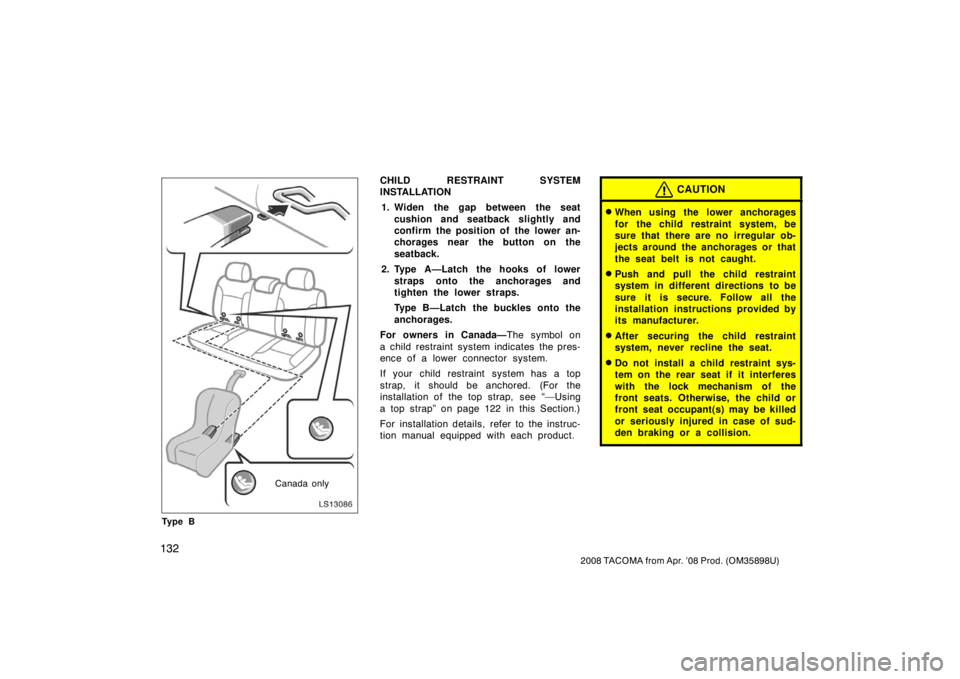

LS13086
Canada only
Ty p e B
CHILD RESTRAINT SYSTEM
INSTALLATION 1. Widen the gap between the seat cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
2. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 122 in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
After securing the child restraint
system, never recline the seat.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.

133
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt and telescopic steering wheel134
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors 134
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Anti −glare inside rear view mirror 136
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto anti −glare inside rear view mirror 137
. . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Vanity mirrors 138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
SECTION 1 4

134
2008 TACOMA from Apr. ’08 Prod. (OM35898U)

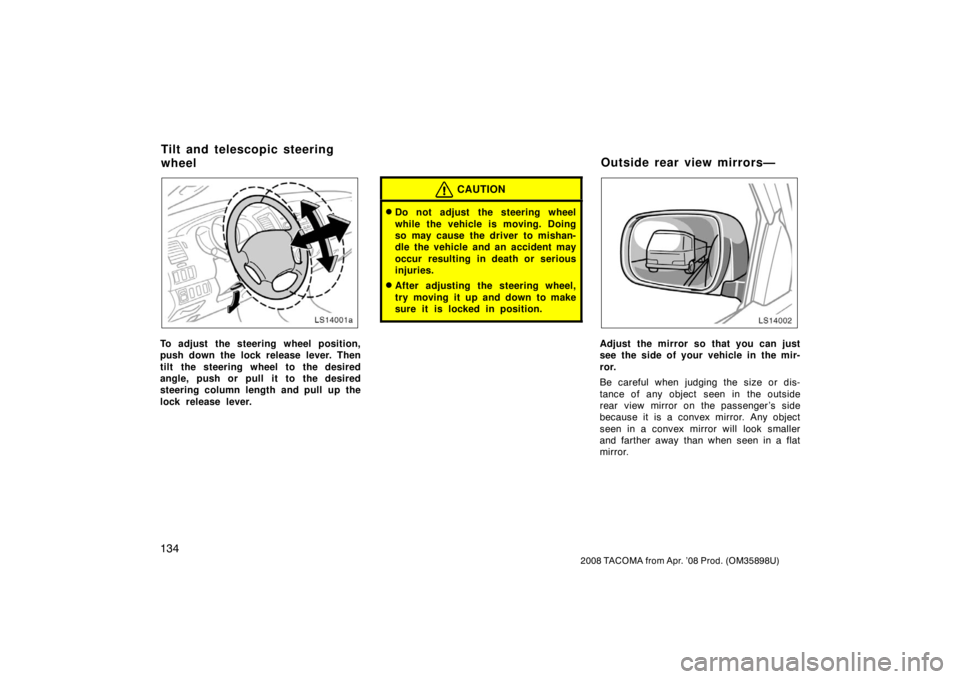

LS14001a
To adjust the steering wheel position,
push down the lock release lever. Then
tilt the steering wheel to the desired
angle, push or pull it to the desired
steering column length and pull up the
lock release lever.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
LS14002
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
Tilt and telescopic steering
wheelOutside rear view mirrors—

135
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.

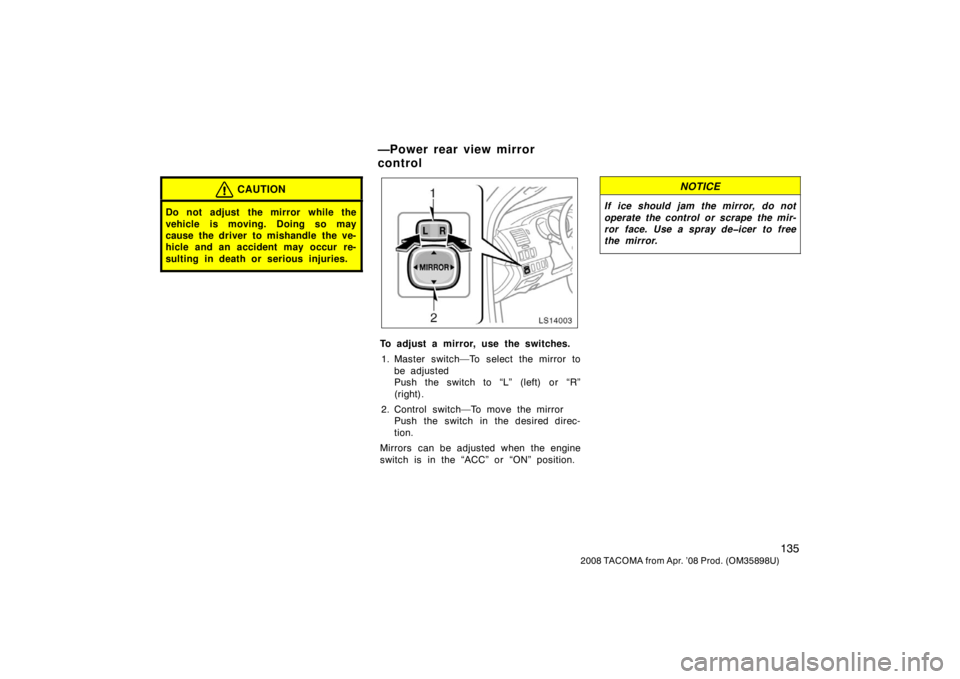

LS14003
To adjust a mirror, use the switches.1. Master switch—To select the mirror to be adjusted
Push the switch to “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the engine
switch is in the “ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
—Power rear view mirror
control

136
2008 TACOMA from Apr. ’08 Prod. (OM35898U)

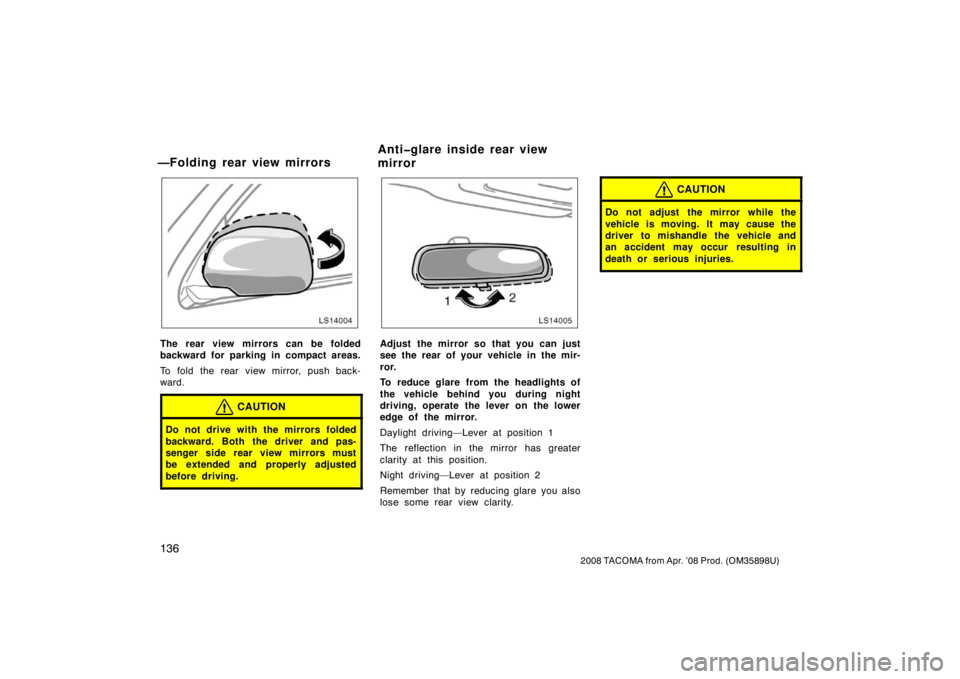

LS14004
The rear view mirrors can be folded
backward for parking in compact areas.
To fold the rear view mirror, push back-
ward.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
LS14005
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
death or serious injuries.
—Folding rear view mirrorsAntiglare inside rear view
mirror

137
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
U14028
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This mirror is equipped with auto anti
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the engine switch is turned on, the
inside rear view mirror always turns on in
the automatic function mode.
The indicator illuminates to show you that
the function is on.In automatic function mode, if the mirror
detects light from the headlights of the
vehicle behind you, the mirror surface
darkens slightly to reduce the reflected
light.
To turn off and on the automatic function,
push the “
” switch.
Adjust it before driving so that the rear
view is in the best condition.
When the inside air temperature is low, it
may take a little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
U14029
To ensure correct functioning of anti
glare mirror sensors located on both
sides of the mirror, do not touch or
cover the sensors with your finger or
a piece of cloth, etc.
Auto antiglare inside rear
view mirror

138
2008 TACOMA from Apr. ’08 Prod. (OM35898U)

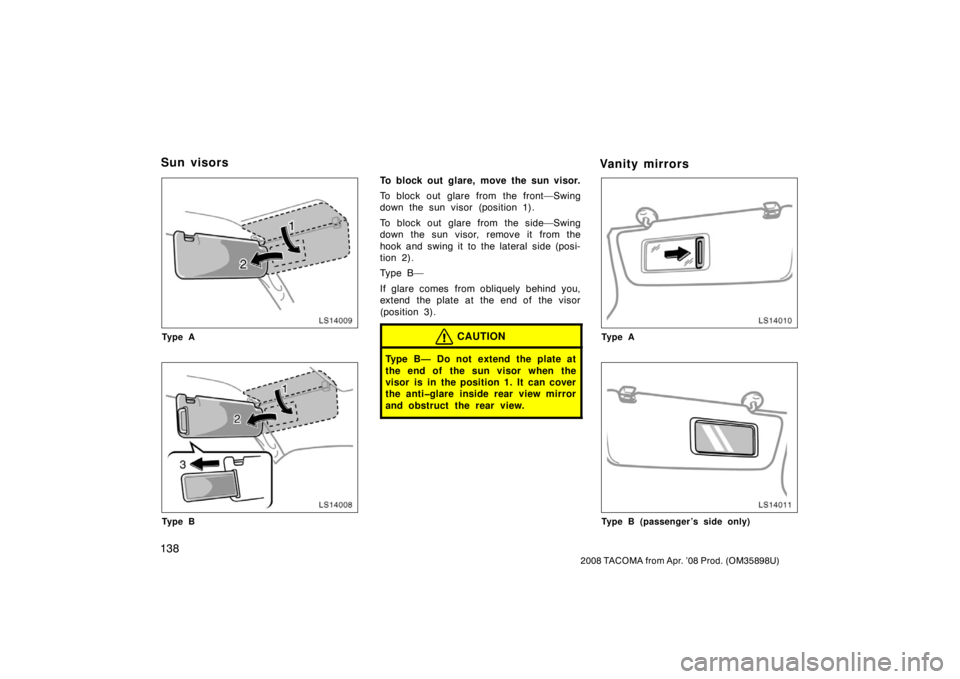

LS14009
Ty p e A
LS14008
Ty p e B
To block out glare, move the sun visor.
To block out glare from the front—Swing
down the sun visor (position 1).
To block out glare from the side—Swing
down the sun visor, remove it from the
hook and swing it to the lateral side (posi-
tion 2).
Ty p e B —
If glare comes from obliquely behind you,
extend the plate at the end of the visor
(position 3).
CAUTION
Type B— Do not extend the plate at
the end of the sun visor when the
visor is in the position 1. It can cover
the antiglare inside rear view mirror
and obstruct the rear view.
Vanity mirrors
LS14010
Ty p e A
LS14011
Type B (passenger’s side only)
Sun visors

139
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
Ty p e A —
To use the vanity mirrors, swing down
the sun visor and slide the cover.
Ty p e B —
To use the vanity mirror, swing down
the sun visor.
